In-ceilling housing

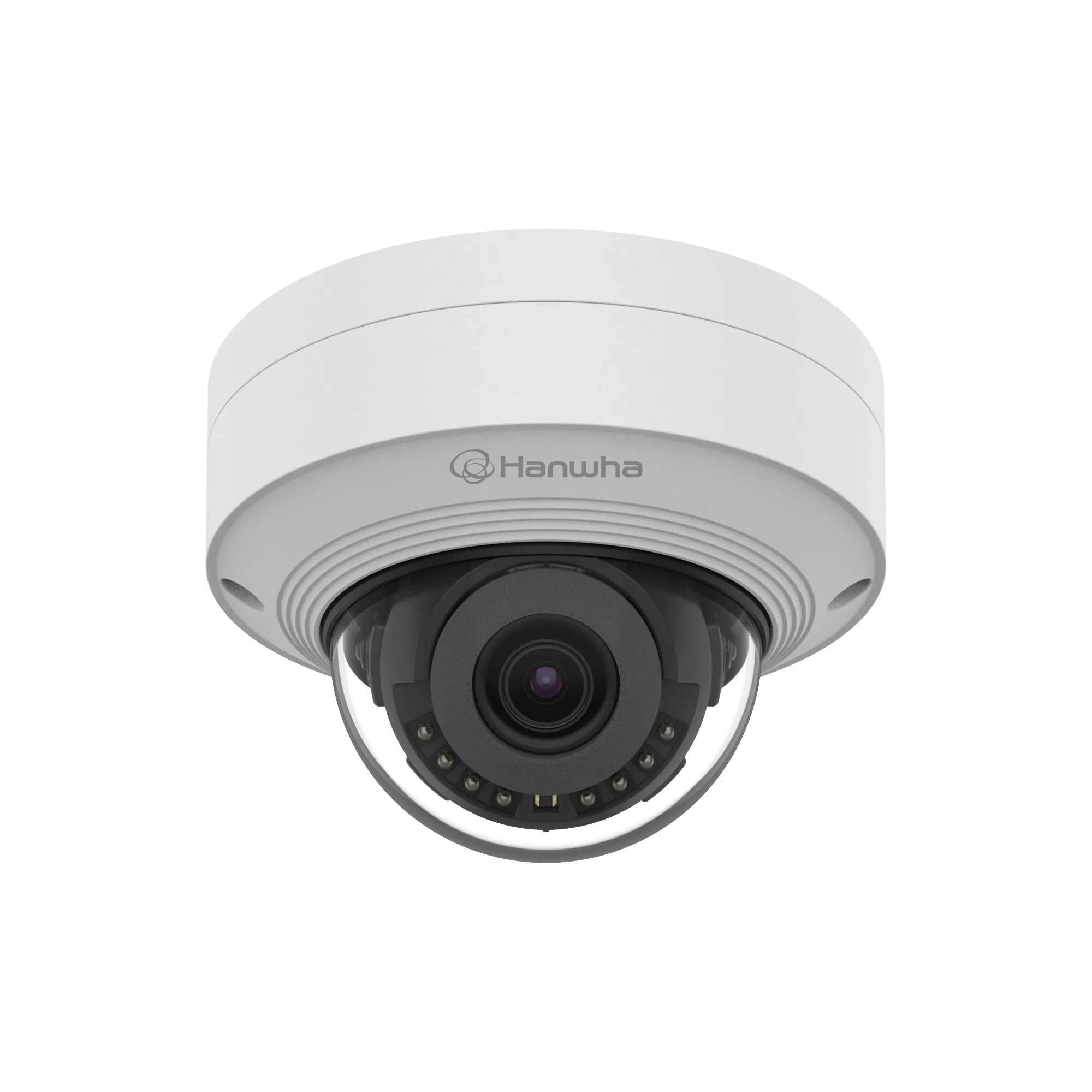

The QNV-C8011R is a compact vandal dome delivering up to 2592x1944 pixels from a 1/2.8 inch CMOS sensor. A fixed 3 mm lens with F1.6, fixed iris and M12 mount takes in 100° horizontally, 73° vertically and 129° diagonally from a minimum object distance of 0.5 m. H.265 and H.264 run at 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG reaches 30 fps and falls to 5 fps at 5 MP, and up to five streaming profiles can run side by side. Stated figures include 0.03 lux in colour, 0.003 lux in black and white, an IR viewable length of 20 m, 120 dB WDR, BLC, SSDR and automatic ICR day and night switching. WiseNR II and WiseStream III both draw on the AI engine, and the dome bubble is hard coated. Storage uses one Micro SD/SDHC/SDXC slot for up to 256 GB, and the housing is rated IP66, IK10 and NEMA4X. Fixed 3 mm lens, F1.6, M12 mountUp to 2592x1944 pixels, 30/25 fpsIR viewable length 20 mWiseNR II and WiseStream III on the AI engineIP66, IK10, NEMA4X, hard coated dome bubbleMicro SD/SDHC/SDXC up to 256 GB

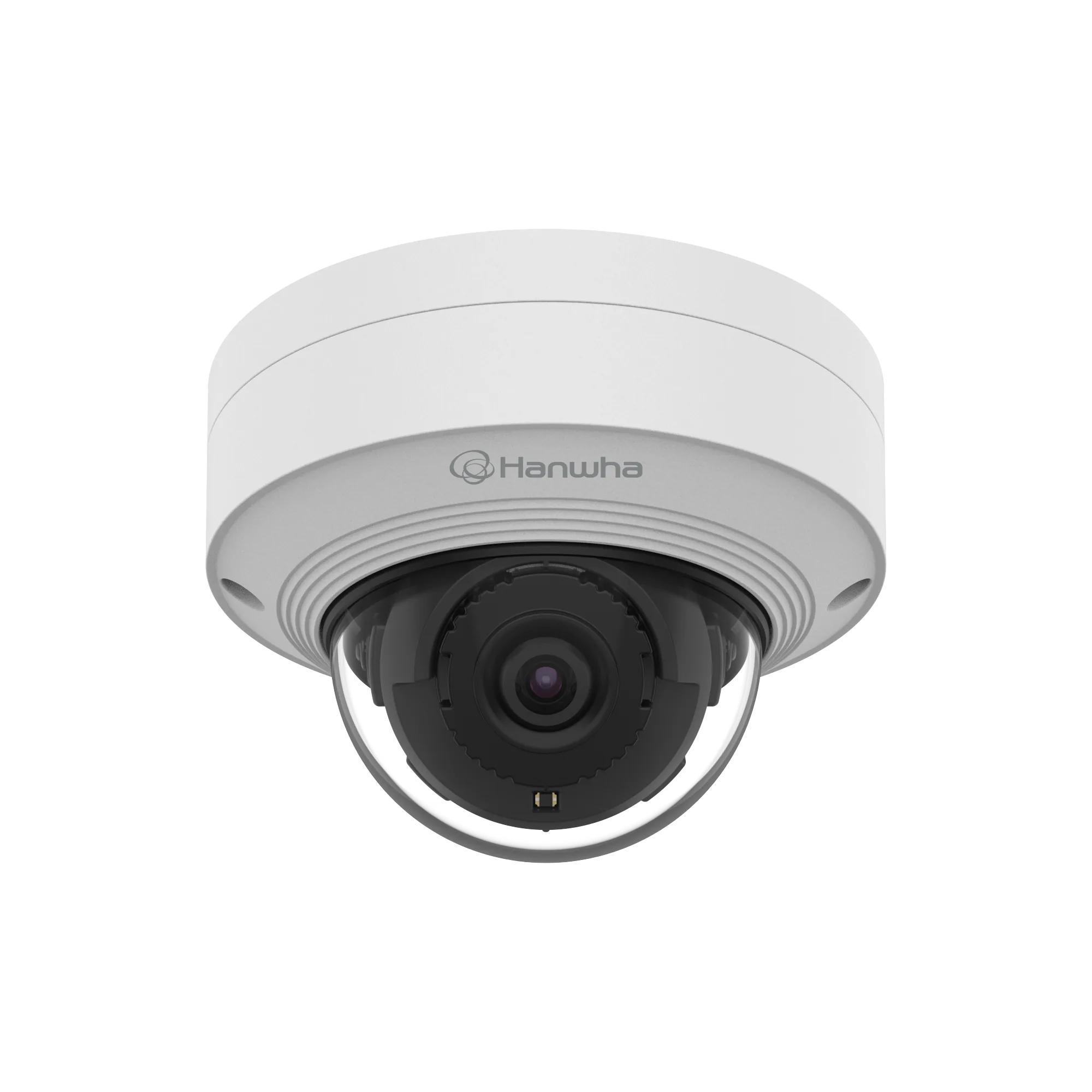

The QNV-C8012 is a compact AI vandal dome with a 1/2.8 inch CMOS sensor and a maximum resolution of 2592x1944 pixels. Its fixed 2.4 mm lens with F2.0, fixed iris and M12 mount opens the view to 123° horizontally, 91° vertically and 159° diagonally, starting from an object distance of 0.5 m. H.265, H.264 and MJPEG are supported at 30 fps on 60 Hz or 25 fps on 50 Hz, with MJPEG at 30 fps and no more than 5 fps at 5 MP. Five streaming profiles can be configured in parallel. For dim scenes the camera is rated at 0.05 lux in colour and 0.005 lux in black and white, backed by 120 dB WDR, BLC, SSDR and ICR controlled day and night switching. Recordings go to a Micro SD/SDHC/SDXC slot holding up to 256 GB. Fixed 2.4 mm lens, F2.0, M12 mount123° horizontal and 159° diagonal field of viewUp to 2592x1944 pixels, 30/25 fps0.05 lux colour, 0.005 lux black and white120 dB WDR, BLC, SSDRMicro SD/SDHC/SDXC up to 256 GB

With 3840x2160 pixels on a 1/2.8 inch CMOS sensor, the QNV-C9011R is a compact 8 MP vandal dome. Its fixed 3 mm lens with F1.6, fixed iris and M12 mount captures 108° horizontally, 59° vertically and 127° diagonally from an object distance of 0.5 m. H.265 and H.264 work at 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG at 30 fps and up to 5 fps at 8 MP, and five streaming profiles can be issued at once. Rated light levels are 0.03 lux in colour and 0.003 lux in black and white, supported by 120 dB WDR, BLC, SSDR and automatic ICR day and night switching. Pan covers 0° to 350°, tilt -35° to 70° and rotation 0° to 355°. One Micro SD/SDHC/SDXC slot accepts up to 256 GB. 3840x2160 pixels on a 1/2.8 inch CMOS sensorFixed 3 mm lens, F1.6, M12 mount108° horizontal and 127° diagonal field of view0.03 lux colour, 0.003 lux black and white120 dB WDR, BLC, SSDRMicro SD/SDHC/SDXC up to 256 GB
