Professional AC24V (DC24V Optional) Camera Housing w/Wiper
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- P2000-IW
- EAN / GTIN
- 4711502640897
Description

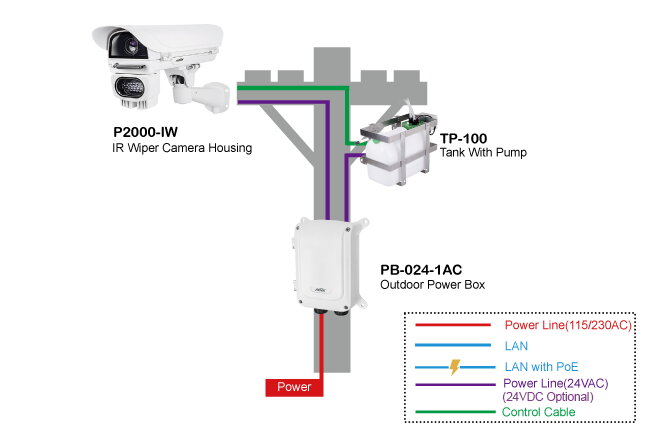

Camera housing with a wiper fitted, cast aluminium to IP66 and IK10, for box cameras carrying lenses from 8 to 80 mm. Wiper, window heater and blower keep the glass clear: the heater comes on at 20 °C or below and drops out from 30 °C, the blower runs from 35 °C and stops at 25 °C or below. The wiper works between -10 °C and 60 °C, the housing as a whole from -20 °C to 65 °C and to 50 °C with IR illuminators; the camera inside must be cleared for -20 °C to 65 °C. Supply 24 V AC, 24 V DC optional, budget 30 W at 12 V DC and 80 W at 24 V AC. Draw per item: window heater 10 W, blower 2 W, camera 6 to 8 W, wiper 6 W; optional illuminators VR-120 12 W, VR-240/241 24 W, VR-480/481 48 W, optional pump TP-100 12 W. Adjustable sunshield, side-opening alarm switch, ITB board, one RS485 port. 502.8 x 170 x 158.5 mm, 2.9 kg.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Electrical Specifications (4)
- DC12V Output Power Budget
- 30W
- Electrical Specifications – AC24V (DC24V Optional) Output Power Budget
- 80W
- Electrical Specifications – Input Voltage
- AC24V (DC24V Optional)
- Electrical Specifications – Power Consumption Window Heater: 10W Blower: 2W Camera: 6 ~ 8W Wiper:6W Optional VAIR IR LEDs Power Consumption VR-120: 12W VR-240/241: 24W VR-480/481: 48W Optional 10L Water Tank & Pump
- TP-100: 12W
Environmental Specifications (4)
- Environmental Specifications – Blower ON / OFF ≥ 35°C (95°F) ON ≤ 25°C (77°F) OFF Weather Rating
- IP66
- Environmental Specifications – Operating Temperature -20°C ~ 65°C (-4°F ~ 149°F) -20°C ~ 50°C (w/IR LEDs) * Inside camera specifications must be within -20°C ~ 65°C Wiper is functional at -10°C to + 60°C (14°F to 140°F) Window Heater ON / OFF ≤ 20°C (68°F
- -
- Environmental Specifications – Vandal Proof
- IK10 Impact Rated on Cast Aluminum Housing
- RS485 Ports
- 1
Mechanical Specifications (4)
- Body Material
- Cast Aluminum
- Body Weight
- 2.9 kg (6.39 lb)
- Cable Grants
- M16 x 4
- Mechanical Specifications – Dimensions (L x W x H)
- 502.8 x 170 x 158.5 mm
