Professional 60W / 90W PoE Camera Housing w/Wiper
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- P6000-IW-V2
- EAN / GTIN
- 4711502640934
Description

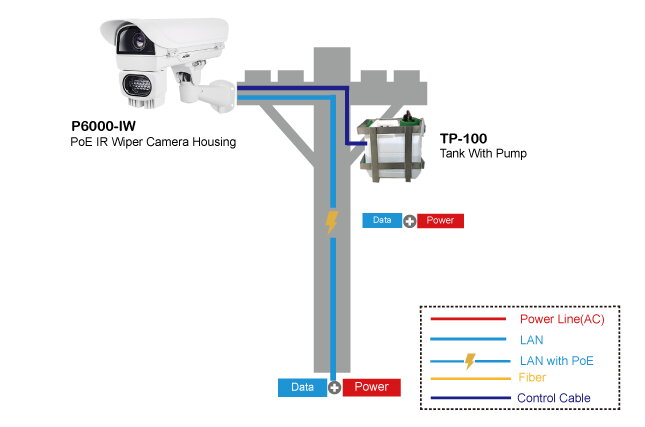

Cast aluminium camera housing with wiper, window heater and blower, so mist and ice can be cleared from the front glass without a trip up the pole. Everything runs off one Ethernet cable: 30 W, 60 W or 90 W PoE at 50 to 57 V DC, backward compatible with 802.3af and 802.3at. A 30 W PSE leaves 25 W for the gear, a 60 W PSE 48 W and a 95 W PSE 72 W; the camera itself is fed 12 W of passive PoE compliant with 802.3af, and 24 V DC at 48 W is available as well. Consumption: 10 W window heater, 2 W blower, 6 W wiper, 6 to 12 W camera. Box cameras with 8 to 80 mm lenses fit inside. Rated IP66 and IK10, it runs from -20 °C to 65 °C, or -20 °C to 50 °C with IR LEDs; the wiper works between -10 °C and 60 °C, the heater switches on at 20 °C and off at 30 °C, the blower on at 35 °C and off at 25 °C. One RS485 port, four M16 glands, 502.8 x 170 x 158.5 mm, 2.9 kg. A side-opening alarm switch, an adjustable sunshield and the ITB (Illuminator Touch Board), which takes an optional vari-IR illuminator and hides its wiring, are part of the housing.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Electrical Specifications (4)
- Electrical Specifications – Input Voltage
- PoE 30W/60W/95W 50~57VDC
- Electrical Specifications – Max. Output Power Budget 25 W thru 30W PoE PSE 48 W thru 60W PoE PSE 72 W thru 95W PoE PSE Camera Power Input
- 12W Passive PoE (Compliant IEEE 802.3af PoE)
- Electrical Specifications – Power Consumption Window Heater: 10W Blower: 2W Camera: 6 ~ 12W Wiper: 6W Optional VAIR LEDs Power Consumption VR-120: 12W VR-240/241: 24W VR-480/481: 48W Optional 10L Water Tank & Pump
- TP-100: 12W
- Output Voltage
- 24VDC/48W
Environmental Specifications (4)
- Environmental Specifications – Operating Temperature -20°C ~ 65°C (-4°F ~ 149°F) -20°C ~ 50°C (w/IR LEDs) * Inside camera specifications must be within -20°C ~ 65°C Wiper is functional at -10°C to + 60°C (14°F to 140°F) Window Heater ON / OFF ≤ 20°C (68°F
- Support
- Environmental Specifications – Vandal Proof
- IK10 Impact Rated on Cast Aluminum Housing
- Environmental Specifications – Weather Rating
- IP66
- RS485 Ports
- 1
Mechanical Specifications (4)
- Body Material
- Cast Aluminum
- Body Weight
- 2.9 kg (6.39 lb)
- Cable Grants
- M16 x 4
- Mechanical Specifications – Dimensions (L x W x H)
- 502.8 x 170 x 158.5 mm
