Professional AC24V (DC24V Optional) Cold Start Camera Housing
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- P2000-AI
- EAN / GTIN
- 4711502640903
Description

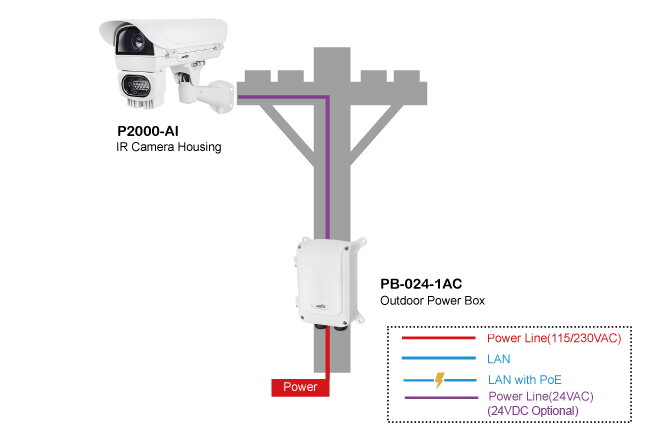

Cast aluminium camera housing to IP68 and IK10, roomy enough for box cameras with wide-angle or long lenses from 8 to 80 mm. It runs on 24 V AC, optionally 24 V DC, and provides 30 W at 12 V DC and 80 W at 24 V AC. Besides the window heater and blower there is a second heater for the camera itself, which allows a cold start at -40 °C. Thresholds are fixed: window heater on at 20 °C or below and off from 30 °C, cold start heater on at 0 °C and off from 5 °C, blower on from 35 °C and off at 25 °C or below. Working range -20 °C to 65 °C, and -50 °C to 50 °C with IR illuminators; the camera inside must itself be rated for -20 °C to 65 °C. Adjustable sunshield, side-opening alarm switch, an ITB board that clips IR LEDs to the housing and hides their wiring, one RS485 port, one input for IR control and one output for its status. 502.8 x 170 x 158.5 mm, 2.8 kg, four M16 glands.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Electrical Specifications (3)
- AC24V Output Power Budget
- 80W
- DC12V Output Power Budget
- 30W
- Electrical Specifications – Input Voltage
- 24VAC (24VDC Optional)
Environmental Specifications (5)
- DI Ports
- DI 1 for IR control
- DO Ports
- DO 1 for IR LED status
- Environmental Specifications – Operating Temperature -20°C ~ 65°C (-4°F ~ 149°F) -50°C ~ 50°C (w/IR LEDs) Cold Startup: -40°C (-40°F) * Inside camera specifications must be within -20°C ~ 65°C Window Heater ON / OFF ≤ 20°C (68°F) ON ≥ 30°C (86°F) OFF Cold
- IP68
- Environmental Specifications – Vandal Proof
- IK10 Impact Rated on Cast Aluminum Housing
- RS485 Ports
- 1
Mechanical Specifications (4)
- Body Material
- Cast Aluminum
- Body Weight
- 2.8 kg (6.17 lb)
- Cable Grants
- M16 x 4
- Mechanical Specifications – Dimensions (L x W x H)
- 502.8 x 170 x 158.5 mm
