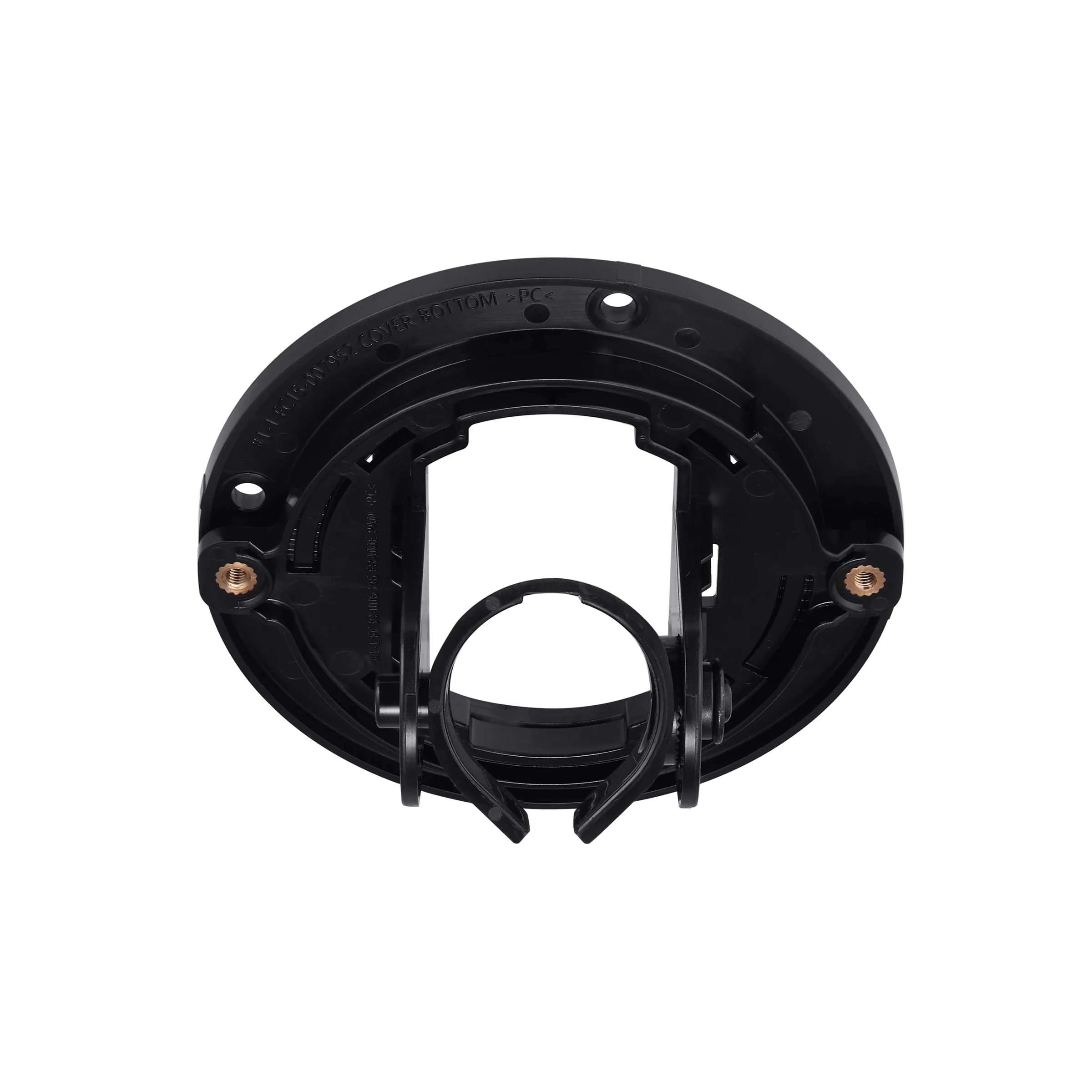

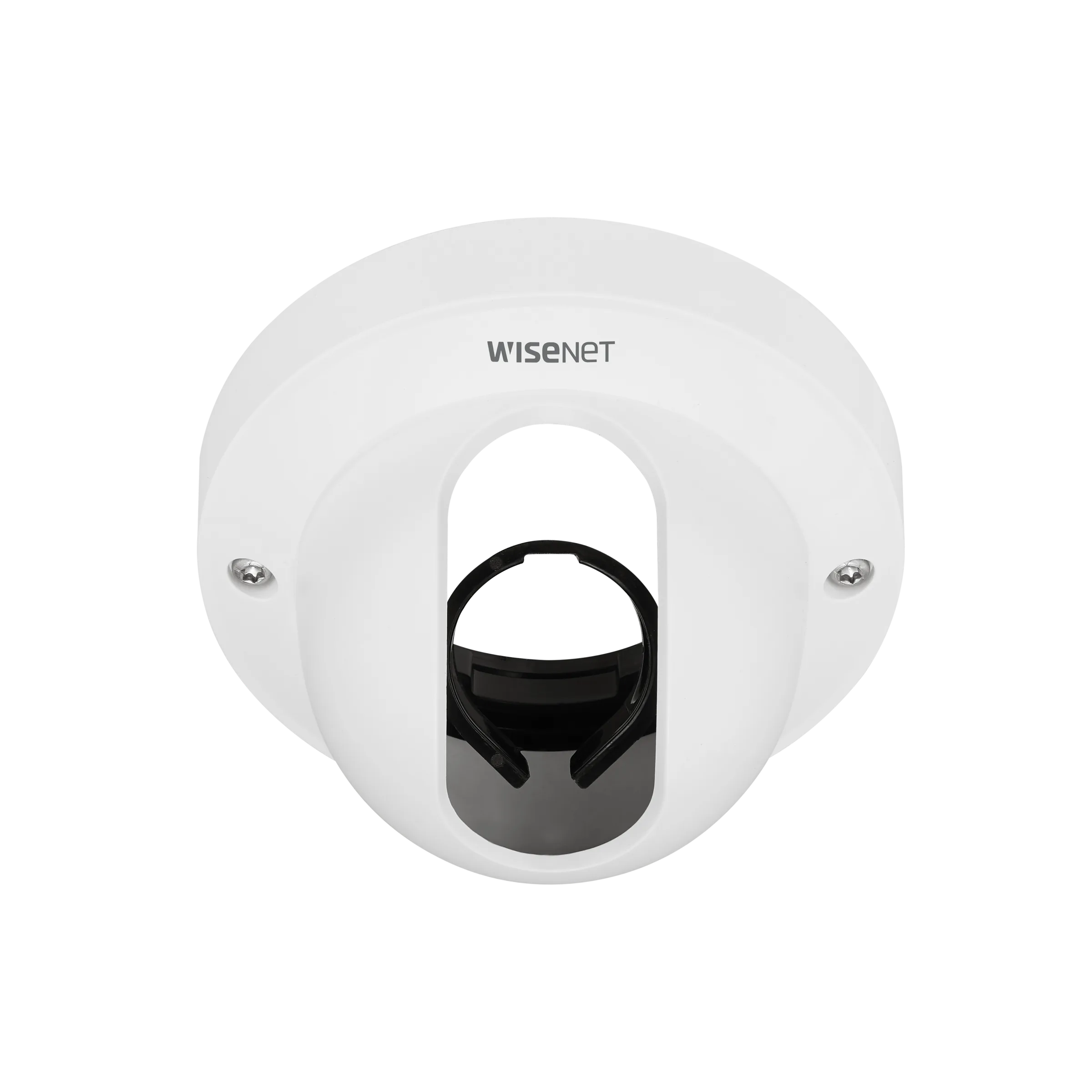

Remote Head Housing

The PNM-9000QB is a remote-head unit for four 2MP channels with a maximum of 1920x1080 pixels. H.265 and H.264 operate at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, while HDMI provides single or quad view output. Optional lens modules are supported, and SCL-150 with a length of 15 m is listed as the compatible connecting cable. Image processing covers BLC, HLC, 120 dB WDR, SSDR, SSNR V noise reduction, digital image stabilisation, defog, LDC and WiseStream II. Eight motion detection zones as 8-point polygons, 32 four-point privacy masks in seven display options, white balance from ATW to manual, flip and mirror rotation and an electronic shutter from 2 to 1/12,000 sec complete the feature set. Four 2MP channelsHDMI single and quad view120 dB WDR, SSNR V, WiseStream II32 privacy masks, 8 motion zonesShutter 2 to 1/12,000 secSCL-150 connecting cable (15 m)

The SLA-T2480A is a 2MP lens module combining a 1/2.8-inch CMOS sensor with a fixed 2.4 mm lens at F2.0. Coverage amounts to 138° horizontally, 73° vertically and 165° diagonally, and minimum illumination is 0.045 lux in both colour and black-and-white. Focus is fixed and the module attaches to the main unit over RJ12. The black plastic body measures Ø24 x 49.8 mm and weighs 318 g, with an operating range of -10 °C to +55 °C. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B, using the SCL-150 lens module cable at 15 m. Fixed 2.4 mm focal length, F2.0138° x 73° x 165° field of view1/2.8-inch CMOS, 0.045 luxPlastic body Ø24 x 49.8 mm, 318 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)

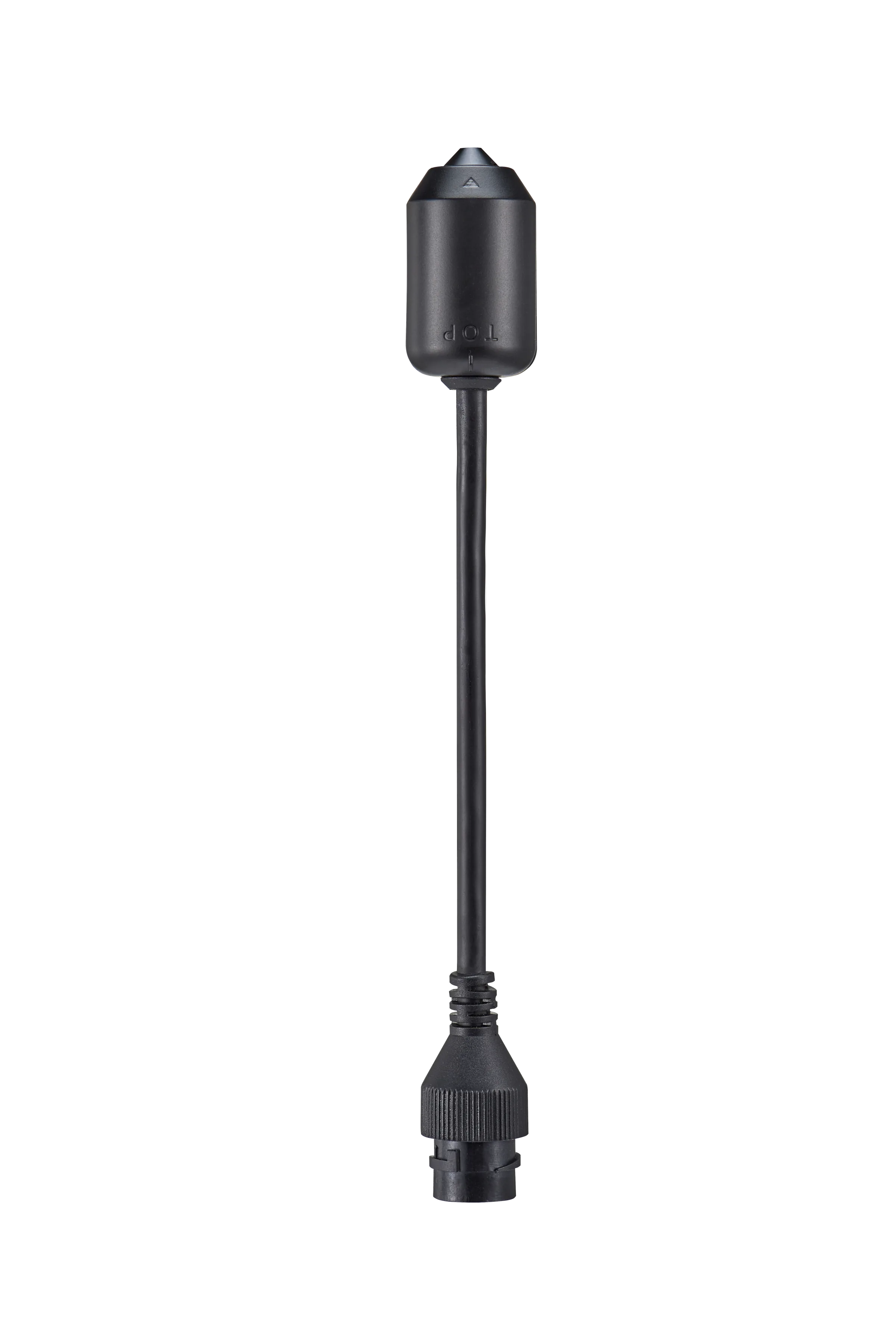

The SLA-T4680A is a 2MP lens module pairing a 1/2.8-inch CMOS sensor with a fixed 4.6 mm lens at F2.5. It covers 73° horizontally, 39° vertically and 85° diagonally, and minimum illumination is 0.06 lux in colour as well as black-and-white. Focus is fixed and the main unit is connected over RJ12. The black plastic body measures Ø24 x 49.8 mm and weighs 310 g, with an operating range from -10 °C to +55 °C. Supported products are the XNB-6002, PNM-9000QB, PNM-C20000QB and XNB-A8004B. Fixed 4.6 mm focal length, F2.573° x 39° x 85° field of view1/2.8-inch CMOS, 0.06 luxPlastic body Ø24 x 49.8 mm, 310 gRJ12 connection to the main unitSCL-150 lens module cable (15 m)
