Professional 60W / 90W PoE Camera Housing
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- P6000-I-V2
- EAN / GTIN
- 4711502640927
Description

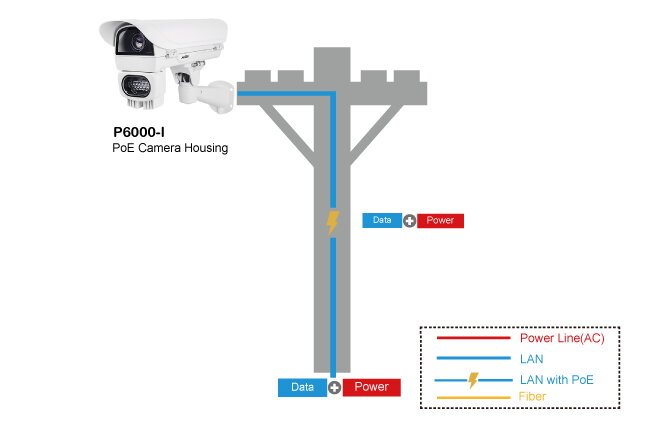

Camera housing that draws everything it needs from one network cable: the input takes 30 W, 60 W or 95 W PoE at 50 to 57 V DC and is backward compatible with 802.3af and 802.3at. How much is available inside depends on the source — 25 W behind a 30 W PSE, 48 W behind a 60 W PSE, 72 W behind a 95 W PSE. The camera itself is fed 12 W over passive PoE compliant with IEEE 802.3af, and 24 V DC at 48 W is available besides. Window heater (10 W) and blower (2 W) keep the glass clear, and the camera draws 6 to 12 W. Cast aluminium to IP68 and IK10, working range -20 °C to 65 °C, to 50 °C with IR illuminators; the camera fitted must be rated for -20 °C to 65 °C. Room for lenses from 8 to 80 mm, adjustable sunshield, opening alarm switch, ITB board, one RS485 port. 502.8 x 170 x 158.5 mm, 2.8 kg, four M16 glands.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Electrical Specifications (4)
- Electrical Specifications – Input Voltage
- PoE 30W/60W/95W 50~57VDC
- Electrical Specifications – Max. Output Power Budget 25 W thru 30W PoE PSE 48 W thru 60W PoE PSE 72 W thru 95W PoE PSE Camera Power Input
- 12W Passive PoE (Compliant IEEE 802.3af PoE)
- Electrical Specifications – Power Consumption Window Heater: 10W Blower: 2W Camera: 6 ~ 12W Optional Vari R LEDs Power Consumption VR-120: 12W VR-240/241: 24W VR-480/481: 48W Optional 10L Water Tank & Pump
- -
- Output Voltage
- 24VDC/48W
Environmental Specifications (5)
- DI Ports
- DI 1 for IR control
- DO Ports
- DO 1 for IR LED status
- Environmental Specifications – Operating Temperature -20°C ~ 65°C (-4°F ~ 149°F) -20°C ~ 50°C (w/IR LEDs) * Inside camera specifications must be within -20°C ~ 65°C Window Heater ON / OFF ≤ 20°C (68°F) ON ≥ 30°C (86°F) OFF Blower ON / OFF ≥ 35°C (95°F) ON
- IP68
- Environmental Specifications – Vandal Proof
- IK10 Impact Rated on Cast Aluminum Housing
- RS485 Ports
- 1
Mechanical Specifications (4)
- Body Material
- Cast Aluminum
- Body Weight
- 2.8 kg (6.17 lb)
- Cable Grants
- M16 x 4
- Mechanical Specifications – Dimensions (L x W x H)
- 502.8 x 170 x 158.5 mm
