Fixed Housing

The HCB-6000 is an analog HD box camera built around a 1/2.8-inch CMOS sensor delivering 1920x1080 at 30fps (NTSC) or 25fps (PAL). Its BNC output is selectable between AHD, TVI, CVI and CVBS, and 5C2V coaxial cable carries the signal over distances of up to 500m. Minimum illumination is rated at 0.09 lux in colour and 0.009 lux in black and white, with an automatic ICR filter handling the day and night transition. Backlit scenes are handled by BLC, HLC and 120dB WDR, noise by SSNRⅣ, and the camera adds defog, four motion detection areas and eight rectangular privacy zones. On the optical side it uses manual focus, a DC auto iris with IR correction and C or CS mount. White balance offers ATW, AWC, manual, indoor and outdoor modes, gain control runs in four steps, the electronic shutter covers 1 to 1/12,000sec, and installation is plug and play with dual power and RS-485. 1/2.8-inch CMOS sensor, 1920x1080Selectable AHD/TVI/CVI/CVBS BNC output0.09 lux colour, 0.009 lux black and white120dB WDR, SSNRⅣ, defogTransmission up to 500m over 5C2V coaxial cableC and CS mount with DC auto iris

As an analog HD box camera, the HCB-6000PH produces 1920x1080 images from a 1/2.8-inch CMOS sensor at 30fps in NTSC or 25fps in PAL. The BNC connector supplies the signal as AHD, TVI, CVI or CVBS and reaches up to 500m over 5C2V coaxial cable. Low-light figures are 0.09 lux in colour and 0.009 lux in black and white, and an ICR filter switches automatically between day and night operation. Image processing includes BLC, HLC and 120dB WDR, SSNRⅣ noise reduction and a defog function, together with four motion areas and eight rectangular privacy zones. Flip and mirror rotate the image, white balance provides ATW, AWC, manual, indoor and outdoor modes, gain is set in four steps and the electronic shutter spans 1 to 1/12,000sec. The camera accepts C and CS mount lenses, installs plug and play and offers an RS-485 serial interface. 1/2.8-inch CMOS sensor, 1920x1080Selectable AHD/TVI/CVI/CVBS BNC output120dB WDR, SSNRⅣ, defogFlip and mirror image rotationRS-485 serial interfaceC and CS mount, up to 500m transmission

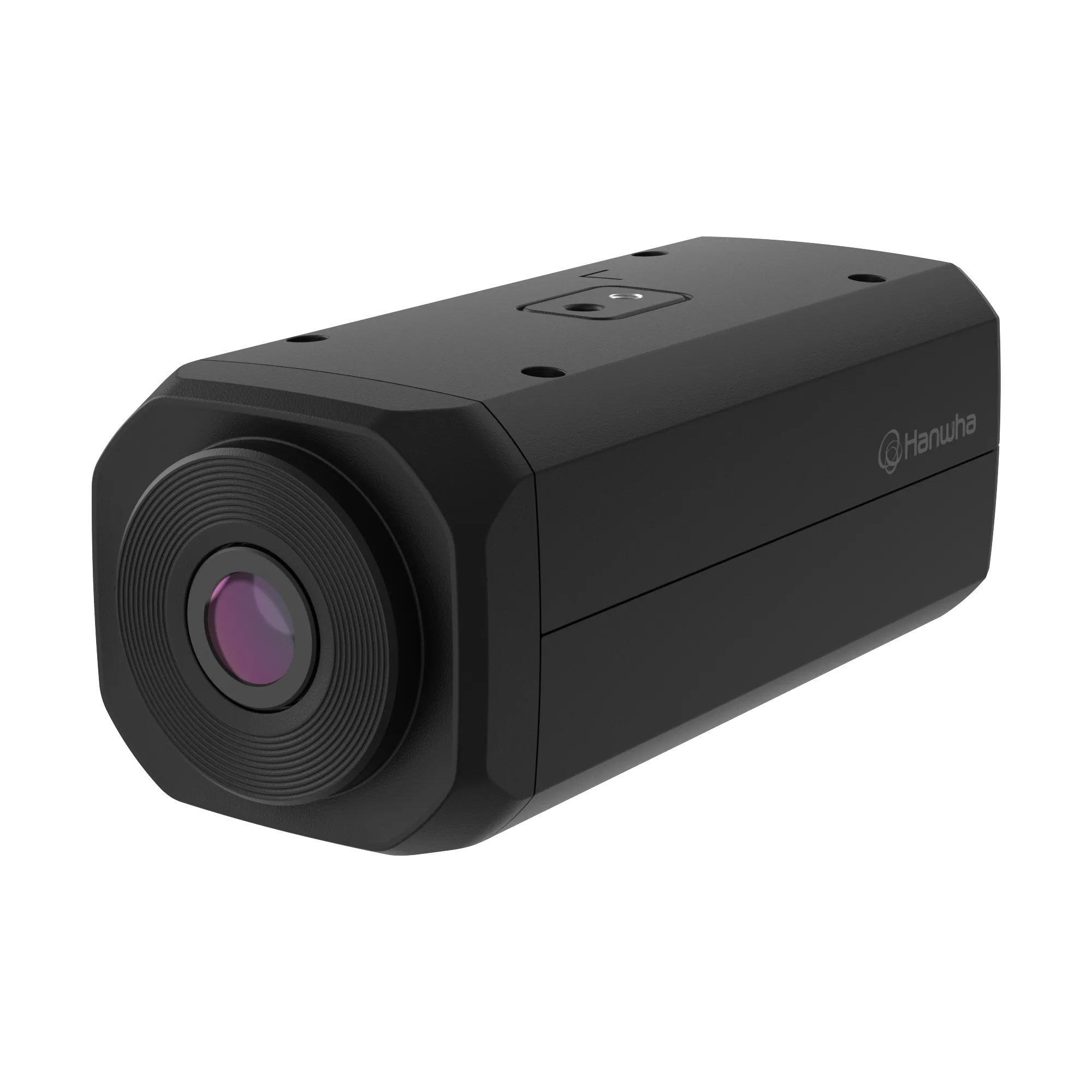

The PNB-A9082 is a box camera with an integrated lens and AI functions, resolving 8 megapixels up to 3840x2160 from a 1/1.2-inch CMOS sensor. H.265 and H.264 run at 30fps on 60Hz or 25fps on 50Hz, while MJPEG reaches 30fps and a maximum of 5fps at 8MP. The built-in zoom lens covers 5.9 to 13.3mm with 2.25x optical zoom, F1.5 at the wide end and F2.9 at telephoto, taking in 109° to 49° horizontally, 59° to 27° vertically and 128° to 56° diagonally through an IR-corrected P iris with simple focus from 0.8m. Minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white, and day and night switching is automatic via ICR. Image processing draws on BLC, HLC, 120dB WDR, SSDR and noise reduction by WiseNRⅡ, based on the AI engine, together with SSNRⅤ. The camera also offers WisePower monitoring, dynamic privacy masking and similarity search with BLAZE, plus a USB Type C port for preview during installation. 8 megapixel resolution up to 3840x2160Integrated 5.9 to 13.3mm lens with 2.25x zoom0.015 lux in colour, 0.0015 lux in black and white120dB WDR, AI-based WiseNRⅡ and SSNRⅤDynamic privacy maskingWisePower monitoring

2M box camera with H.265. Its 1/2.8" CMOS sensor outputs a maximum of 1920x1080 and reaches 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG, with multiple streaming as well as motion detection and handover supported. Colour capture remains possible down to 0.01 Lux and black and white down to 0.001 Lux. Image processing covers day and night via Auto ICR, BLC, HLC, SSDR, WDR up to 150dB, SSNRⅤ, defog and digital image stabilisation with a built-in gyro sensor. Lenses attach through C mount or CS mount and may be DC auto iris, manual, I-CS or P iris types with simple focus; SLA-M2890DN and SLA-M2890PN are listed as optional lenses. Motion detection uses eight 8point polygonal zones and privacy masking 32 four-point areas. 2MP, 1920x1080 at 60fps/50fpsWDR up to 150dB, BLC, HLC, SSDR0.01 Lux colour, 0.001 Lux black and whiteDigital image stabilisation with gyro sensorC and CS mount, DC auto iris, I-CS, P iris8 motion zones, 32 privacy masks
