Fixed Housing

The PNB-A9082 is a box camera with an integrated lens and AI functions, resolving 8 megapixels up to 3840x2160 from a 1/1.2-inch CMOS sensor. H.265 and H.264 run at 30fps on 60Hz or 25fps on 50Hz, while MJPEG reaches 30fps and a maximum of 5fps at 8MP. The built-in zoom lens covers 5.9 to 13.3mm with 2.25x optical zoom, F1.5 at the wide end and F2.9 at telephoto, taking in 109° to 49° horizontally, 59° to 27° vertically and 128° to 56° diagonally through an IR-corrected P iris with simple focus from 0.8m. Minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white, and day and night switching is automatic via ICR. Image processing draws on BLC, HLC, 120dB WDR, SSDR and noise reduction by WiseNRⅡ, based on the AI engine, together with SSNRⅤ. The camera also offers WisePower monitoring, dynamic privacy masking and similarity search with BLAZE, plus a USB Type C port for preview during installation. 8 megapixel resolution up to 3840x2160Integrated 5.9 to 13.3mm lens with 2.25x zoom0.015 lux in colour, 0.0015 lux in black and white120dB WDR, AI-based WiseNRⅡ and SSNRⅤDynamic privacy maskingWisePower monitoring

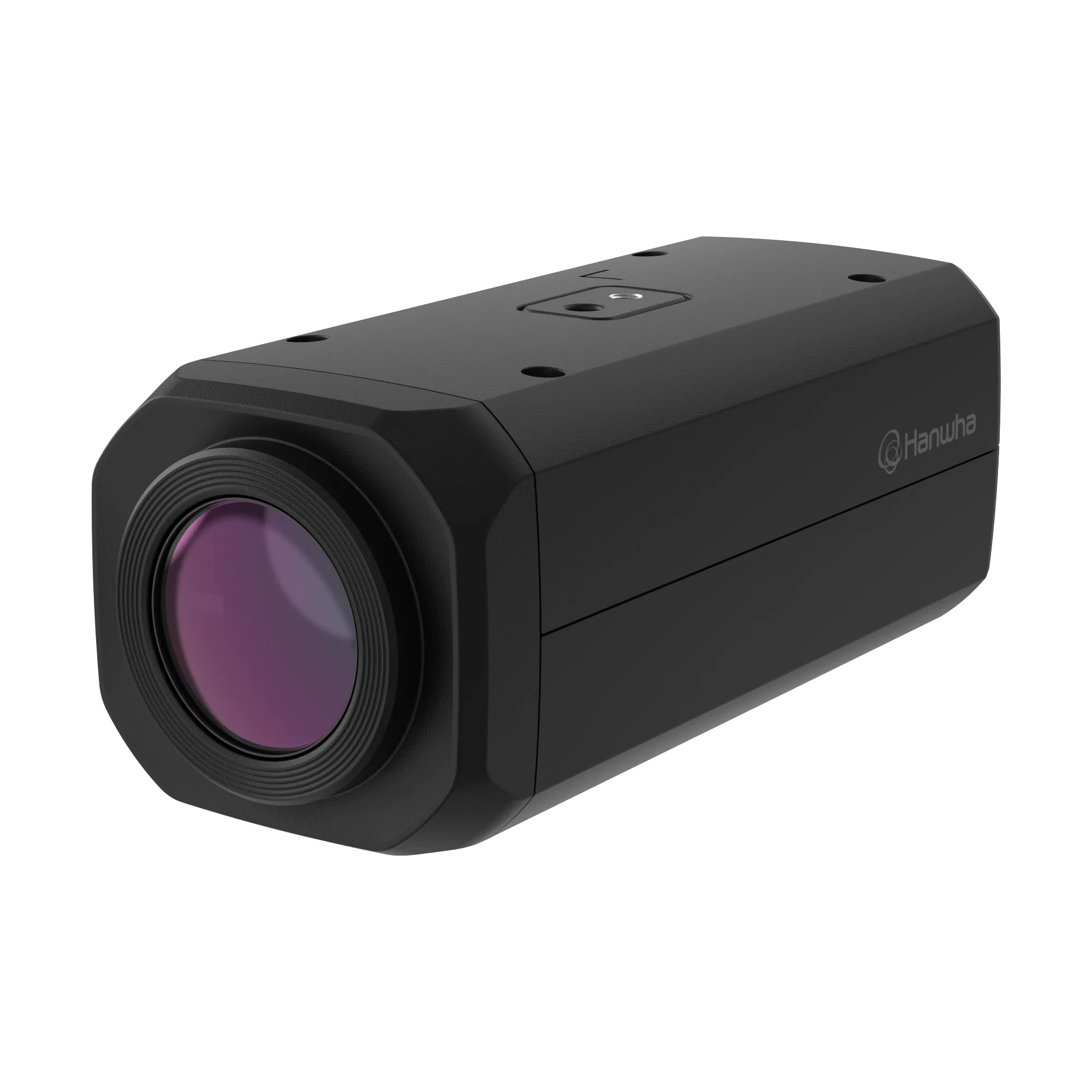

The PNB-A9092 combines a 1/1.2-inch CMOS sensor of 8 megapixels and up to 3840x2160 with a permanently fitted 15 to 50mm telephoto lens for longer ranges. Optical zoom is 3.33x, the aperture runs from F1.67 at wide angle to F3.5 at telephoto, the field of view spans 42.7° to 12.6° horizontally, 24.1° to 7.2° vertically and 49° to 14.3° diagonally, and the minimum object distance is 2.5m. H.265 and H.264 deliver 30fps at 60Hz or 25fps at 50Hz, MJPEG reaches 30fps and no more than 5fps at 8MP. Low-light figures are 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR switching. BLC, HLC, 120dB WDR and SSDR compensate for backlight, while WiseNRⅡ based on the AI engine and SSNRⅤ handle noise. WisePower monitoring, dynamic privacy masking and similarity search with BLAZE round out the feature set. 8 megapixel resolution up to 3840x2160Integrated 15 to 50mm telephoto lens with 3.33x zoom42.7° to 12.6° horizontal field of view0.015 lux in colour, 0.0015 lux in black and white120dB WDR, AI-based WiseNRⅡ and SSNRⅤDynamic privacy masking

2MP box camera with AI support. The 1/2.8" CMOS sensor resolves up to 1920x1080 and delivers 60fps/50fps (60Hz/50Hz) with WDR off and 30fps/25fps with WDR on, while MJPEG reaches 30fps. Capture is possible from 0.02 Lux in colour and 0.002 Lux in black and white, WDR is rated 150dB and is joined by day and night via Auto ICR, BLC, HLC and SSDR. WiseNRⅡ noise reduction runs on the AI engine and is complemented by SSNRⅤ, digital image stabilisation and defog. Lenses mount via C mount or CS mount and may be DC auto iris, P iris (IR corrected), manual or I-CS types with simple focus. Motion detection offers eight 8point polygonal zones and privacy masking 32 polygonal areas in selectable colours or mosaic; preview runs over USB Type C. 2MP, 1920x1080 at 60fps/50fps with WDR off150dB WDR, BLC, HLC, SSDRWiseNRⅡ based on AI engine, SSNRⅤ0.02 Lux colour, 0.002 Lux black and whiteC and CS mount, DC auto iris, P iris, I-CS8 motion zones, 32 privacy masks

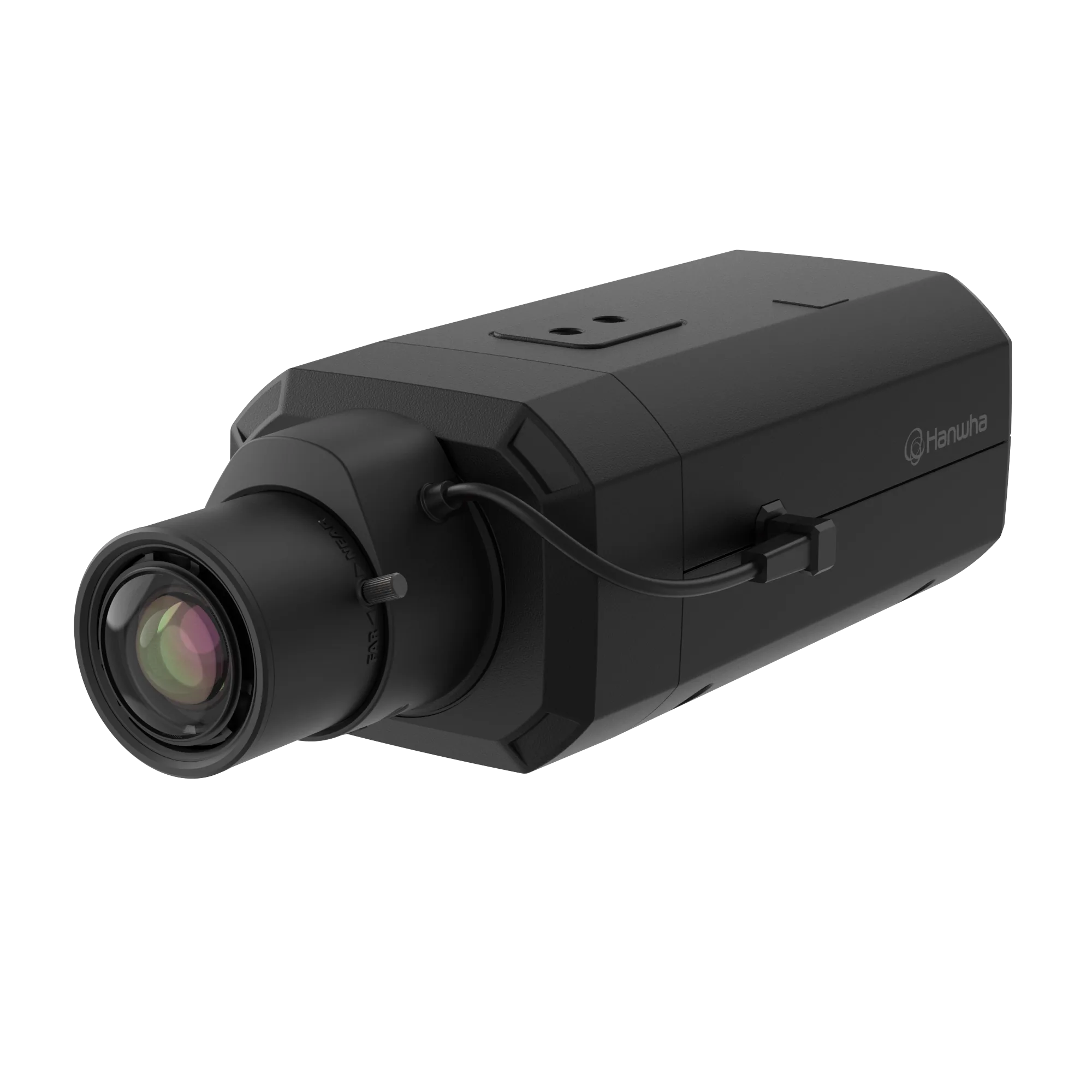

5MP box camera with an AI engine. The 1/2.8" CMOS sensor reaches a maximum of 2560x1920 and runs 30fps/25fps (60Hz/50Hz) in H.265/H.264, while MJPEG operates at 30fps and no more than 5fps at 5MP. Minimum illumination is 0.04 Lux in colour and 0.004 Lux in black and white, WDR is specified at 120dB and is supported by day and night via Auto ICR, BLC, HLC and SSDR. Clean images rely on WiseNRⅡ noise reduction based on the AI engine together with SSNRⅤ, digital image stabilisation and defog. The lens attaches through C mount or CS mount and can be DC auto iris, P iris (IR corrected), manual or I-CS, each with simple focus. Motion detection and privacy masking use eight and 32 polygonal zones respectively, and USB Type C is available for preview. 5MP, up to 2560x1920 at 30fps/25fps120dB WDR, BLC, HLC, SSDRWiseNRⅡ based on AI engine, SSNRⅤ0.04 Lux colour, 0.004 Lux black and whiteC and CS mount, simple focus8 motion zones, 32 privacy masks

8MP box camera with an AI engine. The 1/1.8" CMOS sensor outputs a maximum of 3840x2160 and manages 30fps/25fps (60Hz/50Hz) in H.265/H.264, while MJPEG runs at 30fps and tops out at 5fps at 8MP. Colour capture requires 0.04 Lux and black and white 0.004 Lux, WDR is specified at 120dB, and day and night via Auto ICR, BLC, HLC and SSDR are included. Image processing covers WiseNRⅡ based on the AI engine, SSNRⅤ, digital image stabilisation and defog. Lenses can be used through C mount or CS mount, supporting DC auto iris, P iris (IR corrected), manual and I-CS types with simple focus. Eight 8point polygonal zones serve motion detection and 32 polygonal areas handle privacy masking in various colours or as a mosaic; preview runs over USB Type C. 8MP, up to 3840x2160 at 30fps/25fps1/1.8" CMOS sensor120dB WDR, BLC, HLC, SSDRWiseNRⅡ based on AI engine, SSNRⅤC and CS mount, DC auto iris, P iris, I-CS8 motion zones, 32 privacy masks
