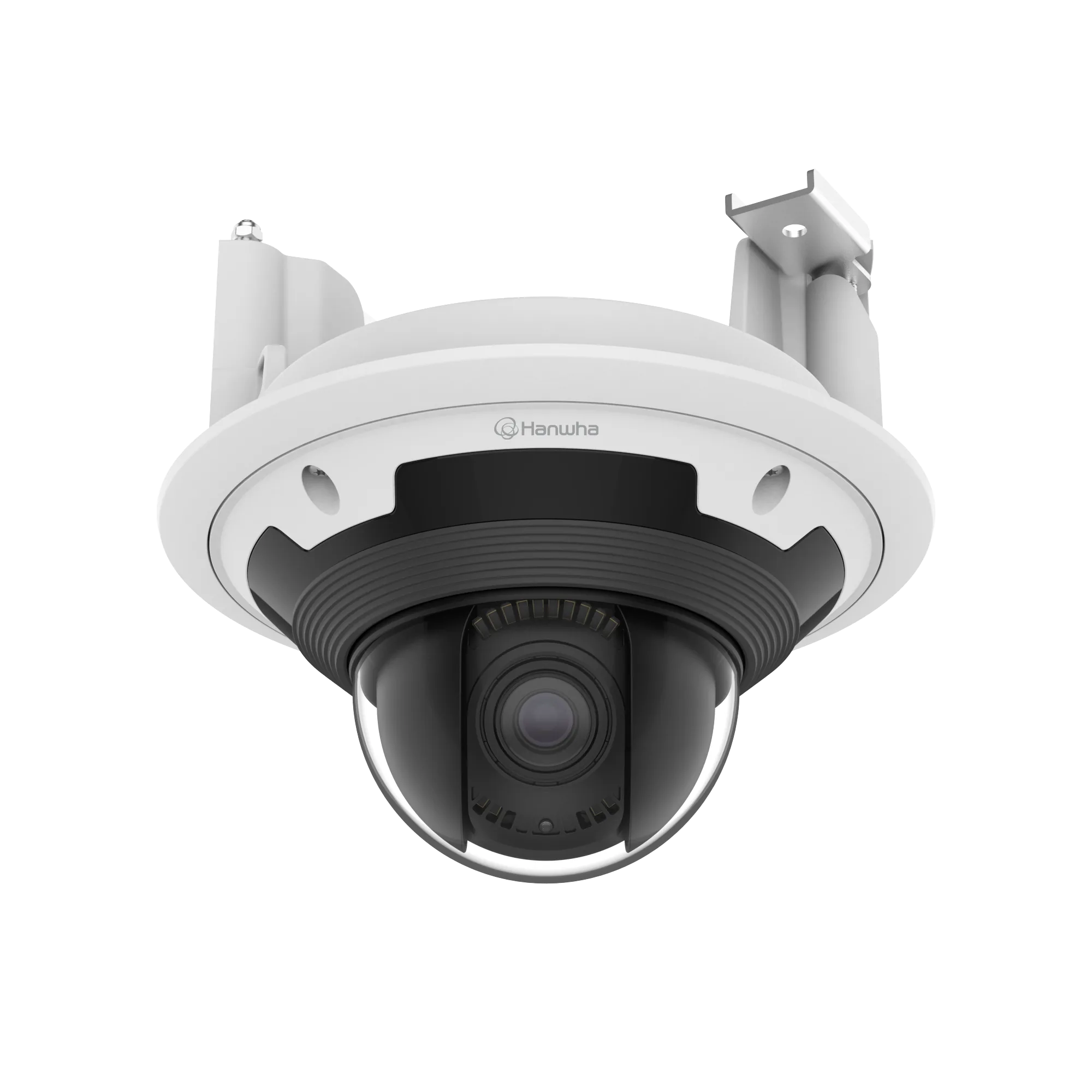

In-ceiling Mount

The PNV-A6081R is a vandal resistant IR dome camera delivering 2MP (1920x1080) from a 1/2-inch CMOS sensor. Its AI engine identifies people, faces, vehicles and licence plates and filters motion events down to shorter, more relevant event lists, complemented by video analytics using virtual line and virtual area rules for intrusion, entering, exiting, appearing and loitering, plus social distancing checks and face mask detection. H.265 and H.264 reach up to 120fps/100fps (60Hz/50Hz), dropping to a maximum of 60/50fps with AI enabled, while MJPEG runs at 15fps. Minimum illumination is 0.007 lux in colour and 0.0007 lux in black and white. The IR corrected P iris lens spans 4.38~9.33mm with 2.13x zoom at F1.3 to F2.15 and covers 103.1°~44.5° horizontally. 2MP (1920x1080) on a 1/2-inch CMOS sensorAI detection of person, face, vehicle and licence plateVirtual line and virtual area video analyticsUp to 120/100fps, 60/50fps maximum with AI on4.38~9.33mm lens with 2.13x zoomMinimum illumination 0.007 lux colour / 0.0007 lux BW

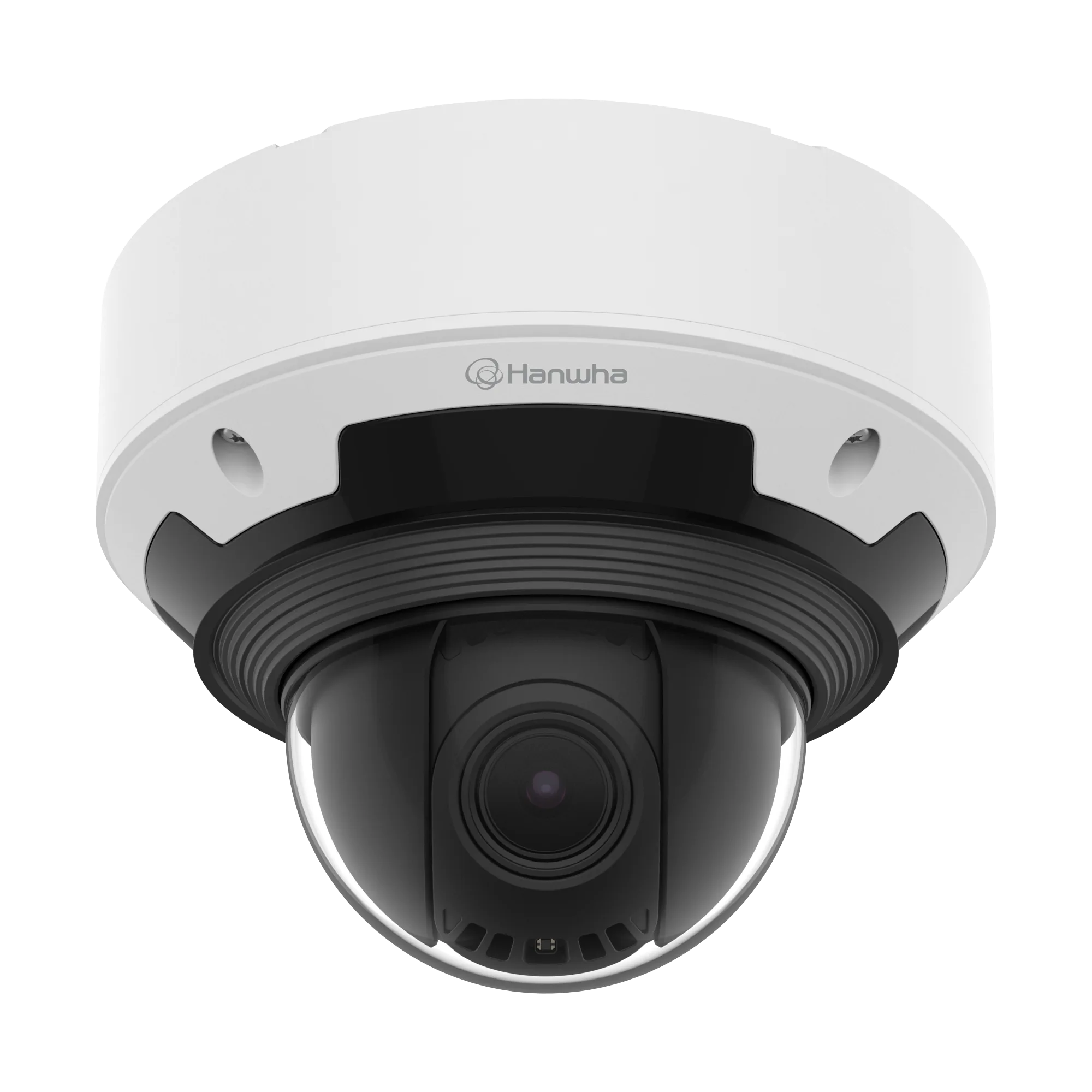

The PNV-A7082RZ is a modular outdoor vandal dome camera with AI and IR, using a 1/1.8-inch CMOS sensor at 4MP (2592x1520). With WDR switched off it records at 60fps/50fps (60Hz/50Hz), and at 30fps/25fps with WDR on, while MJPEG runs at 30fps and is limited to 5fps at 4MP. The IR corrected P iris lens spans 4.6~9.35mm with 2.0x optical zoom at F1.3 wide and F2.15 tele, covering 105°~47° horizontally with a minimum object distance of 1.5m. Being a PTRZ model, it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with automatic ICR day and night switching. 4MP (2592x1520) on a 1/1.8-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles4.6~9.35mm lens with 2.0x optical zoom60/50fps with WDR off, 30/25fps with WDR onMinimum illumination 0.03 lux colour / 0.003 lux BW

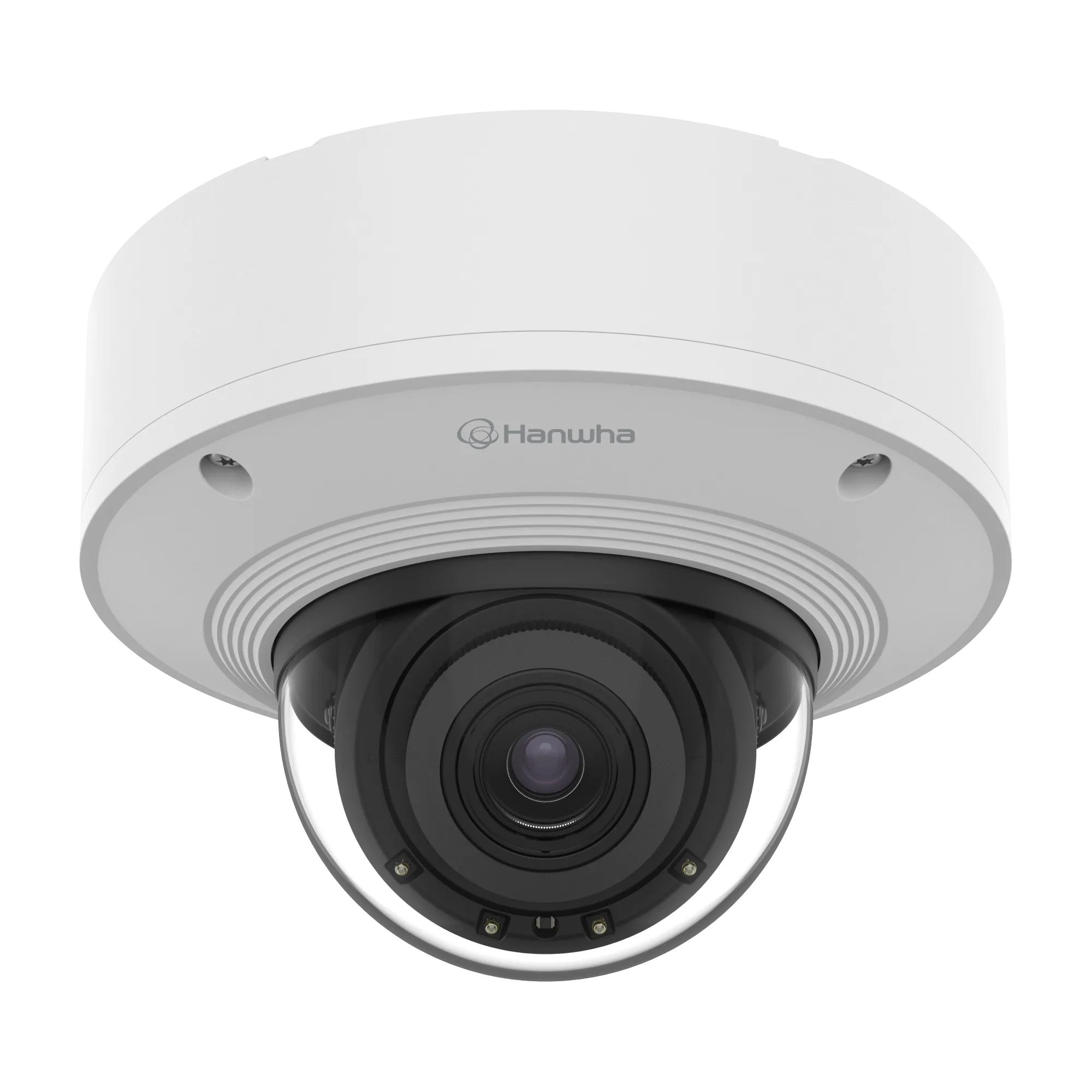

The PNV-A9081R is a network vandal dome camera with IR, built on a 1/1.8-inch CMOS sensor and reaching a maximum 4K resolution of 3840x2160. Colour images are possible at 0.05 lux with an F1.6 aperture and at 0 lux in black and white with the IR LED on, while the rated black and white sensitivity is 0.005 lux. Day and night switching is handled automatically by ICR and WDR operates at 120dB. H.265, H.264 and MJPEG are supported at up to 30fps/25fps together with WiseStreamII, and the video analytics are based on deep learning artificial intelligence. The IR corrected P iris lens runs from 4.5 to 10mm with 2.2x zoom, covers 101.4°~45.5° horizontally, and the camera can be set across 0°~360° pan, -45°~85° tilt and 0°~355° rotation. 4K resolution 3840x2160 at 30fps/25fpsVideo analytics based on deep learning120dB WDR with ICR day and night switching4.5~10mm lens with 2.2x zoomH.265, H.264 and MJPEG with WiseStreamII0 lux operation with IR LED on

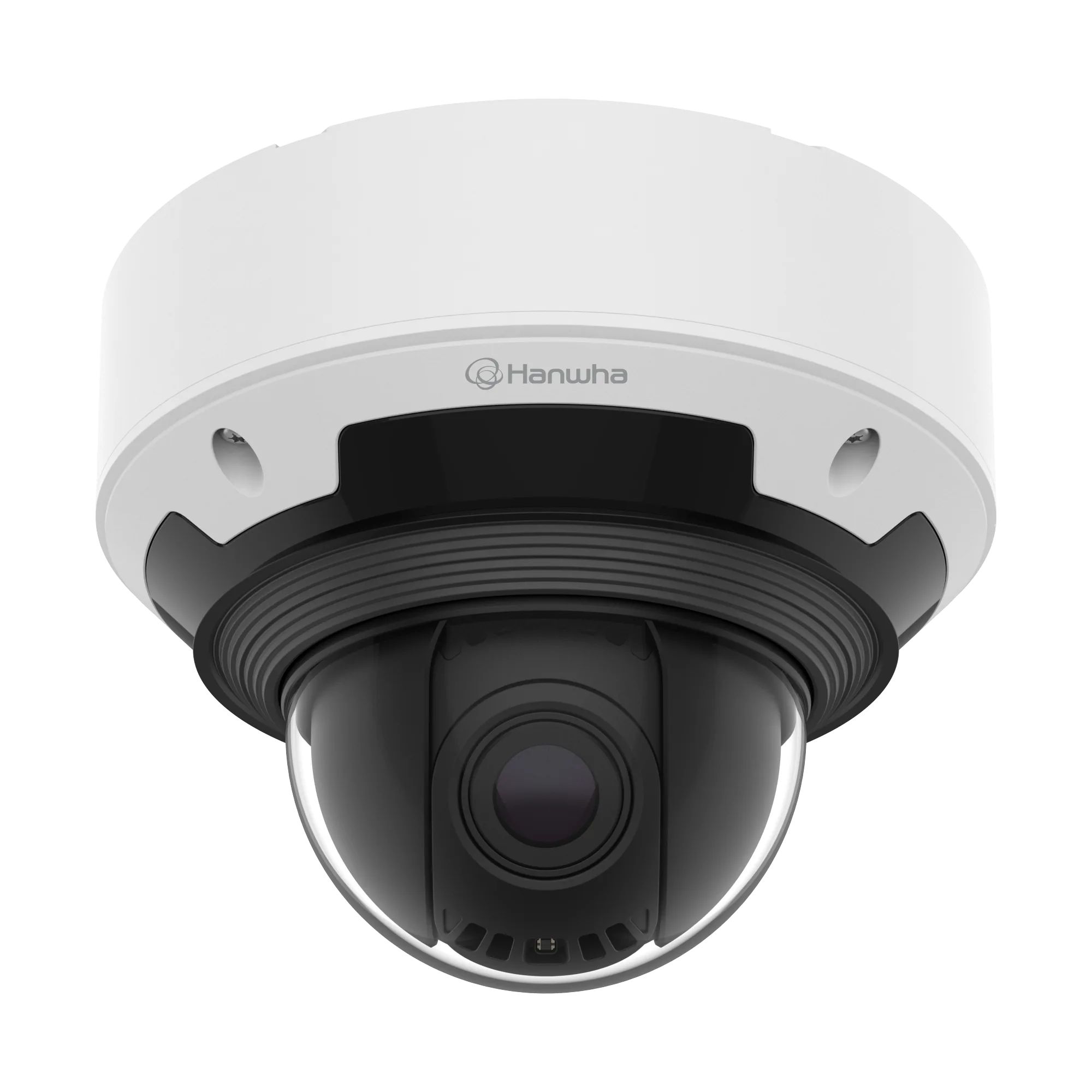

The PNV-A9082RZ is an outdoor vandal dome camera with AI, using a 1/1.2-inch CMOS sensor at 8MP (3840x2160). H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and is capped at 5fps when 8MP is selected. The IR corrected P iris lens covers 5.9~13.3mm with 2.25x optical zoom at F1.5 wide and F2.9 tele, spanning 109°~49° horizontally, and the minimum object distance is 0.8m. As a PTRZ model it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR day and night switching. 8MP (3840x2160) on a 1/1.2-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles5.9~13.3mm lens with 2.25x optical zoomMinimum illumination 0.015 lux colour / 0.0015 lux BWHorizontal field of view 109°~49°

The XNV-6083R is a vandal-resistant AI IR dome camera built on a 1/2.8" CMOS sensor with a maximum resolution of 1920 x 1080 pixels (2 MP). With WDR off, H.265 and H.264 reach 120 fps or 100 fps depending on the mains frequency, dropping to 60 fps or 50 fps with WDR on, while MJPEG runs at 30 fps. Its motorised 2.8~12 mm varifocal lens with 4.3x optical zoom opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from an object distance of 0.5 m. Simple focus, manual focus, an IR-corrected adaptive P iris and ICR day and night switching govern sharpness and exposure. Minimum illumination is 0.01 lux in colour and 0.001 lux in black and white, and adjustment covers 0°~360° pan, 0°~85° tilt and 0°~355° rotation. 2 MP resolution (1920 x 1080)Up to 120 fps with WDR off2.8~12 mm motorised varifocal lens (4.3x)IR-corrected adaptive P iris0.01 lux colour, 0.001 lux black and whiteDay and night (ICR)

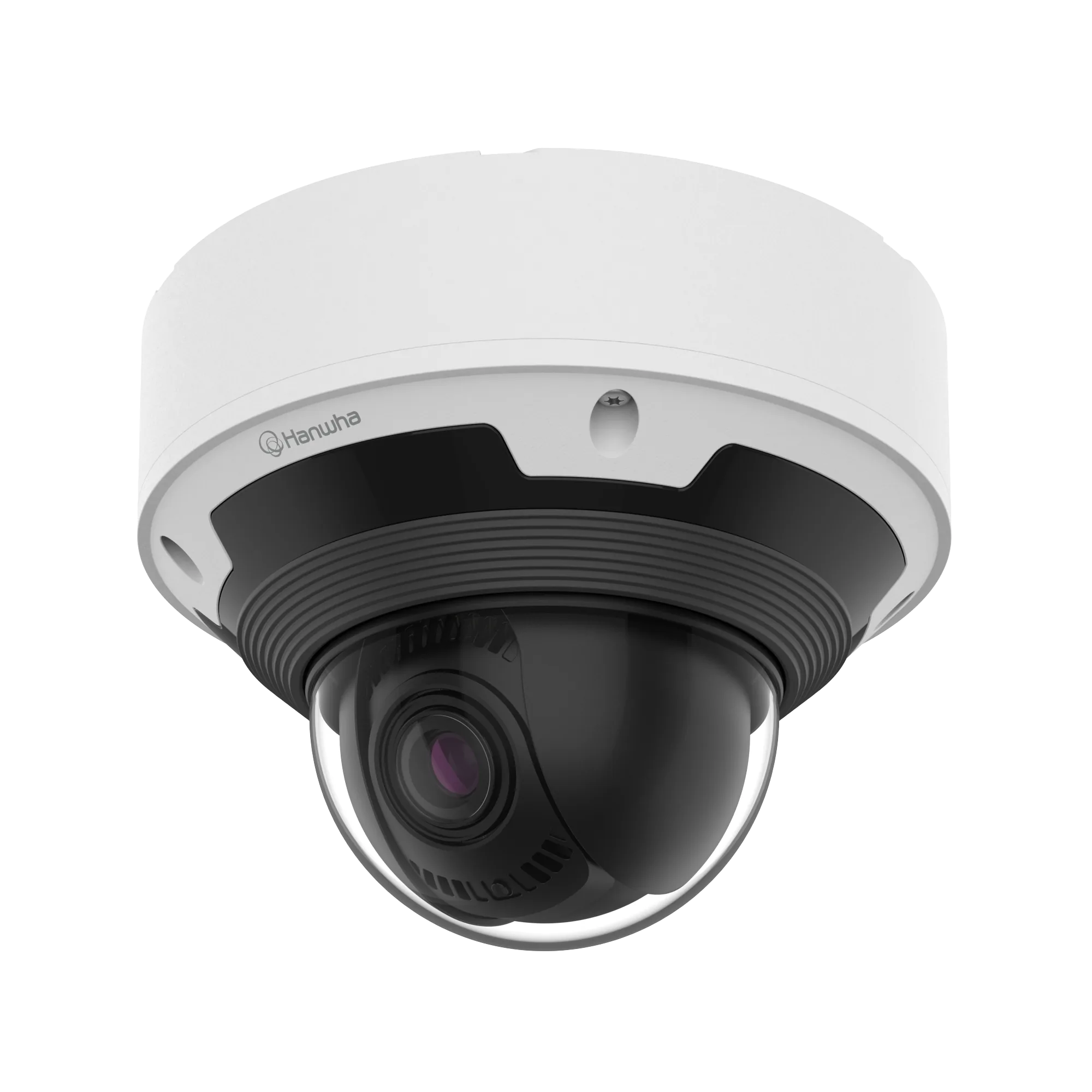

The XNV-6083RZ is a vandal-resistant AI IR dome camera capturing up to 1920 x 1080 pixels (2 MP) on a 1/2.8" CMOS sensor. Its motorised varifocal lens runs from 2.8 to 12 mm with 4.3x optical zoom, F1.4 at the wide end and F3.6 at tele, giving 120°~27° horizontal, 63°~15° vertical and 143°~32° diagonal coverage from a minimum object distance of 0.5 m. Alignment and lens settings can be adjusted remotely for a maximum of 200 cycles, with mechanical travel of 0°~350° pan, 0°~85° tilt and 0°~340° rotation. H.265 and H.264 offer up to 120 fps or 100 fps with WDR off and 60 fps or 50 fps with WDR on, while MJPEG delivers 30 fps. Minimum illumination is quoted as 0.01 lux in colour and 0.001 lux in black and white, supported by simple focus, an IR-corrected adaptive P iris and ICR switching. 2 MP resolution (1920 x 1080)Remote pan, tilt and rotate adjustment (max. 200 cycles)2.8~12 mm motorised varifocal lens (4.3x)Up to 120 fps with WDR offIR-corrected adaptive P iris0.01 lux colour, 0.001 lux black and white

The XNV-6083Z is a vandal-resistant AI dome camera whose 1/2.8" CMOS sensor delivers a maximum of 1920 x 1080 pixels (2 MP). A motorised 2.8 to 12 mm varifocal lens provides 4.3x optical zoom, opens to F1.4 wide and F3.6 tele and covers 120°~27° horizontally, 63°~15° vertically and 143°~32° diagonally from 0.5 m. Pan, tilt and rotate can be trimmed remotely for up to 200 cycles across ranges of 0°~350°, 0°~85° and 0°~340°. With WDR off, H.265 and H.264 support up to 120 fps or 100 fps, falling to 60 fps or 50 fps with WDR on, and MJPEG reaches 30 fps. Simple focus and manual focus, an IR-corrected adaptive P iris and ICR switching accompany minimum illumination of 0.01 lux in colour and 0.001 lux in black and white. 2 MP resolution (1920 x 1080)2.8~12 mm motorised varifocal lens (4.3x)Remote pan, tilt and rotate adjustment (max. 200 cycles)Up to 120 fps with WDR offIR-corrected adaptive P irisDay and night (ICR)

The XNV-6123R is a vandal-resistant AI IR dome camera with a 1/2.8" CMOS sensor and a maximum of 1920 x 1080 pixels (2 MP). Its motorised 5.2 to 62.4 mm varifocal lens offers 12x optical and 32x digital zoom at F1.6 wide and F3.0 tele, covering 55°~5° horizontally, 33°~3° vertically and 62°~6° diagonally, and focuses from 2.1 m using one-shot AF with focus save and a DC auto iris. With WDR off, H.265 and H.264 reach up to 120 fps or 100 fps, and 60 fps or 50 fps with WDR on, while MJPEG runs at 30 fps; minimum illumination is 0.03 lux in colour and 0.003 lux in black and white. The NPU-based AI engine detects people, faces, vehicles including cars, trucks, buses, bicycles and motorcycles as well as licence plates, and adds defocus, motion, tampering, fog, audio, shock and appear/disappear events plus sound classification. The housing is rated IP66, IP67, IP6K9K, NEMA4X and IK10+, with power from PoE or 12 V DC. 2 MP resolution (1920 x 1080)5.2~62.4 mm varifocal lens, 12x optical and 32x digital zoomNPU-based AI object detection (person, face, vehicle, licence plate)IP66, IP67, IP6K9K, NEMA4X, IK10+150 dB wide dynamic range with day/night (ICR)PoE or 12 V DC

The XNV-8083R is a vandal-resistant AI IR dome camera with a 1/1.8" CMOS sensor and a maximum resolution of 3328 x 1872 pixels (6 MP). Its motorised 4.4 to 9.3 mm varifocal lens (2.1x optical) opens to F1.3 wide and F2.15 tele and covers 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally from 0.5 m, focusing by simple focus or manually with an IR-corrected P iris. H.265 and H.264 reach up to 30 fps or 25 fps and MJPEG 30 fps, limited to 5 fps at 6 MP; minimum illumination is 0.04 lux in colour, 0.004 lux in black and white and 0 lux with the IR LED on. WiseIR illuminates to 50 m, extremeWDR works at 120 dB, and the AI-based WiseNRⅡ and WiseStreamⅢ functions manage noise and bitrate. A hard-coated dome bubble and adjustment ranges of 0°~360°, 0°~85° and 0°~355° complete the specification. 6 MP resolution (3328 x 1872)4.4~9.3 mm motorised varifocal lens (2.1x)WiseIR with 50 m rangeextremeWDR at 120 dBAI-based WiseNRⅡ and WiseStreamⅢHard-coated dome bubble

The XNV-8083RZ is a vandal-resistant AI IR dome camera whose 1/1.8" CMOS sensor delivers up to 3328 x 1872 pixels (6 MP). Its motorised 4.4 to 9.3 mm varifocal lens with 2.1x optical zoom opens to F1.3 wide and F2.15 tele, giving 113°~47° horizontal, 58°~26° vertical and 138°~54° diagonal coverage from a minimum object distance of 0.5 m. Pan, tilt and rotate travel across 0°~350°, 0°~85° and 0°~340° and can be trimmed remotely for a maximum of 200 cycles. H.265 and H.264 run at up to 30 fps or 25 fps and MJPEG at 30 fps, dropping to 5 fps at 6 MP. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, supported by simple focus, manual focus, an IR-corrected P iris and ICR day and night switching. 6 MP resolution (3328 x 1872)4.4~9.3 mm motorised varifocal lens (2.1x)Remote pan, tilt and rotate adjustment (max. 200 cycles)0.03 lux colour, 0.003 lux black and whiteIR-corrected P irisDay and night (ICR)

The vandal-resistant AI dome camera XNV-8083Z captures up to 3328 x 1872 pixels (6 MP) on a 1/1.8" CMOS sensor and encodes H.265 and H.264 at a maximum of 30 fps or 25 fps and MJPEG at 30 fps, limited to 5 fps at 6 MP. Its motorised 4.4~9.3 mm varifocal lens (2.1x optical, F1.3 to F2.15) covers 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally from 0.5 m under simple focus, manual focus and an IR-corrected P iris. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, falling to 0 lux with the IR LED on, while extremeWDR operates at 120 dB alongside ICR switching and the AI-based WiseNRⅡ and WiseStreamⅢ functions. NPU-based analysis identifies people, faces and vehicles including cars, trucks, buses, bicycles and motorcycles as well as licence plates, and adds IVA rules for virtual line and area, enter and exit, loitering, direction and intrusion. The dome bubble is hard-coated, and pan, tilt and rotate span 0°~350°, 0°~85° and 0°~340° with remote adjustment for up to 200 cycles. 6 MP resolution (3328 x 1872)4.4~9.3 mm motorised varifocal lens (2.1x)NPU-based AI object detection with IVA rulesextremeWDR at 120 dBAI-based WiseNRⅡ and WiseStreamⅢHard-coated dome bubble

The XNV-8093R is a vandal-resistant AI IR dome camera with a 1/1.8" CMOS sensor and a maximum of 3328 x 1872 pixels (6 MP), aimed at longer observation distances. Its motorised varifocal lens runs from 10.9 to 29 mm (2.7x optical) at F1.7 wide and F1.73 tele, covering 42°~15° horizontally, 23°~8° vertically and 49°~17° diagonally, with a minimum object distance of 2.5 m at wide and 6 m at tele. Simple focus, manual focus and an IR-corrected adaptive P iris control sharpness and aperture, while WiseIR illuminates up to 70 m. H.265 and H.264 run at up to 30 fps or 25 fps and MJPEG at 30 fps, limited to 5 fps at 6 MP, with minimum illumination of 0.06 lux in colour and 0.006 lux in black and white. extremeWDR at 120 dB, ICR switching, the AI-based WiseNRⅡ and WiseStreamⅢ functions, a hard-coated dome bubble and adjustment of 0°~360°, 0°~85° and 0°~355° complete the camera. 6 MP resolution (3328 x 1872)10.9~29 mm motorised varifocal lens (2.7x)WiseIR with 70 m rangeextremeWDR at 120 dBAI-based WiseNRⅡ and WiseStreamⅢHard-coated dome bubble

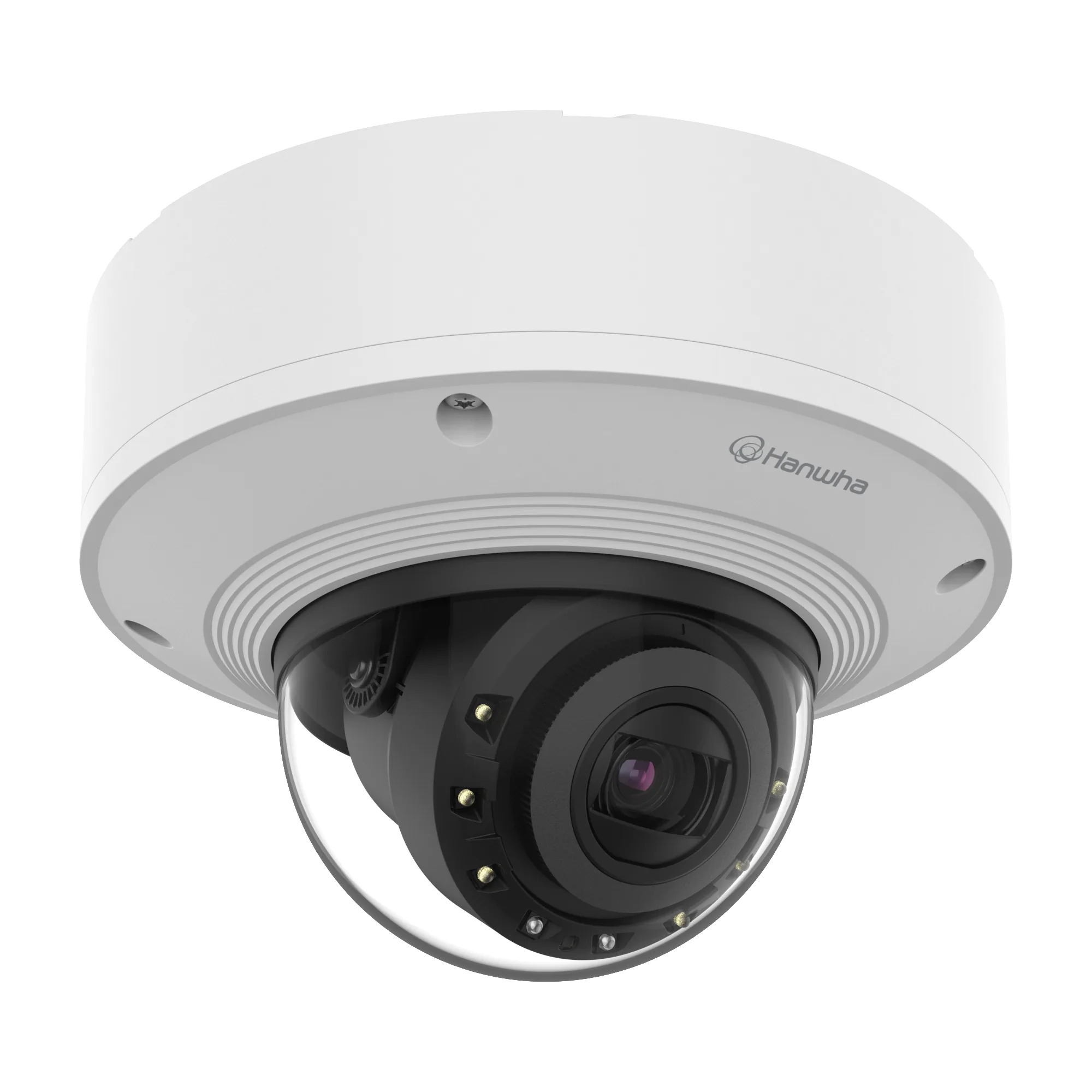

The XNV-9082R is a vandal-resistant IR network dome camera with a 1/2.8" CMOS sensor recording 4K at 3840 x 2160 pixels. Its motorised 2.8 to 8.4 mm varifocal lens (3x optical) opens to F1.2 wide and F2.8 tele and covers 114°~40° horizontally, 62°~22° vertically and 133°~46° diagonally from 0.7 m, with simple focus working alongside an IR-corrected DC auto iris and P iris. At 4K, H.265 and H.264 allow up to 30 fps or 25 fps while MJPEG reaches 30 fps and 5 fps at 8 MP; minimum illumination is 0.05 lux in colour, 0.005 lux in black and white and 0 lux with the IR LED on. A built-in gyro sensor supports digital image stabilisation, the IR range is 40 m, and ICR day and night switching plus wide dynamic range are included. Video analytics cover defocus, direction, audio and shock detection as well as face and upper body detection, with adjustment across 0°~360°, 0°~85° and 0°~355°. 4K resolution (3840 x 2160)2.8~8.4 mm motorised varifocal lens (3x)40 m IR rangeDigital image stabilisation with built-in gyro sensorVideo analytics with face and upper body detectionDay and night (ICR) and wide dynamic range

The XNV-9083RZ is a vandal-resistant AI IR dome camera with a 1/1.8" CMOS sensor and a top resolution of 3840 x 2160 pixels (8 MP). Its motorised 4.4 to 9.3 mm varifocal lens provides 2.1x optical zoom at F1.3 wide and F2.15 tele and covers 113°~47° horizontally, 58°~26° vertically and 138°~54° diagonally from an object distance of 0.5 m. Focus and aperture are handled by simple focus, manual focus and an IR-corrected P iris, together with automatic ICR day and night switching. H.265 and H.264 allow up to 30 fps or 25 fps and MJPEG reaches 30 fps, limited to 5 fps at 8 MP, while minimum illumination is 0.03 lux in colour and 0.003 lux in black and white. Pan, tilt and rotate cover 0°~350°, 0°~85° and 0°~340° and can be trimmed remotely for a maximum of 200 cycles. 8 MP resolution (3840 x 2160)4.4~9.3 mm motorised varifocal lens (2.1x)Remote pan, tilt and rotate adjustment (max. 200 cycles)0.03 lux colour, 0.003 lux black and whiteIR-corrected P irisDay and night (ICR)
