4CH PoE+ NVR
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XRN-420S
- EAN / GTIN
- 8801089177872
- Weight
- 2.4 kg
- Dimensions (W×H×D)
- 524 × 424 × 177 mm
Description
The XRN-420S is a compact network video recorder for up to four cameras with resolutions from CIF to 8MP, integrated through SUNAPI and ONVIF. It records in H.265, H.264 and MJPEG at a maximum of 50Mbps and plays back at up to 32Mbps across no more than 16 simultaneous channels, four of them local and four per remote user. Cameras connect plug and play through four PoE ports at 10/100, joined by a PoE WAN connection at 1Gbps, while local viewing is available over HDMI or VGA. With Wisenet AI cameras, AI search by object attribute is available in addition to searching by date and time, event list, text and smart search. The recorder runs embedded Linux, supports ARB and accommodates one SATA drive of up to 6TB.
- Up to 4 channels, CIF to 8MP
- Max. 50Mbps recording bandwidth
- 4 PoE ports (LAN, 10/100) with plug and play
- 1 PoE (WAN, 1Gbps)
- 1 SATA bay, up to 6TB
- ARB supported
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Display (6)
- Decoding local display
- HDMI, VGA
- Decoding resolution
- [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps), [Local Monitior] FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 On
- Multi-Screen-Display
- [Dual Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4
- Network camera inputs
- Max. 4CH
- Network camera protocol
- SUNAPI, ONVIF
- Network camera resolution
- 8MP ~ CIF
Electrical (3)
- Electrical power consumption
- 100 ~ 240 VAC ±10%, 50/60Hz
- PoE-Budget
- 50W
- Power consumption
- Max. 67W(1HDD, PoE On)
Environment (2)
- Operating humidity
- 20% ~ 85% RH
- Operating temperature
- 0°C to +40°C(32℉ to 104℉)
Function (11)
- Camera setup items
- IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Se
- Camera setup registration
- Auto, Manual
- Easy configuration
- P2P(QR code)
- Function Max. remote users
- Search(3), Live Unicast(10)
- PTZ control
- Via GUI, Webviewer
- PTZ preset
- 300 Presets
- Protocol support
- RTP, RTSP, HTTP, CGI(SUNAPI)
- Redundancy ARB
- Support
- Redundancy failover
- N+1
- Smartphone control
- Live 4CH(Multi-Profile Support), Playback 4CH
- Supported platforms
- iOS, Android
Intelligente Analyse (1)
- KI-Suche Objektattribut
- Compatible with Hanwha AI Cameras

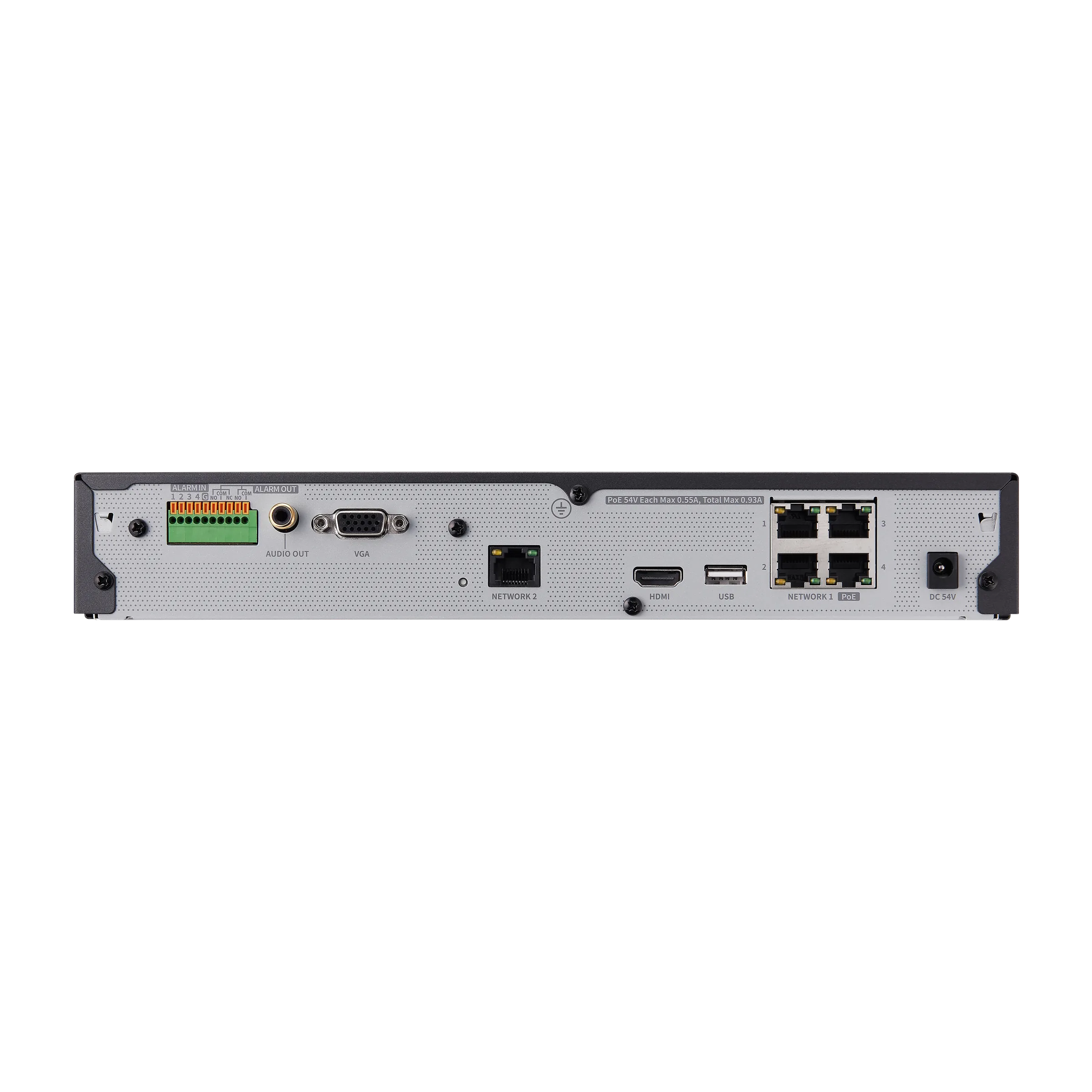

Interface (10)

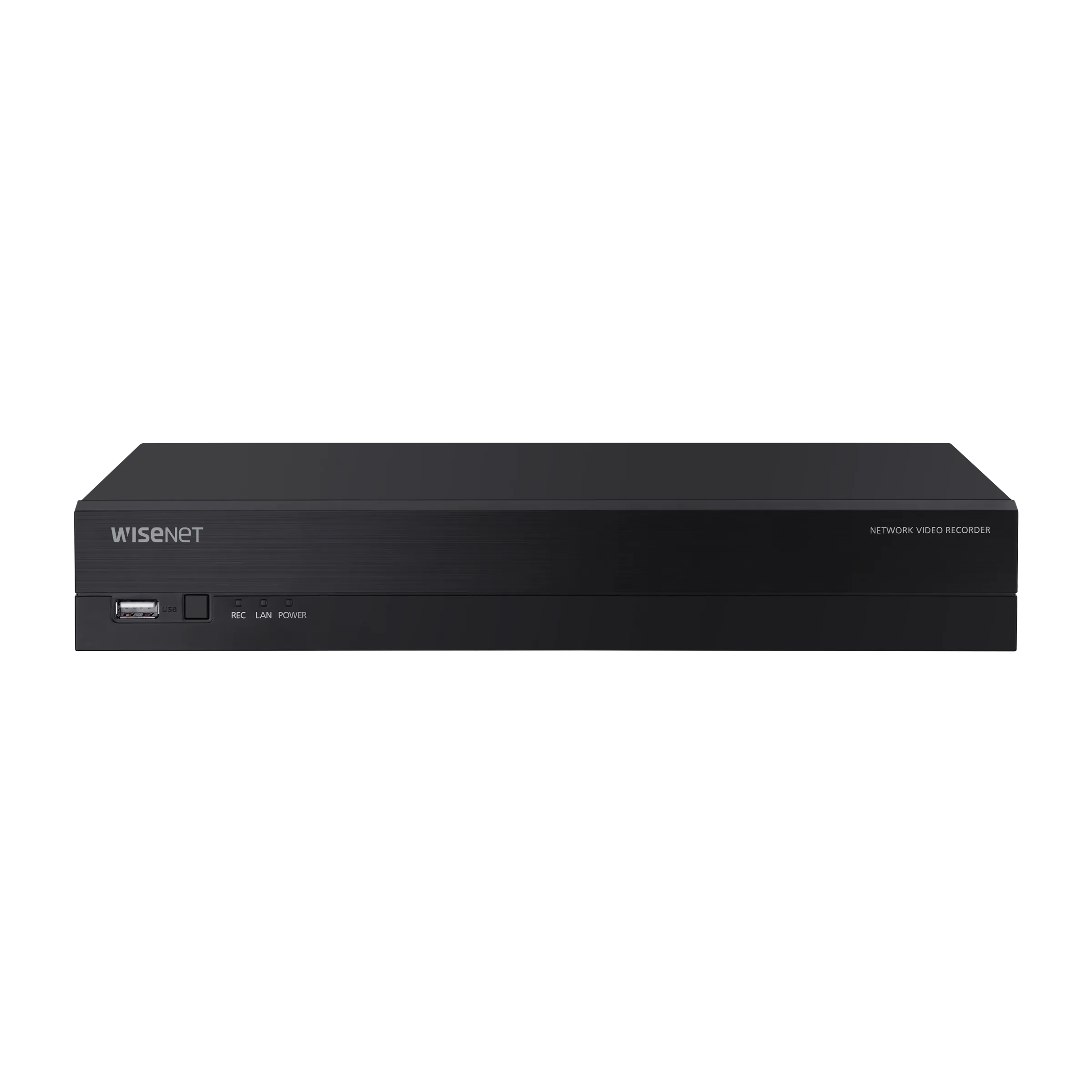

- Front panel indication
- Power, Record, Network
- Interface Alarm
- In 4EA, Out 2EA
- Interface Audio
- Out 1EA
- Interface Ethernet
- PoE+ RJ-45(LAN, 10/100) 4ea, RJ-45 1ea (WAN, 1Gbps)
- Interface HDMI
- 1EA 3840x2160 30Hz
- Interface VGA
- 1EA 1920x1080 30Hz
- Interface – USB
- 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0)
- Power input
- DC Adaptor
- Reset
- Support
- Storage
- OK
Mechanical (3)
- Colour / material
- Black / Metal
- Dimensions
- 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch)
- Weight
- 1.06Kg(2.33lb)
Network (11)
- Audio Audiokommunikation
- 2-Way
- Audio compression
- G.711, G.726, AAC(16/48KHz)
- Audio input/output
- 4 CH(network)
- DDNS
- Hanwha DDNS
- Max. remote users
- Search(3), Live Unicast(10), Multicast(20)
- Network security
- IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
- Supported browsers
- Google Chrome, Microsoft Edge, Mac Safari
- Supported operating system
- Windows 10, macOS 10.13
- Transmission bandwidth
- Max. 64Mbps
- Viewer-Software
- WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Performance (18)
- Backup File backup
- BU/Exe(GUI), JPG/AVI(Network)
- Backup Function
- Multi channel(Up to 4CH) Play, Date-Time/Title display
- Fisheye dewarping
- CMS
- Gleichzeitige Wiedergabe
- Max. 16CH(Local 4CH, Remote 4CH per user)
- Operating system Embedded
- Linux
- Playback bandwidth
- Max. 32Mbps
- Playback control
- Fast/Slow Forward / Backward, Move one step Up / Down
- Recording bandwidth
- Max. 50Mbps
- Recording compression
- H.265, H.264, MJPEG
- Recording event action
- e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
- Recording event trigger
- Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
- Recording mode
- Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Recording resolution
- 8MP ~ CIF
- Search & playback resolution
- CIF ~ 8MP
- Search & playback users
- Max. 4 Users (Local 1, Remote 3)
- Storage HDD slot (ea.)
- SATA 1ea(Max 6TB)
- Storage supported HDD
- Up to 6TB
- Suchen & abspielen Modus
- Date & Time(Calendar), Event list, Text Search, Smart Search
System (3)
- Protocol Protocol list
- Max. 100,000 (System Log, Event Log each)
- Sprache
- English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
- System control
- Mouse, Web
