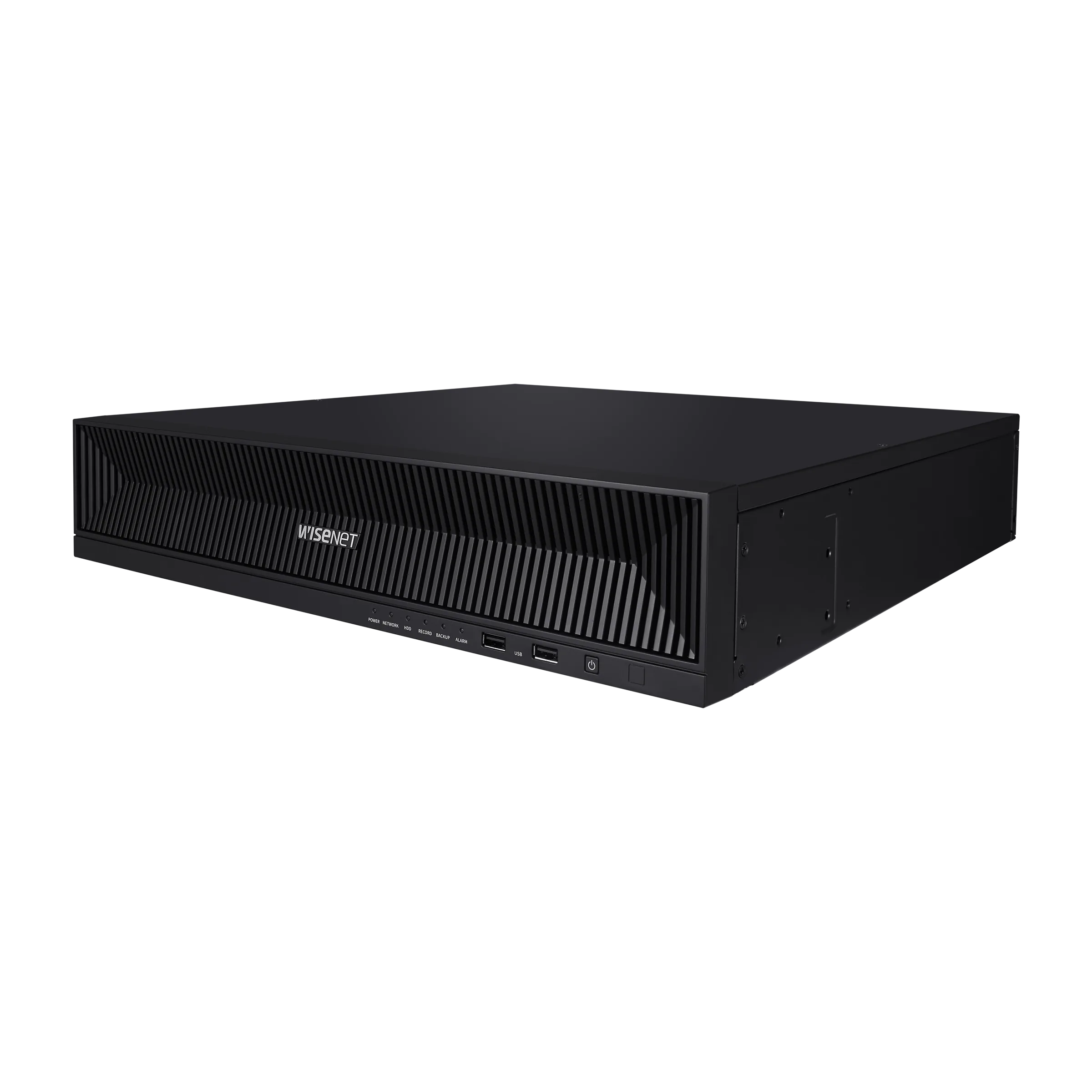

16CH 32MP 140Mbps 4 Bay PoE NVR
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XRN-1620SB1
- EAN / GTIN
- 8801089195760
- Weight
- 7.48 kg
- Dimensions (W×H×D)
- 545 × 495 × 188 mm
Description
The XRN-1620SB1 records up to 16 network cameras with resolutions from CIF to 32MP, integrating them over SUNAPI and ONVIF. Recording is performed in H.265, H.264 and MJPEG at up to 140Mbps, and playback reaches 32Mbps across a maximum of 64 simultaneous channels split into 16 local and 16 per remote user. Local viewing supports two FHD monitors over HDMI and VGA or one UHD monitor over HDMI, together with dynamic layout and virtual channel view. Events can be triggered by alarm inputs, video loss, camera events such as sensor, motion detection, video analytics, defocus and audio, as well as dynamic and user events, with actions including e-mail, event push, PTZ preset, alarm out, buzzer, monitor out and FTP. Storage uses four SATA bays for up to 24TB with drives of up to 6TB, and the unit runs on embedded Linux.
- Up to 16 channels, CIF to 32MP
- Max. 140Mbps recording bandwidth
- 4 SATA bays, up to 24TB
- Drives up to 6TB
- SUNAPI and ONVIF
- Time, event, text and smart search
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Display (6)
- Decoding local display
- FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor
- Decoding resolution
- [Local Monitior] FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps), FHD Expand mode: 32M(12f
- Multi-Screen-Display
- [Local Monitor] - Dynamic layout, Virtual channel view - Clone mode : Up to 16 Division - Expand mode : Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
- Network camera inputs
- Max. 16CH
- Network camera protocol
- SUNAPI, ONVIF
- Network camera resolution
- 32MP ~ CIF
Electrical (3)
- Electrical power consumption
- 100 ~ 240 VAC ±10%, 50/60Hz
- PoE-Budget
- 200W
- Power consumption
- Max. 310W
Environment (2)
- Operating humidity
- 20% ~ 85% RH
- Operating temperature
- 0°C to +40°C(32℉ to 104℉)
Function (11)
- Camera setup items
- IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Se
- Camera setup registration
- Auto, Manual
- Easy configuration
- P2P(QR code)
- Function Max. remote users
- Search(3), Live Unicast(10)
- PTZ control
- Via GUI, Webviewer, SPC-2000
- PTZ preset
- 300 Presets
- Protocol support
- RTP, RTSP, HTTP, CGI(SUNAPI)
- Redundancy ARB
- Support
- Redundancy failover
- N+1
- Smartphone control
- Live 16CH(Multi-Profile Support), Playback 4CH
- Supported platforms
- iOS, Android
Intelligente Analyse (1)
- KI-Suche Objektattribut
- Compatible with Hanwha AI Cameras

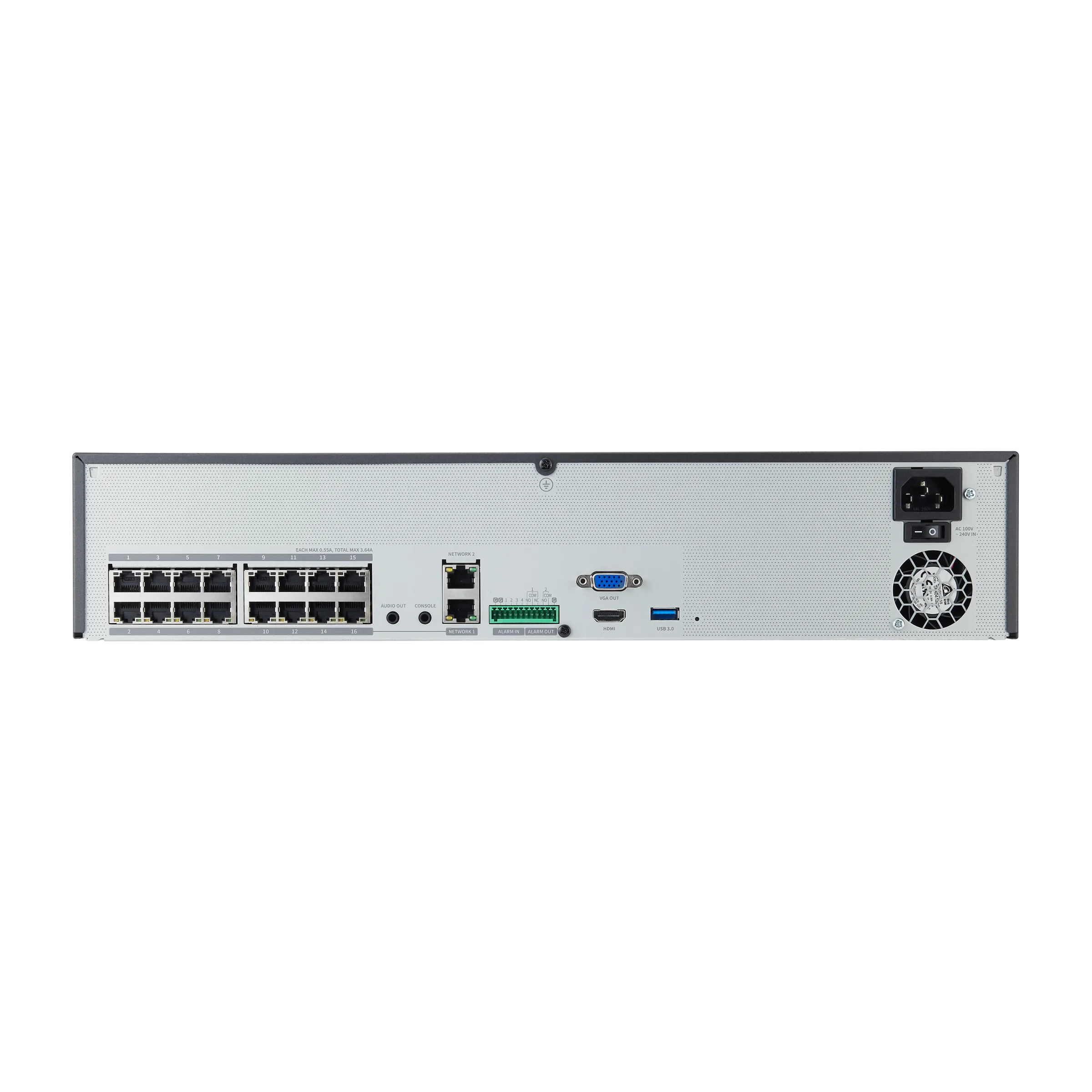

Interface (9)
- Front panel indication
- HDD, Alarm, Power, Record, Backup, Network
- Interface Alarm
- In 4EA, Out 2EA
- Interface Audio
- Out 1EA (3.5mm Audio Jack)
- Interface Ethernet
- PoE+ RJ-45 16EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps)
- Interface HDMI
- 1EA 3840x2160 30Hz
- Interface VGA
- 1920x1080 30Hz
- Interface – USB
- 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
- Power input
- AC 1EA
- Storage
- OK
Mechanical (3)
- Colour / material
- Black / Metal
- Dimensions
- 440.0 x 89.8 x 428.4 mm (17.32 x 3.54 x 16.87 inch)
- Weight
- 5.76Kg(12.70lb)
Network (11)
- Audio Audiokommunikation
- 2-Way
- Audio compression
- G.711, G.726, AAC(16/48KHz)
- Audio input/output
- 16 CH(network)
- DDNS
- Hanwha DDNS
- Max. remote users
- Search(3), Live Unicast(10), Multicast(20)
- Network security
- IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
- Supported browsers
- Google Chrome, Microsoft Edge, Mac Safari
- Supported operating system
- Windows 10, macOS 10.13
- Transmission bandwidth
- Max. 140Mbps
- Viewer-Software
- WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Performance (19)
- Backup File backup
- BU/Exe/AVI(GUI), JPG/AVI(Network)
- Backup Function
- Multi channel(Up to 16CH) Play, Date-Time/Title display
- Fisheye dewarping
- CMS
- Gleichzeitige Wiedergabe
- Max. 64CH(Local 16CH, Remote 16CH per user)
- Operating system Embedded
- Linux
- Playback bandwidth
- Max. 32Mbps
- Playback control
- Fast/Slow Forward / Backward, Move one step Up / Down
- Recording bandwidth
- Max. 140Mbps
- Recording compression
- H.265, H.264, MJPEG
- Recording event action
- e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
- Recording event trigger
- Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
- Recording mode
- Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Recording resolution
- 32MP ~ CIF
- Search & playback resolution
- CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
- Search & playback users
- Max. 4 Users (Local 1, Remote 3)
- Storage HDD slot (ea.)
- SATA 4ea(Max. 24TB)
- Storage RAID
- RAID-1
- Storage supported HDD
- Up to 6TB
- Suchen & abspielen Modus
- Date & Time(Calendar), Event list, Text Search, Smart Search
System (3)
- Protocol Protocol list
- Max. 100,000 (System Log, Event Log each)
- Sprache
- English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
- System control
- Mouse, Keyboard, Web, Controller (SPC-2000)
