64CH 8K
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XRN-6420B2
- EAN / GTIN
- 8801089221452
- Weight
- 10 kg
- Dimensions (W×H×D)
- 558 × 548 × 182 mm
Description
The XRN-6420B2 is a network video recorder for up to 64 channels with resolutions from CIF to 32MP, built around a 12th generation Intel processor. Recording in H.265, H.264 and MJPEG reaches up to 520Mbps in distributed mode and up to 300Mbps in normal mode. Two HDMI outputs supply 3840x2160 at 30Hz and 1920x1080 at 60Hz and support dynamic layout, virtual channel view and a clone mode of up to 64 divisions. Playback runs at up to 200Mbps with 64 channels at the same time and 112 channels in total, made up of 64 local and 16 per remote user. Eight SATA bays accept up to 80TB with drives of up to 10TB, and the recorder adds simplified channel, event and alarm configuration, built-in web management for up to 100, and operation with Wisenet Viewer and Wisenet mobile.
- 64 channels, up to 32MP
- 12th generation Intel processor
- Up to 520Mbps recording bandwidth
- 8 SATA bays, up to 80TB
- Up to 112 simultaneous playback channels
- Compatible with Wisenet Viewer and Wisenet mobile
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Display (6)
- Decoding local display
- [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz)
- Decoding resolution
- 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(4ch@30fps), 1080p(16ch@30fps), 720P(32ch@30fps), D1(64ch@30fps)
- Multi-Screen-Display
- [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 32 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
- Network camera inputs
- Max. 64CH
- Network camera protocol
- SUNAPI, ONVIF
- Network camera resolution
- 32MP ~ CIF
Electrical (2)
- Electrical power consumption
- 100 ~ 240 VAC ±10%; 50/60Hz, 1.5A(Single SMPS)
- Power consumption
- Max. 143W (488BTU with HDD 8ea)
Environment (2)
- Operating humidity
- 20% ~ 85% RH
- Operating temperature
- 0°C to +40°C(32℉ to 104℉)
Function (11)
- Camera setup items
- IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Se
- Camera setup registration
- Auto, Manual
- Easy configuration
- P2P(QR code)
- Function Max. remote users
- Search(3), Live Unicast(10)
- PTZ control
- Via GUI, Webviewer, SPC-2000/2001
- PTZ preset
- 300 Presets
- Protocol support
- RTP, RTSP, HTTP, CGI(SUNAPI)
- Redundancy ARB
- Support
- Redundancy failover
- N+1
- Smartphone control
- Live 16CH(Multi-Profile Support), Playback 4CH
- Supported platforms
- iOS, Android
Intelligente Analyse (1)
- KI-Suche Objektattribut
- Compatible with Hanwha AI Cameras
Interface (9)

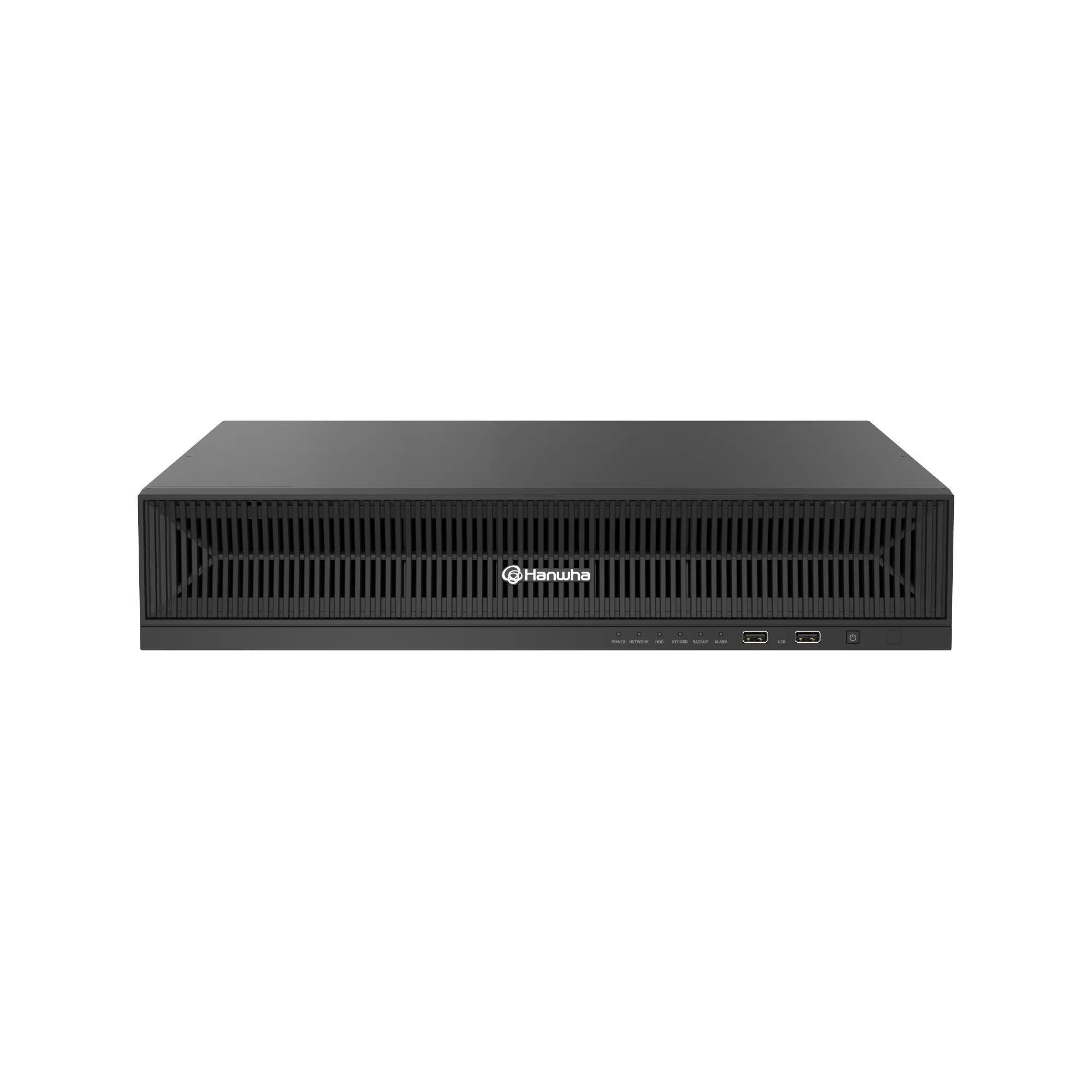

- Front panel indication
- HDD, Alarm, Power, Record, Backup, Network

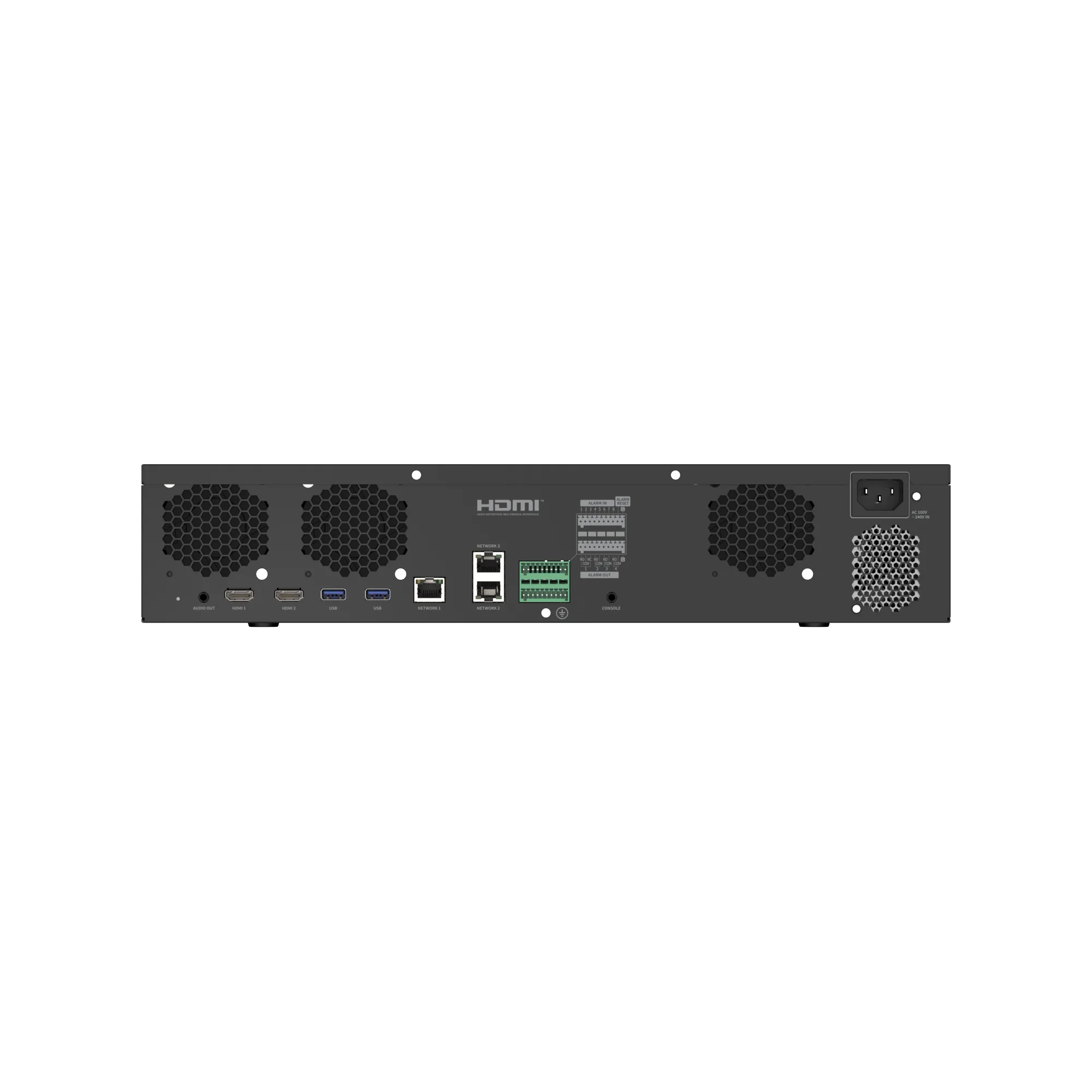

- Interface Alarm
- In 8EA, Out 4EA
- Interface Audio
- Out 1EA (3.5mm Audio Jack)
- Interface Ethernet
- RJ-45 3EA (LAN/WAN, 1Gbps)
- Interface HDMI
- 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz
- Interface – USB
- 4EA(Front 2 x USB2.0 + Rear 2 x USB 3.0)
- Power input
- AC 1EA
- Reset
- Power button
- Storage
- Yes
Mechanical (3)
- Colour / material
- Black / Metal
- Dimensions
- 438.0 x 86.0 x 434.9 mm (17.47 x 3.39 x 17.12 inch)
- Weight
- 7.3Kg (16.1lb, Except HDD)
Network (11)
- Audio Audiokommunikation
- 2-Way
- Audio compression
- G.711, G.726, AAC(16/48KHz)
- Audio input/output
- 64 CH(network)
- DDNS
- Hanwha DDNS
- Max. remote users
- Search(3), Live Unicast(10), Multicast(20)
- Network security
- IP address filtering, User access Log, 802.1x, TLS, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware, TPM support
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, RTCP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
- Supported browsers
- Google Chrome, Microsoft Edge, Mac Safari
- Supported operating system
- Windows10 or higher, macOS 13.5.2 or higher
- Transmission bandwidth
- Max. 520Mbps
- Viewer-Software
- WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Performance (19)
- Backup File backup
- Recorder/SEC/AVI/JPG(Local), AVI/PNG(Network)
- Backup Function
- Multi channel(Up to 16CH) Play, Date-Time/Title display
- Fisheye dewarping
- Support (Local 1CH), CMS
- Gleichzeitige Wiedergabe
- Max. 112CH(Local 64CH, Remote 16CH per user)
- Operating system Embedded
- Linux
- Playback bandwidth
- Up to 200Mbps(64CH simultaneously)
- Playback control
- Fast/Slow Forward / Backward, Move one step Up / Down
- Recording bandwidth
- Distributed mode : Up to 520 Mbps, Normal mode : Up to 300 Mbps
- Recording compression
- H.265, H.264, MJPEG
- Recording event action
- e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
- Recording event trigger
- Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
- Recording mode
- Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Recording resolution
- 32MP ~ CIF
- Search & playback resolution
- CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
- Search & playback users
- Max. 4 Users (Local 1, Remote 3)
- Storage External
- iSCSI storage
- Storage HDD slot (ea.)
- SATA 8ea(Max. 80TB)
- Storage supported HDD
- Up to 10TB
- Suchen & abspielen Modus
- Time/Event/Text/ARB/Bookmark/Smart search
System (3)
- Protocol Protocol list
- Max. 100,000 (System Log, Event Log each)
- Sprache
- English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
- System control
- Mouse(include wireless), Keyboard(include wireless), Web, Controller (SPC-2000/2001)
