8CH PoE NVR
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- ARN-810S
- EAN / GTIN
- 8801089228406
- Weight
- 2 kg
- Dimensions (W×H×D)
- 466 × 98 × 268 mm
Description
The ARN-810S records up to eight channels at resolutions from CIF to 8 megapixel and attaches cameras through SUNAPI and ONVIF. Eight PoE+ ports with a 65W budget power the cameras directly and allow plug and play, with recording bandwidth of up to 60Mbps in H.265, H.264 and MJPEG. One SATA bay accepts a hard disk of up to 6TB, and Linux serves as the embedded operating system. Local output uses HDMI with 4K monitor out, while playback reaches up to 32Mbps for a maximum of four users, one local and three remote. Dual track recording, event triggers such as alarm input, video loss and camera events, actions including e-mail, event push, PTZ preset, alarm out, buzzer and monitor out, and P2P access by QR code for Wisenet Viewer and Wisenet Mobile complete the recorder.
- Up to 8 channels, CIF to 8MP
- 8 PoE+ ports with 65W budget
- Recording bandwidth up to 60Mbps
- 1 SATA bay, up to 6TB
- Dual track recording, 4K HDMI output
- P2P QR code access for Wisenet Viewer and Wisenet Mobile
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Display (6)
- Decoding local display
- HDMI
- Decoding resolution
- [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps)
- Multi-Screen-Display
- [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ Sequence [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
- Network camera inputs
- Max. 8CH
- Network camera protocol
- SUNAPI, ONVIF
- Network camera resolution
- 8MP ~ CIF
Electrical (3)
- Electrical power consumption
- 54VDC/1.67A
- PoE-Budget
- 65W
- Power consumption
- Max. 84W (1HDD, PoE On)
Environment (2)
- Operating humidity
- 20% ~ 85% RH
- Operating temperature
- 0°C to +40°C(32℉ to 104℉)
Function (11)
- Camera setup items
- IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Se
- Camera setup registration
- Auto, Manual
- Easy configuration
- P2P(QR code)
- Function Max. remote users
- Search(3), Live Unicast(10)
- PTZ control
- Via GUI, Webviewer
- PTZ preset
- 300 Presets
- Protocol support
- RTP, RTSP, HTTP, CGI(SUNAPI)
- Redundancy ARB
- Support
- Redundancy failover
- N+1
- Smartphone control
- Live 4CH(Multi-Profile Support), Playback 4CH
- Supported platforms
- iOS, Android
Interface (6)

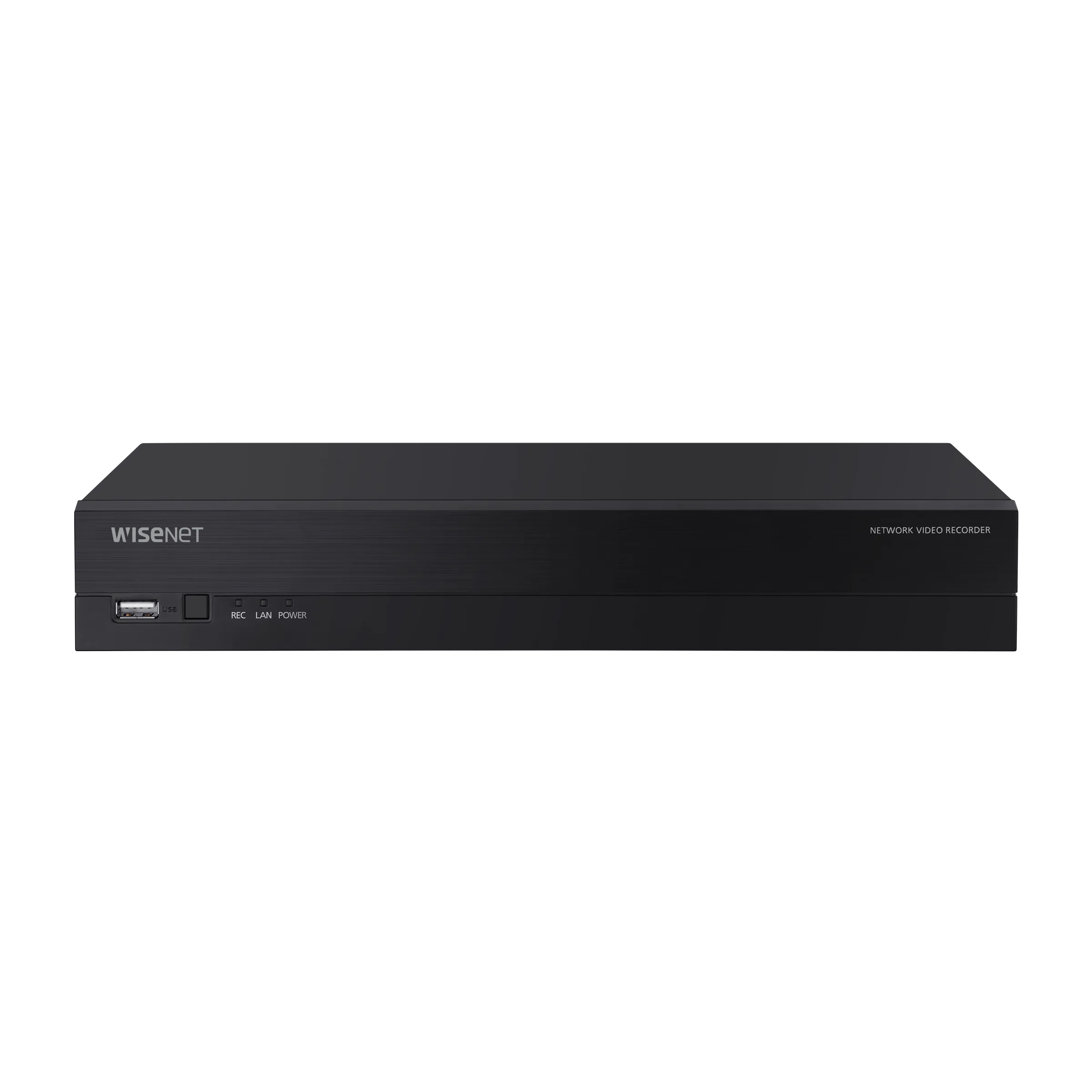

- Front panel indication
- Power, Record, Network

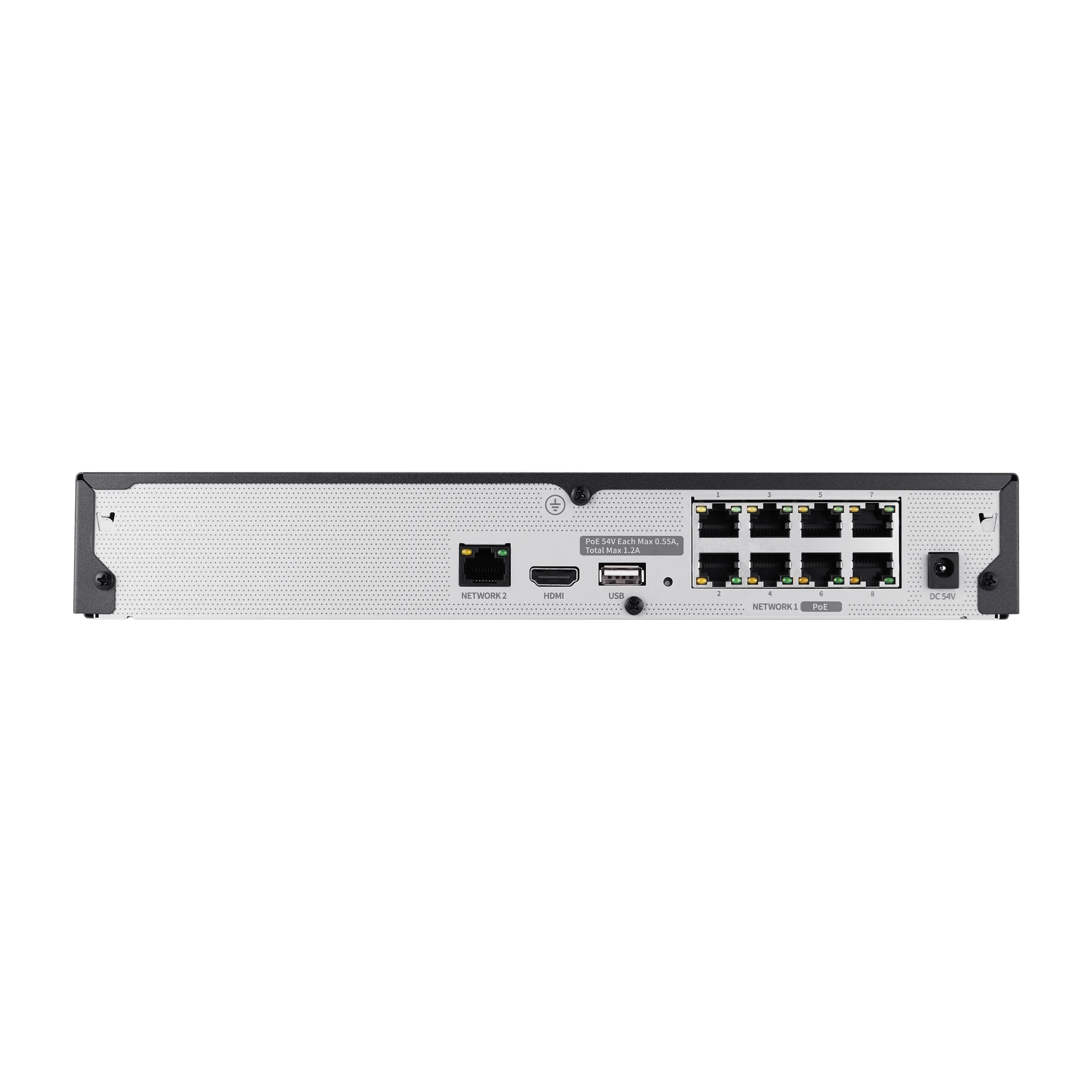

- Interface Ethernet
- PoE RJ-45(LAN, 10/100) 8ea, RJ-45 1ea (WAN, 1Gbps)
- Interface HDMI
- 1EA 3840x2160 30Hz
- Interface – USB
- 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0)
- Power input
- DC Adaptor
- Reset
- Support
Mechanical (3)
- Colour / material
- Black / Metal
- Dimensions
- 300.0 x 47.6 x 238.9 mm (11.81 x 1.87 x 9.41 inch)
- Weight
- 1.05Kg(2.32lb)
Network (11)
- Audio Audiokommunikation
- 2-Way
- Audio compression
- G.711, G.726, AAC(16/48KHz)
- Audio input/output
- 8 CH(network)
- DDNS
- Hanwha DDNS
- Max. remote users
- Search(3), Live Unicast(10), Multicast(20)
- Network security
- IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
- Supported browsers
- Google Chrome, Microsoft Edge, Mac Safari
- Supported operating system
- Windows 10, macOS 10.13
- Transmission bandwidth
- Max. 60Mbps
- Viewer-Software
- WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Performance (17)
- Backup File backup
- BU/Exe(GUI), JPG/AVI(Network)
- Backup Function
- Multi channel(Up to 4CH) Play, Date-Time/Title display
- Gleichzeitige Wiedergabe
- Max. 16CH(Local 4CH, Remote 4CH per user)
- Operating system Embedded
- Linux
- Playback bandwidth
- Max. 32Mbps
- Playback control
- Fast/Slow Forward / Backward, Move one step Up / Down
- Recording bandwidth
- Max. 60Mbps
- Recording compression
- H.265, H.264, MJPEG
- Recording event action
- e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
- Recording event trigger
- Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
- Recording mode
- Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Recording resolution
- 8MP ~ CIF
- Search & playback resolution
- CIF ~ 8MP
- Search & playback users
- Max. 4 Users (Local 1, Remote 3)
- Storage HDD slot (ea.)
- SATA 1ea(Max 6TB)
- Storage supported HDD
- Up to 6TB
- Suchen & abspielen Modus
- Date & Time(Calendar), Event list, Text Search, Smart Search
System (3)
- Protocol Protocol list
- Max. 100,000 (System Log, Event Log each)
- Sprache
- English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
- System control
- Mouse, Web
