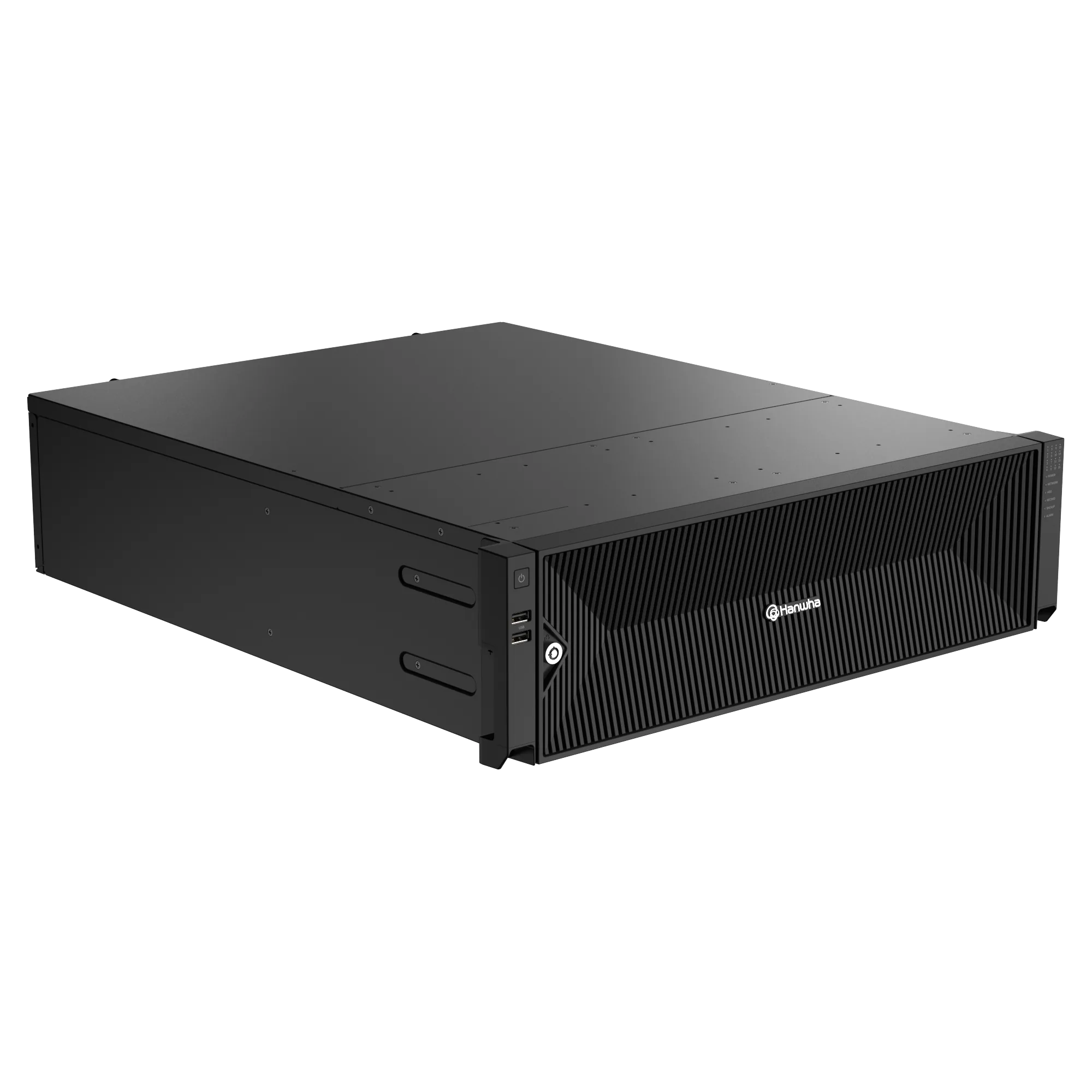

64CH NVR with 12th gen. Intel® Processor
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XRN-6420B4
- EAN / GTIN
- 8801089221148
- Weight
- 17.5 kg
- Dimensions (W×H×D)
- 719 × 599 × 302 mm
Description
Sixteen hot-swap SATA bays holding up to 160TB in non-RAID mode characterise the XRN-6420B4, a network video recorder for 64 channels from CIF to 32MP. Driven by a 12th generation Intel processor, it records in H.265, H.264 and MJPEG at up to 520Mbps in distributed mode, 300Mbps in normal mode and 520Mbps under normal RAID operation. Two HDMI outputs provide 3840x2160 at 30Hz and 1920x1080 at 60Hz, together with dynamic layout, virtual channel view and a clone mode of up to 64 divisions. Playback achieves up to 200Mbps with 64 simultaneous channels and 112 channels in total, and individual drives may be as large as 10TB. Searching covers time, event, text, ARB, bookmark and smart search, and built-in web management is designed for up to 100.
- 64 channels, up to 32MP
- 16 hot-swap SATA bays, up to 160TB
- RAID mode supported
- Up to 520Mbps recording bandwidth
- Dual HDMI at 3840x2160 and 1920x1080
- Web management for up to 100
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Display (6)
- Decoding local display
- [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz)
- Decoding resolution
- 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(4ch@30fps), 1080p(16ch@30fps), 720P(32ch@30fps), D1(64ch@30fps)
- Multi-Screen-Display
- [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 32 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
- Network camera inputs
- Max. 64CH
- Network camera protocol
- SUNAPI, ONVIF
- Network camera resolution
- 32MP ~ CIF
Electrical (2)
- Electrical power consumption
- 100 ~ 240 VAC ±10%; 50/60Hz, 2.7A(Single SMPS)
- Power consumption
- Max. 265W(904.2 BTU with HDD 16ea)
Environment (2)
- Operating humidity
- 20% ~ 85% RH
- Operating temperature
- 0°C to +40°C(32℉ to 104℉)
Function (11)
- Camera setup items
- IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Se
- Camera setup registration
- Auto, Manual
- Easy configuration
- P2P(QR code)
- Function Max. remote users
- Search(3), Live Unicast(10)
- PTZ control
- Via GUI, Webviewer, SPC-2000/2001
- PTZ preset
- 300 Presets
- Protocol support
- RTP, RTSP, HTTP, CGI(SUNAPI)
- Redundancy ARB
- Support
- Redundancy failover
- N+1
- Smartphone control
- Live 16CH(Multi-Profile Support), Playback 4CH
- Supported platforms
- iOS, Android
Intelligente Analyse (1)
- KI-Suche Objektattribut
- Compatible with Hanwha AI Cameras

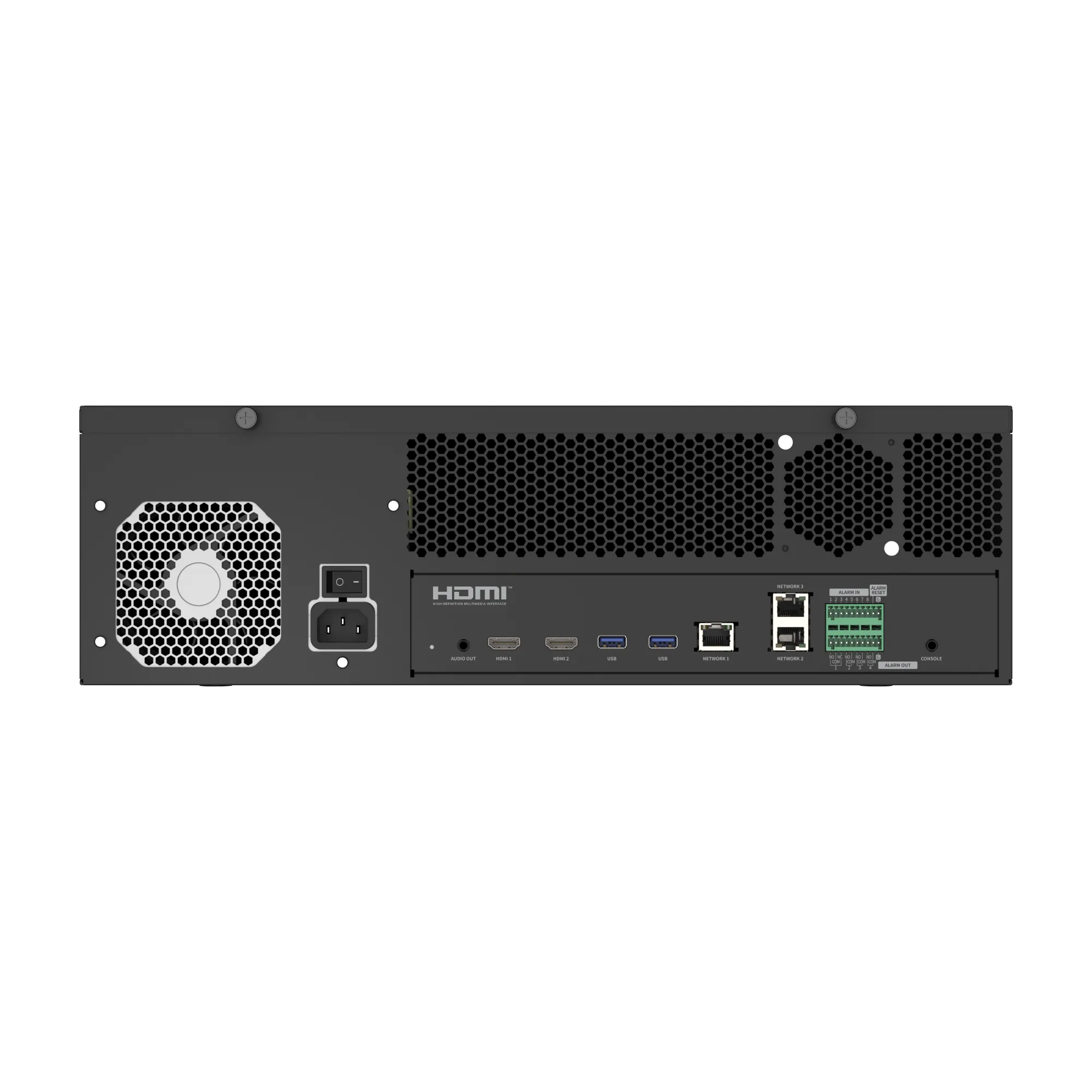

Interface (10)

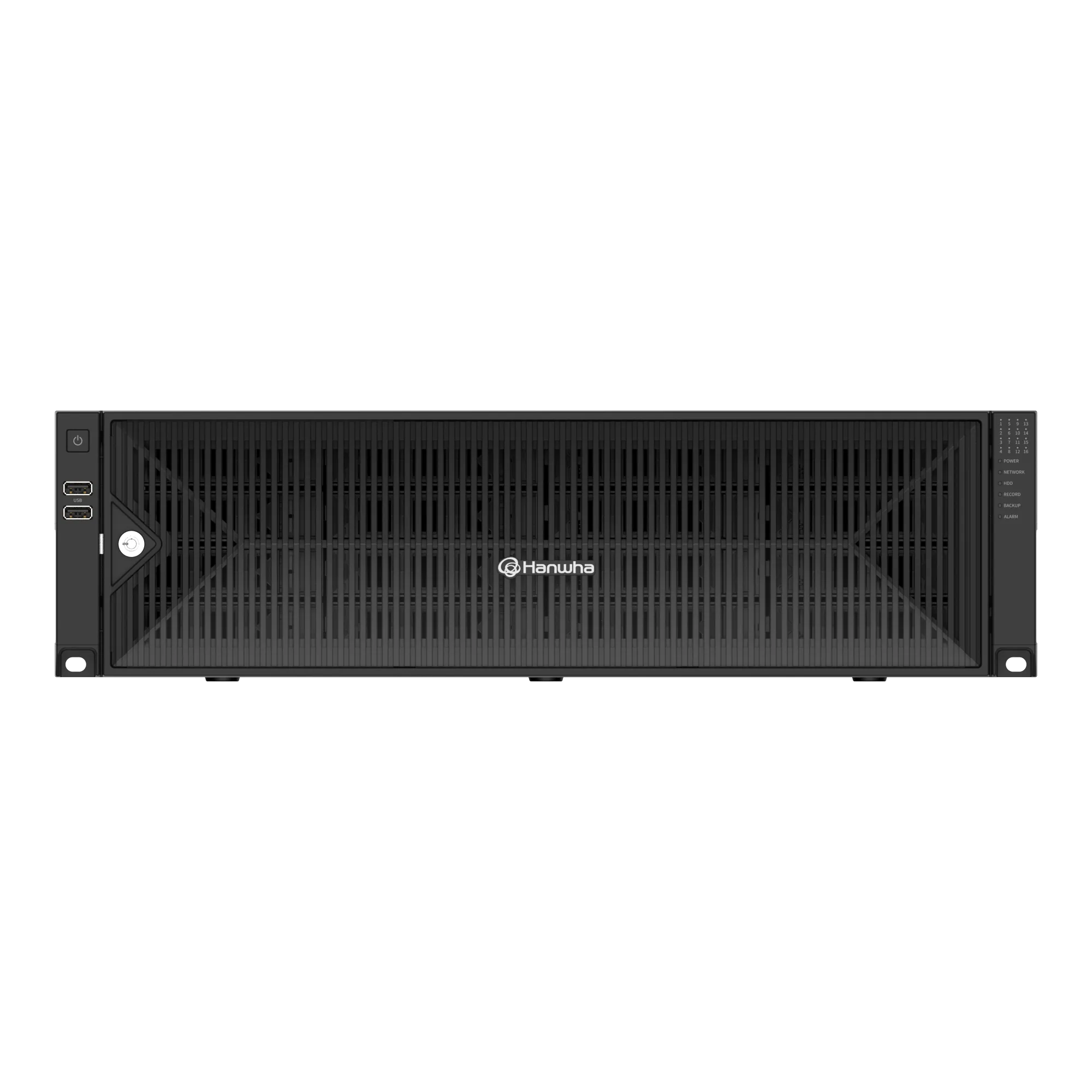

- Front panel indication
- HDD, Alarm, Power, Record, Backup, Network, RAID
- HDD Keylock
- Yes
- Interface Alarm
- In 8EA, Out 4EA
- Interface Audio
- Out 1EA (3.5mm Audio Jack)
- Interface Ethernet
- RJ-45 3EA (LAN/WAN, 1Gbps)
- Interface HDMI
- 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz
- Interface – USB
- 4EA(Front 2 x USB2.0 + Rear 2 x USB 3.0)
- Power input
- AC 1EA
- Reset
- Power button
- Storage
- Yes
Mechanical (3)
- Colour / material
- Black / Metal
- Dimensions
- 440.0 x 132.0 x 571.1 mm (17.32 x 5.20 x 22.48 inch)
- Weight
- Approx. 14Kg(30.9lb, HDD not included)
Network (11)
- Audio Audiokommunikation
- 2-Way
- Audio compression
- G.711, G.726, AAC(16/48KHz)
- Audio input/output
- 64 CH(network)
- DDNS
- Hanwha DDNS
- Max. remote users
- Search(3), Live Unicast(10), Multicast(20)
- Network security
- IP address filtering, User access Log, 802.1x, TLS, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware, TPM support
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, RTCP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
- Supported browsers
- Google Chrome, Microsoft Edge, Mac Safari
- Supported operating system
- Windows10 or higher, macOS 13.5.2 or higher
- Transmission bandwidth
- Max. 520Mbps
- Viewer-Software
- WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Performance (20)
- Backup File backup
- Recorder/SEC/AVI/JPG(Local), AVI/PNG(Network)
- Backup Function
- Multi channel(Up to 16CH) Play, Date-Time/Title display
- Fisheye dewarping
- Support (Local 1CH), CMS
- Gleichzeitige Wiedergabe
- Max. 112CH(Local 64CH, Remote 16CH per user)
- Operating system Embedded
- Linux
- Playback bandwidth
- Up to 200Mbps(64CH simultaneously)
- Playback control
- Fast/Slow Forward / Backward, Move one step Up / Down
- Recording bandwidth
- Distributed mode : Up to 520 Mbps Normal mode : Up to 300 Mbps [RAID mode] Normal : Up to 520 Mbps Degrade/ Rebuild : Up to 520 Mbps
- Recording compression
- H.265, H.264, MJPEG
- Recording event action
- e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
- Recording event trigger
- Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
- Recording mode
- Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Recording resolution
- 32MP ~ CIF
- Search & playback resolution
- CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
- Search & playback users
- Max. 4 Users (Local 1, Remote 3)
- Storage External
- iSCSI storage
- Storage HDD slot (ea.)
- SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap
- Storage RAID
- RAID-5/6(Array Size : 8 HDDs x 2 Array)
- Storage supported HDD
- Up to 10TB
- Suchen & abspielen Modus
- Time/Event/Text/ARB/Bookmark/Smart search
System (3)
- Protocol Protocol list
- Max. 100,000 (System Log, Event Log each)
- Sprache
- English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
- System control
- Mouse(include wireless), Keyboard(include wireless), Web, Controller (SPC-2000/2001)
