8CH PoE NVR
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QRN-830S
- EAN / GTIN
- 8801089210197
- Weight
- 2.5 kg
- Dimensions (W×H×D)
- 410 × 300 × 150 mm
Description
The QRN-830S records up to eight network cameras from CIF to 8 MP and supports the SUNAPI and ONVIF protocols. Recording in H.265, H.264 or MJPEG runs at a maximum of 80 Mbps, with 32 Mbps available for playback. Its SATA bay accommodates one drive of up to 6 TB. Local output comes from HDMI1 at 3840x2160 and 30 Hz and HDMI2 at 1920x1080 and 60 Hz, decoding 8 MP at 60 fps, 1080p at 240 fps, 720p at 480 fps and D1 at 960 fps. Simultaneous playback reaches 32 channels, eight of them local and eight per remote user across a maximum of four users. Event actions include e-mail, event push, PTZ preset, alarm out, buzzer, monitor out, FTP, SUNAPI command and shutdown.
- Up to 8 channels, 8 MP down to CIF
- Recording bandwidth max. 80 Mbps, playback 32 Mbps
- HDMI1 at 3840x2160 30 Hz, HDMI2 at 1920x1080 60 Hz
- Single SATA bay up to 6 TB
- Simultaneous playback of up to 32 channels
- SUNAPI and ONVIF, embedded Linux
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Display (6)
- Decoding local display
- HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz)
- Decoding resolution
- [Local Monitor] 8M(60fps), 1080p(240fps), 720P(480fps), D1(960fps)
- Multi-Screen-Display
- [Single Monitor] Dynamic layout [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
- Network camera inputs
- Max. 8CH
- Network camera protocol
- SUNAPI, ONVIF
- Network camera resolution
- 8MP ~ CIF
Electrical (3)
- Electrical power consumption
- 54VDC/1.55A
- PoE-Budget
- 65W
- Power consumption
- Max. 84W(287 BTU with 1HDD, PoE ON)
Environment (2)
- Operating humidity
- 20% ~ 85% RH
- Operating temperature
- 0°C to +40°C(32℉ to 104℉)
Function (11)
- Camera setup items
- IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Se
- Camera setup registration
- Auto, Manual
- Easy configuration
- P2P(QR code)
- Function Max. remote users
- Search(3), Live Unicast(10)
- PTZ control
- Via GUI, Webviewer
- PTZ preset
- 300 Presets
- Protocol support
- RTP, RTSP, HTTP, CGI(SUNAPI)
- Redundancy ARB
- Support
- Redundancy failover
- N+1
- Smartphone control
- Live: Multi-Profile Support, Multi Channel Playback
- Supported platforms
- iOS, Android
Interface (7)

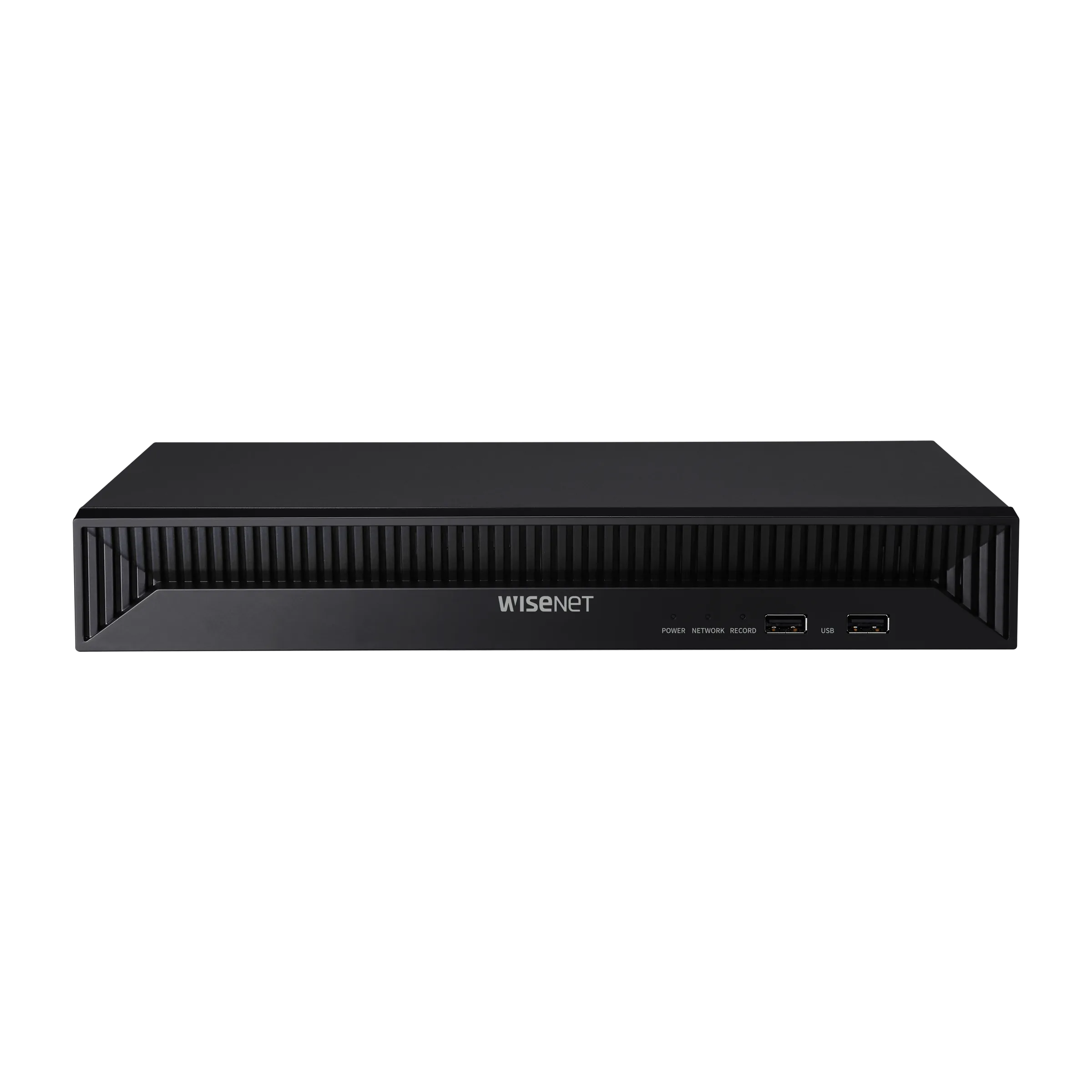

- Front panel indication
- Power, Record, Network

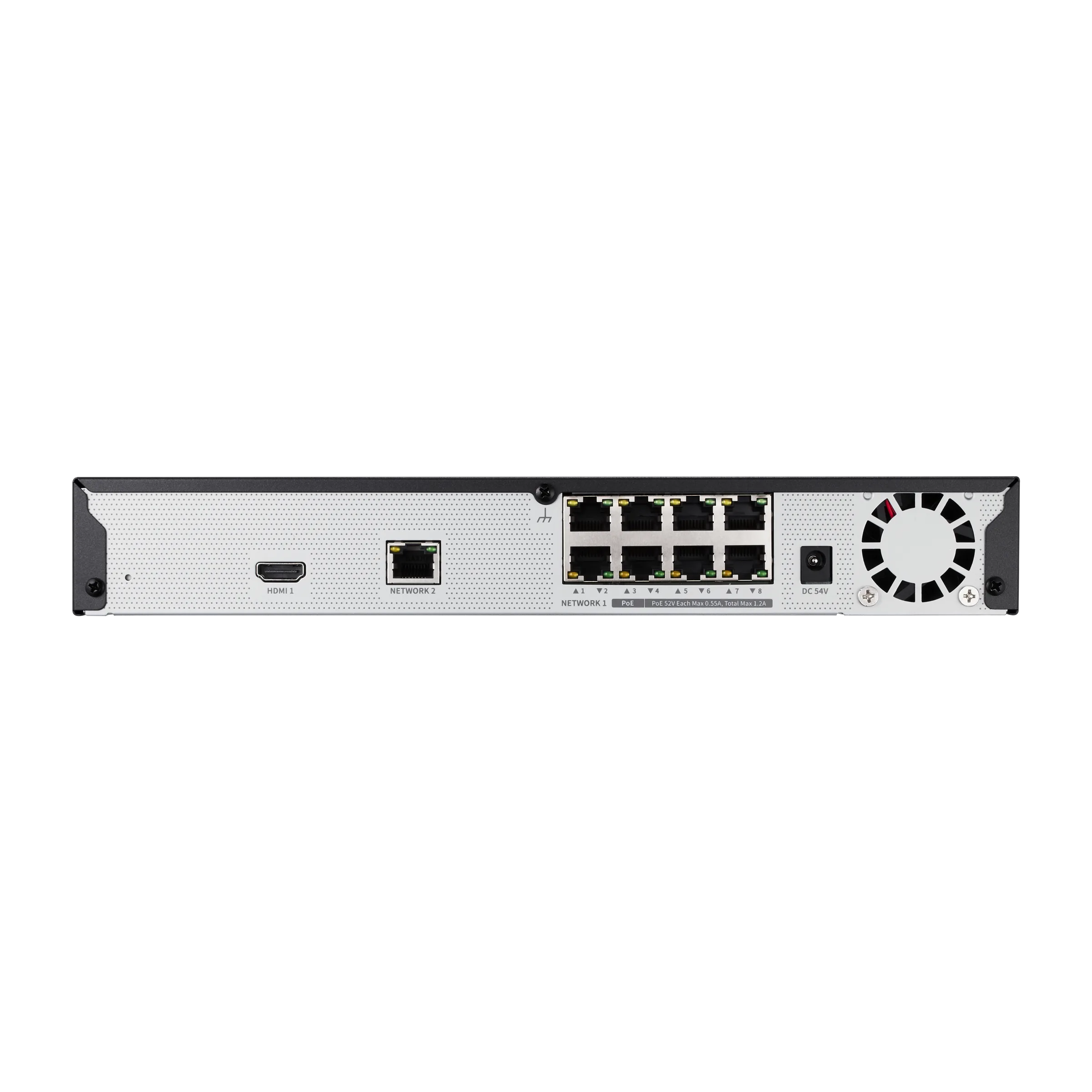

- Interface Ethernet
- PoE+ RJ-45 8EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps)
- Interface HDMI
- 1EA
- Interface – USB
- 2EA(Front 2 x USB2.0)
- Power input
- DC Adaptor
- Reset
- Support
- Storage
- OK
Mechanical (3)
- Colour / material
- Black / Metal
- Dimensions
- 300.0 x 47.6 x 238.9 mm (11.81 x 1.87 x 9.41 inch)
- Weight
- 1.32Kg(2.91lb)
Network (11)
- Audio Audiokommunikation
- 2-Way
- Audio compression
- G.711, G.726, AAC(16/48KHz)
- Audio input/output
- 8 CH(network)
- DDNS
- Hanwha DDNS
- Max. remote users
- Search(3), Live Unicast(10), Multicast(20)
- Network security
- IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
- Supported browsers
- Google Chrome, Microsoft Edge, Mac Safari
- Supported operating system
- Windows 10, macOS 11
- Transmission bandwidth
- Max. 80Mbps
- Viewer-Software
- WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Performance (18)
- Backup File backup
- BU/Exe/AVI(GUI), JPG/AVI(Network)
- Backup Function
- Multi channel(Up to 8CH) Play, Date-Time/Title display
- Fisheye dewarping
- CMS
- Gleichzeitige Wiedergabe
- Max. 32CH(Local 8CH, Remote 8CH per user)
- Operating system Embedded
- Linux
- Playback bandwidth
- Max. 32Mbps
- Playback control
- Fast/Slow Forward / Backward, Move one step Up / Down
- Recording bandwidth
- Max, 80Mbps
- Recording compression
- H.265, H.264, MJPEG
- Recording event action
- e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
- Recording event trigger
- Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
- Recording mode
- Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Recording resolution
- 8MP ~ CIF
- Search & playback resolution
- CIF ~ 8MP
- Search & playback users
- Max. 4 Users (Local 1, Remote 3)
- Storage HDD slot (ea.)
- SATA 1ea(Max 6TB)
- Storage supported HDD
- Up to 6TB
- Suchen & abspielen Modus
- Date & Time(Calendar), Event list, Text Search, Smart Search
System (3)
- Protocol Protocol list
- Max. 100,000 (System Log, Event Log each)
- Sprache
- English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
- System control
- Mouse, Keyboard, Web
