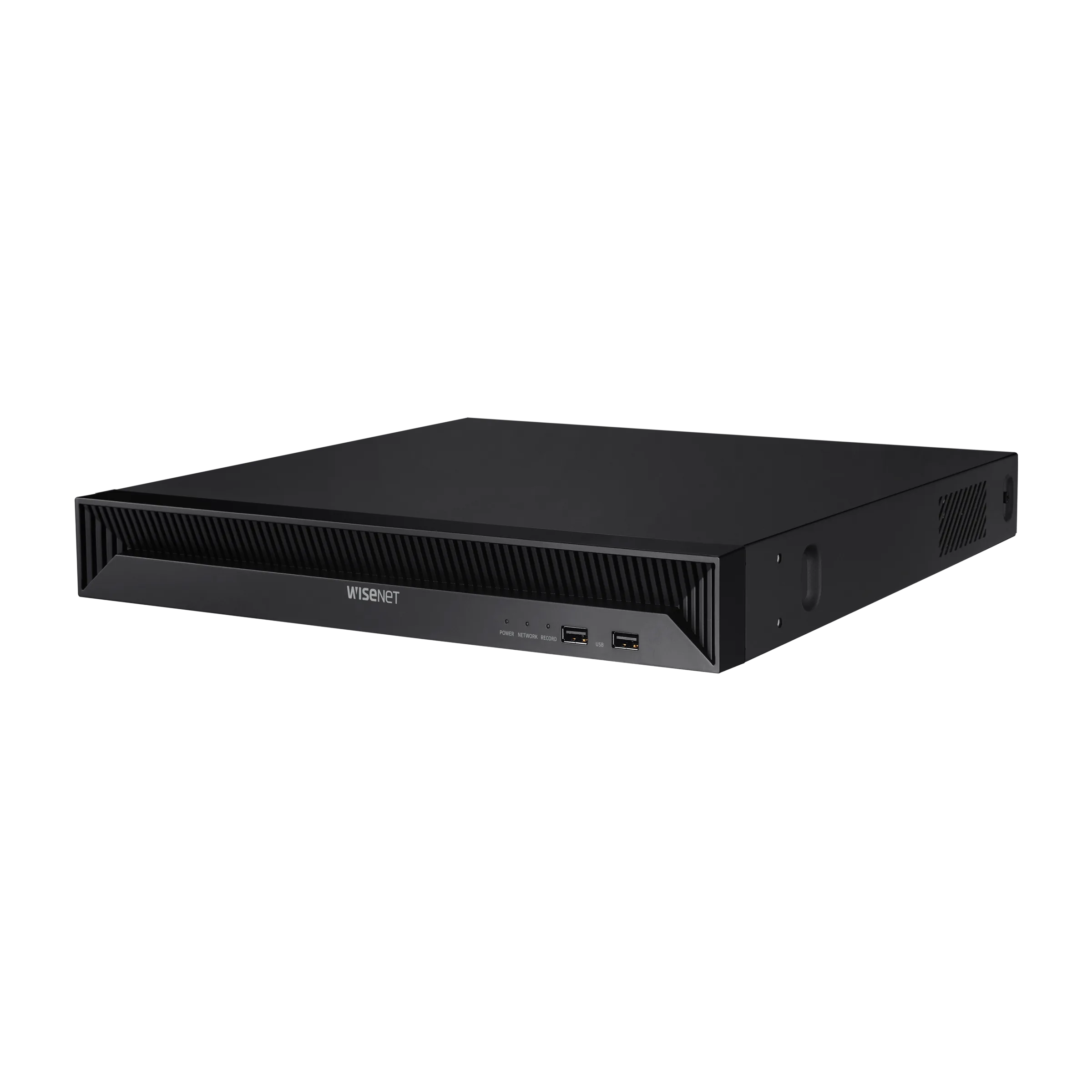

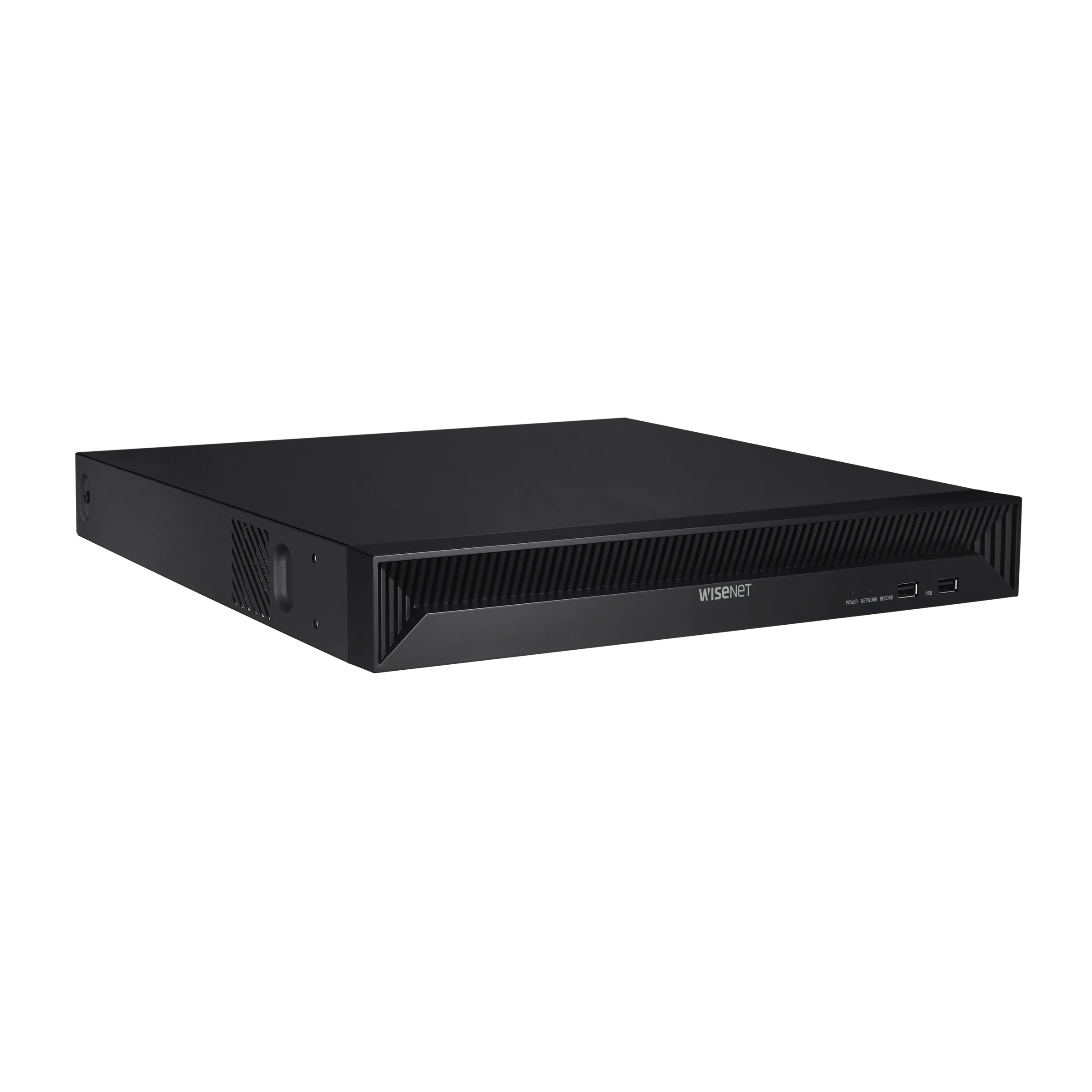

8CH 12MP 100Mbps 2 Bay PoE NVR
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XRN-815S
- EAN / GTIN
- 8801089210067
- Weight
- 4.28 kg
- Dimensions (W×H×D)
- 498 × 410 × 144 mm
Description
Built on embedded Linux, the XRN-815S records up to 8 channels and connects cameras via SUNAPI or ONVIF at resolutions from 12MP down to CIF. Recording uses H.265, H.264 or MJPEG at a maximum of 100Mbps and 8MP to CIF, with normal, dual stream, scheduled (continuous or event) and pre/post event modes plus bookmarks. Connection is plug and play through eight PoE ports (LAN, 10/100) and one PoE port (WAN, 1Gbps), while two SATA slots take drives of up to 10TB for a maximum of 20TB. Playback runs at up to 32Mbps for a maximum of four users (1 local, 3 remote) and up to 32 simultaneous channels, searchable by calendar, event list, text or smart search. Local output is provided on HDMI1 at 3840x2160 (30Hz) and HDMI2 at 1920x1080 (60Hz); ARB and the P2P service with QR code connect are included, and AI search by object attribute requires an integrated Wisenet AI camera.
- Max. 8CH, camera resolution 12MP to CIF
- Recording bandwidth max. 100Mbps, H.265, H.264, MJPEG
- 8x PoE (LAN, 10/100) and 1x PoE (WAN, 1Gbps)
- 2x SATA, HDD up to 10TB, max. 20TB total
- Playback max. 32Mbps, max. 4 users
- ARB and P2P service via QR code
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Display (6)
- Decoding local display
- HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz)
- Decoding resolution
- [Local Monitor] 12M(30fps), 8M(600fps), 1080p(240fps), 720P(240fps), D1(480fps)
- Multi-Screen-Display
- Clone Mode : Dynamic layout Expand Mode : HDMI1 Dynamic layout, HDMI2 up to 9 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
- Network camera inputs
- Max. 8CH
- Network camera protocol
- SUNAPI, ONVIF
- Network camera resolution
- 12MP ~ CIF
Electrical (4)
- Electrical power consumption
- 100 ~ 240 VAC ±10%, 50/60Hz
- PoE-Budget
- 100W
- Power Consumption w/o PoE
- 35W
- Power consumption
- Max. 165W(563 BTU with 2HDD, PoE On)
Environment (2)
- Operating humidity
- 20% ~ 85% RH
- Operating temperature
- 0°C to +40°C(32℉ to 104℉)
Function (11)
- Camera setup items
- IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Se
- Camera setup registration
- Auto, Manual
- Easy configuration
- P2P(QR code)
- Function Max. remote users
- Search(3), Live Unicast(10)
- PTZ control
- Via GUI, Webviewer
- PTZ preset
- 300 Presets
- Protocol support
- RTP, RTSP, HTTP, CGI(SUNAPI)
- Redundancy ARB
- Support
- Redundancy failover
- N+1
- Smartphone control
- Live: Multi-Profile Support, Multi Channel Playback
- Supported platforms
- iOS, Android
Intelligente Analyse (1)
- KI-Suche Objektattribut
- Compatible with Hanwha AI Cameras

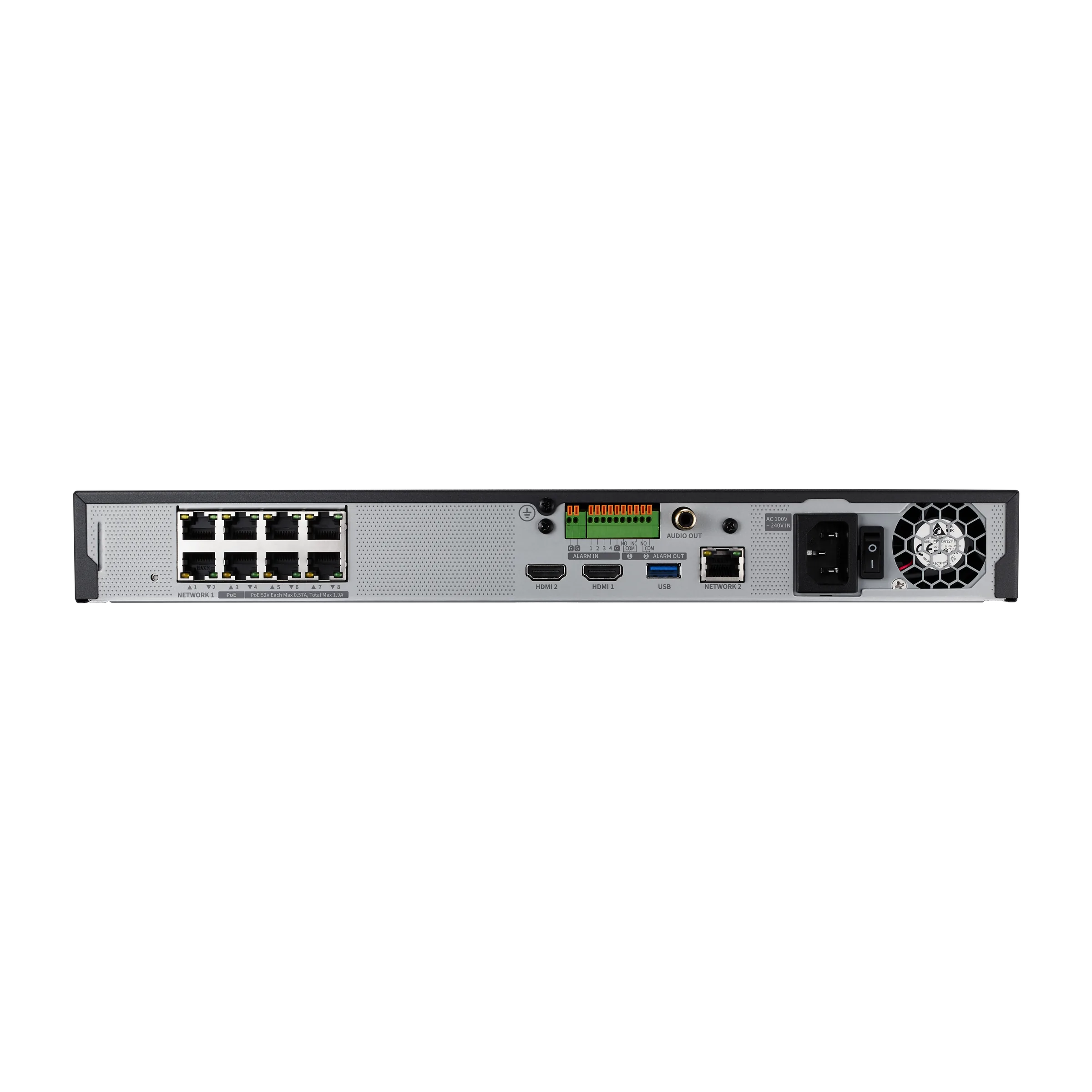

Interface (9)
- Front panel indication
- Power, Record, Network
- Interface Alarm
- In 4EA, Out 2EA
- Interface Audio
- Out 1EA (RCA output)
- Interface Ethernet
- PoE+ RJ-45(LAN, 10/100) 8ea, RJ-45 1ea (WAN, 1Gbps)
- Interface HDMI
- 2EA
- Interface – USB
- 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
- Power input
- AC 1EA
- Reset
- Support
- Storage
- OK
Mechanical (3)
- Colour / material
- Black / Metal
- Dimensions
- 370.0 x 50.7 x 320.0 mm (14.57 x 2.00 x 12.60 inch)
- Weight
- 2.86Kg(6.31lb)
Network (11)
- Audio Audiokommunikation
- 2-Way
- Audio compression
- G.711, G.726, AAC(16/48KHz)
- Audio input/output
- 8 CH(network)
- DDNS
- Hanwha DDNS
- Max. remote users
- Search(3), Live Unicast(10), Multicast(20)
- Network security
- IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
- Supported browsers
- Google Chrome, Microsoft Edge, Mac Safari
- Supported operating system
- Windows 10, macOS 11
- Transmission bandwidth
- Max. 120Mbps
- Viewer-Software
- WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Performance (18)
- Backup File backup
- BU/Exe/AVI(GUI), JPG/AVI(Network)
- Backup Function
- Multi channel(Up to 8CH) Play, Date-Time/Title display
- Fisheye dewarping
- CMS
- Gleichzeitige Wiedergabe
- Max. 32CH(Local 8CH, Remote 8CH per user)
- Operating system Embedded
- Linux
- Playback bandwidth
- Max. 32Mbps
- Playback control
- Fast/Slow Forward / Backward, Move one step Up / Down
- Recording bandwidth
- Max. 100Mbps
- Recording compression
- H.265, H.264, MJPEG
- Recording event action
- e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
- Recording event trigger
- Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
- Recording mode
- Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Recording resolution
- 8MP ~ CIF
- Search & playback resolution
- CIF ~ 12MP
- Search & playback users
- Max. 4 Users (Local 1, Remote 3)
- Storage HDD slot (ea.)
- SATA 2ea(Max. 20TB)
- Storage supported HDD
- Up to 10TB
- Suchen & abspielen Modus
- Date & Time(Calendar), Event list, Text Search, Smart Search
System (3)
- Protocol Protocol list
- Max. 100,000 (System Log, Event Log each)
- Sprache
- English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
- System control
- Mouse, Keyboard, Web
