4CH PoE NVR
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QRN-430S
- EAN / GTIN
- 8801089205179
- Weight
- 2.24 kg
- Dimensions (W×H×D)
- 410 × 299 × 146 mm
Description

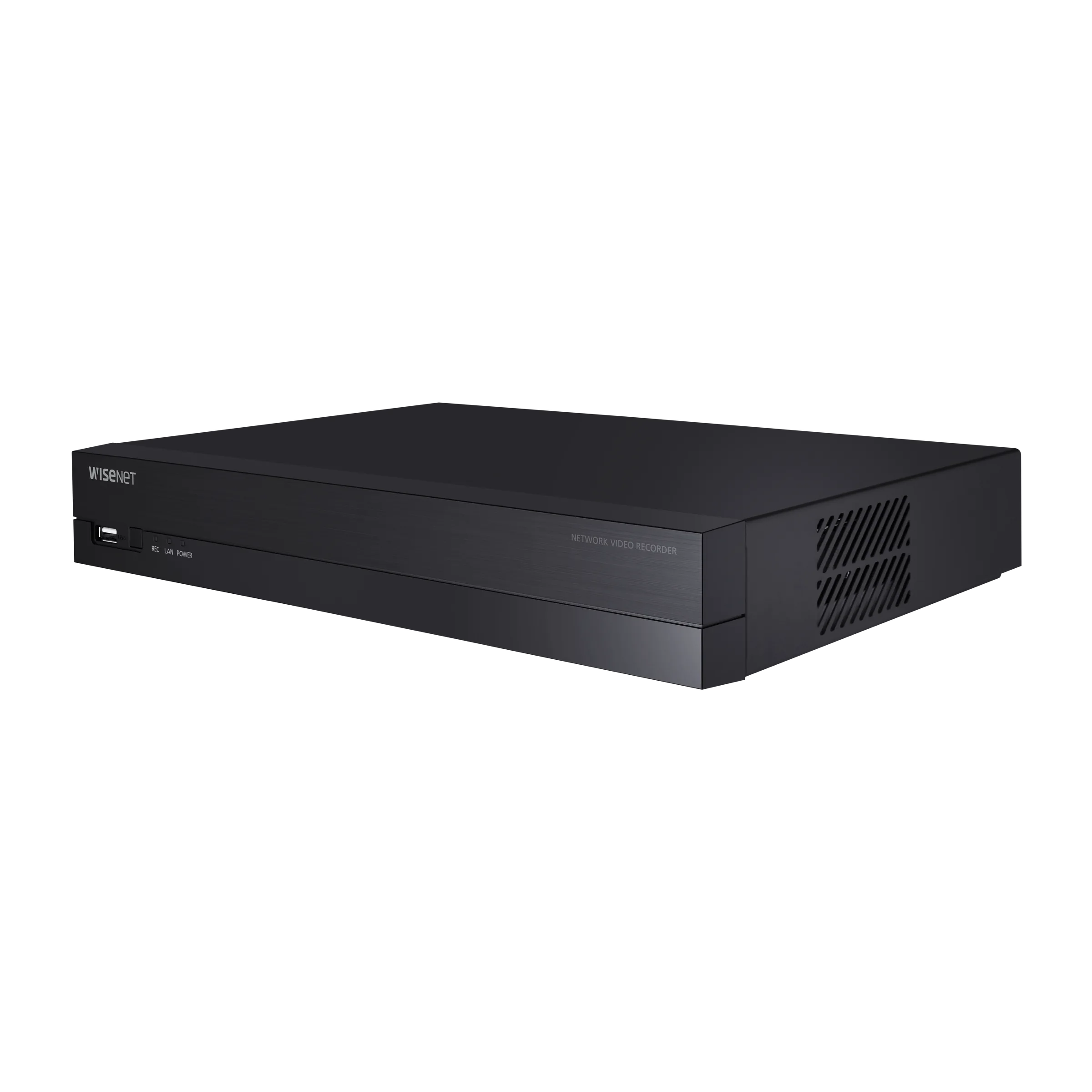

The QRN-430S is a network recorder for up to four cameras at resolutions from CIF to 8 MP, connected over SUNAPI or ONVIF. Four PoE ports adopt the cameras by plug and play, recording in H.265, H.264 or MJPEG peaks at 40 Mbps and playback runs to 32 Mbps. A single SATA bay holds one drive of up to 6 TB. The local HDMI output serves 8 MP at 30 fps as well as 1080p, 720p and D1 at 120 fps each, with single, two, three or four way layouts and a sequence mode. Four users can work at the same time, one local and three remote, sharing 16 channels of playback. Event actions on the embedded Linux system include e-mail, event push, PTZ preset, alarm out, buzzer and monitor out, and P2P connection works by QR code.
- Up to 4 channels, 8 MP down to CIF
- Four PoE ports with plug and play
- Recording bandwidth max. 40 Mbps, playback 32 Mbps
- Single SATA bay up to 6 TB
- SUNAPI and ONVIF, embedded Linux
- P2P connection by QR code
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Display (6)
- Decoding local display
- HDMI
- Decoding resolution
- [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps)
- Multi-Screen-Display
- [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4
- Network camera inputs
- Max. 4CH
- Network camera protocol
- SUNAPI, ONVIF
- Network camera resolution
- 8MP ~ CIF
Electrical (3)
- Electrical power consumption
- 100 ~ 240 VAC ±10%, 50/60Hz
- PoE-Budget
- 35W
- Power consumption
- Max. 52W(1HDD, PoE On)
Environment (2)
- Operating humidity
- 20% ~ 85% RH
- Operating temperature
- 0°C to +40°C(32℉ to 104℉)
Function (11)
- Camera setup items
- IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Se
- Camera setup registration
- Auto, Manual
- Easy configuration
- P2P(QR code)
- Function Max. remote users
- Search(3), Live Unicast(10)
- PTZ control
- Via GUI, Webviewer
- PTZ preset
- 300 Presets
- Protocol support
- RTP, RTSP, HTTP, CGI(SUNAPI)
- Redundancy ARB
- Support
- Redundancy failover
- N+1
- Smartphone control
- Live 4CH(Multi-Profile Support), Playback 4CH
- Supported platforms
- iOS, Android
Interface (7)
- Front panel indication
- Power, Record, Network
- Interface Ethernet

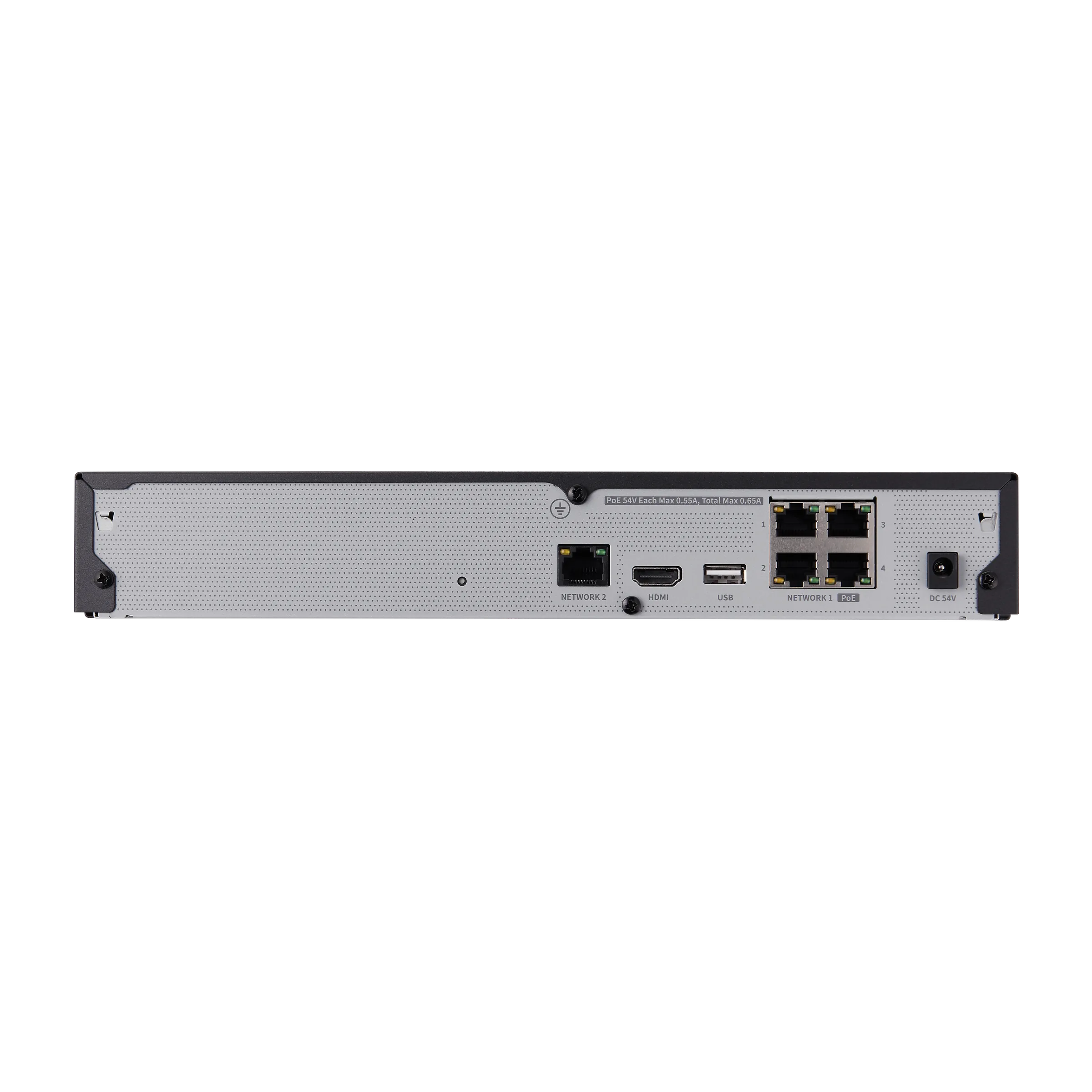

- PoE RJ-45(LAN, 10/100) 4ea, RJ-45 1ea (WAN, 10/100)
- Interface HDMI
- 1EA 3840x2160 30Hz
- Interface – USB
- 2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0)
- Power input
- DC Adaptor
- Reset
- Support
- Storage
- OK
Mechanical (3)
- Colour / material
- Black / Metal
- Dimensions
- 300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch)
- Weight
- 1.03Kg(2.27lb)
Network (9)
- Audio Audiokommunikation
- 2-Way
- Audio compression
- G.711, G.726, AAC(16/48KHz)
- Audio input/output
- 4 CH(network)
- DDNS
- Hanwha DDNS
- Max. remote users
- Search(3), Live Unicast(10), Multicast(20)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
- Supported browsers
- Google Chrome, Microsoft Edge, Mac Safari
- Supported operating system
- Windows 10, macOS 10.13
- Viewer-Software
- WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Performance (18)
- Backup File backup
- BU/Exe(GUI), JPG/AVI(Network)
- Backup Function
- Multi channel(Up to 4CH) Play, Date-Time/Title display
- Fisheye dewarping
- CMS
- Gleichzeitige Wiedergabe
- Max. 16CH(Local 4CH, Remote 4CH per user)
- Operating system Embedded
- Linux
- Playback bandwidth
- Max. 32Mbps
- Playback control
- Fast/Slow Forward / Backward, Move one step Up / Down
- Recording bandwidth
- Max. 40Mbps
- Recording compression
- H.265, H.264, MJPEG
- Recording event action
- e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
- Recording event trigger
- Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
- Recording mode
- Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
- Recording resolution
- 8MP ~ CIF
- Search & playback resolution
- CIF ~ 8MP
- Search & playback users
- Max. 4 Users (Local 1, Remote 3)
- Storage HDD slot (ea.)
- SATA 1ea(Max 6TB)
- Storage supported HDD
- Up to 6TB
- Suchen & abspielen Modus
- Date & Time(Calendar), Event list, Text Search, Smart Search
System (3)
- Protocol Protocol list
- Max. 100,000 (System Log, Event Log each)
- Sprache
- English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
- System control
- Mouse, Web
