The PND-A7082RV is a modular indoor dome camera with infrared illumination and AI functions, its 1/1.8-inch CMOS sensor recording 4 megapixels up to 2592x1520. H.265 and H.264 manage 60fps at 60Hz or 50fps at 50Hz with WDR off, and 30fps or 25fps with WDR on, while MJPEG reaches 30fps and a maximum of 5fps at 4MP. The varifocal lens works from 4.6 to 9.35mm with 2.0x optical zoom, opening to F1.3 at wide angle and F2.15 at telephoto and covering 105° to 47° horizontally, 58° to 27° vertically and 128° to 55° diagonally. Focusing is by simple focus through an IR-corrected P iris from a minimum object distance of 1.5m. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with an automatic ICR filter managing day and night operation. Alignment covers 0° to 350° pan, -45° to 85° tilt and 0° to 355° rotation, and a USB Type C port is provided for preview during installation. 4 megapixel resolution up to 2592x15204.6 to 9.35mm varifocal lens with 2.0x zoomUp to 60/50fps with WDR off, 30/25fps with WDR on0.03 lux in colour, 0.003 lux in black and whiteSimple focus with IR-corrected P iris0° to 350° pan and -45° to 85° tilt

The PND-A9081RV is a dome network camera with deep-learning based AI video analytics. A 1/1.8-inch CMOS sensor supplies up to 3840x2160 pixels, running at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 30fps in MJPEG, with H.265, H.264 and MJPEG codecs alongside WiseStream II. Focal length spans 4.5 to 10 mm at 2.2x optical zoom, with F1.6 at the wide end, F2.65 at tele and a horizontal field of view of 101.4° to 45.5°. Low-light figures are given as 0.05 lux in colour and 0.005 lux in black and white, backed by ICR day and night switching and 120 dB WDR. Mechanical adjustment covers 0° to 360° pan, -45° to 85° tilt and 0° to 355° rotation; minimum object distance is 0.5 m. 1/1.8-inch CMOS sensorUp to 3840x2160 resolution4.5-10 mm lens, 2.2x optical0.05 lux colour / 0.005 lux BW120 dB WDR, day and night (ICR)Deep-learning AI video analytics

The PND-A9082RV is a modular 8MP indoor dome camera with AI and IR support. Its 1/1.2-inch CMOS sensor resolves a maximum of 3840x2160 pixels; H.265 and H.264 reach 30fps/25fps (60Hz/50Hz) while MJPEG runs at 30fps, dropping to a maximum of 5fps at 8MP. The motorised lens covers 5.9 to 13.3 mm with 2.25x optical zoom, opens to F1.5 wide and F2.9 tele, and delivers a horizontal field of view between 109° and 49°. Minimum illumination is specified as 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR switching. Pan from 0° to 360°, tilt from -45° to 85°, rotation from 0° to 355° and a 0.8 m minimum object distance complete the mechanical data. 1/1.2-inch CMOS sensorUp to 3840x2160 resolution5.9-13.3 mm lens, 2.25x optical0.015 lux colour / 0.0015 lux BWP iris, IR correctedAutomatic day and night (ICR)

The PNM-12082RVD is a multi-directional camera carrying two 6MP channels on 1/2.8-inch CMOS sensors. Maximum resolution is 3328x1872 pixels, and H.265, H.264 and MJPEG each run at 15fps. Both channels use a motorised varifocal lens from 3.54 to 6.69 mm (1.9x optical) with F1.67 wide and F2.64 tele, giving a horizontal angle of view between 96° and 47°. Rated sensitivity is 0.16 lux in colour and 0.016 lux in black and white, dropping to 0 lux with the IR LED on, and IR reach is stated as 25 m depending on the scene. WiseNR, WiseStream II, extremeWDR at 120 dB, TPM 2.0 to FIPS 140-2 and IP66, IK10 and NEMA4X ratings are included. Each channel pans 0° to 355°, tilts 0° to 78° and rotates 0° to 180°. Two 6MP channelsMax. 3328x1872 at 15fps3.54-6.69 mm varifocal, 1.9x25 m IR viewable lengthextremeWDR 120 dB, WiseNRIP66, IK10, NEMA4X

The PNM-7082RVD combines two 2MP channels on 1/2.8-inch CMOS sensors in one multi-directional housing. Peak resolution is 1920x1080 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps. Each channel carries a motorised 3 to 6 mm varifocal lens with 2x optical zoom, F2.2 wide and F3.1 tele, covering 107° to 56° horizontally. Sensitivity is quoted at 0.035 lux in colour and 0.0035 lux in black and white, reaching 0 lux with the IR LED active and an IR viewable length of 25 m. WiseNR, WiseStream II, extremeWDR at 150 dB, TPM 2.0 to FIPS 140-2 and IP66, IK10 and NEMA4X are part of the specification; pan runs 0° to 355°, tilt 0° to 78° and rotation 0° to 180°. Two 2MP channelsMax. 1920x1080 at 30fps/25fps3-6 mm varifocal, 2x optical0.035 lux colour / 0.0035 lux BWextremeWDR 150 dB, WiseStream IIIP66, IK10, NEMA4X

The PNM-C12083RVD is a multi-directional AI camera with two 6MP channels on 1/2.8-inch CMOS sensors. Maximum resolution is 3328x1872 pixels and H.265, H.264 and MJPEG each run at 15fps. Analytics classify objects such as person, face, vehicle and licence plate and distinguish attributes including car, bus, truck, motorcycle and bicycle, with virtual area and line crossing rules drawing on the same classification. Defocus, motion, tampering and audio detection plus sound classification are also provided. The 3.54 to 6.69 mm lenses with 1.9x optical zoom open to F1.67 and F2.64 and span 96° to 47° horizontally, at 0.16 lux in colour and 0.016 lux in black and white with 25 m of 360 degree IR reach. WiseNR II, auto prefer shutter control, WiseStream III, extremeWDR at 120 dB and a micro SD slot for up to 512GB round out the specification. Two 6MP channelsAI classification of person, face, vehicle, plate3.54-6.69 mm varifocal, 1.9x optical25 m 360 degree IR reachextremeWDR 120 dB, WiseStream IIIMicro SD slot up to 512GB

The PNM-C7083RVD is a multi-directional AI camera with two 2MP channels on 1/2.8-inch CMOS sensors. Peak resolution is 1920x1080 pixels, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps. Analytics classify person, face, vehicle and licence plate, separate car, bus, truck, motorcycle and bicycle attributes and apply virtual area and line crossing rules to that classification, alongside defocus, motion, tampering and audio detection with sound classification. The 3 to 6 mm varifocal lenses with 2x zoom open to F2.2 and F3.1, cover 107° to 56° horizontally and focus from 0.5 m, at 0.035 lux in colour and 0.0035 lux in black and white with 25 m of 360 degree IR reach. WiseNR II, auto prefer shutter control, WiseStream III, extremeWDR at 150 dB, a micro SD slot for up to 512GB and per-channel flip, mirror and hallway view are also provided. Two 2MP channelsAI classification of person, face, vehicle, plate3-6 mm varifocal, 2x optical25 m 360 degree IR reachextremeWDR 150 dB, WiseStream IIIMicro SD slot up to 512GB

The PNO-A7082R is a vandal-resistant 4MP bullet camera with AI and IR. Its 1/1.8-inch CMOS sensor resolves a maximum of 2592x1520 pixels; H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) with WDR off and 30fps/25fps with WDR on, while MJPEG delivers 30fps and no more than 5fps at 4MP. The lens spans 4.6 to 9.35 mm with 2.0x optical zoom, opens to F1.3 wide and F2.15 tele and covers 105° to 47° horizontally and 128° to 55° diagonally. An IR-corrected P iris with simple focus works from a minimum object distance of 1.5 m. Minimum illumination is given as 0.03 lux in colour and 0.003 lux in black and white with automatic ICR switching, and mechanical adjustment allows 0° to 360° pan, 0° to 90° tilt and 0° to 180° rotation. 1/1.8-inch CMOS sensor, 2592x152060fps/50fps WDR off, 30fps/25fps WDR on4.6-9.35 mm lens, 2.0x optical0.03 lux colour / 0.003 lux BWIR-corrected P iris, focus from 1.5 mAutomatic day and night (ICR)

The PNO-A9082R is an 8MP AI bullet camera using a 1/1.2-inch CMOS sensor with a maximum resolution of 3840x2160. H.265 and H.264 streams run at up to 30fps/25fps (60Hz/50Hz), while MJPEG reaches 30fps and is limited to 5fps at 8MP. Sensitivity extends to 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR day and night switching. The IR corrected P iris lens covers 5.9~13.3mm with 2.25x optical zoom at F1.5 wide and F2.9 tele, giving a horizontal field of view of 109°~49° and a minimum object distance of 0.8m. Installers can align the camera across 0°~360° pan, 0°~90° tilt and 0°~180° rotation, and a USB Type C connection is provided for setup. 1/1.2-inch CMOS sensor, 8MP (3840x2160)5.9~13.3mm lens with 2.25x optical zoomMinimum illumination 0.015 lux colour / 0.0015 lux BWSimple focus with IR corrected P irisPan 0°~360°, tilt 0°~90°, rotate 0°~180°

The PNO-A9092R is a long range 8MP AI bullet camera built on a 1/1.2-inch CMOS sensor with a top resolution of 3840x2160. Its 15~50mm lens provides 3.33x optical zoom at F1.67 wide and F3.5 tele, narrowing the horizontal field of view from 42.7° to 12.6°, with a minimum object distance of 2.5m. H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz), and MJPEG runs at 30fps, capped at 5fps when 8MP is selected. Low light performance reaches 0.015 lux in colour and 0.0015 lux in black and white, switched automatically by ICR. Mounting alignment covers 0°~360° pan, 0°~90° tilt and 0°~180° rotation, and the lens uses adaptive P iris with IR correction. 15~50mm long range lens with 3.33x optical zoom1/1.2-inch CMOS sensor, 8MP (3840x2160)Horizontal field of view 42.7°~12.6°Minimum illumination 0.015 lux colour / 0.0015 lux BWMinimum object distance 2.5m

The PNV-A6081R is a vandal resistant IR dome camera delivering 2MP (1920x1080) from a 1/2-inch CMOS sensor. Its AI engine identifies people, faces, vehicles and licence plates and filters motion events down to shorter, more relevant event lists, complemented by video analytics using virtual line and virtual area rules for intrusion, entering, exiting, appearing and loitering, plus social distancing checks and face mask detection. H.265 and H.264 reach up to 120fps/100fps (60Hz/50Hz), dropping to a maximum of 60/50fps with AI enabled, while MJPEG runs at 15fps. Minimum illumination is 0.007 lux in colour and 0.0007 lux in black and white. The IR corrected P iris lens spans 4.38~9.33mm with 2.13x zoom at F1.3 to F2.15 and covers 103.1°~44.5° horizontally. 2MP (1920x1080) on a 1/2-inch CMOS sensorAI detection of person, face, vehicle and licence plateVirtual line and virtual area video analyticsUp to 120/100fps, 60/50fps maximum with AI on4.38~9.33mm lens with 2.13x zoomMinimum illumination 0.007 lux colour / 0.0007 lux BW

The PNV-A7082RZ is a modular outdoor vandal dome camera with AI and IR, using a 1/1.8-inch CMOS sensor at 4MP (2592x1520). With WDR switched off it records at 60fps/50fps (60Hz/50Hz), and at 30fps/25fps with WDR on, while MJPEG runs at 30fps and is limited to 5fps at 4MP. The IR corrected P iris lens spans 4.6~9.35mm with 2.0x optical zoom at F1.3 wide and F2.15 tele, covering 105°~47° horizontally with a minimum object distance of 1.5m. Being a PTRZ model, it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with automatic ICR day and night switching. 4MP (2592x1520) on a 1/1.8-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles4.6~9.35mm lens with 2.0x optical zoom60/50fps with WDR off, 30/25fps with WDR onMinimum illumination 0.03 lux colour / 0.003 lux BW

The PNV-A9082RZ is an outdoor vandal dome camera with AI, using a 1/1.2-inch CMOS sensor at 8MP (3840x2160). H.265 and H.264 encode at up to 30fps/25fps (60Hz/50Hz), while MJPEG runs at 30fps and is capped at 5fps when 8MP is selected. The IR corrected P iris lens covers 5.9~13.3mm with 2.25x optical zoom at F1.5 wide and F2.9 tele, spanning 109°~49° horizontally, and the minimum object distance is 0.8m. As a PTRZ model it can be aligned remotely across 0°~350° pan, 0°~85° tilt and -95°~95° rotation, rated for a maximum of 3,650 cycles. Minimum illumination is 0.015 lux in colour and 0.0015 lux in black and white, with automatic ICR day and night switching. 8MP (3840x2160) on a 1/1.2-inch CMOS sensorRemote PTRZ adjustment, max. 3,650 cycles5.9~13.3mm lens with 2.25x optical zoomMinimum illumination 0.015 lux colour / 0.0015 lux BWHorizontal field of view 109°~49°

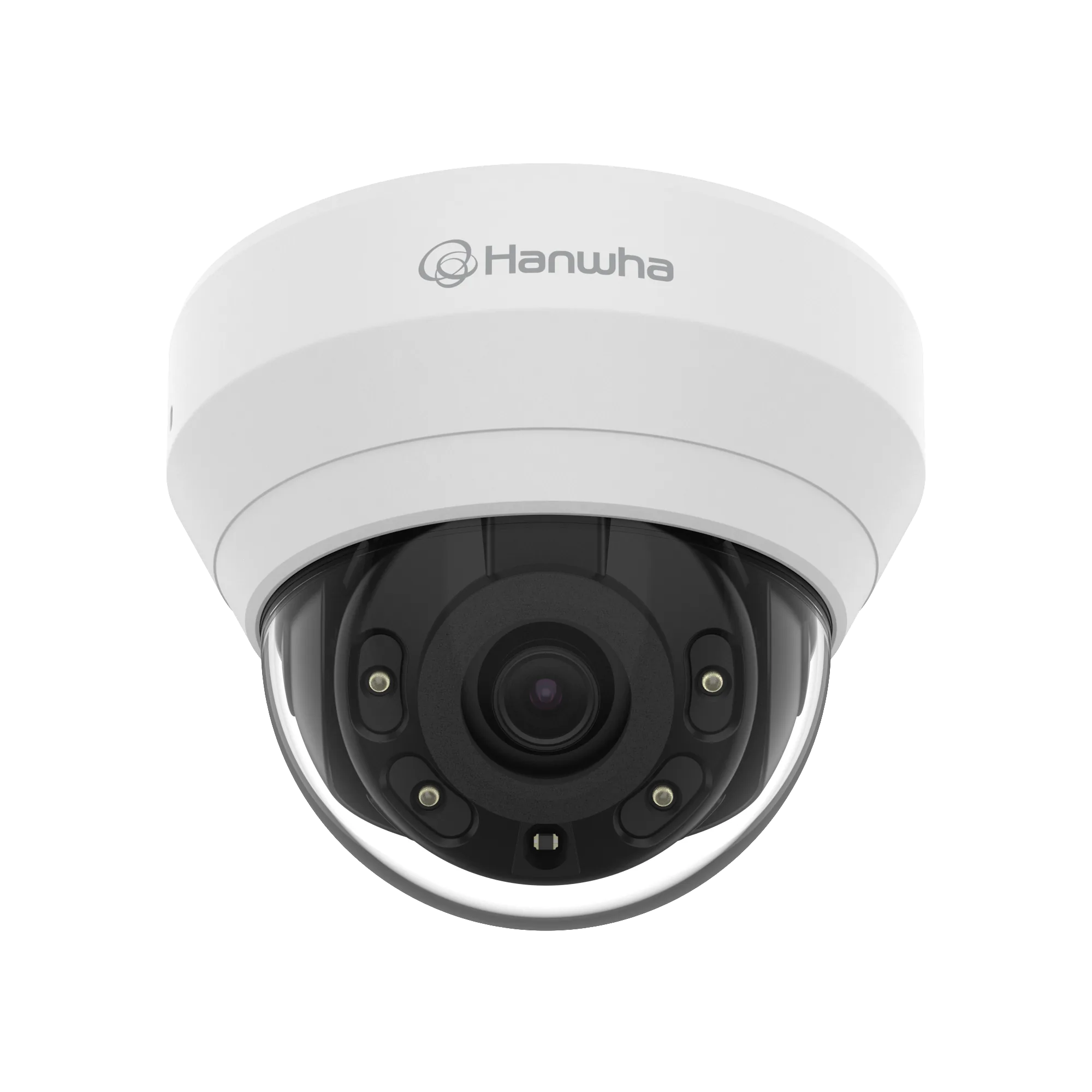

The QND-6012R1 is an IR dome camera on a 1/2.8-inch CMOS sensor with a maximum resolution of 2 megapixels (1920x1080). Every resolution is encoded in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), with MJPEG at 15fps and a 4fps ceiling at 2MP, and multiple streaming is supported. The fixed 2.8mm F2.0 lens spans 114° horizontally, 62° vertically and 135° diagonally, with a minimum object distance of 0.5m. Colour recording works from 0.03 lux and black and white from 0.003 lux, reaching 0 lux with the IR LED on, while 120dB WDR, BLC, SSDR and SSNR handle demanding contrast. Motion, tampering and defocus detection are on board, together with hallway view (90°/270°), LDC support and a Micro SD/SDHC/SDXC slot for cards up to 128GB. 2MP (1920x1080) on a 1/2.8-inch CMOS sensorFixed 2.8mm lens, 114° horizontal field of viewMotion, tampering and defocus detectionHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot up to 128GB120dB WDR with BLC and SSDR

The QND-6022R1 is an IR dome camera built on a 1/2.8-inch CMOS sensor with a maximum resolution of 2 megapixels (1920x1080). All resolutions are encoded in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), with MJPEG at 15fps and no more than 4fps at 2MP, and multiple streaming is available. The fixed 4mm F1.6 lens covers 88° horizontally, 47° vertically and 105° diagonally, with a minimum object distance of 0.5m. Colour recording is possible from 0.03 lux and black and white from 0.003 lux, reaching 0 lux with the IR LED on, complemented by 120dB WDR, BLC, SSDR and SSNR. The camera detects motion, tampering and defocus, supports hallway view (90°/270°) and LDC, and provides a Micro SD/SDHC/SDXC slot for cards up to 128GB. 2MP (1920x1080) on a 1/2.8-inch CMOS sensorFixed 4mm F1.6 lens, 88° horizontalMotion, tampering and defocus detectionHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot up to 128GB120dB WDR with BLC and SSDR

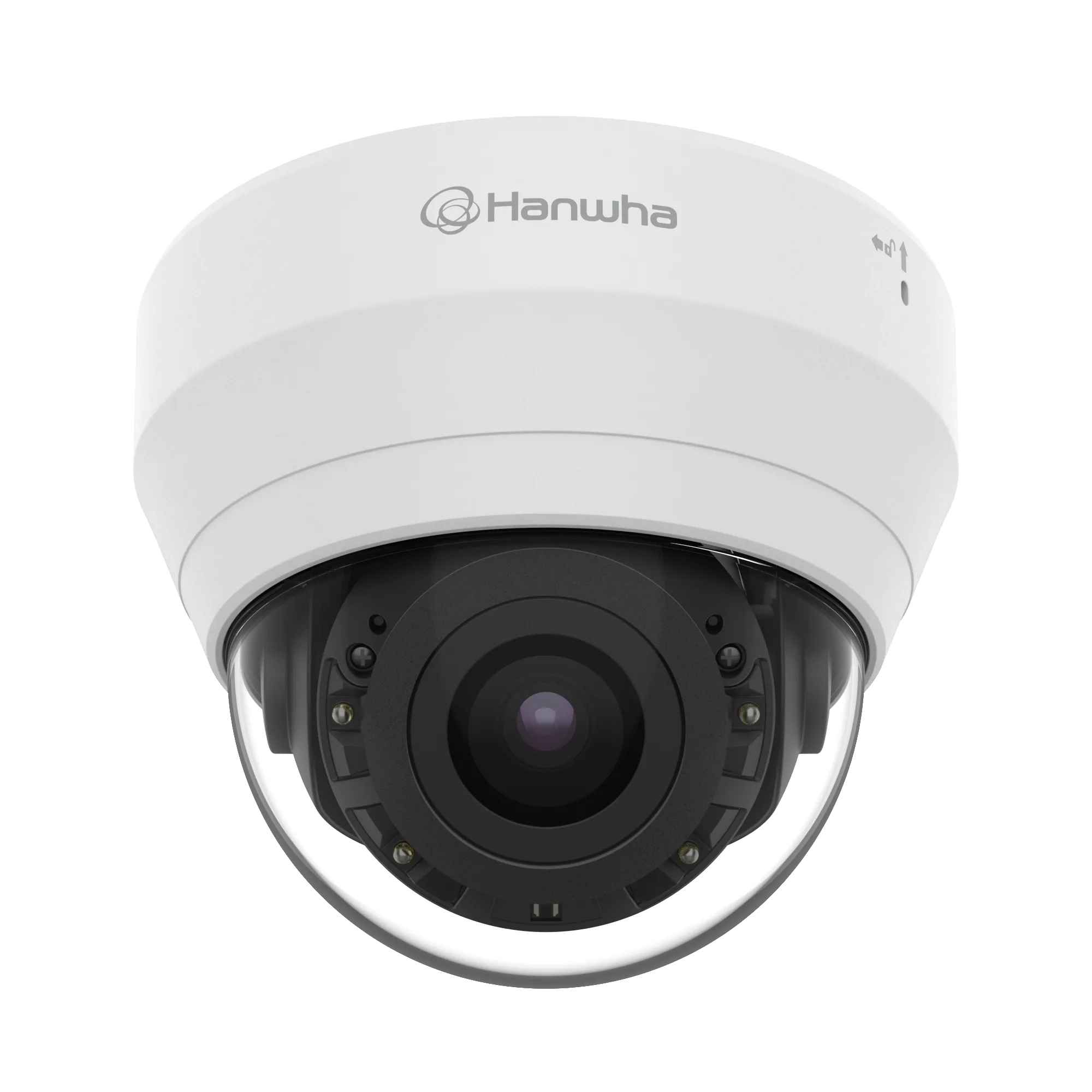

The QND-6082R1 is an IR dome camera on a 1/2.8-inch CMOS sensor with a maximum resolution of 2 megapixels (1920x1080). Its varifocal lens spans 3.2~10mm with 3.1x zoom at F1.6 wide and F2.9 tele, covering 109°~33° horizontally, and focusing is handled by simple focus with a DC auto iris. All resolutions encode in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), while MJPEG runs at 15fps and a maximum of 4fps at 2MP, with multiple streaming supported. Colour images start at 0.03 lux and black and white at 0.003 lux, reaching 0 lux once the IR LED is on. Motion, tampering and defocus detection are provided, hallway view (90°/270°) and LDC are supported, and a Micro SD/SDHC/SDXC slot accepts cards up to 128GB. 3.2~10mm varifocal lens with 3.1x zoom2MP (1920x1080) on a 1/2.8-inch CMOS sensorSimple focus with DC auto iris0.03 lux in colour, 0 lux with IR LED onHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot up to 128GB

The QND-7012R is an IR dome camera with a 1/3-inch CMOS sensor and a maximum resolution of 4MP (2560x1440). All resolutions are available in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), while MJPEG delivers 15fps and no more than 2fps at 4MP, and multiple streaming is supported. The fixed 2.8mm F2.0 lens covers 108° horizontally, 60° vertically and 122° diagonally. Colour recording works from 0.15 lux and black and white from 0.015 lux, reaching 0 lux with the IR LED on, supported by 120dB WDR, BLC, SSDR and SSNR. Motion, tampering and defocus detection are included with four motion zones, hallway view (90°/270°) and LDC are supported, and the Micro SD/SDHC/SDXC slot takes cards up to 128GB. 4MP (2560x1440) on a 1/3-inch CMOS sensorFixed 2.8mm F2.0 lens, 108° horizontal0.15 lux in colour, 0 lux with IR LED onHallway view (90°/270°) and LDC supportMicro SD/SDHC/SDXC slot up to 128GB120dB WDR with BLC and SSDR

The QND-7082R is an IR dome camera on a 1/3-inch CMOS sensor, offering up to 4MP (2560x1440) at up to 30fps. Its motorised varifocal lens spans 3.2~10mm with 3.1x zoom at F1.6 wide and F2.9 tele, covering 99°~30° horizontally, focused by simple focus with a DC auto iris at a minimum object distance of 0.5m. IR illumination reaches a viewable length of 20m (65.62ft), and the camera records in colour from 0.1 lux (F1.6, 1/30sec), in black and white from 0.01 lux, and at 0 lux with the IR LED on. ICR day and night switching and 120dB WDR are included, with H.265, H.264 and MJPEG encoding plus multiple streaming. Motion, tampering and defocus detection are provided, and hallway view (90°/270°) and LDC are supported. 4MP (2560x1440) at up to 30fpsMotorised 3.2~10mm varifocal lens with 3.1x zoomIR viewable length 20m (65.62ft)0.1 lux in colour, 0 lux with IR LED on120dB WDR with ICR day and night switchingHallway view (90°/270°) and LDC support

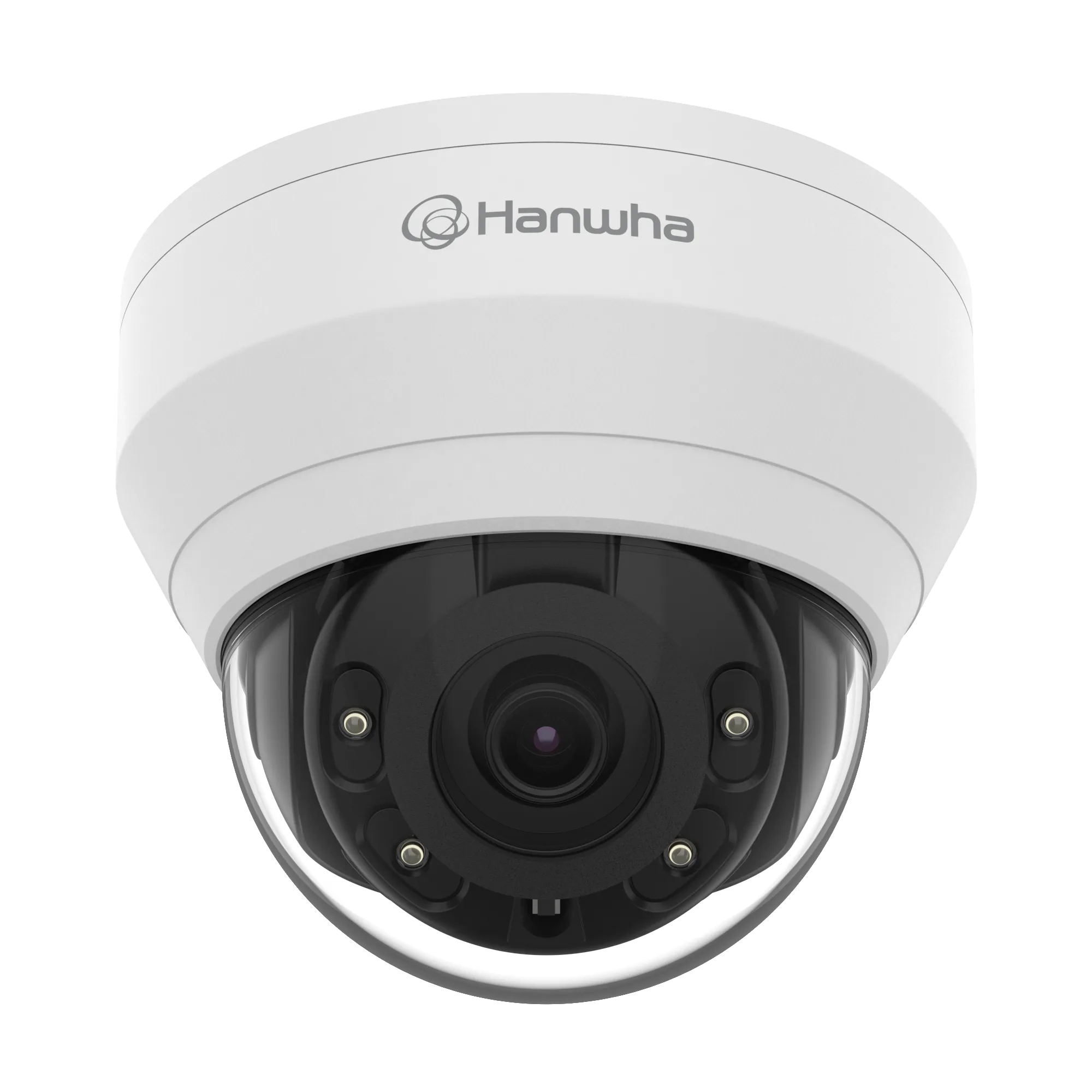

The QND-8010R is an IR network dome camera with a 1/2.8-inch CMOS sensor and a maximum resolution of 5 megapixels (2592x1944). H.265 and H.264 deliver up to 30fps/25fps (60Hz/50Hz), while MJPEG runs at 15fps with a 2fps ceiling at 5MP, and multiple streaming is supported. The fixed 2.8mm F2.0 lens covers 105° horizontally, 77° vertically and 136° diagonally. Colour recording is possible from 0.15 lux and black and white from 0.015 lux, reaching 0 lux with the IR LED on, alongside ICR day and night switching, 120dB WDR, BLC, SSDR and SSNRⅤ. Tampering, motion and defocus detection are included with four motion zones, and a Micro SD/SDHC/SDXC slot accepts cards up to 128GB. 5MP (2592x1944) on a 1/2.8-inch CMOS sensorFixed 2.8mm F2.0 lens, 105° horizontal0.15 lux in colour, 0 lux with IR LED on120dB WDR with BLC, SSDR and SSNRⅤMicro SD/SDHC/SDXC slot up to 128GBTampering, motion and defocus detection

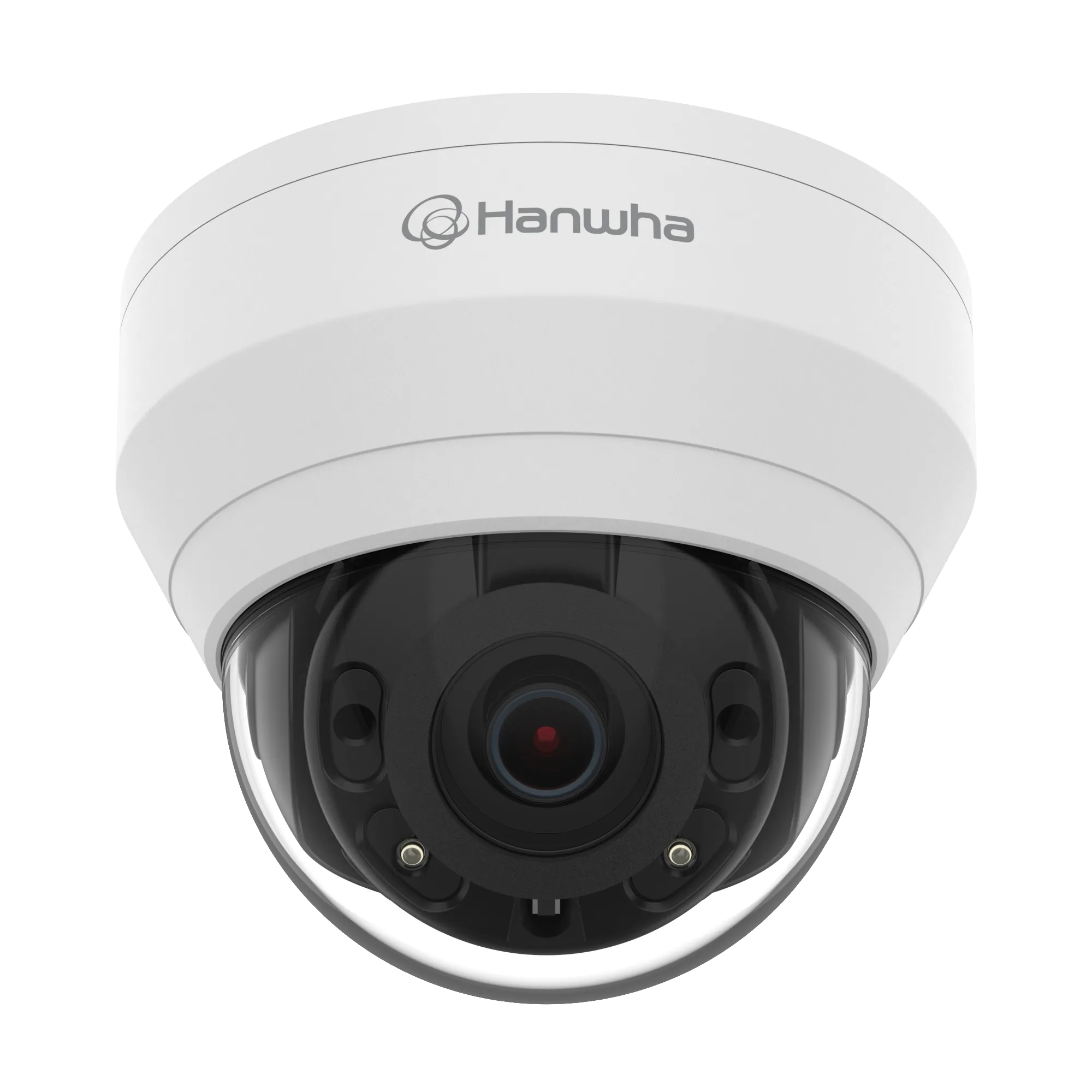

A 1/2.8-inch CMOS sensor gives the QND-8020R network dome camera with IR illumination a maximum of 5 megapixels (2592 x 1944). Its fixed 4 mm lens opens to F1.6 and covers 80° horizontally, 59° vertically and 106° diagonally. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz), MJPEG at 15fps (max. 2fps at 5MP), and several streams can be delivered in parallel. Colour remains available down to 0.15 lux, black and white down to 0.015 lux, and 0 lux with the IR LED switched on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR noise reduction are combined with tampering, motion and defocus detection across four motion zones. Storage uses a Micro SD/SDHC/SDXC slot for up to 128 GB, and a CVBS output supports installation. 5MP resolution (2592 x 1944)4 mm fixed lens, F1.6120 dB WDR, ICR day/nightH.265, H.264, MJPEG, multiple streamingMicro SD/SDHC/SDXC slot up to 128 GB

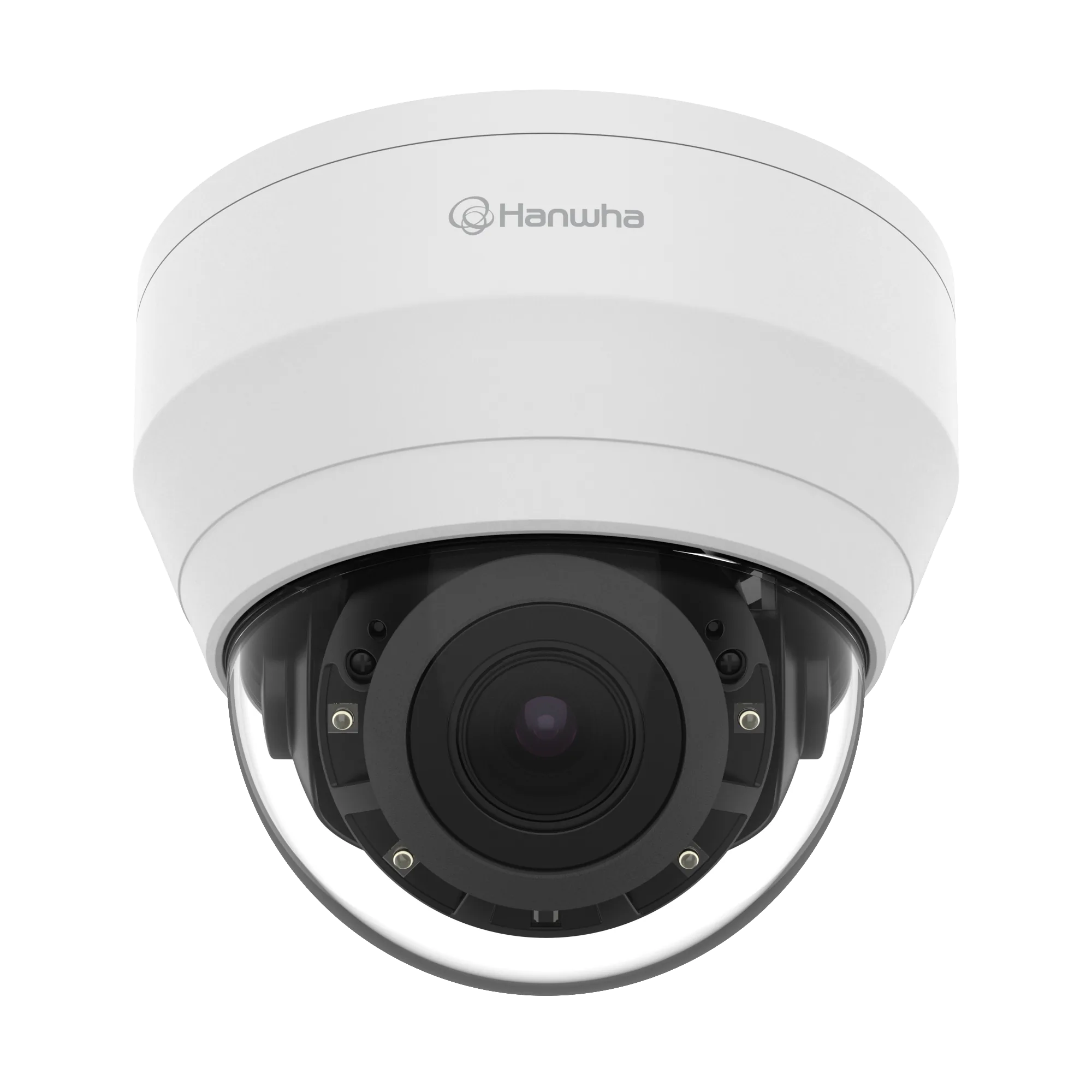

The QND-8080R combines an IR dome housing with a motorised varifocal lens covering 3.2 to 10 mm at 3.1x optical zoom. Its 1/2.8-inch CMOS sensor resolves up to 5 megapixels (2592 x 1944), with 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and 15fps in MJPEG. The angle of view spans 101° to 31° horizontally, 73° to 23° vertically and 133° to 38° diagonally, while the aperture ranges from F1.6 at the wide end to F2.9 at tele. Simple focus and an IR-corrected DC auto iris handle focusing; colour images are produced from 0.15 lux, black and white from 0.015 lux, and 0 lux with the IR LED on. ICR day/night switching, 120 dB WDR, BLC and SSDR sit alongside tampering, motion and defocus detection, and a Micro SD/SDHC/SDXC slot accepts up to 128 GB. 5MP resolution (2592 x 1944)Motorised varifocal lens, 3.2 to 10 mm (3.1x)F1.6 wide to F2.9 tele120 dB WDR, ICR day/nightMicro SD/SDHC/SDXC slot up to 128 GB

The QNP-6250R combines a 25x PTZ optic with infrared illumination reaching up to 100 m (328.08ft) and a housing rated IP66, IK10 and NEMA4X. Its 1/2.8" CMOS sensor resolves up to 1920x1080, with H.265 and H.264 at 60fps/50fps (60Hz/50Hz) and MJPEG at 30fps, supported by WiseStream II. The lens covers 4.44 to 111 mm at F1.6 to F3.9 with 32x digital zoom, a DC auto iris and oneshot AF with focus save, giving 64.66 to 2.99 degrees horizontally and 38.08 to 1.68 degrees vertically from 1.5 m. Pan is endless through 360 degrees while tilt spans 90 to -20 degrees, reaching up to 700 degrees per second on presets, 0.024 to 250 degrees per second in manual operation and up to 300 degrees per second for preset tilt. Sensitivity at 1/30 sec and 30 IRE is 0.05 lux in colour and 0.005 lux in black and white, alongside ICR, WDR, DIS with a gyro sensor, intelligent analytics and a Micro SD/SDHC/SDXC slot for 256 GB. IR viewable length up to 100 m (328.08ft)4.44 to 111 mm lens, 25x optical zoom90 to -20 degree tilt, 360 degree endless panIP66, IK10, NEMA4XDIS with gyro sensor, WDR, ICRMicro SD/SDHC/SDXC up to 256 GB

The QNP-6320R is a PTZ camera with a 32x optic, infrared illumination up to 100 m (328.08ft) and a housing rated IP66, IK10 and NEMA4X. Its 1/2.8" CMOS sensor captures up to 1920x1080, H.264 and H.265 run at 60fps/50fps (60Hz/50Hz), MJPEG at 30fps, and WiseStream II is included. The lens spans 4.44 to 142.6 mm at F1.6 wide and F4.4 tele with additional 32x digital zoom, a DC auto iris and oneshot AF with focus save, covering 64.66 to 2.29 degrees horizontally and 38.08 to 1.30 degrees vertically from 1.5 m. Pan is endless through 360 degrees while tilt runs from 90 to -20 degrees, at up to 700 degrees per second on presets, 0.024 to 250 degrees per second manually and up to 300 degrees per second for preset tilt. Minimum illumination is 0.05 lux in colour and 0.005 lux in black and white at 1/30 sec and 30 IRE, with ICR, WDR, DIS using a gyro sensor, intelligent analytics and a Micro SD/SDHC/SDXC slot for 256 GB. IR viewable length up to 100 m (328.08ft)4.44 to 142.6 mm, 32x optical zoomIP66, IK10, NEMA4X90 to -20 degree tilt, 360 degree endless panDIS with gyro sensor, WDR, ICRMicro SD/SDHC/SDXC up to 256 GB

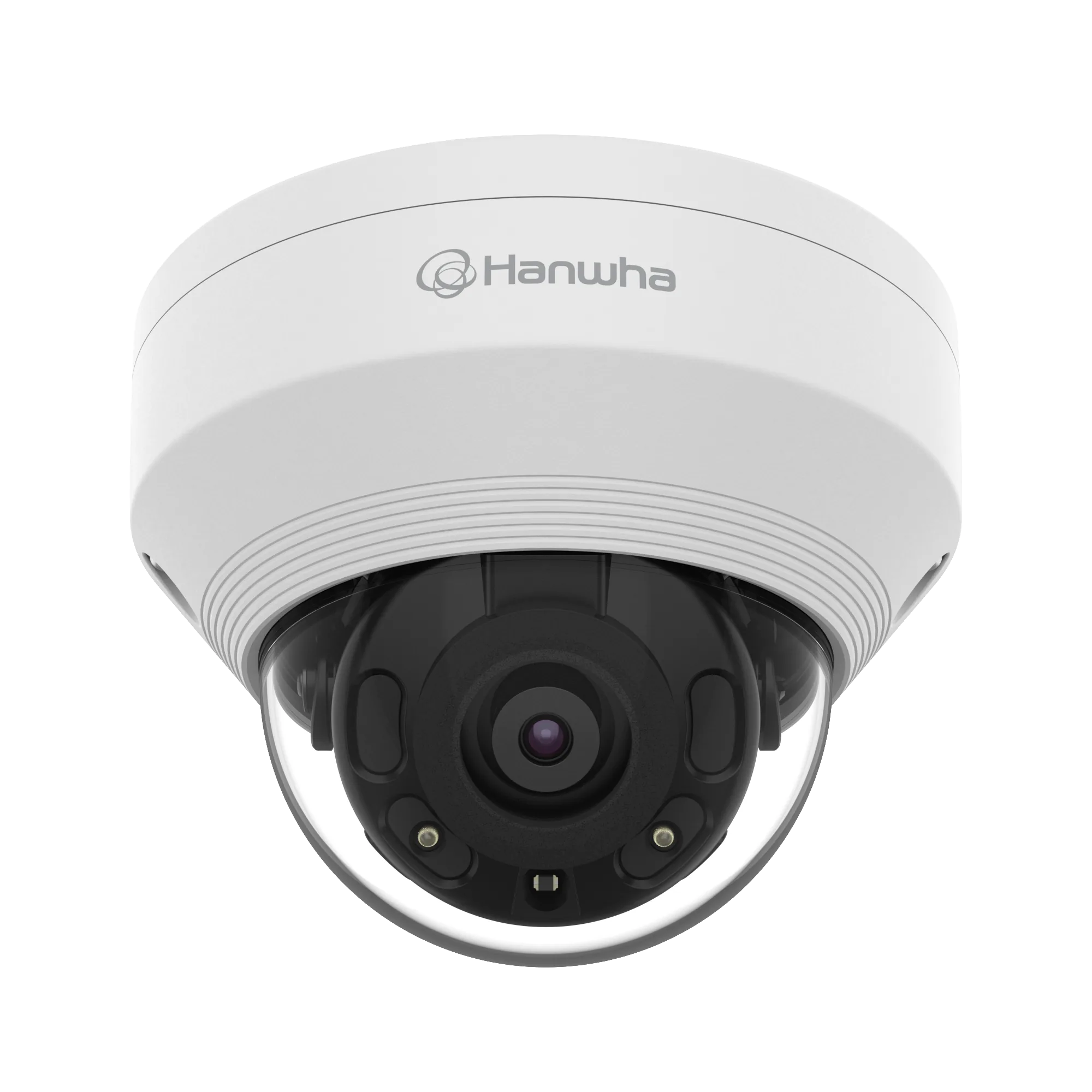

The QNV-6012R1 is a vandal-resistant infrared dome camera with a 1/2.8" CMOS sensor and a maximum resolution of 1920x1080. H.265, H.264 and MJPEG are supported, with H.265/H.264 at 30fps/25fps (60Hz/50Hz) and MJPEG at 15fps with a maximum of 4fps at 2MP, and multiple streams can run at the same time. The fixed 2.8 mm lens at F2.0 covers 114 degrees horizontally, 62 degrees vertically and 135 degrees diagonally from a minimum object distance of 0.5 m, and alignment allows 0 to 350 degrees of pan, 0 to 67 degrees of tilt and 0 to 355 degrees of rotation. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white at 1/30 sec and 30 IRE, backed by ICR, BLC, SSDR, 120 dB WDR and SSNR. Analytics include motion, tampering and defocus detection, joined by hallway view at 90 and 270 degrees, LDC and a Micro SD/SDHC/SDXC slot for up to 128 GB. Vandal-resistant IR dome2.8 mm fixed lens, F2.00.03 lux colour / 0.003 lux BW120 dB WDR, BLC, SSDR, SSNRHallway view 90/270 degrees, LDCMicro SD/SDHC/SDXC up to 128 GB

The QNV-6022R1 is a vandal-resistant infrared dome camera that records a maximum of 1920x1080 through a 1/2.8" CMOS sensor. H.265 and H.264 achieve 30fps/25fps (60Hz/50Hz) while MJPEG manages 15fps with a maximum of 4fps at 2MP, and several streaming profiles run in parallel. The fixed 4.0 mm lens at F1.6 takes in 88 degrees horizontally, 47 degrees vertically and 105 degrees diagonally from a 0.5 m minimum object distance, and the camera pans 0 to 350 degrees, tilts 0 to 67 degrees and rotates 0 to 355 degrees. Sensitivity is quoted as 0.03 lux in colour and 0.003 lux in black and white at 1/30 sec and 30 IRE, with ICR day/night switching, BLC, SSDR, 120 dB WDR and SSNR improving the image. Motion, tampering and defocus detection, hallway view at 90 and 270 degrees, LDC and a Micro SD/SDHC/SDXC slot for up to 128 GB are also part of the feature set. Vandal-resistant IR dome4.0 mm fixed lens, F1.630fps/25fps in H.265/H.2640.03 lux colour / 0.003 lux BWHallway view 90/270 degrees, LDCMicro SD/SDHC/SDXC up to 128 GB

The QNV-6082R is a network dome camera with infrared illumination that delivers a maximum of 1920x1080 from a 1/2.8" CMOS sensor. Its varifocal lens runs from 3.2 to 10 mm (3.1x) at F1.6 wide and F2.9 tele, uses a DC auto iris with simple focus and covers 109 to 33 degrees horizontally, 58 to 18 degrees vertically and 132 to 38 degrees diagonally from 0.5 m. Streaming is available in H.265, H.264 and MJPEG at 30fps/25fps (60Hz/50Hz) and 15fps respectively, with a maximum of 4fps at 2MP and several streams at once. At 1/30 sec and 30 IRE the camera reaches 0.03 lux in colour and 0.003 lux in black and white, with day/night switching handled automatically by ICR. Motion, tampering and defocus detection, hallway view at 90 and 270 degrees, LDC and a Micro SD/SDHC/SDXC slot for up to 128 GB round out the specification, while alignment allows 0 to 350 degrees of pan, 0 to 67 degrees of tilt and 0 to 355 degrees of rotation. 3.2 to 10 mm varifocal lens (3.1x)1/2.8" CMOS, max. 1920x10800.03 lux colour / 0.003 lux BWSimple focus with DC auto irisHallway view 90/270 degrees, LDCMicro SD/SDHC/SDXC up to 128 GB

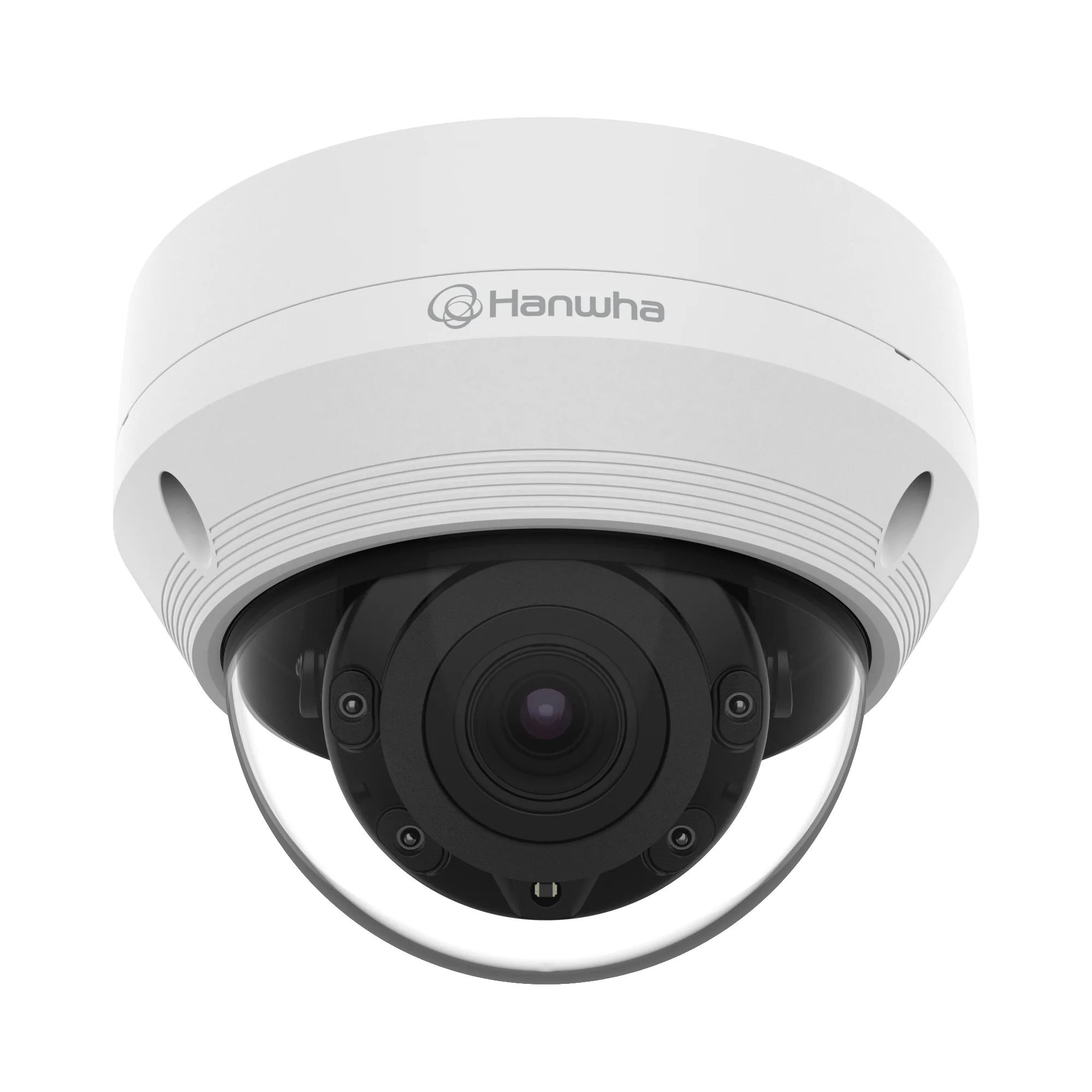

The QNV-6082R1 is a vandal-resistant network infrared dome camera with a 1/2.8" CMOS sensor and a maximum of 1920x1080. The varifocal lens covers 3.2 to 10 mm (3.1x, F1.6 wide to F2.9 tele), works with a DC auto iris and simple focus, and takes in 109 to 33 degrees horizontally, 58 to 18 degrees vertically and 132 to 38 degrees diagonally from a 0.5 m object distance. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) while MJPEG offers 15fps with a maximum of 4fps at 2MP, and multiple streaming profiles operate in parallel. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white at 1/30 sec and 30 IRE, with automatic ICR day/night switching. The feature set includes motion, tampering and defocus detection, hallway view at 90 and 270 degrees, LDC, a Micro SD/SDHC/SDXC slot for up to 128 GB, and pan from 0 to 350 degrees, tilt from 0 to 67 degrees and rotation from 0 to 355 degrees. Vandal-resistant IR dome3.2 to 10 mm varifocal lens (3.1x)0.03 lux colour / 0.003 lux BW30fps/25fps in H.265/H.264Hallway view 90/270 degrees, LDCMicro SD/SDHC/SDXC up to 128 GB

The QNV-7082R is a vandal-resistant network infrared dome camera with a 1/3" CMOS sensor delivering up to 2560x1440 and 30fps/25fps (60Hz/50Hz) in H.265/H.264, while MJPEG manages 15fps with a maximum of 2fps at 4MP and several streams can be output in parallel. Its motorised varifocal lens spans 3.2 to 10 mm (3.1x) at F1.6 wide and F2.9 tele, uses a DC auto iris with simple focus and covers 99 to 30 degrees horizontally, 53 to 17 degrees vertically and 116 to 35 degrees diagonally. Infrared reach is stated as 30 m (98.42ft) and minimum illumination as 0.1 lux in colour and 0.01 lux in black and white at 1/30 sec and 30 IRE. Difficult lighting is handled by ICR day/night switching, BLC, SSDR and 120 dB WDR. Motion, tampering and defocus detection, hallway view at 90 and 270 degrees and LDC are also on board, with 0 to 350 degrees of pan, 0 to 67 degrees of tilt and 0 to 355 degrees of rotation for alignment. 1/3" CMOS, max. 2560x1440 (4MP)3.2 to 10 mm motorised varifocal (3.1x)30 m (98.42ft) IR viewable length0.1 lux colour / 0.01 lux BW120 dB WDR, ICR day/night switchingHallway view 90/270 degrees, LDC

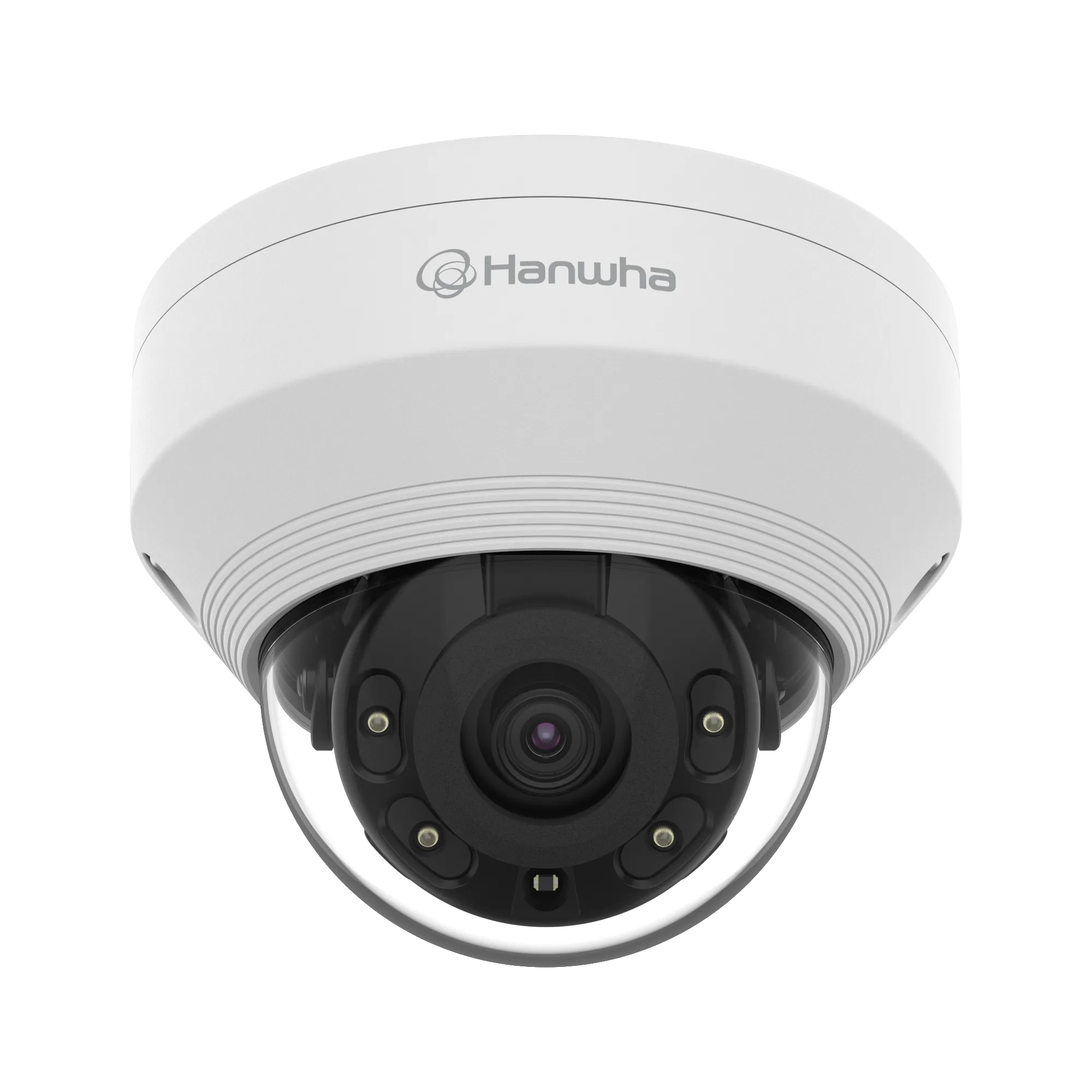

The QNV-8010R is a network dome camera with infrared illumination whose 1/2.8" CMOS sensor captures a maximum of 2592x1944, equal to 5MP. H.265 and H.264 achieve 30fps/25fps (60Hz/50Hz) and MJPEG manages 15fps with a maximum of 2fps at 5MP, alongside multiple streaming and WiseStream II. Its fixed 2.8 mm lens at F2.0 covers 105 degrees horizontally, 77 degrees vertically and 136 degrees diagonally, and alignment uses 0 to 350 degrees of pan, 0 to 67 degrees of tilt and 0 to 355 degrees of rotation. At 1/30 sec and 30 IRE the camera reaches 0.15 lux in colour and 0.015 lux in black and white, supported by automatic ICR day/night switching, BLC, SSDR, 120 dB WDR and SSNR. Analytics cover motion detection with four areas plus tampering and defocus detection, joined by hallway view and a Micro SD/SDHC/SDXC slot for up to 128 GB. 1/2.8" CMOS, max. 2592x1944 (5MP)2.8 mm fixed lens, F2.0, 105 degrees horizontal0.15 lux colour / 0.015 lux BW120 dB WDR, BLC, SSDR, SSNRHallway view and WiseStream IIMicro SD/SDHC/SDXC up to 128 GB

The QNV-8020R is an IR network dome camera built around a 1/2.8 inch CMOS sensor with a top resolution of 2592x1944 pixels. H.265 and H.264 run at up to 30 fps on 60 Hz or 25 fps on 50 Hz, while MJPEG delivers 15 fps and no more than 2 fps at 5 MP. Its fixed 4 mm F1.6 lens covers 80° horizontally, 59° vertically and 106° diagonally. Low light figures are given as 0.15 lux in colour and 0.015 lux in black and white at 1/30 sec and 30 IRE, with day and night switching handled automatically by ICR. The camera provides 120 dB WDR together with BLC, SSDR and SSNR, four motion detection areas and a Micro SD/SDHC/SDXC slot for up to 128 GB. Tampering and defocus detection plus a CVBS output for installation complete the unit. 1/2.8 inch CMOS sensor, 2592x1944 pixelsFixed 4 mm lens, F1.6Max. 30/25 fps in H.265 and H.264120 dB WDR, ICR day and night switchingTampering, motion and defocus detectionMicro SD/SDHC/SDXC up to 128 GB

The QNV-8080R houses a 1/2.8 inch CMOS sensor reaching 2592x1944 pixels. Its motorised varifocal lens spans 3.2 to 10 mm with 3.1x optical zoom, F1.6 at the wide end and F2.9 at tele, giving a field of view of 101° to 31° horizontally, 73° to 23° vertically and 134° to 38° diagonally. Focusing works by Simple Focus and the DC auto iris is IR corrected. H.265 and H.264 reach 30 fps on 60 Hz or 25 fps on 50 Hz, MJPEG 15 fps and a maximum of 2 fps at 5 MP. Minimum illumination is stated as 0.15 lux in colour and 0.015 lux in black and white at 1/30 sec and 30 IRE, alongside 120 dB WDR, ICR day and night switching, BLC and SSDR. Hallway view, WiseStream II, tampering, motion and defocus detection and a Micro SD slot for up to 128 GB round off the camera. Motorised varifocal 3.2 to 10 mm, 3.1xF1.6 wide, F2.9 tele, IR corrected DC auto iris2592x1944 pixels on a 1/2.8 inch CMOS sensor120 dB WDR, ICR day and night switchingHallway view and WiseStream IIMicro SD/SDHC/SDXC up to 128 GB

The TNO-C3040T is a thermal camera with a tele lens and AI capability. Its uncooled micro bolometer carries 384x288 pixels at a 17 µm pitch and works in the 8~14 µm band, with thermal sensitivity quoted as ≤20 mK at 25 °C and F1.0. Images are output at 768x576 and 384x288 with up to 30 frames per second in H.265, H.264 and MJPEG, and a micro USB type B connector serves preview and installation. In front of the sensor sits an athermalised 13 mm fixed lens at F1.0 covering 28.5° horizontally, 21.4° vertically and 35.5° diagonally, for an iFoV of 1.308 mRad and a minimum object distance of 5 m. During installation the camera can be panned 0°~350°, tilted 0°~90° and rotated 0°~350°, and eight 8-point polygonal motion detection zones are available for analysis. Uncooled micro bolometer, 384x288, 17 µmNETD ≤20 mK at 25 °C, F1.0Athermalised 13 mm fixed lens, F1.0Field of view 28.5° x 21.4°, iFoV 1.308 mRadUp to 30 fps in H.265, H.264 and MJPEGEight 8-point polygonal motion detection zones

The TNO-C3042T pairs an athermalised 13 mm tele lens at F1.0 with an uncooled micro bolometer of 384x288 pixels and a 17 µm pixel pitch, reaching a thermal sensitivity of ≤20 mK at 25 °C and F1.0 within the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 8 frames per second in H.265, H.264 and MJPEG. The field of view measures 28.5° horizontally, 21.4° vertically and 35.5° diagonally, with an iFoV of 1.308 mRad and a minimum object distance of 5 m. Detected objects are classified as person or vehicle by an AI engine. The housing is rated IP66/67, IK10, NEMA4X, NEMA-TS2 and MIL-STD-810H, and a secure element certified to FIPS 140-3 level 3 and CC EAL6+ protects the camera. Uncooled micro bolometer, 384x288, 17 µmNETD ≤20 mK at 25 °C, F1.0Athermalised 13 mm tele lens, F1.0Max. 8 fps in H.265, H.264 and MJPEGAI classification of person and vehicleIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3052T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 19 mm at F1.0 and takes in 19.3° horizontally, 14.6° vertically and 23.9° diagonally, with an iFoV of 0.895 mRad and a minimum object distance of 10.6 m (34.8 ft). H.265, H.264 and MJPEG are each encoded at up to 8 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 19 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 8 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3060T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 35 mm at F1.0 and takes in 10.7° horizontally, 8.0° vertically and 13.3° diagonally, with an iFoV of 0.486 mRad and a minimum object distance of 36.1 m (118.4 ft). H.265, H.264 and MJPEG are each encoded at up to 30 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 35 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 30 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3062T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 35 mm at F1.0 and takes in 10.7° horizontally, 8.0° vertically and 13.3° diagonally, with an iFoV of 0.486 mRad and a minimum object distance of 36.1 m (118.4 ft). H.265, H.264 and MJPEG are each encoded at up to 8 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 35 mm fixed lens, F1.0NETD ≤20 mK at 25 °CUp to 8 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3080T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 60 mm at F1.2 and takes in 6.2° horizontally, 4.7° vertically and 7.7° diagonally, with an iFoV of 0.283 mRad and a minimum object distance of 88.3 m (289.7 ft). H.265, H.264 and MJPEG are each encoded at up to 30 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 60 mm fixed lens, F1.2NETD ≤20 mK at 25 °CUp to 30 fps (H.265/H.264/MJPEG)AI object classification for persons and vehiclesIP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H

The TNO-C3082T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 60 mm at F1.2 and takes in 6.2° horizontally, 4.7° vertically and 7.7° diagonally, with an iFoV of 0.283 mRad and a minimum object distance of 88.3 m (289.7 ft). H.265, H.264 and MJPEG are each encoded at up to 8 fps. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation. Uncooled micro bolometer 384x288Athermalized 60 mm fixed lens, F1.2NETD ≤20 mK at 25 °CUp to 8 fps (H.265/H.264/MJPEG)Field of view 6.2° x 4.7°Minimum object distance 88.3 m (289.7 ft)

The XNF-A8014R AI fisheye camera relies on a 1/1.6" CMOS imager and a 1.76 mm lens spanning 185° horizontally, vertically and diagonally. Maximum resolution is 2560x2560, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz), MJPEG at 5fps and a ceiling of 20fps in PoE mode. The aperture ratio is 1.8 at both the wide and the tele end, and object distance starts at 0.5 m. Minimum illumination is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Image conditioning includes extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog. The image can also be rotated digitally. 1/1.6" CMOS sensorUp to 2560x25601.76 mm lens, 185° field of viewExtreme WDR 120 dBWiseNR II, AI basedDigital image stabilisation, defog

As an AI fisheye model, the XNF-A8014RV relies on a 1/1.6" CMOS imager and a 1.76 mm lens spanning 185° horizontally, vertically and diagonally. Maximum resolution is 2560x2560, with H.265 and H.264 at 30fps/25fps (60Hz/50Hz), MJPEG at 5fps and a ceiling of 20fps in PoE mode. The aperture ratio is 1.8 at both the wide and the tele end, and object distance starts at 0.5 m. Minimum illumination is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), and ICR switches between day and night automatically. Image conditioning includes extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog. The image can also be rotated digitally. 1/1.6" CMOS sensorUp to 2560x25601.76 mm lens, F1.8185° field of view, digital rotationExtreme WDR 120 dB, WiseNR II0.02 lux colour / 0.001 lux B/W

The XNF-A9014R works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. The manufacturer additionally states a 20 m IR range, an IP42 rating, a dual NPU for AI-based image enhancement and support for object detection, intelligent video analytics and motion detection. Up to 3584x26881.76 mm fixed stereographic lens20 m IR rangeIP42 ratedDual NPU for AI-based image enhancementObject detection, intelligent video analytics

As an AI IR fisheye camera, the XNF-A9014RV works with a 1/1.6" CMOS imager and a fixed stereographic 1.76 mm lens covering 185° horizontally, vertically and diagonally. Top resolution is 3584x2688, encoded at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 5fps in MJPEG, with a maximum of 20fps in PoE mode. The aperture ratio is 1.8 at the wide and the tele end, object distance begins at 0.5 m, and the image can be rotated digitally. Stated sensitivity is 0.02 lux in colour and 0.001 lux in black and white (1/30 sec, 30 IRE), with ICR taking care of day and night switching. Extreme WDR at 120 dB, BLC, HLC, SSDR, WiseNR II based on the AI engine, SSNR V, digital image stabilisation and defog condition the picture. 1/1.6" CMOS sensorUp to 3584x26881.76 mm lens, 185° field of viewDigital rotationExtreme WDR 120 dB, WiseNR IIDigital image stabilisation, defog

Built around a 1/2.8 inch CMOS sensor, this PTZ network camera resolves up to 1920x1080 and encodes at 60fps/50fps (60Hz/50Hz) in H.265 and H.264, or 30fps in MJPEG. Its lens runs from 4.25 to 170 mm with 40x optical and 32x digital zoom, opens to F1.6 wide and F4.95 tele and covers 65.66 to 1.88 degrees horizontally. At 1/30 sec and 30 IRE it reaches 0.05 lux in colour and 0.005 lux in black and white, with a minimum object distance of 5 m (16.4ft). Panning is endless over 360 degrees and tilt spans 90 to -20 degrees, at up to 700 degrees per second on presets and 0.024 to 250 degrees per second under manual control. The feature set includes ICR day and night operation, WDR at 150 dB, DIS with a gyro sensor, intelligent analytics with object auto tracking for persons and vehicles and WiseStream II, in a housing rated IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9). 4.25~170 mm, 40x optical, 32x digital zoom1920x1080, 60fps/50fps in H.265/H.264WDR 150 dB, DIS with gyro sensorObject auto tracking for person and vehicle360 degree endless pan, up to 700 degrees/secIP66, IK10, NEMA4X, NEMA-TS 2

The IR version of this 40x PTZ camera produces up to 1920x1080 from a 1/2.8 inch CMOS sensor, at 60fps/50fps (60Hz/50Hz) in H.265 and H.264 and 30fps in MJPEG. Its lens spans 4.25 to 170 mm with 40x optical and 32x digital zoom, F1.6 at the wide end and F4.95 at tele, and a horizontal field of view of 65.66 to 1.88 degrees. Wise IR illumination carries up to 200 m (656.17 ft), while minimum illumination is 0.05 lux in colour and 0.005 lux in black and white. Pan movement is endless across 360 degrees, tilt covers 90 to -20 degrees, and preset speeds reach 700 degrees per second panning and 500 degrees per second tilting. Added to this are ICR day and night operation, WDR at 150 dB, DIS with a built-in gyro sensor, object auto tracking for persons and vehicles, WiseStream II and a housing rated IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9). 4.25~170 mm, 40x optical, 32x digital zoomWise IR up to 200 m (656.17 ft)1920x1080, 60fps/50fps in H.265/H.264WDR 150 dB, DIS with gyro sensor360 degree endless pan, 90 to -20 degree tiltIP66, IK10, NEMA4X, NEMA-TS 2

This 40x IR PTZ camera additionally carries a built-in wiper and works with a 1/2.8 inch CMOS sensor at a maximum resolution of 1920x1080. H.265 and H.264 reach 60fps/50fps (60Hz/50Hz) and MJPEG 30fps, with minimum illumination of 0.05 lux in colour and 0.005 lux in black and white. The lens runs from 4.25 to 170 mm with 40x optical and 32x digital zoom at F1.6 to F4.95, the closest object distance is 3 m (9.84ft), and focusing uses oneshot AF or a saved focus position. IR viewable length is stated as up to 200 m, panning is endless across 360 degrees at up to 500 degrees per second on presets, and tilt covers 90 to -20 degrees at up to 350 degrees per second. Also provided are ICR day and night operation, extreme WDR, DIS with a gyro sensor, intelligent analytics with object auto tracking and target lock tracking, plus IP66, IK10 and NEMA4X ratings. Built-in wiper4.25~170 mm, 40x optical, 32x digital zoomMax. IR viewable length 200 mOneshot AF and focus save, 3 m minimum distanceObject auto tracking and target lock trackingIP66, IK10, NEMA4X
