5MP IR Indoor Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBP-300WMW1 is a white wall mount designed for operating PTZ cameras on a wall construction. Aluminium is used as the material and the finish follows RAL 9003. The bracket measures 112 x 183 x 207.5 mm, weighs 625 g and carries up to 10 kg. Its mount thread size is PF 1 1/2 inch, and supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgMount thread PF 1 1/2 inch
In stock, ships immediately · delivery 1-2 days
Wall mount made of polycarbonate with a white RAL9003 finish. Dimensions are 122 x 95 x 157mm (WxHxD) at a weight of 175g. Supported camera models are the QND-6012R, QND-6022R, QND-6082R, QND-8010R and QND-8020R. PolycarbonateWhite RAL9003Dimensions 122x95x157mm (WxHxD)Weight 175gFor QND-6012R, QND-6022R, QND-6082R, QND-8010R, QND-8020R
Not in stock · delivery 3-4 days
The SBP-300LMW is the white parapet mount for installing cameras on a parapet or roof edge. It is made of aluminium and finished in white to RAL 9003. The mount measures 824.7 x 841 x 82 mm, weighs 730 g and accepts loads up to 20 kg. Operating conditions are stated as -50 °C to 60 °C and 0 to 100 % humidity. Supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 824.7 x 841 x 82 mmWeight 730 gOperating temperature -50 °C to 60 °CMaximum load 20 kg
Not in stock · delivery 3-4 days
The SBP-300NBW installation box accommodates connection hardware and cabling for camera installations and comes in a white version. The stated materials are aluminium, steel and silicon, with a white finish to RAL 9003. The box measures ø185 x 221 x 94.3 mm and weighs 3.4 kg. A 19.1 mm (3/4 inch, M25) conduit hole is provided for cable entry. It can be combined with the SBP-300WMW and SBP-300WMW1 wall mounts. Aluminium, steel and siliconWhite finish, RAL 9003Dimensions ø185 x 221 x 94.3 mmWeight 3.4 kgConduit hole 19.1 mm (M25)Works with SBP-300WMW, SBP-300WMW1
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QND-8020R
- EAN / GTIN
- 8801089163097
- Weight
- 1 kg
- Dimensions (W×H×D)
- 120 × 290 × 110 mm
Description

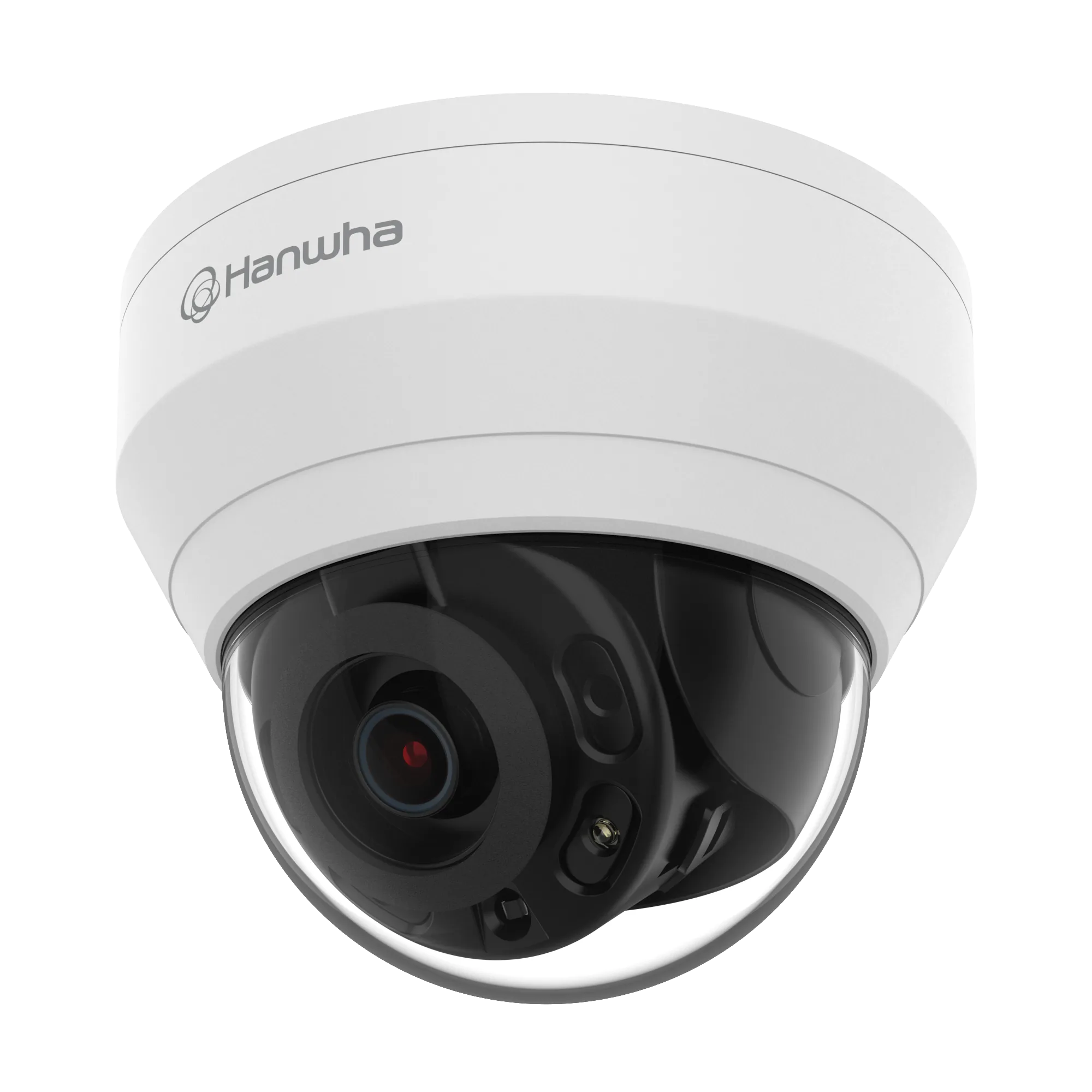

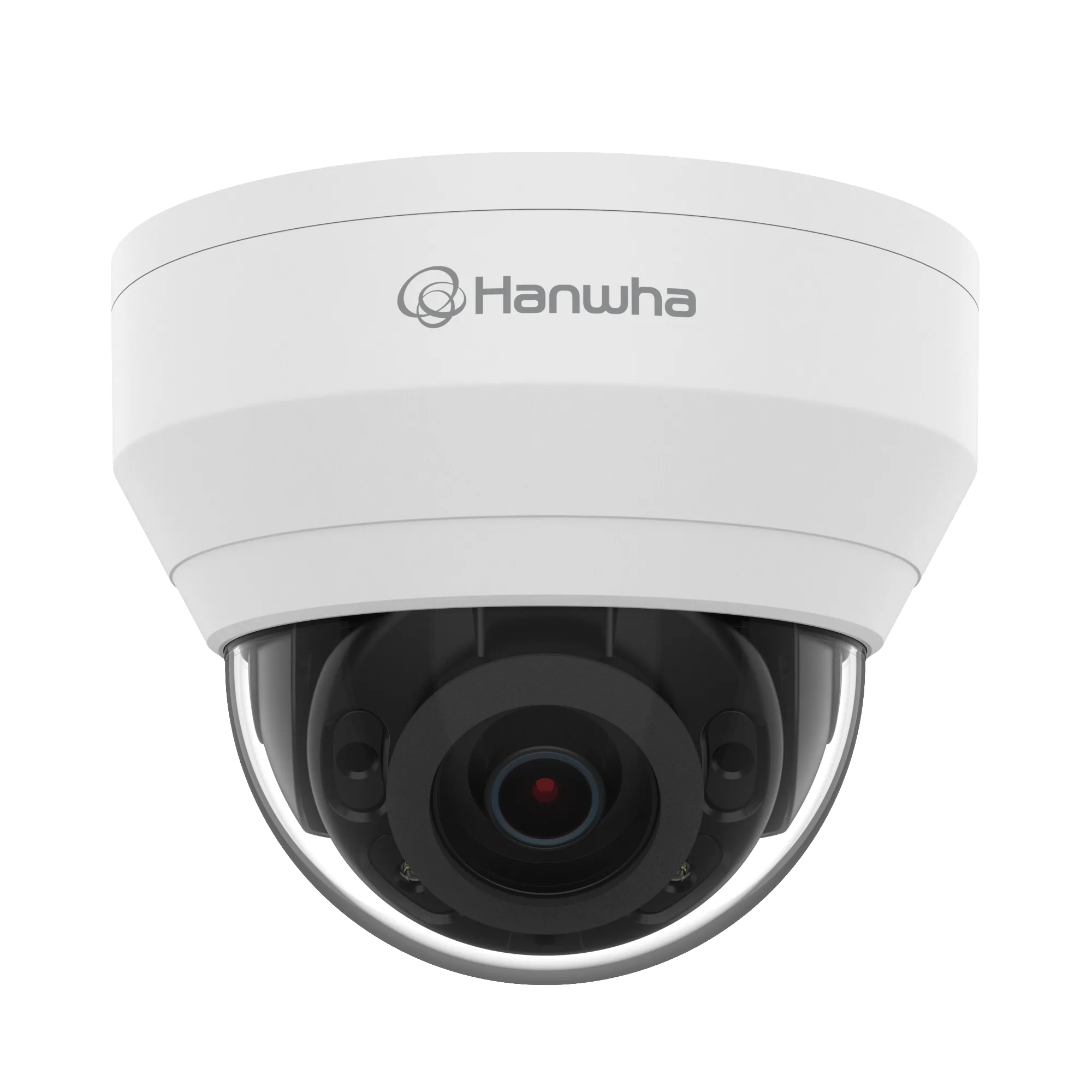

A 1/2.8-inch CMOS sensor gives the QND-8020R network dome camera with IR illumination a maximum of 5 megapixels (2592 x 1944). Its fixed 4 mm lens opens to F1.6 and covers 80° horizontally, 59° vertically and 106° diagonally. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz), MJPEG at 15fps (max. 2fps at 5MP), and several streams can be delivered in parallel. Colour remains available down to 0.15 lux, black and white down to 0.015 lux, and 0 lux with the IR LED switched on. ICR day/night switching, 120 dB WDR, BLC, SSDR and SSNR noise reduction are combined with tampering, motion and defocus detection across four motion zones. Storage uses a Micro SD/SDHC/SDXC slot for up to 128 GB, and a CVBS output supports installation.
- 5MP resolution (2592 x 1944)
- 4 mm fixed lens, F1.6
- 120 dB WDR, ICR day/night
- H.265, H.264, MJPEG, multiple streaming
- Micro SD/SDHC/SDXC slot up to 128 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
DORI (EN62676-4 standard) (4)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 62.0m(203.39ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.2m(20.34ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 24.8m(81.36ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 12.4m(40.68ft)
Environmental & Electrical (6)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 6.80W, typical 5.00W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (6)
- Lens / Angular Field of View – Diagonal
- 106°
- Lens / Angular Field of View – Horizontal
- 80°
- Lens / Angular Field of View – Vertical
- 59°
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens – Focal Length (mm)
- 4.0
- Lens – Focus Control
- Fixed
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum, Plastic
- Mechanical – Product Dimensions
- ø110.6x89.5mm(ø4.35x3.52")
- Mechanical – Product Weight
- 360g(0.79 lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
- Network – Smart Codec
- WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (20)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 20m(65.62ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@5MP Max. 2fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.015
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.15
- Video – Resolution
- 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
