5MP IR Indoor Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
Aluminium hanging adaptor finished in white to RAL9003. Dimensions are ø128.2x47mm at a weight of 159g. The mount thread size is PF 1 1/2. Listed supported products are the QND-6082R and QNV-6012R cameras. AluminiumWhite RAL9003Dimensions ø128.2x47mm, 159gPF 1 1/2 mount threadFor QND-6082R and QNV-6012R
Not in stock · delivery 3-4 days
Wall mount made of polycarbonate with a white RAL9003 finish. Dimensions are 122 x 95 x 157mm (WxHxD) at a weight of 175g. Supported camera models are the QND-6012R, QND-6022R, QND-6082R, QND-8010R and QND-8020R. PolycarbonateWhite RAL9003Dimensions 122x95x157mm (WxHxD)Weight 175gFor QND-6012R, QND-6022R, QND-6082R, QND-8010R, QND-8020R
Not in stock · delivery 3-4 days
The SBP-300WMW1 is a white wall mount designed for operating PTZ cameras on a wall construction. Aluminium is used as the material and the finish follows RAL 9003. The bracket measures 112 x 183 x 207.5 mm, weighs 625 g and carries up to 10 kg. Its mount thread size is PF 1 1/2 inch, and supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgMount thread PF 1 1/2 inch
In stock, ships immediately · delivery 1-2 days
The SBP-300LMW is the white parapet mount for installing cameras on a parapet or roof edge. It is made of aluminium and finished in white to RAL 9003. The mount measures 824.7 x 841 x 82 mm, weighs 730 g and accepts loads up to 20 kg. Operating conditions are stated as -50 °C to 60 °C and 0 to 100 % humidity. Supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 824.7 x 841 x 82 mmWeight 730 gOperating temperature -50 °C to 60 °CMaximum load 20 kg
Not in stock · delivery 3-4 days

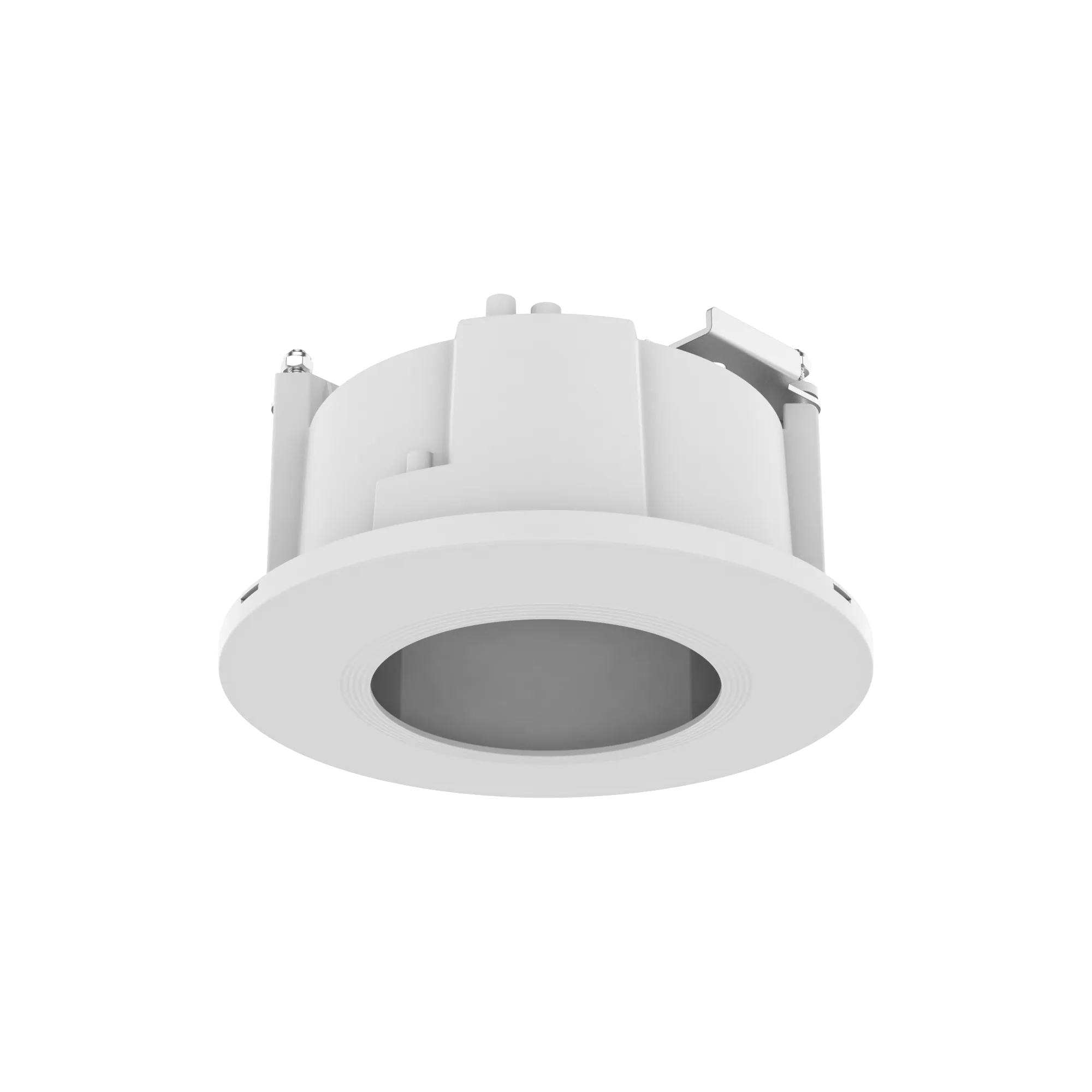

SHD-1198FW is a polycarbonate in-ceiling mount for flush installation. The finish is white to RAL 9003. Dimensions are ø170x100.6 mm (6.72x3.96") and the weight is 320 g (0.71 lb). With this mount the camera body sits largely inside the ceiling so that only the rim remains visible. The supported products stated are QND-6082R and LND-6072R. Flush in-ceiling mountPolycarbonateWhite, RAL 9003ø170x100.6 mm320 gFor QND-6082R and LND-6072R
In stock, ships immediately · delivery 1-2 days
The SBP-300NBW installation box accommodates connection hardware and cabling for camera installations and comes in a white version. The stated materials are aluminium, steel and silicon, with a white finish to RAL 9003. The box measures ø185 x 221 x 94.3 mm and weighs 3.4 kg. A 19.1 mm (3/4 inch, M25) conduit hole is provided for cable entry. It can be combined with the SBP-300WMW and SBP-300WMW1 wall mounts. Aluminium, steel and siliconWhite finish, RAL 9003Dimensions ø185 x 221 x 94.3 mmWeight 3.4 kgConduit hole 19.1 mm (M25)Works with SBP-300WMW, SBP-300WMW1
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QND-8080R
- EAN / GTIN
- 8801089163172
- Weight
- 0.67 kg
- Dimensions (W×H×D)
- 175 × 175 × 170 mm
Description

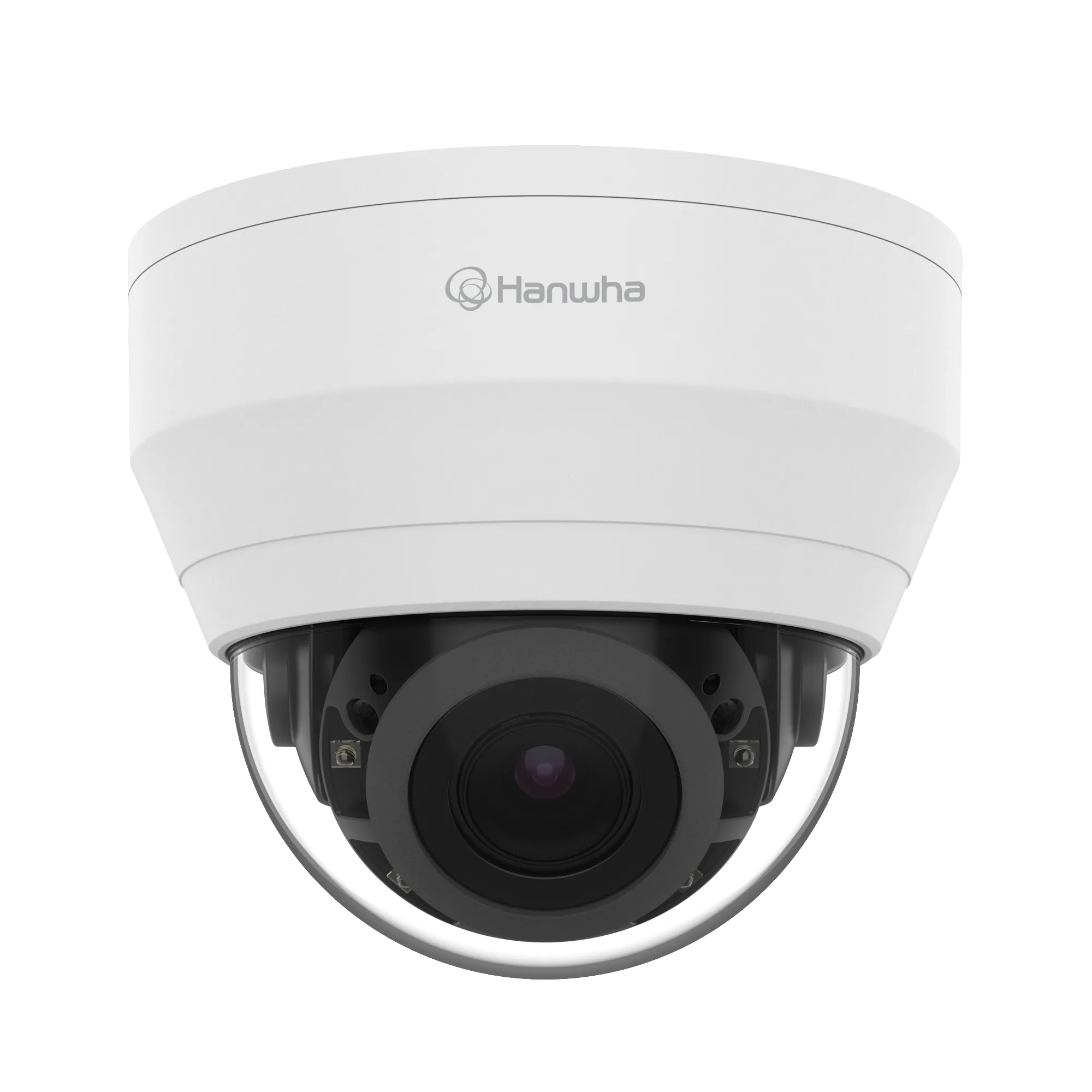

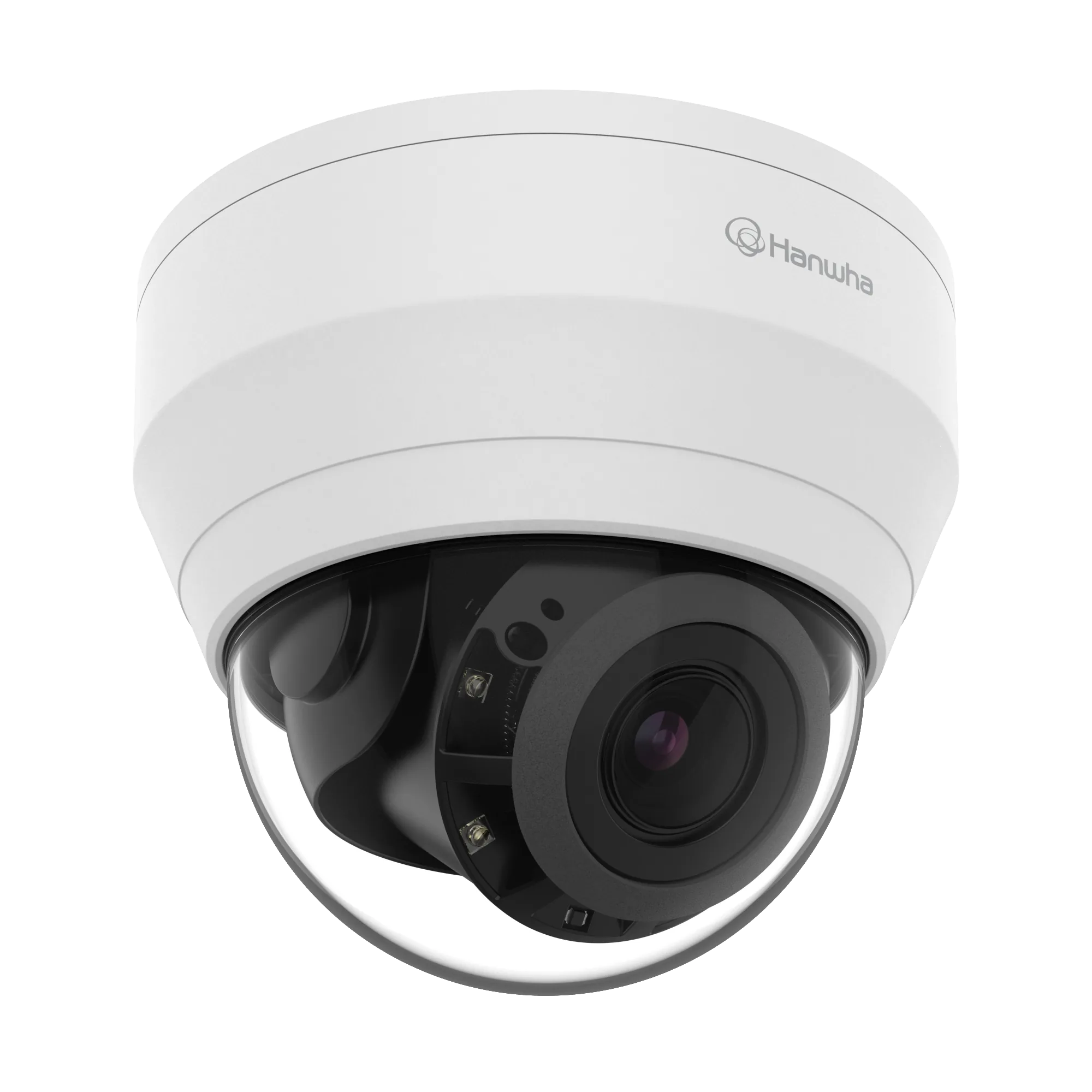

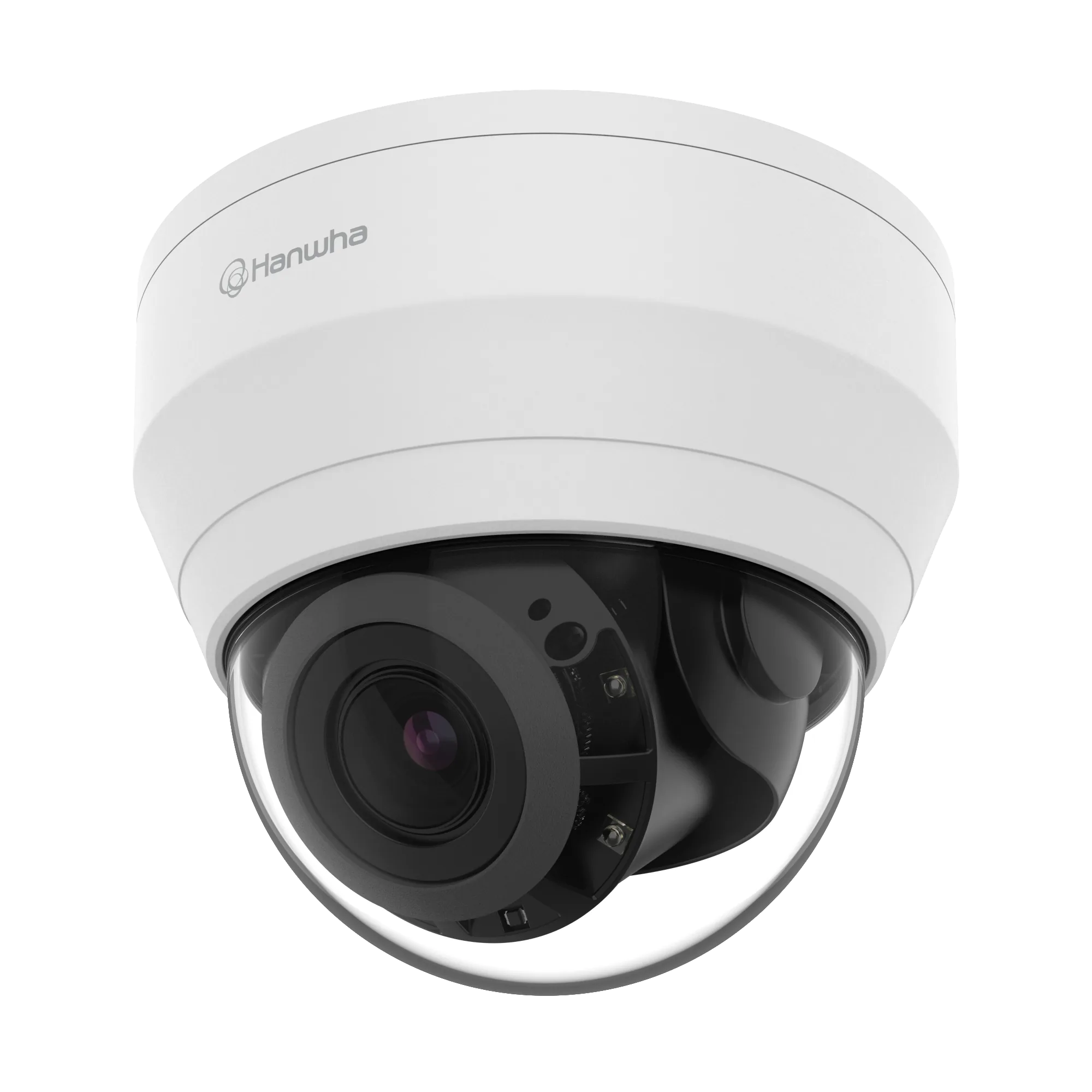

The QND-8080R combines an IR dome housing with a motorised varifocal lens covering 3.2 to 10 mm at 3.1x optical zoom. Its 1/2.8-inch CMOS sensor resolves up to 5 megapixels (2592 x 1944), with 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and 15fps in MJPEG. The angle of view spans 101° to 31° horizontally, 73° to 23° vertically and 133° to 38° diagonally, while the aperture ranges from F1.6 at the wide end to F2.9 at tele. Simple focus and an IR-corrected DC auto iris handle focusing; colour images are produced from 0.15 lux, black and white from 0.015 lux, and 0 lux with the IR LED on. ICR day/night switching, 120 dB WDR, BLC and SSDR sit alongside tampering, motion and defocus detection, and a Micro SD/SDHC/SDXC slot accepts up to 128 GB.
- 5MP resolution (2592 x 1944)
- Motorised varifocal lens, 3.2 to 10 mm (3.1x)
- F1.6 wide to F2.9 tele
- 120 dB WDR, ICR day/night
- Micro SD/SDHC/SDXC slot up to 128 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 185.7m(609.09ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 43.3m(141.94ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 18.6m(60.91ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.3m(14.19ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 74.3m(243.64ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 17.3m(56.78ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 37.1m(121.82ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 8.7m(28.39ft)
Environmental & Electrical (6)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 8.90W, typical 6.60W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (9)
- Lens / Angular Field of View – Diagonal
- 133°~38°
- Lens / Angular Field of View – Horizontal
- 101°~31°
- Lens / Angular Field of View – Vertical
- 73°~23°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.9
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.1x
- Lens – Focal Length (mm)
- 3.2~10
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris(IR corrected)
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum, Plastic
- Mechanical – Product Dimensions
- ø120.3x102.0mm(ø4.74x4.02")
- Mechanical – Product Weight
- 430g(0.95lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
- Network – Smart Codec
- WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (20)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 20m(65.62ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.015
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.15
- Video – Resolution
- 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
