2MP IR Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBD-140PMW pole mount pairs an aluminium core with a plastic cap and is finished white to RAL9003. It measures ø147.1x50.5mm and weighs 340g. Maximum load is 5kg and the conduit hole is 19.1mm (3/4 in, M25). Camera-side fixing uses TR20 screws, while the steel strap is tightened with TR30. Supported cameras are the QNV-C6083R, QNV-C8083R and QNV-C9083R. Pole mountAluminium core with polycarbonate capWhite, RAL9003ø147.1x50.5mm, 340gMax. load 5kg, 19.1mm (M25) conduit hole
In stock, ships immediately · delivery 1-2 days
Hanging adaptor made of polycarbonate and aluminium for suspended installation, finished white to RAL9003. It measures ø135x65mm and weighs 230g. The mount screw size is TR20 and the maximum load is 2kg. Supported cameras are the QNV-C8011R, QNV-C8012 and QNV-C9011R. Polycarbonate and aluminiumWhite RAL9003Dimensions ø135x65mm, 230gTR20 mount screw sizeMax. load 2kgFor QNV-C8011R, QNV-C8012, QNV-C9011R
Not in stock · delivery 3-4 days
Wall mount made of polycarbonate with a white RAL9003 finish. Dimensions are 122 x 95 x 157mm (WxHxD) at a weight of 175g. Supported camera models are the QND-6012R, QND-6022R, QND-6082R, QND-8010R and QND-8020R. PolycarbonateWhite RAL9003Dimensions 122x95x157mm (WxHxD)Weight 175gFor QND-6012R, QND-6022R, QND-6082R, QND-8010R, QND-8020R
Not in stock · delivery 3-4 days
The SBP-300HMW7 is the white version of the hanging adaptor for suspended camera installation. It is made of aluminium and finished in white to RAL 9003. The adaptor measures ø120 x 51.5 mm, weighs 145 g and uses a PF 1 1/2 inch mount thread. QND-6012R is listed in the data sheet as the supported camera. Aluminium constructionWhite finish, RAL 9003Dimensions ø120 x 51.5 mmWeight 145 gMount thread PF 1 1/2 inchSupported model QND-6012R
Not in stock · delivery 3-4 days
The SBP-300NBW installation box accommodates connection hardware and cabling for camera installations and comes in a white version. The stated materials are aluminium, steel and silicon, with a white finish to RAL 9003. The box measures ø185 x 221 x 94.3 mm and weighs 3.4 kg. A 19.1 mm (3/4 inch, M25) conduit hole is provided for cable entry. It can be combined with the SBP-300WMW and SBP-300WMW1 wall mounts. Aluminium, steel and siliconWhite finish, RAL 9003Dimensions ø185 x 221 x 94.3 mmWeight 3.4 kgConduit hole 19.1 mm (M25)Works with SBP-300WMW, SBP-300WMW1
Not in stock · delivery 3-4 days
The SBP-300WMW1 is a white wall mount designed for operating PTZ cameras on a wall construction. Aluminium is used as the material and the finish follows RAL 9003. The bracket measures 112 x 183 x 207.5 mm, weighs 625 g and carries up to 10 kg. Its mount thread size is PF 1 1/2 inch, and supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgMount thread PF 1 1/2 inch
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QND-6082R1
- EAN / GTIN
- 8801089208941
- Weight
- 0.54 kg
- Dimensions (W×H×D)
- 178 × 178 × 165 mm
Description

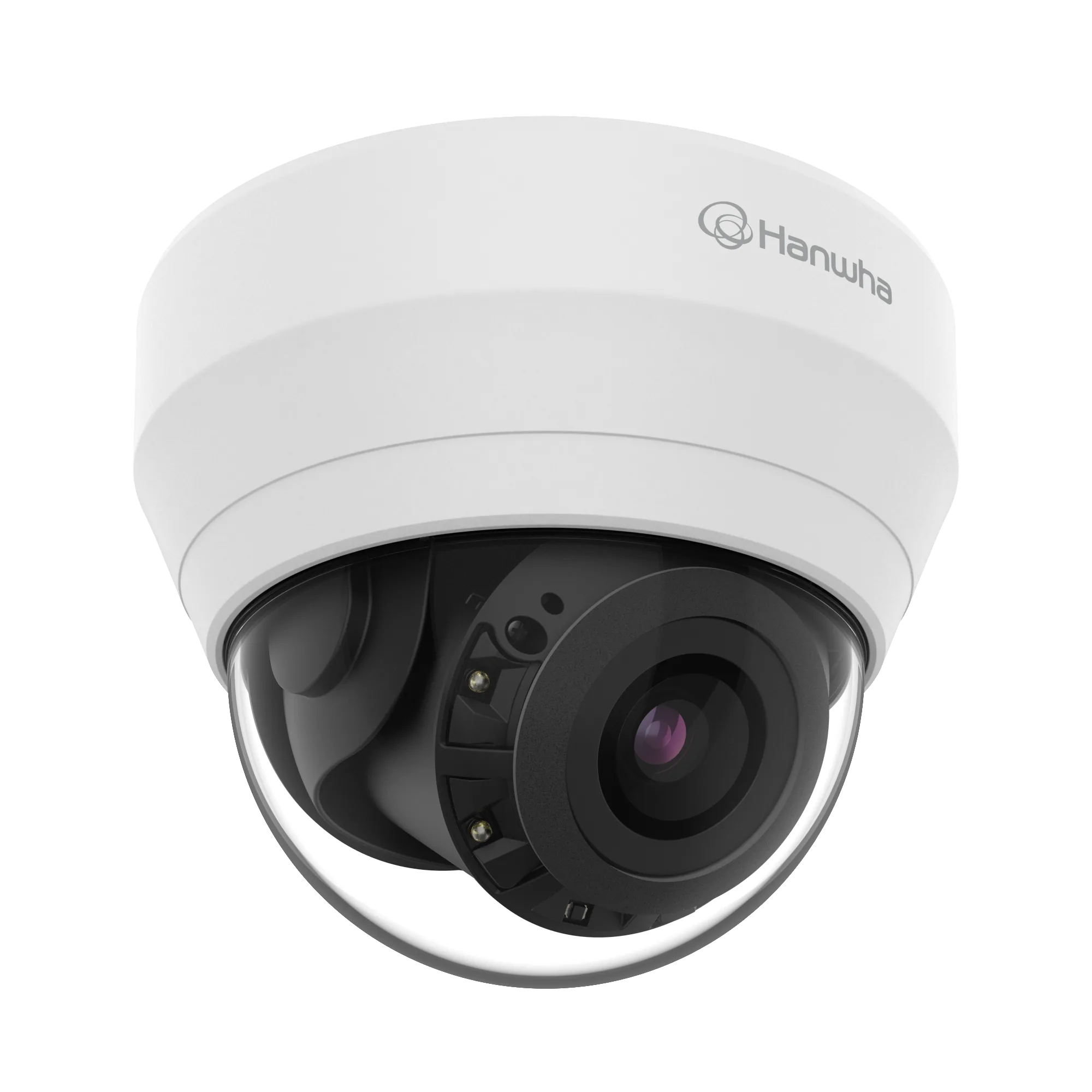

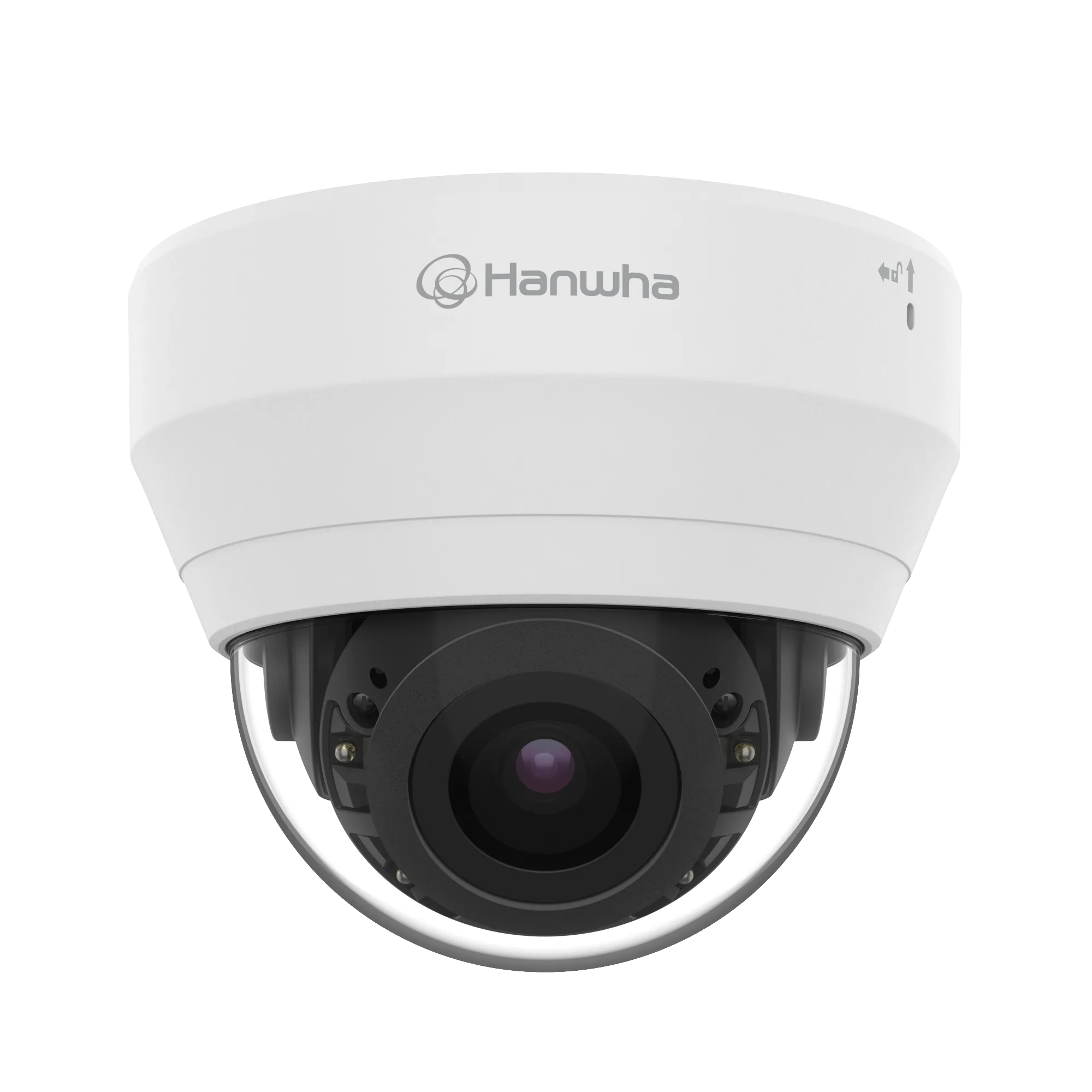

The QND-6082R1 is an IR dome camera on a 1/2.8-inch CMOS sensor with a maximum resolution of 2 megapixels (1920x1080). Its varifocal lens spans 3.2~10mm with 3.1x zoom at F1.6 wide and F2.9 tele, covering 109°~33° horizontally, and focusing is handled by simple focus with a DC auto iris. All resolutions encode in H.265 and H.264 at up to 30fps/25fps (60Hz/50Hz), while MJPEG runs at 15fps and a maximum of 4fps at 2MP, with multiple streaming supported. Colour images start at 0.03 lux and black and white at 0.003 lux, reaching 0 lux once the IR LED is on. Motion, tampering and defocus detection are provided, hallway view (90°/270°) and LDC are supported, and a Micro SD/SDHC/SDXC slot accepts cards up to 128GB.
- 3.2~10mm varifocal lens with 3.1x zoom
- 2MP (1920x1080) on a 1/2.8-inch CMOS sensor
- Simple focus with DC auto iris
- 0.03 lux in colour, 0 lux with IR LED on
- Hallway view (90°/270°) and LDC support
- Micro SD/SDHC/SDXC slot up to 128GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 128.8m(422.56ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 27.4m(89.85ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 12.9m(42.26ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 2.7m(8.99ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 51.5m(169.02ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 11.0m(35.94ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 25.8m(84.51ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 5.5m(17.97ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 6.50W, typical 5.10W
- Environmental & Electrical / Power Consumption – PoE
- Max. 7.70W, typical 6.00W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 132°~38°
- Lens / Angular Field of View – Horizontal
- 109°~33°
- Lens / Angular Field of View – Vertical
- 58°~18°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.9
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.1x
- Lens – Focal Length (mm)
- 3.2~10
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- ø119.8x98.8mm(ø4.72x3.89")
- Mechanical – Product Weight
- 320g(0.71lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
- Network – Smart Codec
- WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (20)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 20m(65.62ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@2MP Max. 4fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.003
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.03
- Video – Resolution
- 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
