4MP IR Vandal Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
The SBP-300NBW installation box accommodates connection hardware and cabling for camera installations and comes in a white version. The stated materials are aluminium, steel and silicon, with a white finish to RAL 9003. The box measures ø185 x 221 x 94.3 mm and weighs 3.4 kg. A 19.1 mm (3/4 inch, M25) conduit hole is provided for cable entry. It can be combined with the SBP-300WMW and SBP-300WMW1 wall mounts. Aluminium, steel and siliconWhite finish, RAL 9003Dimensions ø185 x 221 x 94.3 mmWeight 3.4 kgConduit hole 19.1 mm (M25)Works with SBP-300WMW, SBP-300WMW1
Not in stock · delivery 3-4 days
The SBP-300WMW1 is a white wall mount designed for operating PTZ cameras on a wall construction. Aluminium is used as the material and the finish follows RAL 9003. The bracket measures 112 x 183 x 207.5 mm, weighs 625 g and carries up to 10 kg. Its mount thread size is PF 1 1/2 inch, and supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgMount thread PF 1 1/2 inch
In stock, ships immediately · delivery 1-2 days
The SBP-301HMW2 is a white hanging adaptor for suspended installation of network cameras. It is made of aluminium and finished in white to RAL 9003. Dimensions are ø144 x 51 mm and the weight is 197 g. The mount thread size is given as PF 1 1/2 inch. According to the data sheet the supported camera is QNV-6082R. Aluminium constructionWhite finish, RAL 9003Dimensions ø144 x 51 mmWeight 197 gMount thread PF 1 1/2 inchSupported model QNV-6082R
Not in stock · delivery 3-4 days

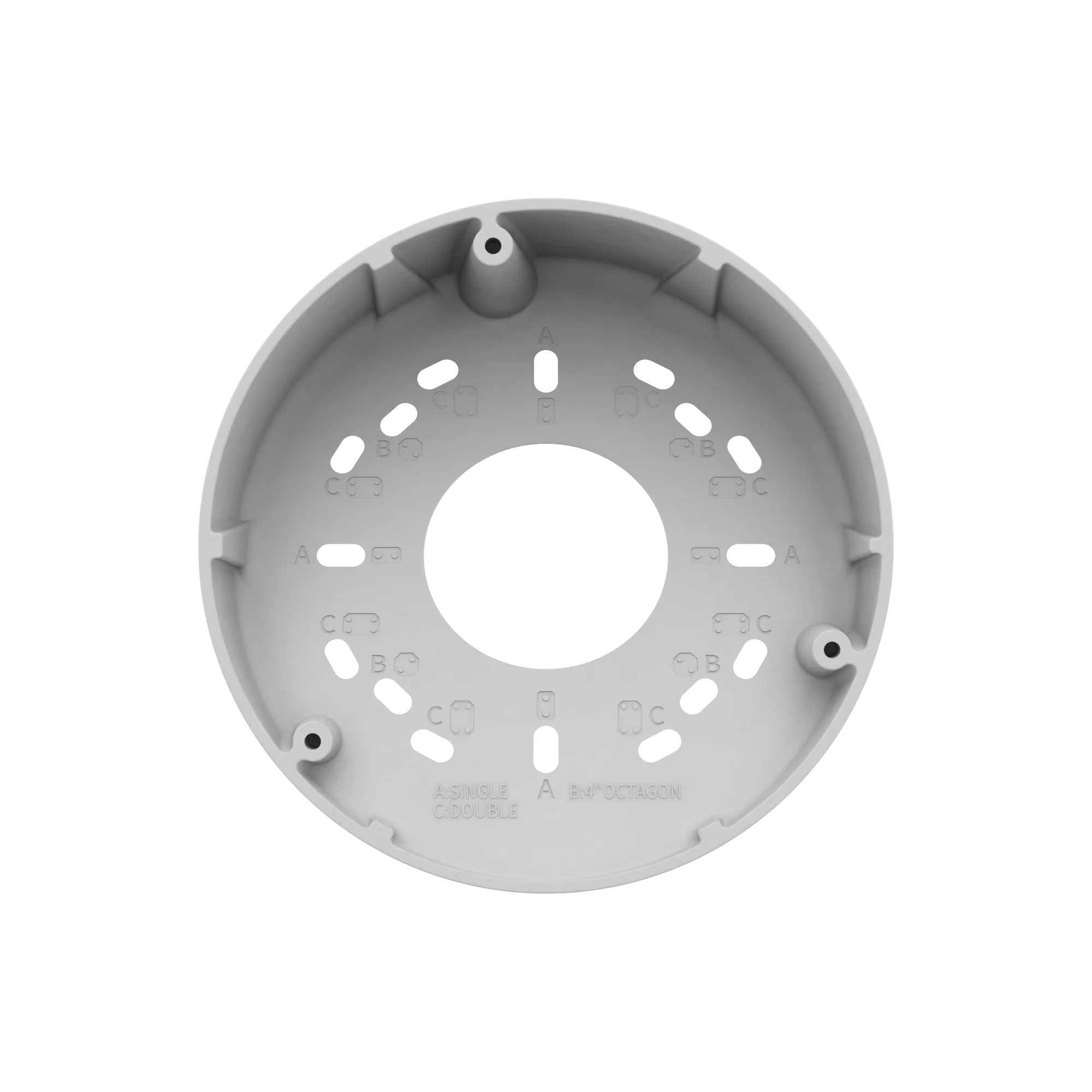

The SBV-138TMW is a tilt mount made of aluminium. Its white finish corresponds to RAL9003. The bracket measures ø137.9x56.8mm (ø5.43x2.24") and weighs 220g. Mounting uses screws of size TR20. According to the specification the QNV-6082R and QNV-8080R are supported; further compatible cameras are listed on the manufacturer's website or in the Toolbox. Aluminium tilt mountWhite, RAL9003Dimensions ø137.9x56.8mmWeight 220gMount screw size TR20Supports QNV-6082R, QNV-8080R
Not in stock · delivery 3-4 days
The SPP-C45W is an RJ45 cable that converts the cable type from plug-in to pigtail. Its sheath is plastic and the coil is copper, with the assembly finished in black. The cable measures 335mm(13.19") and weighs 22g(0.05lb). Supported products are listed as QNV-6012R and QNV-C6083R. RJ45 cable, plug-in to pigtail conversionBlack finishPlastic sheath, copper coilLength 335mm(13.19"), weight 22g(0.05lb)Supported products QNV-6012R, QNV-C6083R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNV-7082R
- EAN / GTIN
- 8801089202710
- Weight
- 1.11 kg
- Dimensions (W×H×D)
- 250 × 205 × 177 mm
Description

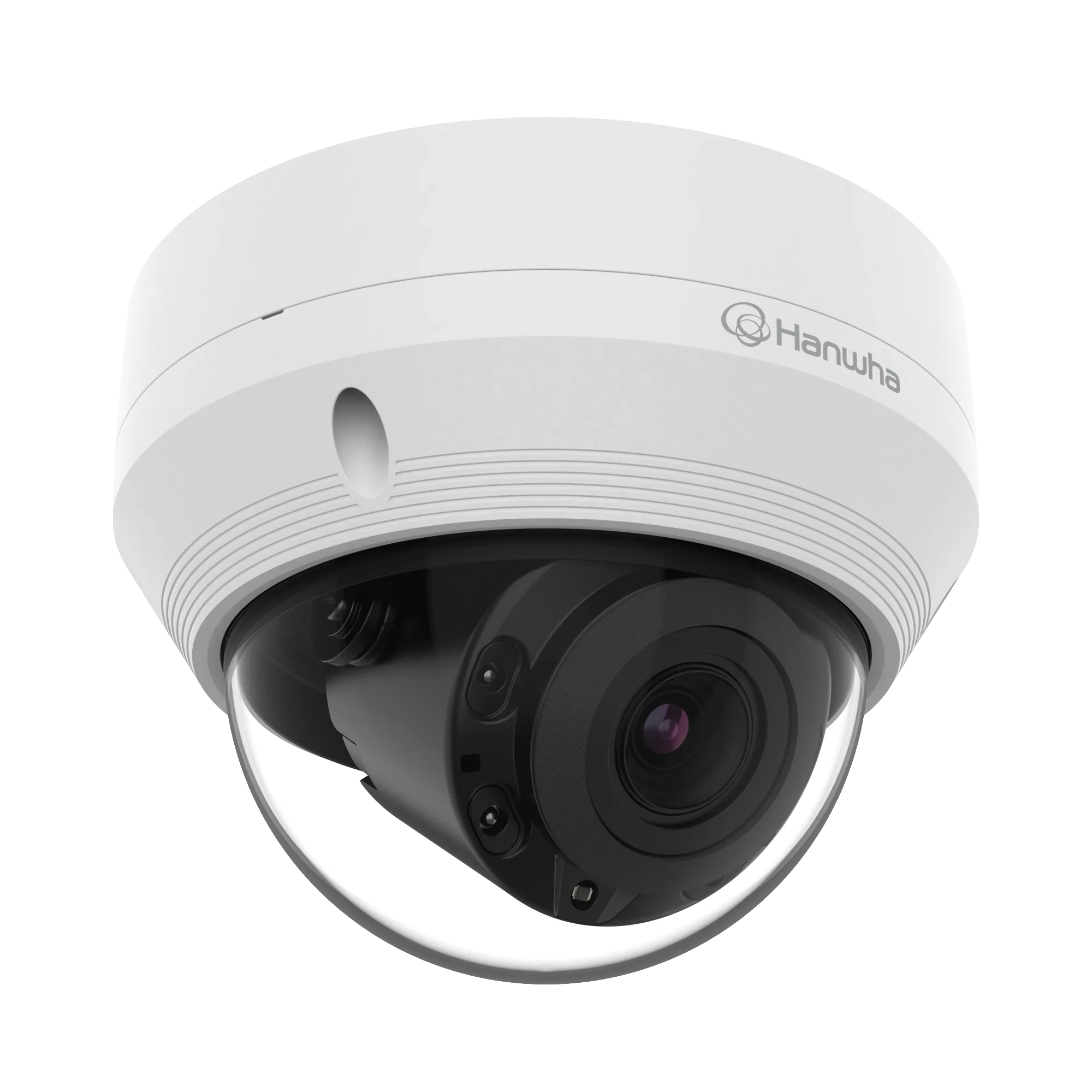

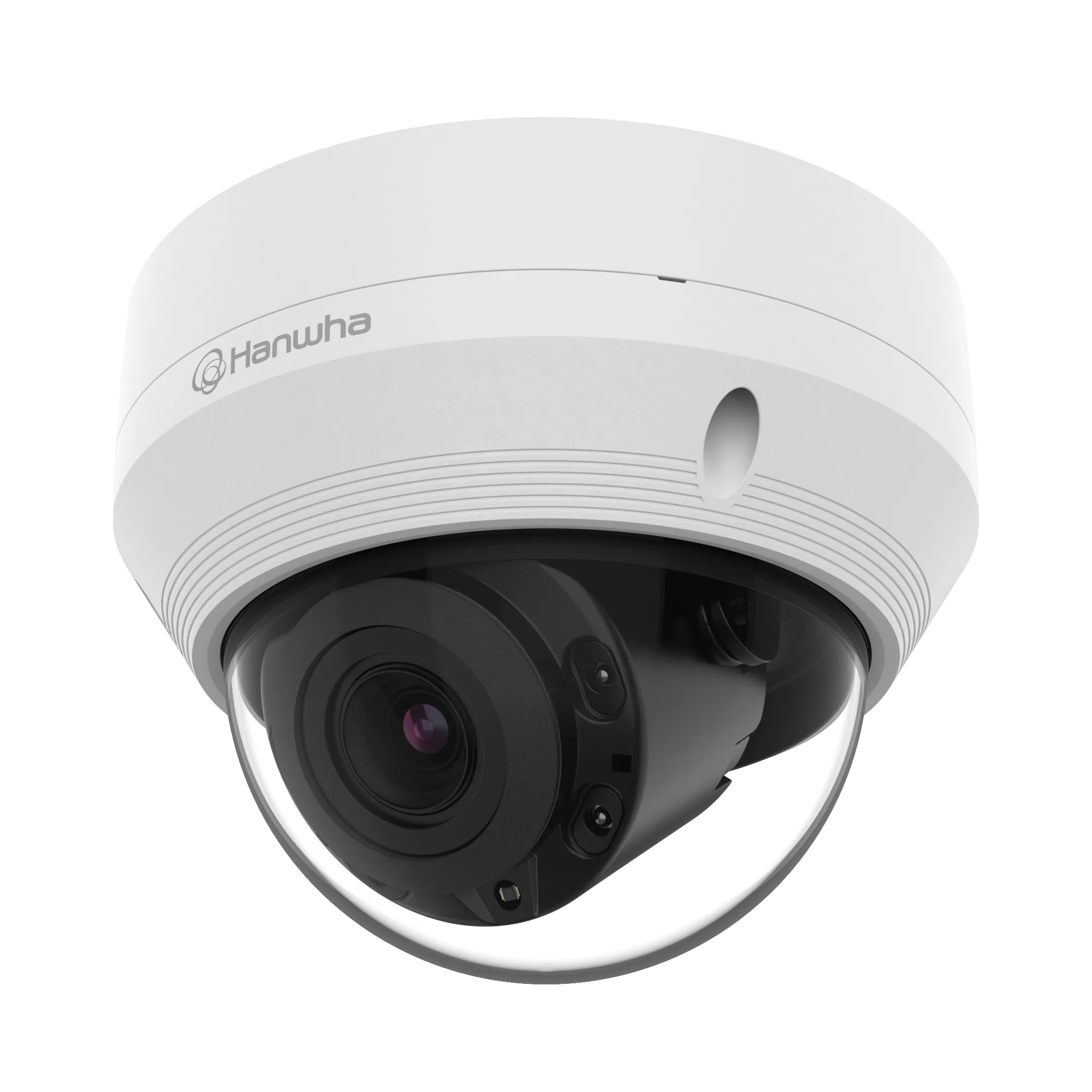

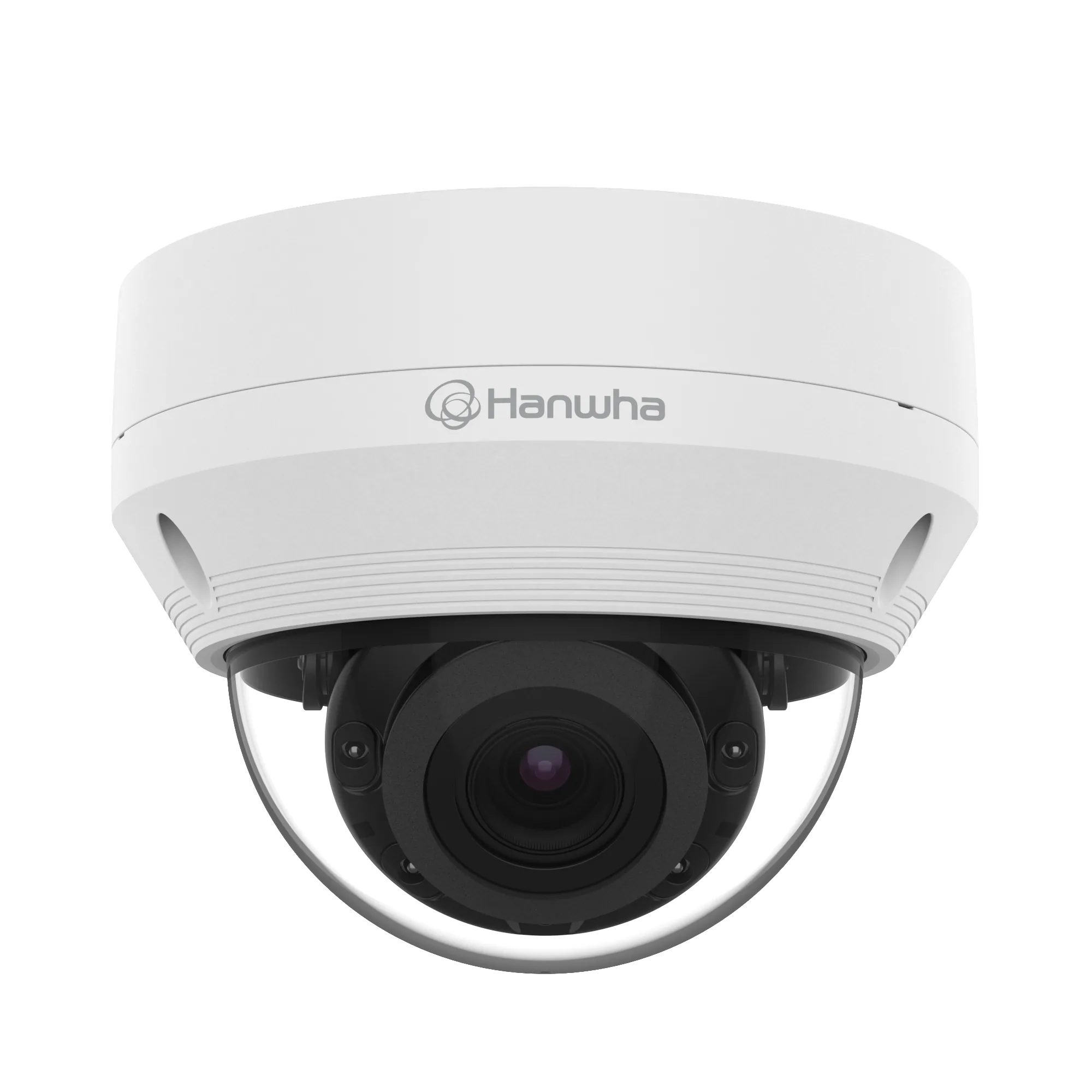

The QNV-7082R is a vandal-resistant network infrared dome camera with a 1/3" CMOS sensor delivering up to 2560x1440 and 30fps/25fps (60Hz/50Hz) in H.265/H.264, while MJPEG manages 15fps with a maximum of 2fps at 4MP and several streams can be output in parallel. Its motorised varifocal lens spans 3.2 to 10 mm (3.1x) at F1.6 wide and F2.9 tele, uses a DC auto iris with simple focus and covers 99 to 30 degrees horizontally, 53 to 17 degrees vertically and 116 to 35 degrees diagonally. Infrared reach is stated as 30 m (98.42ft) and minimum illumination as 0.1 lux in colour and 0.01 lux in black and white at 1/30 sec and 30 IRE. Difficult lighting is handled by ICR day/night switching, BLC, SSDR and 120 dB WDR. Motion, tampering and defocus detection, hallway view at 90 and 270 degrees and LDC are also on board, with 0 to 350 degrees of pan, 0 to 67 degrees of tilt and 0 to 355 degrees of rotation for alignment.
- 1/3" CMOS, max. 2560x1440 (4MP)
- 3.2 to 10 mm motorised varifocal (3.1x)
- 30 m (98.42ft) IR viewable length
- 0.1 lux colour / 0.01 lux BW
- 120 dB WDR, ICR day/night switching
- Hallway view 90/270 degrees, LDC
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 129m(422.61ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 27m(89.86ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 13m(42.26ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 3m(8.99ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 52m(169.04ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 11m(35.95ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 26m(84.52ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 6m(17.97ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 9.6W, typical 7.2W
- Environmental & Electrical / Power Consumption – PoE
- Max. 11.4W, typical 8.5W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -40°C~+60°C(-40°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (9)
- Lens / Angular Field of View – Diagonal
- 116°~35°
- Lens / Angular Field of View – Horizontal
- 99°~30°
- Lens / Angular Field of View – Vertical
- 53°~17°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.9
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.1x
- Lens – Focal Length (mm)
- 3.2~10
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 19.1mm(3/4")(M25)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø137.0x106.1mm(ø5.39x4.18")
- Mechanical – Product Weight
- 710g(1.57lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PPPoE, PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (21)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 30m(98.42ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/3"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@4MP Max. 2fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.01
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.1
- Video – Resolution
- 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
