4MP IR Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
The SBD-140PMW pole mount pairs an aluminium core with a plastic cap and is finished white to RAL9003. It measures ø147.1x50.5mm and weighs 340g. Maximum load is 5kg and the conduit hole is 19.1mm (3/4 in, M25). Camera-side fixing uses TR20 screws, while the steel strap is tightened with TR30. Supported cameras are the QNV-C6083R, QNV-C8083R and QNV-C9083R. Pole mountAluminium core with polycarbonate capWhite, RAL9003ø147.1x50.5mm, 340gMax. load 5kg, 19.1mm (M25) conduit hole
In stock, ships immediately · delivery 1-2 days
Hanging adaptor made of polycarbonate and aluminium for suspended installation, finished white to RAL9003. It measures ø135x65mm and weighs 230g. The mount screw size is TR20 and the maximum load is 2kg. Supported cameras are the QNV-C8011R, QNV-C8012 and QNV-C9011R. Polycarbonate and aluminiumWhite RAL9003Dimensions ø135x65mm, 230gTR20 mount screw sizeMax. load 2kgFor QNV-C8011R, QNV-C8012, QNV-C9011R
Not in stock · delivery 3-4 days
Wall mount made of polycarbonate with a white RAL9003 finish. Dimensions are 122 x 95 x 157mm (WxHxD) at a weight of 175g. Supported camera models are the QND-6012R, QND-6022R, QND-6082R, QND-8010R and QND-8020R. PolycarbonateWhite RAL9003Dimensions 122x95x157mm (WxHxD)Weight 175gFor QND-6012R, QND-6022R, QND-6082R, QND-8010R, QND-8020R
Not in stock · delivery 3-4 days
Aluminium hanging adaptor finished in white to RAL9003. Dimensions are ø128.2x47mm at a weight of 159g. The mount thread size is PF 1 1/2. Listed supported products are the QND-6082R and QNV-6012R cameras. AluminiumWhite RAL9003Dimensions ø128.2x47mm, 159gPF 1 1/2 mount threadFor QND-6082R and QNV-6012R
Not in stock · delivery 3-4 days
Wall and pole mount with an aluminium body and a polycarbonate cover, finished white to RAL9003. It measures 174.4x128.5x118.3mm and weighs 505g. The mount screw size is TR20 and the maximum load is 5kg. Cabling is routed through a 19.1mm conduit hole (M25). Supported cameras are the QNV-C8011R, QNV-C8012 and QNV-C9011R. Aluminium body, polycarbonate coverWhite RAL9003Dimensions 174.4x128.5x118.3mm, 505gTR20 mount screw sizeMax. load 5kgConduit hole 19.1mm (M25)
Not in stock · delivery 3-4 days
The SBP-300NBW installation box accommodates connection hardware and cabling for camera installations and comes in a white version. The stated materials are aluminium, steel and silicon, with a white finish to RAL 9003. The box measures ø185 x 221 x 94.3 mm and weighs 3.4 kg. A 19.1 mm (3/4 inch, M25) conduit hole is provided for cable entry. It can be combined with the SBP-300WMW and SBP-300WMW1 wall mounts. Aluminium, steel and siliconWhite finish, RAL 9003Dimensions ø185 x 221 x 94.3 mmWeight 3.4 kgConduit hole 19.1 mm (M25)Works with SBP-300WMW, SBP-300WMW1
Not in stock · delivery 3-4 days
The SBP-300WMW1 is a white wall mount designed for operating PTZ cameras on a wall construction. Aluminium is used as the material and the finish follows RAL 9003. The bracket measures 112 x 183 x 207.5 mm, weighs 625 g and carries up to 10 kg. Its mount thread size is PF 1 1/2 inch, and supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgMount thread PF 1 1/2 inch
In stock, ships immediately · delivery 1-2 days
The SBV-140TMW is an aluminium tilt mount finished in white to RAL9003. It measures ø143.8x81.1mm (ø5.66x3.19") and weighs 450g (0.99lb). Cable entry is provided by a 19.1mm (3/4", M25) conduit hole, and mounting uses TR20 screws. The specification lists the QNV-C8083R and QNV-C8011R as supported cameras; further compatible models appear on the manufacturer's website or in the Toolbox. Aluminium tilt mountWhite, RAL9003Dimensions ø143.8x81.1mmWeight 450g (0.99lb)Mount screw size TR20Supports QNV-C8083R, QNV-C8011R
Not in stock · delivery 3-4 days
SHD-1198FW is a polycarbonate in-ceiling mount for flush installation. The finish is white to RAL 9003. Dimensions are ø170x100.6 mm (6.72x3.96") and the weight is 320 g (0.71 lb). With this mount the camera body sits largely inside the ceiling so that only the rim remains visible. The supported products stated are QND-6082R and LND-6072R. Flush in-ceiling mountPolycarbonateWhite, RAL 9003ø170x100.6 mm320 gFor QND-6082R and LND-6072R
In stock, ships immediately · delivery 1-2 days

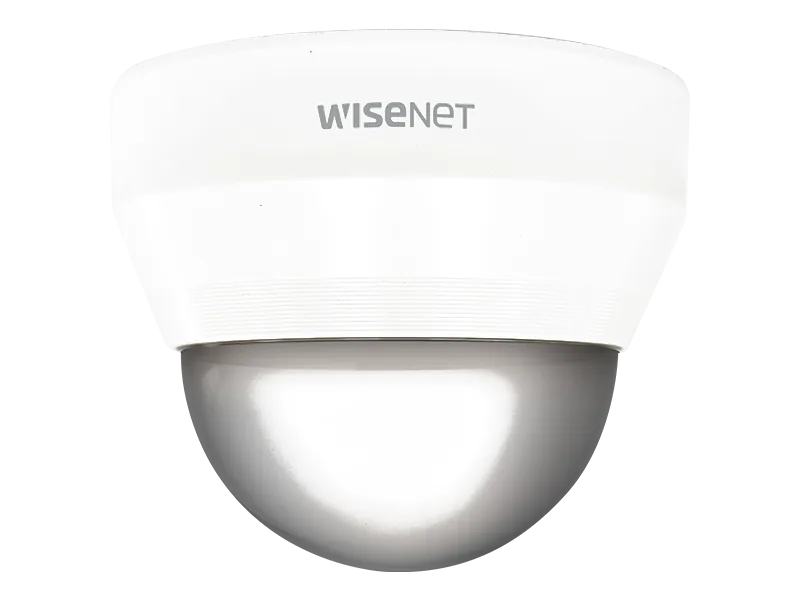

The SPB-INW72 is a white polycarbonate dome cover with RAL code RAL9003. Product dimensions are ø119.8 x 97.9mm (Ø4.72” x 3.85”) and the weight is 69g. QND-7082R is given as the supported product, while further compatible models are published on the manufacturer's website or in the Toolbox. The cover is used as a replacement for or addition to the camera dome. White dome coverRAL9003Polycarbonate materialø119.8 x 97.9mmWeight 69gSupports QND-7082R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QND-7082R
- EAN / GTIN
- 8801089202284
- Weight
- 0.6 kg
- Dimensions (W×H×D)
- 175 × 175 × 166 mm
Description
The QND-7082R is an IR dome camera on a 1/3-inch CMOS sensor, offering up to 4MP (2560x1440) at up to 30fps. Its motorised varifocal lens spans 3.2~10mm with 3.1x zoom at F1.6 wide and F2.9 tele, covering 99°~30° horizontally, focused by simple focus with a DC auto iris at a minimum object distance of 0.5m. IR illumination reaches a viewable length of 20m (65.62ft), and the camera records in colour from 0.1 lux (F1.6, 1/30sec), in black and white from 0.01 lux, and at 0 lux with the IR LED on. ICR day and night switching and 120dB WDR are included, with H.265, H.264 and MJPEG encoding plus multiple streaming. Motion, tampering and defocus detection are provided, and hallway view (90°/270°) and LDC are supported.
- 4MP (2560x1440) at up to 30fps
- Motorised 3.2~10mm varifocal lens with 3.1x zoom
- IR viewable length 20m (65.62ft)
- 0.1 lux in colour, 0 lux with IR LED on
- 120dB WDR with ICR day and night switching
- Hallway view (90°/270°) and LDC support
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000
- Certifications & Standards – Safety
- UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 129m(422.61ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 27m(89.86ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 13m(42.26ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 3m(8.99ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 52m(169.04ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 11m(35.95ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 26m(84.52ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 6m(17.97ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 7.6W, typical 5.4W
- Environmental & Electrical / Power Consumption – PoE
- Max. 8.6W, typical 6.3W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 116°~35°
- Lens / Angular Field of View – Horizontal
- 99°~30°
- Lens / Angular Field of View – Vertical
- 53°~17°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.9
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.1x
- Lens – Focal Length (mm)
- 3.2~10
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- ø119.8x98.8mm(4.72x3.89")
- Mechanical – Product Weight
- 320g(0.71lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PPPoE, PIM-SM
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (21)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 20m(65.62ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Built-in mic
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/3"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@4MP Max. 2fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.01
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.1
- Video – Resolution
- 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
