2MP IR Vandal Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
The SBP-300LMW is the white parapet mount for installing cameras on a parapet or roof edge. It is made of aluminium and finished in white to RAL 9003. The mount measures 824.7 x 841 x 82 mm, weighs 730 g and accepts loads up to 20 kg. Operating conditions are stated as -50 °C to 60 °C and 0 to 100 % humidity. Supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 824.7 x 841 x 82 mmWeight 730 gOperating temperature -50 °C to 60 °CMaximum load 20 kg
Not in stock · delivery 3-4 days
The SBP-300NBW installation box accommodates connection hardware and cabling for camera installations and comes in a white version. The stated materials are aluminium, steel and silicon, with a white finish to RAL 9003. The box measures ø185 x 221 x 94.3 mm and weighs 3.4 kg. A 19.1 mm (3/4 inch, M25) conduit hole is provided for cable entry. It can be combined with the SBP-300WMW and SBP-300WMW1 wall mounts. Aluminium, steel and siliconWhite finish, RAL 9003Dimensions ø185 x 221 x 94.3 mmWeight 3.4 kgConduit hole 19.1 mm (M25)Works with SBP-300WMW, SBP-300WMW1
Not in stock · delivery 3-4 days
The SBP-300WMW1 is a white wall mount designed for operating PTZ cameras on a wall construction. Aluminium is used as the material and the finish follows RAL 9003. The bracket measures 112 x 183 x 207.5 mm, weighs 625 g and carries up to 10 kg. Its mount thread size is PF 1 1/2 inch, and supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgMount thread PF 1 1/2 inch
In stock, ships immediately · delivery 1-2 days
The SBP-301HMW2 is a white hanging adaptor for suspended installation of network cameras. It is made of aluminium and finished in white to RAL 9003. Dimensions are ø144 x 51 mm and the weight is 197 g. The mount thread size is given as PF 1 1/2 inch. According to the data sheet the supported camera is QNV-6082R. Aluminium constructionWhite finish, RAL 9003Dimensions ø144 x 51 mmWeight 197 gMount thread PF 1 1/2 inchSupported model QNV-6082R
Not in stock · delivery 3-4 days

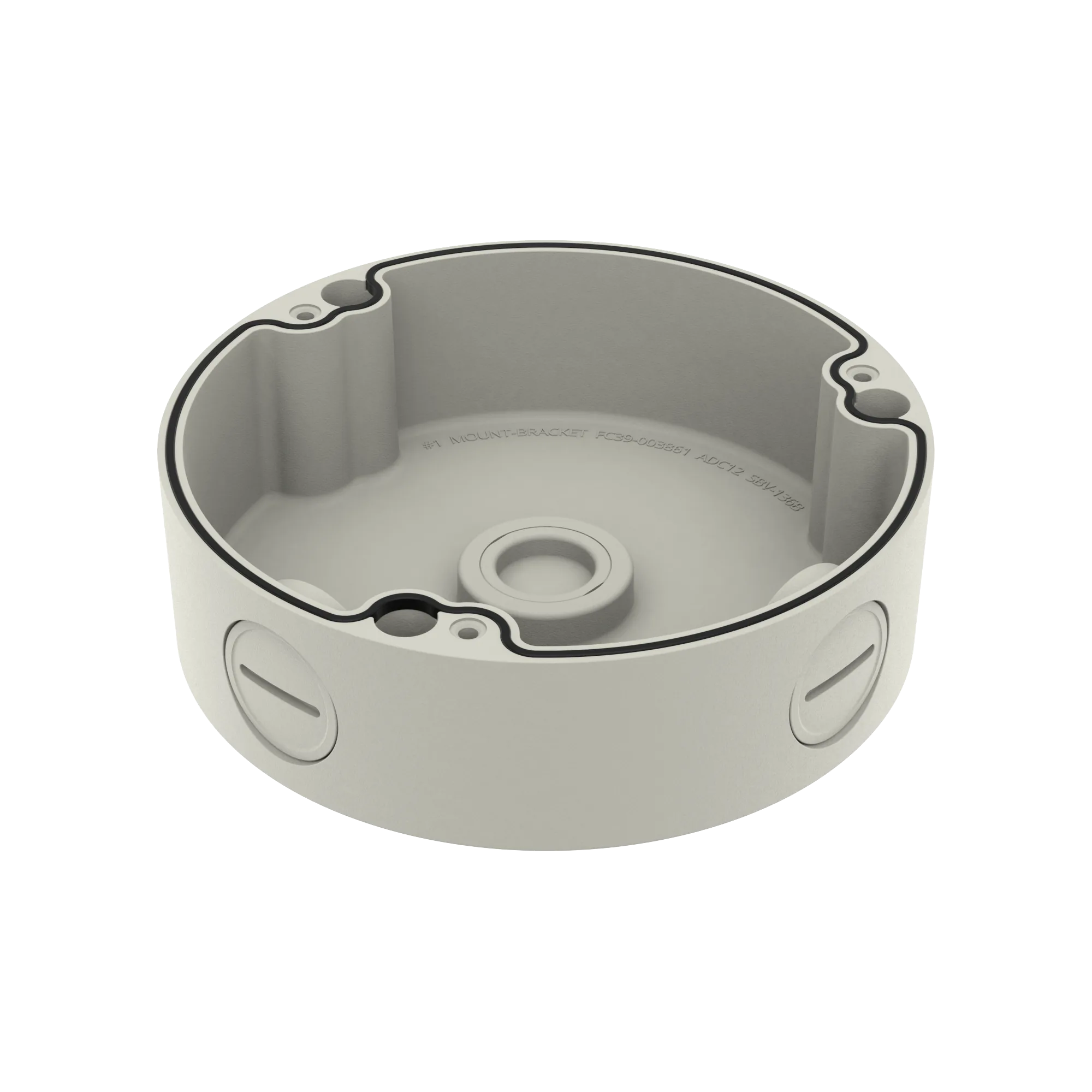

The SBV-136B is a back box with an aluminium body. Its surface is finished in ivory. The specification gives dimensions of ø136x40mm and a weight of 345g. The XNP-6040H is named as a supported product; additional compatible models are published on the manufacturer's website or in the Toolbox. Aluminium back boxIvory finishDimensions ø136x40mmWeight 345gSupports XNP-6040H
Not in stock · delivery 3-4 days
The SBV-138TMW is a tilt mount made of aluminium. Its white finish corresponds to RAL9003. The bracket measures ø137.9x56.8mm (ø5.43x2.24") and weighs 220g. Mounting uses screws of size TR20. According to the specification the QNV-6082R and QNV-8080R are supported; further compatible cameras are listed on the manufacturer's website or in the Toolbox. Aluminium tilt mountWhite, RAL9003Dimensions ø137.9x56.8mmWeight 220gMount screw size TR20Supports QNV-6082R, QNV-8080R
Not in stock · delivery 3-4 days

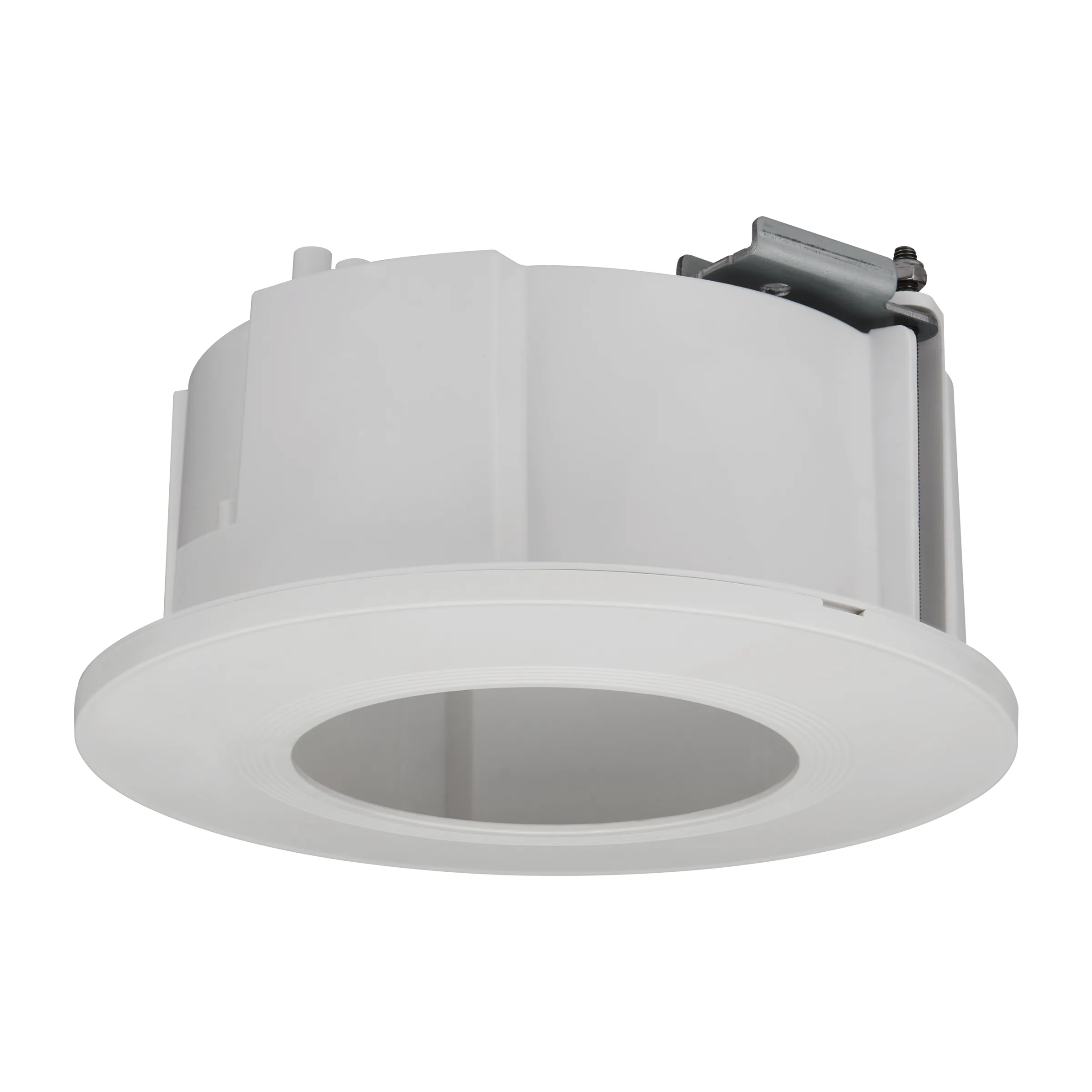

SHD-1408FW is a flush in-ceiling mount made of polycarbonate and finished white to RAL 9003. Its dimensions are ø190x100.6 mm (ø7.48x3.96") and it weighs 394 g (0.87 lb). The camera sits inside the ceiling cut-out so that only the rim stays visible. QNV-6082R and XND-6080R are listed as supported products. Flush in-ceiling mountPolycarbonateWhite, RAL 9003ø190x100.6 mm394 gFor QNV-6082R and XND-6080R
Not in stock · delivery 3-4 days
The SPB-VAW72 is a dome cover for outdoor cameras. Its base top is made of aluminium and the cover glass of polycarbonate. The white finish corresponds to RAL9003. The cover measures Ø137 x 88.4mm (Ø5.39" x 3.48") and weighs 229 g. The manufacturer names QNV-6082R as the supported product and points to its compatibility overview for further compatible models. Dome cover for outdoor camerasAluminium base top, polycarbonate cover glassWhite, RAL9003Dimensions Ø137 x 88.4mmWeight 229 gSupported product QNV-6082R
Not in stock · delivery 3-4 days
The SPP-C45W is an RJ45 cable that converts the cable type from plug-in to pigtail. Its sheath is plastic and the coil is copper, with the assembly finished in black. The cable measures 335mm(13.19") and weighs 22g(0.05lb). Supported products are listed as QNV-6012R and QNV-C6083R. RJ45 cable, plug-in to pigtail conversionBlack finishPlastic sheath, copper coilLength 335mm(13.19"), weight 22g(0.05lb)Supported products QNV-6012R, QNV-C6083R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- QNV-6082R
- EAN / GTIN
- 8801089165374
- Weight
- 1.11 kg
- Dimensions (W×H×D)
- 206 × 250 × 175 mm
Description
The QNV-6082R is a network dome camera with infrared illumination that delivers a maximum of 1920x1080 from a 1/2.8" CMOS sensor. Its varifocal lens runs from 3.2 to 10 mm (3.1x) at F1.6 wide and F2.9 tele, uses a DC auto iris with simple focus and covers 109 to 33 degrees horizontally, 58 to 18 degrees vertically and 132 to 38 degrees diagonally from 0.5 m. Streaming is available in H.265, H.264 and MJPEG at 30fps/25fps (60Hz/50Hz) and 15fps respectively, with a maximum of 4fps at 2MP and several streams at once. At 1/30 sec and 30 IRE the camera reaches 0.03 lux in colour and 0.003 lux in black and white, with day/night switching handled automatically by ICR. Motion, tampering and defocus detection, hallway view at 90 and 270 degrees, LDC and a Micro SD/SDHC/SDXC slot for up to 128 GB round out the specification, while alignment allows 0 to 350 degrees of pan, 0 to 67 degrees of tilt and 0 to 355 degrees of rotation.
- 3.2 to 10 mm varifocal lens (3.1x)
- 1/2.8" CMOS, max. 1920x1080
- 0.03 lux colour / 0.003 lux BW
- Simple focus with DC auto iris
- Hallway view 90/270 degrees, LDC
- Micro SD/SDHC/SDXC up to 128 GB
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing, Direction)
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 60950-1, CAN/CSA C22.2 NO. 60950-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 128.8m(422.56ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 27.4m(89.85ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 12.9m(42.26ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 2.7m(8.99ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 51.5m(169.02ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 11.0m(35.94ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 25.8m(84.51ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 5.5m(17.97ft)
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -20°C
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 6.50W, typical 5.10W
- Environmental & Electrical / Power Consumption – PoE
- Max. 7.70W, typical 6.00W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 128GB x 1slot
- General / Memory – Flash
- 256MB
- General / Memory – RAM
- 512MB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 132°~38°
- Lens / Angular Field of View – Horizontal
- 109°~33°
- Lens / Angular Field of View – Vertical
- 58°~18°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.9
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.1x
- Lens – Focal Length (mm)
- 3.2~10
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- ø137.0x106.1mm(ø5.39x4.18")
- Mechanical – Product Weight
- 710g(1.57lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
- Network – Smart Codec
- WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (21)
- Operational / Alarm Interface – In/Out
- Input 1ea, Output 1ea
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- 30m(98.42ft)
- Operational / Motion Detection – Quantity
- 4ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~67°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 15fps(@2MP Max. 4fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.003
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.03
- Video – Resolution
- 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation
