2MP 40x Outdoor PTZ
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
Three shaft adaptor for wall and pole mounts, made from polycarbonate and aluminium. The finish is white to RAL9003. It measures ø125x27.7mm and weighs 242g. Fixing uses TR30 mount screws. Supported brackets are the SBP-250WMW and SBP-400WMW. Polycarbonate and aluminiumWhite RAL9003Dimensions ø125x27.7mm, 242gTR30 mount screw sizeFor SBP-250WMW and SBP-400WMW
In stock, ships immediately · delivery 1-2 days

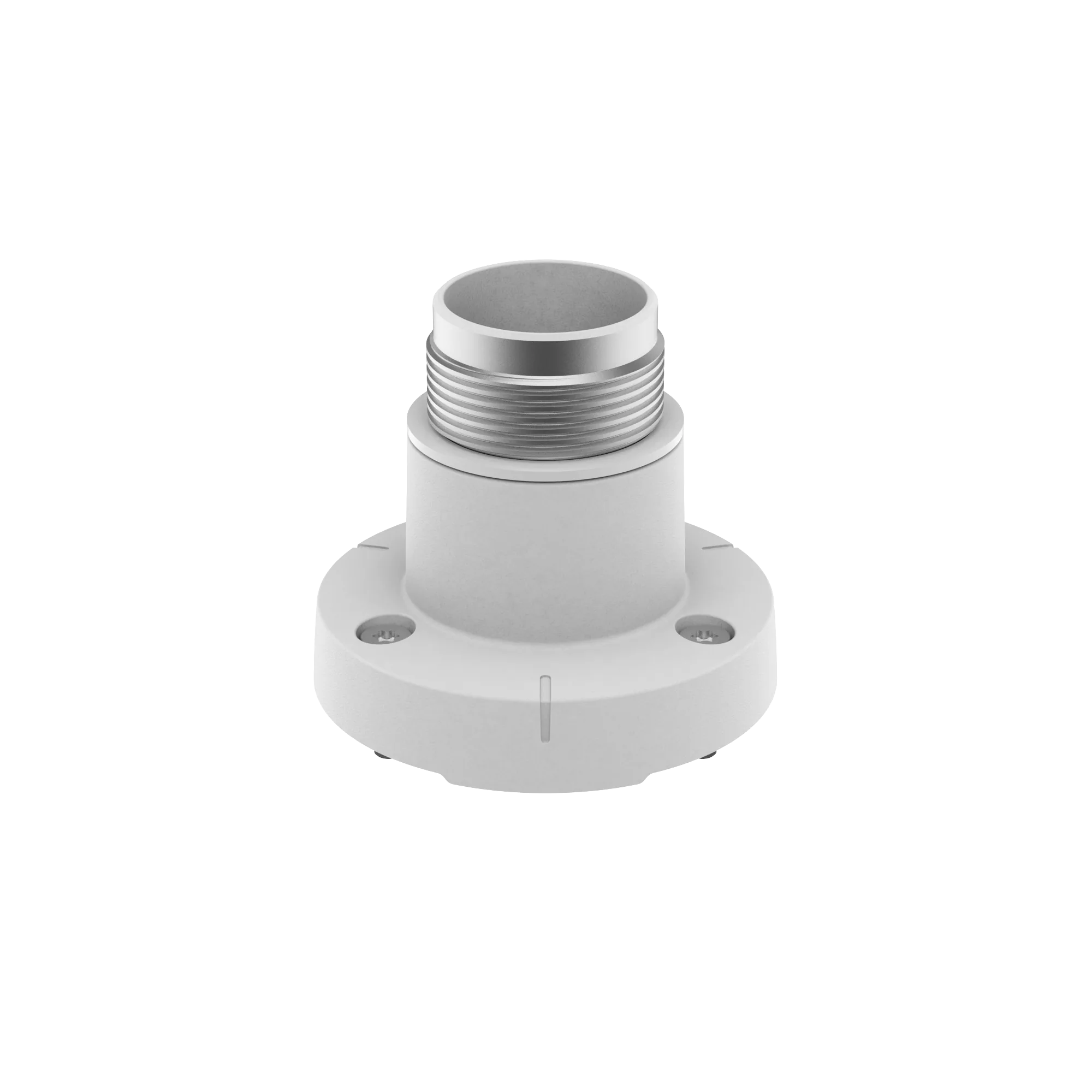

The SBP-156HMW hanging adaptor connects a camera to a ceiling suspension. It is manufactured from aluminium and finished in white to RAL9003. Its dimensions are ø95.5x84mm and it weighs 200g. Screw fixing is in size TR30 and the permitted load is 5kg. Supported models are the XNP-C9310R, XNP-C9303RW, XNP-C9253R and XNP-C9253. Hanging adaptorAluminium, RAL9003 whiteø95.5x84mm / 200gMax. load 5kgTR30 mounting screw
Not in stock · delivery 3-4 days
The SBP-156HMWR is a hanging adaptor made of aluminium. It comes in a white finish and measures ø325x169mm (ø12.79x6.30"). Its own weight is 4.5kg (9.92lb). The adaptor is installed using TR20 screws. The maximum permissible load is 8.0kg. Hanging adaptorAluminium, whiteø325x169mmOwn weight 4.5kgMax. load 8.0kgTR20 mounting screw
Not in stock · delivery 3-4 days
The SBP-156KMW is intended for installation in a building corner. The mount is made of aluminium and finished in white to RAL9003. It measures 276.8(W)x183(H)x158.5(D)mm (10.90x7.20x6.24") and weighs 763g (1.68lb). A load of up to 20kg may be carried. It can be combined with the SBP-156WMW, SBP-250WMW and SBP-400WMW mounts. Corner mountingAluminium, RAL9003 white276.8x183x158.5mm / 763gMax. load 20kgCombines with SBP-156WMW
In stock, ships immediately · delivery 1-2 days

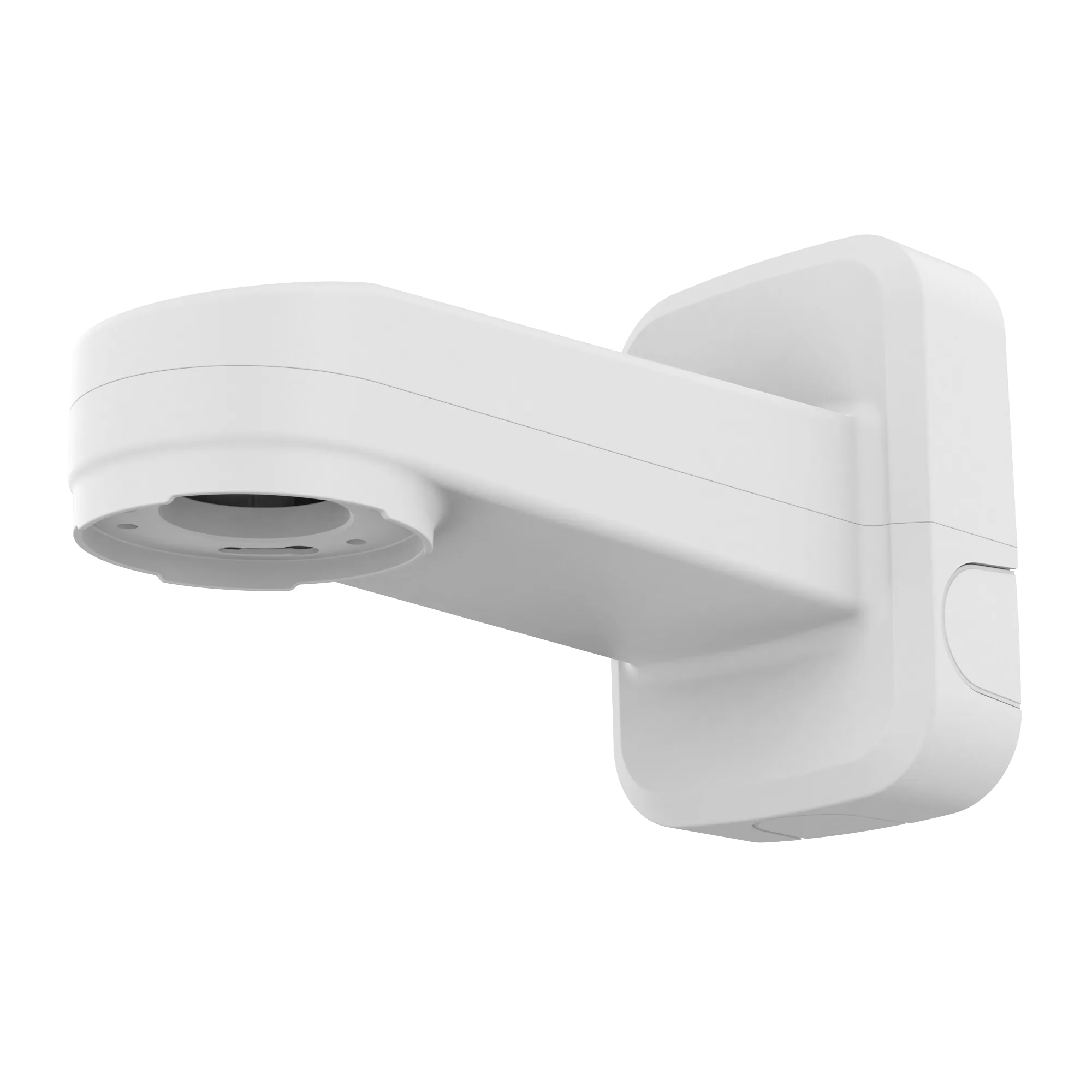

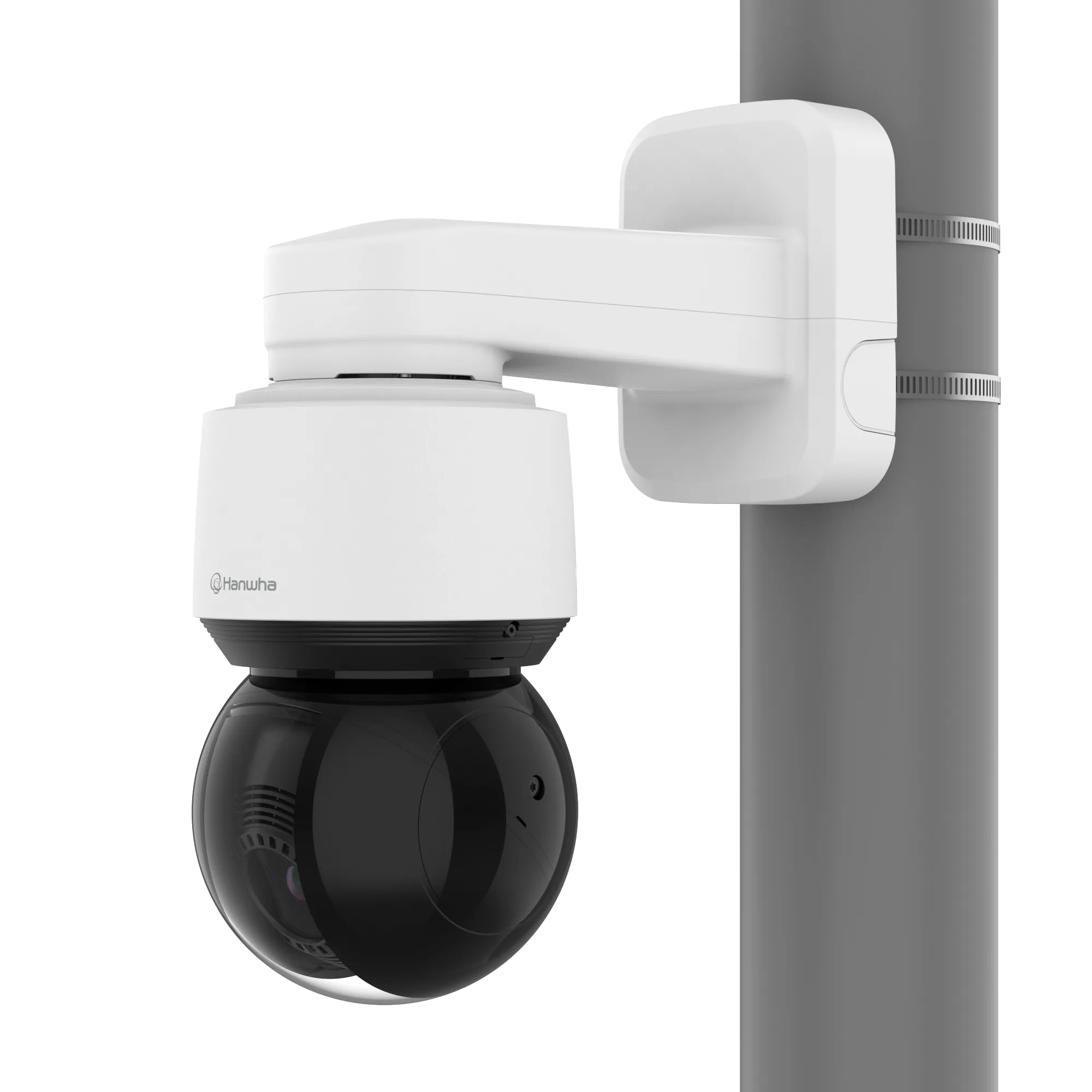

The SBP-156WMW carries PTZ cameras on a wall or pole. The mount is made of aluminium and finished in white to RAL9003. It measures 135(W)x183(H)x302(D)mm (5.31x7.20x11.89") and weighs 1,517g (3.34lb). Loads of up to 20kg are permitted, the conduit hole is 19.1mm (3/4", M25) and fixing uses a TR30 screw. Supported models are the XNP-C9310R, XNP-C9303RW, XNP-C9253R and XNP-C9253. Wall and pole mounting for PTZ camerasAluminium, RAL9003 white135x183x302mm / 1,517gMax. load 20kgConduit hole 19.1mm (M25)TR30 mounting screw
In stock, ships immediately · delivery 1-2 days
The SBP-300WMW1 is a white wall mount designed for operating PTZ cameras on a wall construction. Aluminium is used as the material and the finish follows RAL 9003. The bracket measures 112 x 183 x 207.5 mm, weighs 625 g and carries up to 10 kg. Its mount thread size is PF 1 1/2 inch, and supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgMount thread PF 1 1/2 inch
In stock, ships immediately · delivery 1-2 days
The SHP-1563FPW is an in-ceiling mount with an aluminium enclosure and a polycarbonate (PC) top cover, finished in white to RAL9003. It measures ø268x209mm (ø10.55x8.23") and weighs 1900g (4.19lb). Installation is designed for tile thicknesses of 3~70mm. Conduit holes of 19.1mm (3.4") (M25) and 12.7mm (1/2") (M20) are provided for cable routing. Supported products are XNP-C6403, XNP-C6403R and QNP-6250R. Enclosure aluminium, top cover polycarbonate (PC)White RAL9003ø268x209mm (ø10.55x8.23") / 1900g (4.19lb)Tile thickness 3~70mmConduit hole 19.1mm (M25), 12.7mm (M20)For XNP-C6403, XNP-C6403R, QNP-6250R
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- XNP-6400
- EAN / GTIN
- 8801089181985
- Weight
- 4.51 kg
- Dimensions (W×H×D)
- 279 × 215 × 342 mm

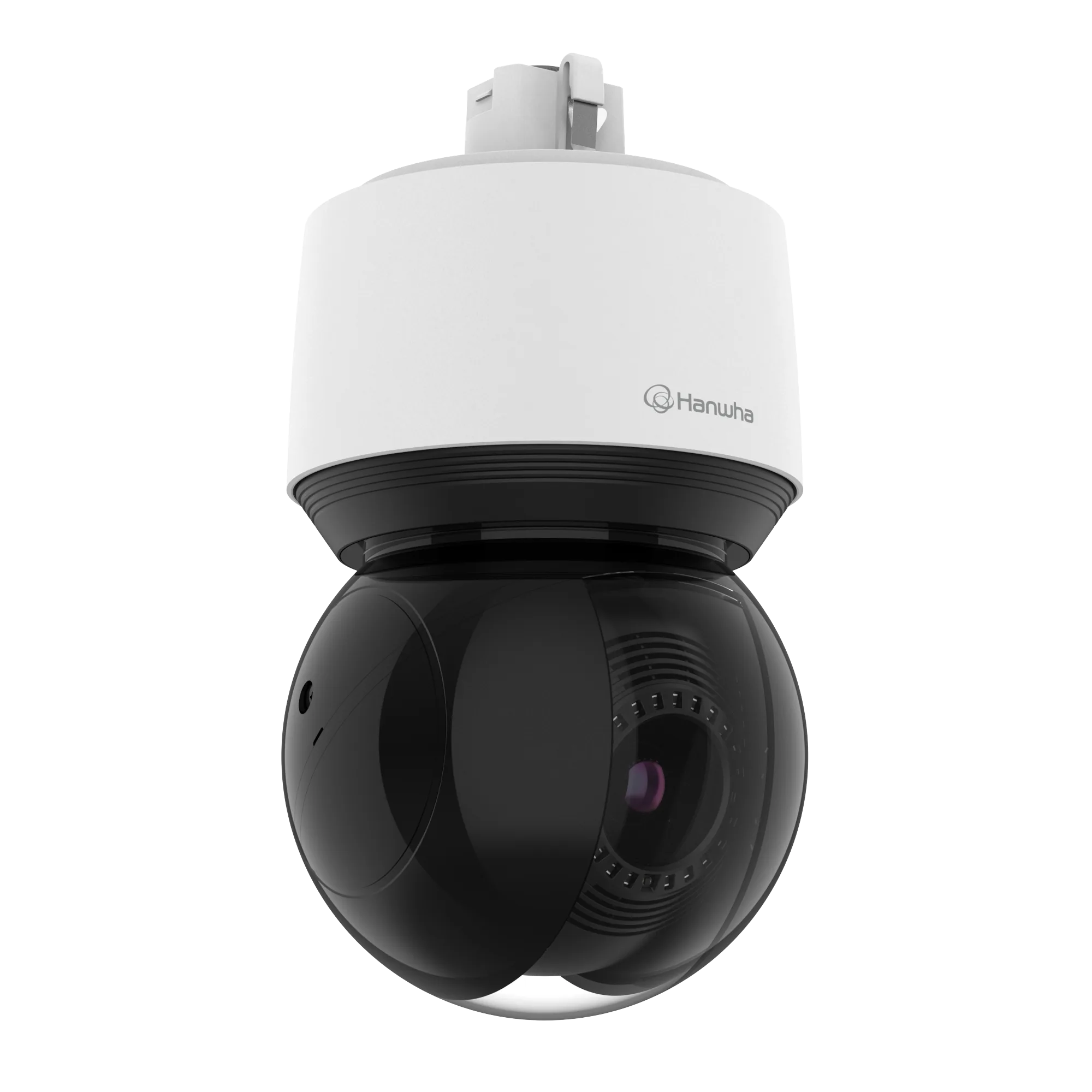

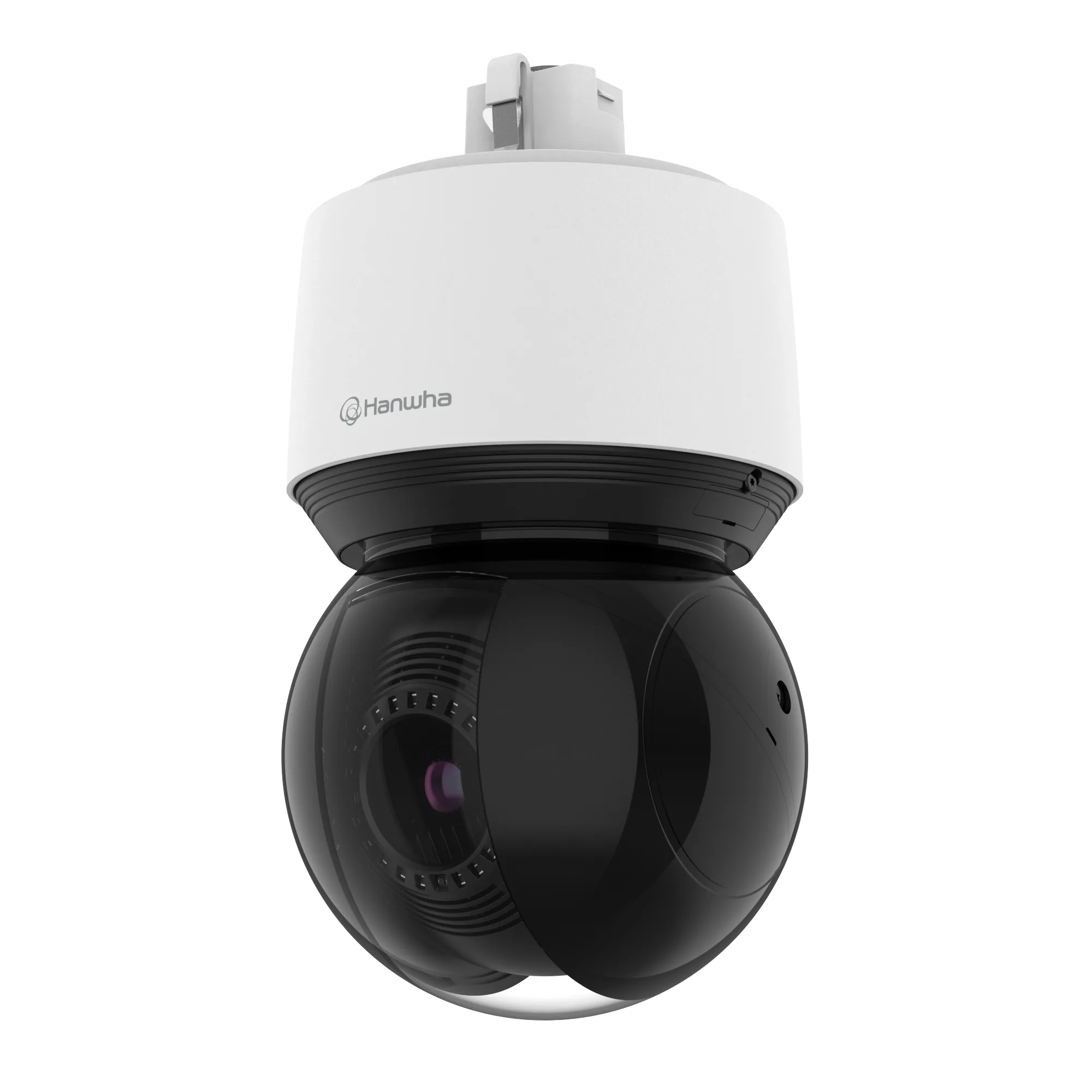

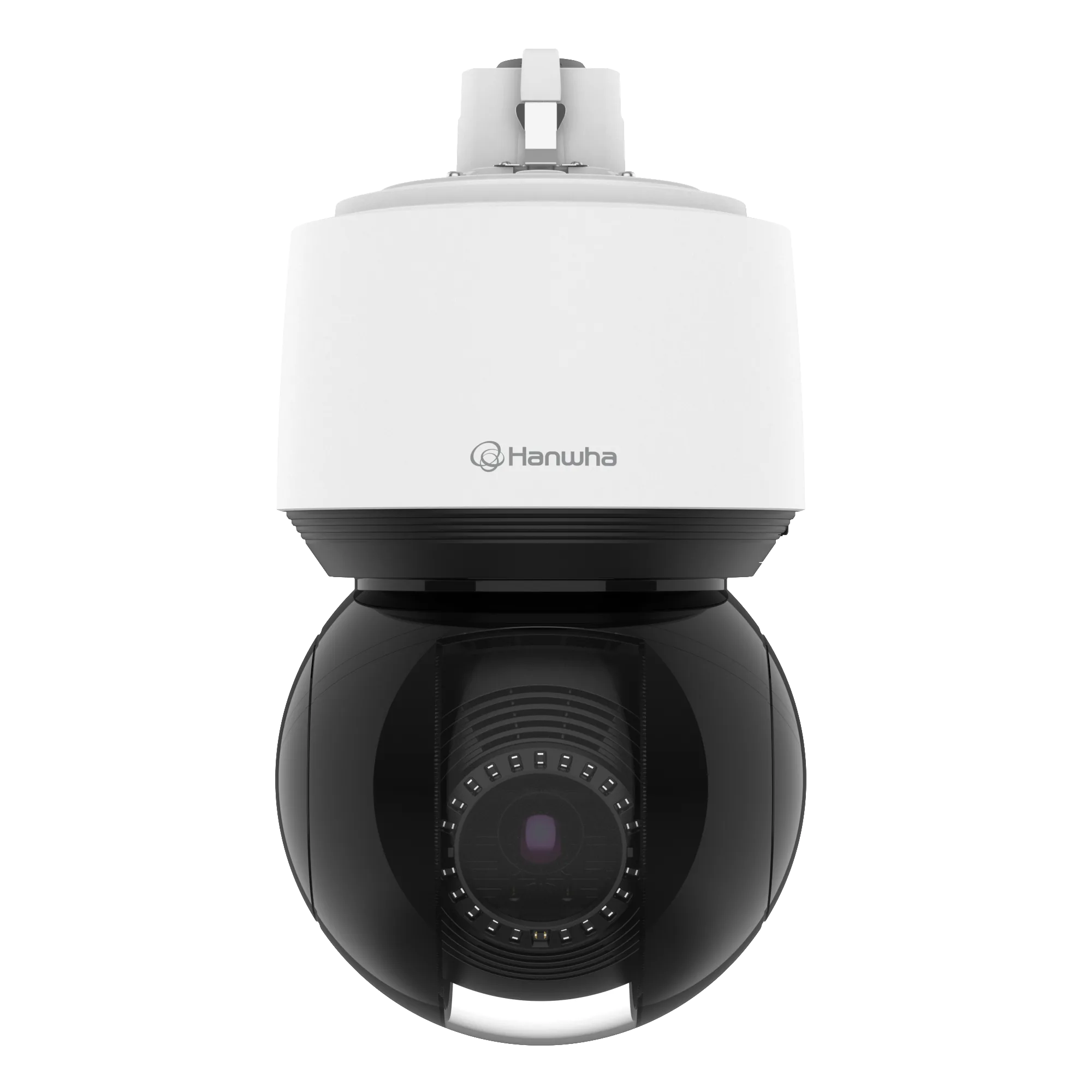

Description
Built around a 1/2.8 inch CMOS sensor, this PTZ network camera resolves up to 1920x1080 and encodes at 60fps/50fps (60Hz/50Hz) in H.265 and H.264, or 30fps in MJPEG. Its lens runs from 4.25 to 170 mm with 40x optical and 32x digital zoom, opens to F1.6 wide and F4.95 tele and covers 65.66 to 1.88 degrees horizontally. At 1/30 sec and 30 IRE it reaches 0.05 lux in colour and 0.005 lux in black and white, with a minimum object distance of 5 m (16.4ft). Panning is endless over 360 degrees and tilt spans 90 to -20 degrees, at up to 700 degrees per second on presets and 0.024 to 250 degrees per second under manual control. The feature set includes ICR day and night operation, WDR at 150 dB, DIS with a gyro sensor, intelligent analytics with object auto tracking for persons and vehicles and WiseStream II, in a housing rated IP66, IK10, NEMA4X and NEMA-TS 2 (2.2.8, 2.2.9).
- 4.25~170 mm, 40x optical, 32x digital zoom
- 1920x1080, 60fps/50fps in H.265/H.264
- WDR 150 dB, DIS with gyro sensor
- Object auto tracking for person and vehicle
- 360 degree endless pan, up to 700 degrees/sec
- IP66, IK10, NEMA4X, NEMA-TS 2
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (1)
- Analytics / Analytics Events – Normal
- Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 2340.4m(7678.4ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 59.5m(195.3ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 234.0m(767.8ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.0m(19.5ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 936.2m(3071.4ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 23.8m(78.1ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 468.1m(1535.7ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 11.9m(39.1ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+50°C(-40°F~+122°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 25W, typical 20W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 2slot(Total 1TB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Horizontal
- 65.66°~1.88°
- Lens / Angular Field of View – Vertical
- 39.4°~1.09°
- Lens / Max Aperture Ratio (F number) – Tele
- 4.95
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Digital
- 32x
- Lens / Zoom Ratio – Optical
- 40x
- Lens – Focal Length (mm)
- 4.25~170
- Lens – Focus Control
- Auto, Manual, Oneshot AF, Focus save
- Lens – Lens Type
- DC auto iris
- Lens – Min. Object Distance
- 5m(16.4ft)
Mechanical (5)
- Mechanical – Color
- White, Black
- Mechanical – Material
- Aluminum, PC(Polycarbonate)
- Mechanical – Product Dimensions
- ø158x293.3mm(6.22x11.55")
- Mechanical – Product Weight
- 3,200g(7.05lb)
- Mechanical – RAL Code
- RAL9003, RAL9005
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (24)
- Operational / Alarm Interface – Others
- Support alarm I/O via optional I/O box
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker
- Operational / Electronic Shutter – Speed Range
- 2~1/12,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Support via optional I/O box
- Operational – Audio Out
- Support via optional I/O box
- Operational – Auto Tracking
- Support, Object auto tracking(Person/Vehicle), Target lock tracking
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- SSNRⅤ
- Operational – Direction Indicator
- Support
- Operational – Gain Control
- Low, Middle, High
- Operational – Video Rotation
- Flip&Mirror
- Operational – Water Removal
- Support(Spin Dry, Lens heater)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 150
Pan (8)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 360° Endless
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 90°~-20°
- Pan / Tilt / Rotate / Pan Speed – Manual
- 0.024°/sec~250°/sec
- Pan / Tilt / Rotate / Pan Speed – Preset
- Max. 700°/sec
- Pan / Tilt / Rotate / Tilt Speed – Manual
- 0.024°/sec~250°/sec
- Pan / Tilt / Rotate / Tilt Speed – Preset
- Max. 500°/sec
- Pan / Tilt / Rotate – Preset Accuracy
- Up to ±0.1°, Pan/Tilt correction
- Pan / Tilt / Rotate – Sequence
- Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.005
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.05
- Video – Resolution
- 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
