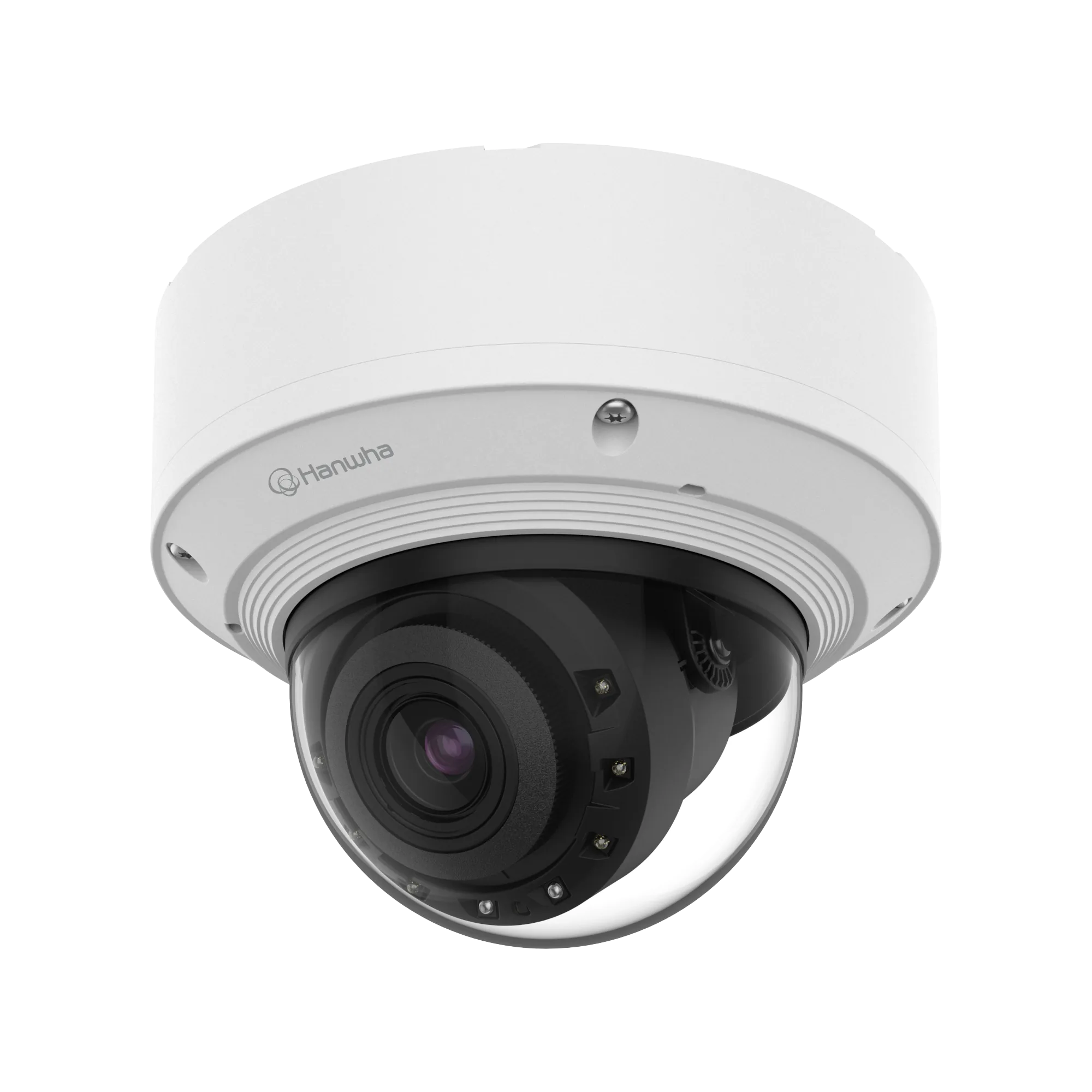

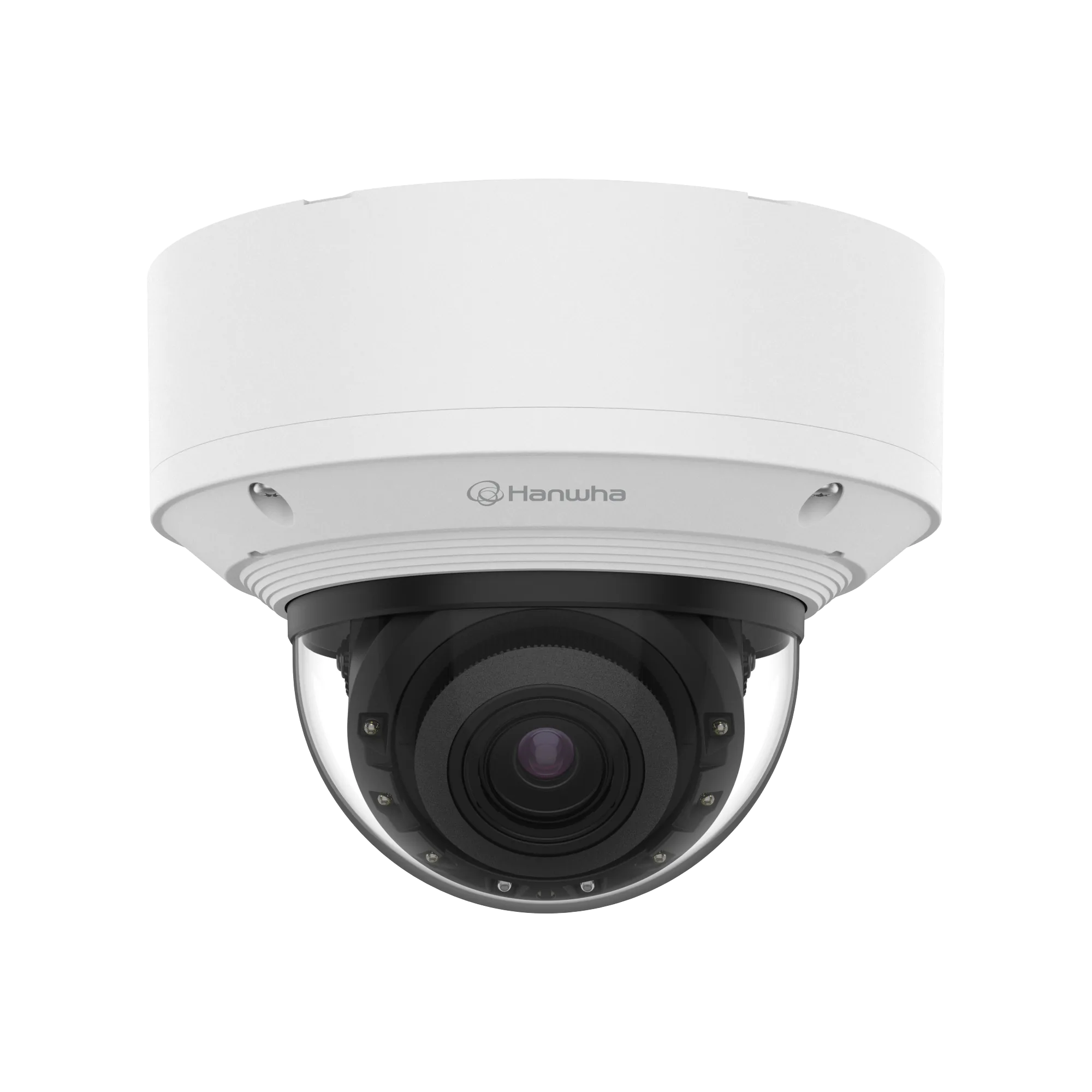

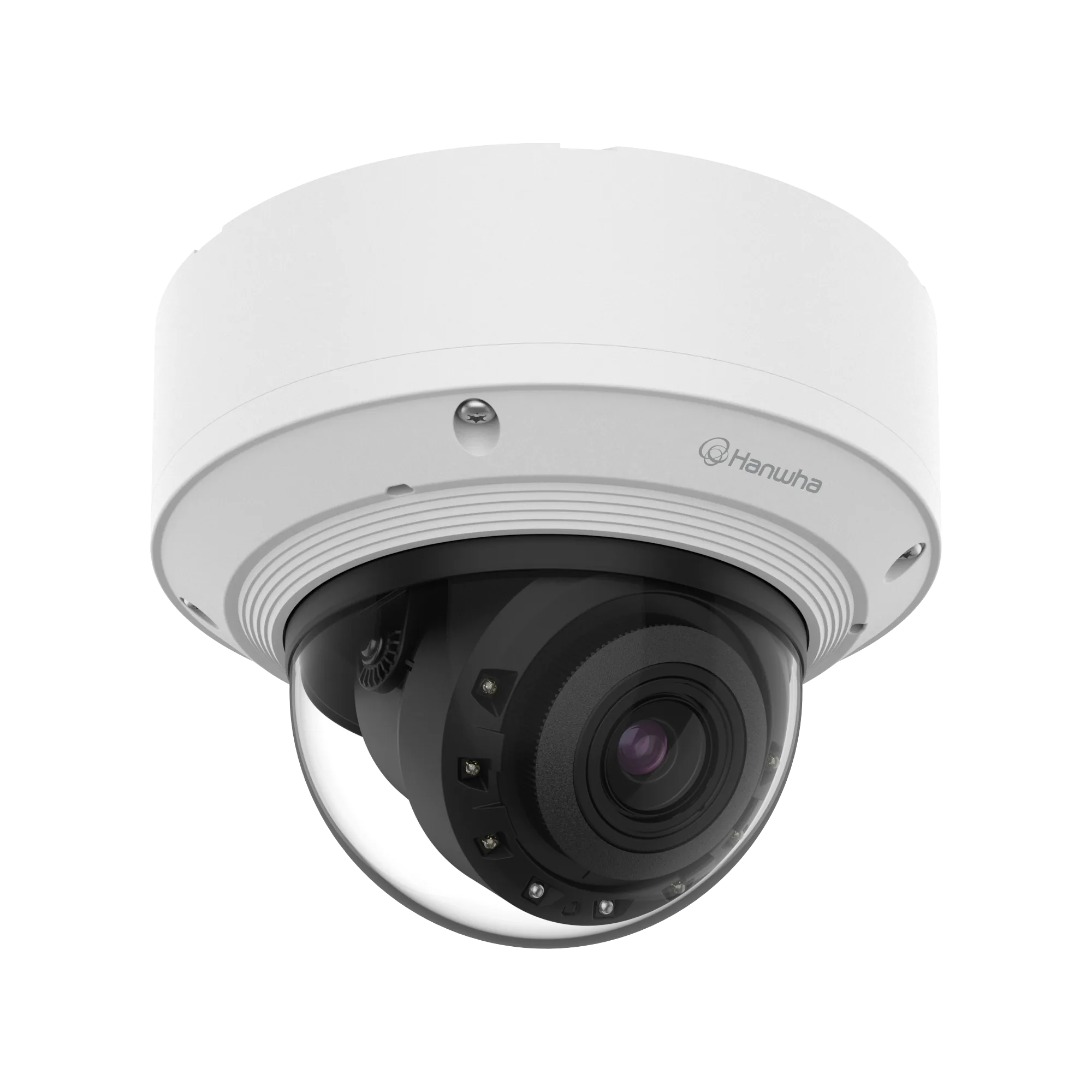

P series Wisenet 9, 4MP AI IR Dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
Ceiling mount base made of aluminium, finished in white to RAL9003. It measures ø140x33mm and weighs 250g. The mount screw size is M10. Listed supported products are the SBP-150CMP, SBP-300CMP and SBP-900CMP ceiling mounts. AluminiumWhite RAL9003Dimensions ø140x33mmWeight 250gM10 mount screw sizeFor SBP-150CMP, SBP-300CMP, SBP-900CMP
Not in stock · delivery 3-4 days
The SBP-180CMB serves as the ceiling mount base for suspended camera installations. It is made of aluminium and finished in white to RAL9003. The body measures ø180 x 86.5 mm at a weight of 970 g, and the mount screw size is TR30. A conduit hole of 19.1 mm (M25) is provided for cable entry. The base can be combined with SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P and SBP-C15H, among others. Aluminium ceiling mount baseWhite RAL9003ø180 x 86.5 mm, 970 gMount screw size TR30Conduit hole 19.1 mm (M25)For SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P, SBP-C15H
Not in stock · delivery 3-4 days
The SBP-180CMS is a ball head ceiling mount base used to align suspended cameras. Aluminium is used as the material and the finish is white to RAL9003. Dimensions and weight are ø180 x 86.5 mm and 970 g, with a TR30 mount screw size. A 19.1 mm (M25) conduit hole is provided. Supported items include SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P and SBP-C15H. Ball head ceiling mount baseAluminium, white RAL9003ø180 x 86.5 mm, 970 gMount screw size TR30Conduit hole 19.1 mm (M25)For SBP-150CMP, SBP-300CMP, SBP-C15P and others
Not in stock · delivery 3-4 days
The SBP-150CMP is an aluminium ceiling pipe that sets the distance between ceiling and camera mount. It is finished in white to RAL9003. The pipe measures ø54x150mm and weighs 250g. Fixing uses M6 screws. It can be combined with the SBP-140CMB, SBP-180CMB, SBP-180CMS and SBP-C15P. Ceiling mount pipeAluminium, RAL9003 whiteø54x150mm / 250gM6 mounting screwCombines with SBP-140CMB and SBP-180CMB
Not in stock · delivery 3-4 days
The SBP-300CMP is an aluminium ceiling mount pipe finished in white to RAL9003. Measuring ø54 x 300 mm at 560 g, it extends a ceiling installation by 300 mm. The mount screw size is M6. The pipe is used together with the SBP-140CMB, SBP-180CMB and SBP-180CMS bases as well as with SBP-C15P, and further compatible models are available. Aluminium ceiling mount pipeWhite RAL9003ø54 x 300 mmWeight 560 gMount screw size M6For SBP-140CMB, SBP-180CMB, SBP-180CMS, SBP-C15P
Not in stock · delivery 3-4 days
The SBP-900CMP is an aluminium ceiling mount pipe finished in white to RAL9003. At ø54 x 900mm it bridges the distance between ceiling and camera mount. Its weight is 1,700g (3.75lb). The mount screw size is M6. The pipe combines with SBP-140CMB, SBP-180CMB, SBP-180CMS and SBP-C15P. Ceiling mount pipeAluminium constructionWhite, RAL9003Size ø54 x 900mm, 1,700gM6 mount screwFor SBP-140CMB, SBP-180CMB, SBP-180CMS, SBP-C15P
Not in stock · delivery 3-4 days
The SBP-C15H is an aluminium thread coupler joining a 1.5" PF thread to a further 1.5" PF thread. Its finish is white to RAL9003. Dimensions are ø56 x 57mm at 115g (0.25lb). A total of 4 pieces is included in the package. The coupler works with SBP-140CMB and SBP-120HMW. Thread coupler 1.5" PF to 1.5" PFAluminium constructionWhite, RAL9003Size ø56 x 57mm, 115g4 pieces per packageFor SBP-140CMB and SBP-120HMW
Not in stock · delivery 3-4 days
The SBP-C15NP is a thread converter that adapts a 1.5" male NPT thread to a 1.5" female PF thread. It is manufactured from aluminium in white to RAL9003. The part measures ø54 x 58mm and weighs 280g (0.62lb). Products stated as supported are SBP-099HMW and SBP-120HMW. Thread converter 1.5" male NPT to 1.5" female PFAluminium constructionWhite, RAL9003Size ø54 x 58mmWeight 280gFor SBP-099HMW and SBP-120HMW
Not in stock · delivery 3-4 days
The SBP-C35H is a pipe converter adapting a 3/4" female PF thread to a 1.5" female PF thread. It is made of aluminium and kept in white to RAL9003. Its size is ø56 x 70mm at a weight of 115g (0.25lb). Supported products include SBP-099HMW, SBP-120HMW and SBP-140HMW. Pipe converter 3/4" female PF to 1.5" female PFAluminium constructionWhite, RAL9003Size ø56 x 70mmWeight 115gFor SBP-099HMW, SBP-120HMW, SBP-140HMW
Not in stock · delivery 3-4 days
The SBP-C15P is a thread coupler for ceiling installation, manufactured from aluminium. Its colour is white to RAL9003. The part is compact at 60 x 86 x 71mm and 230g (0.51lb). It is used together with the ceiling mount pipes SBP-150CMP, SBP-300CMP and SBP-900CMP. Thread coupler for ceiling mountingAluminium constructionWhite, RAL9003Size 60 x 86 x 71mmWeight 230gFor SBP-150CMP, SBP-300CMP, SBP-900CMP
Not in stock · delivery 3-4 days
The SBP-150CMI links hanging adaptors to the ceiling. The mount is made of aluminium and finished in white to RAL9003. It measures ø140x155mm, weighs 520g and accepts a load of up to 10kg. Screw fixing is in size M10. Supported items are the SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1 adaptors. Ceiling mountingAluminium, RAL9003 whiteø140x155mm / 520gMax. load 10kgM10 mounting screw
Not in stock · delivery 3-4 days
The SBP-300CMI is an aluminium ceiling mount finished in white to RAL9003. It measures ø140 x 305 mm and weighs 800 g. The mount screw size is M10 and the maximum load is 10 kg. The mount can be combined with the SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1 hanging adaptors, and further compatible models are available. Aluminium ceiling mountWhite RAL9003ø140 x 305 mm, 800 gMount screw size M10Maximum load 10 kgFor SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1
Not in stock · delivery 3-4 days
The SBP-300CMW1 is a fixed-length aluminium ceiling mount finished in white to RAL9003. It measures ø180 x 358.5 mm and weighs 1,500 g. Mount screw size is TR30 and the maximum load comes to 20 kg. A conduit hole of 19.1 mm (M25) is provided for cable routing. The mount can be combined with SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-150CMP, SBP-300CMP, SBP-900CMP and SBP-C15P. Aluminium ceiling mountWhite RAL9003ø180 x 358.5 mm, 1,500 gMount screw size TR30Maximum load 20 kgConduit hole 19.1 mm (M25)
Not in stock · delivery 3-4 days
The SBP-900CMW is an aluminium ceiling mount painted white to RAL9003. It measures ø180 x 958.5mm and weighs 2,700g (5.93lb). Fixing uses a TR30 mount screw, and the maximum load is 20kg. A conduit hole of 19.1mm (3/4")(M25) routes the cabling. Supported items are SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-C15P, SBP-150CMP, SBP-300CMP and SBP-900CMP. Ceiling mountAluminium, white RAL9003Size ø180 x 958.5mm, 2,700gTR30 mount screwMax. load 20kgConduit hole 19.1mm (3/4")(M25)
Not in stock · delivery 3-4 days
The SBP-300CMTW is a telescopic ceiling mount produced from aluminium in white to RAL9003. Its extension range runs from 956.5 mm to 1,667.5 mm at a diameter of 180 mm, and the weight is 3,750 g. TR30 serves as the mount screw size, the maximum load is stated as 20 kg and the conduit hole as 19.1 mm (M25). The pipe can be extended once, giving a total length of up to 2,524 mm when the SBP-900CMP is used. Supported items include SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-150CMP, SBP-300CMP, SBP-900CMP and SBP-C15P. Telescopic ceiling mountAluminium, white RAL9003ø180 x 956.5 to 1,667.5 mm, 3,750 gMount screw size TR30Maximum load 20 kgConduit hole 19.1 mm (M25)
Not in stock · delivery 3-4 days
The SBP-300CMTS is a ball head ceiling mount made of aluminium in white to RAL9003. Its length is adjustable from 956.5 mm to 1,667.5 mm at ø180, and the assembly weighs 3,750 g. The ball head offers a pan and tilt range of plus/minus 45 degrees each, while no rotation range is provided. Mount screw size is TR30, maximum load is 20 kg and the conduit hole measures 19.1 mm (M25). The pipe can be extended once, reaching a maximum length of 2,524 mm when the SBP-900CMP is used. Compatible items include SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1, SBP-150CMP, SBP-300CMP, SBP-900CMP and SBP-C15P. Ball head ceiling mountAluminium, white RAL9003ø180 x 956.5 to 1,667.5 mm, 3,750 gPan and tilt plus/minus 45 degrees eachMount screw size TR30, 20 kg loadMaximum length 2,524 mm with SBP-900CMP
Not in stock · delivery 3-4 days
At ø352x107.4 mm (ø13.86x4.23") and 2,450 g (5.40 lb), SHD-1372FPW is the largest in-ceiling housing in this series. It is manufactured from aluminium and finished white to RAL 9003. Installation covers tile thicknesses of 10 to 70 mm (0.4 to 2.8"), and the mount screw size is TR20. Conduit holes of 19.1 mm (3/4", M25) and 12.7 mm (1/2", M20) are available for cable entry. Maximum load is 5 kg (11.02 lb) with a ceiling board limit of 11.6 kg (25.60 lb); supported products are PND-A7082RV, PND-A9082RV, PND-A6081R, PND-A9081R, XND-6083RV, XND-8083RV, XND-8093RV and XND-9083RV. In-ceiling housing in aluminiumWhite, RAL 9003ø352x107.4 mm, 2,450 gTile thickness 10~70 mm, TR20 screwMax. load 5 kgConduit holes 19.1 mm (M25) and 12.7 mm (M20)
Not in stock · delivery 3-4 days
The SBP-140CMT holds a camera in the profile of a tile grid ceiling. Its plate and rail are made of polycarbonate and aluminium, finished in white to RAL9003. Measuring ø140x27.5mm at 108g, the mount carries a load of up to 2.5kg and uses a TR20 mounting screw. Operation is rated from -10°C to +45°C at 5~90% RH (non-condensing), storage from -30°C to +60°C at 0~90% RH. Supported models are QNV-C8011R, QNV-C8012 and QNV-C9011R; four pieces are included in the package. Tile grid ceiling mountingPolycarbonate and aluminium, RAL9003ø140x27.5mm / 108gMax. load 2.5kgOperation -10°C to +45°C4 pieces per package
Not in stock · delivery 3-4 days
The SBP-160WMW1 holds a camera on a wall or pole and is classified for indoor use. Its body is aluminium and its cover polycarbonate, finished in white to RAL9003. The mount measures 169.7(W)x118.3(H)x214.8(D)mm (6.68x4.66x8.46"), weighs 696g (1.53lb) and takes a permitted load of 5kg. The conduit hole is 19.1mm (3/4", M25), the gangbox hole supports single, double, 4" octagon and 4" square, and fixing uses a TR20 screw. Supported models are the XND-C6083RV, XND-C7083RV, XND-C8083RV and XND-C9083RV. Wall and pole mounting, indoorAluminium body with polycarbonate cover169.7x118.3x214.8mm / 696gMax. load 5kgConduit hole 19.1mm (M25)Gangbox single, double, 4" octagon, 4" square
Not in stock · delivery 3-4 days
The SBP-250WMW is a wall and pole mount made from polycarbonate (PC) and aluminium in white to RAL9003. It measures 315.8 x 137 x 183 mm, weighs 1,940 g and uses a TR30 mount screw size. The maximum load is 20 kg and three conduit holes of 19.1 mm (M25) each are available for cable routing. Supported products include XND-C6083RV, XNV-6083R and QNV-C6083R. Depending on the application an additional adaptor is required: SBP-115PA for PTZ plus, SBP-115PFA for a hanging adaptor. Wall and pole mount in PC and aluminiumWhite RAL9003315.8 x 137 x 183 mm, 1,940 gMount screw size TR30, 20 kg loadThree conduit holes 19.1 mm (M25)SBP-115PA or SBP-115PFA adaptor depending on application
In stock, ships immediately · delivery 1-2 days
The SBP-400WMW is an outdoor wall and pole mount produced from polycarbonate and aluminium in white to RAL9003. It is certified to IP66 and NEMA 4X. Measurements are 449.3 x 200 x 263.1mm (17.69 x 7.87 x 10.36") at a weight of 4,622g (10.19lb). Mount screw size is T30, maximum load is 20kg, and the conduit hole measures 19.1mm (M25). Supported products include SBP-115PFA, SBP-115PA, SPO-8315, SPO-6011, XNV-6083R and QNV-6083R. Outdoor wall and pole mountIP66, NEMA 4XPolycarbonate and aluminium, white RAL9003Size 449.3 x 200 x 263.1mm, 4,622gT30 mount screw, max. load 20kgConduit hole 19.1mm (M25)
Not in stock · delivery 3-4 days
Adaptor with a 1.5 inch PF thread for wall and pole mounts, built from polycarbonate and aluminium. The colour is white to RAL9003. Dimensions are ø125x49mm at a weight of 242g. The mount screw size is TR30. Supported hanging mounts are the SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Polycarbonate and aluminiumWhite RAL9003Dimensions ø125x49mm, 242gTR30 mount screw sizeFor SBP-120HMW, SBP-140HMW, SBP-160HMW1, SBP-180HMW1
Not in stock · delivery 3-4 days
The SBV-180BW is an aluminium back box finished in white to RAL9003. It measures ø183.8x51mm, weighs 650g and supports a load of up to 5kg. The conduit hole is 19.1mm (3/4", M25) and the mount screw size is TR20; no certification is stated for this part. Supported cameras are the XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-6083R, XNV-8083R, XNV-8093R and XNV-9083R. Aluminium back boxWhite, RAL9003Dimensions ø183.8x51mm, 650gMax. load 5kgConduit hole 19.1mm (3/4", M25)Mount screw size TR20
Not in stock · delivery 3-4 days
The SBV-180WW is a waterproof aluminium back box finished in white to RAL9003. It is certified to IP66 and NEMA 4X and carries a maximum load of 5kg. Dimensions are ø184.2x61mm at a weight of 1,183g; the conduit hole measures 19.1mm (3/4", M25) and the mount screw size is TR20. The operating temperature range runs from -50°C to +60°C (-58°F to +140°F) at a relative humidity of less than 100 % RH. Supported cameras are the XNV-C6083R, XNV-C7083R, XNV-C8083R, XNV-C9083R, XNV-6083R, XNV-8083R, XNV-8093R and XNV-9083R. Waterproof aluminium back boxIP66, NEMA 4X certifiedDimensions ø184.2x61mm, 1,183gMax. load 5kgOperating temperature -50°C to +60°CWhite, RAL9003
In stock, ships immediately · delivery 1-2 days
The SBP-160TMW1 allows a camera to be installed at a tilt. The mount is made of aluminium and finished in white to RAL9003. It measures ø160x57.6mm (6.30x2.27") and weighs 325g (0.72lb). The listed supported models are the XNF-9010RV and XNF-9013RV. Tilt mountAluminium, RAL9003 whiteø160x57.6mm / 325gFor XNF-9010RV and XNF-9013RV
Not in stock · delivery 3-4 days
The SBP-150PMW attaches camera equipment to poles. The mount is aluminium, finished in white to RAL9003. It measures 310x260x49mm (12.21x10.24x1.93"), weighs 3,200g (7.06lb) and accepts up to 40kg. For pole diameters of ø80~200mm (ø3.15~7.88") a vice grip is used, while poles from ø200mm (ø7.88") are secured with a steel strap. Mounting screws are TR30 and M12, the conduit hole is 19.1mm (3/4", M25), and supported products are the SBP-150NBW and TNO-A26081. Pole mountingAluminium, RAL9003 white310x260x49mm / 3,200gMax. load 40kgPole diameter from ø80mmConduit hole 19.1mm (M25)
Not in stock · delivery 3-4 days
Built around an aluminium core with a plastic cap, the SBD-180PMW is a pole mount in white RAL9003. It measures ø187.1x50.5mm and weighs 370g. Loads of up to 5kg are permitted, and the conduit hole is 19.1mm (3/4 in, M25). The camera is fixed with TR20 screws and the steel strap with TR30. Supported models are the PNV-A6081R, PNV-A9081R, XNV-6083R, XNV-8083R, XNV-8093R and XNV-9083R. Pole mountAluminium core with polycarbonate capWhite, RAL9003ø187.1x50.5mm, 370gMax. load 5kg, 19.1mm (M25) conduit hole
In stock, ships immediately · delivery 1-2 days
The SBP-156KMW is intended for installation in a building corner. The mount is made of aluminium and finished in white to RAL9003. It measures 276.8(W)x183(H)x158.5(D)mm (10.90x7.20x6.24") and weighs 763g (1.68lb). A load of up to 20kg may be carried. It can be combined with the SBP-156WMW, SBP-250WMW and SBP-400WMW mounts. Corner mountingAluminium, RAL9003 white276.8x183x158.5mm / 763gMax. load 20kgCombines with SBP-156WMW
In stock, ships immediately · delivery 1-2 days
The SBP-156LMW1 is a telescopic parapet mount made of aluminium. It is finished in white according to RAL9003. Dimensions are 835~1,098x1,000x95mm (32.9~43.2x39.4x3.8") and the weight is 7,260g. Up to 20kg may be carried. Supported components are the SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Telescopic parapet mountAluminium, RAL9003 white835~1,098x1,000x95mm7,260gMax. load 20kg
Not in stock · delivery 3-4 days
The SBP-150NBW cabinet houses cameras and accessories outdoors. It combines polycarbonate and aluminium, is finished in white to RAL9003 and is certified to IP66, IK10 and NEMA 4X. The operating range runs from -40°C to +65°C at 0~100% RH (condensing), with humidity controlled through an air vent. Measuring 360x420x163.1mm at 3,960g, it takes a maximum load of 15kg and provides conduit holes of 12.7mm (1/2", M20) and 19.1mm (3/4", M25). Fixing uses TR20 and T30 screws, and supported items include the SBP-250WMW, SBP-400WMW, SBP-150PMW, XND-C6083RV, PNV-A9081R, XNO-6083R and QNV-C8083R. IP66, IK10, NEMA 4XPolycarbonate and aluminium, RAL9003360x420x163.1mm / 3,960gMax. load 15kgOperation -40°C to +65°CConduit holes M20 and M25
Not in stock · delivery 3-4 days

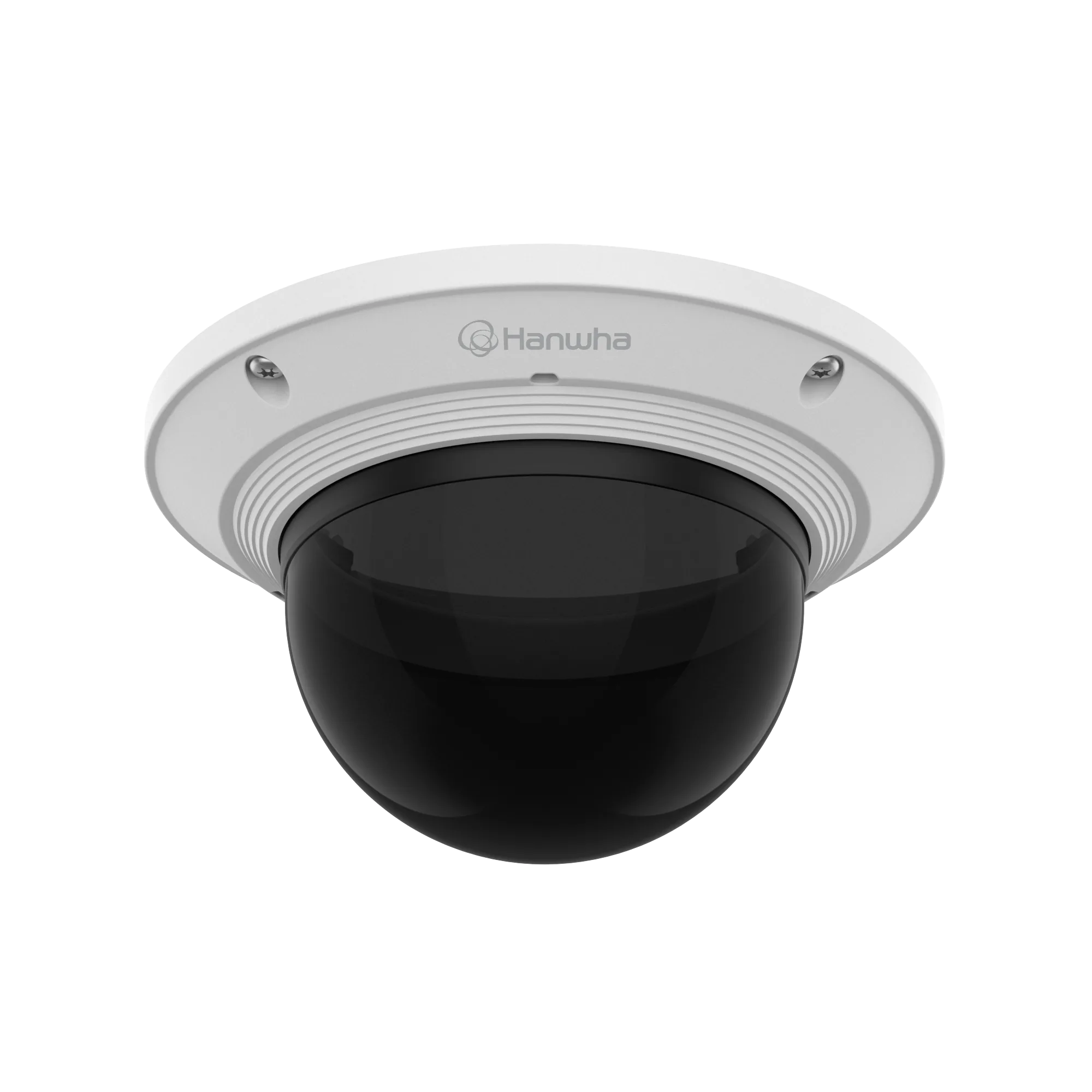

The SPB-IND87W is a smoked dome cover finished in white. Its cover is made of aluminum and the dome bubble of polycarbonate (PC). The RAL code is RAL9003 and the product dimensions are ø158 x 87mm at a weight of 290g. Supported products are listed as PND-A7082RV and PND-A9082RV. The part is used to replace the dome on those camera models. Smoked dome coverWhite, RAL9003Aluminum coverPolycarbonate bubbleø158 x 87mm, 290gFor PND-A7082RV and PND-A9082RV
Not in stock · delivery 3-4 days
The SPP-C7400 is a cable for audio and alarm connections. The listed materials are a plastic sheath and a copper coil, with the cable supplied in black. It measures 700mm(27.56 inches) and weighs 40g(0.09lb). The accessory therefore covers the wiring of the audio and alarm interface. Cable for audio and alarmBlack finishPlastic sheath, copper coilLength 700mm(27.56 inches)Weight 40g(0.09lb)
Not in stock · delivery 3-4 days
The SPP-C45W is an RJ45 cable that converts the cable type from plug-in to pigtail. Its sheath is plastic and the coil is copper, with the assembly finished in black. The cable measures 335mm(13.19") and weighs 22g(0.05lb). Supported products are listed as QNV-6012R and QNV-C6083R. RJ45 cable, plug-in to pigtail conversionBlack finishPlastic sheath, copper coilLength 335mm(13.19"), weight 22g(0.05lb)Supported products QNV-6012R, QNV-C6083R
Not in stock · delivery 3-4 days
The SBP-300WMW is a swan-neck wall mount for installing PTZ cameras on a wall construction. It is made of aluminium and finished in white to RAL 9003. Dimensions are 276.5 x 112 x 183 mm with a weight of 730 g, the mount screw size is M10 and the maximum load is 10 kg. Supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 276.5 x 112 x 183 mmWeight 730 gMount screw size M10Maximum load 10 kg
Not in stock · delivery 3-4 days
The SBP-300WMW1 is a white wall mount designed for operating PTZ cameras on a wall construction. Aluminium is used as the material and the finish follows RAL 9003. The bracket measures 112 x 183 x 207.5 mm, weighs 625 g and carries up to 10 kg. Its mount thread size is PF 1 1/2 inch, and supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgMount thread PF 1 1/2 inch
In stock, ships immediately · delivery 1-2 days
The SBP-300BW1 is an aluminium wall mount bracket finished in white to RAL9003. It measures 120 x 190.9 x 35 mm and weighs 700 g. TR30 is specified as the mount screw size and the conduit hole is 19.1 mm (M25). Supported items are the TNO-7180RLP as well as the SBP-300WMW and SBP-300WMW1 mounts, with further compatible models available. Aluminium wall mount bracketWhite RAL9003120 x 190.9 x 35 mm, 700 gMount screw size TR30Conduit hole 19.1 mm (M25)For TNO-7180RLP, SBP-300WMW, SBP-300WMW1
Not in stock · delivery 3-4 days
The SBP-300PMW2 is a white pole adaptor used to install wall mounts on a pole. It is manufactured from aluminium with a white RAL 9003 finish. Dimensions are 185 x 115 x 40 mm, weight is 750 g and the maximum load is 10 kg. The listed supported products are TNO-7180RLP, SBP-300WMW and SBP-300WMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 185 x 115 x 40 mmWeight 750 gMaximum load 10 kgWorks with TNO-7180RLP, SBP-300WMW, SBP-300WMW1
In stock, ships immediately · delivery 1-2 days
The SBP-300KMW1 is the white version of the corner adaptor and connects a wall mount to a building corner. It is made of aluminium with a white RAL 9003 finish. Measuring 280 x 183 x 159 mm, the adaptor weighs 800 g and carries loads up to 20 kg. It is intended for use with the SBP-300WMW and SBP-300WMW1 wall mounts. Aluminium constructionWhite finish, RAL 9003Dimensions 280 x 183 x 159 mmWeight 800 gMaximum load 20 kgWorks with SBP-300WMW, SBP-300WMW1
Not in stock · delivery 3-4 days
The SBP-300LMW is the white parapet mount for installing cameras on a parapet or roof edge. It is made of aluminium and finished in white to RAL 9003. The mount measures 824.7 x 841 x 82 mm, weighs 730 g and accepts loads up to 20 kg. Operating conditions are stated as -50 °C to 60 °C and 0 to 100 % humidity. Supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 824.7 x 841 x 82 mmWeight 730 gOperating temperature -50 °C to 60 °CMaximum load 20 kg
Not in stock · delivery 3-4 days
The SBP-300NBW installation box accommodates connection hardware and cabling for camera installations and comes in a white version. The stated materials are aluminium, steel and silicon, with a white finish to RAL 9003. The box measures ø185 x 221 x 94.3 mm and weighs 3.4 kg. A 19.1 mm (3/4 inch, M25) conduit hole is provided for cable entry. It can be combined with the SBP-300WMW and SBP-300WMW1 wall mounts. Aluminium, steel and siliconWhite finish, RAL 9003Dimensions ø185 x 221 x 94.3 mmWeight 3.4 kgConduit hole 19.1 mm (M25)Works with SBP-300WMW, SBP-300WMW1
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- PND-A7082RV
- EAN / GTIN
- 8801089232779
- Weight
- 2.65 kg
- Dimensions (W×H×D)
- 437 × 213 × 194 mm
Description
The PND-A7082RV is a modular indoor dome camera with infrared illumination and AI functions, its 1/1.8-inch CMOS sensor recording 4 megapixels up to 2592x1520. H.265 and H.264 manage 60fps at 60Hz or 50fps at 50Hz with WDR off, and 30fps or 25fps with WDR on, while MJPEG reaches 30fps and a maximum of 5fps at 4MP. The varifocal lens works from 4.6 to 9.35mm with 2.0x optical zoom, opening to F1.3 at wide angle and F2.15 at telephoto and covering 105° to 47° horizontally, 58° to 27° vertically and 128° to 55° diagonally. Focusing is by simple focus through an IR-corrected P iris from a minimum object distance of 1.5m. Minimum illumination is 0.03 lux in colour and 0.003 lux in black and white, with an automatic ICR filter managing day and night operation. Alignment covers 0° to 350° pan, -45° to 85° tilt and 0° to 355° rotation, and a USB Type C port is provided for preview during installation.
- 4 megapixel resolution up to 2592x1520
- 4.6 to 9.35mm varifocal lens with 2.0x zoom
- Up to 60/50fps with WDR off, 30/25fps with WDR on
- 0.03 lux in colour, 0.003 lux in black and white
- Simple focus with IR-corrected P iris
- 0° to 350° pan and -45° to 85° tilt
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (9)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
- Analytics / Analytics Events – Normal
- Defocus detection, Tampering, Audio detection, Shock detection
- Analytics / Attributes – Face
- Age, Gender, Face mask, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Similarity Search
- Support
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 119.2m(391.15ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 39.8m(130.51ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 11.9m(39.12ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.0m(13.05ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 47.7m(156.46ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 15.9m(52.20ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 23.8m(78.23ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 8.0m(26.10ft)
Environmental & Electrical (11)
- Environmental & Electrical / Operating Condition – Humidity
- 0~100% RH(condensing)
- Environmental & Electrical / Operating Condition – Others
- Humidity control with AIR vent
- Environmental & Electrical / Operating Condition – Temperature
- -25°C~+50°C(-13°F~+122°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 12.7W, typical 7.8W
- Environmental & Electrical / Power Consumption – PoE
- Max. 15.0W, typical 9.0W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – EPA(Effective Projected Area)
- 0.0148㎡
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
- Environmental & Electrical – Power Redundance Failover
- Support
- Environmental & Electrical – WisePower
- Power monitoring
General (6)
- General / Edge Storage(OnCloud) – Micro SD/SDHC/SDXC
- Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 1TB x 2slot(Total 2TB)
- General / Memory – Flash
- 8GB eMMC
- General / Memory – RAM
- 4GB
- General / SoC – Dual NPU
- Support
- General / SoC – Type
- Wisenet 9
Lens (10)
- Lens / Angular Field of View – Diagonal
- 128°~55°
- Lens / Angular Field of View – Horizontal
- 105°~47°
- Lens / Angular Field of View – Vertical
- 58°~27°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.15
- Lens / Max Aperture Ratio (F number) – Wide
- 1.3
- Lens / Zoom Ratio – Optical
- 2.0x
- Lens – Focal Length (mm)
- 4.6~9.35mm
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- P iris(IR corrected)
- Lens – Min. Object Distance
- 1.5m(4.92ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 12.7mm(1/2")(M20)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- ø160x125mm(ø6.30x4.92")
- Mechanical – Product Weight
- 1550g(3.42lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 5 profiles, 3 virtual channel support
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps)
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
- Network – Smart Codec
- WiseStream(Based on AI engine)
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (27)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Alarm Interface – Others
- 12VDC output, Support extra alarm I/O via optional I/O box
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 2~1/30,000sec
- Operational / Light Viewable Length – IR
- WiseIR 60m(196.85ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
- Operational / Privacy Masking – Dynamic Privacy Masking: Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 8point Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: public
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption
- Operational – Audio In
- Selectable(mic in/line in), Built-in 3mics
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, HLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Defog
- Support
- Operational – Digital Image Stabilization
- Support
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Off, Max gain, Manual
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support(Fill/stretch mode)
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -45°~85°
Security (11)
- Security – Access Control
- IP-based access control, MAC-based access control, Auto logout
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256), Secure element
- Security – Security Certificate
- Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
- Security – Supply Chain Security
- SBOM
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/1.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on)
- Video / Max. Framerate – MJPEG
- 30fps(@4MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.003
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.03
- Video – Resolution
- 2592x1520, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
- Video – Video Out
- USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.
