4K AI IR Indoor vandal dome
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBC-160B is a black skin cover produced from polycarbonate. It measures Ø167 x 68 mm and weighs 120 g. XND-6083RV is entered as the supported product, and the manufacturer keeps further compatible models in its Toolbox. The product information additionally names PND-A9081RV, PND-A6081RV, XND-6081RV, XND-8081RV, XND-6082RV, XND-8082RV, XND-9082RV, XND-8083RV, XND-8093RV and XND-9083RV. Black skin coverPolycarbonate materialDimensions Ø167 x 68 mmWeight 120 gFor XND-6083RV and further models
Not in stock · delivery 3-4 days
The SBP-300WMW is a swan-neck wall mount for installing PTZ cameras on a wall construction. It is made of aluminium and finished in white to RAL 9003. Dimensions are 276.5 x 112 x 183 mm with a weight of 730 g, the mount screw size is M10 and the maximum load is 10 kg. Supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 276.5 x 112 x 183 mmWeight 730 gMount screw size M10Maximum load 10 kg
Not in stock · delivery 3-4 days
The SBP-300WMW1 is a white wall mount designed for operating PTZ cameras on a wall construction. Aluminium is used as the material and the finish follows RAL 9003. The bracket measures 112 x 183 x 207.5 mm, weighs 625 g and carries up to 10 kg. Its mount thread size is PF 1 1/2 inch, and supported products are SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1. Aluminium constructionWhite finish, RAL 9003Dimensions 112 x 183 x 207.5 mmWeight 625 gMaximum load 10 kgMount thread PF 1 1/2 inch
In stock, ships immediately · delivery 1-2 days
The SBV-161WCW is a polycarbonate (PC) weather cap finished in white to RAL9003. At 155.3x95.8x62.2mm and 49g it stays small and light. The cap is intended for the XNV-C6083R, XNV-C7083R, XNV-C8083R and XNV-C9083R. Further compatible models are listed on the manufacturer's website or in the Toolbox. Polycarbonate weather capWhite, RAL9003Dimensions 155.3x95.8x62.2mmWeight 49gSupports XNV-C6083R to XNV-C9083R
Not in stock · delivery 3-4 days
The SBV-180BW is an aluminium back box finished in white to RAL9003. It measures ø183.8x51mm, weighs 650g and supports a load of up to 5kg. The conduit hole is 19.1mm (3/4", M25) and the mount screw size is TR20; no certification is stated for this part. Supported cameras are the XND-C6083RV, XND-C7083RV, XND-C8083RV, XND-C9083RV, XNV-6083R, XNV-8083R, XNV-8093R and XNV-9083R. Aluminium back boxWhite, RAL9003Dimensions ø183.8x51mm, 650gMax. load 5kgConduit hole 19.1mm (3/4", M25)Mount screw size TR20
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- PND-A9081RV
- EAN / GTIN
- 8801089190963
- Weight
- 2.6 kg
- Dimensions (W×H×D)
- 437 × 213 × 194 mm

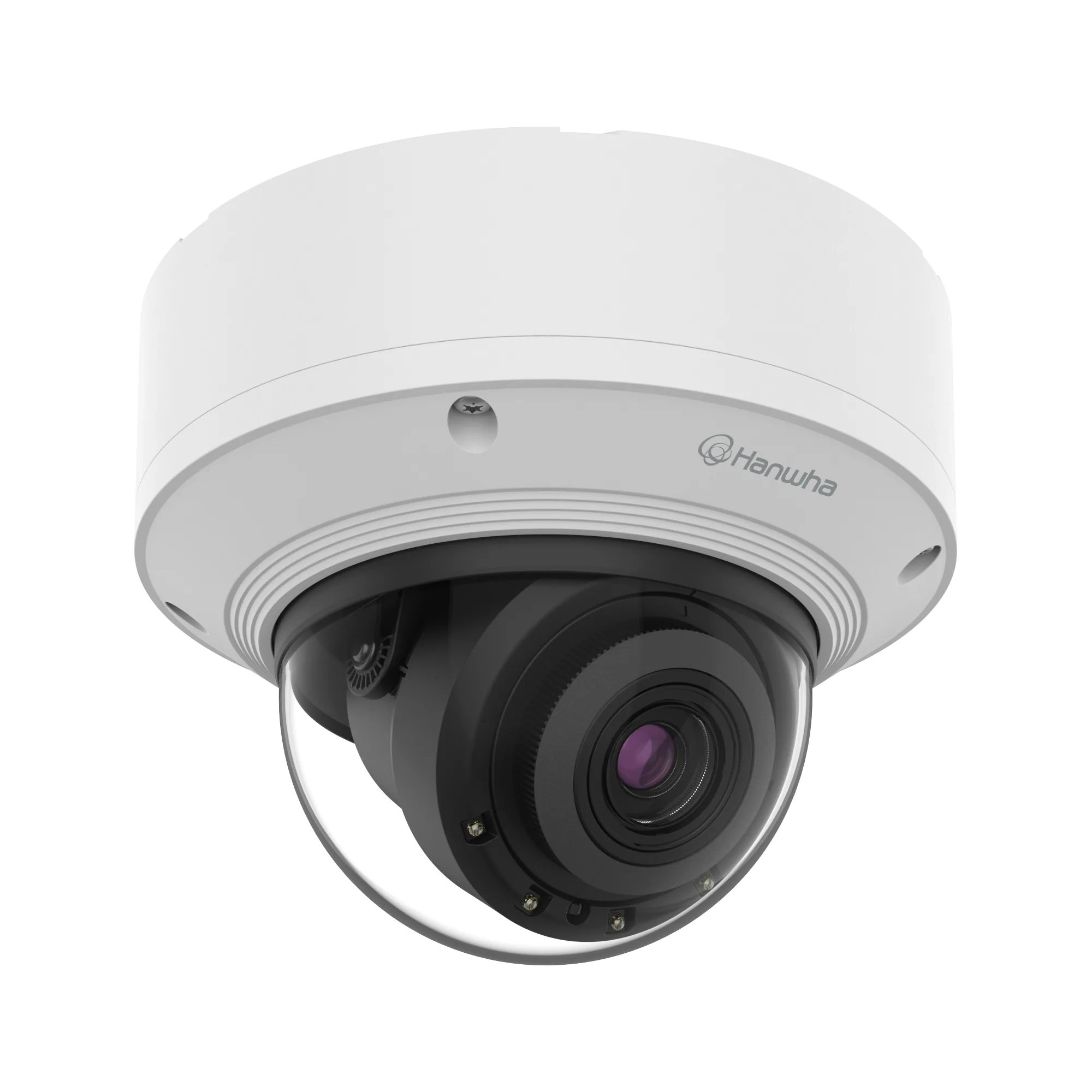

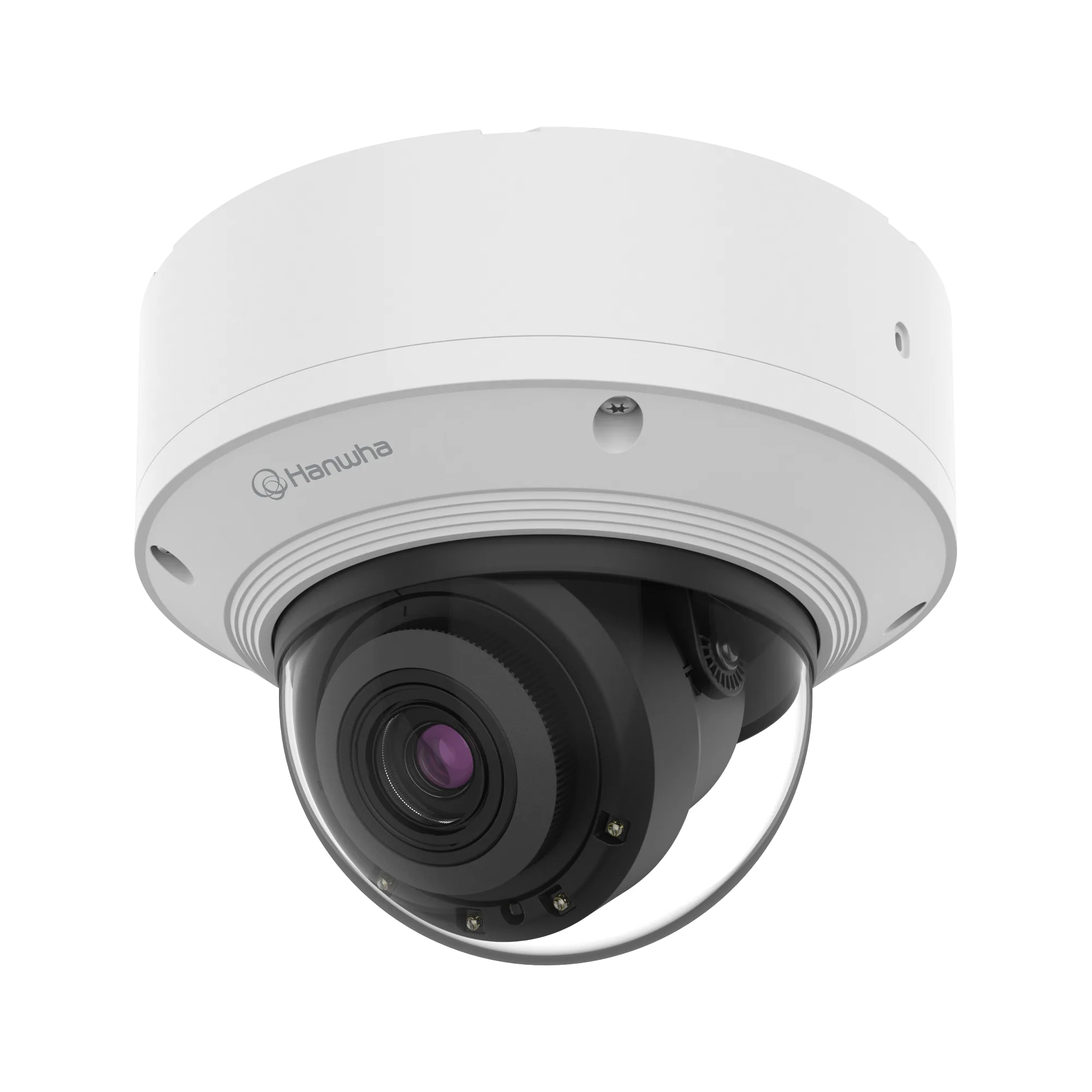

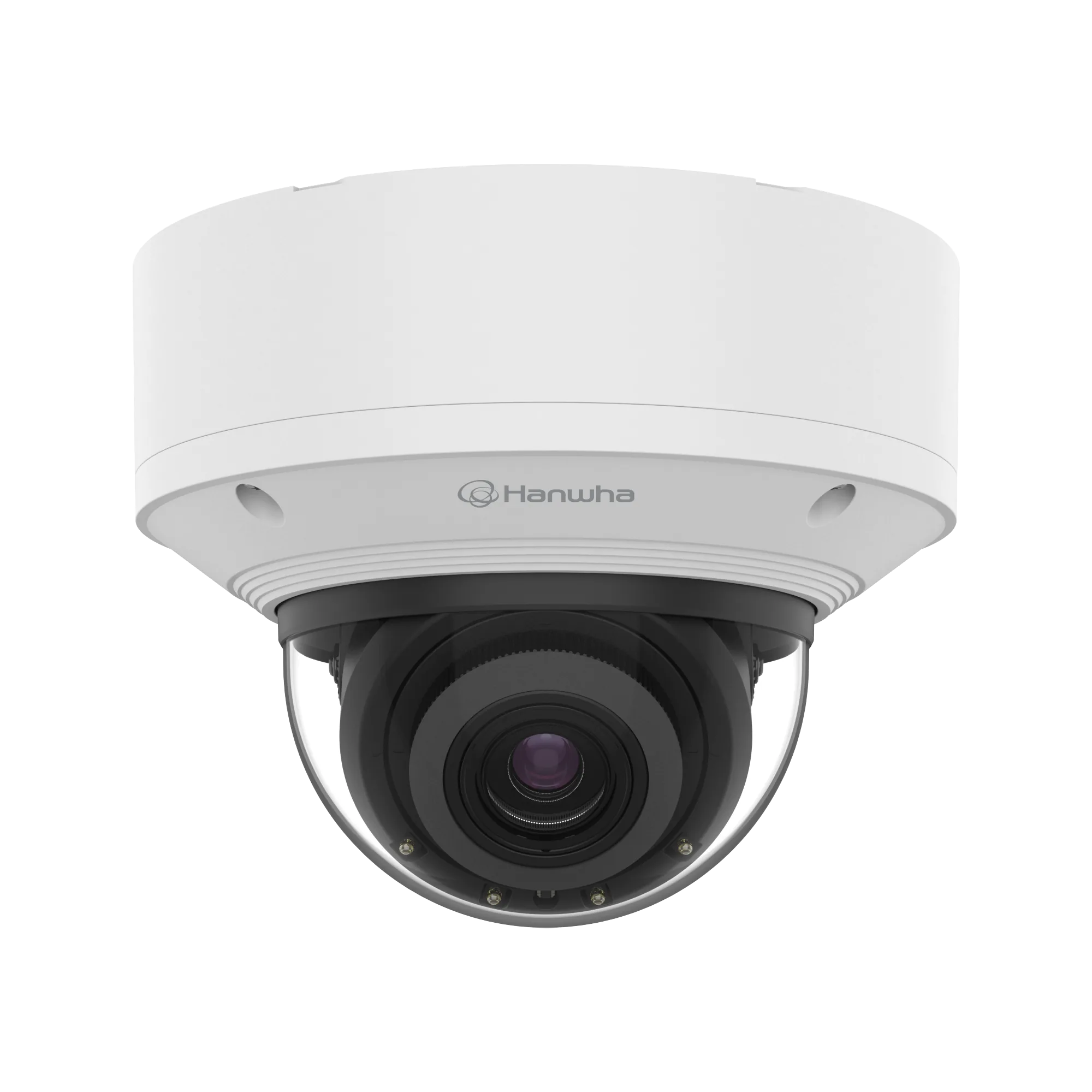

Description
The PND-A9081RV is a dome network camera with deep-learning based AI video analytics. A 1/1.8-inch CMOS sensor supplies up to 3840x2160 pixels, running at 30fps/25fps (60Hz/50Hz) in H.265 and H.264 and at 30fps in MJPEG, with H.265, H.264 and MJPEG codecs alongside WiseStream II. Focal length spans 4.5 to 10 mm at 2.2x optical zoom, with F1.6 at the wide end, F2.65 at tele and a horizontal field of view of 101.4° to 45.5°. Low-light figures are given as 0.05 lux in colour and 0.005 lux in black and white, backed by ICR day and night switching and 120 dB WDR. Mechanical adjustment covers 0° to 360° pan, -45° to 85° tilt and 0° to 355° rotation; minimum object distance is 0.5 m.
- 1/1.8-inch CMOS sensor
- Up to 3840x2160 resolution
- 4.5-10 mm lens, 2.2x optical
- 0.05 lux colour / 0.005 lux BW
- 120 dB WDR, day and night (ICR)
- Deep-learning AI video analytics
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (8)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip & fall detection
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), WiseDetector for adding custom objects
- Analytics / Attributes – Face
- Age, Gender, Face mask, Glasses
- Analytics / Attributes – Person
- Upper/Lower clothes color, Gender, Bag
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
- Analytics – Classified Object Type
- Person, Face, Vehicle, License plate
- Analytics – Thumbnail
- BestShot
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 185.4m(608.31ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 62.2m(204.04ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 18.5m(60.83ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 6.2m(20.40ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 74.2m(243.32ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 24.9m(81.62ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 37.1m(121.66ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 12.4m(40.81ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -25°C~+50°C(-13°F~+122°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max 17.70W, typical 14.00W
- Environmental & Electrical / Power Consumption – PoE
- Max 20.00W, typical 16.00W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 120.7°~52.3°
- Lens / Angular Field of View – Horizontal
- 101.4°~45.5°
- Lens / Angular Field of View – Vertical
- 53.6°~25.5°
- Lens / Max Aperture Ratio (F number) – Tele
- 2.65
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 2.2x
- Lens – Focal Length (mm)
- 4.5~10
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- P iris(IR corrected)
- Lens – Min. Object Distance
- 0.5m(1.64ft)
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- 12.7mm(1/2")(M20)
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum, Hard-coated dome
- Mechanical – Product Dimensions
- ø160x125mm(6.30x4.92")
- Mechanical – Product Weight
- 1.60Kg (3.53lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 6 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (24)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Alarm Interface – Others
- 12VDC output
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/12,000sec
- Operational / Light Viewable Length – IR
- WiseIR 30m(98.42ft)
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Black, White
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in), Built-in mic
- Operational – Audio Out
- Line out
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Gain Control
- Low, Middle, High
- Operational – IR Wavelength
- 850nm
- Operational – LDC
- Support
- Operational – Light Type
- IR LED
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~355°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -45°~85°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Size
- 1/1.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.005
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.05
- Video – Resolution
- 3840x2160, 3072x1728, 2688x1520, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
