Industrial 4-Port 30W PoE + 2-Port SFP + 2-Port RJ45 Gigabit Switch
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- D40-044-30
- EAN / GTIN
- 4711502640637
Description
Industrial switch with eight Gigabit ports: four IEEE 802.3at PoE ports at 30 W each, two further RJ45 ports and two SFP slots for a fibre uplink. The PoE budget is 120 W. Built for use outside heated rooms: operating range -40 °C to 75 °C, IP30, 6 kV surge protection per PoE port, DIN-rail or wall mounting. Switching capacity is 16 Gbit/s at 11.904 Mpps, jumbo frames reach 9,216 bytes and IEEE 802.3az reduces idle losses.
Made by

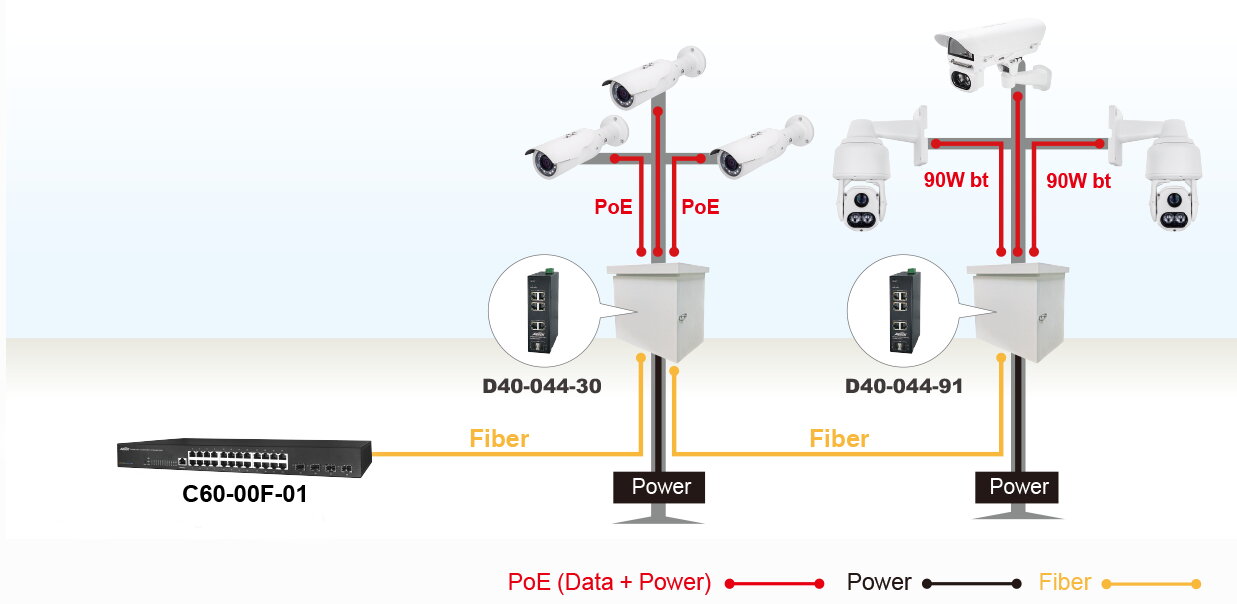

AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (6)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Freefall
- EN 60068-2-31
- Safety
- EN62368-1
- Shock
- EN 60668-2-27
- Surge
- EN61000-4-5
- Vibration
- EN 60068-2-6
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 5% ~ 95% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C~ 75°C (-40°F~ 167°F)
- Environmental Specifications – Storage Temperature
- -40°C~ 85°C (-40°F~ 185°F)
Mechanical Specifications (3)
- Mechanical Specifications – Connectors
- RJ45 x 6, SFP x 2, Terminal Black x2
- Mechanical Specifications – Dimensions (L x W x H)
- 43.5 x 122 x 150 mm
- Mechanical Specifications – Weight
- 0.8KG
Networking Specifications (9)
- Gigabit PoE Port (10M/100M/1G)
- 4 x 30W PoE
- Gigabit Port(RJ45)
- 2
- Networking Specifications – 30W IEEE802.3 at Power over Ethernet
- support
- Networking Specifications – Forwarding Capacity
- 11.904Mpps
- Networking Specifications – Jumbo Frames
- 9,216 Bytes
- Networking Specifications – Mac Table
- 4k
- Networking Specifications – Switching Capacity
- 16 Gbps
- SFP slot (1G)
- 2
- Total Gigabit Port
- 8
Power Specifications (6)
- Power 1 : Input Voltage
- 48VDC ~ 56VDC
- Power 2 : Input Voltage
- 48VDC ~ 56VDC
- Power Specifications – Output Voltage Range / per PoE Port 48~56 VDC PoE IEEE 802.3af (Max. 15.4W) output PoE+ IEEE802.3at (Max. 30W) output PSE Power Pin Assignment
- 12(+), 36(-)
- Power Specifications – PoE Power Budget
- 120W
- Power Specifications – Surge Protection /each PoE Port
- 6KV
- Switch power consumption
- 5W
