Ceiling bt PoE Switch
This article is being discontinued and will not be restocked. Ask us about remaining stock and successor models.
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories
Unmanaged Gigabit switch with six ports, four of them delivering IEEE 802.3bt PoE at up to 90 W — enough for devices above the 25.5 W line such as IR PTZ cameras, multi-sensor cameras and runs with high cable loss. Two further RJ45 ports serve as uplink. Every PoE port carries 6 kV surge protection. Switching capacity is 12 Gbit/s at 11.904 Mpps, the MAC table holds 8,000 entries and jumbo frames up to 9,216 bytes are supported. The switch follows IEEE 802.3az and mounts in a 19-inch rack.
Not in stock · delivery 2-3 weeks
Unmanaged switch with four PoE ports to IEEE 802.3bt up to 90 W, two Gigabit RJ45 ports and two SFP slots. The 90 W per port is meant for devices that need more than the 25.5 W of an at port: IR PTZ and multi-sensor cameras, and runs with long cable. The PoE budget is 720 W and the switching capacity 24 Gbit/s. Every PoE port carries 6 kV of surge protection. Supply 100 to 240 V AC. 19-inch form, 440 × 200 × 44 mm, weight 3.5 kg. Four PoE ports to IEEE 802.3bt up to 90 WTwo Gigabit RJ45 ports and two SFP slots720 W PoE budget, 24 Gbit/s switching capacityFor IR PTZ and multi-sensor cameras6 kV surge protection per PoE port440 × 200 × 44 mm, 3.5 kg, 19-inch form
Not in stock · delivery 2-3 weeks
Fits
Unmanaged switch with four PoE ports to IEEE 802.3bt up to 90 W, two Gigabit RJ45 ports and two SFP slots. The 90 W per port is meant for devices that need more than the 25.5 W of an at port: IR PTZ and multi-sensor cameras, and runs with long cable. The PoE budget is 720 W and the switching capacity 24 Gbit/s. Every PoE port carries 6 kV of surge protection. Supply 100 to 240 V AC. 19-inch form, 440 × 200 × 44 mm, weight 3.5 kg. Four PoE ports to IEEE 802.3bt up to 90 WTwo Gigabit RJ45 ports and two SFP slots720 W PoE budget, 24 Gbit/s switching capacityFor IR PTZ and multi-sensor cameras6 kV surge protection per PoE port440 × 200 × 44 mm, 3.5 kg, 19-inch form
Not in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- C42-050-30-B
Description

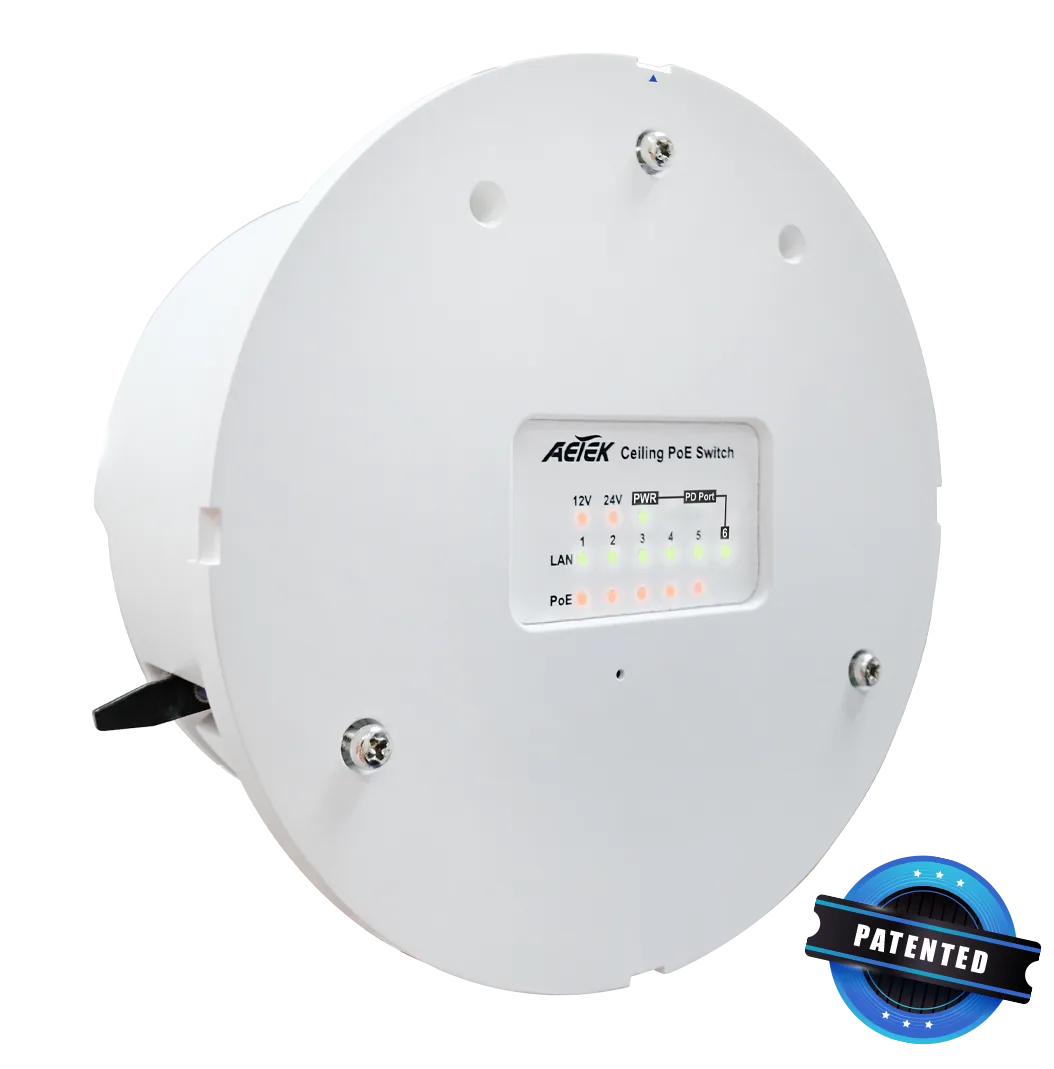

Unmanaged ceiling switch with five PoE outputs and one PoE input, in the version with daisy chaining and additional DC outputs.

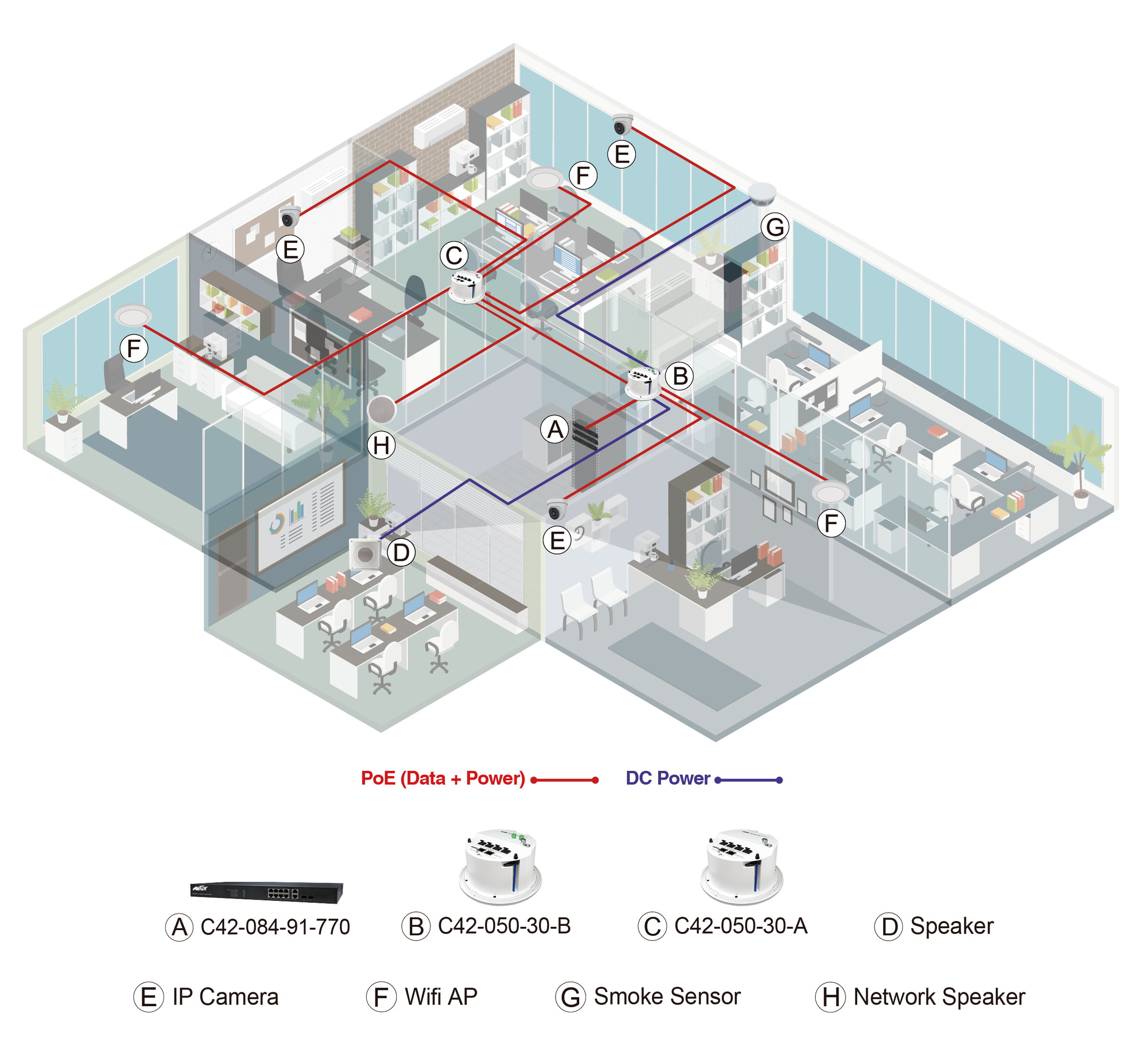

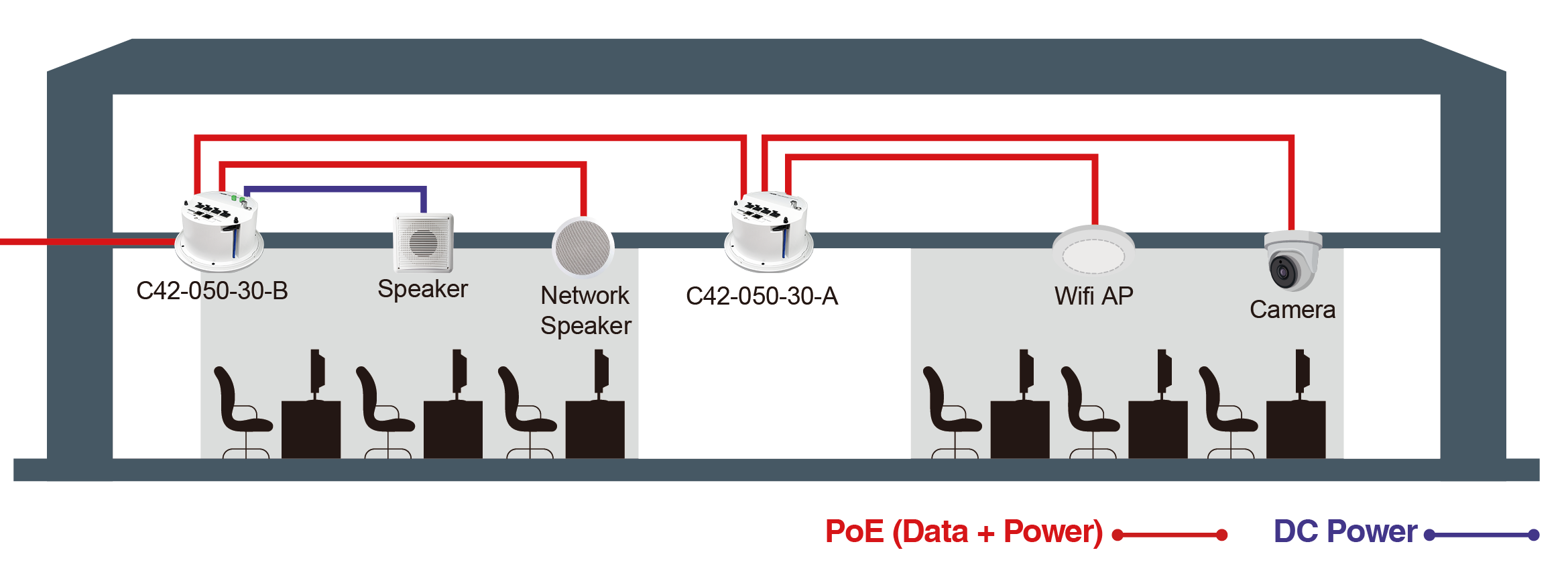

The switch is powered over PoE class 8 (bt) and passes the power on to one bt port and four at ports. The daisy-chain function carries PoE up to 300 m over Cat 5e or Cat 6, so several units can be run in series. Two terminal outputs are provided as well: 12 V / 2.5 A and 24 V / 1.25 A.
Forwarding capacity 8.928 Mpps at 12 Gbit/s switching capacity. Round housing, 185.16 mm diameter, 90 mm high, weight 1 kg, operating temperature 0 °C to 50 °C.
- Five PoE outputs, one PoE input, bt powered
- Daisy chain: PoE up to 300 m over Cat 5e/6
- Two terminal outputs, 12 V / 2.5 A and 24 V / 1.25 A
- One bt output and four at outputs
- 8.928 Mpps, 12 Gbit/s switching capacity
- Round, 185.16 mm diameter, 90 mm high, 1 kg
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- 0°C ~ 50°C (32°F ~ 122°F)
- Environmental Specifications – Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
Mechanical Specifications (5)
- Case material
- PC
- Mechanical Specifications – Dimensions
- H90×φ185.16 mm
- Mechanical Specifications – Weight
- 1KG
- Recommended ceiling opening
- φ150 mm
- Recommended ceiling thickness
- 5 to 45 mm
Network Specifications (9)
- Daisy-Chain
- Support
- Network Specifications – GbE PoE PSE Ports 1 x bt PoE Output 4 x at PoE Output GbE PoE PD Port
- 1 x bt PD Input
- Network Specifications – Jumbo Frames
- 9,216 Bytes
- Network Specifications – LED Indicator
- PWR, LAN, PoE, 12VDC, 24VDC
- Network Specifications – Mac Table
- 8 k
- Network Specifications – Power Input
- Class 8 bt PoE
- Network Specifications – Power Output 12VDC/2.5A x 1, 2Pin Terminal Block 24VDC/1.25A x 1, 2Pin Terminal Block Forwarding Capacity
- 8.928Mpps
- Network Specifications – Reset Button
- Support
- Network Specifications – Switching Capacity
- 12 Gbps
