Indoor L2 PRO 8-Port 30W Gigabit PoE Switch
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inIn stock, ships immediately · delivery 1-2 days
Matching accessories

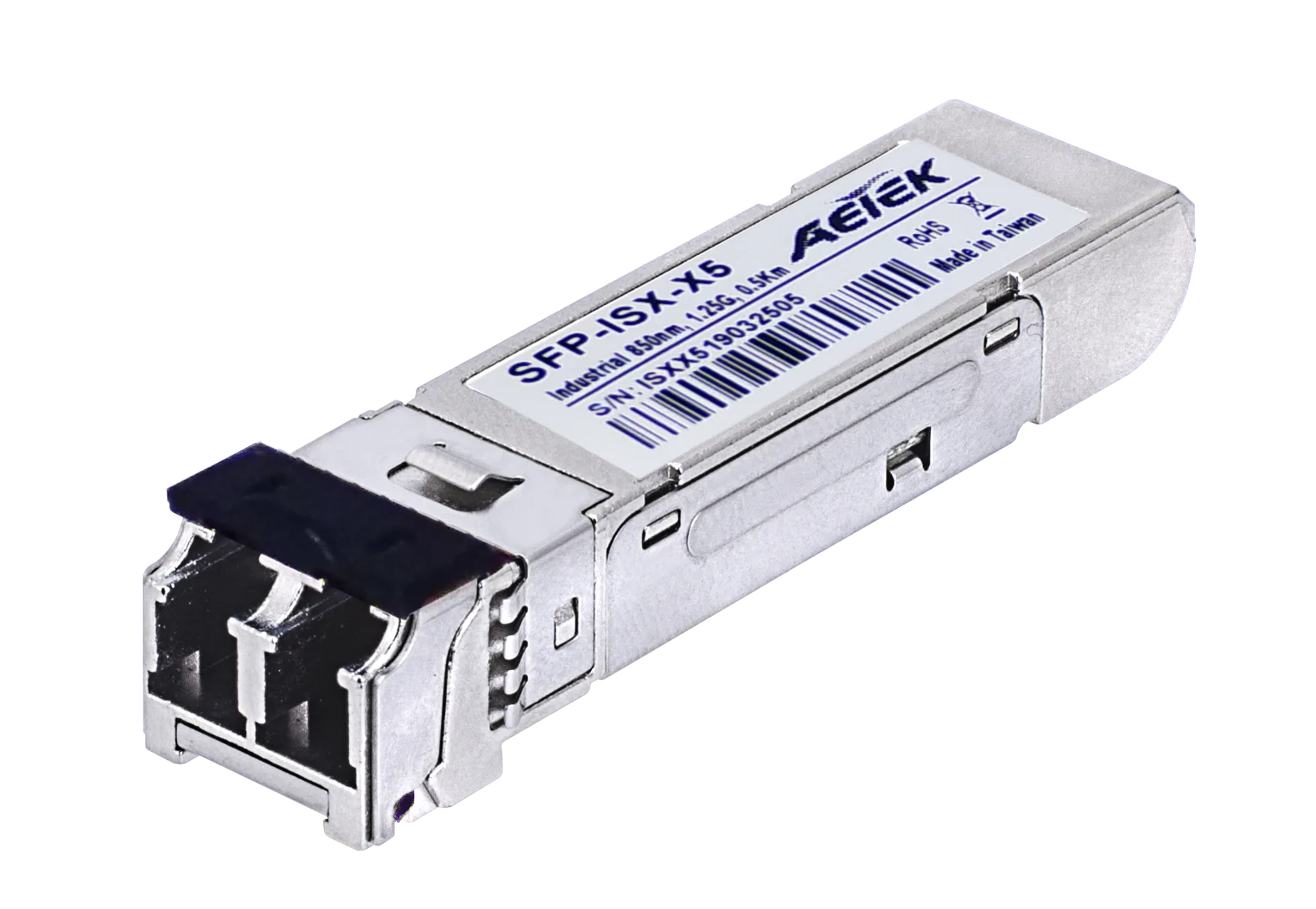

1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 850 nm, reach up to 0,5 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 850 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 0,5 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot
In stock, ships immediately · delivery 1-2 days

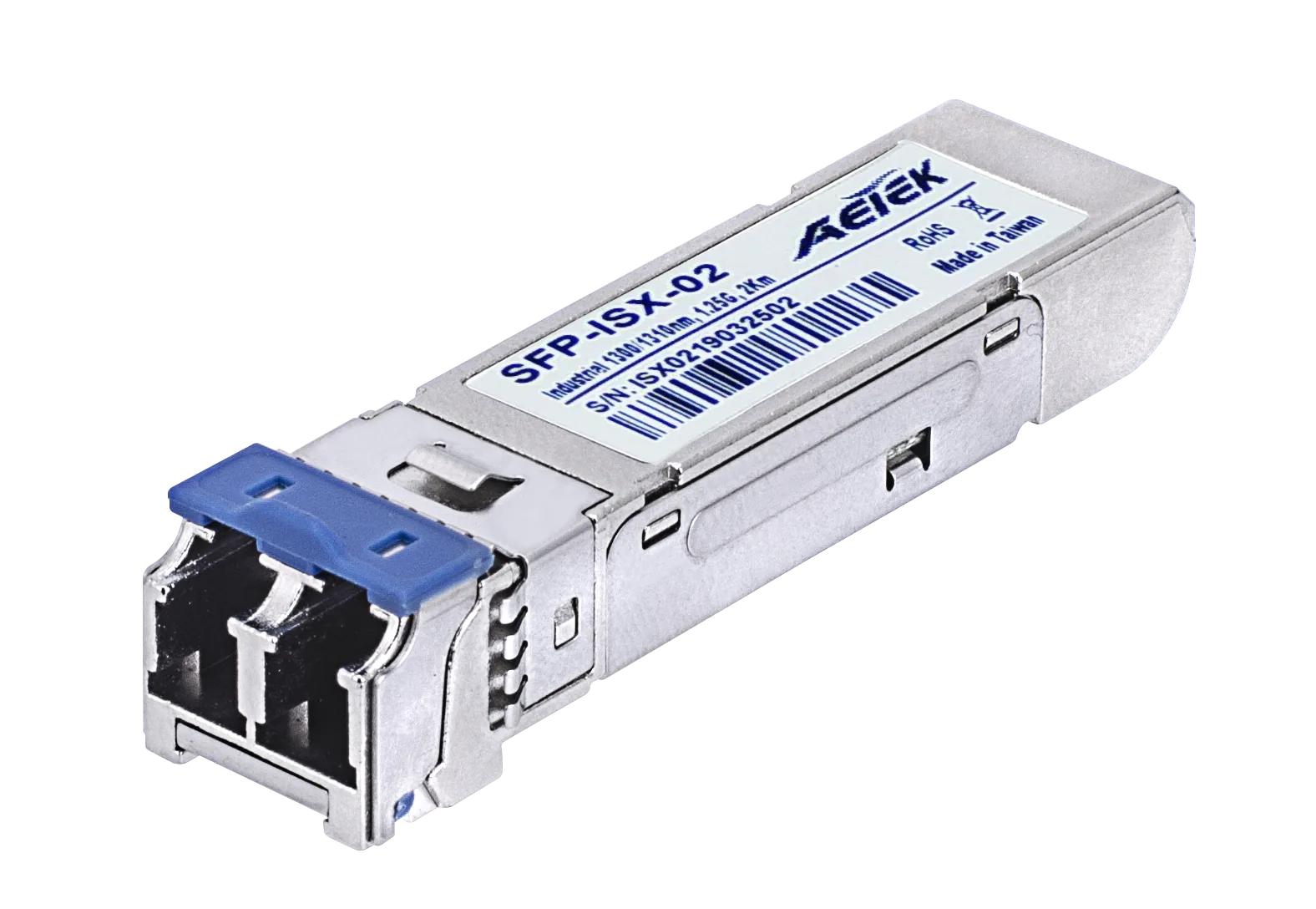

1,25 Gbit/s transceiver in SFP form factor for Multimode 50/125 µm und 62,5/125 µm, industrial grade, wavelength 1310 nm, reach up to 2 km, LC connector. The operating temperature range is -40 °C bis 85 °C; the module draws 3.3 V from the slot. It is intended for the AETEK switches with SFP slots and is hot-pluggable. 1,25 Gbit/s, wavelength 1310 nmFor Multimode 50/125 µm und 62,5/125 µmReach up to 2 kmLC connectorOperating temperature -40 °C bis 85 °C3.3 V supplied by the slot
In stock, ships immediately · delivery 1-2 days
Industrial-grade SFP transceiver for gigabit links over single-mode fibre. It runs at 1.25 Gbps on a centre wavelength of 1310 nm and reaches up to 40 km on 9/125 µm fibre, with an LC connector. The DFB laser diode transmits at -3 to 3 dBm, the receiver works between -3 and -24 dBm, and supply voltage is 3.3 V. Operating and storage range are -40 °C to 85 °C at 5 to 90 % humidity, non-condensing, which covers cabinets without climate control. Form factor 55.9 x 14.69 x 12.39 mm, MSA compliant, certified to IEC 825, EN 60825-1 and FDA 21 CFR 1040.10 and 1040.11.
Not in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- C60-082-30-130-V2
- EAN / GTIN
- 4711502643423
Description

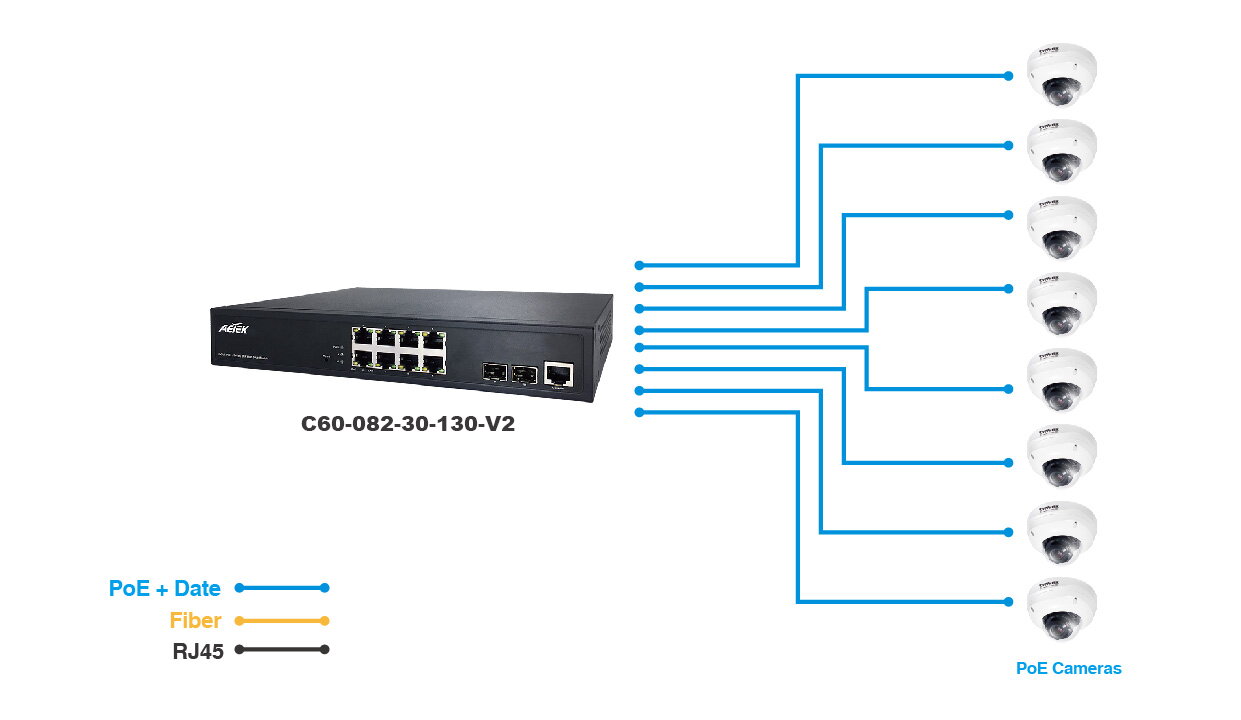

Managed L2 PRO switch with eight Gigabit PoE ports up to 30 W and two SFP slots for 100 Mbit/s or 1 Gbit/s.
The switch is managed through the NTS interface: it discovers ONVIF cameras by itself, draws the topology, shows state, power draw and cable diagnostics per port and allows PoE to be switched off and on. An installer therefore needs no deep knowledge of managed switch configuration.
The PoE budget is 120 W from a 130 W supply and the switching capacity 20 Gbit/s. Every PoE port carries 6 kV common-mode surge protection and the AC supply 4 kV. At idle the switch draws 3.5 W at 110 V and 3.36 W at 240 V. Dimensions 270 × 180 × 44 mm.
- Eight Gigabit PoE ports up to 30 W
- Two SFP slots for 100 Mbit/s or 1 Gbit/s
- 120 W PoE budget, 130 W supply
- 20 Gbit/s switching capacity
- 6 kV surge protection per PoE port, 4 kV on the supply
- NTS interface, 270 × 180 × 44 mm
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental limits (3)
- Environmental limits – Operating Humidity
- 10% to 90% non-condensing
- Environmental limits – Operating Temperature
- 0°C ~ 50°C (32°F ~ 122°F)
- Environmental limits – Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
Mechanical (4)
- Console
- RJ45
- Cooling Fan
- Fanless
- Dimensions (L x W x H)
- 270 x 180 x 44 mm (10.6 x 7.1 x 1.7 in)
- Mechanical Weight
- 1.95 kg (4.3 lb)
Networking (7)
- Networking Forwarding Capacity
- 14.88Mpps
- Networking Jumbo Frames
- 9,216 Bytes
- Networking Mac Table
- 8K
- Networking Switching Capacity
- 20 Gbps
- Networking – Gigabit Ethernet 802.3af/at PoE Ports
- 8
- Networking – Gigabit Ethernet SFP Ports (100M/1G)
- 2
- Networking – Total Gigabit Ethernet Ports
- 10
Power (7)
- ESD
- Contact ±4 KV, Air ±8 KV
- Power Input Power
- 100~240V AC
- Power – Output Power per PoE Port PoE IEEE 802.3af (Max. 15.4W) PoE+ IEEE802.3at (Max. 30W) Output PoE Power Pin Assignment
- 12(+),36(-)
- Power – Power Supply
- 130W
- Power – Standby Power Consumption 110V AC: 3.5W 240V AC: 3.36W PoE Output Power Budget
- 120W
- Surge Protection for AC power
- 4KV
- Surge Protection per PoE Port
- Common mode : ±6 KV
Regulatory/ Approvals (4)
- Regulatory/ Approvals EMC
- CE, FCC, VCCI, C-Tick
- Regulatory/ Approvals MTBF
- > 50000 hours
- Regulatory/ Approvals Safety
- EN62368-1
- Regulatory/ Approvals Surge
- EN61000-4-5
Software function: NTS (Monitoring and management of surveillance) (2)
- Software function: NTS (Monitoring and management of surveillance) – NTS Edge
- support
- Software function: NTS (Monitoring and management of surveillance) – NTS Server
- support
