4xPoE FE + 2xFE EXPoE Switch
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- C11-042-30-065-V2
- EAN / GTIN
- 4711502640217
Description
Unmanaged EXPoE switch with six Fast Ethernet ports, four of them PoE up to 30 W. In EX mode two ports work as EXPoE and two as regular PoE ports.

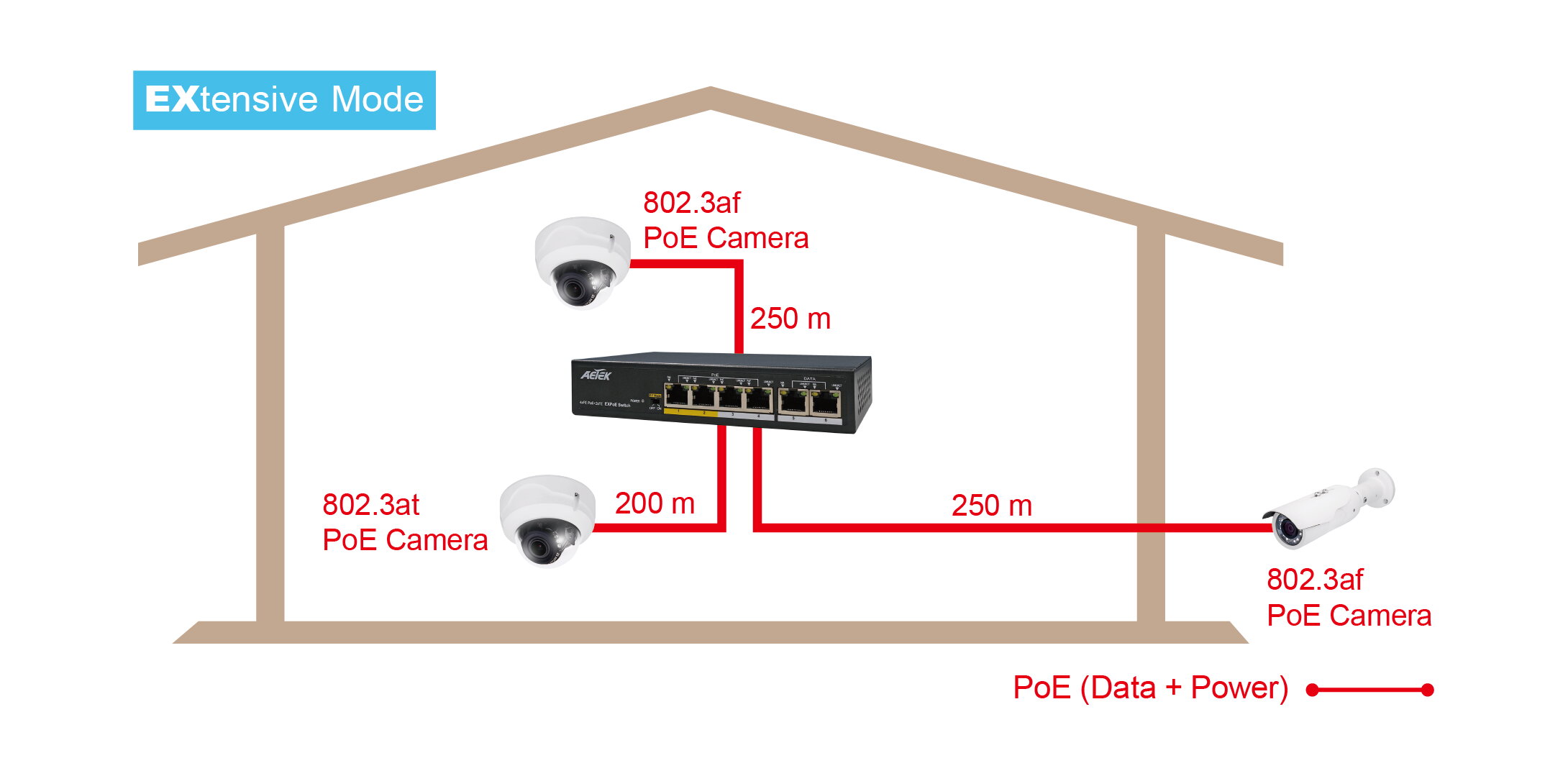

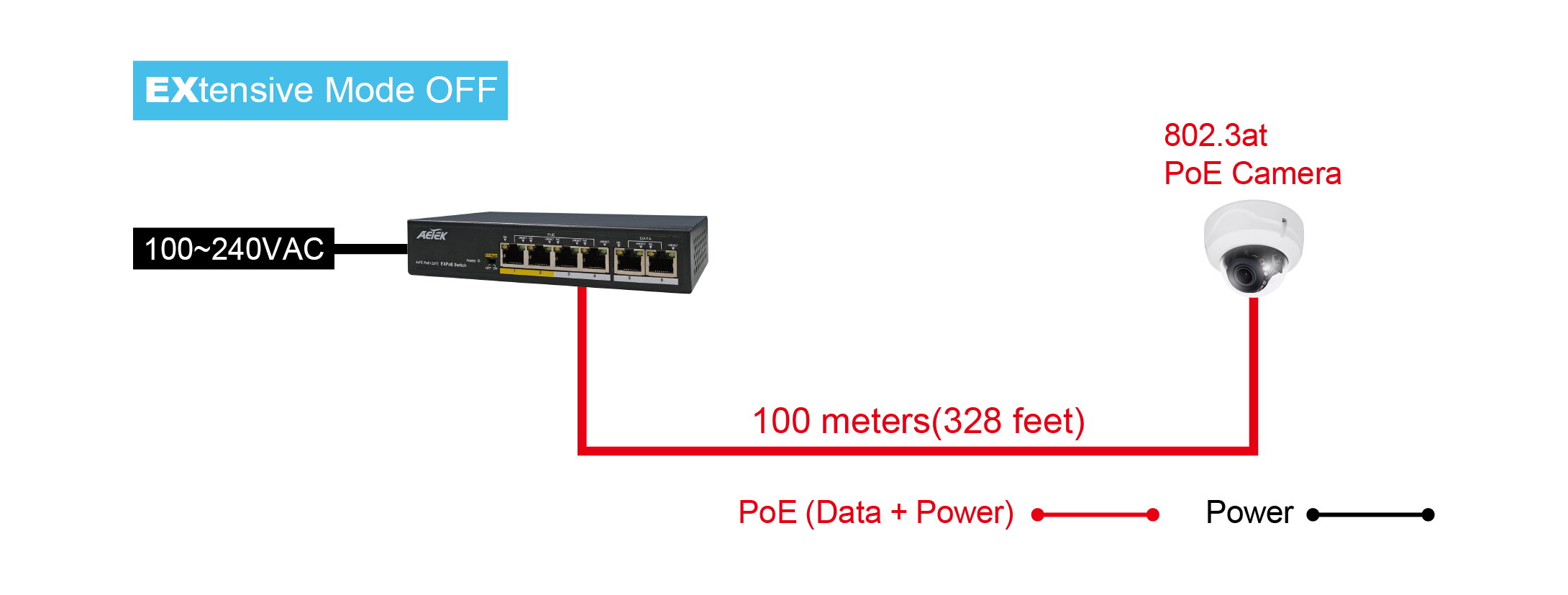

The C11 line are unmanaged indoor switches with EXPoE: a DIP switch turns on the EX mode, which carries picture and power up to 250 m over the ports provided for it, well beyond the 100 m Ethernet over copper otherwise allows. In standard mode every port works normally to IEEE 802.3af and 802.3at.
The PoE budget is 65 W and the switching capacity 1.2 Gbit/s. PoE ports carry 6 kV of surge protection, the AC supply 4 kV. Dimensions 169 × 94.1 × 32 mm, weight 0.5 kg, operating temperature 0 °C to 50 °C.
- Six Fast Ethernet ports, four with PoE up to 30 W
- EX mode: two EXPoE and two PoE ports
- 65 W PoE budget, 1.2 Gbit/s switching capacity

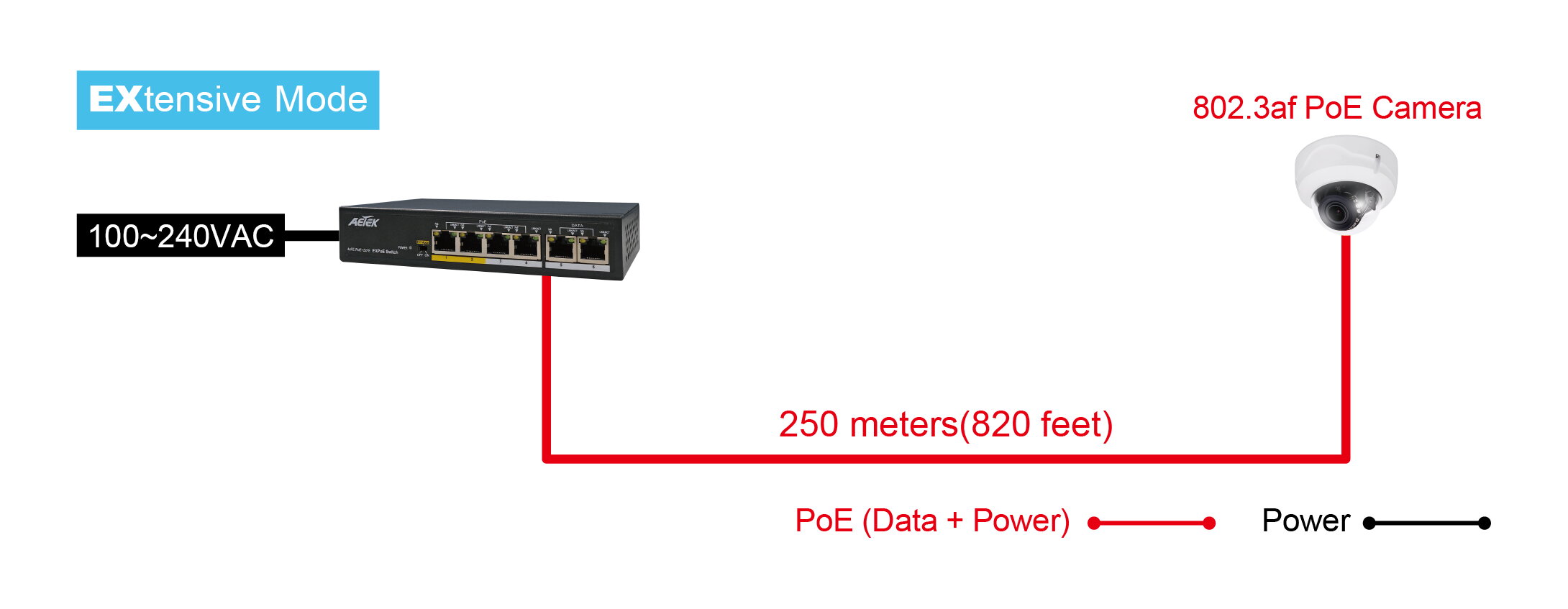

- EXPoE carries up to 250 m instead of 100 m
- 6 kV surge protection per PoE port, 4 kV on the supply
- 169 × 94.1 × 32 mm, 0.5 kg, 0 °C to 50 °C
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (2)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Safety
- EN62368-1, IEC62368-1
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- 0°C ~ 50°C (32°F ~ 122°F)
- Environmental Specifications – Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
Mechanical Specifications (2)
- Mechanical Specifications – Dimensions (L x W x H)
- 169 x 94.1 x 32 mm
- Mechanical Specifications – Weight
- 0.5 kg (1.102 lb)
Network Specifications (6)
- Network Specifications – Jumbo Frames
- 1,536 Bytes
- Network Specifications – Mac Table
- 2K
- Network Specifications – Switching Capacity
- 1.2 Gbps
- PoE Port@EX Mode
- 2x30W EXPoE + 2x30W PoE ports
- PoE Port@ST Mode
- 4x30W PoE ports
- Total Fast Ethernet Ports
- 6
Power Specifications (3)
- AC Power Surge Protection
- 4KV
- Power Budget
- 65W
- Power Specifications – Input Voltage 100VAC ~ 240VAC 280VAC 4Hr 300VAC 1min. Output Voltage Range / Per PoE Port 54 VDC PoE IEEE 802.3af (Max. 15.4W) output PoE+ IEEE802.3at (Max. 30W) output PoE Surge Protection
- 6KV
