Industrial 4-Port 90W bt PoE + 2-Port SFP + 2-Port RJ45 Gigabit Switch
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- D40-044-91
- EAN / GTIN
- 4711502640651
Description

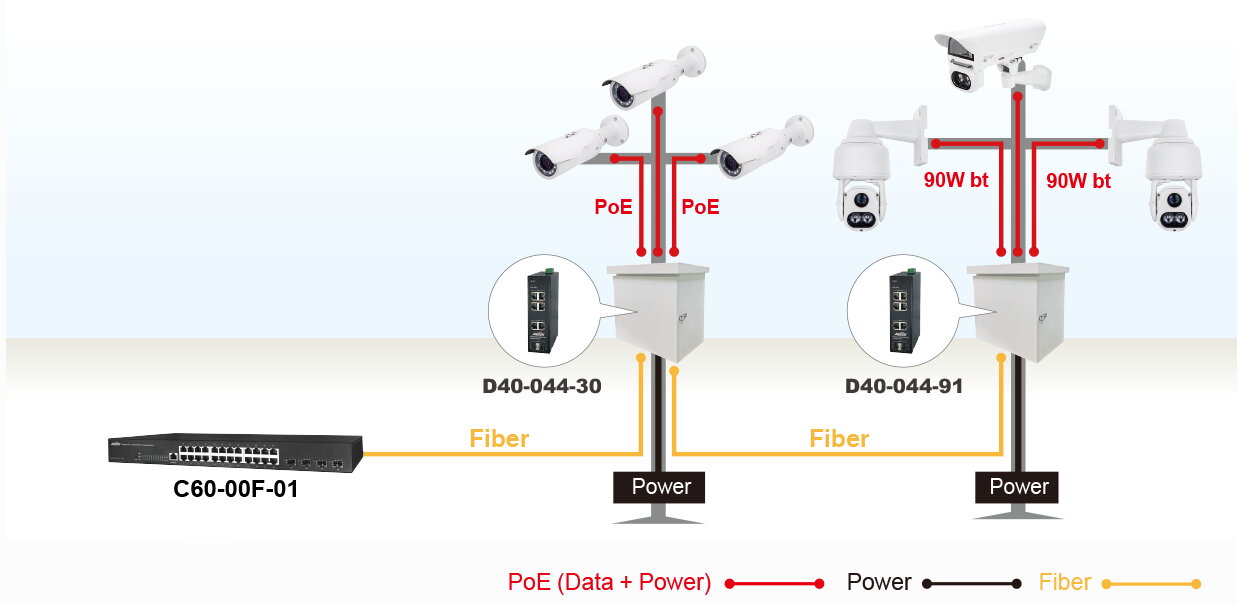

Industrial switch with eight Gigabit ports, four of them IEEE 802.3bt PoE at 60 or 90 W each. The 360 W total budget covers four power-hungry devices at once, heated PTZ housings among them. Two SFP slots and two RJ45 ports handle uplink and downlink. Power input is redundant at 54–56 V DC. Operating range -40 °C to 75 °C, IP30, 6 kV surge protection per PoE port, 16 Gbit/s backplane, DIN-rail or wall mounting.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (6)
- Certifications EMC
- CE, FCC, VCCI, C-Tick
- Freefall
- EN 60068-2-31
- Safety
- EN62368-1
- Shock
- EN 60668-2-27
- Surge
- EN61000-4-5
- Vibration
- EN 60068-2-6
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 5% ~ 95% non-condensing
- Environmental Specifications – Operating Temperature
- -40°C~ 75°C (-40°F~ 167°F)
- Environmental Specifications – Storage Temperature
- -40°C~ 85°C (-40°F~ 185°F)
Mechanical Specifications (3)
- Mechanical Specifications – Connectors
- RJ45 x 6, SFP x 2, Terminal Black x2
- Mechanical Specifications – Dimensions (L x W x H)
- 43.5 x 122 x 150 mm
- Mechanical Specifications – Weight
- 0.9KG
Networking Specifications (10)
- Gigabit PoE Port (10M/100M/1G)
- 4 x 90W bt PoE
- Gigabit Ports (RJ45)
- 2
- Networking Specifications – 30W IEEE802.3 at Power over Ethernet
- support
- Networking Specifications – 90W IEEE802.3 bt Power over Ethernet
- Support
- Networking Specifications – Forwarding Capacity
- 11.904Mpps
- Networking Specifications – Jumbo Frames
- 9,216 Bytes
- Networking Specifications – Mac Table
- 4k
- Networking Specifications – Switching Capacity
- 16 Gbps
- SFP slot (1G)
- 2
- Total Gigabit Port
- 8
Power Specifications (6)
- Power 1 : Input Voltage
- 48VDC ~ 56VDC
- Power 2 : Input Voltage
- 48VDC ~ 56VDC
- Power Specifications – Output Voltage Range /per PoE Port 48~56 VDC PoE IEEE 802.3af (Max. 15.4W) output PoE+ IEEE802.3at (Max. 30W) output bt PoE (Max.60W/90W) output PSE Power Pin Assignment
- 12(-),36(+),45(+),78(-)
- Power Specifications – PoE Power Budget
- 360W
- Power Specifications – Surge Protection /each PoE Port
- 6KV
- Switch power consumption
- 5W
