Indoor L2 PRO Plus 24-Port Gigabit SFP + 4-Port 10G SFP+ Managed Switch
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Product data
- Manufacturer
- AETEK
- Article number
- C70-00F-02
- EAN / GTIN
- 4711502643966
Description

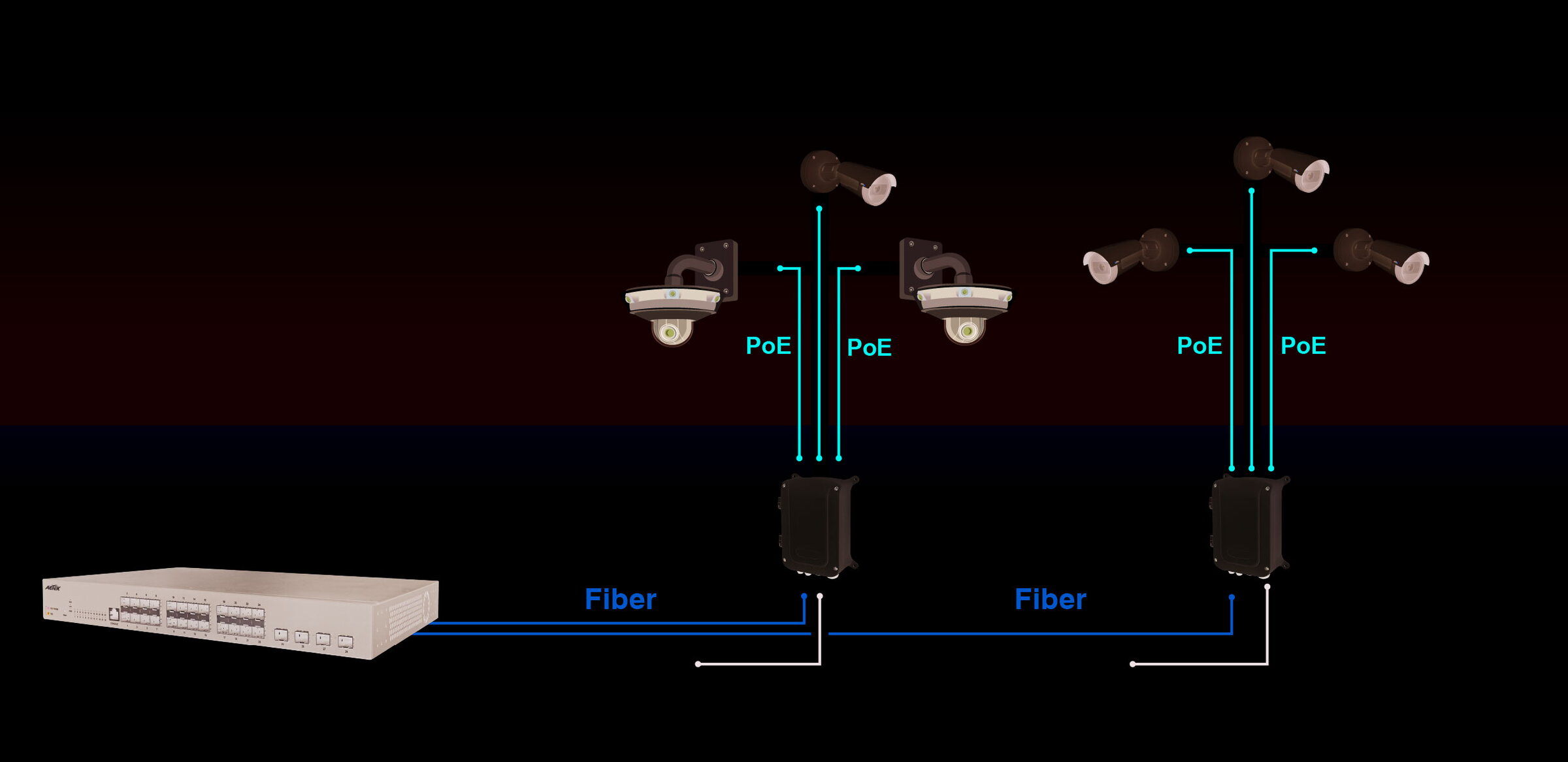

L2 PRO Plus managed switch with 24 Gigabit SFP slots and four 10-Gigabit SFP+ uplinks, intended as the root switch above the H60 outdoor series, the D60 and D62 industrial series or the C60 indoor series. Alongside the layer-2 feature set it handles static routes under IPv4 and IPv6, spanning tree in all three variants, QoS, security functions and SNMP v1/v2c/v3. As a surveillance controller it discovers ONVIF cameras on its own, builds a topology map from them and offers cable diagnostics and traffic reporting.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10 to 95% RH
- Environmental Specifications – Operating Temperature
- 0°C to 50°C (32°F~122°F)
- Environmental Specifications – Storage Temperature
- -20°C to 70°C (-4°F ~ 158°F)
HW Performance (4)
- Forwarding Performance
- 95.232Mpps
- HW Performance Jumbo Frames
- 12 KBytes
- MAC Address
- 32k
- Switching Bandwidth
- 128Gbps
IP Surveillance Graphical User Interface Specifications (5)

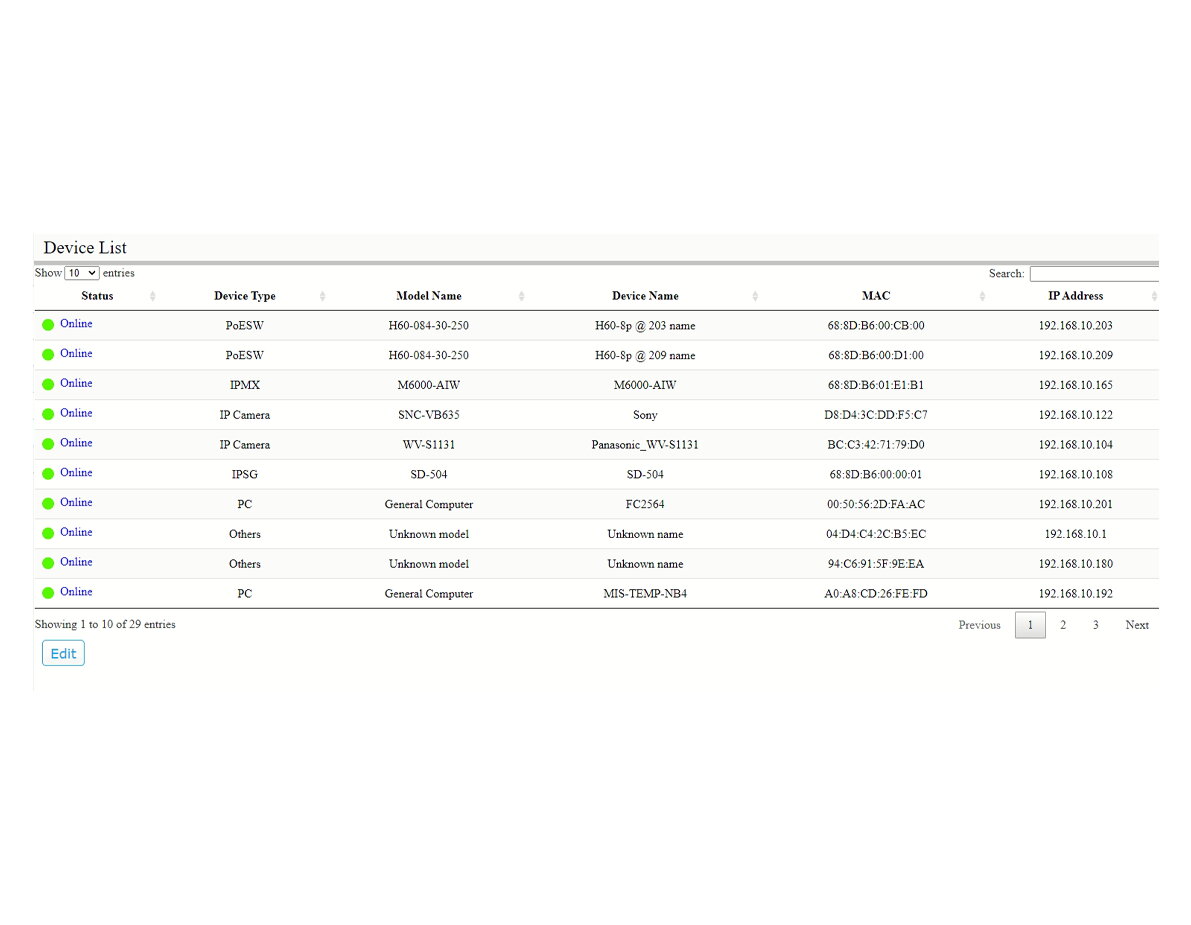

- Auto Discovery
- Discover IP cameras complying ONVIF automatically

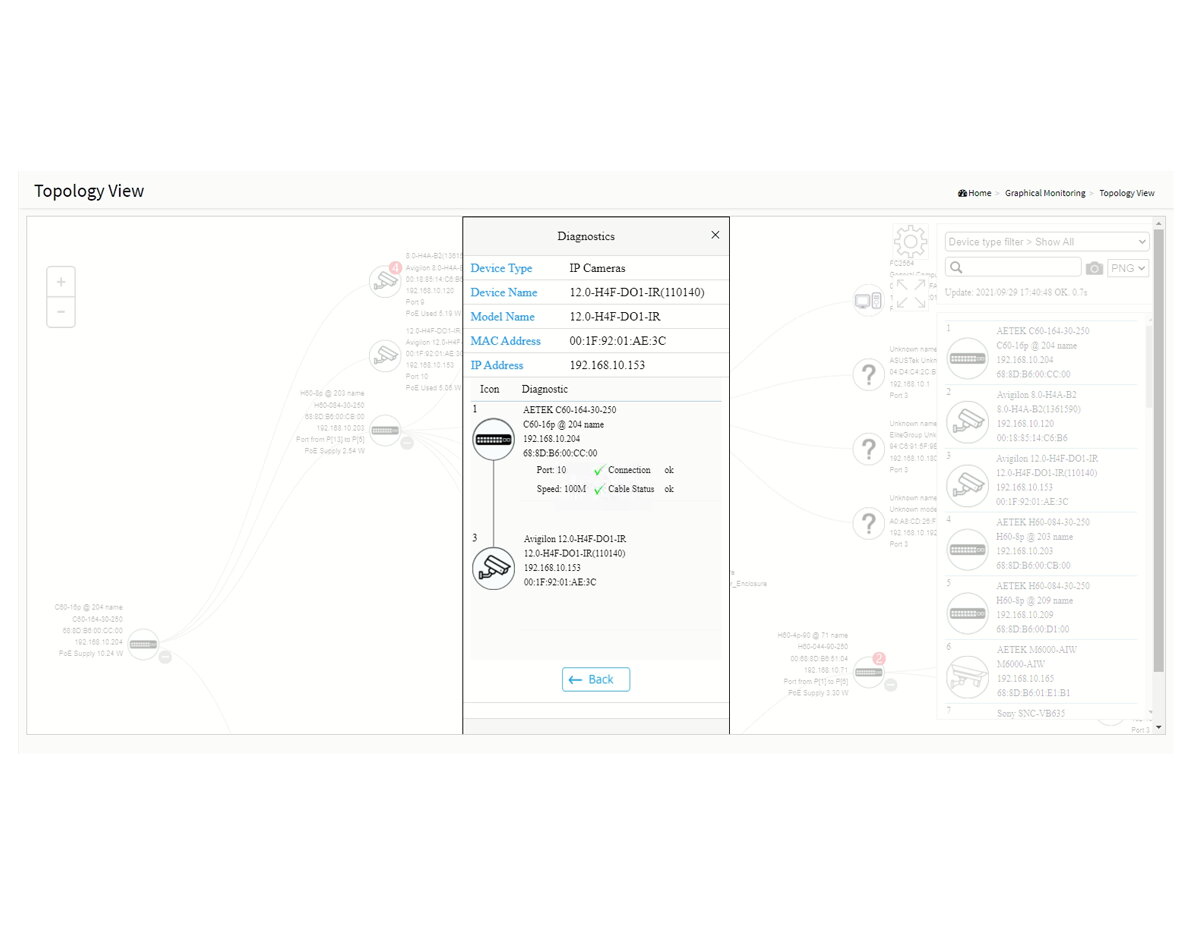

- Cable Diagnostic
- Real time to verify the cable status
- IP Surveillance Graphical User Interface Specifications – PoE Management
- Reboot IP camera, alive checking, PoE configuration, PoE status, Link status

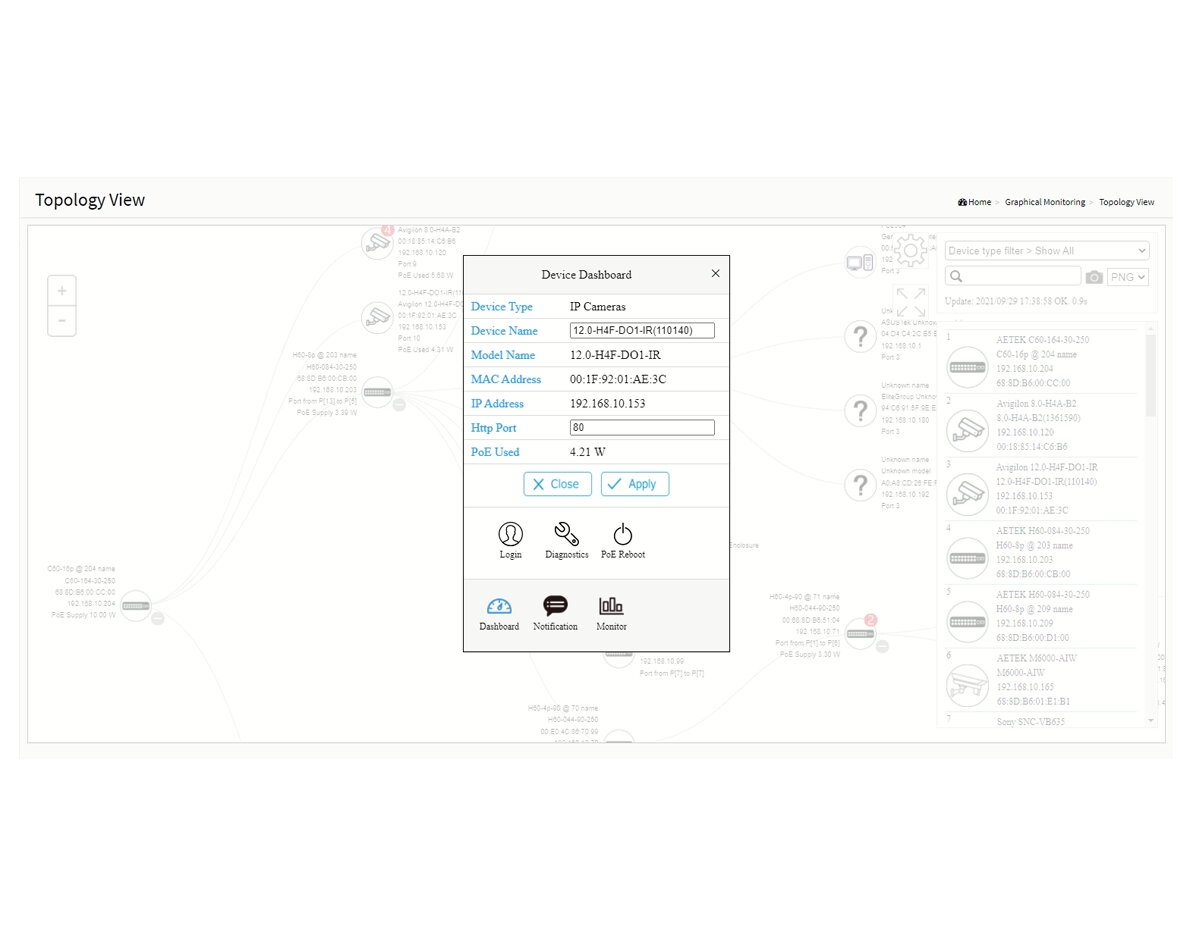

- Topology View
- Generate Topology maps to manage IP cameras
- Traffic Monitor
- Comprehensive chart to show traffic status
Layer 2 Switching Specifications (5)
- IGMP v1/v2 Snooping
- IGMP limits bandwidth-intensive multicast traffic to only the requesters.
- IP/Mac Port Trunking
- Link Aggregation Control Protocol (LACP) IEEE 802.3ad , Static aggregation.
- Layer 2 Switching Specifications – VLAN
- Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs), Port-based VLAN, 802.1Q tag-based VLAN
- Spanning Tree Protocol (STP)
- MAC Bridges Standard Spanning Tree 802.1d, Rapid Spanning Tree (RSTP) 802.1w, Multiple Spanning Tree (MSTP) 802.1s
- Trunking
- Link Aggregation Control Protocol (LACP) IEEE 802.3ad up to 26 groups and up to 4 ports per group
Layer 3 Switching Specifications (3)
- IPv4 Static Routing
- IPv4 Unicast: Static routing
- IPv6 Static Routing
- IPv6 Unicast: Static routing
- Layer 3 Switching Specifications – DHCP Server
- Assign IP to DHCP clients
Management software (8)
- Firmware Upgrade
- Web browser upgrade HTTP and TFTP
- Flow Control
- The IEEE 802.3x standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
- IEEE 802.1ab (LLDP)
- Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- NTP
- Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
- Other Management
- System, HTTP, HTTPS, DHCP Client, Syslog, IPV4/IPV6 Management
- Port Mirroring
- Traffic on a port can be mirrored to another port for analysis with a network analyzer. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
- SNMP
- SNMP version1, 2c, 3
- Web GUI Interface
- Built-in switch configuration utility for browser-based device configuration
Mechanical Specifications (3)
- FAN
- 3
- Mechanical Specifications – Dimensions (W x D x H)
- 441 x 270 x 44 mm
- Mechanical Specifications – Weight
- 3.5 KG
Port Configuration (4)
- 10G SFP+ Port
- 4
- 100M/1G SFP Port
- 24
- Port Configuration – Console port
- RJ45
- Total Ports
- 28
QoS (2)
- Bandwidth Control
- Ingress policer, Egress shaping and rate control, Per port
- Classification
- Port based, 802.1p VLAN priority based
Security (3)
- Loop Protection
- To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
- Port Security
- Locks MAC addresses to ports, and limits the number of learned MAC address
- Storm Control
- Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
