90W bt PoE Switches
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 2-3 weeks
Fits
Unmanaged ceiling switch with five PoE outputs and one PoE input. The switch is itself powered over PoE class 8 (bt) and passes the power on to one bt port and four at ports, so no separate power supply is needed at the ceiling. LEDs show port state directly, which shortens commissioning overhead. Forwarding capacity is 8.928 Mpps at 12 Gbit/s switching capacity. Round housing, 185.16 mm diameter and 90 mm high, weight 0.8 kg, operating temperature 0 °C to 50 °C. Five PoE outputs, one PoE inputPowered over PoE class 8 (bt), no socket neededOne bt output and four at outputsLED per port for commissioning8.928 Mpps, 12 Gbit/s switching capacityRound, 185.16 mm diameter, 90 mm high, 0.8 kg
In stock, ships immediately · delivery 1-2 days

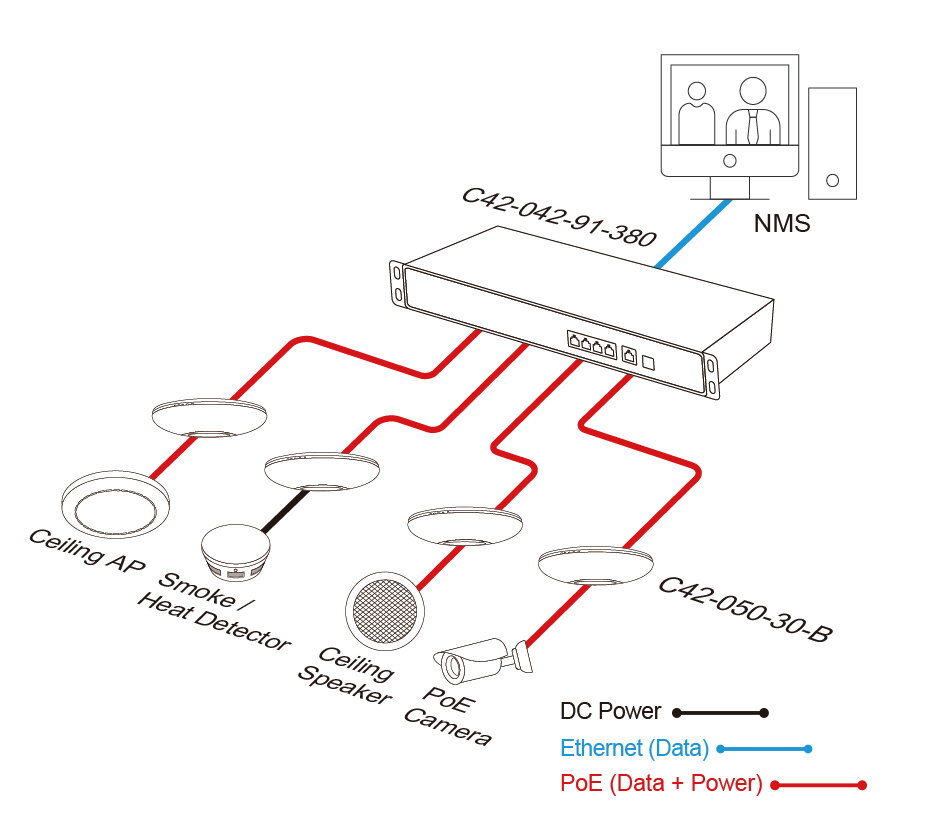

Unmanaged ceiling switch with five PoE outputs and one PoE input, in the version with daisy chaining and additional DC outputs. The switch is powered over PoE class 8 (bt) and passes the power on to one bt port and four at ports. The daisy-chain function carries PoE up to 300 m over Cat 5e or Cat 6, so several units can be run in series. Two terminal outputs are provided as well: 12 V / 2.5 A and 24 V / 1.25 A. Forwarding capacity 8.928 Mpps at 12 Gbit/s switching capacity. Round housing, 185.16 mm diameter, 90 mm high, weight 1 kg, operating temperature 0 °C to 50 °C. Five PoE outputs, one PoE input, bt poweredDaisy chain: PoE up to 300 m over Cat 5e/6Two terminal outputs, 12 V / 2.5 A and 24 V / 1.25 AOne bt output and four at outputs8.928 Mpps, 12 Gbit/s switching capacityRound, 185.16 mm diameter, 90 mm high, 1 kg
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- AETEK
- Article number
- C42-042-91-380
- EAN / GTIN
- 4711502642020
Description

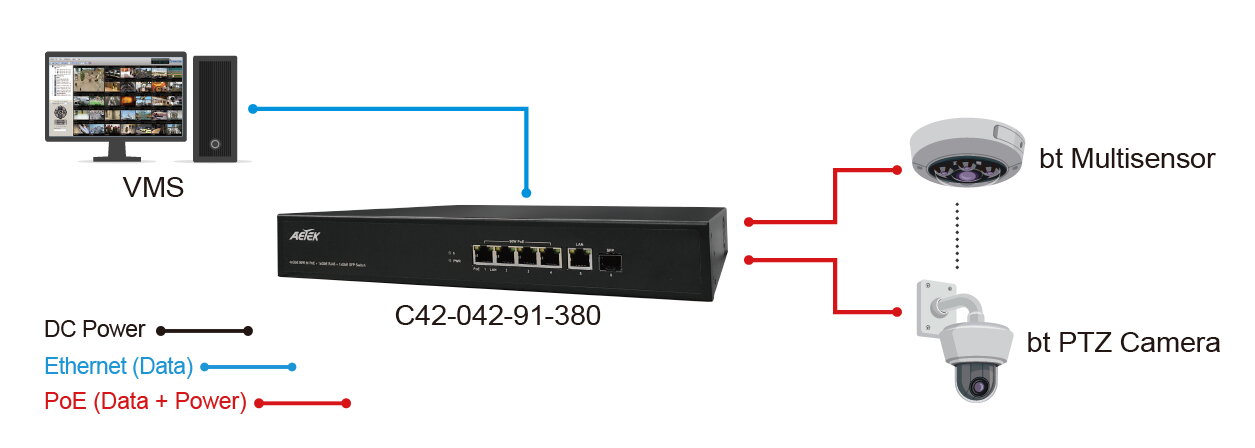

Unmanaged Gigabit switch with six ports, four of them delivering IEEE 802.3bt PoE at up to 90 W — enough for devices above the 25.5 W line such as IR PTZ cameras, multi-sensor cameras and runs with high cable loss. Two further RJ45 ports serve as uplink. Every PoE port carries 6 kV surge protection. Switching capacity is 12 Gbit/s at 11.904 Mpps, the MAC table holds 8,000 entries and jumbo frames up to 9,216 bytes are supported. The switch follows IEEE 802.3az and mounts in a 19-inch rack.
Made by
AETEK builds PoE switches for video security installations: from compact 4-port units to 24-port switches, with PoE+ and PoE++/bt, as desktop, rack and ceiling units with daisy-chain capability, also for outdoors with fibre uplinks. For selection, look at total PoE budget, port count, SFP uplinks and temperature range. Technical data and data sheets on every article, trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications (3)
- Certifications EMC
- CE, FCC, VCCI, C-Tick Class A
- Safety
- EN62368-1
- Surge
- IEC-61000-4-5
Environmental Specifications (3)
- Environmental Specifications – Operating Humidity
- 10% to 90% non-condensing
- Environmental Specifications – Operating Temperature
- 0°C ~ 50°C (32°F ~ 122°F)
- Environmental Specifications – Storage Temperature
- -20°C ~ 70°C (-4°F ~ 158°F)
Mechanical Specifications (2)
- Mechanical Specifications – Dimensions (L x W x H)
- 320 x 207 x 44 mm
- Mechanical Specifications – Weight
- 3KG
Network Specifications (9)
- Auto MDI / MDIX
- Support
- Gigabit RJ45 Port
- 2
- Network Specifications – 1Gbps Full Duplex_100Mbps Full / Half Duplex_10Mbps Full / Half Duplex
- Support
- Network Specifications – Forwarding Capacity
- 11.904Mpps
- Network Specifications – Gigabit PoE Port (10M / 100M / 1G) IEEE 802.3 10BaseT_IEEE 802.3u 100BaseTX_IEEE 803.3ab 1000BaseTX
- 4 x 90W bt PoE
- Network Specifications – Jumbo Frames
- 9,216 Bytes
- Network Specifications – Mac Table
- 8 k
- Network Specifications – Switching Capacity
- 12 Gbps
- Total Gigabit Ports
- 6
Power Specifications (3)
- Power Specifications – Input Voltage
- 100VAC ~ 240VAC
- Power Specifications – Output Voltage Range /per PoE Port 54 VDC PoE IEEE 802.3af (Max. 15.4W) output PoE+ IEEE802.3at (Max. 30W) output PoE++ IEEE802.3bt (Max. 90W) output PoE Power Budget
- 360W
- Power Specifications – Surge Protection / each PoE Port
- 6KV
