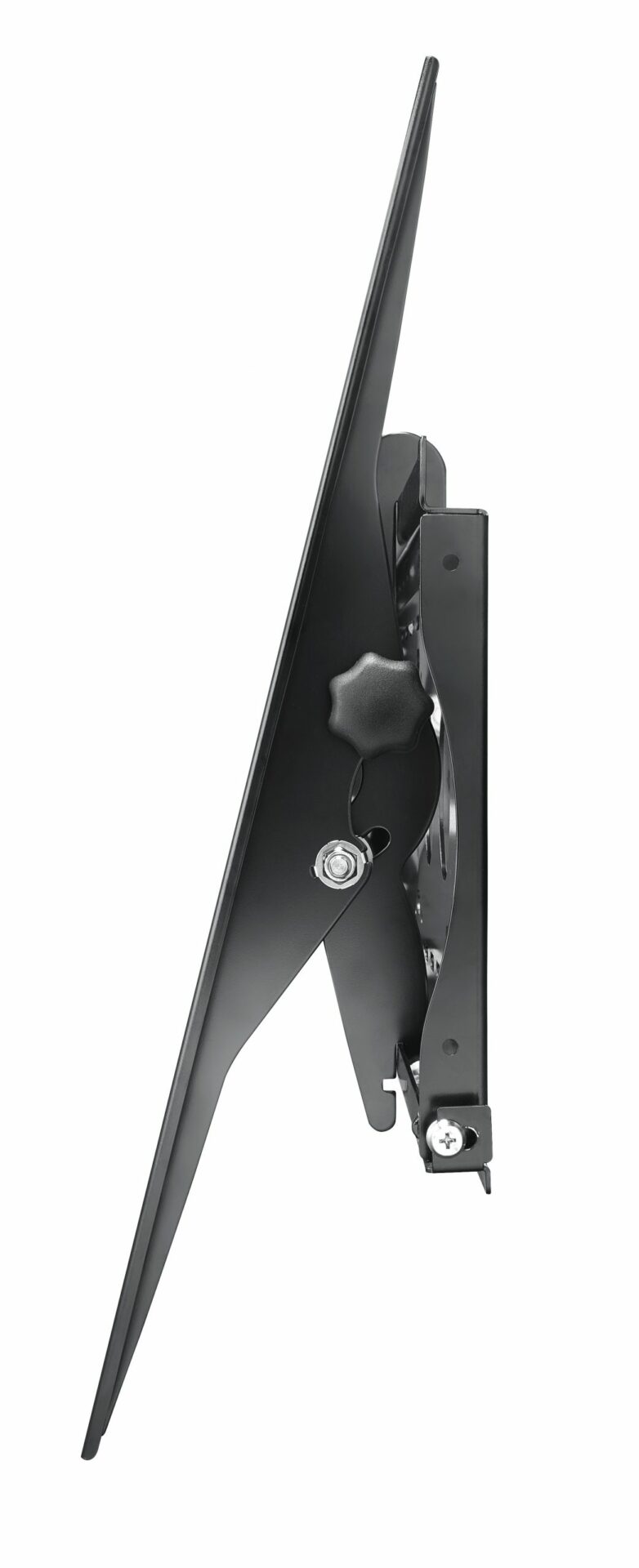

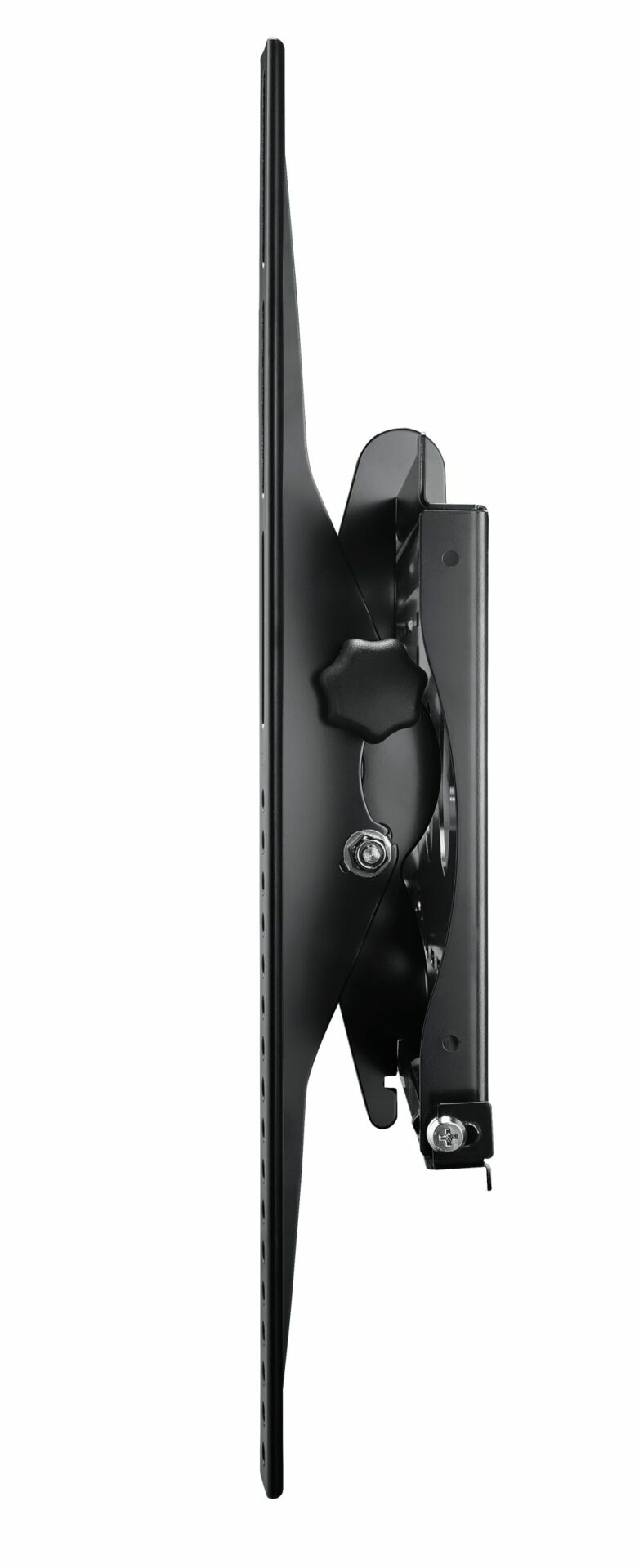

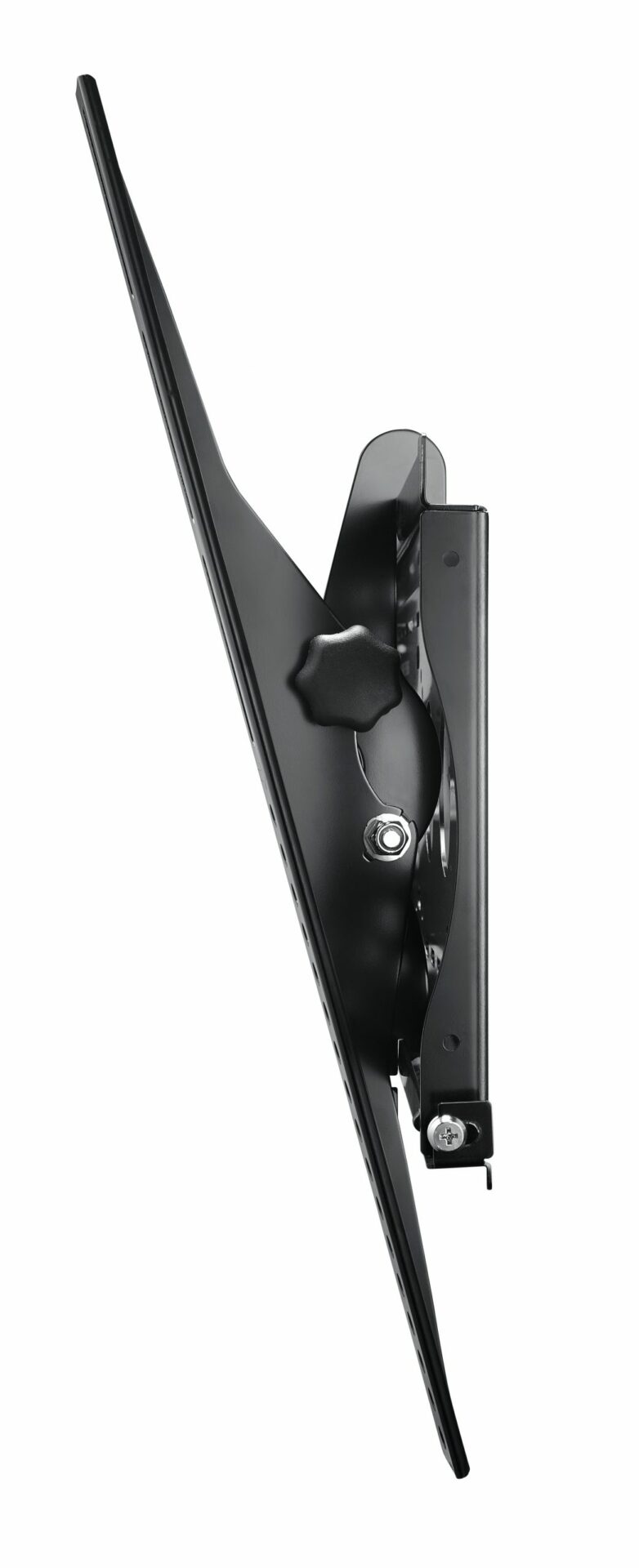

LMK-03, Adjustable Tilting Wall Mount

The HMQ-4301 is a 43-inch monitoring display with an IPS panel and 3840 x 2160 pixels that shows image quality of up to 8MP over an HDMI connection. Its SDI loop-through passes uncompressed 1080p footage from HD-SDI or 3G-SDI cameras on to further SDI devices at ultra-low latency, covering SD-SDI at 480i @60fps and 576i @50fps, HD-SDI at 720p and 1080p, and 3G-SDI at 1080p @50/60fps. Over RG6 coaxial cable the reach is 100M for 3G-SDI, 150M for HD-SDI and 300M for SD-SDI. Inputs comprise Audio, Composite (BNC), DVI-D, HDMI, RJ45, RS232, SDI (BNC), USB Type-A and VGA, with Audio, Composite (BNC) and SDI (BNC) as outputs. A pre-configured CCTV Mode, enhanced gamma selection and black-level adjustment sharpen low-light footage, while the metal casing improves heat dissipation and Anti-burn-in Technology protects 24/7 operation. Brightness is 350~499 cd/㎡ and speakers are rated 5 W x 2. 43-inch, 3840 x 2160, IPS panelSDI loop-through with SD, HD and 3G-SDIUp to 8MP image quality via HDMIInputs incl. DVI-D, HDMI, SDI (BNC), VGA, RS232, RJ45CCTV Mode, gamma selection, black-level adjustmentMetal casing and Anti-burn-in Technology

The HMQ-5501 is a 55-inch surveillance display with UHD 3840 x 2160 (16:9) resolution and 178/178 viewing angles that presents up to 8MP image quality over HDMI. Its SDI loop-through forwards uncompressed 1080p footage from HD-SDI and 3G-SDI cameras to further SDI devices at ultra-low latency, reaching 100M for 3G-SDI, 150M for HD-SDI and 300M for SD-SDI over RG6 coaxial cable. Connections comprise Audio, Composite (BNC), DVI-D, HDMI, RJ45, RS232, SDI (BNC), USB Type-A and VGA inputs plus Audio, Composite (BNC) and SDI (BNC) outputs, with external control over RJ45 or RS232. CCTV Mode, gamma selection and black-level adjustment improve images captured in poor light. Anti-Burn-in Technology, metal casing and HeatControl address 24/7 operation, brightness is 350~499 cd/㎡, speakers are 5 W x 2 and the VESA pattern is 400 x 400 mm. 55-inch, UHD 3840 x 2160 (16:9)SDI loop-through, 3G-SDI 1080p178/178 viewing angles, 350~499 cd/㎡External control via RJ45 and RS23224-7 operation, HeatControl, Anti-Burn-inVESA FPMPMI 400 x 400 mm

The HMQ-6501 is a 65-inch surveillance display with an IPS panel, UHD 3840 x 2160 (16:9) resolution and a 0.372 mm pixel pitch, reproducing up to 8MP image quality over HDMI. Its SDI loop-through hands uncompressed 1080p footage from HD-SDI and 3G-SDI cameras to further SDI devices at ultra-low latency, covering 100M for 3G-SDI, 150M for HD-SDI and 300M for SD-SDI over RG6 coaxial cable. The input side offers Audio, Composite (BNC), DVI-D, HDMI, RJ45, RS232, SDI (BNC), USB Type-A and VGA, the output side Audio, Composite (BNC) and SDI (BNC), and external control runs over RJ45 or RS232. CCTV Mode, gamma selection and black-level adjustment improve footage captured at night or in low light, while Anti-Burn-in Technology and the metal casing back 24/7 operation. Power draw when switched on is 123W, speakers are rated 10W x 2 and the VESA pattern is 600 x 400 mm. 65-inch, UHD 3840 x 2160 (16:9), IPS0.372 mm pixel pitchSDI loop-through, 3G-SDI 1080pExternal control via RJ45 and RS23210W x 2 speakers, VESA 600 x 400 mm24-7 operation, HeatControl, Anti-Burn-in

The HMQ-7501 is a 75-inch surveillance display built on an IPS panel with 3840 x 2160 pixels, a 0.430 mm pixel pitch and 450 cd/m² brightness. Its SDI loop-through over the BNC connectors passes uncompressed 1080p footage from HD-SDI and 3G-SDI cameras onward at ultra-low latency, reaching 100M for 3G-SDI, 150M for HD-SDI and 300M for SD-SDI over RG6 coaxial cable. CCTV Mode, enhanced gamma selection and black-level adjustment bring out detail in dark scenes. The surface carries an anti-glare treatment (Haze 1%) with 3H hard coating, and the metal casing improves heat dissipation for the 24/7 operating time. Power draw is 201W when on and < 0.5W in standby from AC 100-240V, 50/60 Hz, with 15W x 2 speakers and a VESA 800 x 400 mm pattern. 75-inch, IPS panel, 0.430 mm pixel pitch450 cd/m² brightnessSDI (BNC) input and outputAnti-glare treatment (Haze 1%), 3H hard coating24/7 operating time15W x 2 speakers, VESA 800 x 400 mm

The IFP-6504P is an interactive whiteboard display using a 64.5" IPS panel with a 0.372 mm pixel pitch and an anti-glare treated surface (Haze 25%) with 2H hard coating. Operation runs through an infrared touch frame with ± 1mm positional accuracy; multi-touch handles 40 points on Windows 7/8/10/11 and 20 points on Android, Linux (kernel 3.5 above) and Chrome 39 or above, while single touch adds Windows 2000/XP/Vista/CE 6.0 and macOS. Built in are an 8M camera, an 8-array microphone, 15W x 2 speakers, two RJ45 ports and an OPS slot, with Audio and HDMI as outputs. Supplied items include an active pen, stylus, remote control, HDMI cable, USB cable, power cord, wall mount, Wi-Fi / Bluetooth and a quick start guide. Power draw is 185W from AC100~240, 50Hz~60Hz, and the unit carries CE, LVD, RoHS, WEEE and REACH marking. 64.5" IPS panel, 0.372 mm pixel pitchInfrared touch frame, ± 1mm accuracy40 point multi-touch on Windows 7/8/10/118M camera and 8-array microphoneOPS slot, 15W x 2 speakers, RJ45 x 2CE, LVD, RoHS, WEEE, REACH

The IFP-7504P is an interactive whiteboard display with a 74.5" IPS panel, a 5 ms response time and brightness of 350~499 cd/㎡. Its surface combines anti-glare treatment (Haze 25%) with a 3H hard coating, input runs through an infrared touch frame, and single touch also covers Windows 2000/XP/Vista/CE 6.0 and macOS. Equipment includes an 8M camera, an 8-array microphone, 15W x 2 speakers, an OPS slot, two RJ45 ports and Audio plus HDMI outputs; external control uses RJ45 and RS232 on a 9-pin D-Sub, and the audio output supports S/PDIF. An active pen, stylus, remote control, HDMI cable, USB cable, power cord, wall mount, Wi-Fi / Bluetooth and a quick start guide are supplied. Maximum power draw is 420W from AC100~240, 50Hz~60Hz, the temperature range spans -10°C-60°C, and CE, LVD, RoHS, WEEE and REACH are declared. 74.5" IPS panel, 5 ms response timeInfrared touch frame8M camera and 8-array microphoneOPS slot, 15W x 2 speakers, RJ45 x 2External control via RJ45 and RS232CE, LVD, RoHS, WEEE, REACH

The NSD-5503 is an all-in-one digital signage display with a 54.6 inch panel and 4K UHD output. Playback is handled by a built-in Android 9.0 system with an A35*4 CPU, 2G of memory and 16G of storage, controlled through the built-in OS, a mobile app, RJ45 or RS232. Brightness is quoted at 500 cd/m² and contrast at 4000:1, while three HDMI 2.0 inputs and two USB 2.0 ports (service port / media playback) serve sources and media. Frequency coverage is 18kHz-135kHz horizontal and 24Hz-60Hz vertical, with 89W drawn in on mode and up to 140W maximum. The VESA pattern measures 300mm*400mm and the matching wall mounts are LMA-01, LMA-02 and WMK-04. The display is IP5X rated and weighs 17.6 kg without base; an HDMI cable, power cord, quick start guide, remote control and wall mount are supplied. Android 9.0, A35*4 CPU, 2G / 16G54.6 inch panel, 4K UHD500 cd/m², 4000:1 contrast3x HDMI 2.0, 2x USB 2.0VESA 300mm*400mm, IP5X ratingWall mounts LMA-01, LMA-02, WMK-04

The NSD-6503 is an all-in-one digital signage display with a 64.5 inch panel and 4K UHD output. A built-in Android 9.0 system with an A35*4 CPU, 2G of memory and 16G of storage drives playback, with control via the built-in OS, a mobile app, RJ45 or RS232. Brightness is 500 cd/m², contrast 5000:1 and pixel pitch 0.372 mm, and an anti-burn-in function is included. Three HDMI 2.0 inputs and two USB 2.0 ports (service port / media playback) take sources and media, while frequency ranges cover 18kHz-135kHz horizontal and 24Hz-60Hz vertical. On-mode consumption is 101W, the VESA pattern is 400mm*400mm, and the listed mounts are LMA-01, LMA-02, LMK-01, WMK-04, WMK-05 plus CMP-01 + LMK-01 for ceilings. Without base the display weighs 25.3 kg, and an HDMI cable, power cord, quick start guide, remote control and wall mount are supplied. Android 9.0, A35*4 CPU, 2G / 16G64.5 inch panel, 4K UHD500 cd/m², 5000:1 contrastAnti-burn-in function3x HDMI 2.0, 2x USB 2.0VESA 400mm*400mm, 25.3 kg without base

The PD-4302 is a commercial display with a 43.0 inch IPS panel at UHD 3840 x 2160 and a 20,000,000:1 (DCR) contrast ratio. An SDM-S slot is provided for expansion, while sources connect through VGA (15-pin D-Sub x 1), a 3.5 mm IR input and a USB 2.0 service port. Audio is handled by two 10W speakers and a 3.5 mm stereo audio output. Frequency ranges are 15 kHz-136 kHz horizontal and 23 Hz-76 Hz vertical, and the operating temperature range is -10°C-60°C. The VESA pattern is 200 x 200 mm, with LMA-01, LMK-02, WMA-01 and WMK-03 among the listed wall mounts and CMP-01 + LMK-02 for ceilings. Certification covers CE, LVD, WEEE, RoHS and REACH, and an HDMI cable, power cord, quick start guide, remote control and RS232 cable are supplied. 43.0 inch IPS panel, UHD 3840 x 216020,000,000:1 (DCR) contrastSDM-S expansion slot10W x 2 internal speakers-10°C-60°C operating temperatureVESA 200 x 200 mm

The PD-5502 is a commercial display with a 54.6 inch IPS panel at UHD 3840 x 2160 and 20,000,000:1 (DCR) contrast. Its SDM slot accepts SDM-L and SDM-S modules, and further interfaces include VGA (15-pin D-Sub x 1) and a 3.5 mm IR input. Audio runs through a 3.5 mm stereo input and output plus two 10W internal speakers. Frequency ranges span 15 kHz-136 kHz horizontally and 23 Hz-76 Hz vertically. The power supply is internal and rated AC 100-240V, 50/60 Hz, with standby draw below 0.5W, and the operating temperature range is -10°C to 60°C. LMA-01 and LMA-02 are the listed wall mounts, CMP-01 + LMK-01 covers ceiling installation, and certification includes CE, LVD, WEEE, RoHS and REACH. 54.6 inch IPS panel, UHD 3840 x 216020,000,000:1 (DCR) contrastSDM slot (SDM-L, SDM-S)10W x 2 internal speakersInternal PSU, AC 100-240V, 50/60 Hz-10°C-60°C operating temperature

The PD-6502 is a commercial display with a 65.0 inch IPS panel at UHD 3840 x 2160, 20,000,000:1 (DCR) contrast and 178°/178° viewing angles. Its surface combines an anti-glare treatment at 25% haze with a 3H hard coating. Sources connect through two HDMI 2.0 inputs and VGA (15-pin D-Sub x 1), while RS232 in and out over RJ45 are available for control. Audio uses a 3.5 mm stereo input and output together with two 10W internal speakers. The internal power supply is rated AC 100-240V, 50/60 Hz, drawing under 0.5W in standby and 0 W when switched off. Operating temperature spans -10°C to 60°C, certification covers CE, LVD, WEEE, RoHS and REACH, and an HDMI cable, power cord, quick start guide, remote control and RS232 cable are supplied. 65.0 inch IPS panel, UHD 3840 x 216020,000,000:1 (DCR) contrast, 178°/178°2x HDMI 2.0 and VGARS232 in and out via RJ4510W x 2 internal speakersInternal PSU, AC 100-240V, 50/60 Hz

The PN-55D3 is a 55-inch ultra-narrow bezel video wall display for large professional installations, from public venues through to control rooms in 24/7 operation. Its IPS panel delivers 500~700 cd/㎡, carries an anti-glare treatment with 28% haze and joins into near-seamless walls thanks to a 3.5 mm bezel-to-bezel transition. A built-in scheduler and the UniWall™ feature support walls of up to 15x15 displays without external splitters, while DisplayPort 1.2 Multistream enables a 2x2 4K wall. Patented Anti-Burn-in™ Technology guards against burn-in, and multiple Gamma settings produce more consistent colour tones. Control runs over daisy chain, IR input and output and RS232 on a 2.5 mm jack, with Neovo Controller handling remote management. An OPS slot accepts standardised modules, two 10W speakers are fitted, a HeatControl sensor manages fan and heat control, and the display works in landscape or portrait. 55-inch IPS panel, 500~700 cd/㎡3.5 mm bezel-to-bezel transitionUniWall™ for walls up to 15x15DisplayPort 1.2 MultistreamPatented Anti-Burn-in™ TechnologyOPS slot, landscape and portrait

The QM4303 is a digital signage display with a 42.5 inch panel and UHD 3840 x 2160 (16:9) resolution. Brightness is 500~700 cd/㎡ and viewing angles are 178/178, with the panel released for 24/7 operation in landscape or portrait. Inputs comprise HDMI, USB Type-B and USB Type-C, external control uses RJ45 and RS232 on a 3.5 mm jack, and audio runs through a 3.5 mm stereo output and two 10W speakers. An anti-burn-in function is included, the casing is black with a black and white option, and the rear cover is plastic. Without base the display measures 971.0 x 559.5 x 70.0 mm. Batteries, an HDMI cable, power adaptor, quick start guide and remote control are supplied. 42.5 inch panel, UHD 3840 x 2160 (16:9)500~700 cd/㎡, 178/178 viewing angles24/7 operation, landscape or portraitHDMI, USB Type-B and USB Type-CRJ45 and RS232 external control10W x 2 speakers, anti-burn-in

An IPS panel drives this display at a maximum resolution of UHD 3840 x 2160, with a 0.245 mm pixel pitch and 178-degree viewing angles both horizontally and vertically. Brightness is 450 cd/m², colour depth 1.07G, colour gamut NTSC 72% and response time 5 ms. The surface receives anti-glare treatment at haze 25% plus a 3H hard coating, and the unit handles 15 kHz to 136 kHz horizontally and 23 Hz to 76 Hz vertically. Connectivity covers four HDMI 2.0 ports and one DisplayPort 1.2, IR in and out on 3.5 mm jacks, RS232 in and out on 2.5 mm jacks, an RJ45 port and a USB 2.0 service port. Audio is delivered by two 12 W speakers or the 3.5 mm stereo jack output. IPS panel with UHD 3840 x 2160450 cd/m² brightness, 5 ms response time0.245 mm pixel pitch4 x HDMI 2.0 and 1 x DisplayPort 1.2Anti-glare haze 25% with 3H hard coating12 W x 2 internal speakers

This display uses an IPS panel with a maximum resolution of UHD 3840 x 2160, a pixel pitch of 0.372 mm and 178-degree viewing angles in both axes. It reaches 350 cd/m², reproduces 1.07G colours within an NTSC 72% gamut and responds in 5 ms. Anti-glare treatment at haze 25% and a 3H hard coating protect the surface, while the frequency range spans 15 kHz to 136 kHz horizontally and 23 Hz to 76 Hz vertically. Ports comprise four HDMI 2.0, one DisplayPort 1.2, IR in and out on 3.5 mm jacks, RS232 in and out on 2.5 mm jacks, RJ45 and a USB 2.0 service port. Sound output runs through two 10 W speakers or the 3.5 mm stereo jack. IPS panel with UHD 3840 x 2160350 cd/m² brightness, 5 ms response time0.372 mm pixel pitch4 x HDMI 2.0 and 1 x DisplayPort 1.2Anti-glare haze 25% with 3H hard coating10 W x 2 internal speakers

Compatible with analogue and digital surveillance systems alike, this durable 43-inch 4K surveillance display is made for nonstop professional duty in control rooms. It supports camera image quality up to 8MP and keeps recorded footage crisp when operators zoom in for detail. Equipment includes anti-burn-in technology, a metal casing, HeatControl and gamma selection, with brightness of 350~499 cd/㎡ and 178/178 viewing angles. Inputs are audio, composite (BNC), DVI-D, HDMI, RS232, USB Type-A and VGA, outputs are audio and composite (BNC), and control runs over RJ45 or RS232 on a 9-pin D-Sub. Two 5 W speakers, an S/PDIF output and a 400 x 200 mm VESA pattern round out the unit, which measures 969.9 x 558.3 x 84.6 mm without base. Anti-burn-in technology and metal casing350~499 cd/㎡ brightness, 178/178 viewing anglesHeatControl for 24/7 dutyComposite (BNC), DVI-D, HDMI, VGA and USB Type-A inputsRJ45 and RS232 (9-pin D-Sub) controlVESA 400 x 200 mm

This durable 55-inch 4K surveillance display works with analogue and digital surveillance systems and is intended for continuous control-room duty. Camera image quality up to 8MP is supported, so recorded footage stays detailed when operators zoom in. Anti-burn-in technology, a metal casing, HeatControl and gamma selection are included, with 350~499 cd/㎡ brightness and 178/178 viewing angles. Sources connect over audio, composite (BNC), DVI-D, HDMI, RS232, USB Type-A and VGA, while audio, composite (BNC) and S/PDIF handle output and external control runs over IR or RS232 on a 9-pin D-Sub. Two 5 W speakers, a 400 x 400 mm VESA pattern and an operating range of 0 to 40 degrees Celsius complete the specification. Anti-burn-in technology and metal casing350~499 cd/㎡ brightness, 178/178 viewing anglesHeatControl for 24/7 dutyComposite (BNC), DVI-D, HDMI, VGA and USB Type-A inputsIR and RS232 (9-pin D-Sub) controlVESA 400 x 400 mm

Built around a 64.5-inch IPS panel with a 0.372 mm pixel pitch, this durable 65-inch 4K surveillance display integrates with analogue and digital surveillance systems alike. It is intended for nonstop professional control-room use with camera image quality up to 8MP, keeping footage readable when zoomed in. Brightness is 350~499 cd/㎡, and anti-burn-in technology, HeatControl and a metal casing are part of the design. Connections cover audio, composite (BNC), DVI-D, HDMI, RS232, USB Type-A and VGA as inputs, audio, composite (BNC) and S/PDIF as outputs, plus daisy chain, RJ45 and RS232 on a 9-pin D-Sub for external control. Without base the display measures 1476.7 x 851.7 x 79.8 mm at 26.0 kg, draws 123 W in on mode and mounts to VESA 600 x 400 mm. 64.5-inch IPS panel, 0.372 mm pixel pitch350~499 cd/㎡ brightnessAnti-burn-in, HeatControl, metal casing10 W x 2 speakers and S/PDIF output123 W (On) power consumptionVESA 600 x 400 mm

This durable 75-inch 4K surveillance display uses an IPS panel with a 0.430 mm pixel pitch, suits continuous control-room operation and works with analogue as well as digital surveillance systems. Camera image quality up to 8MP is supported, which helps when zooming into recorded footage. Brightness reaches 450 cd/m² and the surface combines anti-glare treatment at haze 1% with a 3H hard coating. Video enters on one composite BNC input and leaves on one composite BNC output, while two 15 W speakers reproduce audio. The internal power supply runs on AC 100-240V at 50/60 Hz, drawing 201 W in on mode and under 0.5 W on standby; the unit weighs 38.0 kg without base and mounts to VESA 800 x 400 mm. IPS panel, 0.430 mm pixel pitch450 cd/m² brightnessAnti-glare haze 1% with 3H hard coating15 W x 2 internal speakers201 W (On), under 0.5 W standbyVESA 800 x 400 mm

This 43-inch commercial-grade display for video surveillance resolves UHD 3840 x 2160 in 16:9 and reaches 450 cd/m² on its IPS panel with 178/178 viewing angles. The metal casing is IK10 rated and protected to front-sided IP22, and anti-burn-in technology is part of the package. Image tuning offers black-level adjustment and gamma selection, and the unit covers 31 kHz to 92 kHz and 48 Hz to 76 Hz. Video enters on one composite BNC input and loops out on one composite BNC output, while external control runs over RJ45 or RS232 on a 9-pin D-Sub. Two 12 W speakers and an S/PDIF output are fitted, and without base the display measures 1002.0 x 591.6 x 84.7 mm at 19.0 kg. UHD 3840 x 2160 (16:9) on an IPS panel450 cd/m² brightness, 178/178 viewing anglesIK10 metal casing, front-sided IP22Anti-burn-in technologyRJ45 and RS232 (9-pin D-Sub) control12 W x 2 speakers and S/PDIF output

Using an IPS panel, this 55-inch 4K commercial-grade display for video surveillance reaches 400 cd/m² and responds in 5 ms. Its metal casing is IK10 rated with front-sided IP22 protection, and continuous round-the-clock operation is supported. One composite BNC input takes video in and one composite BNC output loops it onward, joined by a 3.5 mm stereo audio input, an audio output and a USB 2.0 port serving as service and media playback connection. External control runs over RJ45 or RS232 on a 9-pin D-Sub, and two 12 W speakers are built in. Maximum consumption is 124 W, the unit handles 48 Hz to 76 Hz, mounts with LMA-01, LMA-02 or WMK-05 wall brackets and complies with CE, LVD, WEEE, RoHS, REACH and BSMI. IPS panel at 400 cd/m² with 5 ms responseIK10 metal casing, front-sided IP22Composite (BNC) input and outputRJ45 and RS232 (9-pin D-Sub) control12 W x 2 internal speakers124 W maximum power consumption

Sized at 55 inches, the VA-5501 is a slim bezel 4K UHD digital signage display; the carton states a panel size of 54.6 inches. The IPS panel runs at 350 cd/m² behind an anti-glare treatment with 1 percent haze and a 3H hard coating, and the aspect ratio is 16:9. Only landscape orientation is specified, with an internal operating time of 18/7. Two 5 W speakers are built in, horizontal frequency covers 31 to 136 kHz and vertical frequency 29 to 61 Hz. Power consumption reaches 80 W in operation and stays below 0.5 W in standby. The VESA pattern is 200 x 100 mm with the WMK-05 wall mount specified, and the unit measures 1226.8 x 720.3 x 85.3 mm without its base. 55-inch 4K UHD with slim bezelIPS panel, 350 cd/m², 16:9Anti-glare 1 percent haze, 3H hard coating18/7 operating time, landscape onlyVESA 200 x 100 mm, WMK-05 wall mount80 W on mode, under 0.5 W standby
