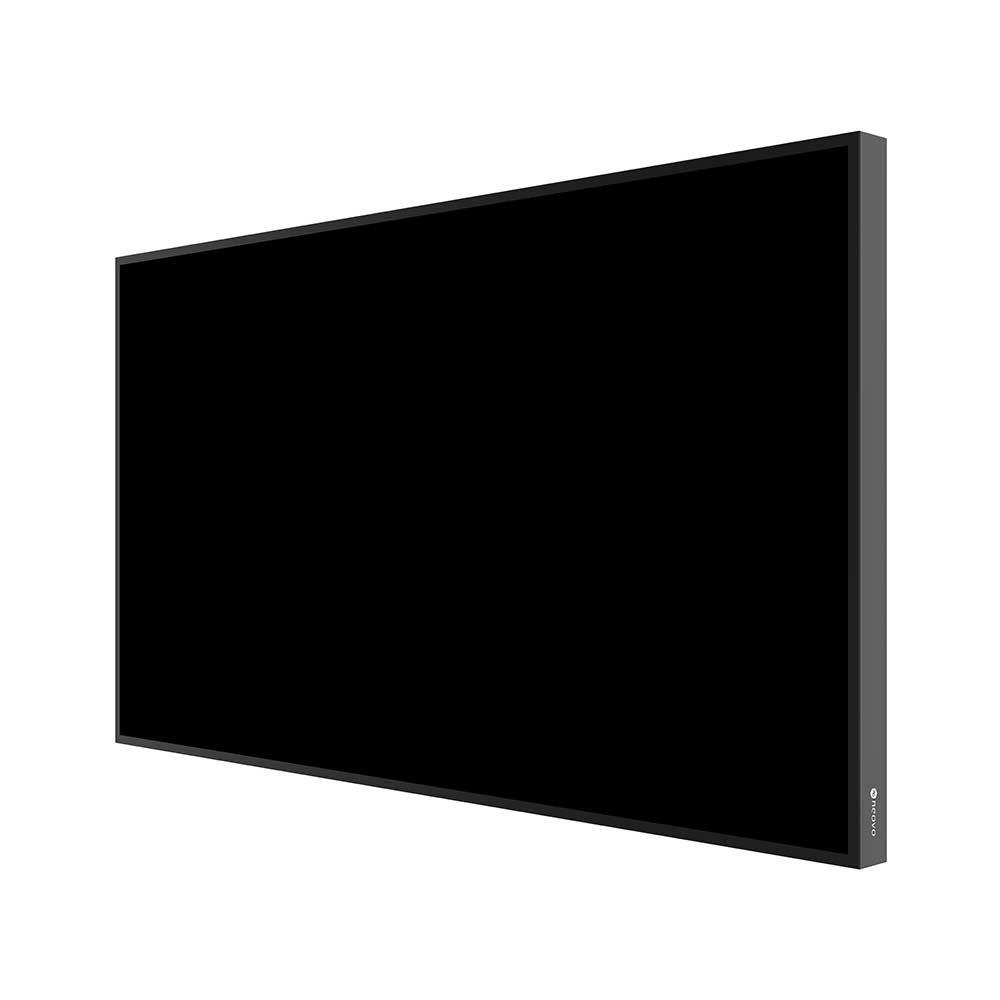

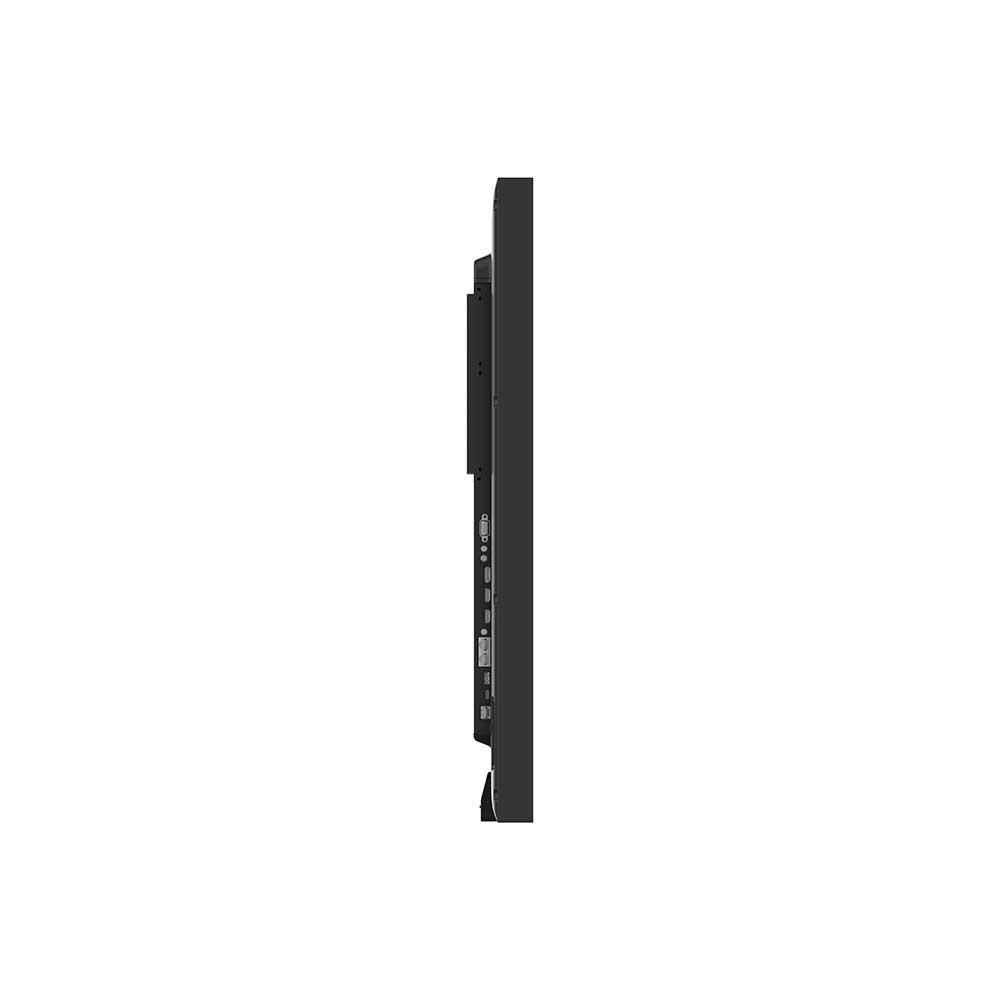

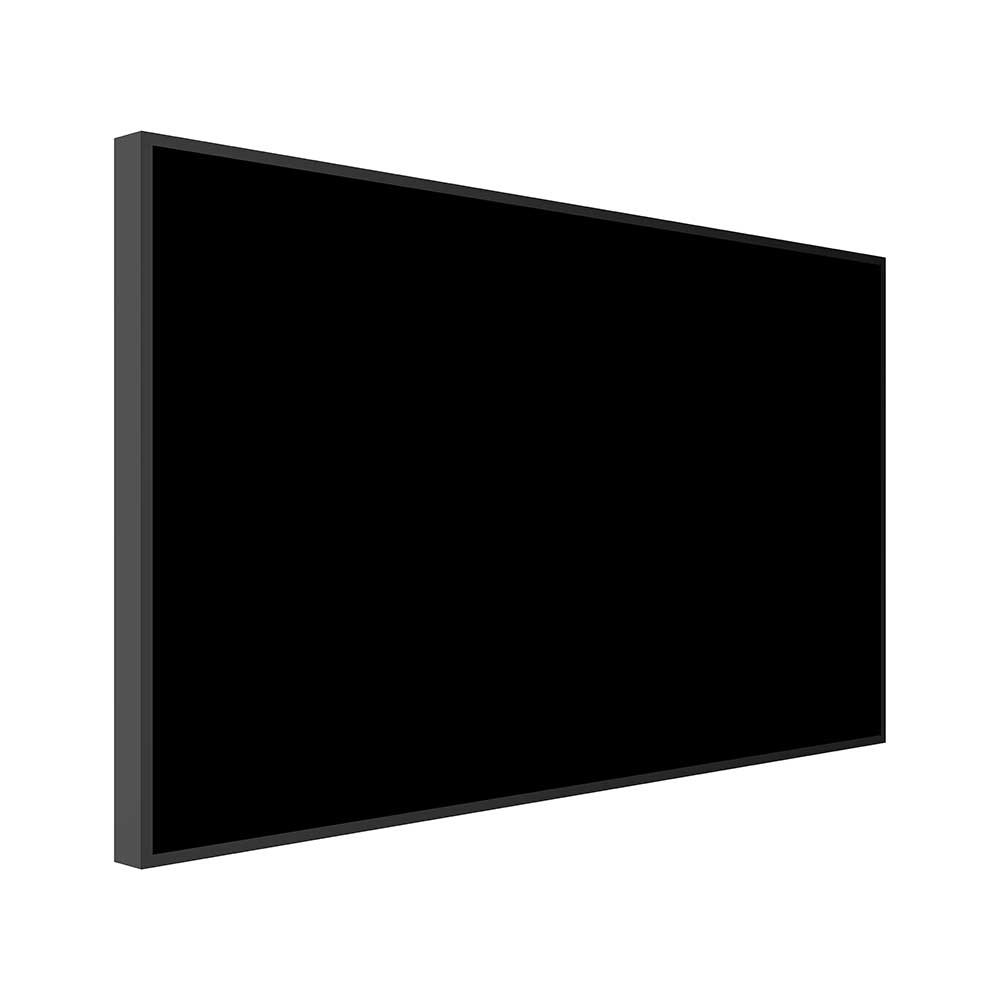

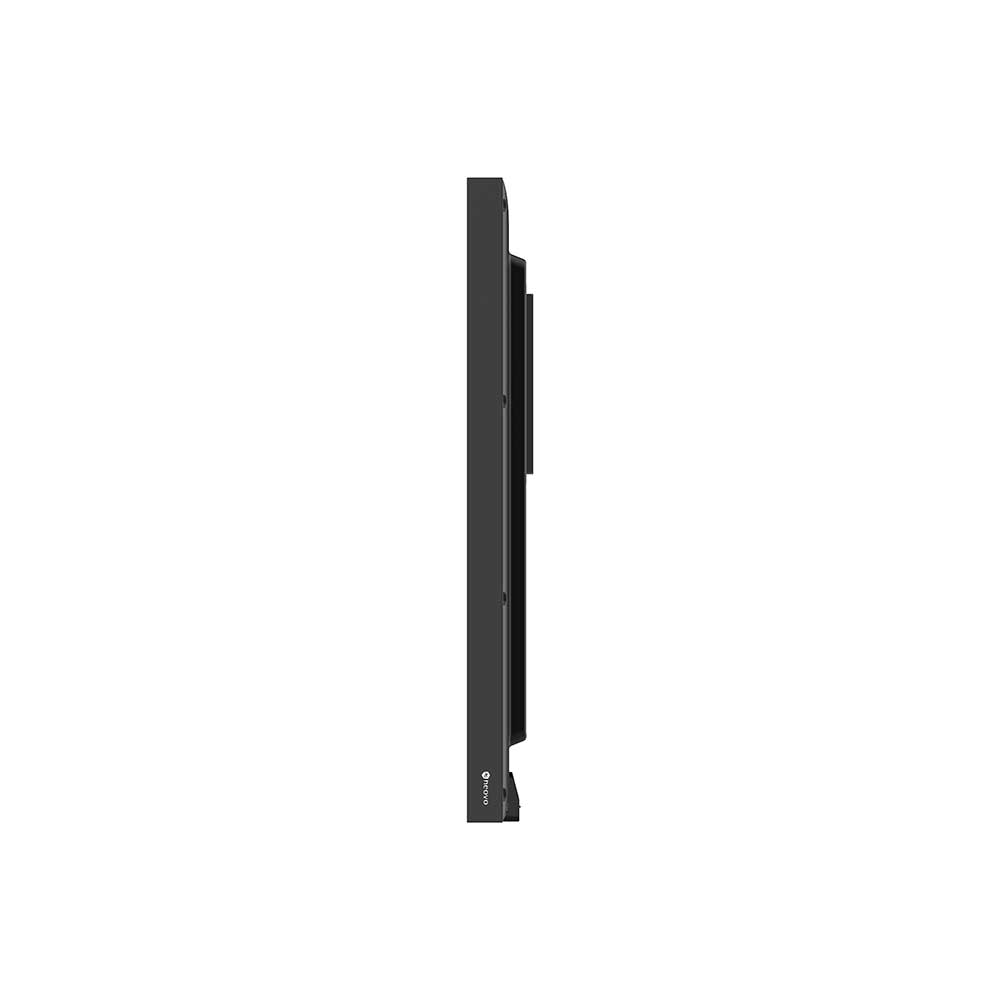

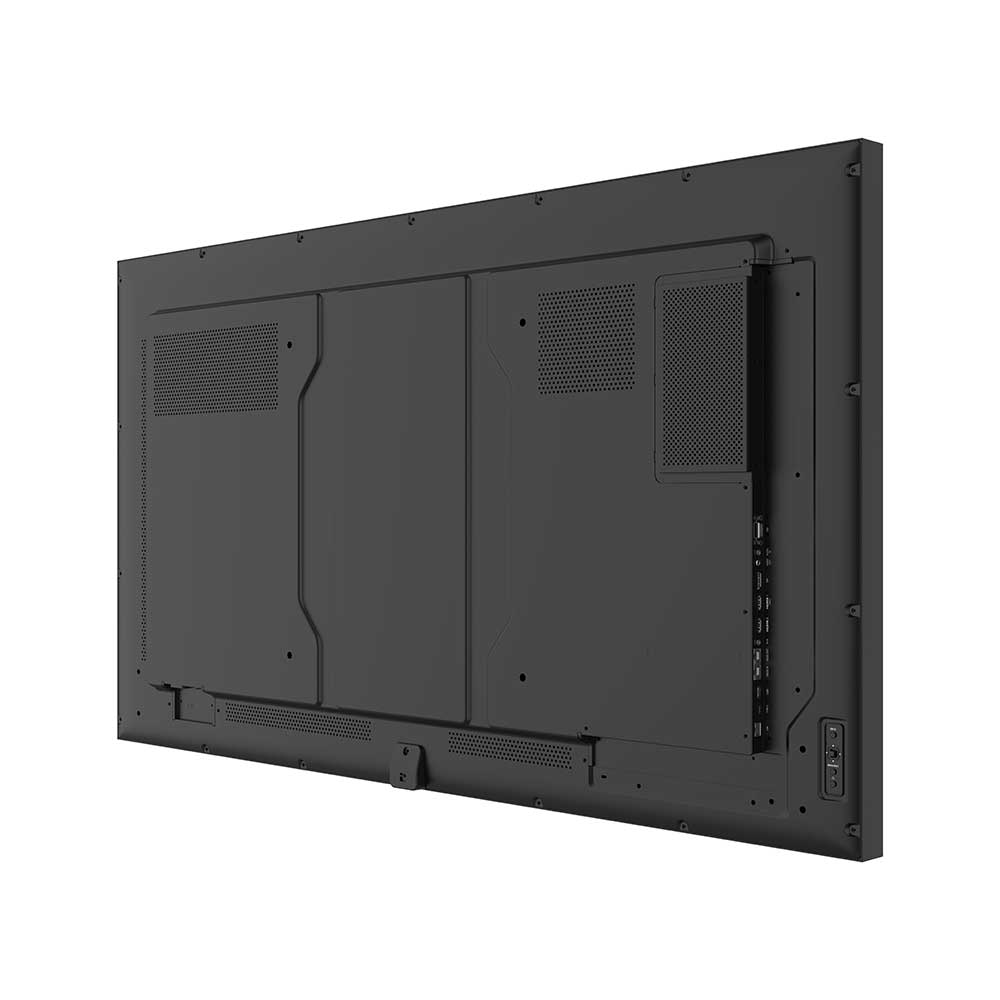

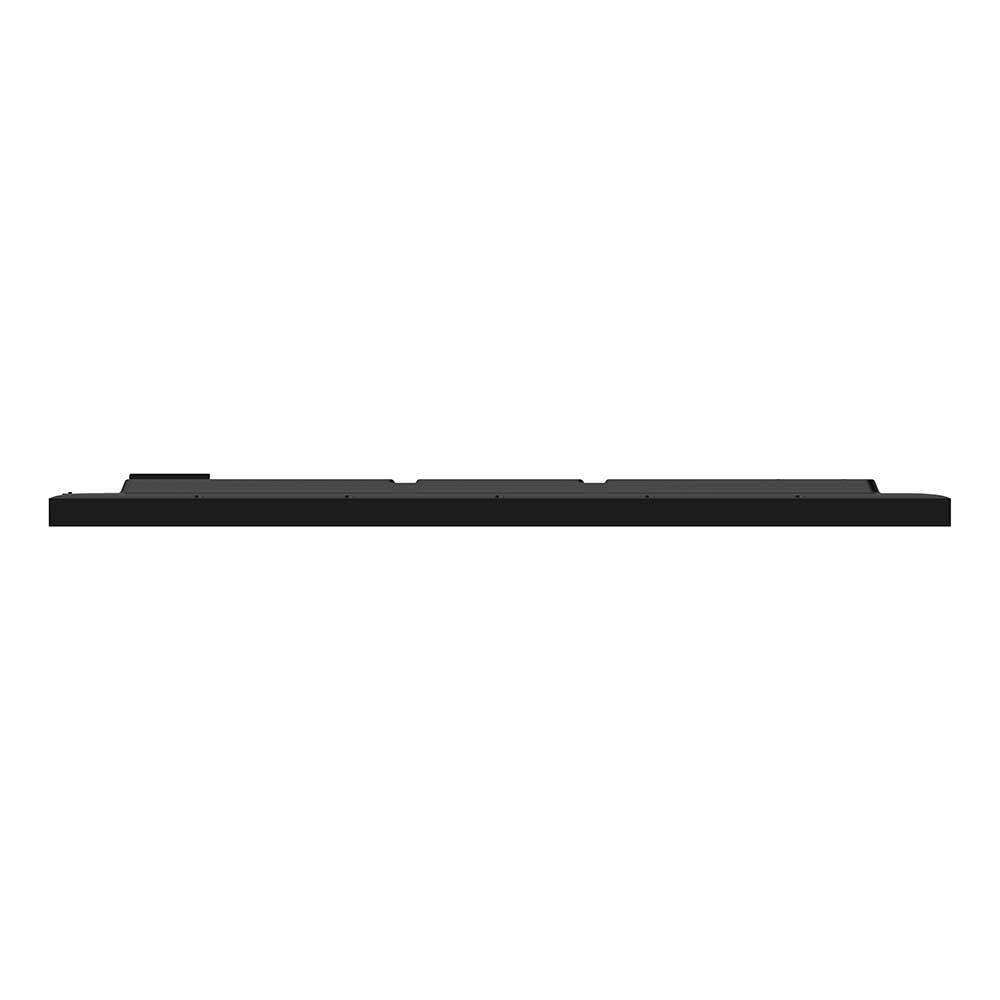

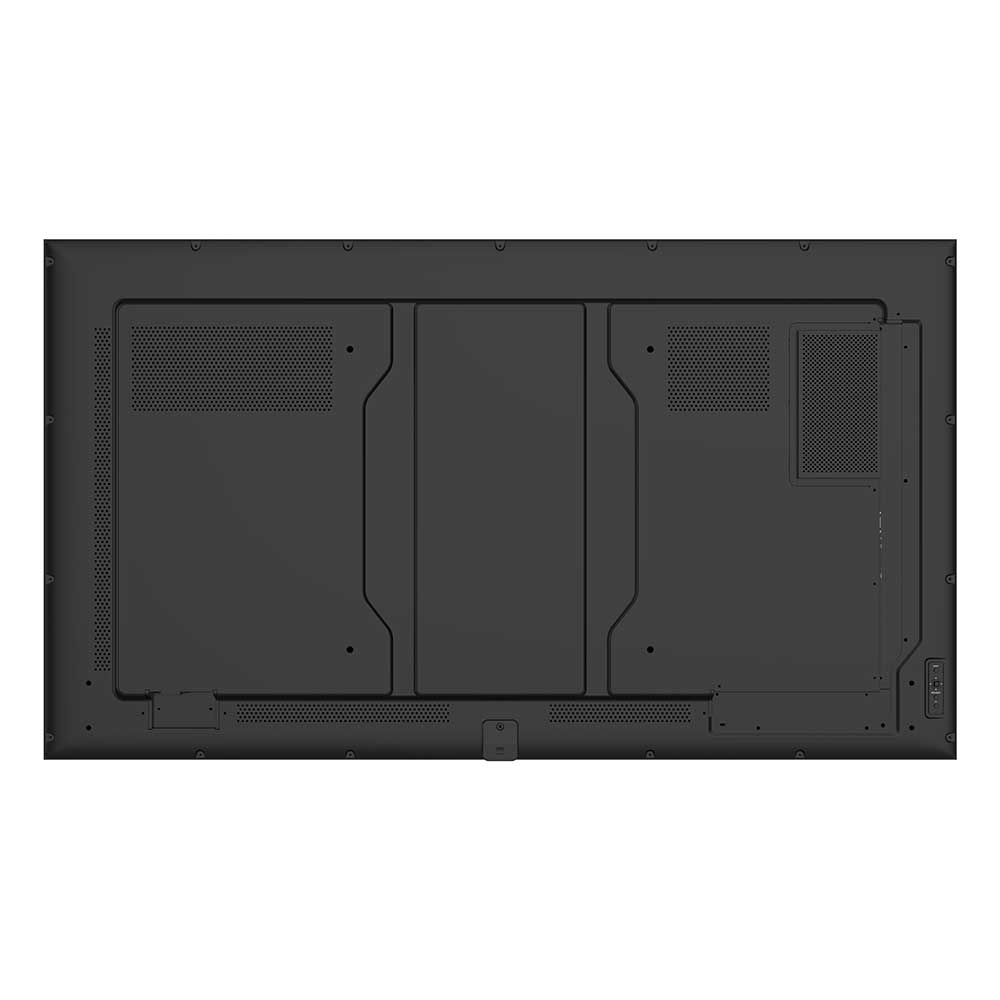

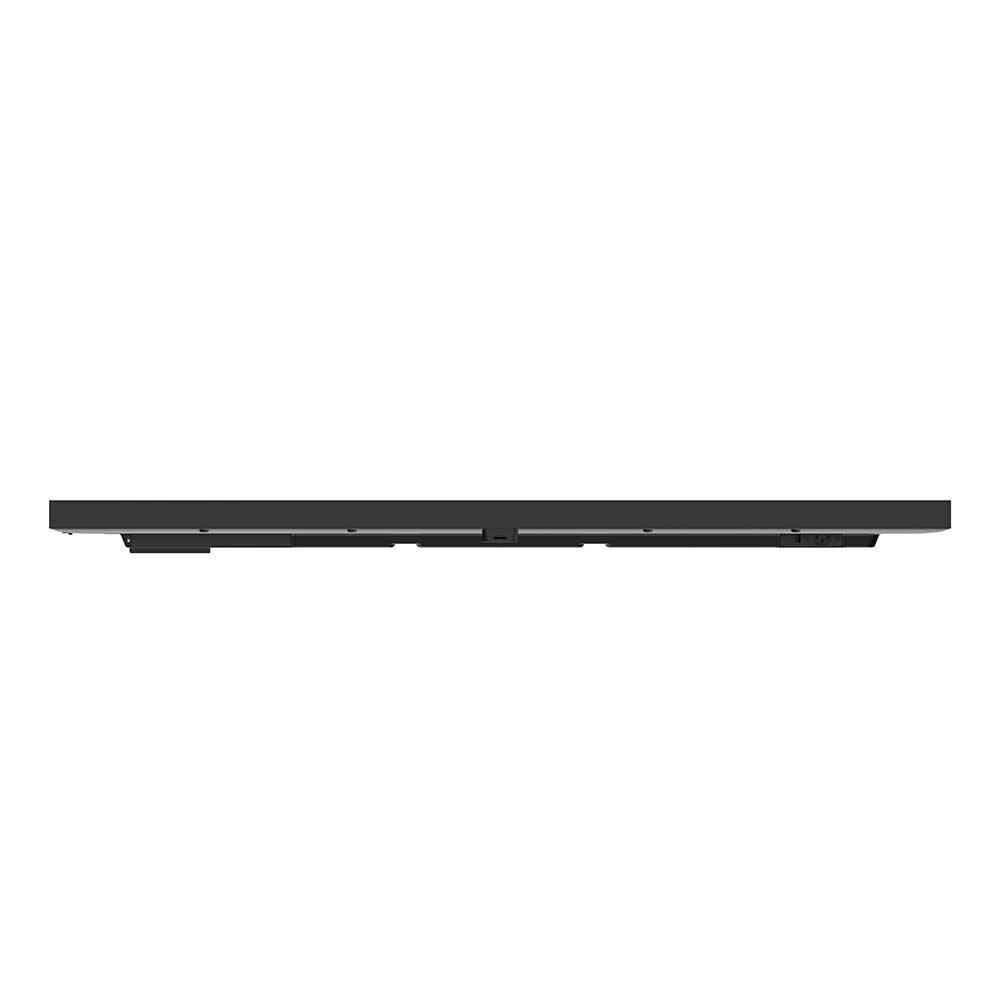

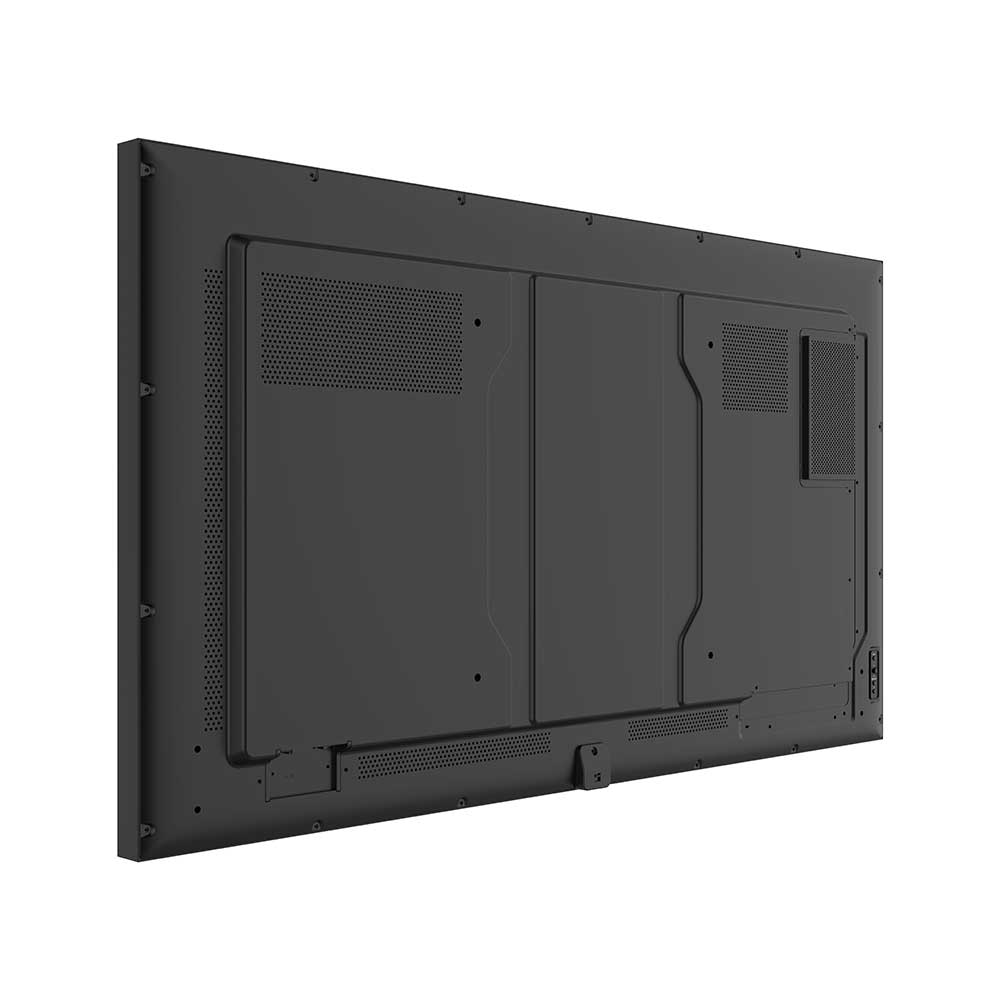

PD-5502, 55” 4K High-Brightness SDM-Ready Commercial Display
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The LMA-01 is a wall mount arm for displays from 32 to 65 inches with a load rating of 30.0 kg. Tilt from -15° to +15° and 90° of swivel to each side allow the screen to be aimed precisely. Extension is adjustable between a minimum wall distance of 105.0 mm and a maximum of 562.0 mm. Integrated cable routing keeps the connection cables out of sight and away from unwanted access. The arm is made of steel, aluminium alloy and plastic in black and silver, and accepts mounting patterns up to 400 x 400 mm. Product dimensions are 500.0 x 450.0 x 105.0 mm, and one set has a gross weight of 9.3 kg. Fits 32 to 65 inch displays30.0 kg weight capacityTilt -15° to +15°Swivel 90° / 90°Wall distance 105.0 mm to 562.0 mmMounting pattern up to 400 x 400 mm
Not in stock · delivery 3-4 days
The LMA-02 is a full-motion extendable wall mount bracket for displays from 32 to 65 inches, rated for loads up to 50.0 kg. Its arm extends from a wall distance of 64.0 mm out to 510.0 mm, so the screen can be positioned freely within a room. Viewing angles are refined through -20° to +10° of tilt and 60° of swivel to the right and left. The all-metal construction is finished in black and accepts mounting patterns up to 600 x 400 mm. One set weighs 7.0 kg net and 7.5 kg gross, packed in a carton measuring 700.0 x 222.0 x 70.0 mm. Fits 32 to 65 inch displays50.0 kg weight capacityExtension 64.0 mm to 510.0 mmTilt -20° to +10°Swivel 60° / 60°Mounting pattern up to 600 x 400 mm
Not in stock · delivery 3-4 days
The CMP-01 is a steel ceiling mount pole for professional displays. Used together with the WMK-03, LMK-01 or LMK-02 tilt mounts, it lets various viewing angles be set. Its height is adjustable and the pole swivels 360° to the right and to the left. Each side carries up to 60.0 kg (132.3 lb). The unit is finished in black. Steel ceiling mount pole360° swivel right/left60.0 kg (132.3 lb) capacity per sideAdjustable heightBlack finishCombines with WMK-03, LMK-01, LMK-02
In stock, ships immediately · delivery 1-2 days
The LMK-01 is a steel wall mount kit for displays from 42 to 86 inches. It carries loads up to 80.0 kg and supports mounting patterns of up to 725.0 x 450.0 mm. A tilt range of -15° to 0° lets the screen be angled downwards. The anodised black steel build is rust resistant and intended for indoor as well as outdoor use, and it can be fixed to masonry walls as well as to lightweight partition walls. One set weighs 5.1 kg net and 5.9 kg gross, in packaging measuring 836.0 x 245.0 x 54.0 mm. Fits 42 to 86 inch displays80.0 kg weight capacityTilt -15° to 0°Mounting pattern up to 725.0 x 450.0 mmSteel construction, black5.1 kg net weight
Not in stock · delivery 3-4 days
The LMK-03 is a tilting steel wall mount kit for displays from 42 to 98 inches. It fits VESA mounting patterns from 75 x 150 mm through to 800 x 500 mm and carries loads up to 100.0 kg. Tilt is specified as -15° to +15°, and installation is straightforward. The profile between display and wall measures just 0.75 mm, and lateral shift together with a safety lock and anti-theft lock is provided. These properties suit the bracket to commercial and public installations. One set weighs 4.4 kg net and 5.1 kg gross, finished in black. Fits 42 to 98 inch displays100.0 kg weight capacityVESA 75 x 150 mm to 800 x 500 mmTilt -15° to +15°0.75 mm profile between display and wallLateral shift, safety and anti-theft lock
Not in stock · delivery 3-4 days
VWM-01 is a video wall mount rated for 80 kg, which makes it suitable for narrow-bezel and seamless installations. Combined with VWM-02 push-to-open arms, VWA-01 aluminium extension bars and VWA-04 wall brackets, displays can be composed into a continuous row without the complicated measuring and calculation of screen spacing. Fine adjustment covers 15.0 mm to the left and right as well as 3.3 mm up and down. The mount is specified for displays from 43 to 86 inches with a mounting pattern of up to 800 x 400 mm. It is built from steel and aluminium in black and silver, weighs 4.5 kg net and ships one set per carton. 80 kg weight capacityFits displays from 43 to 86 inchesMounting pattern up to 800 x 400 mm15.0 mm lateral and 3.3 mm vertical adjustmentSteel and aluminium, black and silver4.5 kg net weight, one set per carton
Not in stock · delivery 3-4 days
The DTS-01 is a tabletop stand for 32" -65" displays with a load capacity of 40.0 kg (88.0 lb). The bracket swivels 45° / 45° and tilts from -10° to +5°, and its height from the base to the bracket can be set in three steps at 515.0 mm, 585.0 mm or 655.0 mm. Mounting patterns from a minimum of 150 x 100 mm up to a maximum of 400 x 400 mm are supported. The stand is built from metal in black and sits on a black tempered glass pedestal. It measures 550.0 x 655.0 x 280.0 mm and weighs 6.2 Kg (13.7 lb ) net. Tabletop stand for 32" -65" displays40.0 kg (88.0 lb) weight capacityThree height levels: 515.0 / 585.0 / 655.0 mm45° / 45° swivel, -10° to +5° tiltMounting pattern 150 x 100 mm to 400 x 400 mmBlack tempered glass pedestal
In stock, ships immediately · delivery 1-2 days
WMK-05 is an ultra slim micro-gap wall mount for displays from 43 to 65 inches, keeping the gap between wall and screen to a minimum. Installation is supported by a built-in bubble level for horizontal alignment and strong magnetic contacts that secure the attachment. The integrated one-piece wall plate carries up to 75.0 kg and accepts mounting patterns from 200 to 400 mm. Steel and aluminium with an electronic coating in black form the construction, and the assembled mount measures 530.0 x 250.0 x 9.5 mm. Net weight is 1.26 kg, supplied 360 pieces per pallet. Ultra slim mount with minimal wall gap75.0 kg capacity, displays from 43 to 65 inchesOne-piece wall plate, 200 to 400 mm patternBuilt-in bubble level and magnetic contactsSteel and aluminium with electronic coating9.5 mm depth, 1.26 kg net weight
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- PD-5502
- EAN / GTIN
- 4710739598889
Description
The PD-5502 is a commercial display with a 54.6 inch IPS panel at UHD 3840 x 2160 and 20,000,000:1 (DCR) contrast. Its SDM slot accepts SDM-L and SDM-S modules, and further interfaces include VGA (15-pin D-Sub x 1) and a 3.5 mm IR input. Audio runs through a 3.5 mm stereo input and output plus two 10W internal speakers. Frequency ranges span 15 kHz-136 kHz horizontally and 23 Hz-76 Hz vertically. The power supply is internal and rated AC 100-240V, 50/60 Hz, with standby draw below 0.5W, and the operating temperature range is -10°C to 60°C. LMA-01 and LMA-02 are the listed wall mounts, CMP-01 + LMK-01 covers ceiling installation, and certification includes CE, LVD, WEEE, RoHS and REACH.
- 54.6 inch IPS panel, UHD 3840 x 2160
- 20,000,000:1 (DCR) contrast
- SDM slot (SDM-L, SDM-S)
- 10W x 2 internal speakers
- Internal PSU, AC 100-240V, 50/60 Hz
- -10°C-60°C operating temperature
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Anti-Burn-in
- Yes
- Aspect Ratio
- 16:9
- Audio In
- Stereo Audio Jack (3.5 mm)
- Audio Out
- Stereo Audio Jack (3.5 mm)
- Bezel Width
- Even bezel 9.9 mm
- Brightness
- 1000 cd/m², > 700 cd/㎡
- Casing Colour
- Black
- Certifications & Compliance
- CE, LVD, WEEE, RoHS, REACH
- Colour Gamut
- NTSC 72%
- Contrast Ratio
- 20,000,000:1 (DCR)
- Diagonal Sizes
- 46"-55"
- External Control
- IR, RJ45, RS232
- Features
- 24-7, PbP, PiP, Portrait, SDM Slot, Speaker
- Frequency (H)
- 15 kHz-136 kHz
- Frequency (V)
- 23 Hz-76 Hz
- HDMI
- 2.0 x 2
- HeatControl Sensor (Auto Fan Control / Heat Control)
- Yes
- Humidity
- 10%-80% (non-condensing), 20%-80% (non-condensing)
- Humidity
- DTS-01
- IK Rating
- LMK-01, LMK-03
- IP Rating
- Front-Sided IP22
- IR In
- 3.5 mm Phone Jack
- Innovation
- Anti-Burn-in Technology
- Inputs
- Audio, DisplayPort, HDMI, USB Type-C, VGA
- Internal Speakers
- 10W x 2
- LAN
- RJ45 x 1
- Max. Resolution
- UHD 3840 x 2160
- Off Mode
- 0 W
- On Mode
- 179W (On)
- On Mode (Max)
- 292W
- Operating Time (Internal)
- 24/7
- Orientation
- Landscape / Portrait
- Outputs
- Audio, RS232
- Packaging
- 21.5 kg (47.4 lb).
- Packaging (W x H x D)
- 1355.0 x 820.0 x 140.0 mm (53.3 "x 32.3" x 5.5").
- Panel Size
- 54.6"
- Panel Size on Carton
- 55.0"
- Panel Type
- IPS
- PbP
- Yes
- PiP
- Yes
- Pixel Pitch
- 0.315 mm
- Power Requirements
- AC 100-240V, 50/60 Hz
- Power Supply
- Internal
- Product w/o Base
- 15.5 kg (34.24lb).
- Product w/o Base (W x H x D)
- 1231.6x 702.4 x 72.5 mm (48.5 "x 27.7" x 2.9")
- RS232 In
- RJ45
- RS232 Out
- RJ45
- Rear Cover Material
- Metal
- Resolution
- UHD 3840 x 2160 (16:9)
- Response Time
- 5 ms
- SDM Slot
- SDM-L, SDM-S
- Software
- Neovo Controller
- Standby Mode
- < 0.5W
- Supplied
- HDMI Cable, Power Cord, Quick Start Guide, Remote Control, RS232 Cable
- Surface Treatment
- Anti-Glare Treatment (Haze 25%), 3H Hard Coating
- Temperature
- -10°C-60°C (14°F-140°F), 0°C-40°C (32°F-104°F)
- Tilt
- CMP-01 + LMK-01
- Type-C
- x 1 (PD 15W)
- USB
- DC 12V, 1.75A
- VESA FPMPMI
- Yes (400 x400 mm)
- VGA
- 15-Pin D-Sub x 1
- Video Wall Mount
- VWM-01
- Viewing Angle (H/V)
- 178°/178°
- Viewing Angles
- 178/178
- Visibility
- Black-level Adjustment, Gamma Selection
- Wall Mount
- LMA-01, LMA-02
