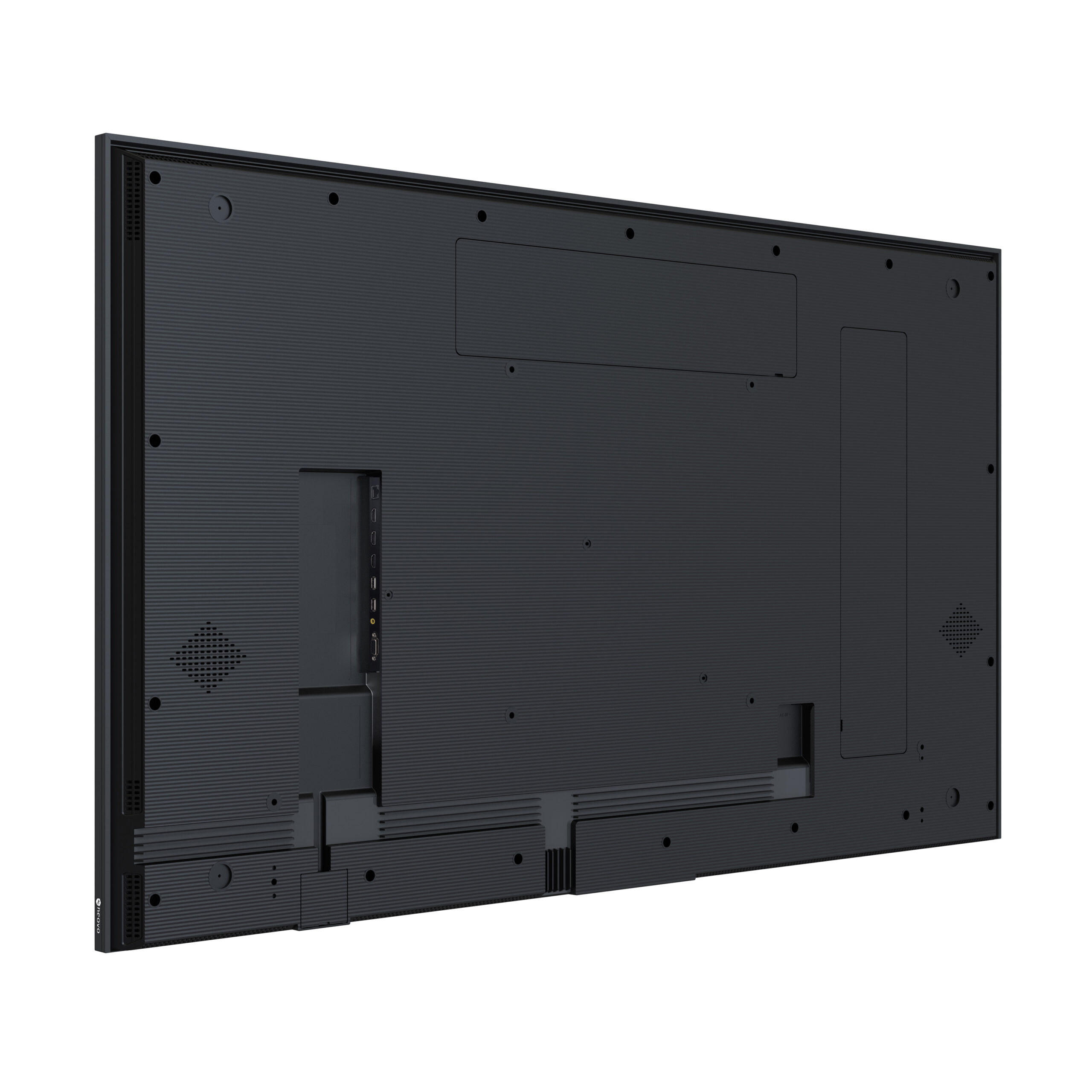

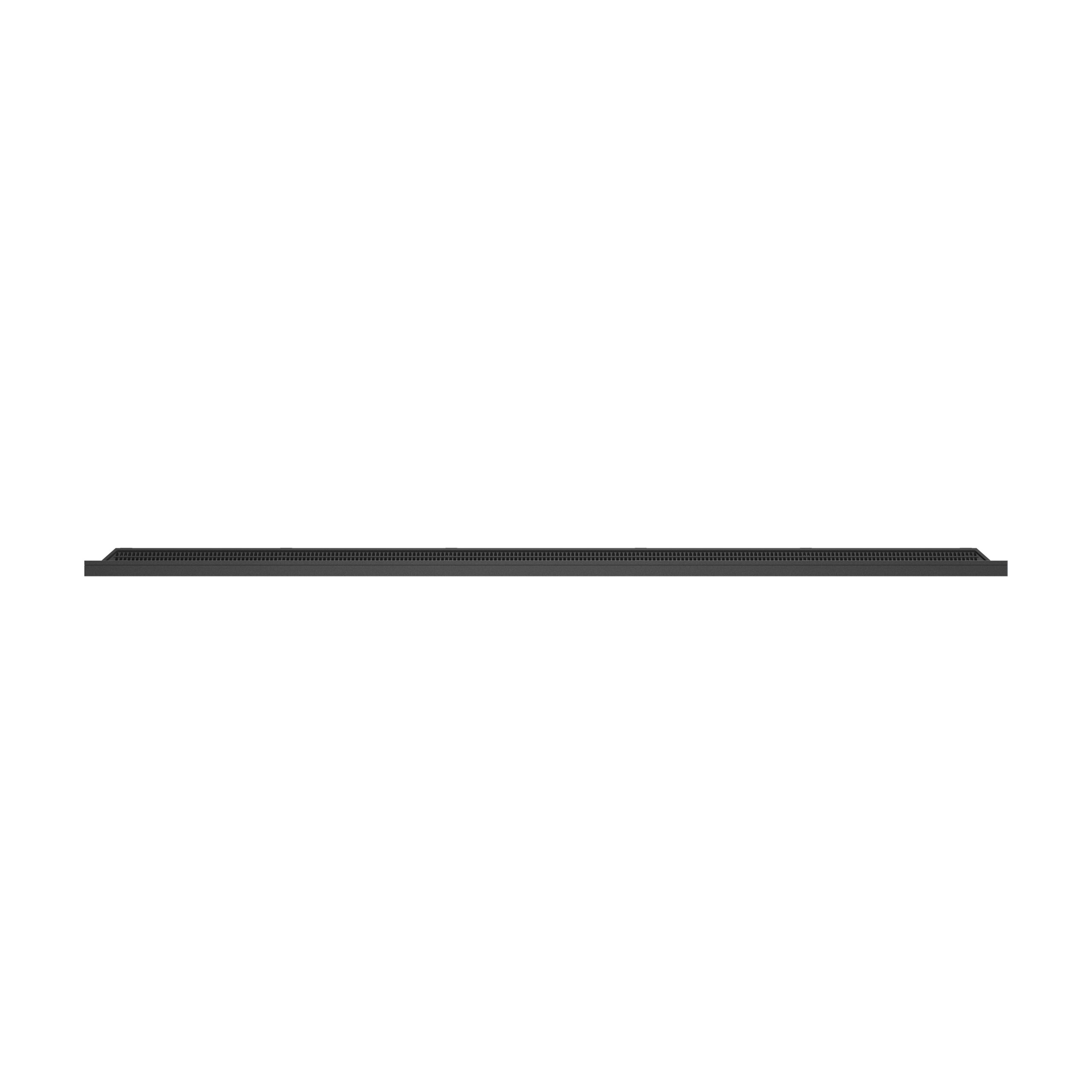

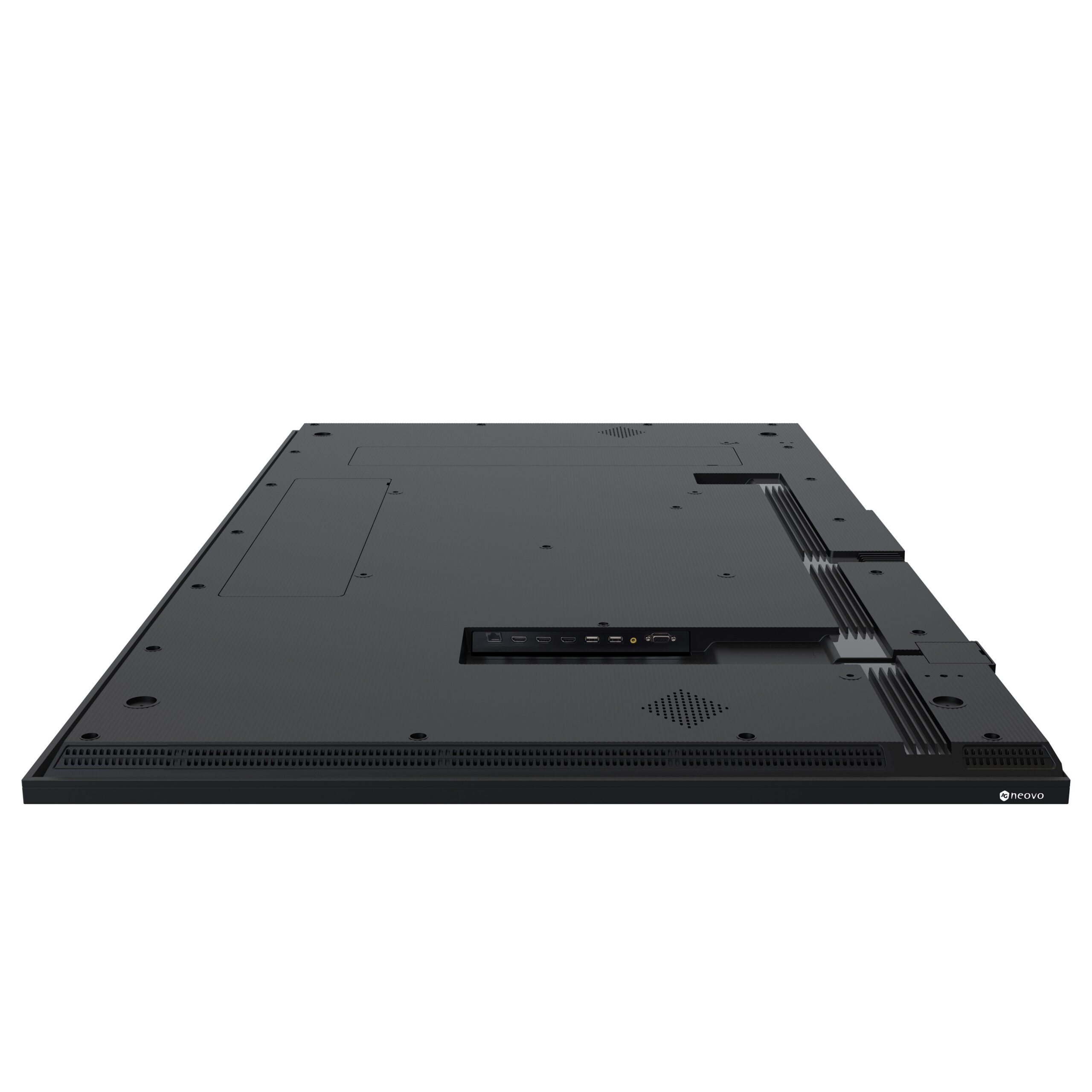

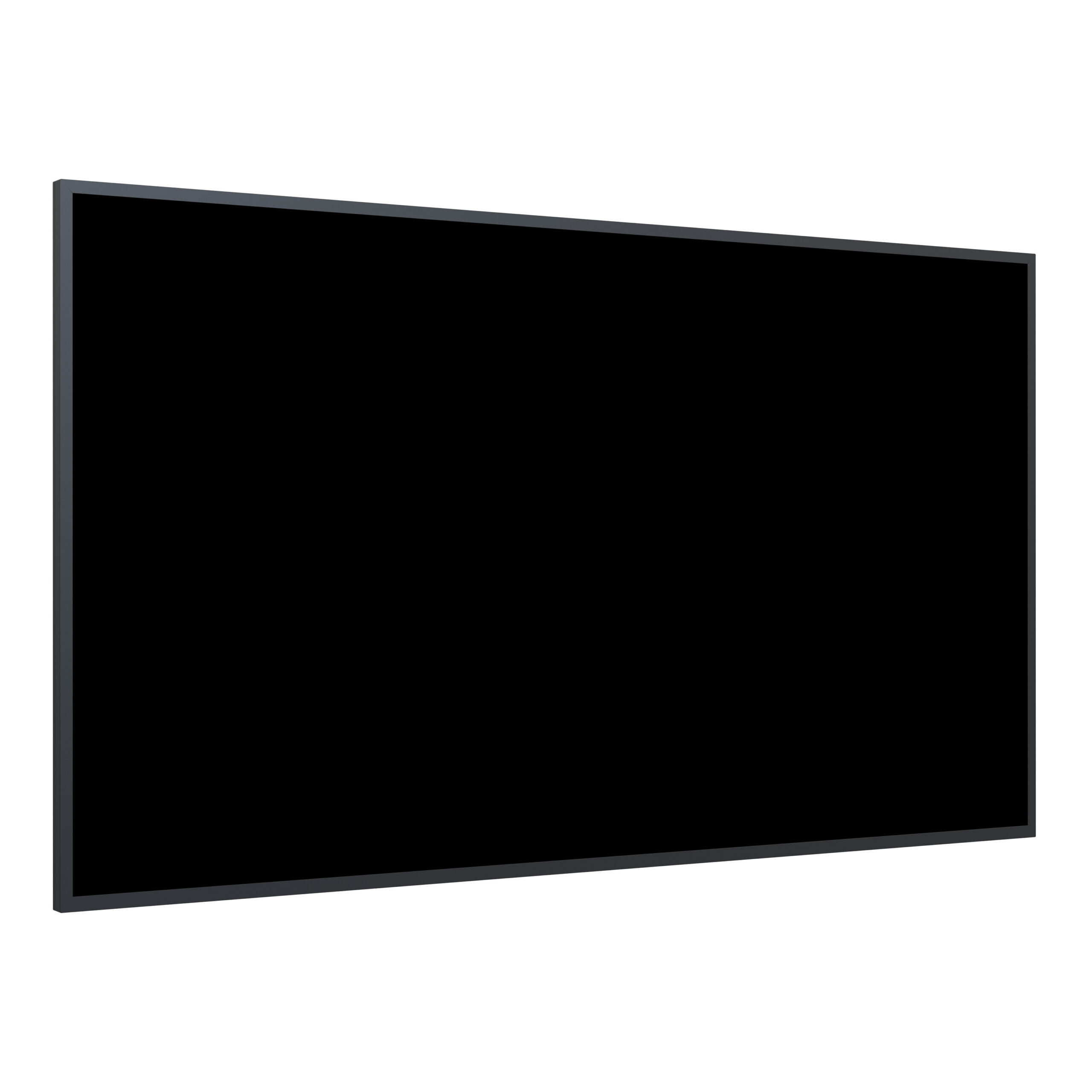

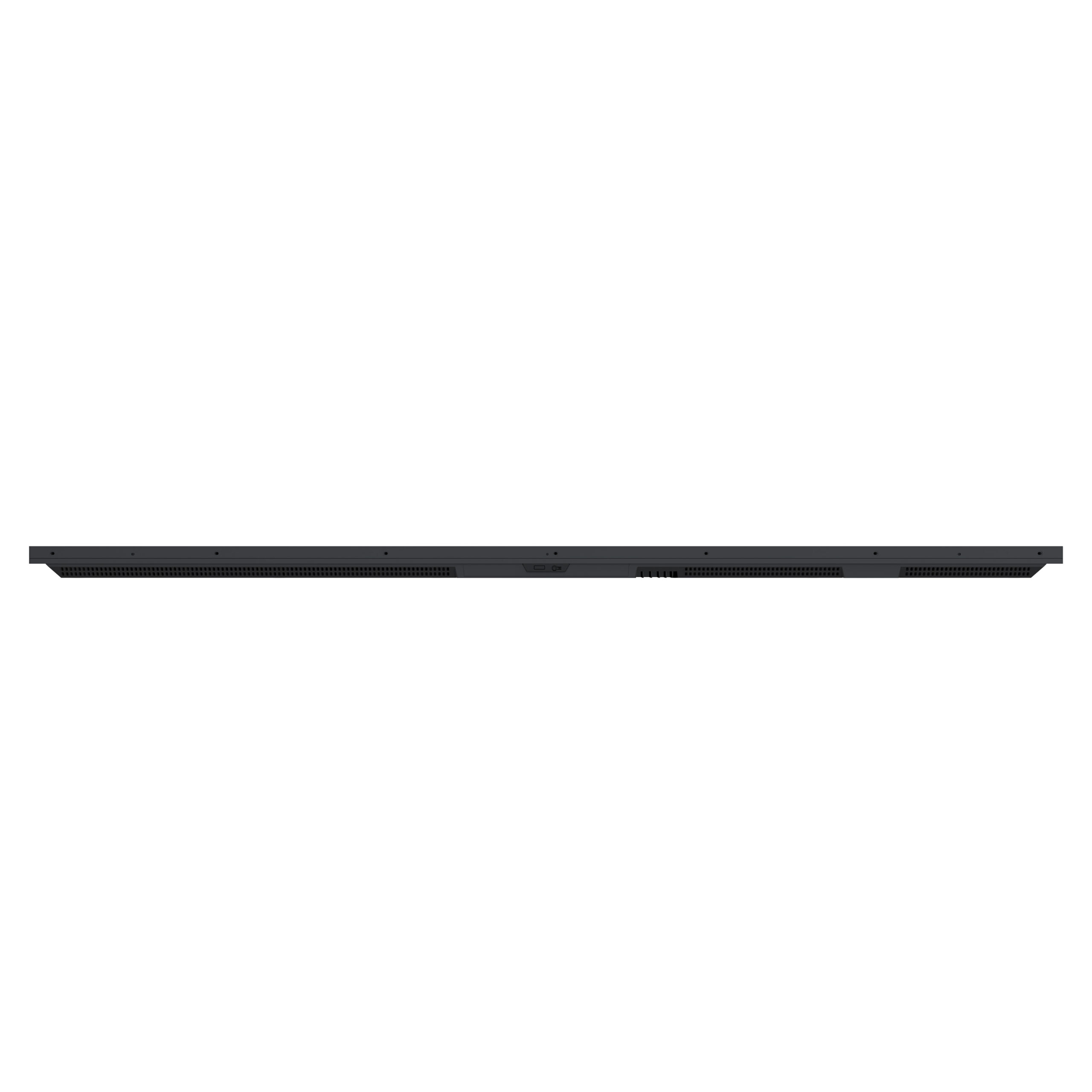

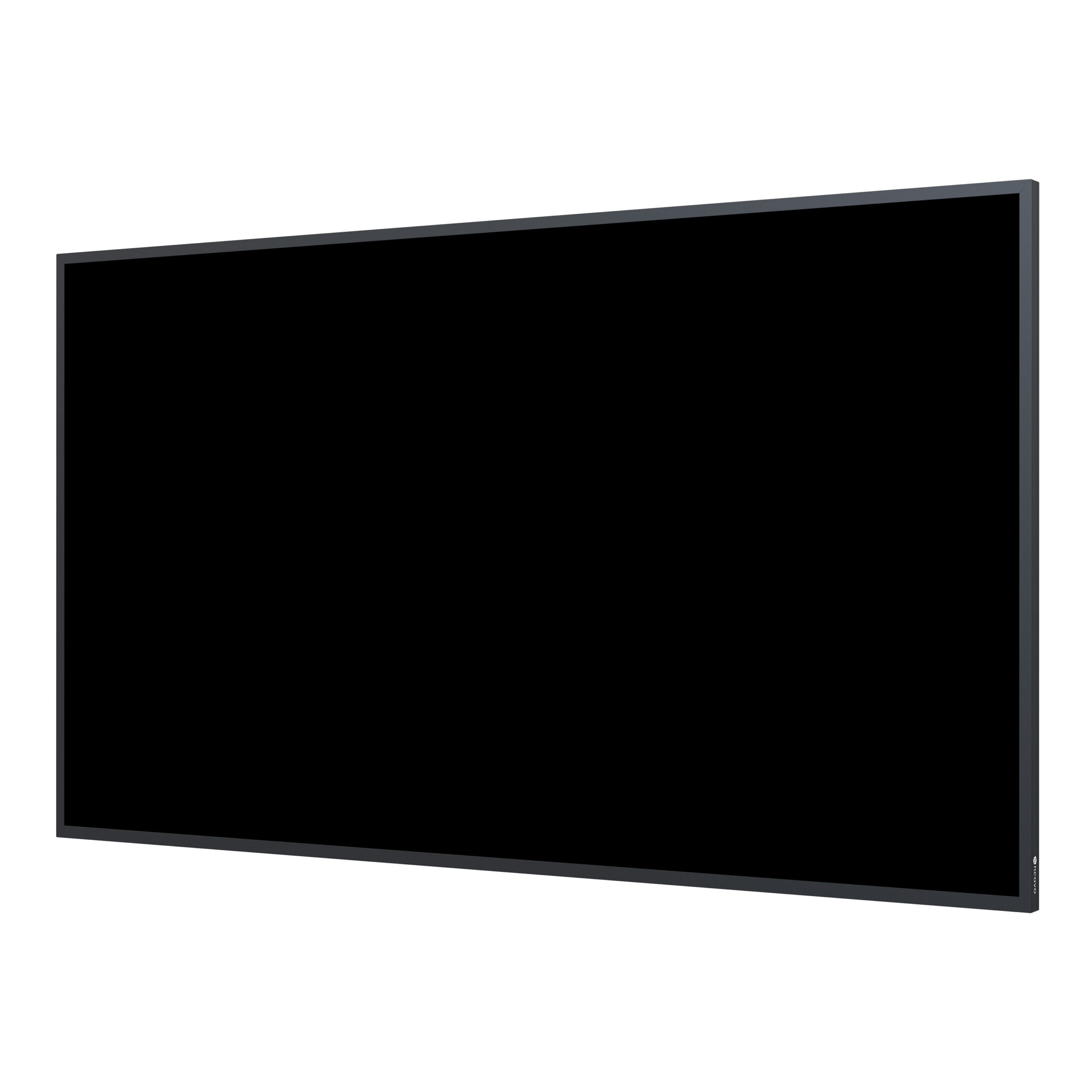

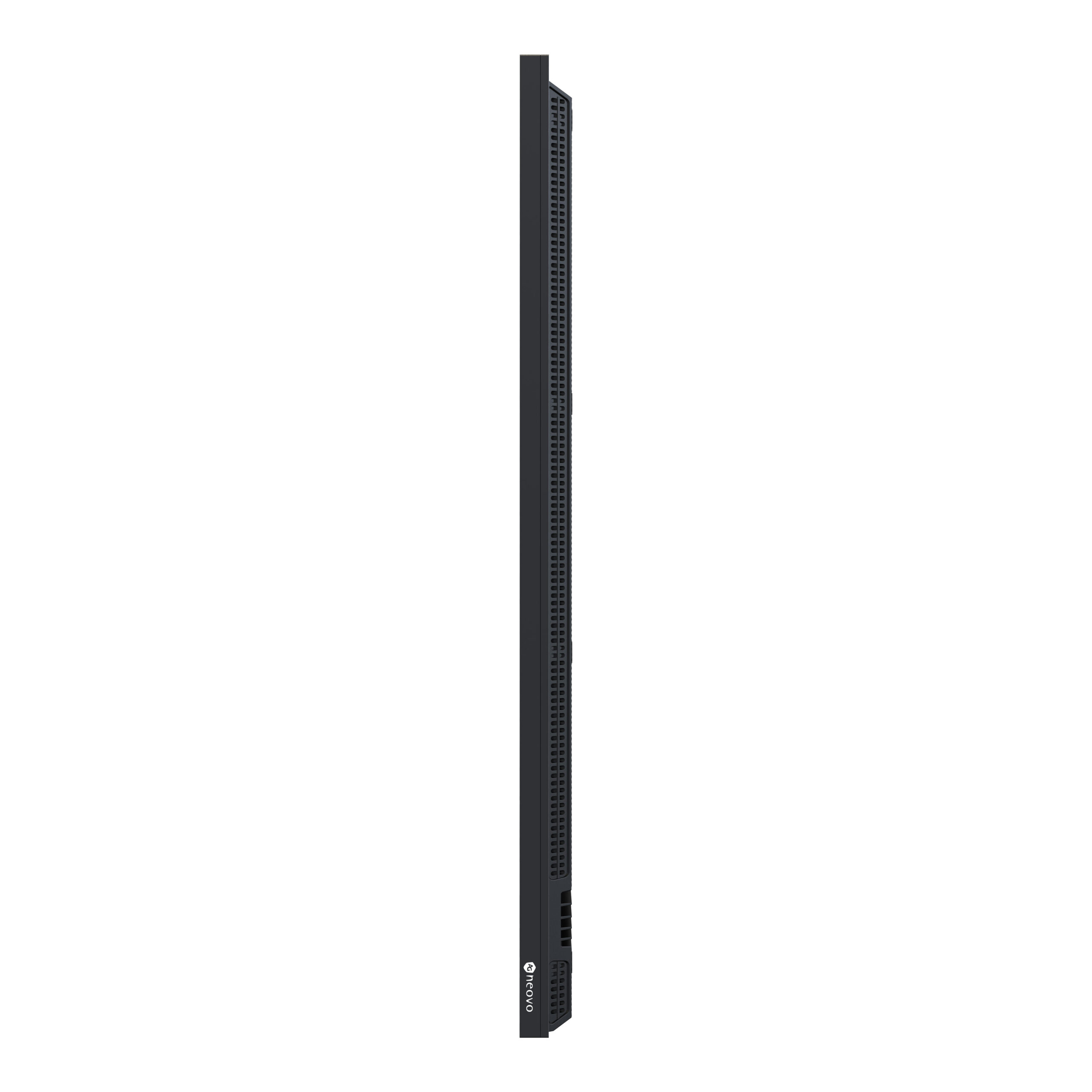

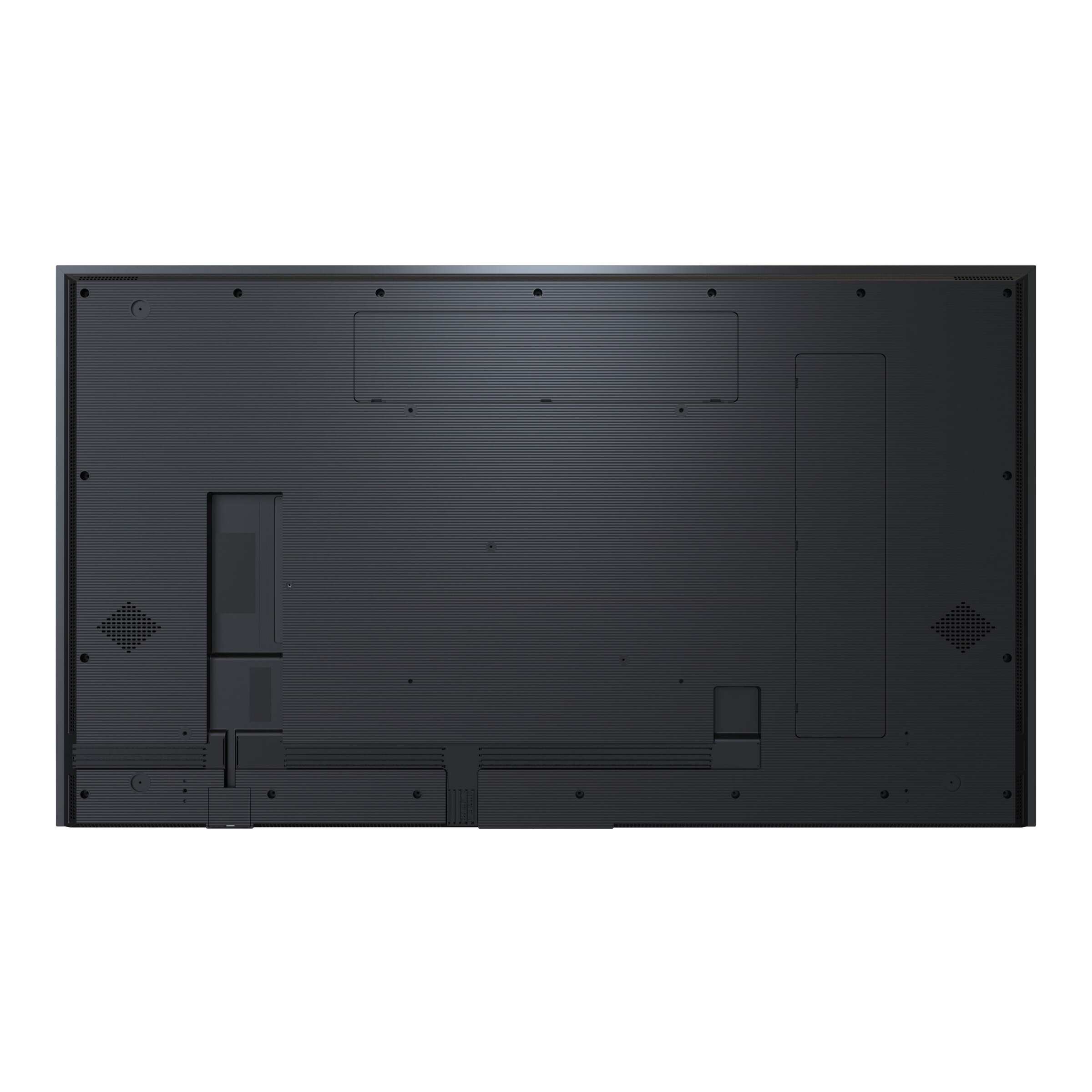

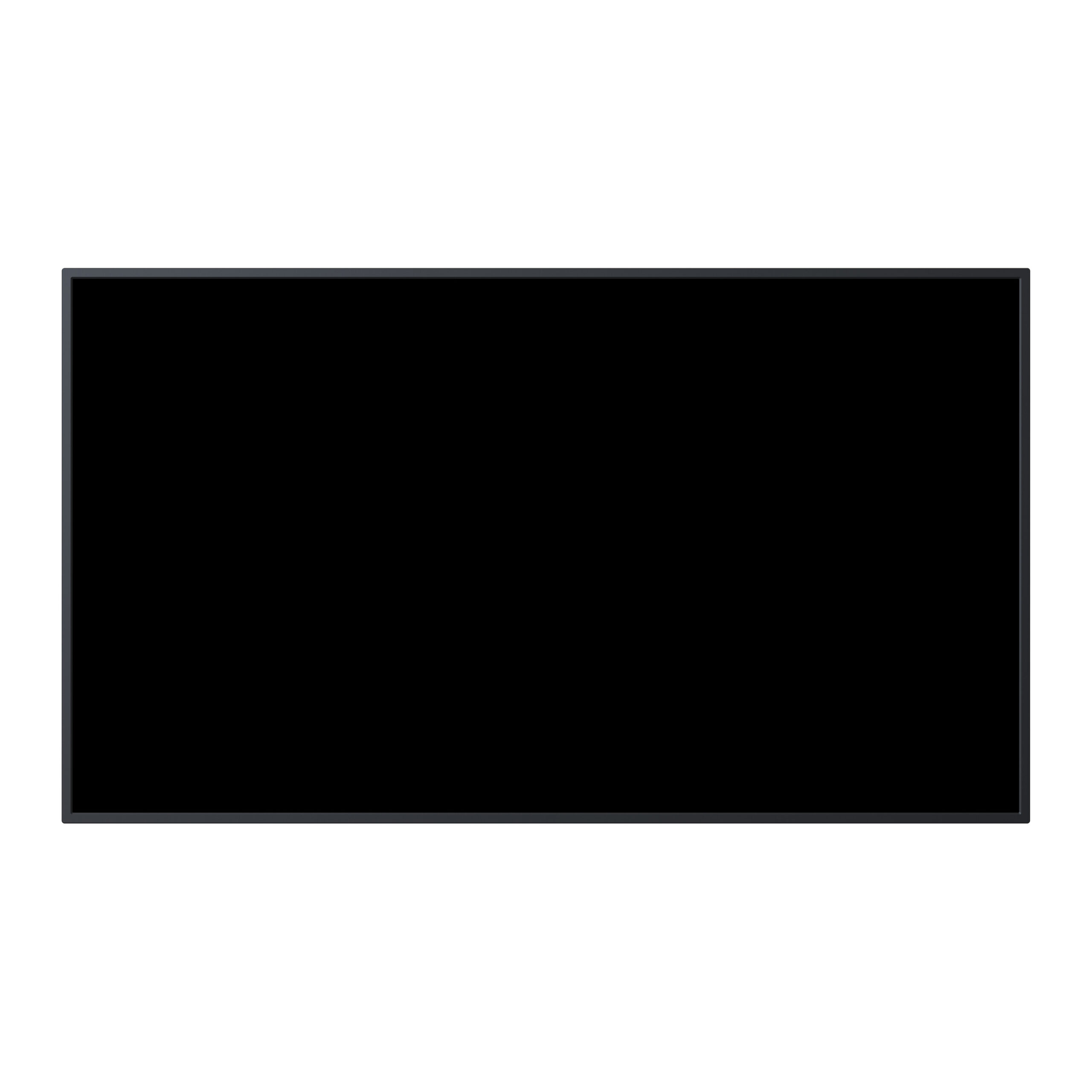

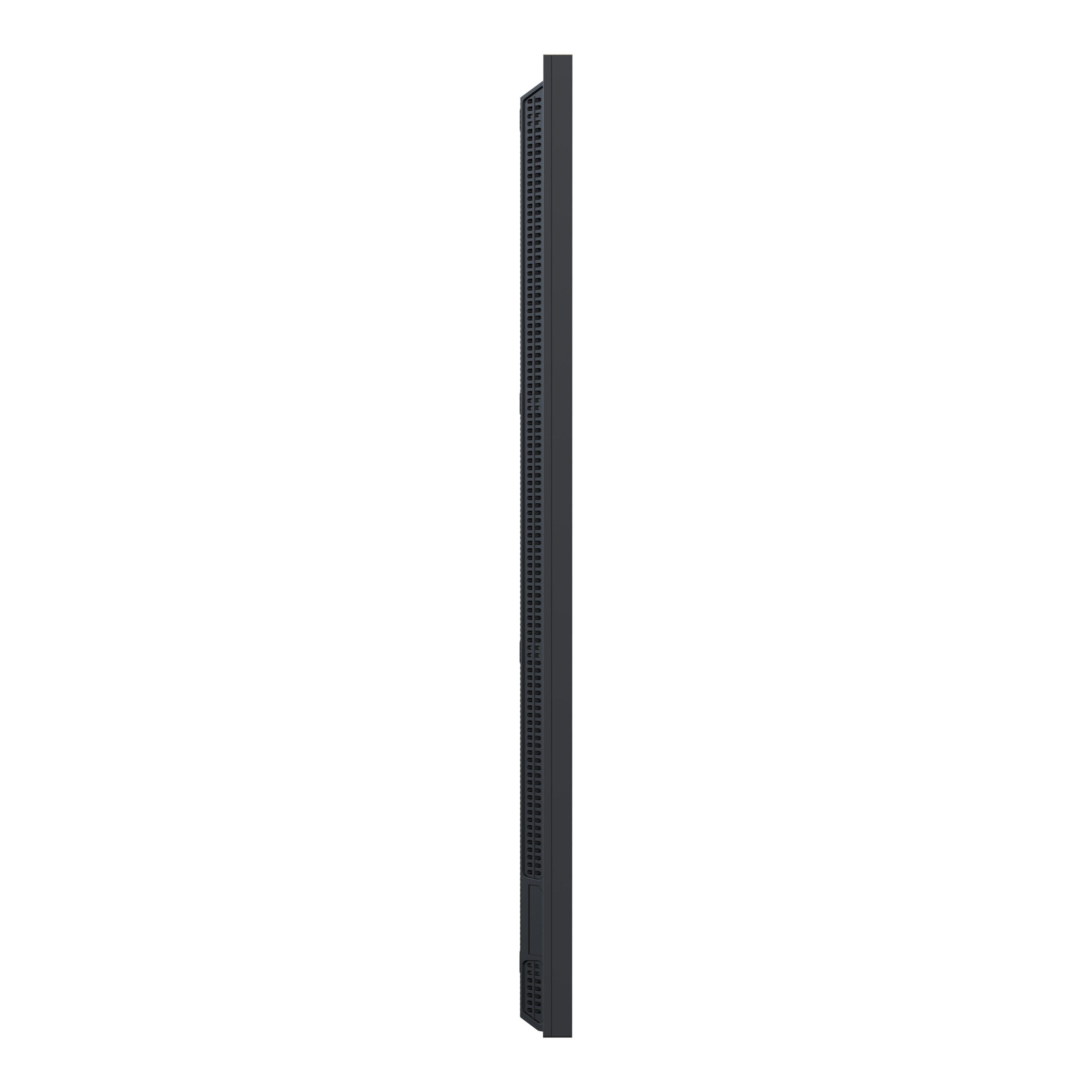

NSD-6503, 65” All-in-One 4K UHD Digital Signage Display
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The CMP-01 is a steel ceiling mount pole for professional displays. Used together with the WMK-03, LMK-01 or LMK-02 tilt mounts, it lets various viewing angles be set. Its height is adjustable and the pole swivels 360° to the right and to the left. Each side carries up to 60.0 kg (132.3 lb). The unit is finished in black. Steel ceiling mount pole360° swivel right/left60.0 kg (132.3 lb) capacity per sideAdjustable heightBlack finishCombines with WMK-03, LMK-01, LMK-02
In stock, ships immediately · delivery 1-2 days
The LMK-01 is a steel wall mount kit for displays from 42 to 86 inches. It carries loads up to 80.0 kg and supports mounting patterns of up to 725.0 x 450.0 mm. A tilt range of -15° to 0° lets the screen be angled downwards. The anodised black steel build is rust resistant and intended for indoor as well as outdoor use, and it can be fixed to masonry walls as well as to lightweight partition walls. One set weighs 5.1 kg net and 5.9 kg gross, in packaging measuring 836.0 x 245.0 x 54.0 mm. Fits 42 to 86 inch displays80.0 kg weight capacityTilt -15° to 0°Mounting pattern up to 725.0 x 450.0 mmSteel construction, black5.1 kg net weight
Not in stock · delivery 3-4 days
The FMC-07 is a mobile floor mounting cart for displays up to a maximum of 86", rated for 100 kg (220.4 lb). Built as a modular mounting set, it accepts AG Neovo's 55" - 86" large format displays and covers VESA patterns from a minimum of 400 x 200 mm to a maximum of 900 x 600 mm, while the mount rotates through 360°. It comes with a stable tray and lockable castors whose brake and mute design avoids floor scratches and noise. The cart measures 1,240.0 × 1,595.0 × 750.0 mm, stands 1595 mm (62.7") high and weighs 22.1 kg (48.8 lb) net. Materials are Spcc and Aluminium in a silver finish. Floor cart for displays up to 86"100 kg (220.4 lb) weight capacityVESA 400 x 200 mm to 900 x 600 mm360° rotationLockable castors with mute designSpcc and Aluminium, silver
Not in stock · delivery 3-4 days
The LMA-01 is a wall mount arm for displays from 32 to 65 inches with a load rating of 30.0 kg. Tilt from -15° to +15° and 90° of swivel to each side allow the screen to be aimed precisely. Extension is adjustable between a minimum wall distance of 105.0 mm and a maximum of 562.0 mm. Integrated cable routing keeps the connection cables out of sight and away from unwanted access. The arm is made of steel, aluminium alloy and plastic in black and silver, and accepts mounting patterns up to 400 x 400 mm. Product dimensions are 500.0 x 450.0 x 105.0 mm, and one set has a gross weight of 9.3 kg. Fits 32 to 65 inch displays30.0 kg weight capacityTilt -15° to +15°Swivel 90° / 90°Wall distance 105.0 mm to 562.0 mmMounting pattern up to 400 x 400 mm
Not in stock · delivery 3-4 days
The LMA-02 is a full-motion extendable wall mount bracket for displays from 32 to 65 inches, rated for loads up to 50.0 kg. Its arm extends from a wall distance of 64.0 mm out to 510.0 mm, so the screen can be positioned freely within a room. Viewing angles are refined through -20° to +10° of tilt and 60° of swivel to the right and left. The all-metal construction is finished in black and accepts mounting patterns up to 600 x 400 mm. One set weighs 7.0 kg net and 7.5 kg gross, packed in a carton measuring 700.0 x 222.0 x 70.0 mm. Fits 32 to 65 inch displays50.0 kg weight capacityExtension 64.0 mm to 510.0 mmTilt -20° to +10°Swivel 60° / 60°Mounting pattern up to 600 x 400 mm
Not in stock · delivery 3-4 days
The AG Neovo WMK-04 is an extendable zero-gap wall mount for a single display, with a maximum weight capacity of 30 kg per display. The manufacturer specifies it for the 55-inch NSD-5503 and the 65-inch NSD-6503, both 4K all-in-one digital signage displays. Mounting type is wall, the housing material is steel and the product colour black. The mount measures 484 x 13.7 x 96.2 mm and weighs 1.48 kg. It is supplied as 1 pc(s) per pack in a 610 x 24 x 105 mm package with a package weight of 1.6 kg. Maximum weight capacity 30 kgOne display supported, wall mounting typeSteel housing, blackDimensions 484 x 13.7 x 96.2 mm, 1.48 kgFor NSD-5503 (55-inch) and NSD-6503 (65-inch)1 pc(s) per pack
Not in stock · delivery 3-4 days
WMK-05 is an ultra slim micro-gap wall mount for displays from 43 to 65 inches, keeping the gap between wall and screen to a minimum. Installation is supported by a built-in bubble level for horizontal alignment and strong magnetic contacts that secure the attachment. The integrated one-piece wall plate carries up to 75.0 kg and accepts mounting patterns from 200 to 400 mm. Steel and aluminium with an electronic coating in black form the construction, and the assembled mount measures 530.0 x 250.0 x 9.5 mm. Net weight is 1.26 kg, supplied 360 pieces per pallet. Ultra slim mount with minimal wall gap75.0 kg capacity, displays from 43 to 65 inchesOne-piece wall plate, 200 to 400 mm patternBuilt-in bubble level and magnetic contactsSteel and aluminium with electronic coating9.5 mm depth, 1.26 kg net weight
Not in stock · delivery 3-4 days
The LMK-03 is a tilting steel wall mount kit for displays from 42 to 98 inches. It fits VESA mounting patterns from 75 x 150 mm through to 800 x 500 mm and carries loads up to 100.0 kg. Tilt is specified as -15° to +15°, and installation is straightforward. The profile between display and wall measures just 0.75 mm, and lateral shift together with a safety lock and anti-theft lock is provided. These properties suit the bracket to commercial and public installations. One set weighs 4.4 kg net and 5.1 kg gross, finished in black. Fits 42 to 98 inch displays100.0 kg weight capacityVESA 75 x 150 mm to 800 x 500 mmTilt -15° to +15°0.75 mm profile between display and wallLateral shift, safety and anti-theft lock
Not in stock · delivery 3-4 days
VWM-01 is a video wall mount rated for 80 kg, which makes it suitable for narrow-bezel and seamless installations. Combined with VWM-02 push-to-open arms, VWA-01 aluminium extension bars and VWA-04 wall brackets, displays can be composed into a continuous row without the complicated measuring and calculation of screen spacing. Fine adjustment covers 15.0 mm to the left and right as well as 3.3 mm up and down. The mount is specified for displays from 43 to 86 inches with a mounting pattern of up to 800 x 400 mm. It is built from steel and aluminium in black and silver, weighs 4.5 kg net and ships one set per carton. 80 kg weight capacityFits displays from 43 to 86 inchesMounting pattern up to 800 x 400 mm15.0 mm lateral and 3.3 mm vertical adjustmentSteel and aluminium, black and silver4.5 kg net weight, one set per carton
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- NSD-6503
- EAN / GTIN
- 4710739598100
Description
The NSD-6503 is an all-in-one digital signage display with a 64.5 inch panel and 4K UHD output. A built-in Android 9.0 system with an A35*4 CPU, 2G of memory and 16G of storage drives playback, with control via the built-in OS, a mobile app, RJ45 or RS232. Brightness is 500 cd/m², contrast 5000:1 and pixel pitch 0.372 mm, and an anti-burn-in function is included. Three HDMI 2.0 inputs and two USB 2.0 ports (service port / media playback) take sources and media, while frequency ranges cover 18kHz-135kHz horizontal and 24Hz-60Hz vertical. On-mode consumption is 101W, the VESA pattern is 400mm*400mm, and the listed mounts are LMA-01, LMA-02, LMK-01, WMK-04, WMK-05 plus CMP-01 + LMK-01 for ceilings. Without base the display weighs 25.3 kg, and an HDMI cable, power cord, quick start guide, remote control and wall mount are supplied.
- Android 9.0, A35*4 CPU, 2G / 16G
- 64.5 inch panel, 4K UHD
- 500 cd/m², 5000:1 contrast
- Anti-burn-in function
- 3x HDMI 2.0, 2x USB 2.0
- VESA 400mm*400mm, 25.3 kg without base
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Anti-Burn-in
- Yes
- Aspect Ratio
- 16:9
- Audio Out
- Stereo Audio Jack (3.5 mm)
- Bezel Width
- 14 mm (Top/Left/Right) 16 mm (Bottom)
- Brightness
- 500 cd/m², 500~700 cd/㎡
- CPU
- A35*4
- Casing Colour
- Black
- Ceiling Mount
- CMP-01 + LMK-01
- Certifications & Compliance
- FCC, CE, LVD, ICES-003 Issue 7, WEEE, RoHS, REACH, BSMI
- Colour Gamut
- NTSC 87%
- Contrast Ratio
- 5000:1
- Diagonal Sizes
- > 65"
- Display Colour
- 1.07G
- EcoSmart Control
- No
- External Control
- Built-in OS, Mobile App, RJ45, RS232
- Features
- 24-7, Portrait, Speaker
- Floor Mount (Landscape only)
- FMC-06, FMC-07
- Frequency (H)
- 18kHz-135kHz
- Frequency (V)
- 24Hz-60Hz
- HDMI
- 2.0 x 3
- HeatControl Sensor (Auto Fan Control / Heat Control)
- No
- Humidity
- 20%-80% (non-condensing)
- IK Rating
- LMK-03
- IP Rating
- IP5X
- Innovation
- Anti-Burn-in Technology
- Inputs
- HDMI, RJ45, RS232, USB Type-A
- Internal Speakers
- 10W x 2
- Kensington Security Slot
- N/A
- LAN
- RJ45 x 1
- Max. Resolution
- UHD 3840 x 2160
- Memory
- 2G
- Micro SD Card Slot
- N/A
- OPS Slot
- N/A
- OS
- Android 9.0
- On Mode
- 101W (On)
- On Mode (Max)
- 150W (Max)
- Operating Time (Internal)
- 24/7
- Orientation
- Landscape / Portrait
- Outputs
- Audio
- Packaging
- 33.8 kg (74.5 lb)
- Packaging (W x H x D)
- 1640*990*164mm (64.6" x 39.0" x 6.5")
- Panel Size
- 64.5"
- Panel Size on Carton
- 64.5"
- Panel Type
- VA
- PbP
- No
- PiP
- No
- Pixel Pitch
- 0.372 mm
- Power Requirements
- AC 100-240V, 50/60 Hz
- Power Supply
- Internal
- Product w/o Base
- 25.3 kg (55.8 lb)
- Product w/o Base (W x H x D)
- 1459.2*837.1*38.9mm (57.4" x 33.0" x 1.5")
- RS232 In
- 9-Pin D-Sub
- Rear Cover Material
- Plastic
- Resolution
- UHD 3840 x 2160 (16:9)
- Response Time
- 5 ms
- SDM Slot
- N/A
- Standby Mode
- < 0.5W
- Storage
- 16G
- Supplied
- HDMI Cable, Power Cord, Quick Start Guide, Remote Control, Wall Mount
- Surface Treatment
- Anti-Glare Treatment (Haze 25%), 3H Hard Coating
- Temperature
- -20°C-60°C (-4°F-140°F), 0°C-40°C (32°F-104°F)
- USB
- 2.0 x 2 (Service Port / Media Playback)
- VESA FPMPMI
- 400mm*400mm
- Video Wall Mount
- VWM-01, VWM-02
- Viewing Angle (H/V)
- 178°/178°
- Viewing Angles
- 178/178
- Wall Mount
- LMA-01, LMA-02, LMK-01, WMK-04, WMK-05
