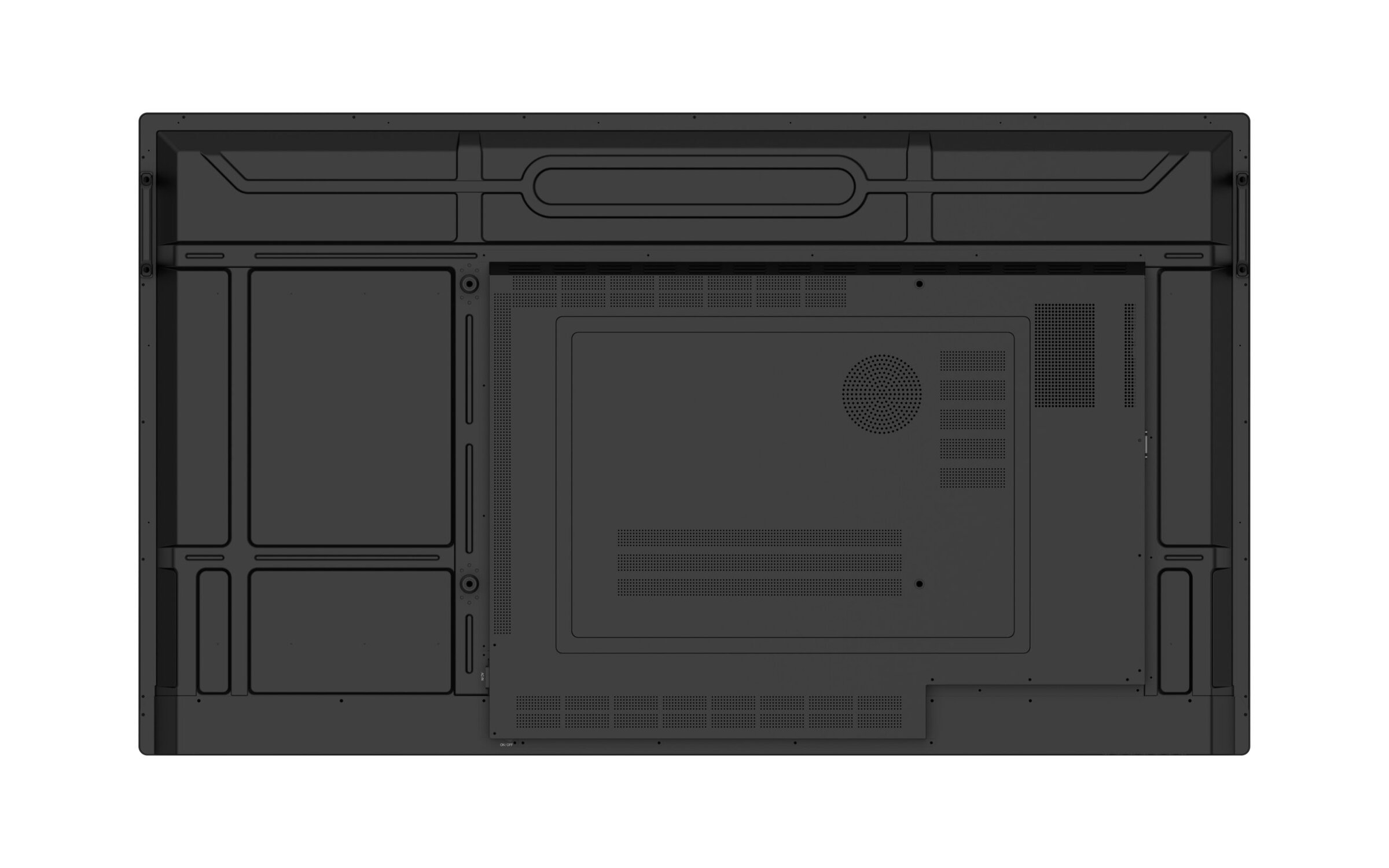

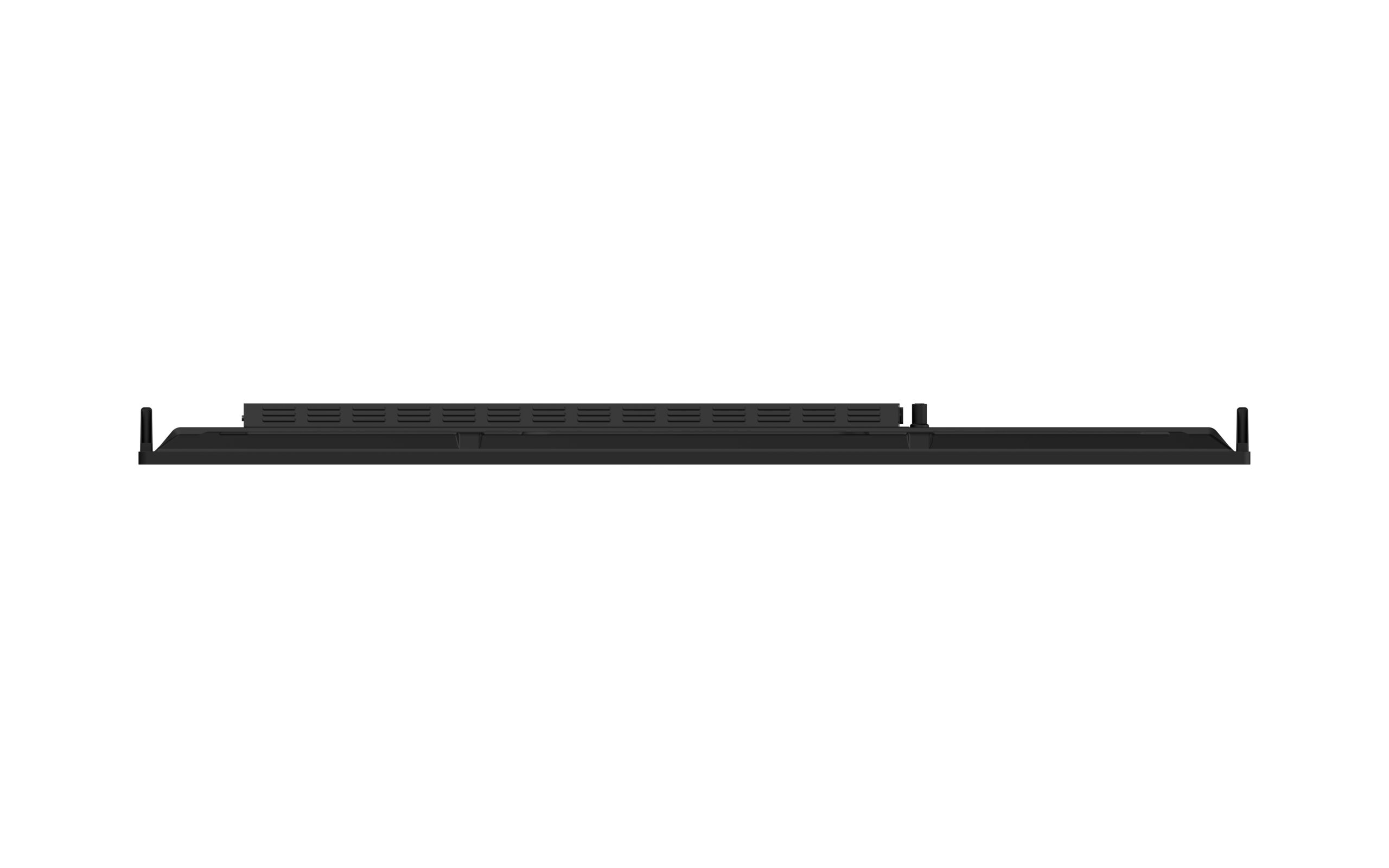

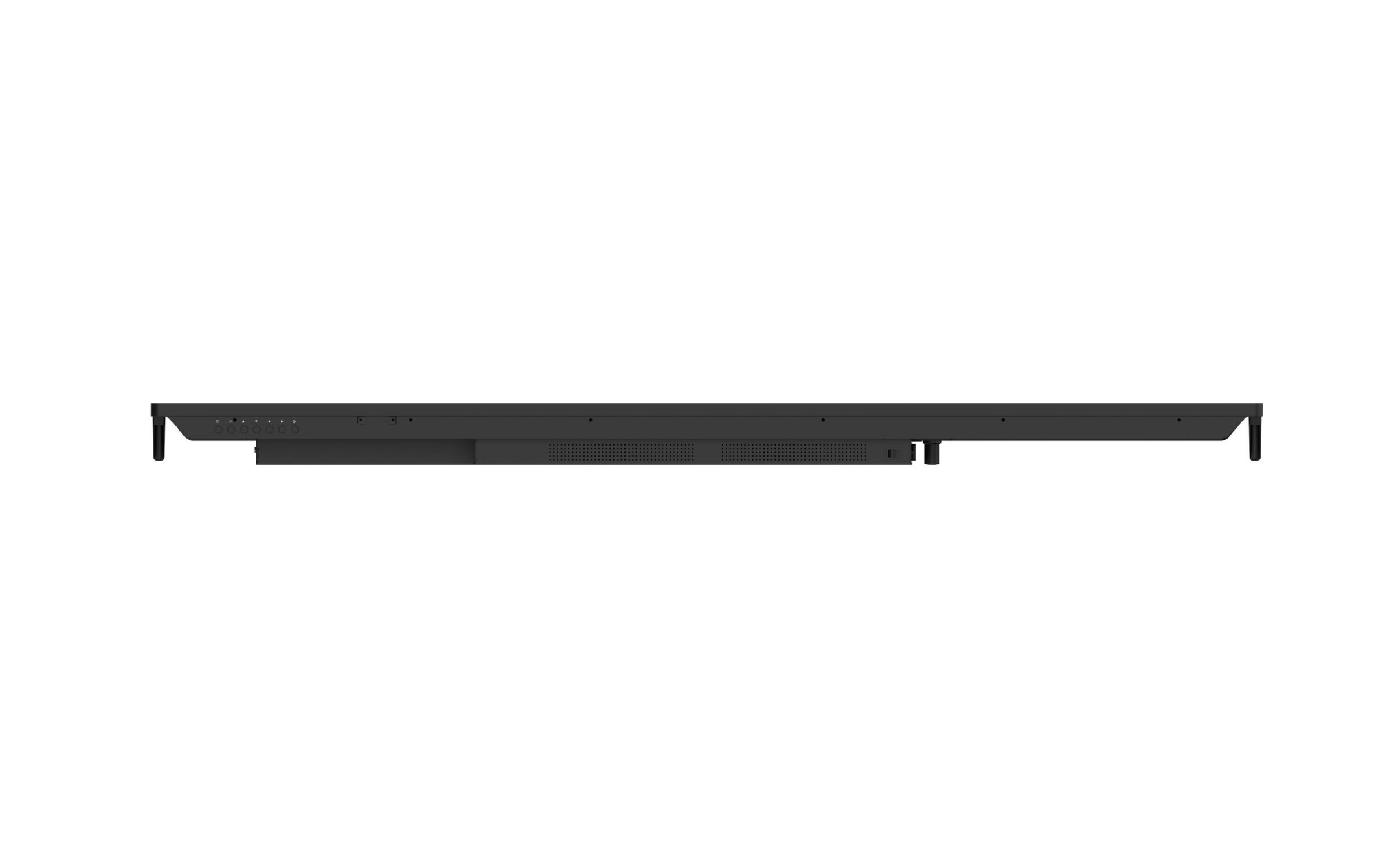

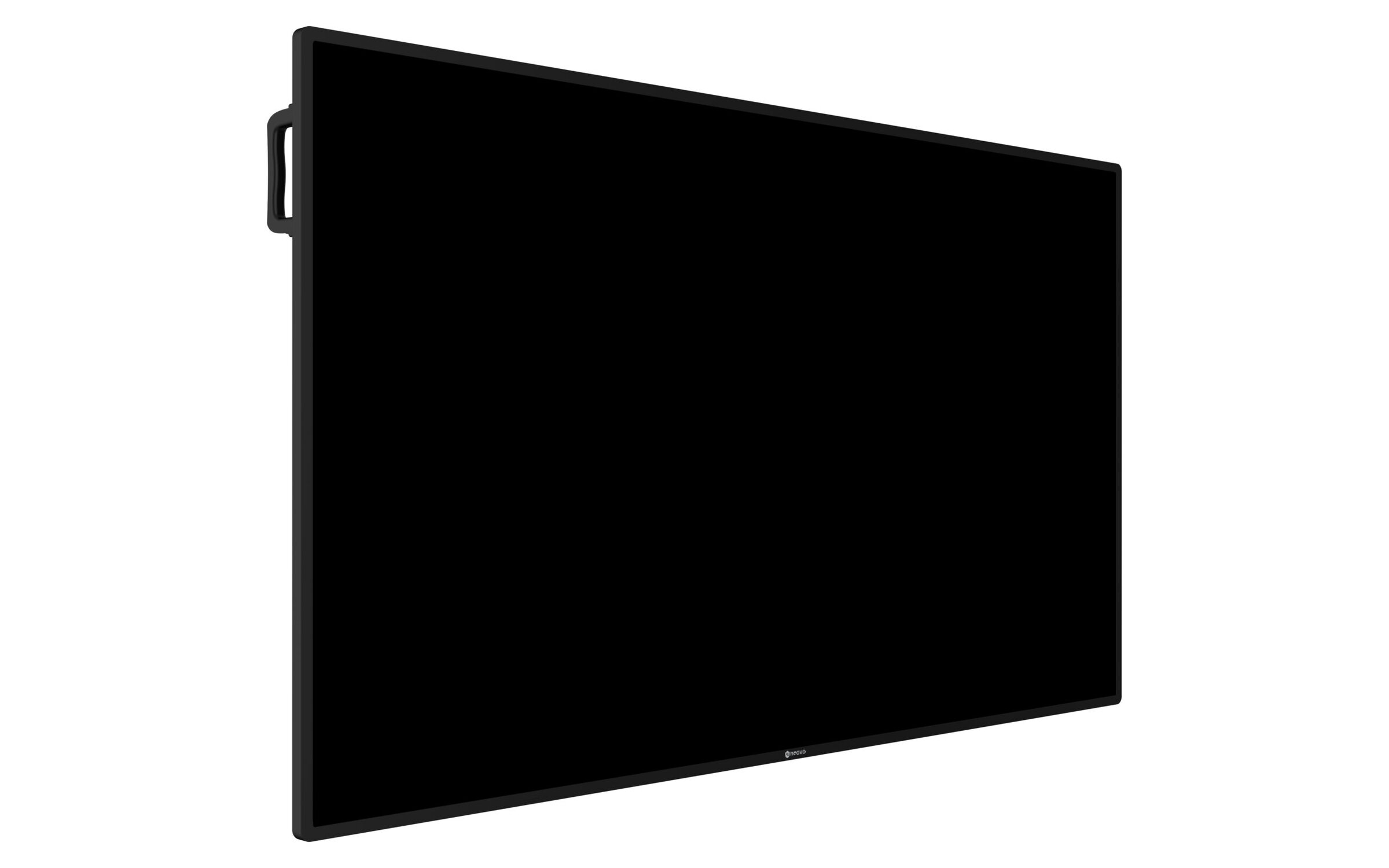

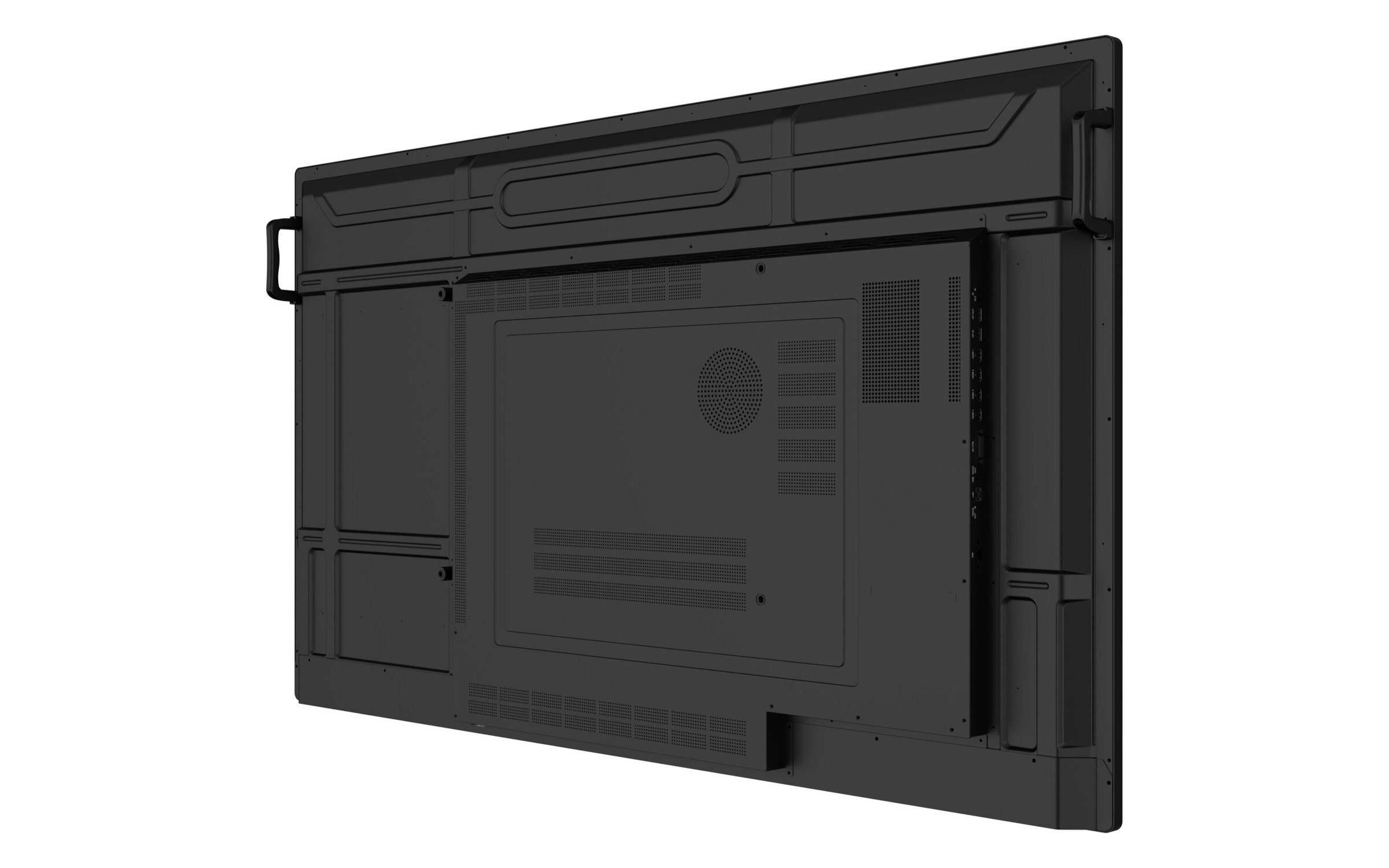

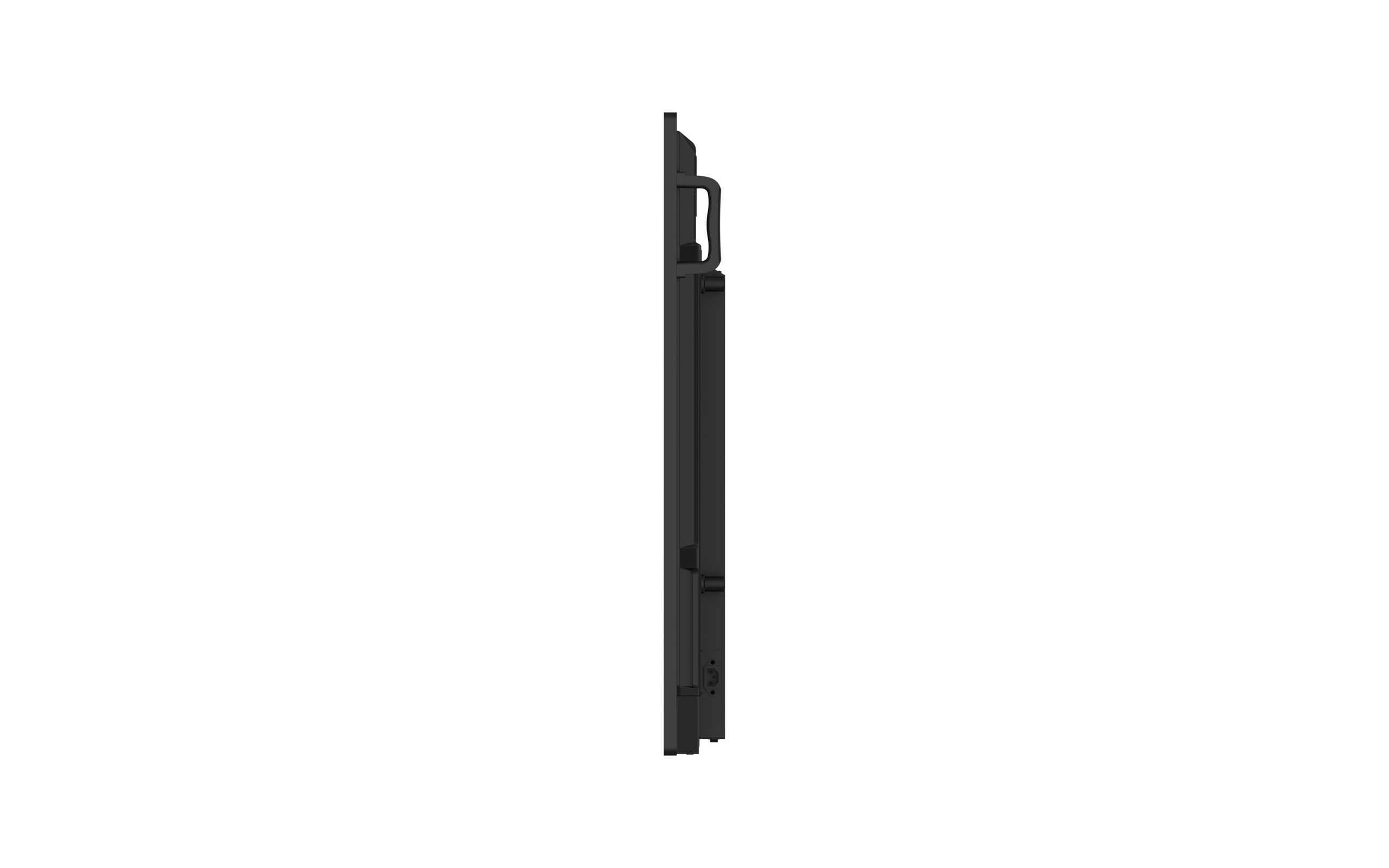

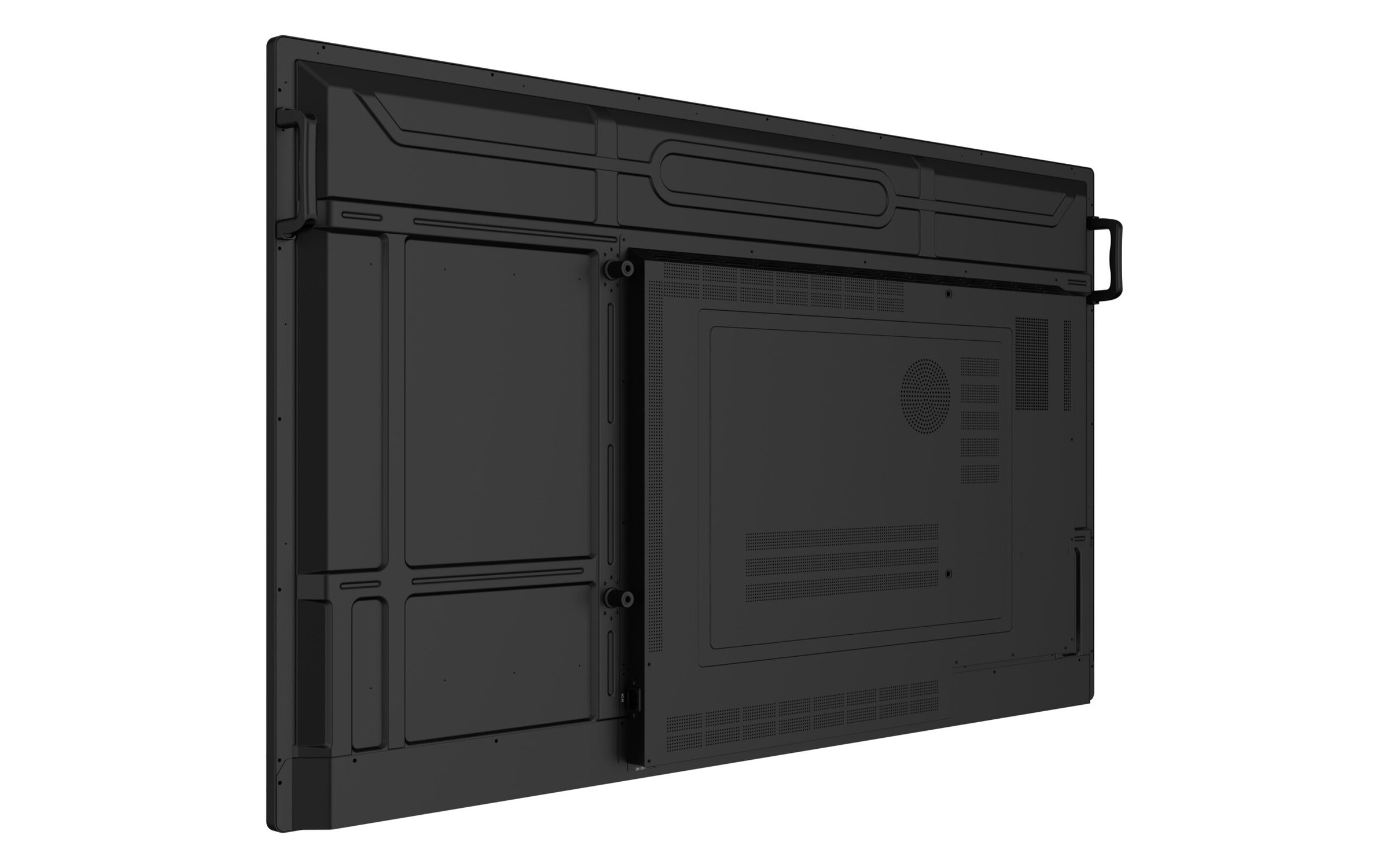

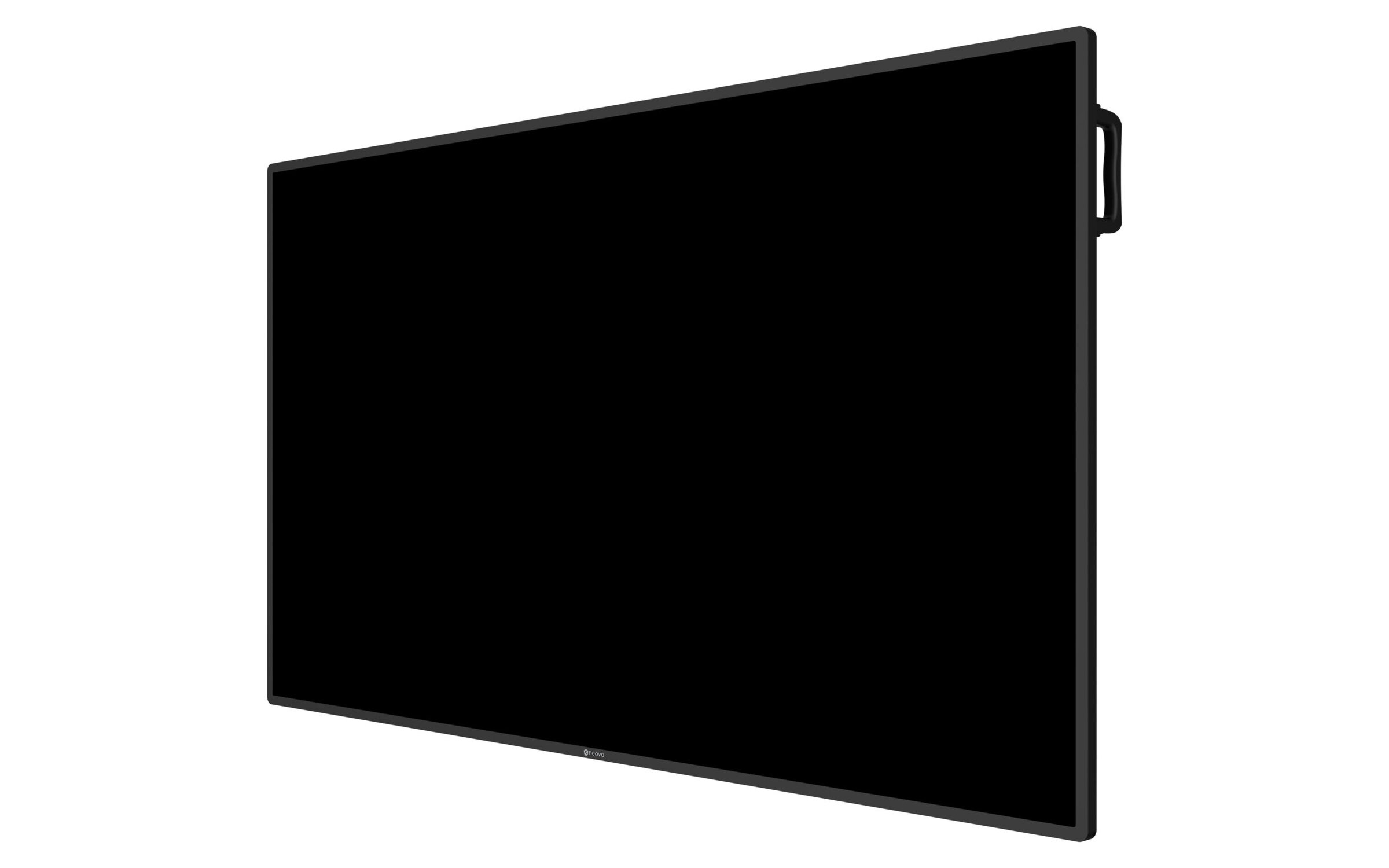

QX-6502, 65" 4K Display with 4 HDMI Multiviewer
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The CMP-01 is a steel ceiling mount pole for professional displays. Used together with the WMK-03, LMK-01 or LMK-02 tilt mounts, it lets various viewing angles be set. Its height is adjustable and the pole swivels 360° to the right and to the left. Each side carries up to 60.0 kg (132.3 lb). The unit is finished in black. Steel ceiling mount pole360° swivel right/left60.0 kg (132.3 lb) capacity per sideAdjustable heightBlack finishCombines with WMK-03, LMK-01, LMK-02
In stock, ships immediately · delivery 1-2 days
The LMK-01 is a steel wall mount kit for displays from 42 to 86 inches. It carries loads up to 80.0 kg and supports mounting patterns of up to 725.0 x 450.0 mm. A tilt range of -15° to 0° lets the screen be angled downwards. The anodised black steel build is rust resistant and intended for indoor as well as outdoor use, and it can be fixed to masonry walls as well as to lightweight partition walls. One set weighs 5.1 kg net and 5.9 kg gross, in packaging measuring 836.0 x 245.0 x 54.0 mm. Fits 42 to 86 inch displays80.0 kg weight capacityTilt -15° to 0°Mounting pattern up to 725.0 x 450.0 mmSteel construction, black5.1 kg net weight
Not in stock · delivery 3-4 days
The LMA-02 is a full-motion extendable wall mount bracket for displays from 32 to 65 inches, rated for loads up to 50.0 kg. Its arm extends from a wall distance of 64.0 mm out to 510.0 mm, so the screen can be positioned freely within a room. Viewing angles are refined through -20° to +10° of tilt and 60° of swivel to the right and left. The all-metal construction is finished in black and accepts mounting patterns up to 600 x 400 mm. One set weighs 7.0 kg net and 7.5 kg gross, packed in a carton measuring 700.0 x 222.0 x 70.0 mm. Fits 32 to 65 inch displays50.0 kg weight capacityExtension 64.0 mm to 510.0 mmTilt -20° to +10°Swivel 60° / 60°Mounting pattern up to 600 x 400 mm
Not in stock · delivery 3-4 days
The LMK-03 is a tilting steel wall mount kit for displays from 42 to 98 inches. It fits VESA mounting patterns from 75 x 150 mm through to 800 x 500 mm and carries loads up to 100.0 kg. Tilt is specified as -15° to +15°, and installation is straightforward. The profile between display and wall measures just 0.75 mm, and lateral shift together with a safety lock and anti-theft lock is provided. These properties suit the bracket to commercial and public installations. One set weighs 4.4 kg net and 5.1 kg gross, finished in black. Fits 42 to 98 inch displays100.0 kg weight capacityVESA 75 x 150 mm to 800 x 500 mmTilt -15° to +15°0.75 mm profile between display and wallLateral shift, safety and anti-theft lock
Not in stock · delivery 3-4 days
The KPD01 is an external keypad serving as a dedicated control accessory for professional display deployments. Its configurable interface gives operators immediate physical access to the functions they use most, which matters where response time and reliability are crucial, and the connection is hard-wired. The enclosure is made of metal in PANTONE COOL GRAY 11C. Dimensions are 158.5 x 78.6 x 22.5 mm with a net weight of 0.35 kg (0.77 lb). External keypad for display hotkeysConfigurable interfaceHard-wired connectionMetal enclosurePANTONE COOL GRAY 11C finishDimensions 158.5 x 78.6 x 22.5 mm
Not in stock · delivery 3-4 days
The KNB01 is an external control knob for adjusting display luminance immediately and precisely. Control is physical at the knob, so operators need not call up on-screen menus, which suits mission-critical work and controlling or monitoring in dark environments. The enclosure is metal with a powder coating in PANTONE COOL GRAY 11C. It measures 80.0 x 77.0 x 52.6 mm and weighs 0.24 kg (0.52 lb) net. External control knob for display backlightPhysical control without on-screen menusMetal enclosure, powder coatingPANTONE COOL GRAY 11C finishDimensions 80.0 x 77.0 x 52.6 mmNet weight 0.24 kg (0.52 lb)
Not in stock · delivery 3-4 days
The FMC-07 is a mobile floor mounting cart for displays up to a maximum of 86", rated for 100 kg (220.4 lb). Built as a modular mounting set, it accepts AG Neovo's 55" - 86" large format displays and covers VESA patterns from a minimum of 400 x 200 mm to a maximum of 900 x 600 mm, while the mount rotates through 360°. It comes with a stable tray and lockable castors whose brake and mute design avoids floor scratches and noise. The cart measures 1,240.0 × 1,595.0 × 750.0 mm, stands 1595 mm (62.7") high and weighs 22.1 kg (48.8 lb) net. Materials are Spcc and Aluminium in a silver finish. Floor cart for displays up to 86"100 kg (220.4 lb) weight capacityVESA 400 x 200 mm to 900 x 600 mm360° rotationLockable castors with mute designSpcc and Aluminium, silver
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- QX-6502
Description

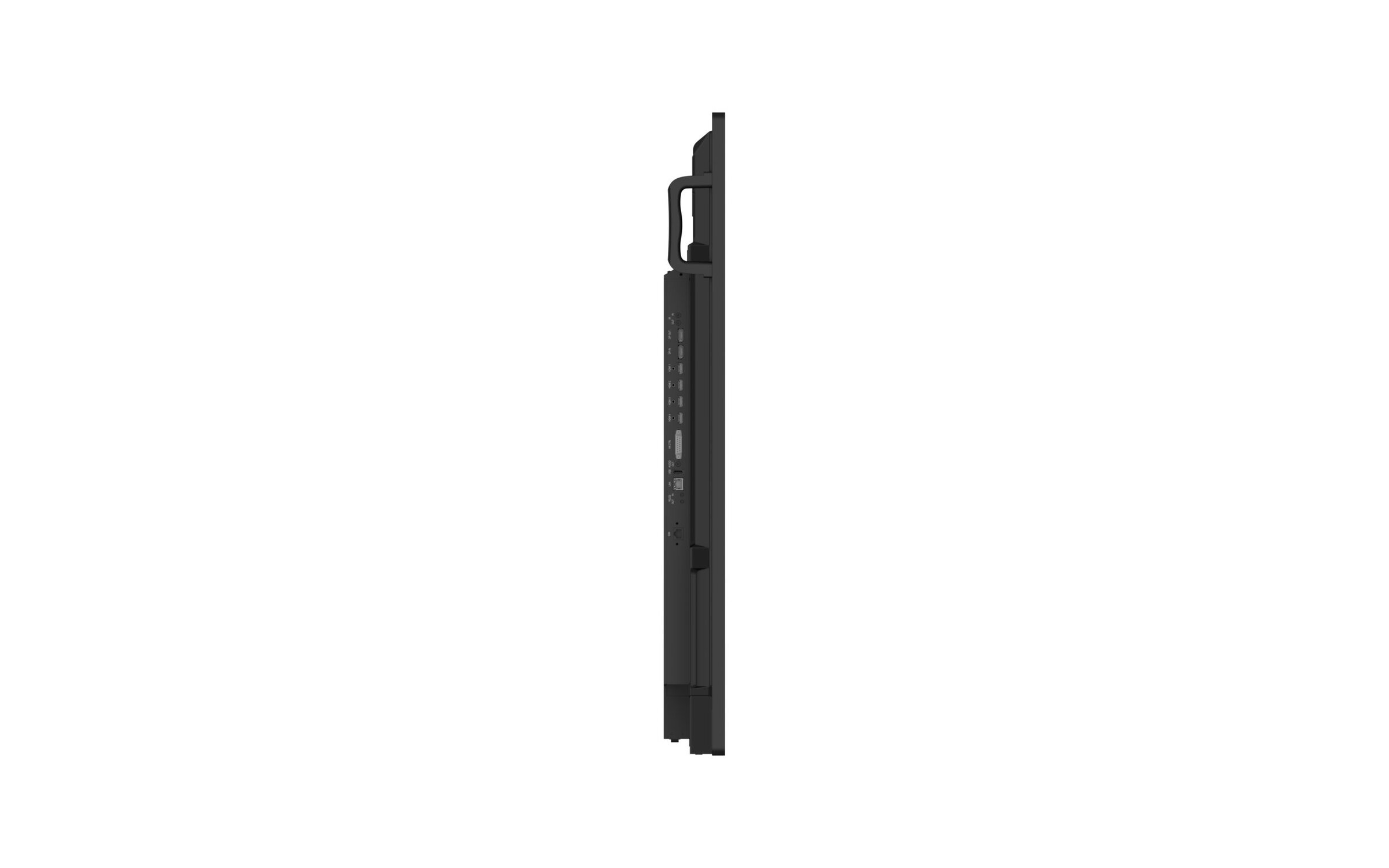

This display uses an IPS panel with a maximum resolution of UHD 3840 x 2160, a pixel pitch of 0.372 mm and 178-degree viewing angles in both axes. It reaches 350 cd/m², reproduces 1.07G colours within an NTSC 72% gamut and responds in 5 ms. Anti-glare treatment at haze 25% and a 3H hard coating protect the surface, while the frequency range spans 15 kHz to 136 kHz horizontally and 23 Hz to 76 Hz vertically. Ports comprise four HDMI 2.0, one DisplayPort 1.2, IR in and out on 3.5 mm jacks, RS232 in and out on 2.5 mm jacks, RJ45 and a USB 2.0 service port. Sound output runs through two 10 W speakers or the 3.5 mm stereo jack.
- IPS panel with UHD 3840 x 2160
- 350 cd/m² brightness, 5 ms response time
- 0.372 mm pixel pitch
- 4 x HDMI 2.0 and 1 x DisplayPort 1.2
- Anti-glare haze 25% with 3H hard coating
- 10 W x 2 internal speakers
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Anti-Burn-in
- Yes
- Aspect Ratio
- 16:9
- Audio Out
- Stereo Audio Jack (3.5 mm)
- Bezel Width
- Even bezel 14.9 mm
- Brightness
- 350 cd/m², 350~499 cd/㎡
- Casing Colour
- Black
- Certifications & Compliance
- CE, LVD, WEEE, RoHS, REACH
- Colour Gamut
- NTSC 72%
- Contrast Ratio
- 1500:1
- Control Knob
- KNB01
- DIM
- RJ45
- Diagonal Sizes
- > 65"
- Display Colour
- 1.07G
- DisplayPort
- 1.2 x 1
- External Control
- IR, RJ45, RS232
- External Keypad
- KPD01
- Features
- 24-7, PbP, PiP, Speaker
- Floor Mount (Landscape only)
- FMC-07
- Frequency (H)
- 15 kHz-136 kHz
- Frequency (V)
- 23 Hz-76 Hz
- Gloss
- 75±10%
- HDMI
- 2.0 x 4
- HK Ctrl
- 15 pin D-Sub
- Haze
- 3%~8%
- Humidity
- 5%-95% (non-condensing), 10%-90% (non-condensing)
- IK Rating
- IK08, IK10 (Metal casing)
- IK Rating
- LMA-02, LMK-01, LMK-03
- IR In
- 3.5 mm Phone Jack
- IR Out
- 3.5 mm Phone Jack
- Innovation
- Anti-Burn-in Technology, Metal Casing, NeoV Optical Glass
- Inputs
- DisplayPort, HDMI
- Internal Speakers
- 10W x 2
- LAN
- RJ45 x 1
- MOHS Hardness
- 6
- Max. Resolution
- UHD 3840 x 2160
- NeoV Optical Glass
- Yes
- Off Mode
- 0W
- On Mode
- 125W (On)
- On Mode (Max)
- 144W (Max)
- Operating Time (Internal)
- 24/7
- Orientation
- Landscape / Portrait
- Outputs
- DisplayPort, RS232
- Packaging
- 42.0 kg (92.6 lb)
- Packaging (W x H x D)
- 1640.0 x 1010.0 x185.0mm (64.6" x 39.8" x 7.3")
- Panel Size
- 65.0"
- Panel Size on Carton
- 65.0"
- Panel Type
- IPS
- PbP
- Yes
- Pencil Hardness
- 8H
- PiP
- Yes
- Pixel Pitch
- 0.372 mm
- Power Requirements
- AC 100-240V, 50/60 Hz
- Power Supply
- Internal
- Product w/o Base
- 34.5 kg (76.1 lb)
- Product w/o Base (W x H x D)
- 1482.5 × 857.6 × 81.9 mm (58.4" x 33.8" x 3.2")
- RS232 In
- 2.5 mm Phone Jack
- RS232 Out
- 2.5 mm Phone Jack
- Rear Cover Material
- Metal
- Resolution
- UHD 3840 x 2160 (16:9)
- Response Time
- 5 ms
- Sizes
- 32"-43"
- Standby Mode
- < 0.5W
- Supplied
- HDMI Cable, Power Cord, Quick Start Guide, Remote Control
- Surface Treatment
- AG, Anti-Glare Treatment (Haze 25%), 3H Hard Coating
- Temperature
- -20°C-60°C (-4°F-140°F), 0°C-40°C (32°F-104°F)
- Thickness
- 3.2 mm (0.13")
- Tilt
- CMP-01 + LMK-01
- USB
- DC 12V, 1.75A
- VESA FPMPMI
- Yes (600 x 400 mm)
- Viewing Angle (H/V)
- 178°/178°
- Viewing Angles
- 178/178
- Visibility
- Black-level Adjustment, Gamma Selection
