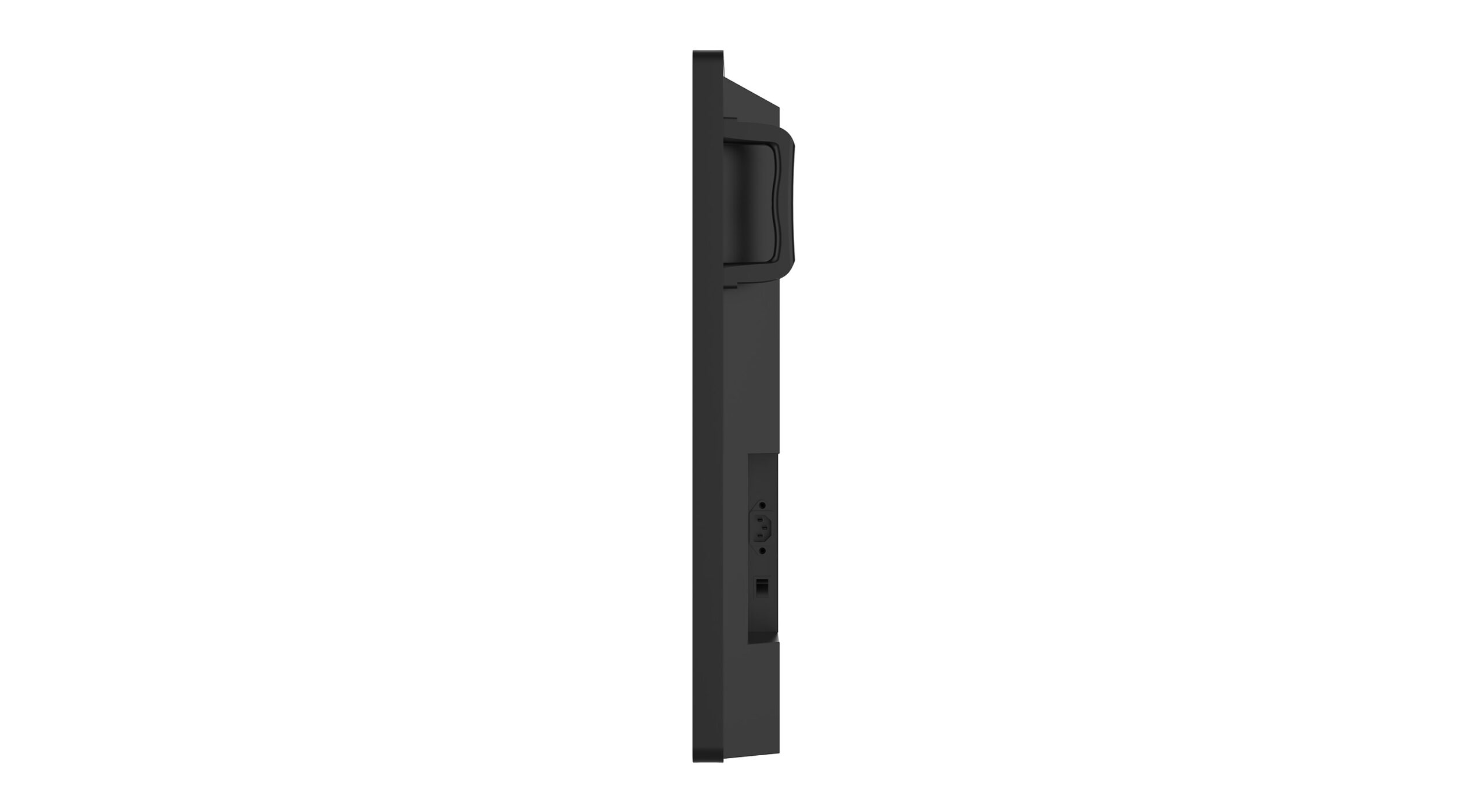

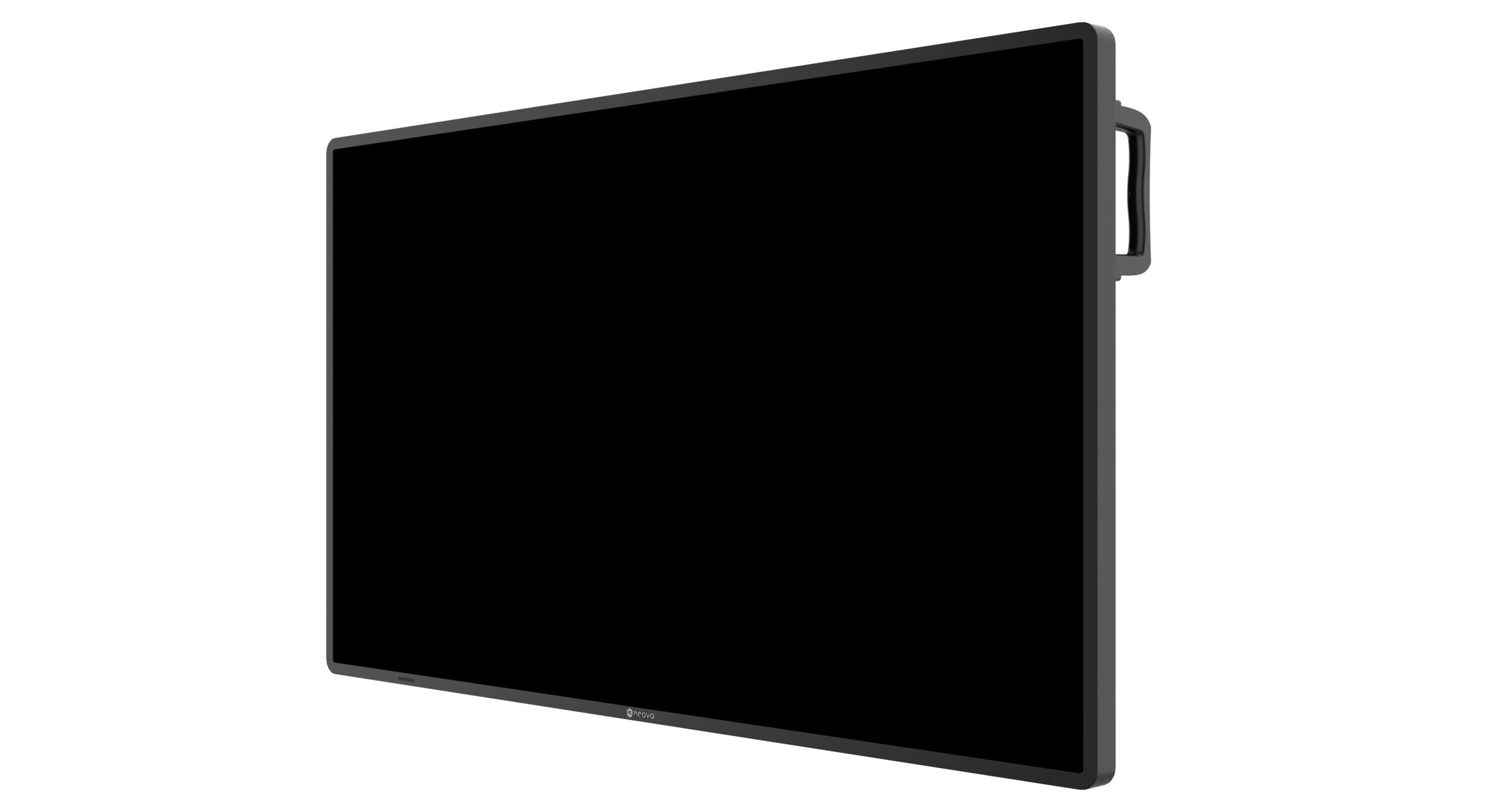

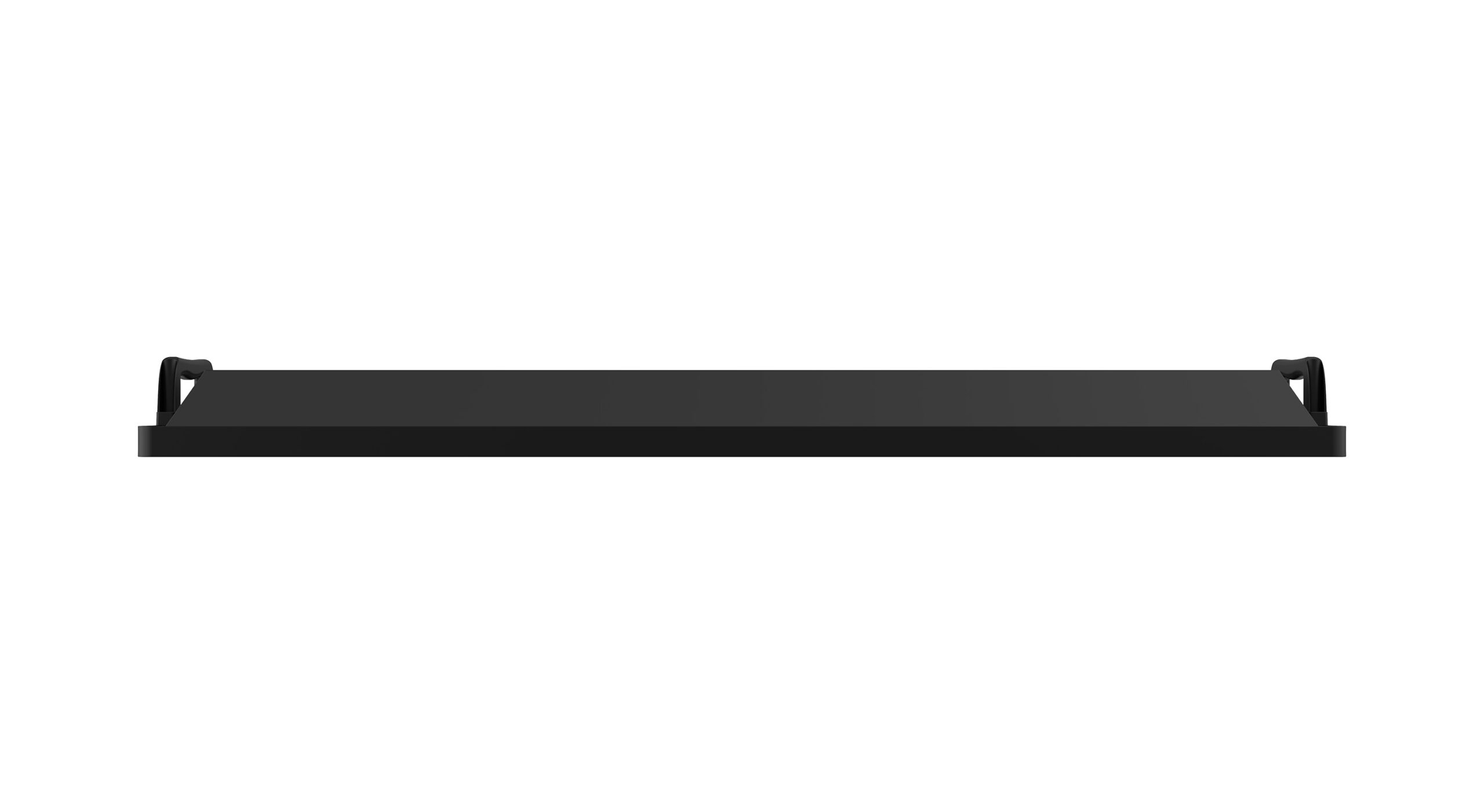

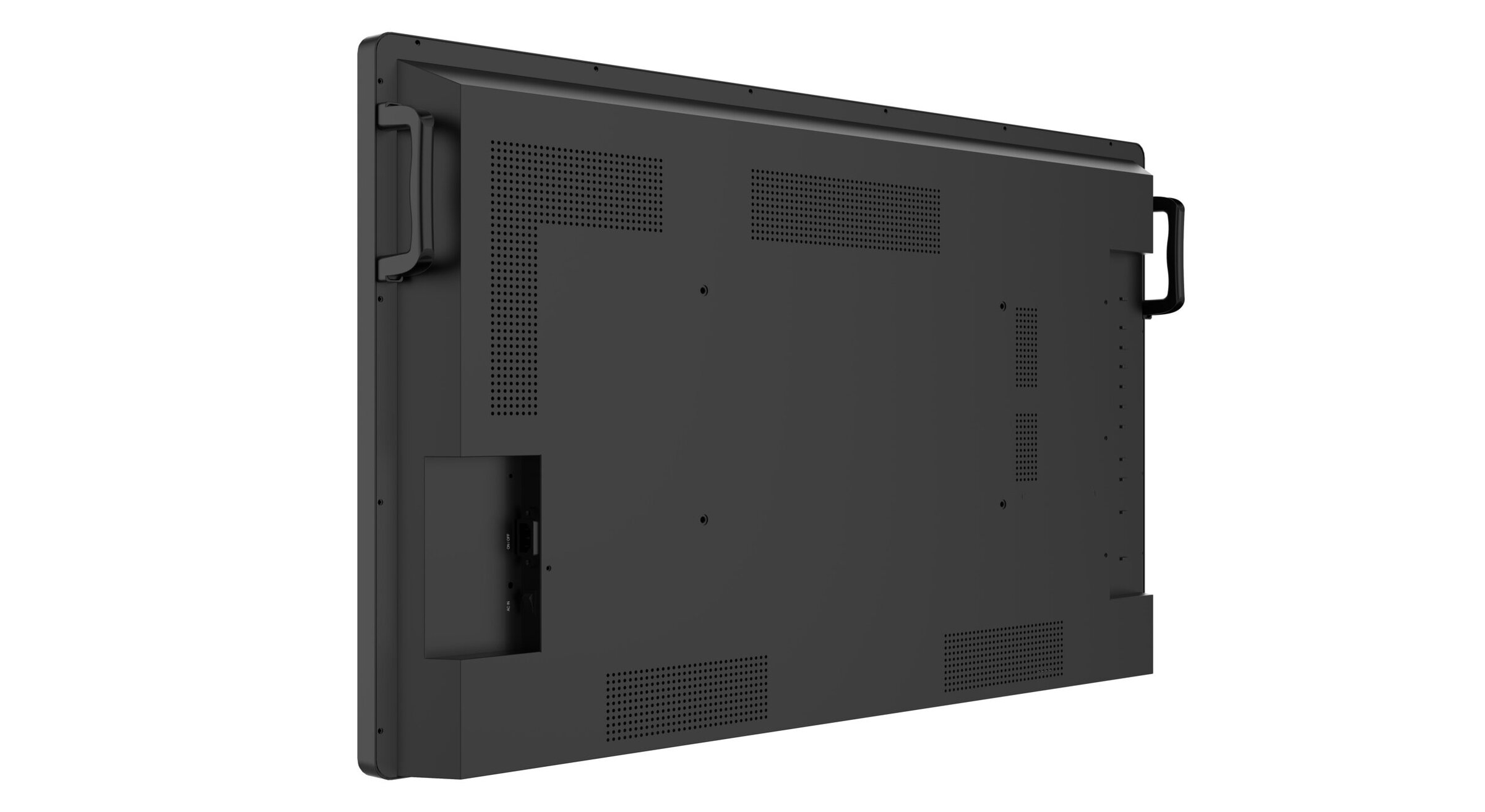

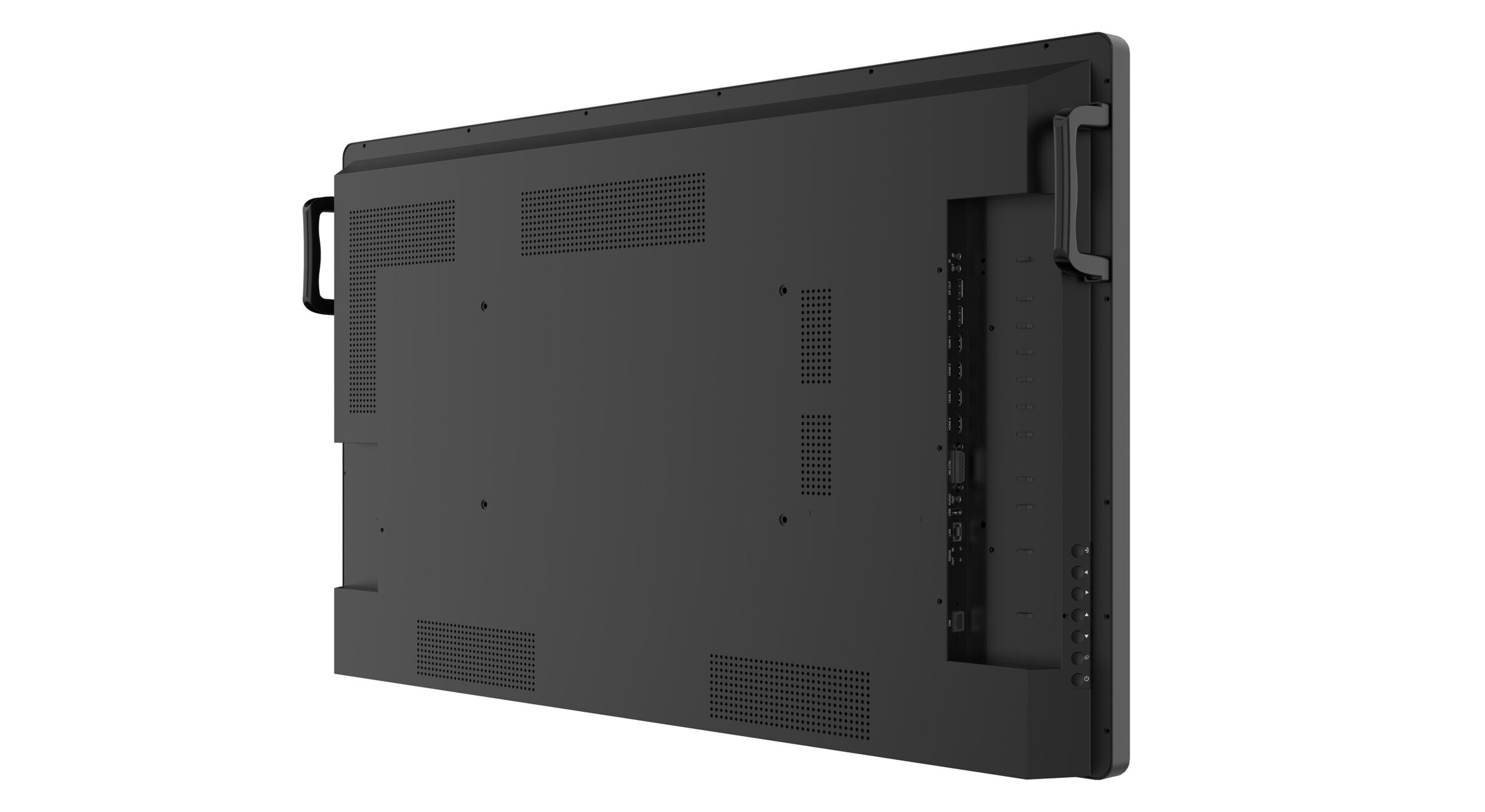

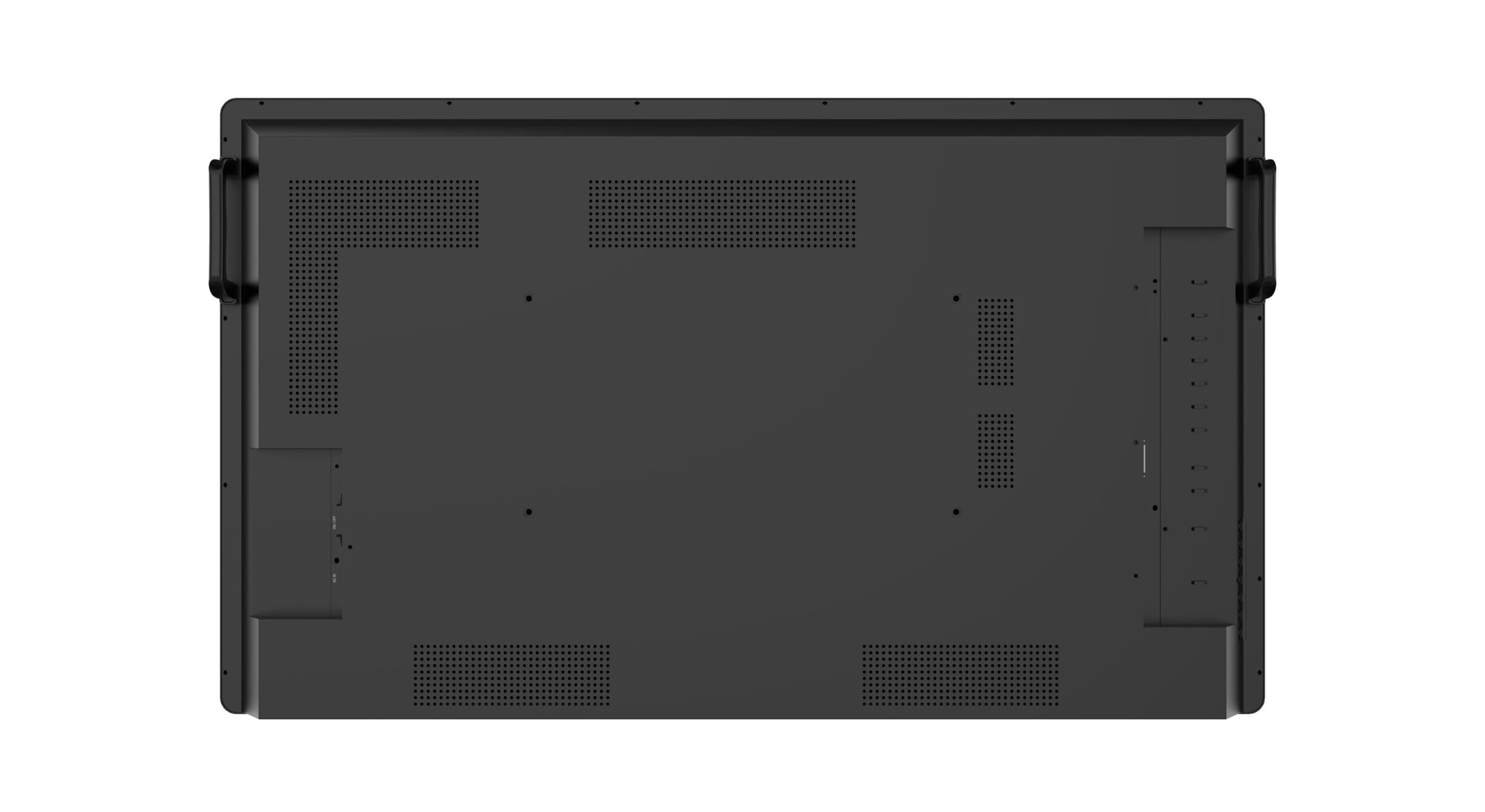

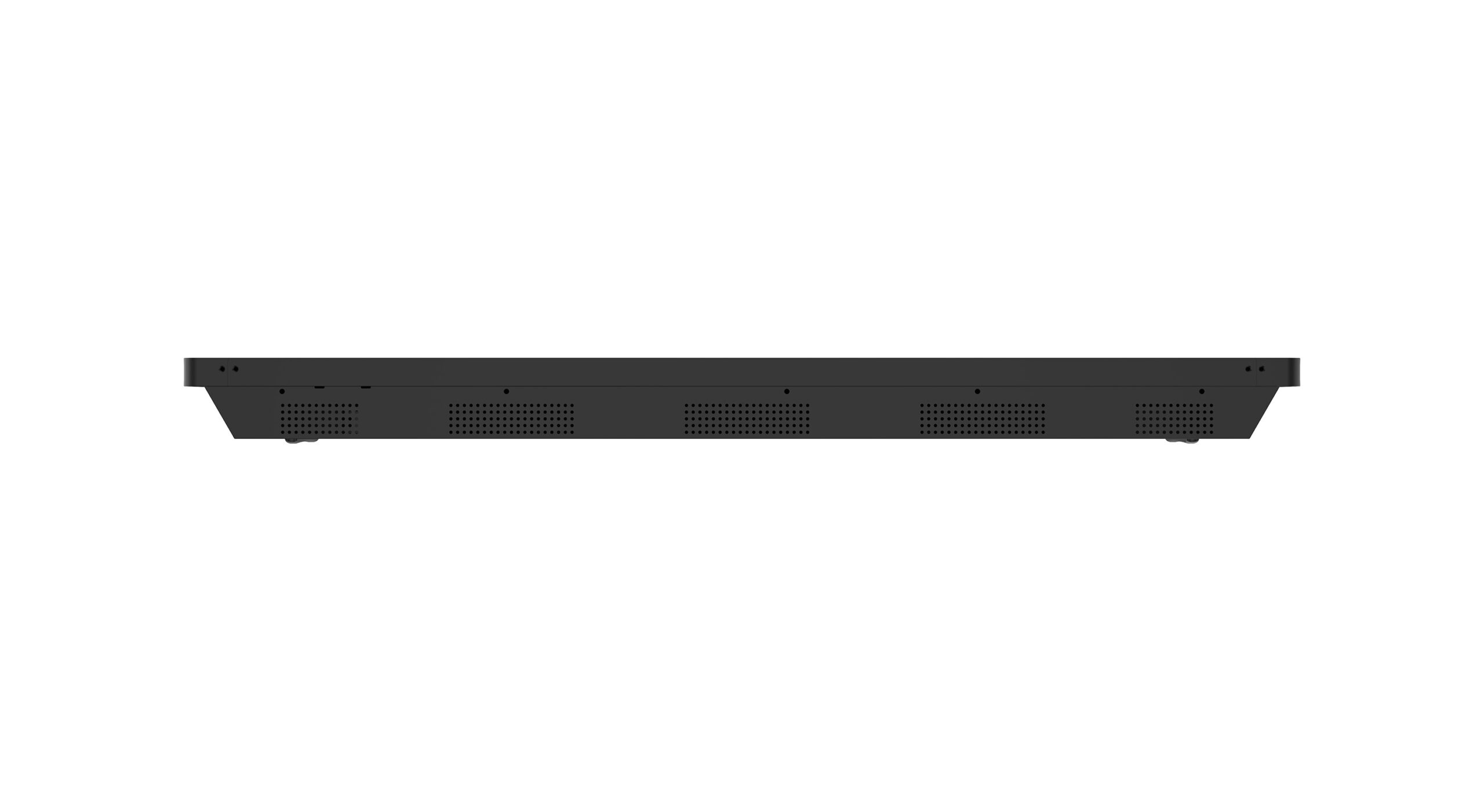

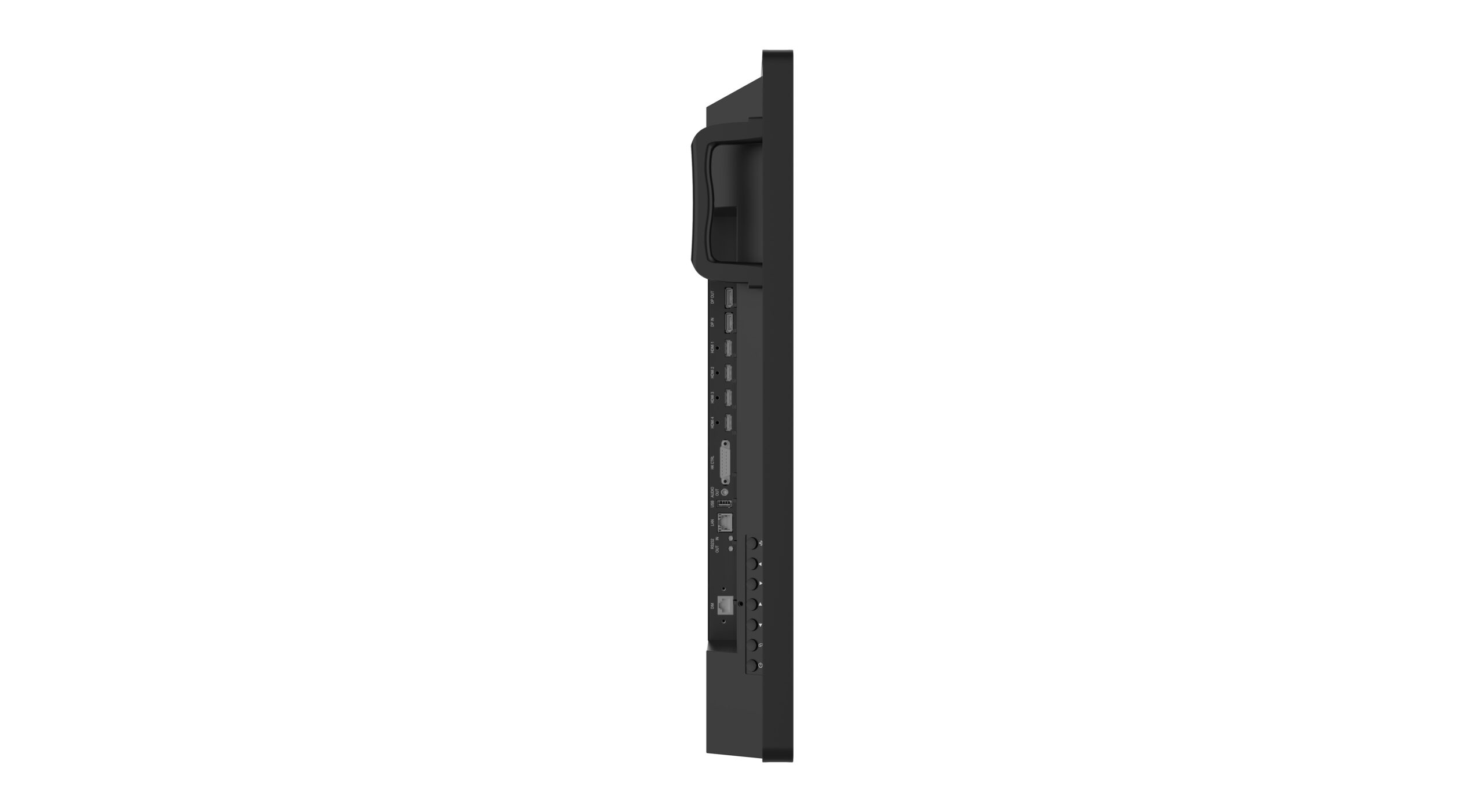

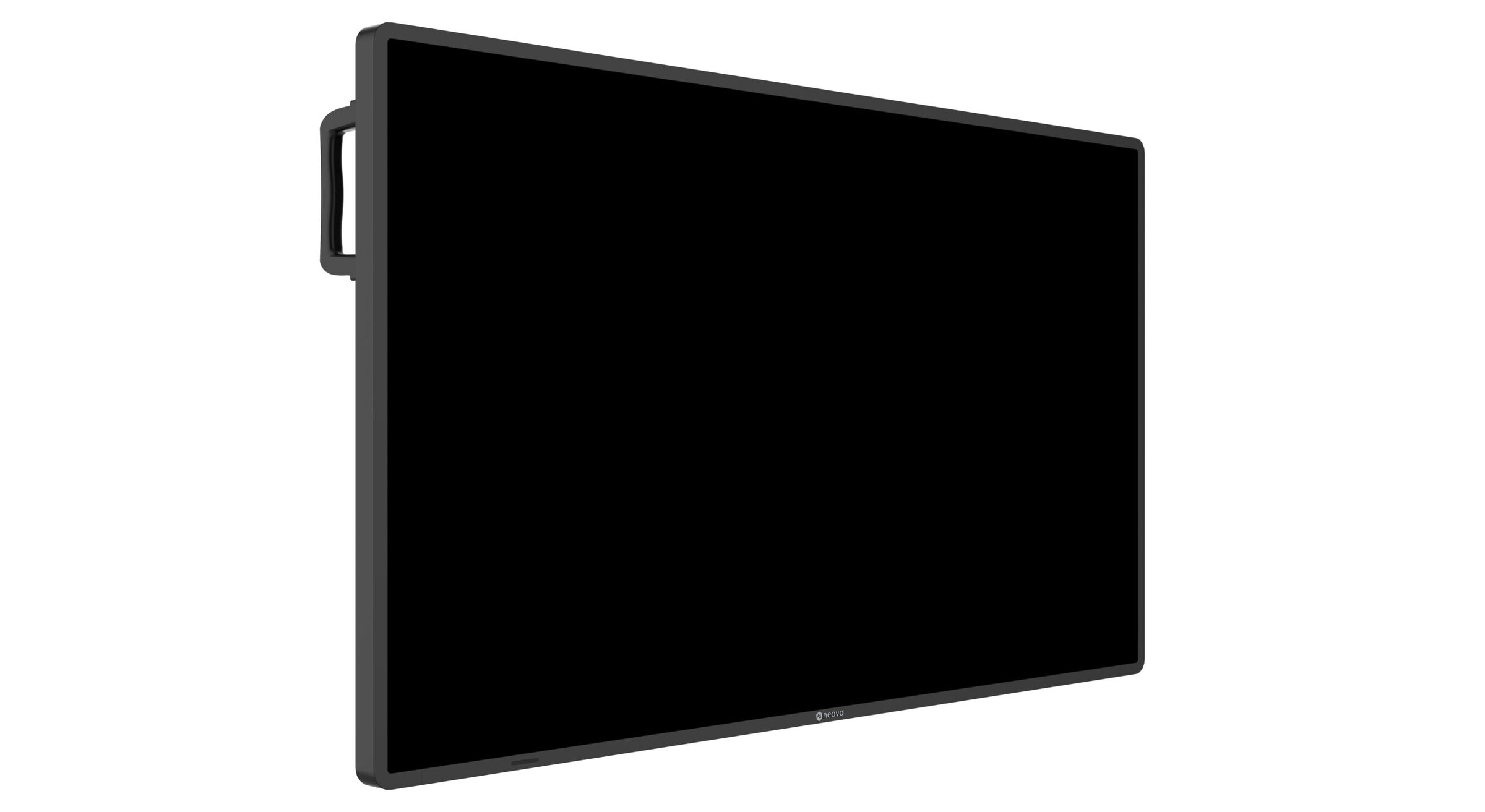

43" 4K Display with 4 HDMI Multiviewer
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The CMP-01 is a steel ceiling mount pole for professional displays. Used together with the WMK-03, LMK-01 or LMK-02 tilt mounts, it lets various viewing angles be set. Its height is adjustable and the pole swivels 360° to the right and to the left. Each side carries up to 60.0 kg (132.3 lb). The unit is finished in black. Steel ceiling mount pole360° swivel right/left60.0 kg (132.3 lb) capacity per sideAdjustable heightBlack finishCombines with WMK-03, LMK-01, LMK-02
In stock, ships immediately · delivery 1-2 days
The LMK-01 is a steel wall mount kit for displays from 42 to 86 inches. It carries loads up to 80.0 kg and supports mounting patterns of up to 725.0 x 450.0 mm. A tilt range of -15° to 0° lets the screen be angled downwards. The anodised black steel build is rust resistant and intended for indoor as well as outdoor use, and it can be fixed to masonry walls as well as to lightweight partition walls. One set weighs 5.1 kg net and 5.9 kg gross, in packaging measuring 836.0 x 245.0 x 54.0 mm. Fits 42 to 86 inch displays80.0 kg weight capacityTilt -15° to 0°Mounting pattern up to 725.0 x 450.0 mmSteel construction, black5.1 kg net weight
Not in stock · delivery 3-4 days
The LMK-02 is a steel wall mount kit that accommodates displays from 32 to 55 inches. Its rated load capacity is 80.0 kg and it supports mounting patterns up to 440 x 330 mm. Tilt adjustment from -15° to 0° angles the screen downwards, and the finish is black. Built from selected quality steel, the bracket provides dependable stability in demanding environments. One set weighs 3.8 kg net and 4.4 kg gross, with packaging measuring 556.0 x 245.0 x 54.0 mm. Fits 32 to 55 inch displays80.0 kg weight capacityTilt -15° to 0°Mounting pattern up to 440 x 330 mmSteel construction, black3.8 kg net weight
In stock, ships immediately · delivery 1-2 days
The LMA-02 is a full-motion extendable wall mount bracket for displays from 32 to 65 inches, rated for loads up to 50.0 kg. Its arm extends from a wall distance of 64.0 mm out to 510.0 mm, so the screen can be positioned freely within a room. Viewing angles are refined through -20° to +10° of tilt and 60° of swivel to the right and left. The all-metal construction is finished in black and accepts mounting patterns up to 600 x 400 mm. One set weighs 7.0 kg net and 7.5 kg gross, packed in a carton measuring 700.0 x 222.0 x 70.0 mm. Fits 32 to 65 inch displays50.0 kg weight capacityExtension 64.0 mm to 510.0 mmTilt -20° to +10°Swivel 60° / 60°Mounting pattern up to 600 x 400 mm
Not in stock · delivery 3-4 days
The LMK-03 is a tilting steel wall mount kit for displays from 42 to 98 inches. It fits VESA mounting patterns from 75 x 150 mm through to 800 x 500 mm and carries loads up to 100.0 kg. Tilt is specified as -15° to +15°, and installation is straightforward. The profile between display and wall measures just 0.75 mm, and lateral shift together with a safety lock and anti-theft lock is provided. These properties suit the bracket to commercial and public installations. One set weighs 4.4 kg net and 5.1 kg gross, finished in black. Fits 42 to 98 inch displays100.0 kg weight capacityVESA 75 x 150 mm to 800 x 500 mmTilt -15° to +15°0.75 mm profile between display and wallLateral shift, safety and anti-theft lock
Not in stock · delivery 3-4 days
The KPD01 is an external keypad serving as a dedicated control accessory for professional display deployments. Its configurable interface gives operators immediate physical access to the functions they use most, which matters where response time and reliability are crucial, and the connection is hard-wired. The enclosure is made of metal in PANTONE COOL GRAY 11C. Dimensions are 158.5 x 78.6 x 22.5 mm with a net weight of 0.35 kg (0.77 lb). External keypad for display hotkeysConfigurable interfaceHard-wired connectionMetal enclosurePANTONE COOL GRAY 11C finishDimensions 158.5 x 78.6 x 22.5 mm
Not in stock · delivery 3-4 days
The KNB01 is an external control knob for adjusting display luminance immediately and precisely. Control is physical at the knob, so operators need not call up on-screen menus, which suits mission-critical work and controlling or monitoring in dark environments. The enclosure is metal with a powder coating in PANTONE COOL GRAY 11C. It measures 80.0 x 77.0 x 52.6 mm and weighs 0.24 kg (0.52 lb) net. External control knob for display backlightPhysical control without on-screen menusMetal enclosure, powder coatingPANTONE COOL GRAY 11C finishDimensions 80.0 x 77.0 x 52.6 mmNet weight 0.24 kg (0.52 lb)
Not in stock · delivery 3-4 days
VWM-01 is a video wall mount rated for 80 kg, which makes it suitable for narrow-bezel and seamless installations. Combined with VWM-02 push-to-open arms, VWA-01 aluminium extension bars and VWA-04 wall brackets, displays can be composed into a continuous row without the complicated measuring and calculation of screen spacing. Fine adjustment covers 15.0 mm to the left and right as well as 3.3 mm up and down. The mount is specified for displays from 43 to 86 inches with a mounting pattern of up to 800 x 400 mm. It is built from steel and aluminium in black and silver, weighs 4.5 kg net and ships one set per carton. 80 kg weight capacityFits displays from 43 to 86 inchesMounting pattern up to 800 x 400 mm15.0 mm lateral and 3.3 mm vertical adjustmentSteel and aluminium, black and silver4.5 kg net weight, one set per carton
Not in stock · delivery 3-4 days
The LMA-01 is a wall mount arm for displays from 32 to 65 inches with a load rating of 30.0 kg. Tilt from -15° to +15° and 90° of swivel to each side allow the screen to be aimed precisely. Extension is adjustable between a minimum wall distance of 105.0 mm and a maximum of 562.0 mm. Integrated cable routing keeps the connection cables out of sight and away from unwanted access. The arm is made of steel, aluminium alloy and plastic in black and silver, and accepts mounting patterns up to 400 x 400 mm. Product dimensions are 500.0 x 450.0 x 105.0 mm, and one set has a gross weight of 9.3 kg. Fits 32 to 65 inch displays30.0 kg weight capacityTilt -15° to +15°Swivel 90° / 90°Wall distance 105.0 mm to 562.0 mmMounting pattern up to 400 x 400 mm
Not in stock · delivery 3-4 days
WMK-05 is an ultra slim micro-gap wall mount for displays from 43 to 65 inches, keeping the gap between wall and screen to a minimum. Installation is supported by a built-in bubble level for horizontal alignment and strong magnetic contacts that secure the attachment. The integrated one-piece wall plate carries up to 75.0 kg and accepts mounting patterns from 200 to 400 mm. Steel and aluminium with an electronic coating in black form the construction, and the assembled mount measures 530.0 x 250.0 x 9.5 mm. Net weight is 1.26 kg, supplied 360 pieces per pallet. Ultra slim mount with minimal wall gap75.0 kg capacity, displays from 43 to 65 inchesOne-piece wall plate, 200 to 400 mm patternBuilt-in bubble level and magnetic contactsSteel and aluminium with electronic coating9.5 mm depth, 1.26 kg net weight
Not in stock · delivery 3-4 days
The DTS-01 is a tabletop stand for 32" -65" displays with a load capacity of 40.0 kg (88.0 lb). The bracket swivels 45° / 45° and tilts from -10° to +5°, and its height from the base to the bracket can be set in three steps at 515.0 mm, 585.0 mm or 655.0 mm. Mounting patterns from a minimum of 150 x 100 mm up to a maximum of 400 x 400 mm are supported. The stand is built from metal in black and sits on a black tempered glass pedestal. It measures 550.0 x 655.0 x 280.0 mm and weighs 6.2 Kg (13.7 lb ) net. Tabletop stand for 32" -65" displays40.0 kg (88.0 lb) weight capacityThree height levels: 515.0 / 585.0 / 655.0 mm45° / 45° swivel, -10° to +5° tiltMounting pattern 150 x 100 mm to 400 x 400 mmBlack tempered glass pedestal
In stock, ships immediately · delivery 1-2 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- QX-4302
- EAN / GTIN
- 4710739598810
Description
An IPS panel drives this display at a maximum resolution of UHD 3840 x 2160, with a 0.245 mm pixel pitch and 178-degree viewing angles both horizontally and vertically. Brightness is 450 cd/m², colour depth 1.07G, colour gamut NTSC 72% and response time 5 ms. The surface receives anti-glare treatment at haze 25% plus a 3H hard coating, and the unit handles 15 kHz to 136 kHz horizontally and 23 Hz to 76 Hz vertically. Connectivity covers four HDMI 2.0 ports and one DisplayPort 1.2, IR in and out on 3.5 mm jacks, RS232 in and out on 2.5 mm jacks, an RJ45 port and a USB 2.0 service port. Audio is delivered by two 12 W speakers or the 3.5 mm stereo jack output.
- IPS panel with UHD 3840 x 2160
- 450 cd/m² brightness, 5 ms response time
- 0.245 mm pixel pitch
- 4 x HDMI 2.0 and 1 x DisplayPort 1.2
- Anti-glare haze 25% with 3H hard coating
- 12 W x 2 internal speakers
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Anti-Burn-in
- Yes
- Aspect Ratio
- 16:9
- Audio Out
- Stereo Audio Jack (3.5 mm)
- Bezel Width
- Even bezel 12.8 mm
- Brightness
- 22.4kg (49.38lb)
- Casing Colour
- Black
- Certifications & Compliance
- CE, LVD, WEEE, RoHS, REACH
- Colour Gamut
- NTSC 72%
- Contrast Ratio
- 1200:1
- Control Knob
- KNB01
- DIM
- RJ45
- Display Colour
- 1.07G
- DisplayPort
- 1.2 x 1
- EcoSmart Control
- Yes
- External Keypad
- KPD01
- Frequency (H)
- 15 kHz-136 kHz
- Frequency (V)
- 23 Hz-76 Hz
- Gloss
- 75±10%
- HDMI
- 2.0 x 4
- HK Ctrl
- 15 pin D-Sub
- Haze
- 3%~8%
- HeatControl Sensor (Auto Fan Control / Heat Control)
- No
- Humidity
- DTS-01
- Humidity
- 5%-95% (non-condensing), 10%-90% (non-condensing)
- IK Rating
- UHD 3840 x 2160
- IK Rating
- IK08, IK10 (Metal casing)
- IR In
- 3.5 mm Phone Jack
- IR Out
- 3.5 mm Phone Jack
- Internal Speakers
- 12W x 2
- LAN
- RJ45 x 1
- MOHS Hardness
- 6
- Max. Resolution
- UHD 3840 x 2160
- NeoV Optical Glass
- Yes
- Off Mode
- 0W
- On Mode
- 80W (On)
- Operating Time (Internal)
- 24/7
- Orientation
- Landscape / Portrait
- Panel Size
- Anti-Glare Treatment (Haze 2%), 3H Hard Coating
- Panel Size on Carton
- 43.0"
- Panel Type
- IPS
- PbP
- Yes
- Pencil Hardness
- 8H
- PiP
- Yes
- Pixel Pitch
- 178°/178°
- Power Requirements
- AC 100-240V, 50/60 Hz
- Power Supply
- Internal
- Product w/o Base (W x H x D)
- S/PDIF, Stereo Audio Jack (3.5 mm)
- RS232 In
- 2.5 mm Phone Jack
- RS232 Out
- 2.5 mm Phone Jack
- Rear Cover Material
- Metal
- Response Time
- 5 ms
- Standby Mode
- < 0.5W
- Supplied
- HDMI Cable, Power Cord, Quick Start Guide, Remote Control
- Surface Treatment
- AG, Anti-Glare Treatment (Haze 25%), 3H Hard Coating
- Temperature
- -20°C-60°C (-4°F-140°F), 0°C-40°C (32°F-104°F)
- Thickness
- 3.2 mm (0.13")
- Tilt
- CMP-01 + LMK-01, CMP-01 + LMK-02
- USB
- DC 12V, 1.75A
- VESA FPMPMI
- DTS-01
- Video Wall Mount
- VWM-01
- Viewing Angle (H/V)
- 178°/178°
- Wall Mount
- LMA-01, WMK-05
