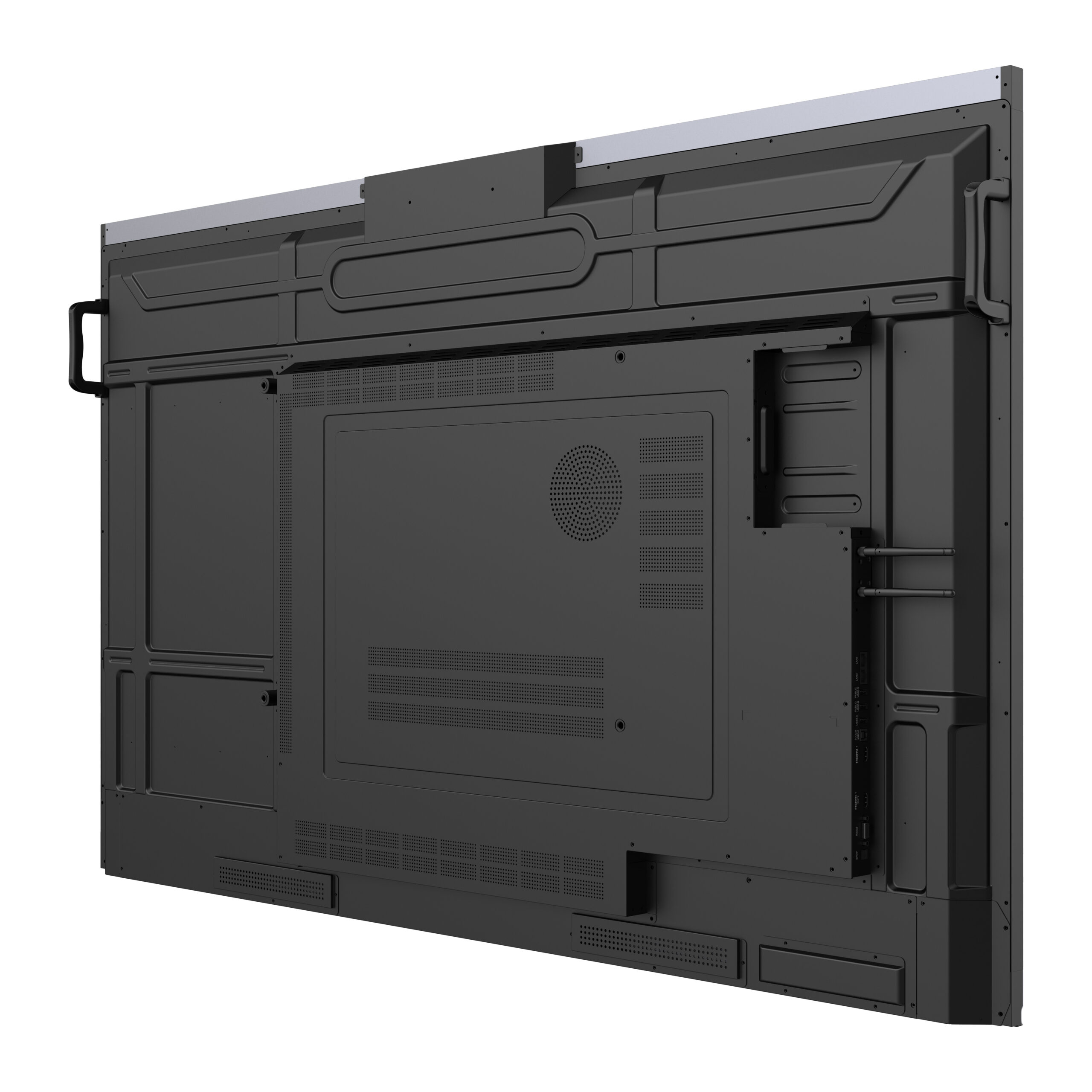

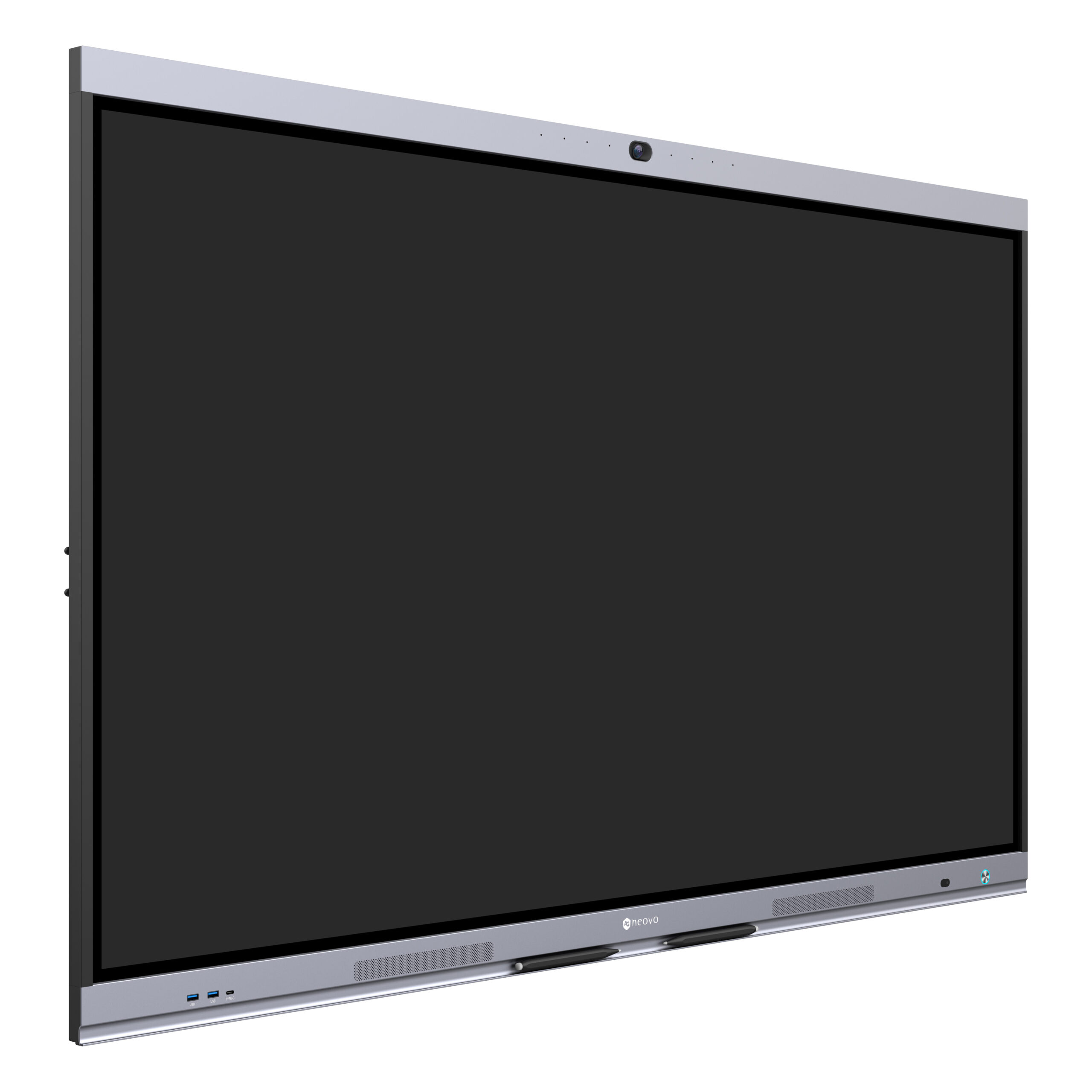

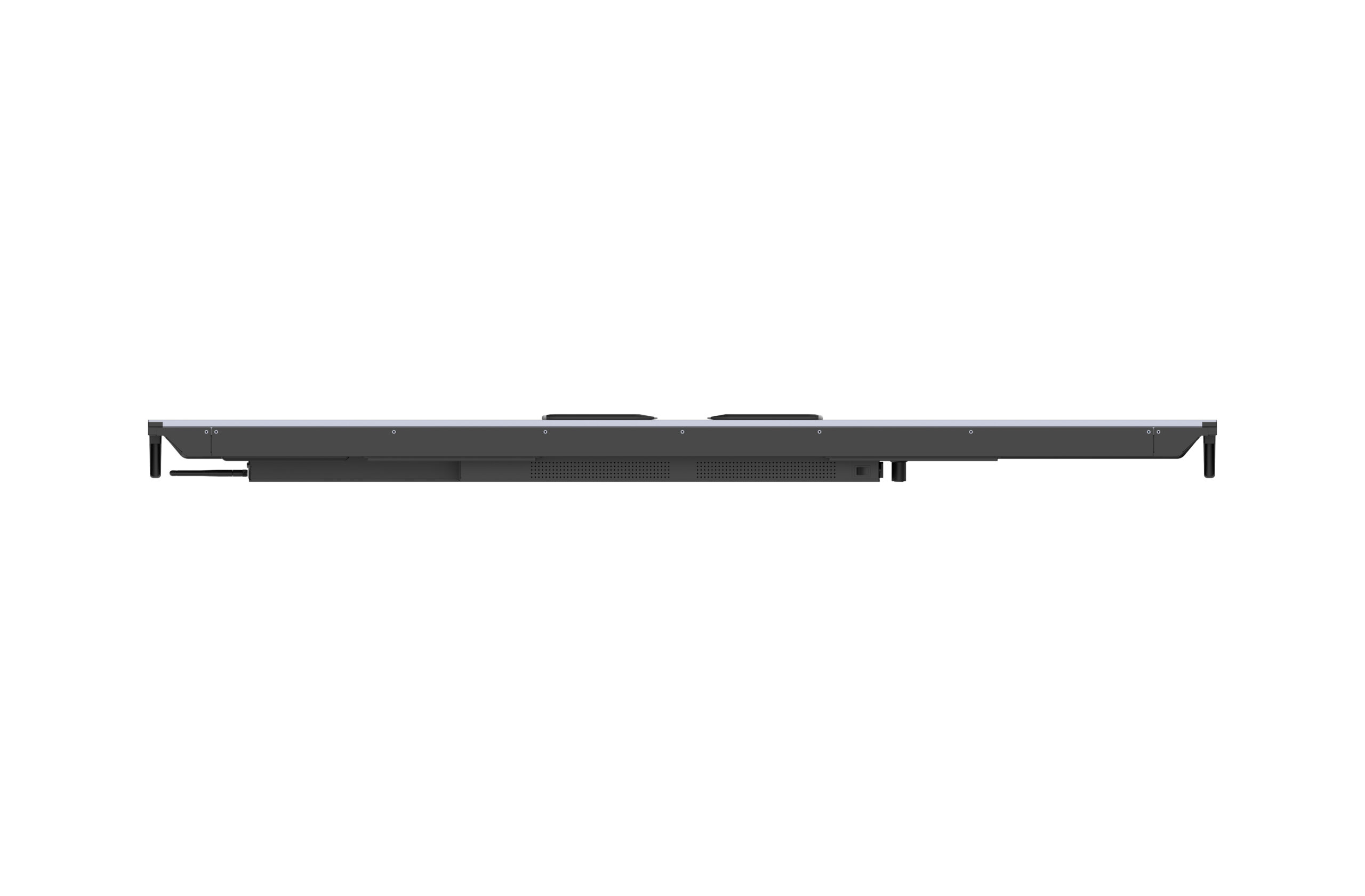

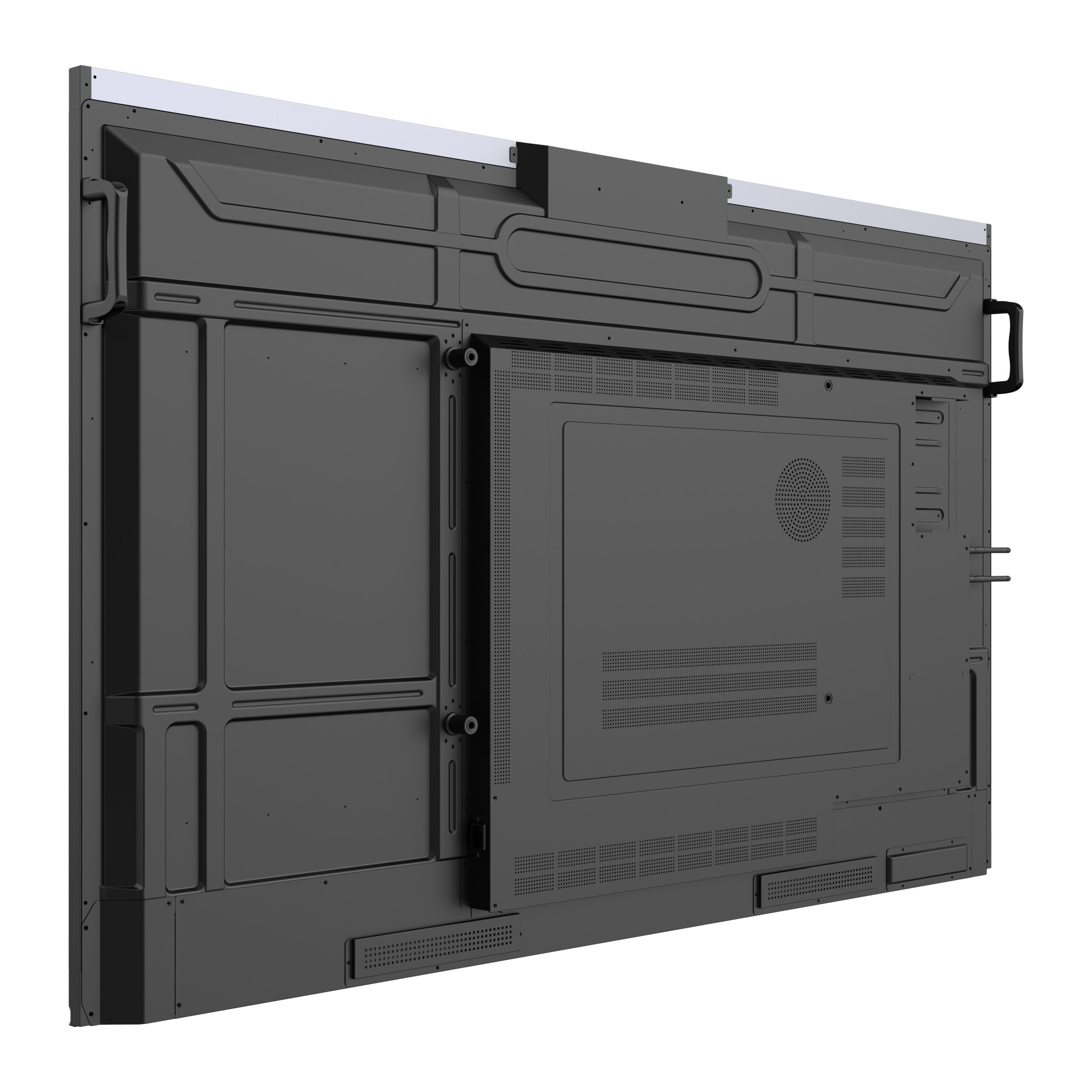

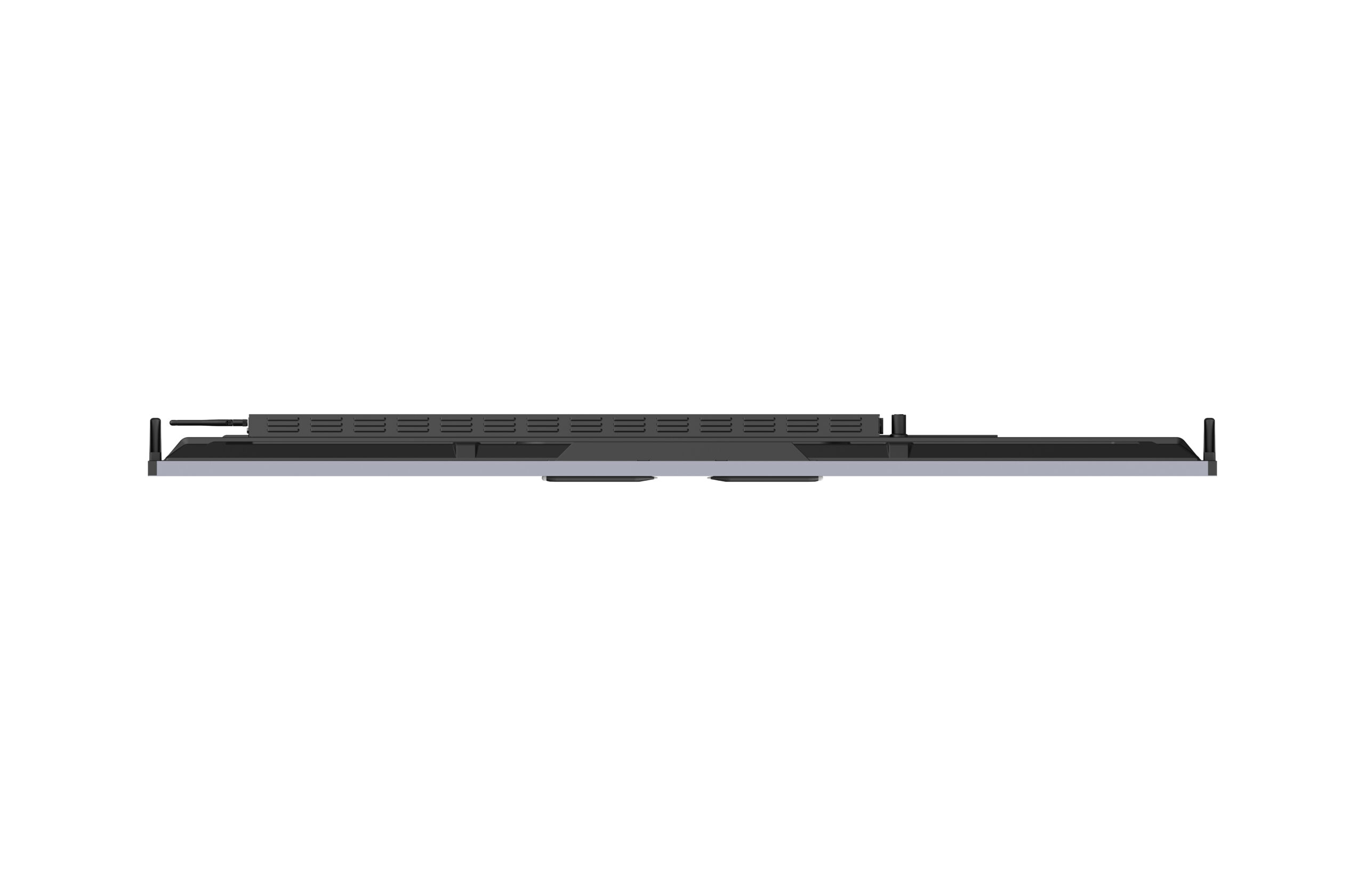

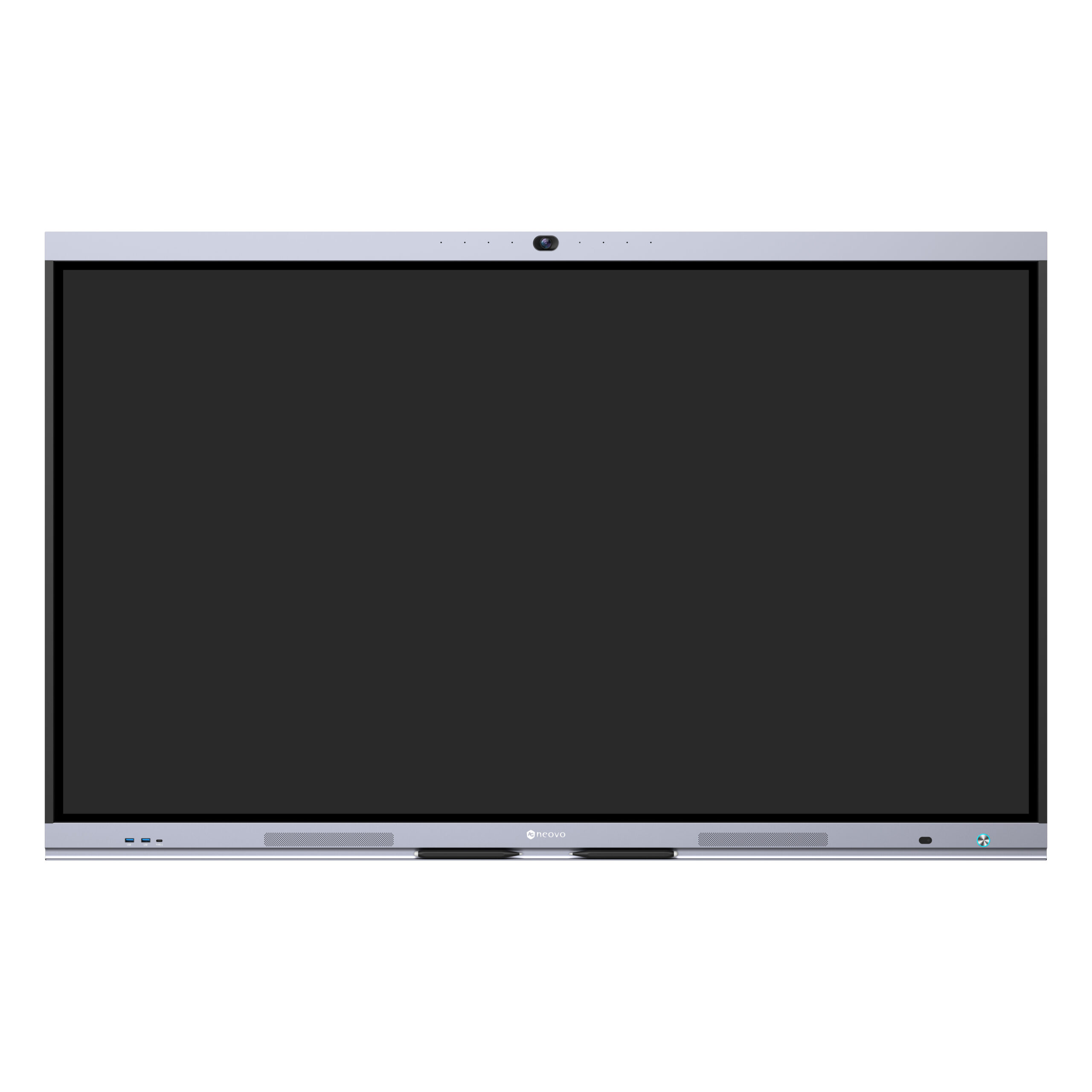

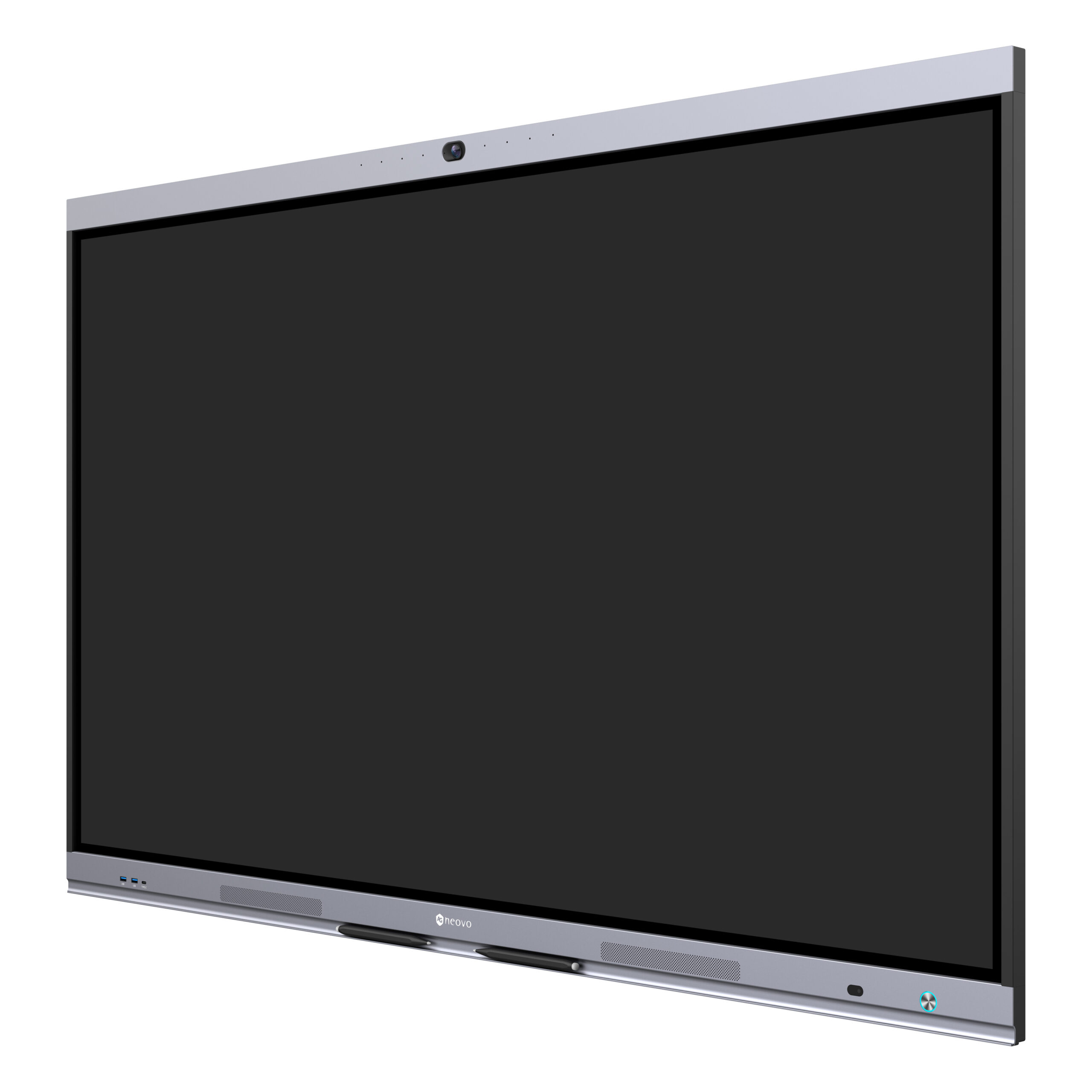

IFP-7504P, 75’’ Ultimate Smart Board Interactive Whiteboard Display with Built-In AI Camera
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The FMC-07 is a mobile floor mounting cart for displays up to a maximum of 86", rated for 100 kg (220.4 lb). Built as a modular mounting set, it accepts AG Neovo's 55" - 86" large format displays and covers VESA patterns from a minimum of 400 x 200 mm to a maximum of 900 x 600 mm, while the mount rotates through 360°. It comes with a stable tray and lockable castors whose brake and mute design avoids floor scratches and noise. The cart measures 1,240.0 × 1,595.0 × 750.0 mm, stands 1595 mm (62.7") high and weighs 22.1 kg (48.8 lb) net. Materials are Spcc and Aluminium in a silver finish. Floor cart for displays up to 86"100 kg (220.4 lb) weight capacityVESA 400 x 200 mm to 900 x 600 mm360° rotationLockable castors with mute designSpcc and Aluminium, silver
Not in stock · delivery 3-4 days
The LMK-03 is a tilting steel wall mount kit for displays from 42 to 98 inches. It fits VESA mounting patterns from 75 x 150 mm through to 800 x 500 mm and carries loads up to 100.0 kg. Tilt is specified as -15° to +15°, and installation is straightforward. The profile between display and wall measures just 0.75 mm, and lateral shift together with a safety lock and anti-theft lock is provided. These properties suit the bracket to commercial and public installations. One set weighs 4.4 kg net and 5.1 kg gross, finished in black. Fits 42 to 98 inch displays100.0 kg weight capacityVESA 75 x 150 mm to 800 x 500 mmTilt -15° to +15°0.75 mm profile between display and wallLateral shift, safety and anti-theft lock
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- AG-Neovo
- Article number
- IFP-7504P
- EAN / GTIN
- 4710739598476
- Weight
- 65.3 kg
- Dimensions (W×H×D)
- 1160 × 225 × 1900 mm
Description
The IFP-7504P is an interactive whiteboard display with a 74.5" IPS panel, a 5 ms response time and brightness of 350~499 cd/㎡. Its surface combines anti-glare treatment (Haze 25%) with a 3H hard coating, input runs through an infrared touch frame, and single touch also covers Windows 2000/XP/Vista/CE 6.0 and macOS. Equipment includes an 8M camera, an 8-array microphone, 15W x 2 speakers, an OPS slot, two RJ45 ports and Audio plus HDMI outputs; external control uses RJ45 and RS232 on a 9-pin D-Sub, and the audio output supports S/PDIF. An active pen, stylus, remote control, HDMI cable, USB cable, power cord, wall mount, Wi-Fi / Bluetooth and a quick start guide are supplied. Maximum power draw is 420W from AC100~240, 50Hz~60Hz, the temperature range spans -10°C-60°C, and CE, LVD, RoHS, WEEE and REACH are declared.
- 74.5" IPS panel, 5 ms response time
- Infrared touch frame
- 8M camera and 8-array microphone
- OPS slot, 15W x 2 speakers, RJ45 x 2
- External control via RJ45 and RS232
- CE, LVD, RoHS, WEEE, REACH
Made by
AG Neovo builds displays for continuous operation: surveillance monitors with 24/7 rating, metal housing and burn-in protection from 10 to 55 inches, public view monitors with a built-in camera, stretched displays for video walls, 4K digital signage, interactive smartboards with AI camera, plus workstations and mounts. Every model comes with technical data, data sheet, manual and certificates. AI4Vision is an authorised distributor; trade prices after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
- Anti-Burn-in
- Yes
- Aspect Ratio
- 16:9
- Audio Out
- S/PDIF
- Brightness
- 350~499 cd/㎡, 400 cd/m²
- CPU
- Cortex A76+A55
- Camera Pixel
- 3840x2106(30fps)
- Camera Resolution
- 8M
- Casing Colour
- Left & Right Side:Black Top & Bottom: Silver gray
- Certifications & Compliance
- CE, LVD, RoHS, WEEE, REACH
- Colour Gamut
- NTSC 72%
- Contrast Ratio
- 1200:1
- DICOM Brightness
- English / German / French / Spanish
- Diagonal Sizes
- > 65"
- Display Colour
- 1.07G colors (10bits).
- EcoSmart Control
- Yes
- External Control
- RJ45, RS232
- Features
- OPS Slot, Speaker
- Floor Mount (Landscape only)
- FMC-06, FMC-07
- Frequency (H)
- 30KHz-135KHz
- Frequency (V)
- 30Hz-76Hz
- Gloss
- 75±10%
- HDMI
- 2.1 x 1
- Haze
- 3%~8%
- HeatControl Sensor (Auto Fan Control / Heat Control)
- No
- Humidity
- 10%-80% (non-condensing), 20%-80% (non-condensing)
- IK Rating
- LMK-03
- IK Rating
- IK08
- Innovation
- Anti-Burn-in Technology
- Inputs
- HDMI
- Internal Speakers
- 15W x 2
- LAN
- RJ45 x 2
- MOHS Hardness
- 5
- Max. Resolution
- UHD 3840 x 2160
- Memory
- 8G
- Microphone
- 8-Array
- Multi-touch Plug & Play
- 40 point touch for Windows 7/8/10/11 20 points for Android/Linux (kernel 3.5 above) Chrome 39 or above
- Multi-touch Support by Driver
- 20 point touch for macOS (supported by UPDD driver)
- NeoV Optical Glass
- Yes
- OPS Slot
- Yes
- OS
- Android 13.0
- Off Mode
- 0W
- On Mode
- 235W(On)
- On Mode (Max)
- 420W (Max)
- Operating Time (Internal)
- 18/7
- Orientation
- Landscape only
- Outputs
- Audio, HDMI
- Packaging
- 65.3Kg (144.0 lb)
- Packaging (W x H x D)
- 1900.0 x 1160 x 225.0 mm (74.8" x 45.7" x 8.9")
- Panel Interface
- USB (Type-B)
- Panel Size
- 74.5"
- Panel Size on Carton
- 75.0"
- Panel Type
- IPS
- PbP
- No
- Pencil Hardness
- 8H
- PiP
- No
- Pixel Pitch
- 0.430 mm
- Positional Accuracy
- ± 1mm
- Power Requirements
- AC100~240 ,50Hz~60Hz
- Power Supply
- Internal
- Product w/o Base
- 50.7 kg (111.8 lb)
- Product w/o Base (W x H x D)
- 1716.5 x 1062.9 x 86 mm (67.6" x 41.8" x 3.4")
- Product with Base
- 57.3 kg (126.3 lb)
- Product with Base (W x H x D)
- 1716.5 x 1062.9 x 123.9 mm (67.6" x 41.8" x 4.9")
- RS232 In
- 9-Pin D-Sub
- Rear Cover Material
- Metal
- Resolution
- UHD 3840 x 2160 (16:9)
- Response Time
- 5 ms
- Single Touch Plug & Play
- Windows 2000/XP/Vista/CE 6.0 macOS
- Software
- Neovo Controller
- Standby Mode
- < 0.5W
- Storage
- 128 G
- Supplied

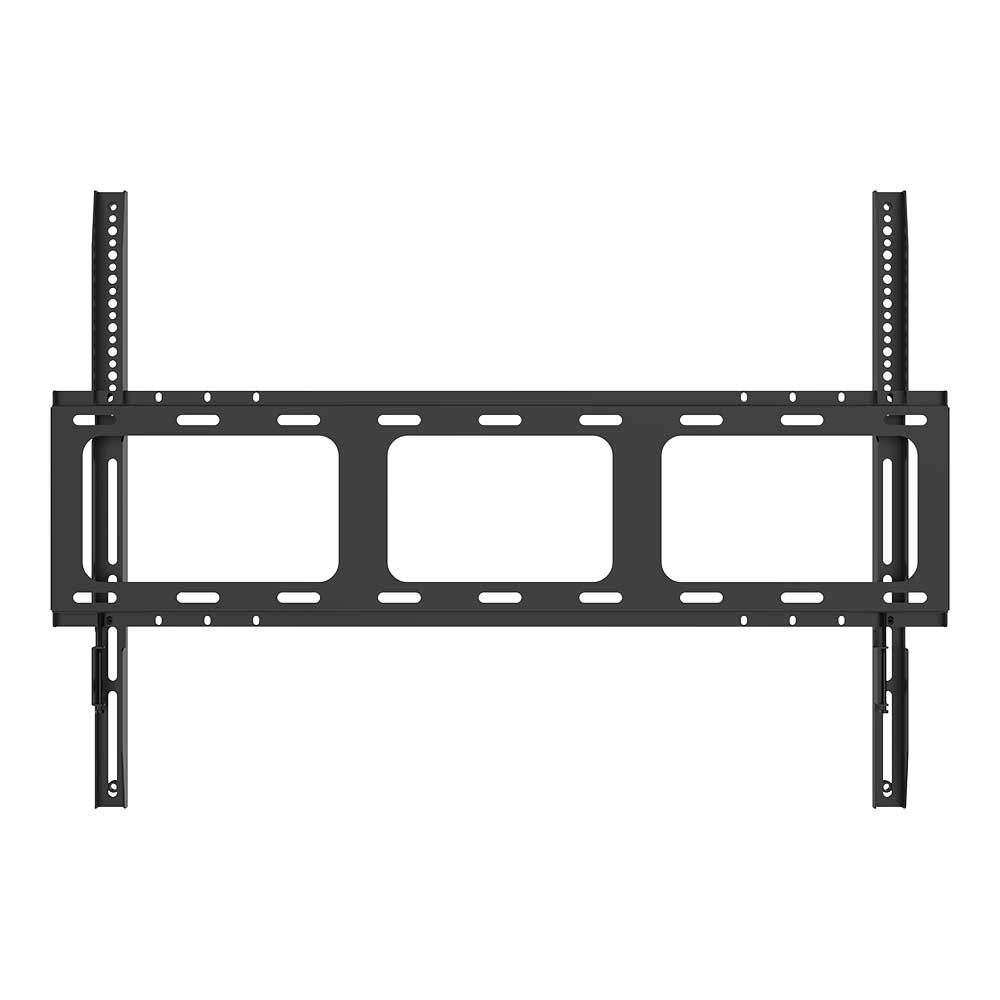

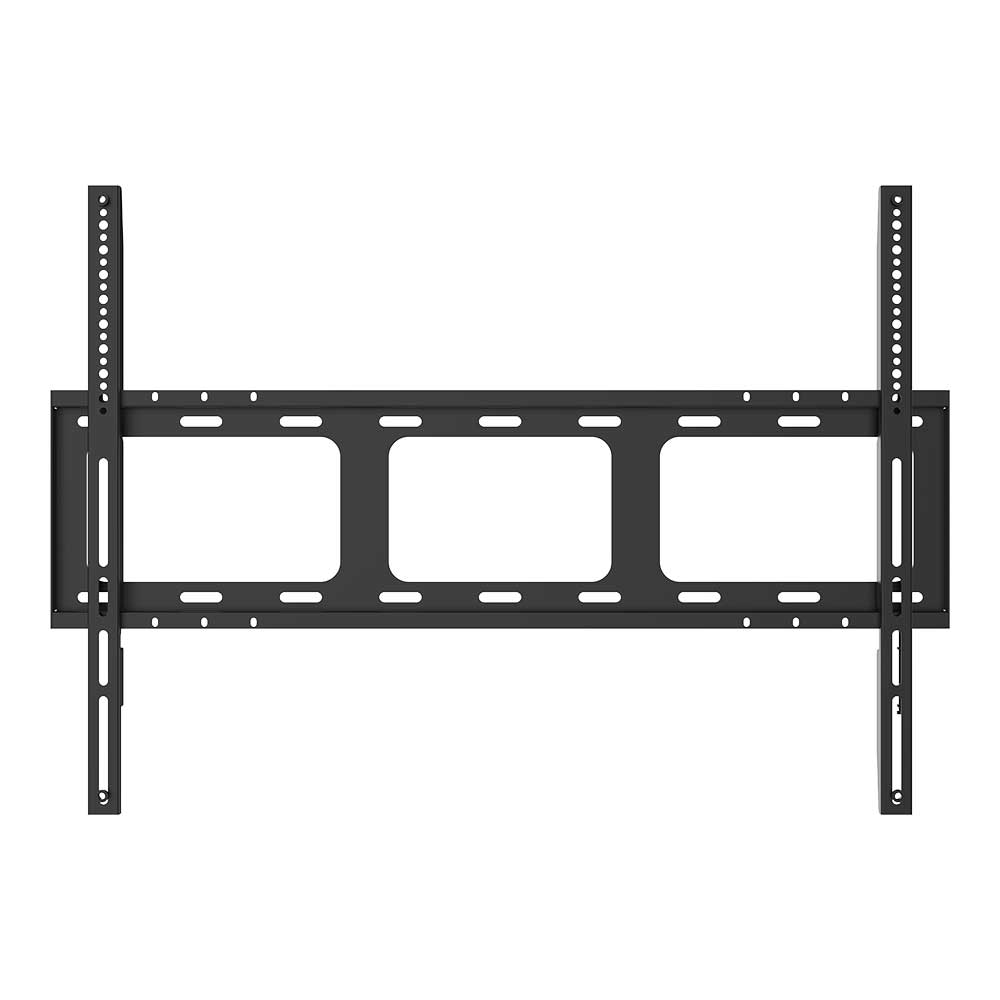

- Active Pen, HDMI Cable, Power Cord, Quick Start Guide, Remote Control, Stylus, USB Cable, Wall Mount, Wi-Fi / Bluetooth Module
- Surface Treatment
- AG, Anti-Glare Treatment (Haze 25%), 3H Hard Coating
- Technology
- Infrared Touch Frame
- Temperature
- -10°C-60°C (14°F-140°F), 0°C-40°C (32°F-104°F)
- Thickness
- 3.2mm (0.13")
- Touch Technology
- IR
- Type-C
- x 1 (PD:60W)
- USB
- USB 3.0 x 5 (Media Playback) Type-C(PD:60W)
- VESA FPMPMI
- 800x400 mm
- Viewing Angle (H/V)
- 178°/178°
- Viewing Angles
- 178/178
- Visibility
- Black-level Adjustment
