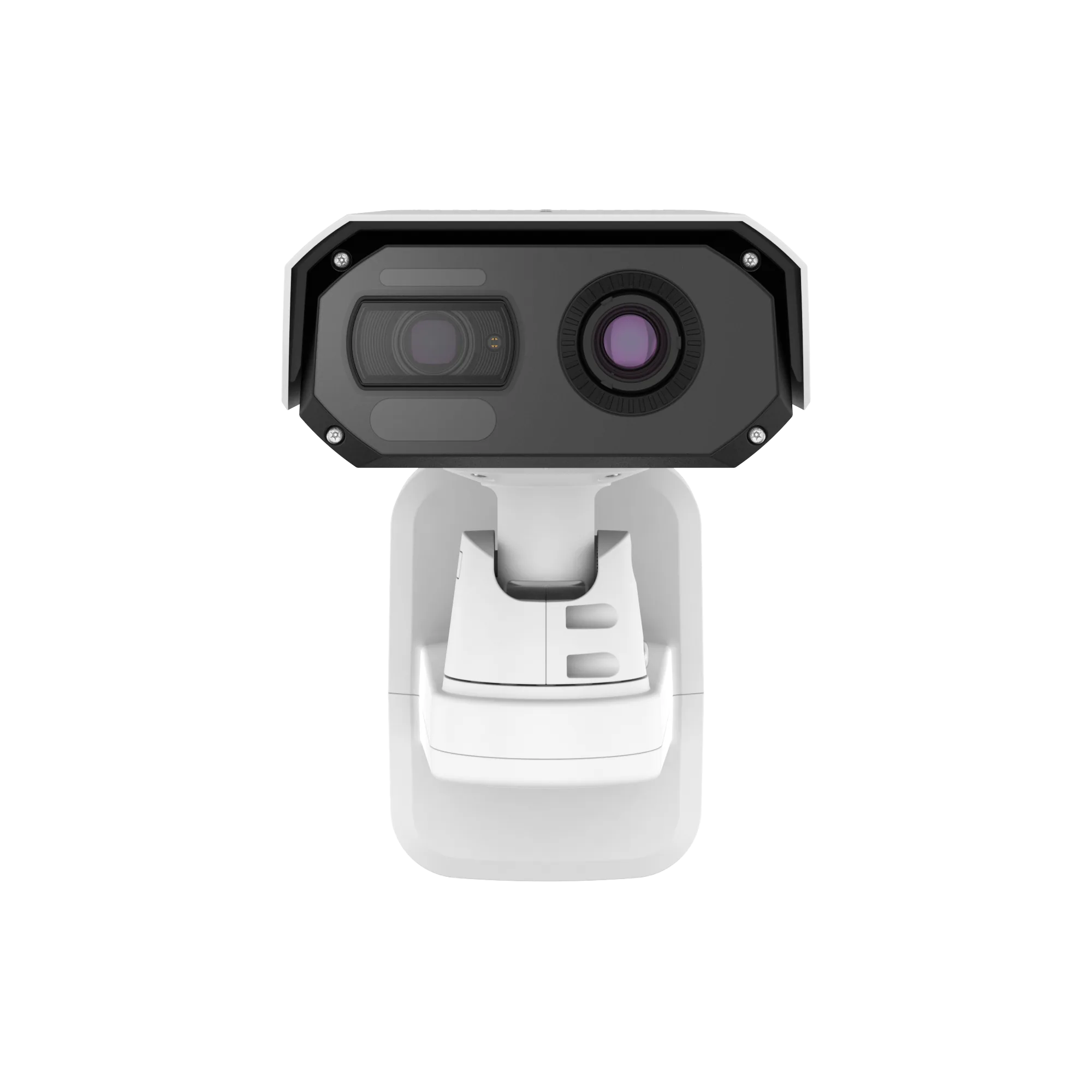

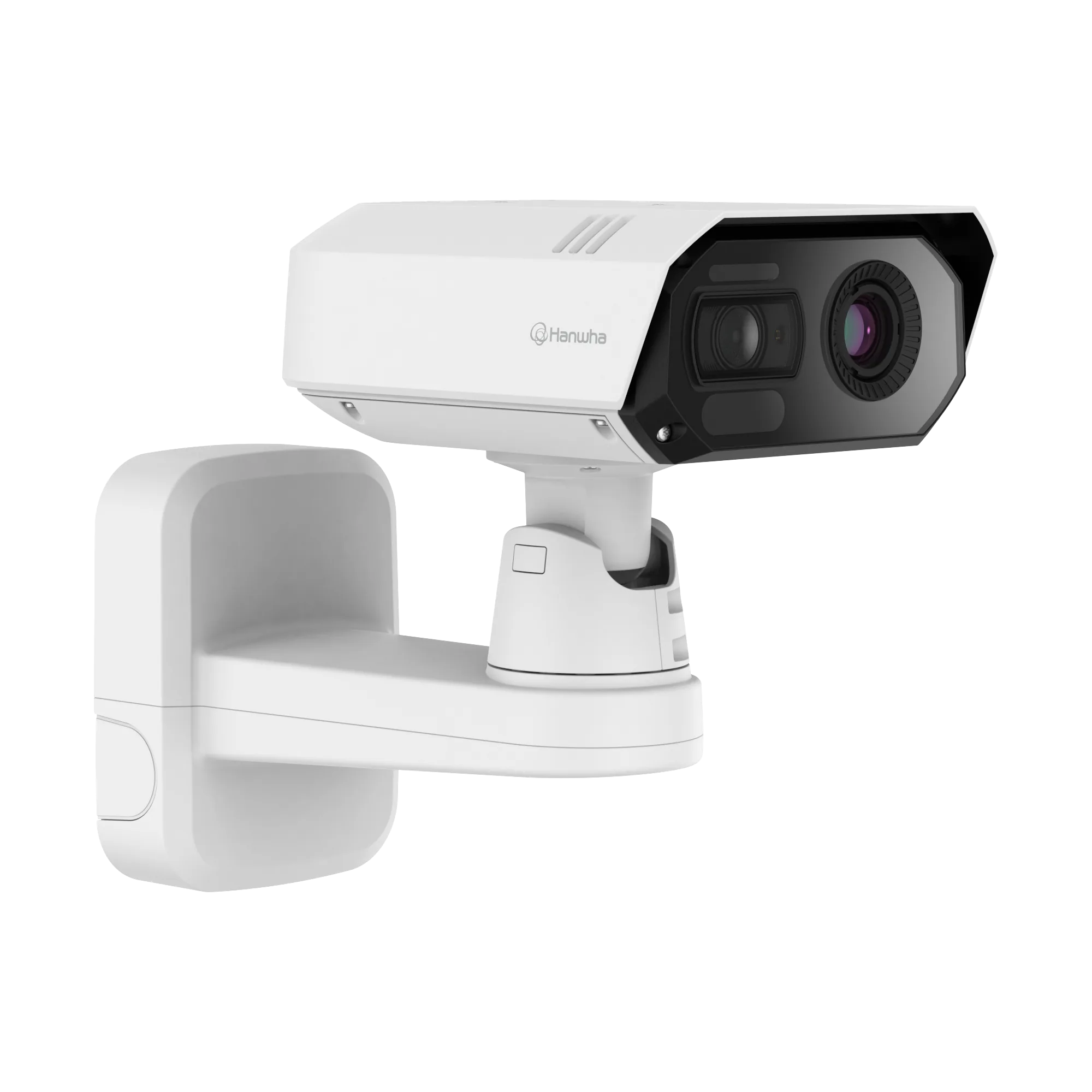

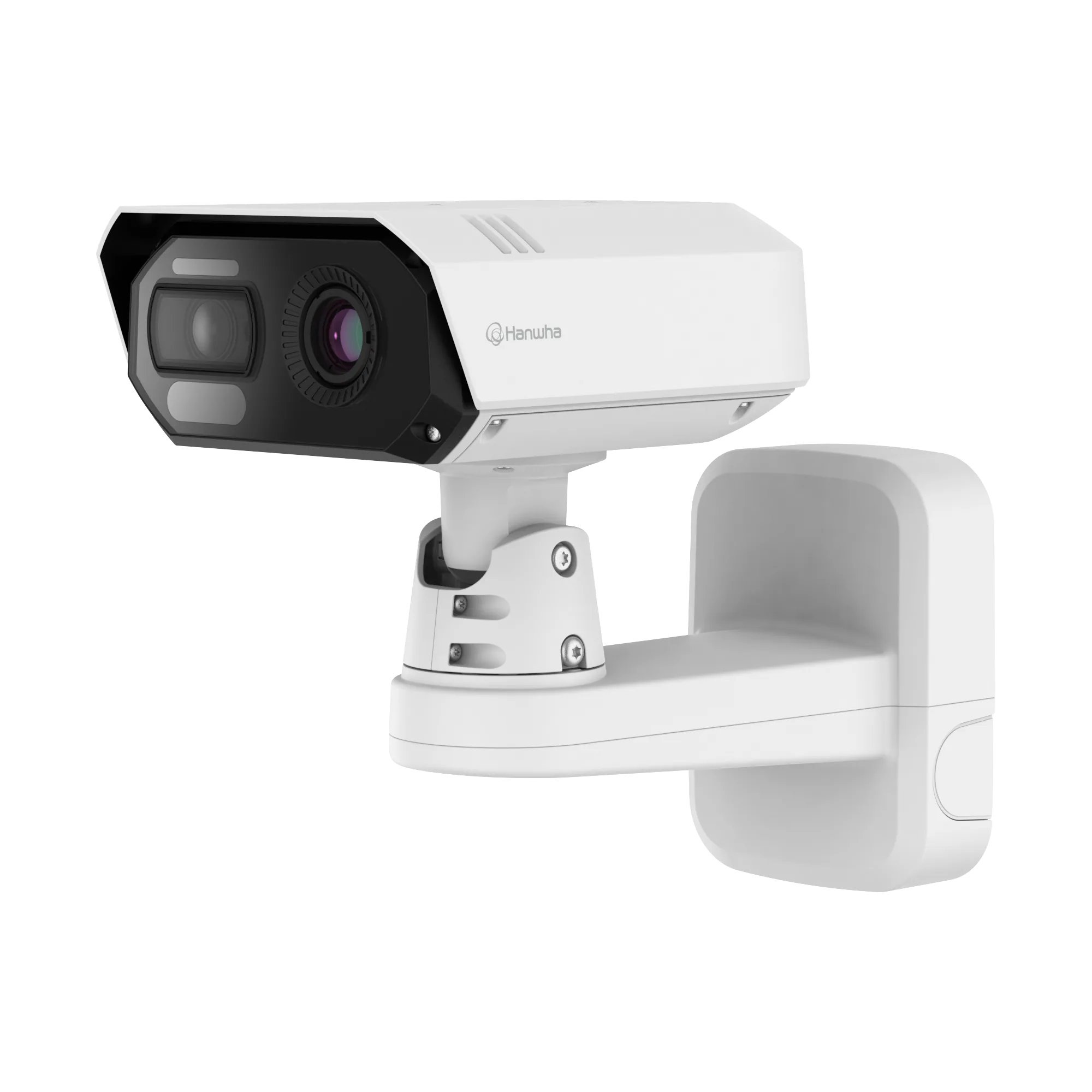

Bi-Spectrum AI Thermal Camera, AI, Thermal 25mm / Visible 10.9~29mm M-V/F

Name: Bi-Spectrum AI Thermal Camera, AI, Thermal 25mm / Visible 10.9~29mm M-V/F
Brand: Hanwha Vision
SKU: TNM-C4962TD

Hanwha Vision

Price after sign-in

Prices and conditions are shown once you sign in with your customer account.

Not in stock · delivery 3-4 days

Product number: TNM-C4962TD

Product data

Manufacturer: Hanwha Vision
Article number: TNM-C4962TD
EAN / GTIN: 8801089247353
Weight: 6.55 kg
Dimensions (W×H×D): 380 × 293 × 460 mm

Description

The TNM-C4962TD combines a VGA-resolution thermal channel and an 8 MP visible channel in a single housing. Its thermal path uses a 25 mm fixed lens, while the visible path relies on a motorised 10.9~29 mm varifocal lens; both run at 8 frames per second. Image processing covers ICR-based day and night switching, 120 dB wide dynamic range, AI-driven WiseNR II noise reduction on the visible channel and smart codec support through WiseStream III (visible) and WiseStream II (thermal). Mechanically the camera spans -170°~+170° in pan and -40°~50° in tilt and stores up to 255 presets. Networking is handled by a metal-shielded RJ-45 port (10/100/1000 BASE-T) with H.265/H.264 in Main and High profile plus MJPEG, up to three streaming profiles and four configurable I/O ports; the enclosure is rated IP66, IP67 and IK10.

VGA thermal resolution, 8 MP visible resolution
25 mm fixed thermal lens, 10.9~29 mm motorised visible lens
8 frames per second
120 dB WDR, ICR day and night switching
Pan range -170°~+170°, tilt range -40°~50°
IP66, IP67, IK10

Made by

Hanwha Vision

Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.

Notes

For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.

Specifications

Certifications & Standards (3)

Certifications & Standards – EMC: FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Certifications & Standards – Environment: IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
Certifications & Standards – Safety: UL 62368-1, CAN/CSA C22.2 NO. 62368-1

Environmental & Electrical (8)

Environmental & Electrical / Operating Condition – Humidity: 0~95% RH(non-condensing)
Environmental & Electrical / Operating Condition – Others: Start up should be done at above -30°C
Environmental & Electrical / Operating Condition – Temperature: -40°C~+60°C(-40°F~+140°F)
Environmental & Electrical / Power Consumption – 12VDC: Max. 19.5W, Typ 14.0W
Environmental & Electrical / Power Consumption – PoE: Max. 23.5W, Typ 16.0W
Environmental & Electrical / Storage Condition – Humidity: 0~90% RH(non-condensing)
Environmental & Electrical / Storage Condition – Temperature: -50°C~+60°C(-58°F~+140°F)
Environmental & Electrical – Input Voltage: PoE+(IEEE802.3at, Class4), 12VDC

General (3)

General / Edge Storage – Micro SD/SDHC/SDXC: Max. 256GB x 2slot(Total 512GB)
General / Memory – Flash: 512MB
General / Memory – RAM: 4GB

Mechanical (5)

Mechanical – Color: White
Mechanical – Material: Aluminum
Mechanical – Product Dimensions: 353.4(W)x287.5(H)x191.2(D)mm(13.92x11.32x7.53")
Mechanical – Product Weight: 4.53kg(9.99lb)
Mechanical – RAL Code: RAL9003

Network (11)

Network / Application Programming Interface – ONVIF: S, T
Network / Application Programming Interface – Others: SUNAPI(HTTP API), Hanwha Vision Open Platform
Network / Streaming – Multicast: Support
Network / Streaming – Multiple Streaming: Up to 3 profiles
Network / Streaming – Unicast: Up to 6 users
Network – Audio Compression: G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Network – Bitrate Control: H.265/H.264: CBR or VBR, MJPEG: VBR
Network – Direct Cloud Connection: Support
Network – Ethernet: Metal shielded RJ-45(10/100/1000BASE-T)
Network – Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast)
Network – Video Compression: H.265/H.264: Main/High, MJPEG

Operational (10)

Operational / Alarm Interface – In/Out: 4 configurable I/O ports
Operational / Motion Detection – Quantity: 8ea
Operational / Motion Detection – Shape: 8point Polygonal zones
Operational / Privacy Masking – Color / Option: Gray, Black, White
Operational / Privacy Masking – Quantity: 6ea
Operational / Privacy Masking – Shape: Rectangular zones
Operational – Alarm Events When Alarm Trigger Occurred: File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback
Operational – Alarm Triggers: Analytics, Network disconnect, Alarm input
Operational – Audio In: Selectable(mic in/line in)
Operational – Audio Out: Line out

Pan (3)

Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan: -170°~+170°
Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt: -40°~50°
Pan / Tilt / Rotate – Sequence: Preset(255ea)

Security (10)

Security – Access Control: IP-based access control
Security – Audit: Access / System / Event Log management
Security – Data Protect: Encryption credentials, Encrypt compress for live recording file export
Security – Device ID: Device certificate(Hanwha Vision Root CA)
Security – Network authentication: IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Security – OS / Firmware Protect: Encrypted firmware, Secure boot, Signed firmware
Security – Secure Communication: HTTPS, WSS(WebSocket Secure)
Security – Secure Storage: HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
Security – Security Certificate: TPM 2.0 with FIPS 140-2 level2
Security – User authentication: Digest authentication

Video (1)

Video – Video Out: USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
