Bi-spectrum AI Radiometric Camera QVGA thermal / 2MP visible
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SBP-142CMW is an aluminium ceiling mount for the TNM-C3620TDR camera. It is finished in white according to RAL9003. At 74.3x58x19.8mm the mount has a compact footprint and weighs 380g. Fixing is done with a 6mm hexagon screw. The maximum permissible load is 3.5kg. Ceiling mountingAluminium, RAL9003 white74.3x58x19.8mm / 380gMax. load 3.5kg6mm hexagon screw
Not in stock · delivery 3-4 days

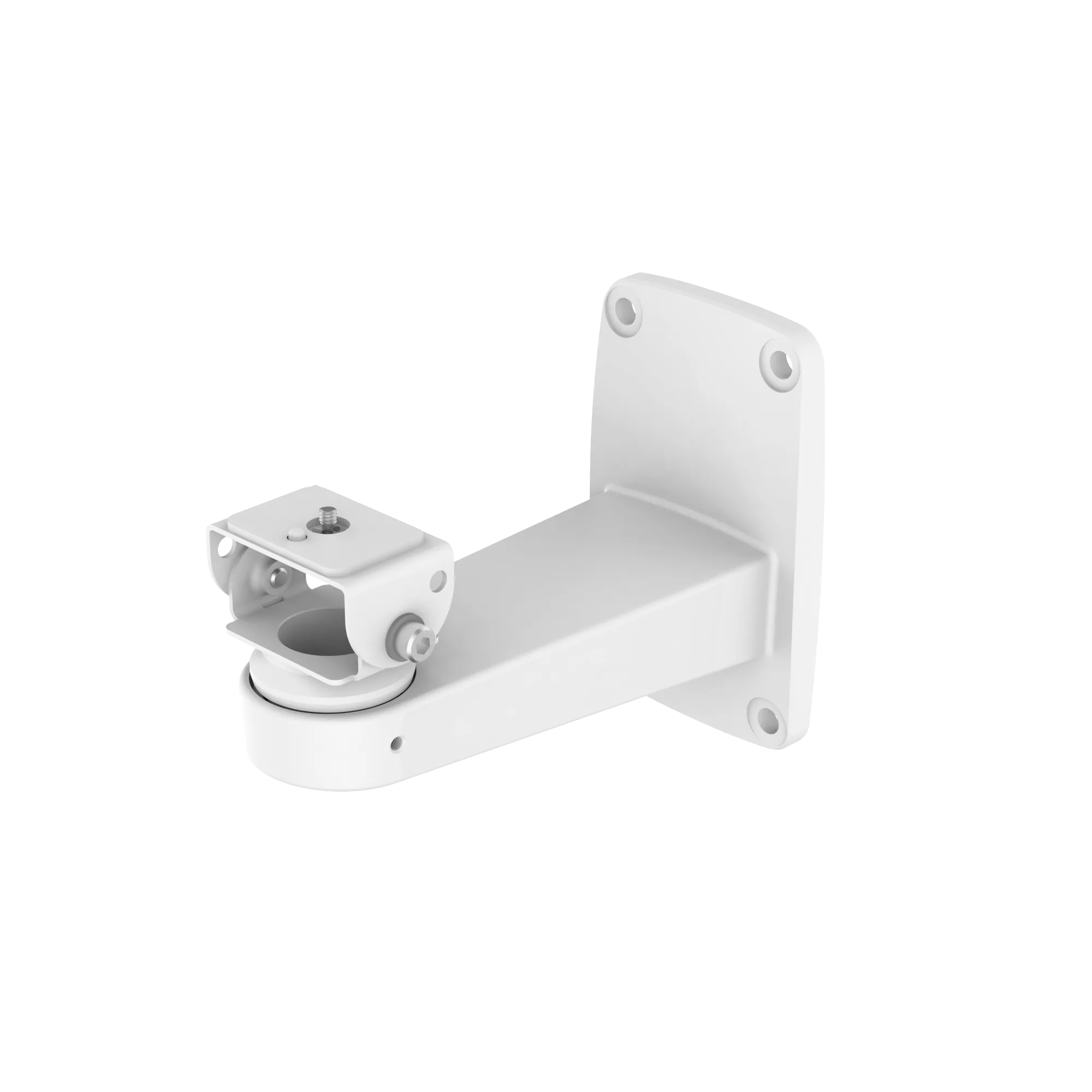

The SBP-142WMW is intended for wall installation of the TNM-C3620TDR camera. The mount is made entirely of aluminium and finished in white to RAL9003. It measures 233x110x181mm and weighs 1,550g. Hexagon screw sizes of 3mm and 6mm are used for fixing. A load of up to 5kg is permitted. Wall mountingAluminium, RAL9003 white233x110x181mm / 1,550gMax. load 5kgHexagon 3mm and 6mm
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNM-C3622TDR
- EAN / GTIN
- 8801089228420
- Weight
- 2.08 kg
- Dimensions (W×H×D)
- 255 × 205 × 155 mm
Description

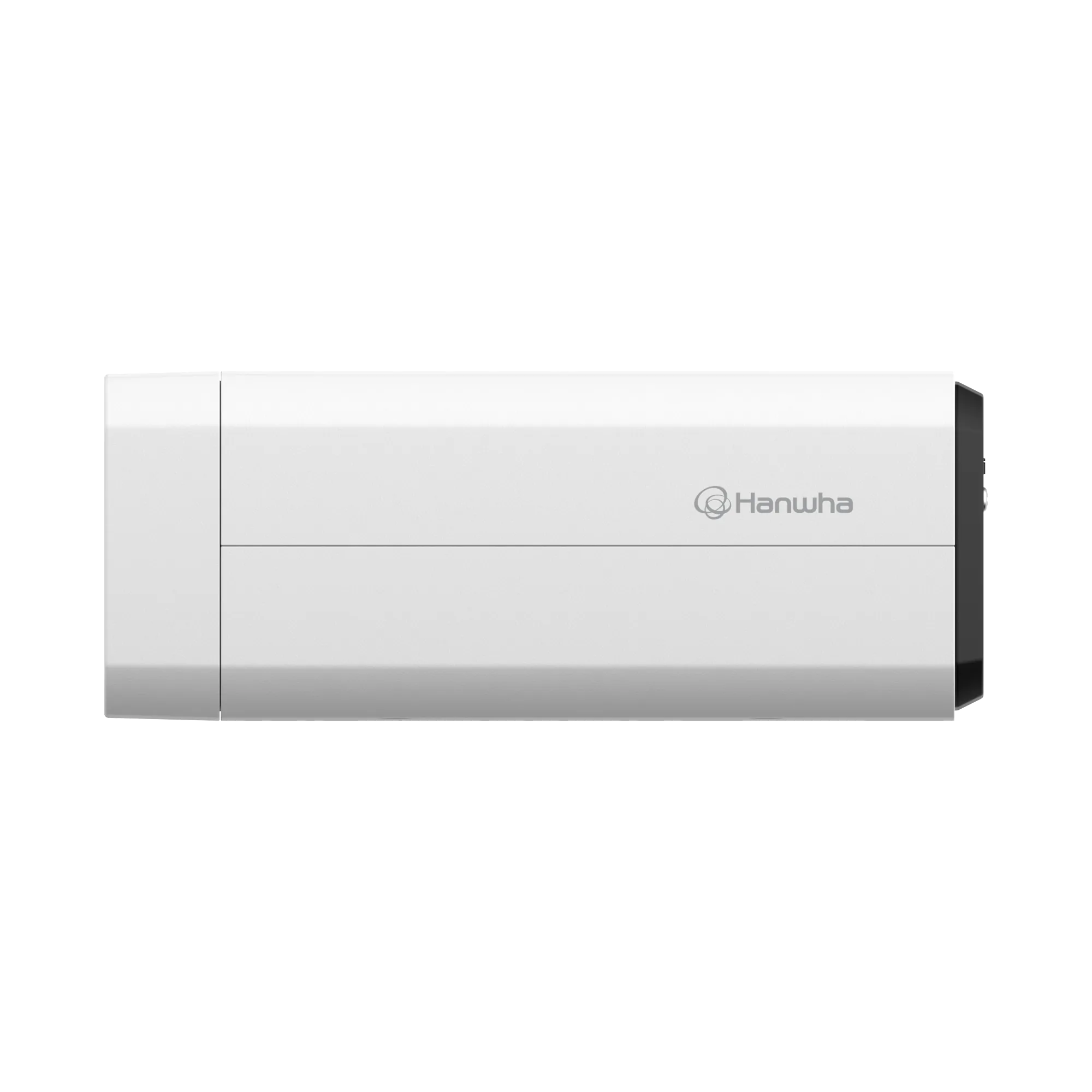

The TNM-C3622TDR is a compact, lightweight bi-spectrum camera for indoor use, combining a 2MP visible channel with a QVGA thermal channel. Maximum frame rate is stated as 8fps, and AI processing is available for the visible image only, where it classifies persons. Temperature is monitored remotely within the -20 ~ 130°C range, evaluated through six quadrangle ROI areas and checked for abnormal readings so that heat-related risks can be observed. Compression covers H.265/H.264 Main/Baseline/High and MJPEG with WiseStreamⅡ and CBR or VBR control, while streaming supports unicast for up to 20 users, multicast and up to six profiles. Further equipment includes eight motion detection zones as 8-point polygons, 24 polygonal privacy masks in seven variants including mosaic, digital image stabilization with a gyro sensor, one alarm input and two alarm outputs, a selectable audio input with line out, and metal shielded RJ-45(10/100BASE-T).
- QVGA thermal and 2MP visible resolution
- Max. framerate 8fps
- Temperature detection range -20 ~ 130°C
- Abnormal temperature detection
- AI available for the visible image only
- Six quadrangle ROI areas for temperature monitoring
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, IC Regulation ICES 003: 2016 ANSI C63.4 2014 Class A
- Certifications & Standards – Environment
- IEC/EN 63000
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -10°C~+55°C(+14°F~+131°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 14.5W, typical 11.0W
- Environmental & Electrical / Power Consumption – PoE
- Max. 17.0W, typical 12.5W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -30°C~+60°C(-22°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 1slot
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- 135(W)x75(H)x188.5(D)mm(5.31x2.95x7.42")
- Mechanical – Product Weight
- 1.7kg(3.77lb)
- Mechanical – RAL Code
- RAL9003
Network (12)
- Network / Application Programming Interface – ONVIF
- S, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API)
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 6 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Optional (needs gateway)
- Network – Ethernet
- Metal shielded RJ-45(10/100BASE-T), RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅡ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (12)

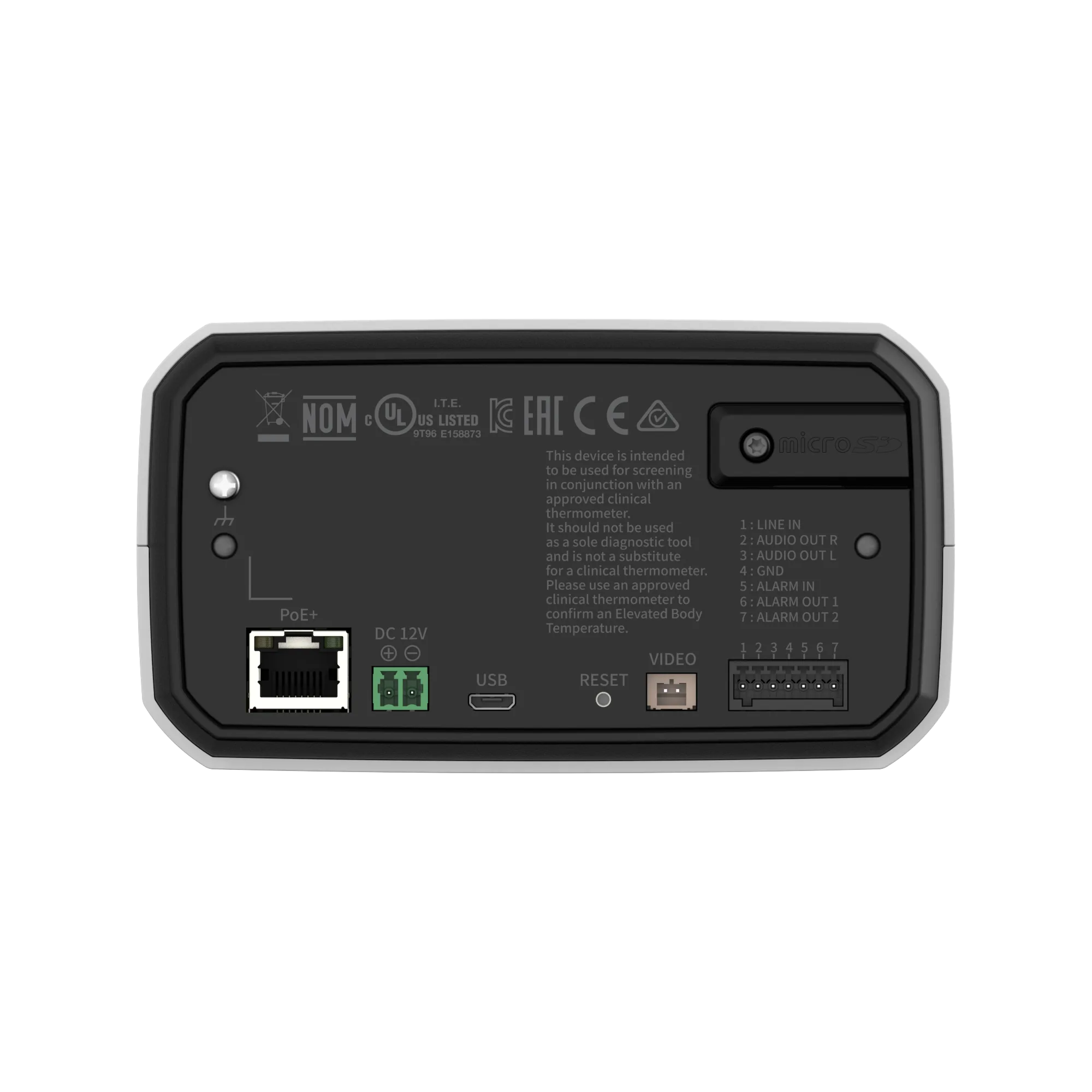

- Operational / Alarm Interface – In/Out
- Input 1ea, Output 2ea
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White, Mosaic
- Operational / Privacy Masking – Quantity
- 24ea
- Operational / Privacy Masking – Shape
- Polygonal zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Digital Image Stabilization
- Support(built-in gyro sensor)
- Operational – Video Rotation
- Flip, Mirror
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure)
- Security – Secure Storage
- HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication
Video (1)
- Video – Video Out
- CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
