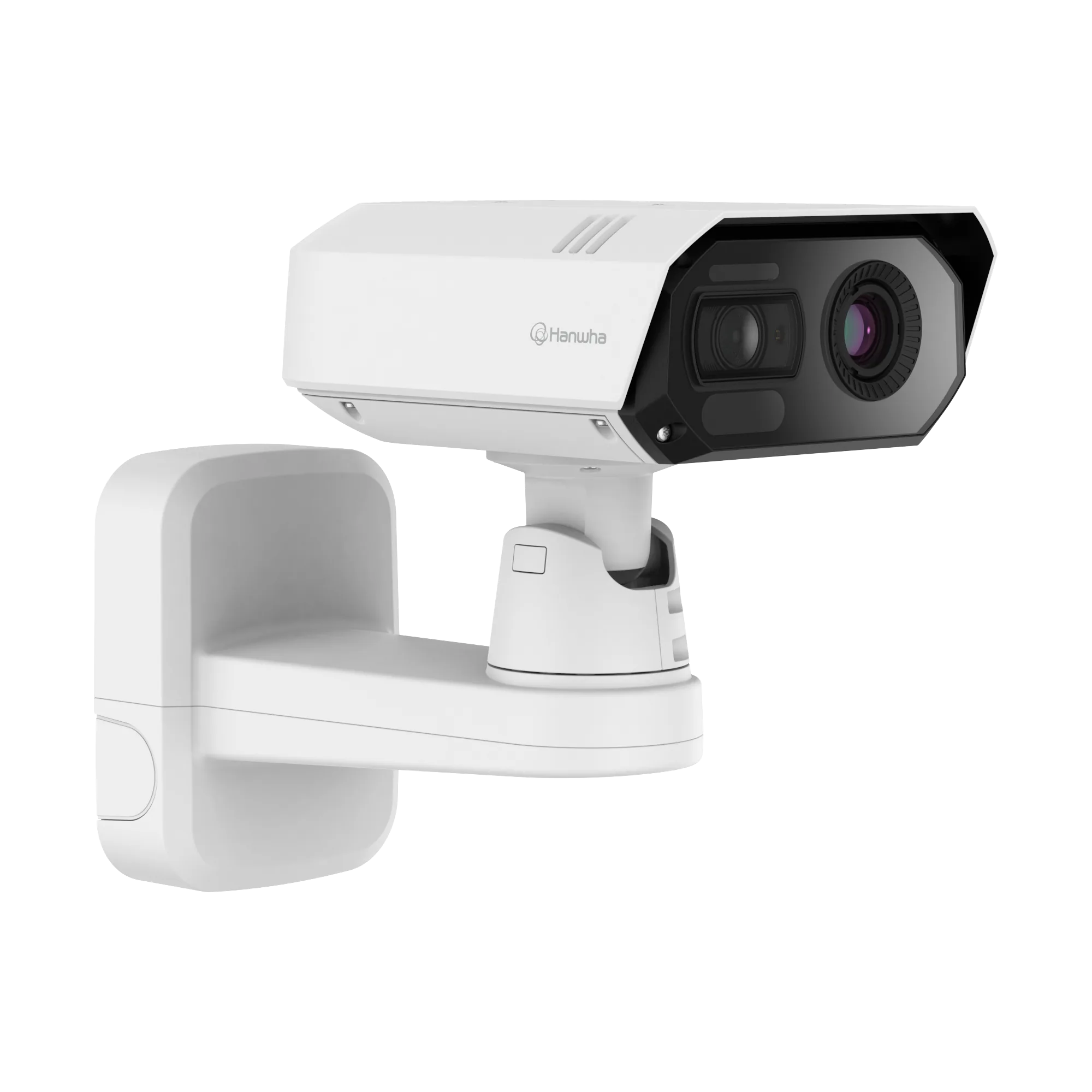

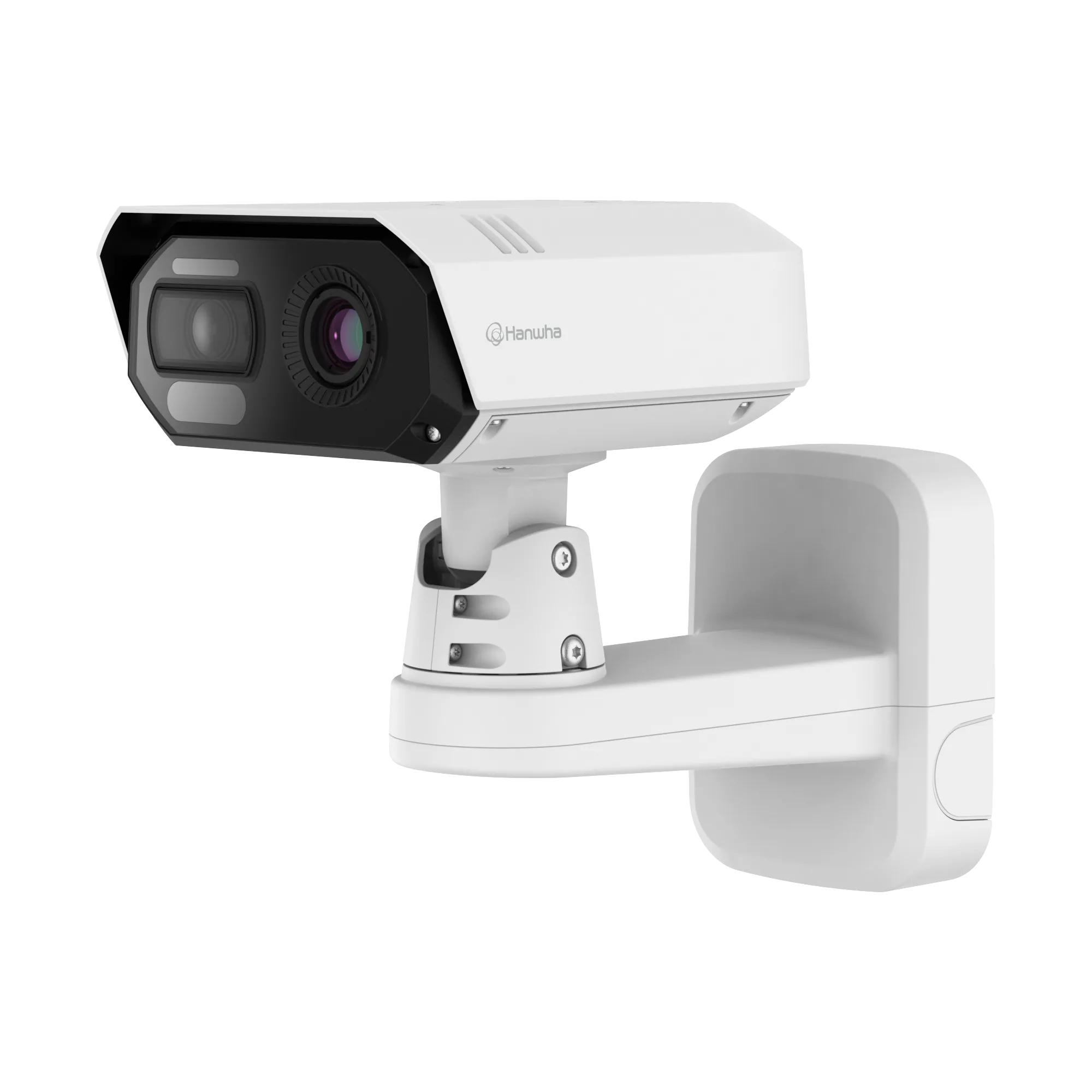

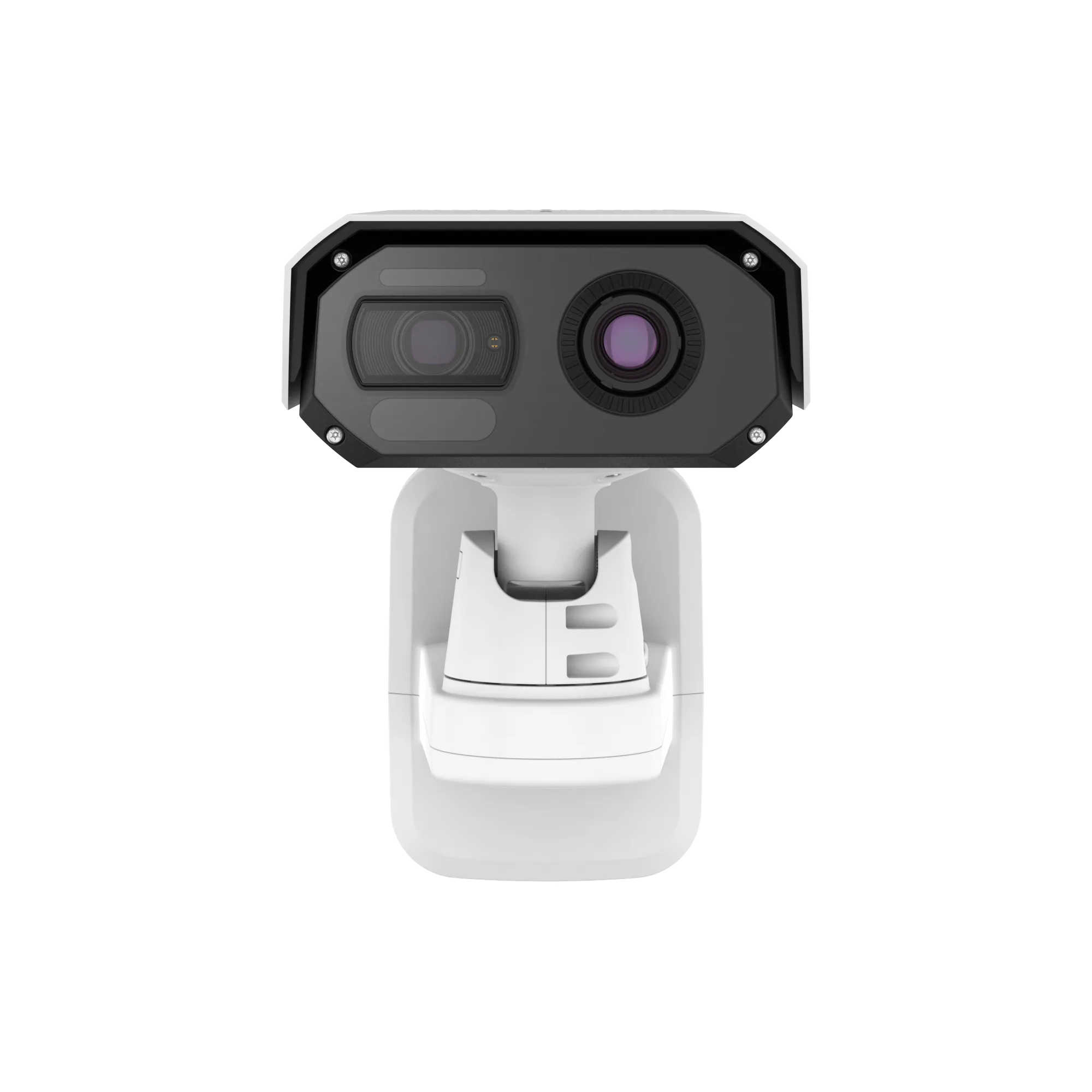

Bi-spectrum AI Radiometric Camera VGA thermal / 4K visible
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNM-C4942TDR
- EAN / GTIN
- 8801089228239
- Weight
- 6.52 kg
- Dimensions (W×H×D)
- 460 × 380 × 293 mm
Description
The TNM-C4942TDR is a radiometric AI bi-spectrum camera for outdoor environments that combines an 8MP visible channel with a VGA thermal channel. AI-based object classification distinguishes persons and vehicles on both channels, and temperature is monitored remotely within -20 ~ 130°C and evaluated through ten polygonal ROI areas. Mechanically it offers a pan range of -170° ~ +170°, a tilt range of -40° ~ 50° and up to 255 presets, with an all-in-one installation solution for wall and pole mounting. Transmission runs over metal shielded RJ-45(10/100/1000BASE-T) using H.265/H.264 Main/High and MJPEG with CBR or VBR control, unicast for up to six users, multicast and up to three profiles. Interfaces include ONVIF S, T and M as well as SUNAPI(HTTP API) and the Hanwha Vision Open Platform. Security covers encrypted and signed firmware with secure boot, digest authentication, IEEE 802.1X, HTTPS and WSS, IP-based access control, encrypted credentials and access, system and event log management.
- Radiometric AI bi-spectrum camera for outdoor use
- 8MP visible and VGA thermal channel
- AI object classification on both channels (person/vehicle)
- Remote temperature monitoring -20 ~ 130°C, ten polygonal ROI areas
- Pan -170° ~ +170°, tilt -40° ~ 50°, 255 presets
- ONVIF S, T, M and SUNAPI(HTTP API)
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+60°C(-40°F~+140°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 21.5W, Typ 14.0W
- Environmental & Electrical / Power Consumption – PoE
- Max. 25.5W, Typ 16.0W
- Environmental & Electrical / Storage Condition – Humidity
- 0~90% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- 353.4(W)x287.5(H)x191.2(D)mm(13.92x11.32x7.53")
- Mechanical – Product Weight
- 4.53kg(9.99lb)
- Mechanical – RAL Code
- RAL9003
Network (10)
- Network / Application Programming Interface – ONVIF
- S, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast)
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- -170° ~ +170°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -40° ~ 50°
- Pan / Tilt / Rotate – Sequence
- Preset(255ea)
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure)
- Security – Secure Storage
- HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication
Video (1)
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
