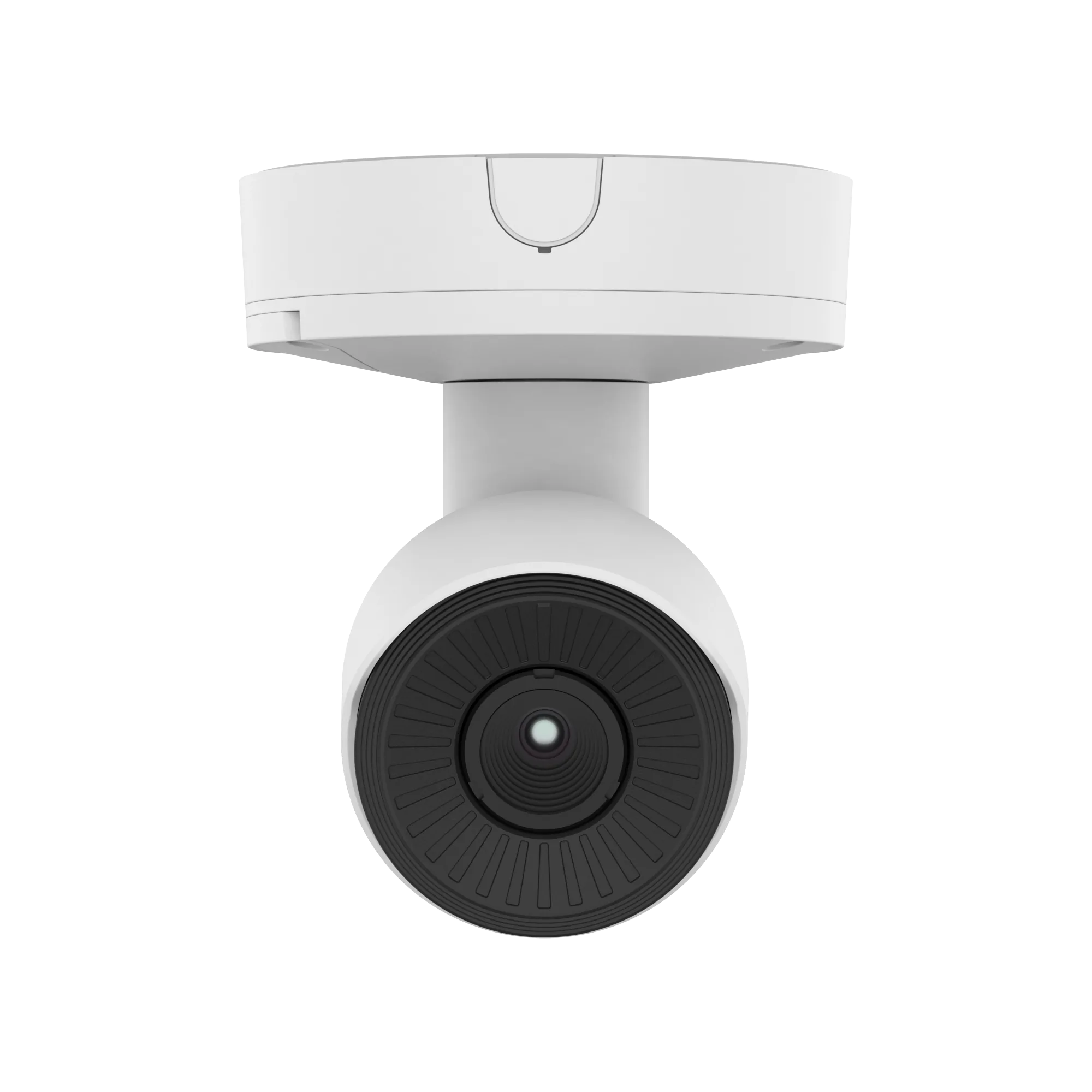

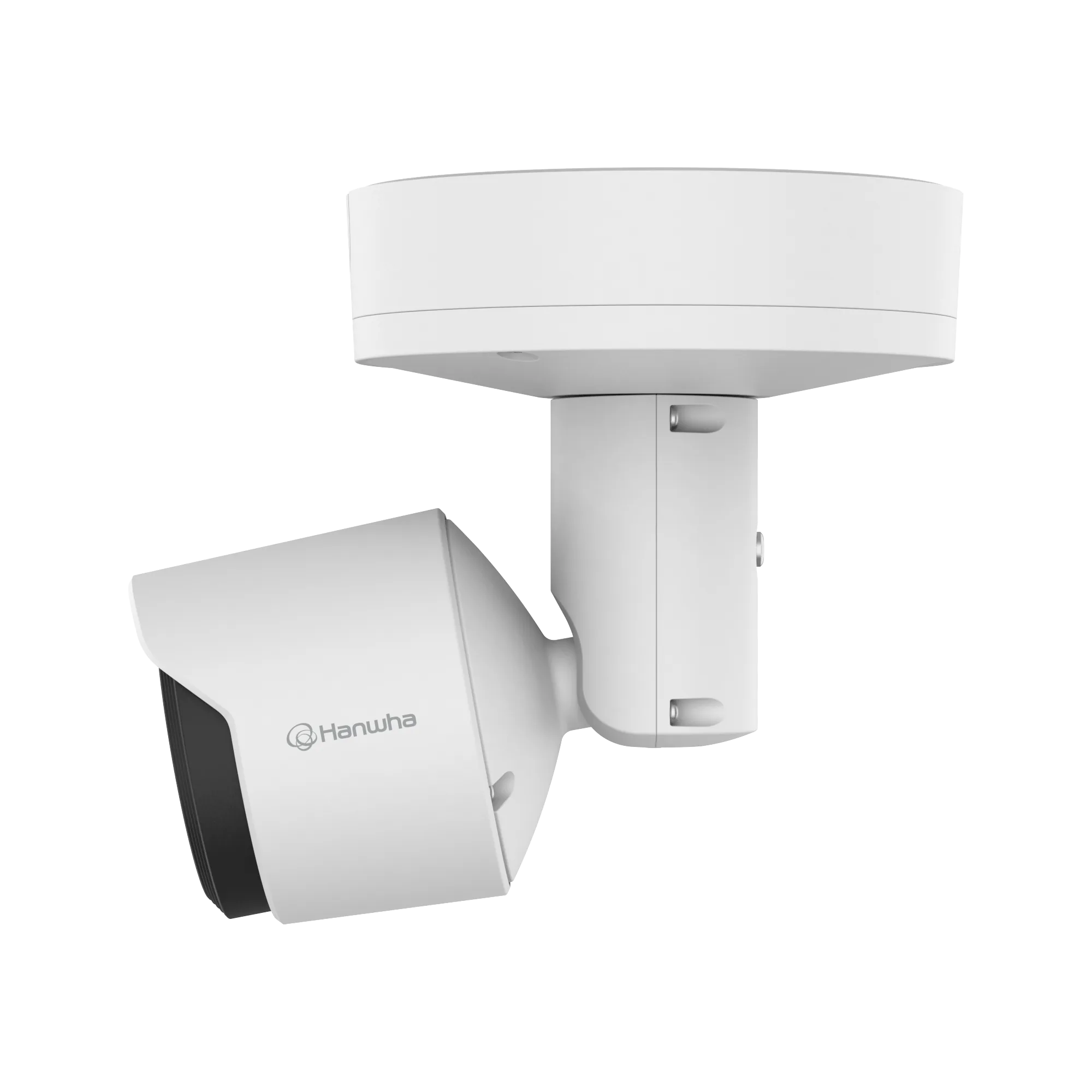

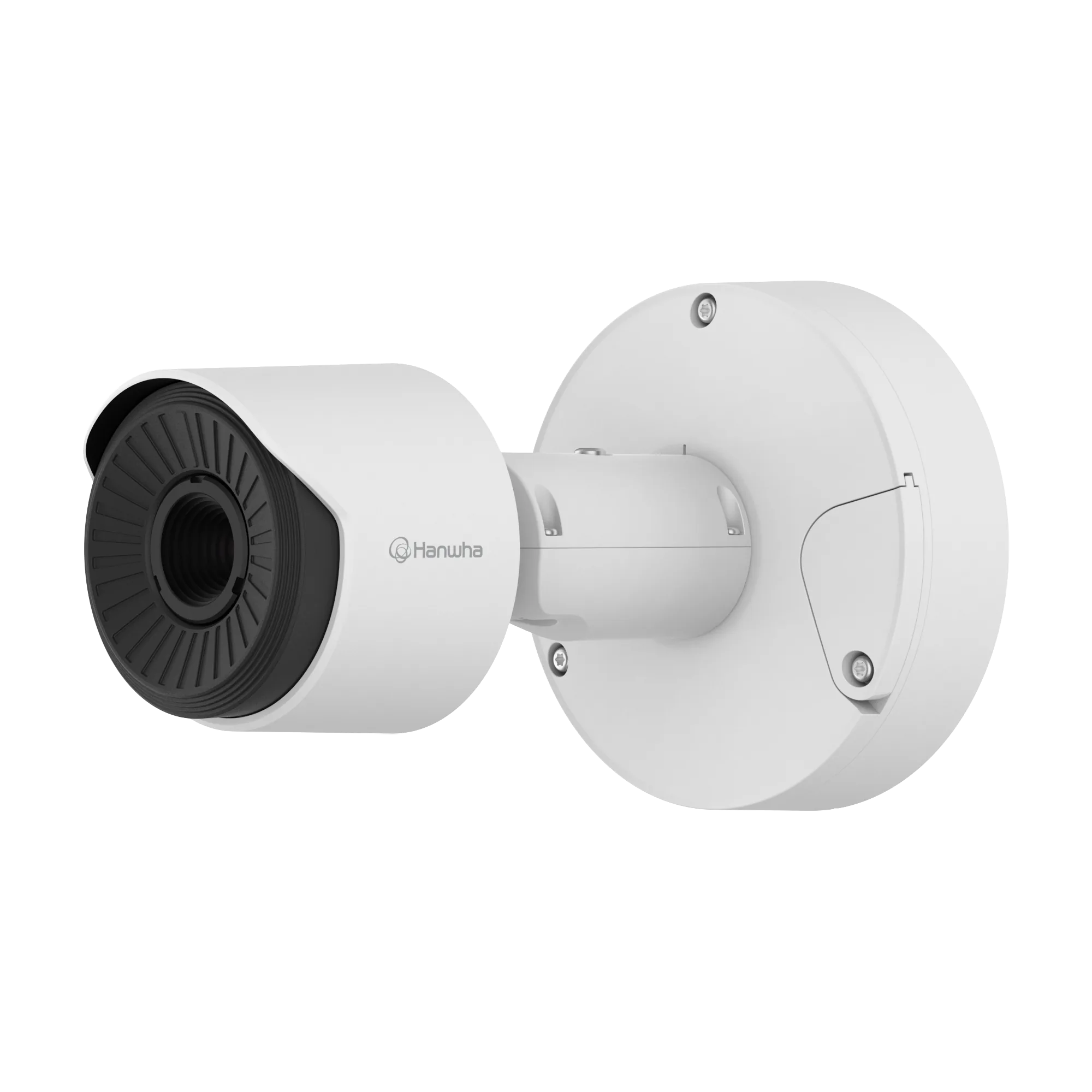

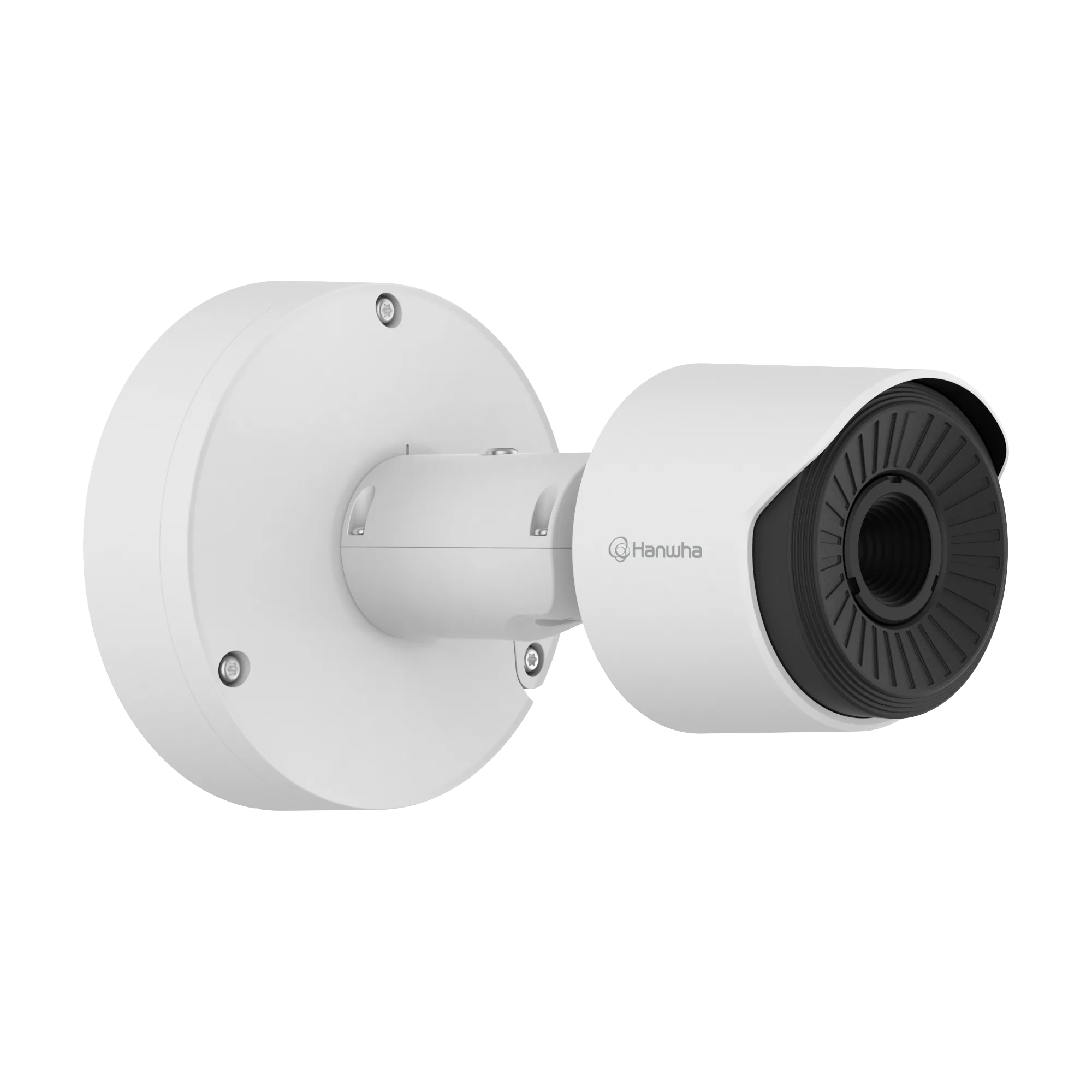

QVGA Radiometric AI Thermal Bullet (Lower Frame Rate)
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNO-C3032TRA
- EAN / GTIN
- 8801089226723
- Weight
- 2 kg
- Dimensions (W×H×D)
- 260 × 230 × 200 mm
Description
Working radiometrically, the TNO-C3032TRA measures temperatures from -40 °C to 550 °C using an uncooled micro bolometer of 384x288 pixels with a 17 µm pixel pitch and a thermal sensitivity of ≤30 mK in the 8~14 µm band. Output resolutions are 768x576 and 384x288 at up to 8 frames per second in H.265, H.264 and MJPEG. A fixed 9.7 mm F1.0 lens spans 38° horizontally, 29° vertically and 47° diagonally, producing an iFoV of 1.8 mRad and a minimum object distance of 2.8 m. Objects are classified as person or vehicle by an AI engine, backed by WiseMD motion detection, and eight colour palettes are selectable for display: White hot, Black hot, Rainbow, Sepia, Red, Iron, Custom and Hybrid. The bullet housing measures 147 x 233.5 mm at 1.7 kg, and the camera supports Open Platform, ONVIF Profile S, G, T and M as well as MQTT.
- Radiometric measurement from -40 °C to 550 °C
- 384x288 sensor, 17 µm, NETD ≤30 mK
- 9.7 mm fixed lens, F1.0, field of view 38° x 29°
- Up to 8 fps at 768x576 and 384x288
- AI classification of person and vehicle, WiseMD
- ONVIF Profile S/G/T/M, MQTT, Open Platform
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (4)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), Temperature detection, Tank level detection, Temperature change detection
- Analytics – Classified Object Type
- Person, Vehicle
- Analytics – Thumbnail
- BestShot
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
DRI (Johnson's Criteria) (6)
- DRI (Johnson's Criteria) / Detection – Person(1.67PPM)
- 336m(1,101ft)
- DRI (Johnson's Criteria) / Detection – Vehicle(0.65PPM)
- 857m(2,813ft)
- DRI (Johnson's Criteria) / Identification – Person(13.33PPM)
- 42m(138ft)
- DRI (Johnson's Criteria) / Identification – Vehicle(5.22PPM)
- 107m(352ft)
- DRI (Johnson's Criteria) / Recognition – Person(6.67PPM)
- 84m(275ft)
- DRI (Johnson's Criteria) / Recognition – Vehicle(2.61PPM)
- 214m(703ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+60°C(-40°F~+140°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 9.4W, typical 7.7W
- Environmental & Electrical / Power Consumption – PoE
- Max. 10.8W, typical 9W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 1TB x 1slot
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 2GB
Lens (8)
- Lens / Angular Field of View – Diagonal
- 47
- Lens / Angular Field of View – Horizontal
- 38
- Lens / Angular Field of View – Vertical
- 29
- Lens / Max Aperture Ratio (F number) – Wide
- 1.0
- Lens – Focal Length (mm)
- 9.7
- Lens – Focus Control
- Fixed
- Lens – Min. Object Distance
- 2.8m(9.19ft)
- Lens – iFoV
- 1.8 mRad
Mechanical (7)
- Mechanical – Color
- White
- Mechanical – Compatible Conduit Hole
- Support conduit compatibility via optional adaptor
- Mechanical – Compatible Gang Box
- Single, Double, 4" Octagon, Square
- Mechanical – Material
- Aluminum, PC(Polycarbonate)
- Mechanical – Product Dimensions
- ø93.8x233.5mm(ø3.69x9.19")
- Mechanical – Product Weight
- 1700g(3.75lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, G, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 10 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (13)
- Operational / Alarm Interface – In/Out
- 2 configurable I/O ports
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Black, White
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
- Operational – Color Pallettes
- Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
- Operational – Serial Interface
- RS-485
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~350°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~90°
Radiometry (7)
- Radiometry / Temperature Detection ROI Zones – Quantity
- 10ea
- Radiometry / Temperature Detection ROI Zones – Shape / Option
- Polygonal
- Radiometry – Hybrid Pallettes
- Support
- Radiometry – ROI Condition Monitoring
- Above, Below, Increase, Decrease
- Radiometry – Spot Temperature Reading
- Support
- Radiometry – Temperature Accuracy
- ±2°C(≤150°C), ±15%(>150°C)
- Radiometry – Temperature Detect Range
- -40°C~550°C
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- TPM(Trusted platform module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (8)
- Video / Imaging Device – Type
- Uncooled micro bolometer (384x288)
- Video / Max. Framerate – H.265/H.264
- 8fps
- Video / Max. Framerate – MJPEG
- 8fps
- Video – NETD
- ≤30mK
- Video – Pixel Size
- 17㎛
- Video – Resolution
- 768x576, 384x288
- Video – Spectral Range
- 8~14㎛
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
