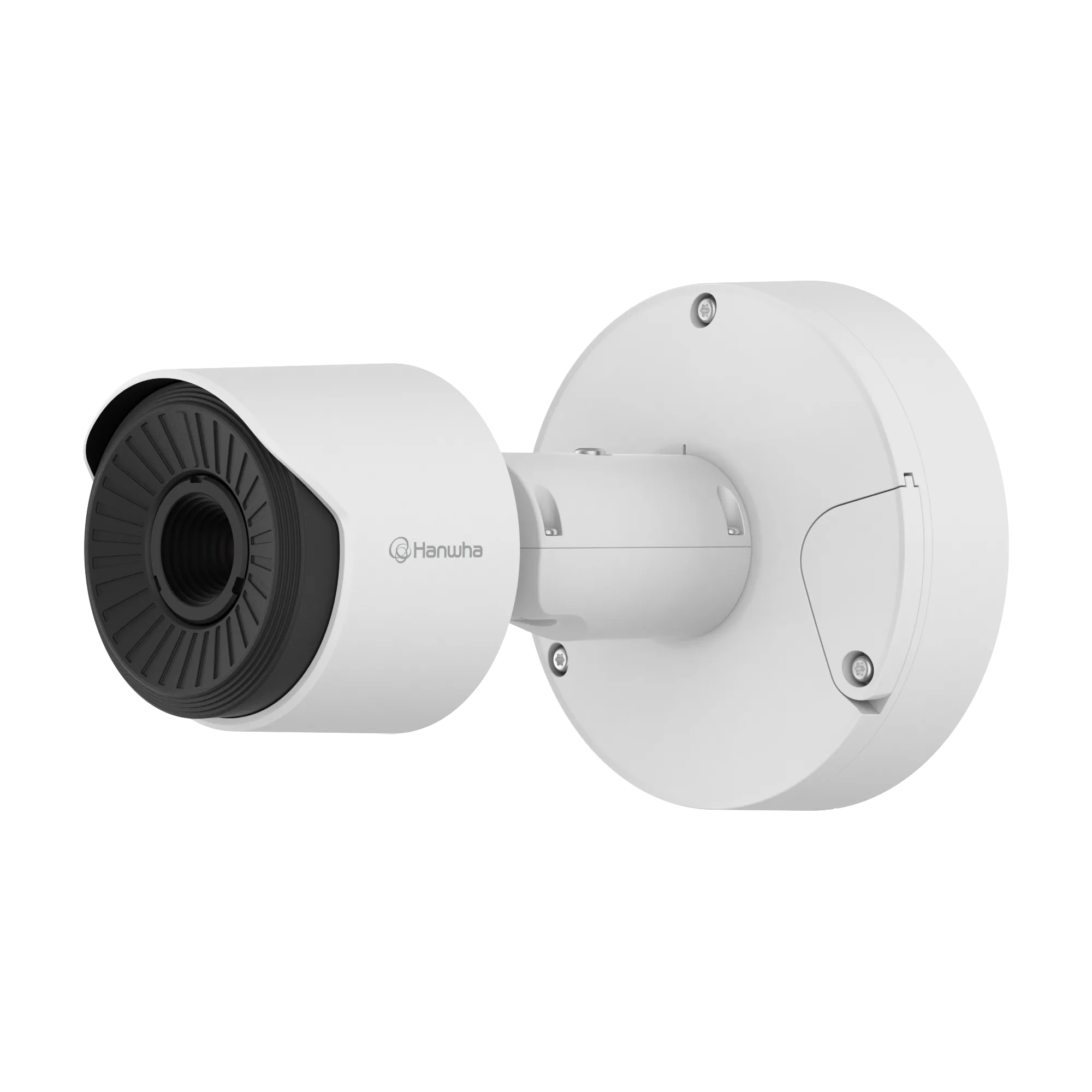

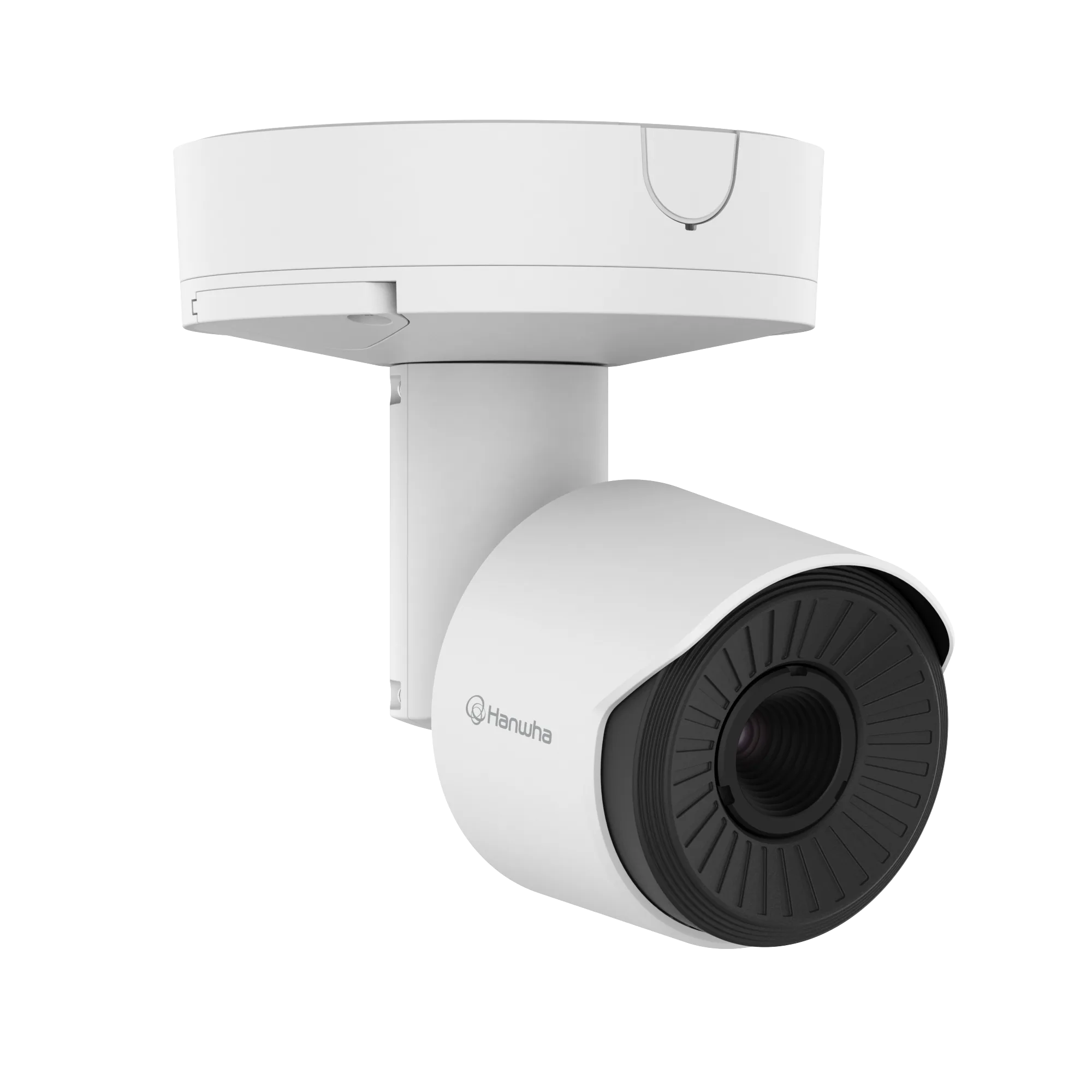

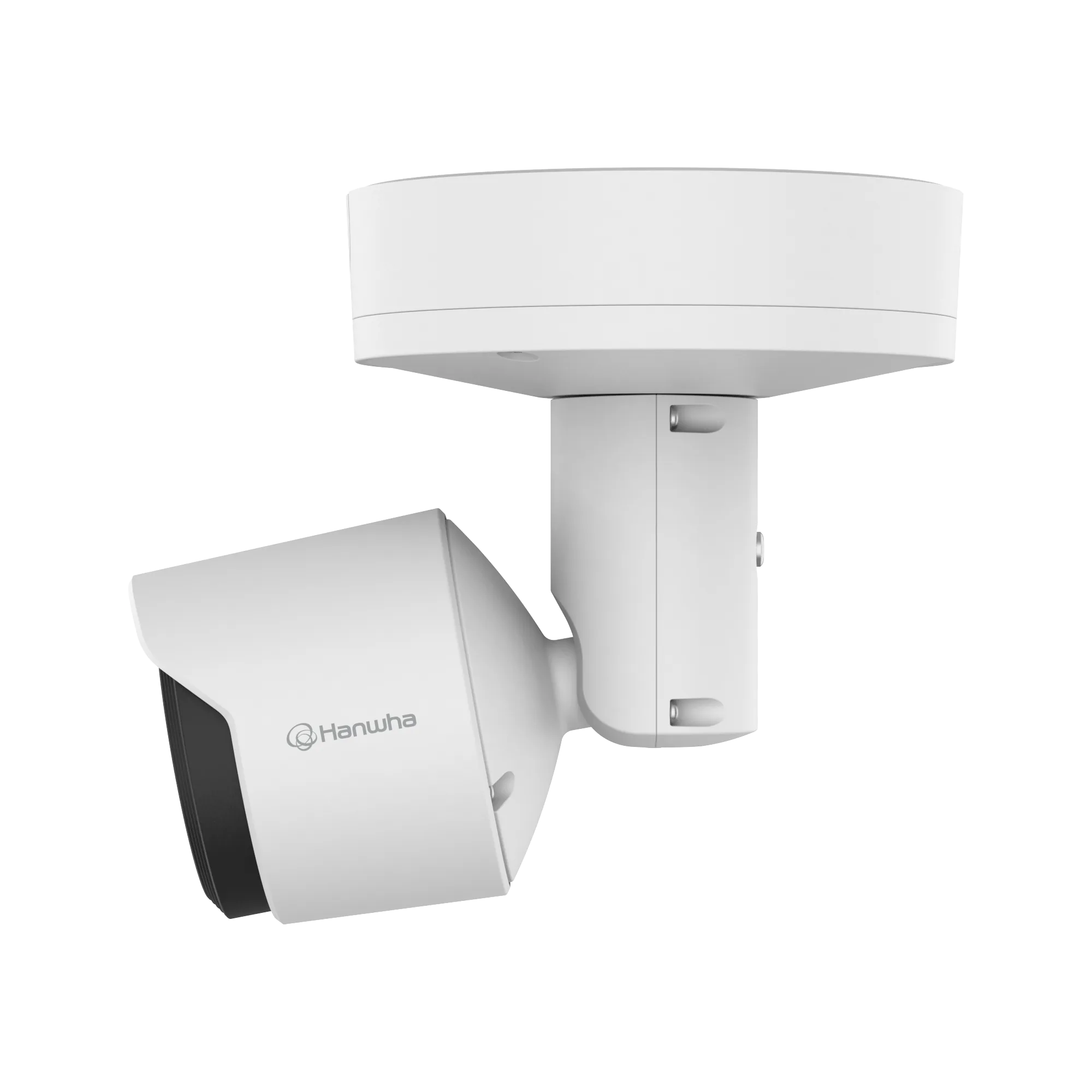

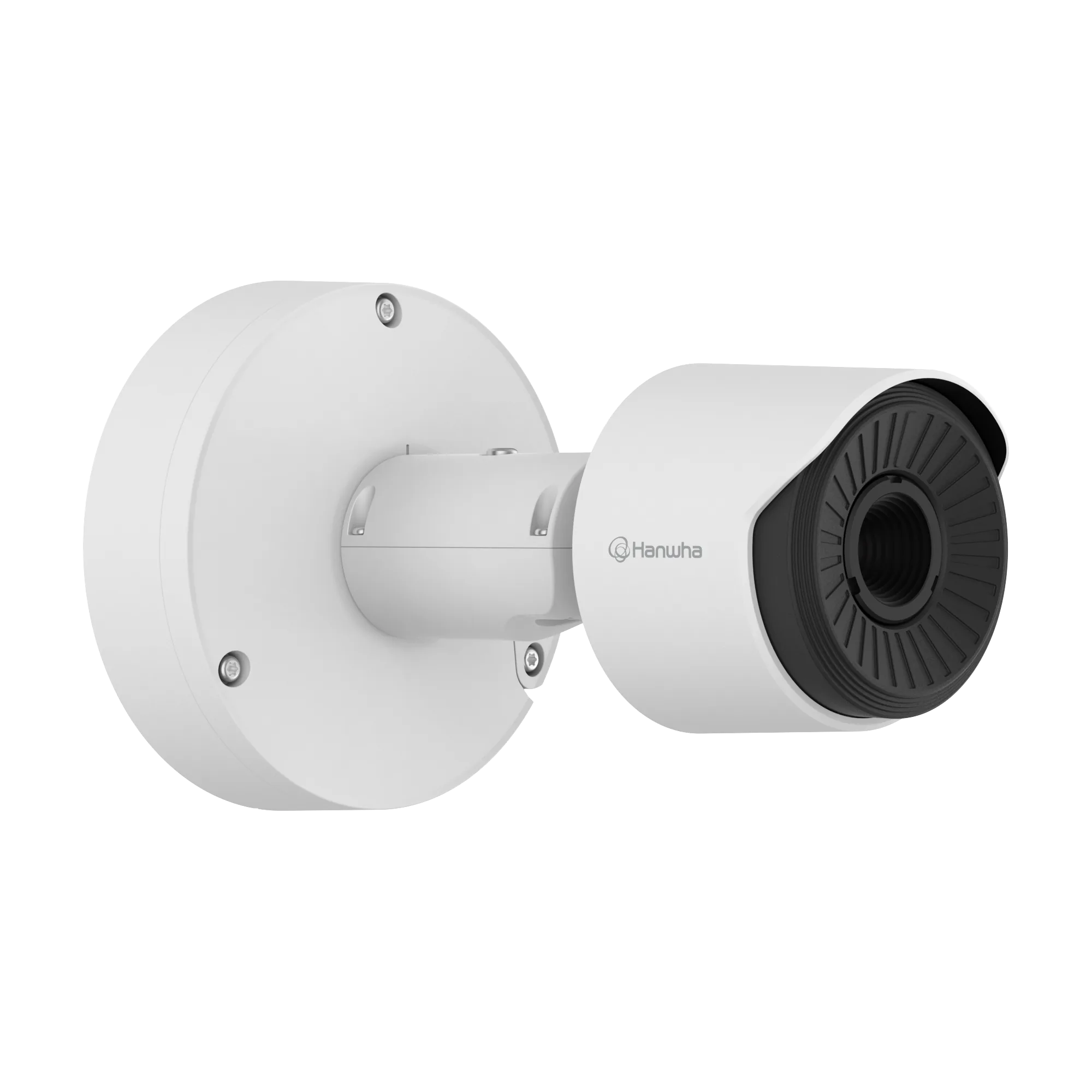

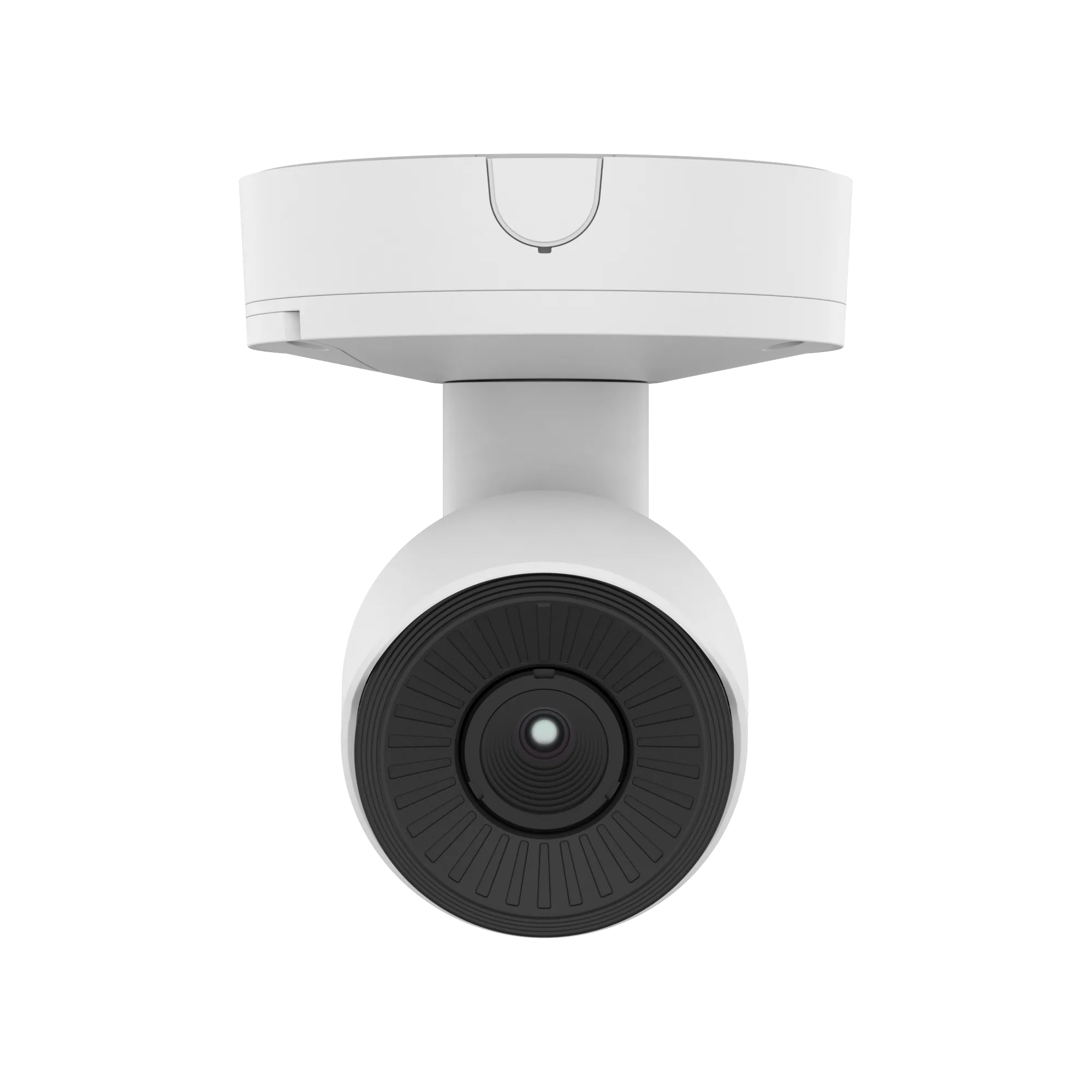

QVGA AI Thermal Bullet
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNO-C3050T
- EAN / GTIN
- 8801089237088
- Weight
- 2.23 kg
- Dimensions (W×H×D)
- 262 × 232 × 204 mm
Description
The TNO-C3050T images through an uncooled micro bolometer of 384x288 with a pixel size of 17 µm and streams either 768x576 or 384x288. Its spectral range covers 8–14 µm, and sensitivity is stated as NETD ≤20 mK at 25 °C, F1.0. The athermalized fixed lens has a focal length of 19 mm at F1.0 and takes in 19.3° horizontally, 14.6° vertically and 23.9° diagonally, with an iFoV of 0.895 mRad and a minimum object distance of 10.6 m (34.8 ft). H.265, H.264 and MJPEG are each encoded at up to 30 fps, and AI-based classification separates persons from vehicles. Eight motion zones can be drawn as 8-point polygons, and the mount permits 0°~350° of pan, 0°~90° of tilt and 0°~350° of rotation.
- Uncooled micro bolometer 384x288
- Athermalized 19 mm fixed lens, F1.0
- NETD ≤20 mK at 25 °C
- Up to 30 fps (H.265/H.264/MJPEG)
- AI object classification for persons and vehicles
- IP66/67, IK10, NEMA4X, NEMA-TS2, MIL-STD-810H
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
