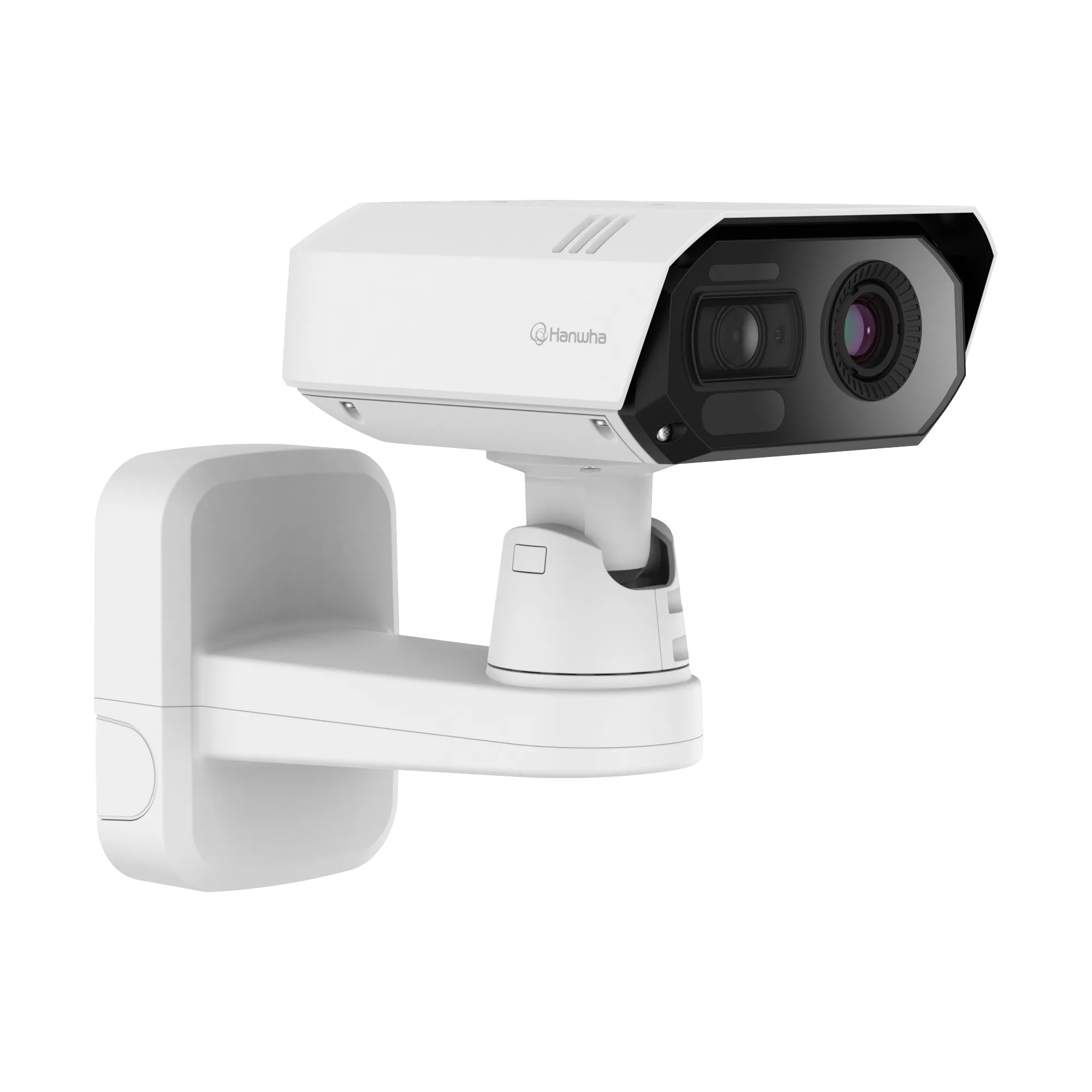

Bi-Spectrum AI Thermal Camera, AI, Thermal 13.5mm / Visible 10.9~29mm M-V/F
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNM-C4952TD
- EAN / GTIN
- 8801089247391
- Weight
- 6.55 kg
- Dimensions (W×H×D)
- 380 × 293 × 466 mm
Description
The TNM-C4952TD provides a VGA thermal channel and an 8MP visible channel from a single device on one IP address, running at 8 frames per second. Its optics consist of a 13.5mm fixed thermal lens and a 10.9~29mm motorized varifocal visible lens. The housing is rated IP66, IP67 and IK10. WiseNR II noise reduction is AI-based and applies to the visible channel only, while smart coding uses WiseStream III for the visible channel and WiseStream II for the thermal channel, with compression in H.265/H.264 Main/High and MJPEG under CBR or VBR control. Mechanically the camera covers a pan range of -170°~+170°, a tilt range of -40° ~ 50° and 255 presets. It is rounded out by eight motion detection zones, six rectangular privacy masks, four configurable I/O ports, a selectable mic or line input with line out, and metal shielded RJ-45(10/100/1000BASE-T) with unicast for up to six users.
- VGA thermal resolution, 8MP visible resolution
- 8 frames per second
- IP66, IP67 and IK10 rated
- Dual channel through one device, one IP
- 13.5mm fixed thermal and 10.9~29mm motorized varifocal visible lens
- WiseNR II noise reduction, WiseStream III and II codecs
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environmental & Electrical (8)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+60°C(-40°F~+140°F)
- Environmental & Electrical / Power Consumption – 12VDC
- Max. 19.5W, Typ 14.0W
- Environmental & Electrical / Power Consumption – PoE
- Max. 23.5W, Typ 16.0W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE+(IEEE802.3at, Class4), 12VDC
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 256GB x 2slot(Total 512GB)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Mechanical (5)
- Mechanical – Color
- White
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- 353.4(W)x287.5(H)x191.2(D)mm(13.92x11.32x7.53")
- Mechanical – Product Weight
- 4.53kg(9.99lb)
- Mechanical – RAL Code
- RAL9003
Network (11)
- Network / Application Programming Interface – ONVIF
- S, T
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 3 profiles
- Network / Streaming – Unicast
- Up to 6 users
- Network – Audio Compression
- G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- Metal shielded RJ-45(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast)
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (10)
- Operational / Alarm Interface – In/Out
- 4 configurable I/O ports
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Black, White
- Operational / Privacy Masking – Quantity
- 6ea
- Operational / Privacy Masking – Shape
- Rectangular zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback
- Operational – Alarm Triggers
- Analytics, Network disconnect, Alarm input
- Operational – Audio In
- Selectable(mic in/line in)
- Operational – Audio Out
- Line out
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- -170°~+170°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- -40° ~ 50°
- Pan / Tilt / Rotate – Sequence
- Preset(255ea)
Security (10)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure)
- Security – Secure Storage
- HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security – Security Certificate
- TPM 2.0 with FIPS 140-2 level2
- Security – User authentication
- Digest authentication
Video (1)
- Video – Video Out
- USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
