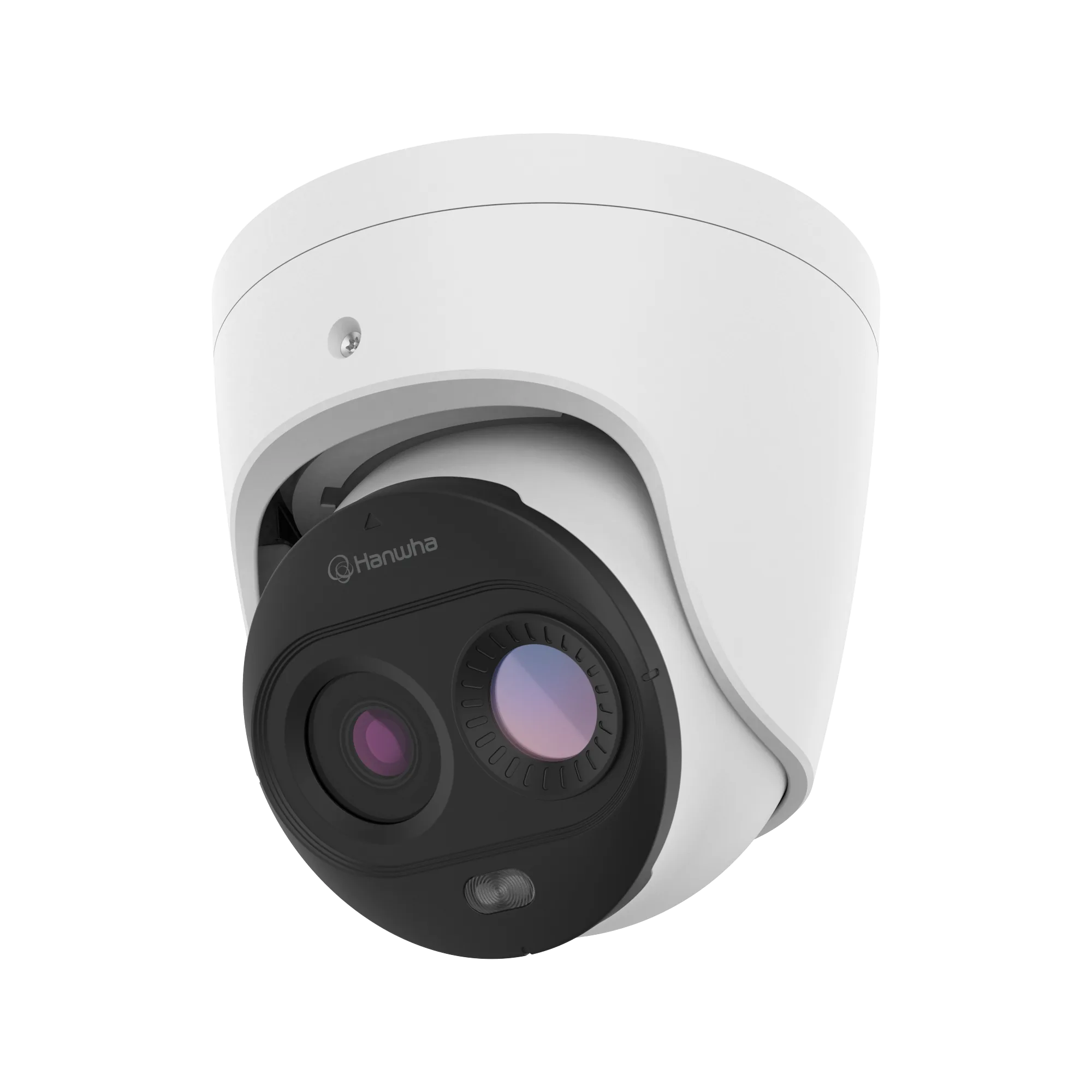

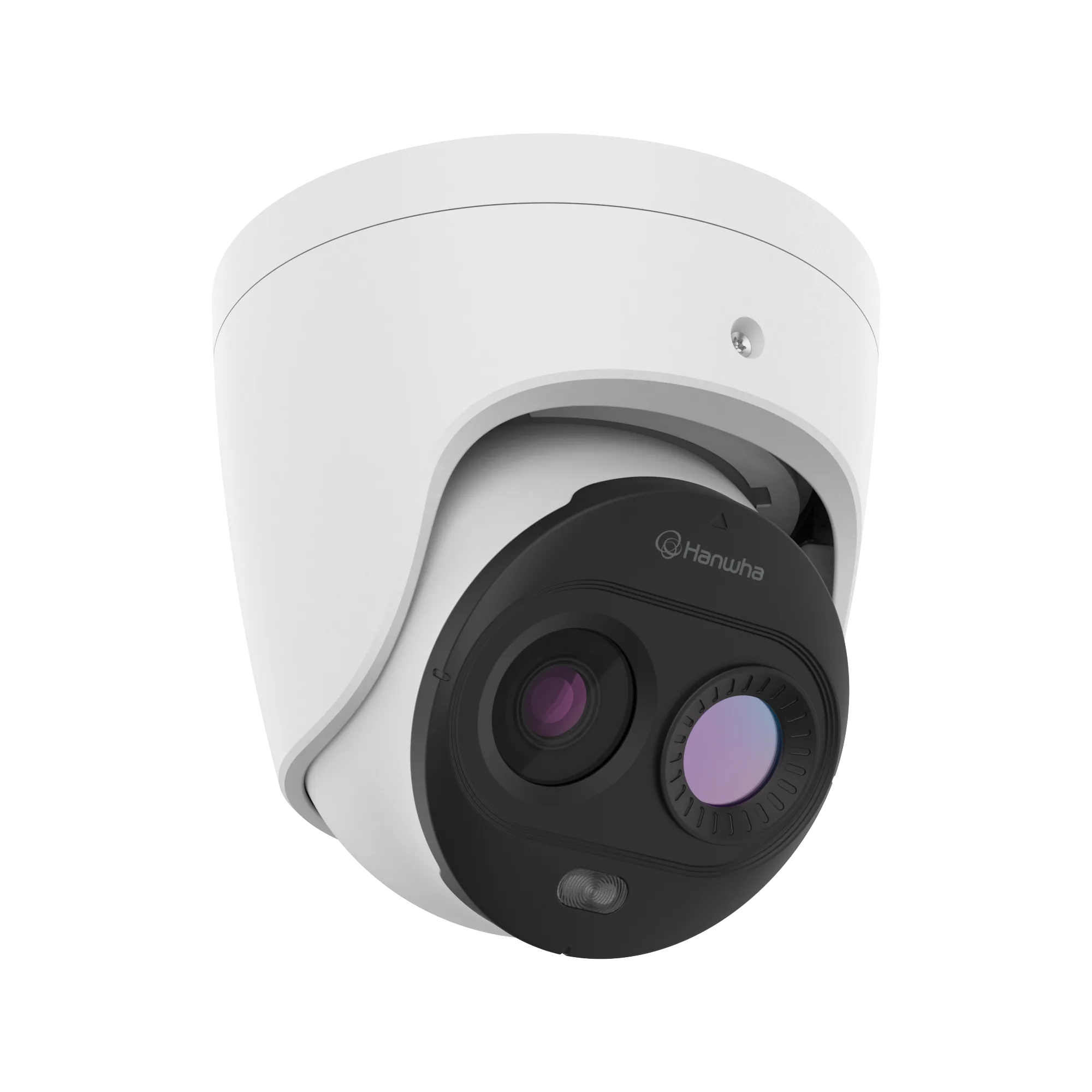

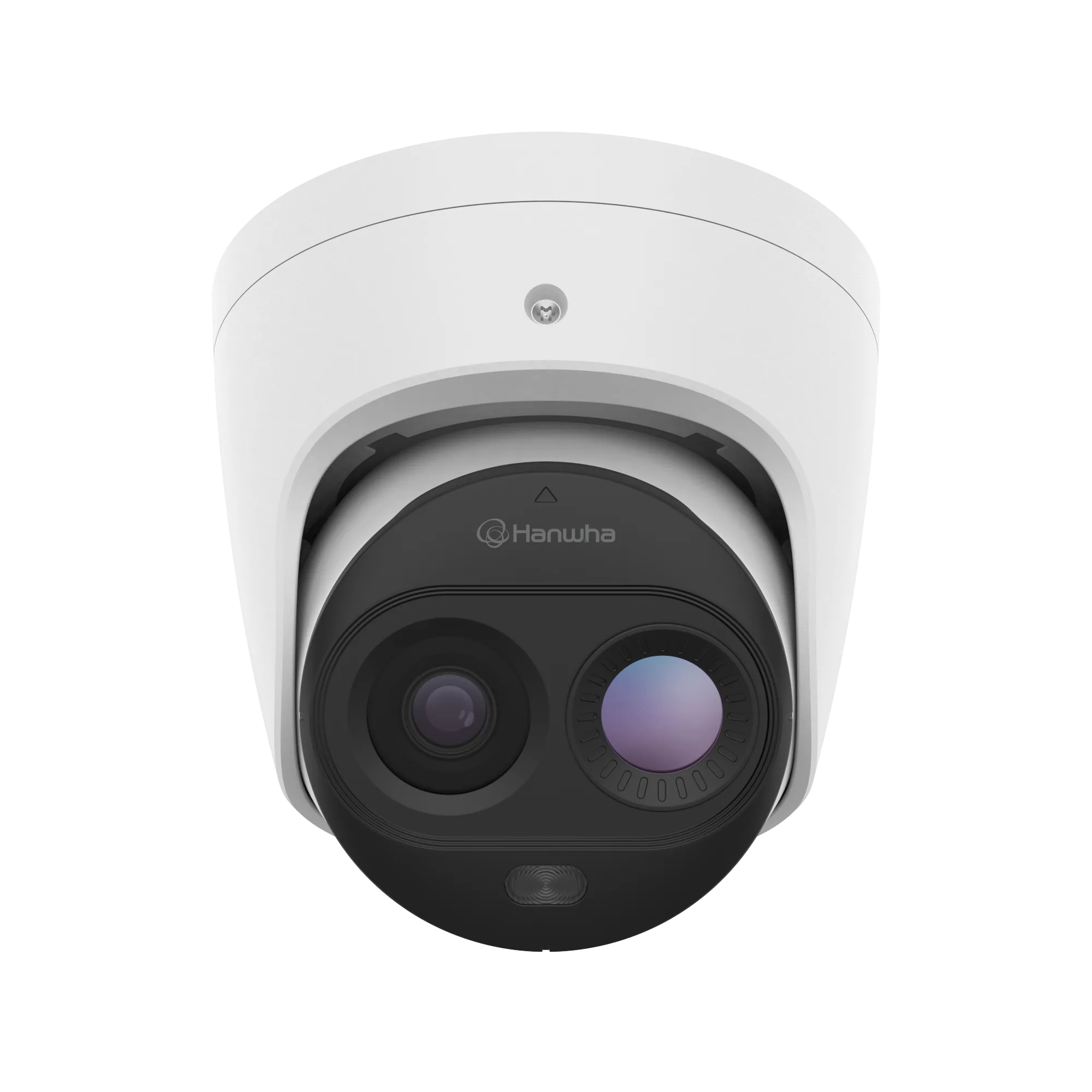

Bi-spectrum Early Fire Detection Camera
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNM-C2722TDR
- EAN / GTIN
- 8801089241559
- Weight
- 0.88 kg
- Dimensions (W×H×D)
- 175 × 175 × 166 mm
Description
The TNM-C2722TDR brings a QQVGA thermal channel and a 3MP visible sensor together in a single device. The visible channel delivers up to 30fps and the thermal channel 8fps, with a field of view of H: 57° / V: 44° / D: 71° thermal and H: 69° / V: 50.8° / D: 88.9° visible. An AI engine handles early fire detection, temperature measurement across -10°C~450°C and temperature difference detection. Mechanically, pan and rotate span 0°~360° and tilt spans 0°~70°, while the housing is rated IP66/IP67 and IK09 except for the lenses in front. Operation runs from -30°C~+55°C(-22°F~+131°F) at 0~95% RH(non-condensing) with start-up above -10°C, powered by PoE(IEEE802.3af, Class3) at max 10.8W, typical 6.2W. Resources include 2GB RAM, 512MB flash, a microSD slot for up to 512GB and security features from signed firmware and IEEE 802.1X through to AES-256 encryption of the SD card partition.
- Bi-spectrum QQVGA thermal and 3MP visible sensor
- Thermal field of view H: 57° / V: 44° / D: 71°
- AI-engine based early fire detection
- Temperature detect range -10°C~450°C
- IP66/IP67, IK09 except lenses in front
- PoE, max 10.8W, typical 6.2W
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK09
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -10°C
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max 10.8W, typical 6.2W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -40°C~+60°C(-40°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (3)
- General / Edge Storage – Micro SD/SDHC/SDXC
- Max. 512GB x 1slot
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 2GB
Mechanical (6)
- Mechanical – Color
- White
- Mechanical – Compatible Gang Box
- Single
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- Ø110x97mm(ø4.33x3.82")
- Mechanical – Product Weight
- 650g(1.43lb)
- Mechanical – RAL Code
- RAL9003
Pan (3)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Rotate
- 0°~360°
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Tilt
- 0°~70°
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- SDcard partition encrypt(AES-256)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
