Barcode Reader Camera
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Matching accessories
The SNC-PS-60-EU is a power supply unit with an EU plug, intended to feed barcode reader cameras. It provides a 24 VDC output rated at 60 W, equivalent to 2.5 A, and reaches a typical efficiency of up to 84 percent. Its compact format suits confined installation spaces, and the desktop housing is quick to commission using industry standard IEC mains cables. Output short circuit protection and over current protection are included as standard. Safety approvals are stated as EN62368 and UL. Supplied with the unit are an EU power cord and an adapter from a 2.1 mm female DC plug to a two-pin screw terminal. 24 VDC output, 60 W (2.5 A)Typical efficiency up to 84 percentShort circuit and over current protectionEN62368 and UL safety approvedDesktop housing for IEC mains cablesEU power cord and screw terminal adapter included
Not in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNS-9060IBC
- EAN / GTIN
- 8801089235961
- Weight
- 4.2 kg
- Dimensions (W×H×D)
- 335 × 280 × 343 mm
Description

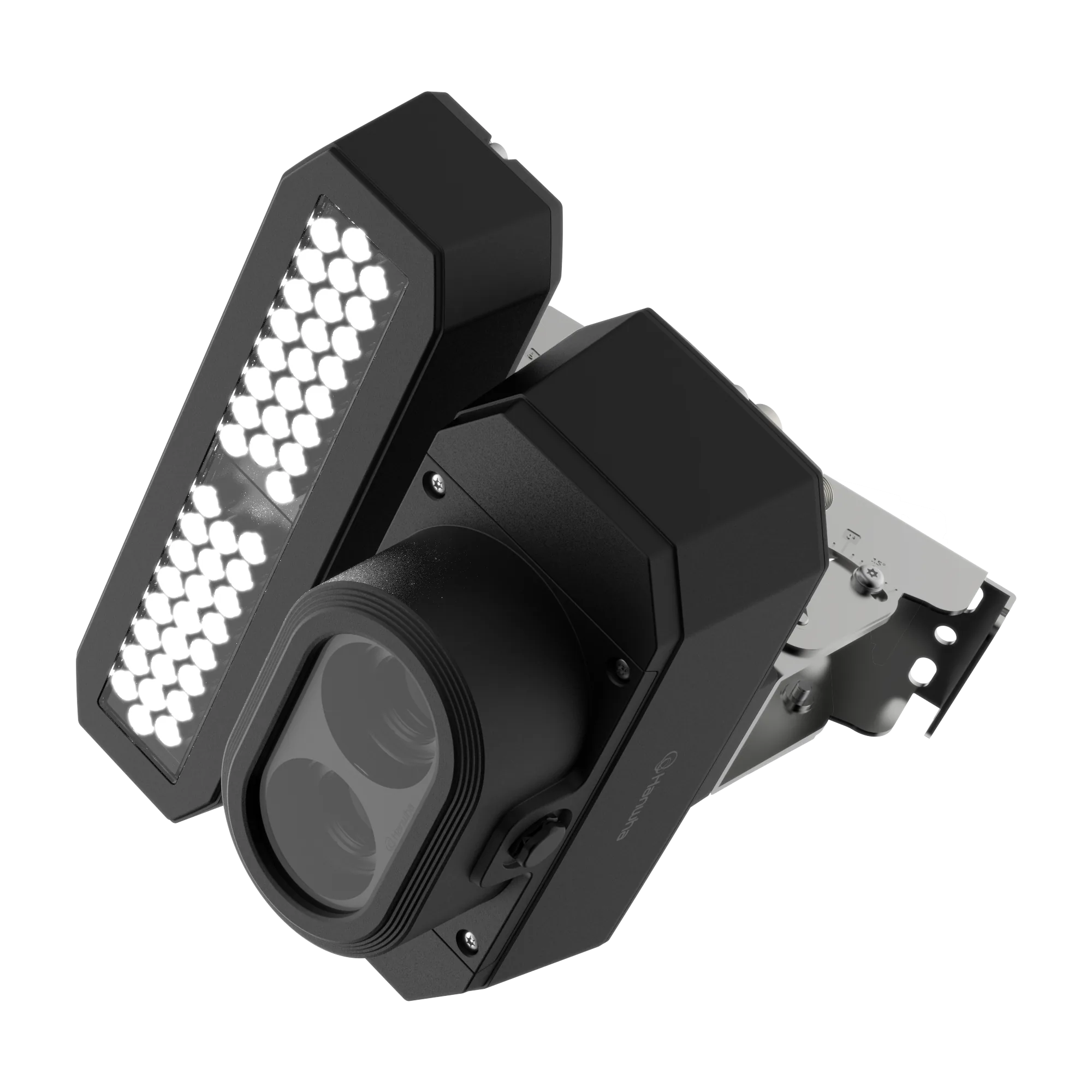

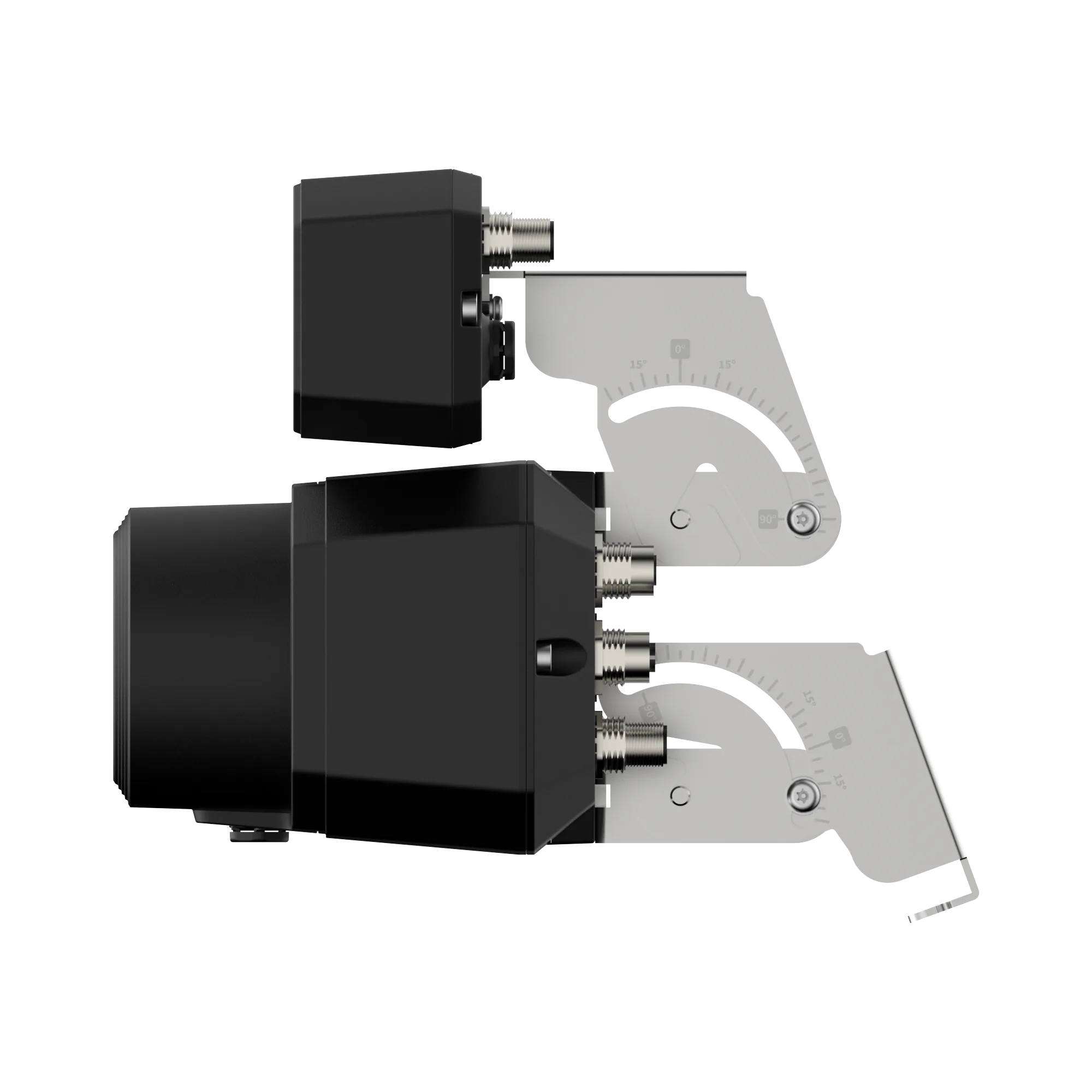

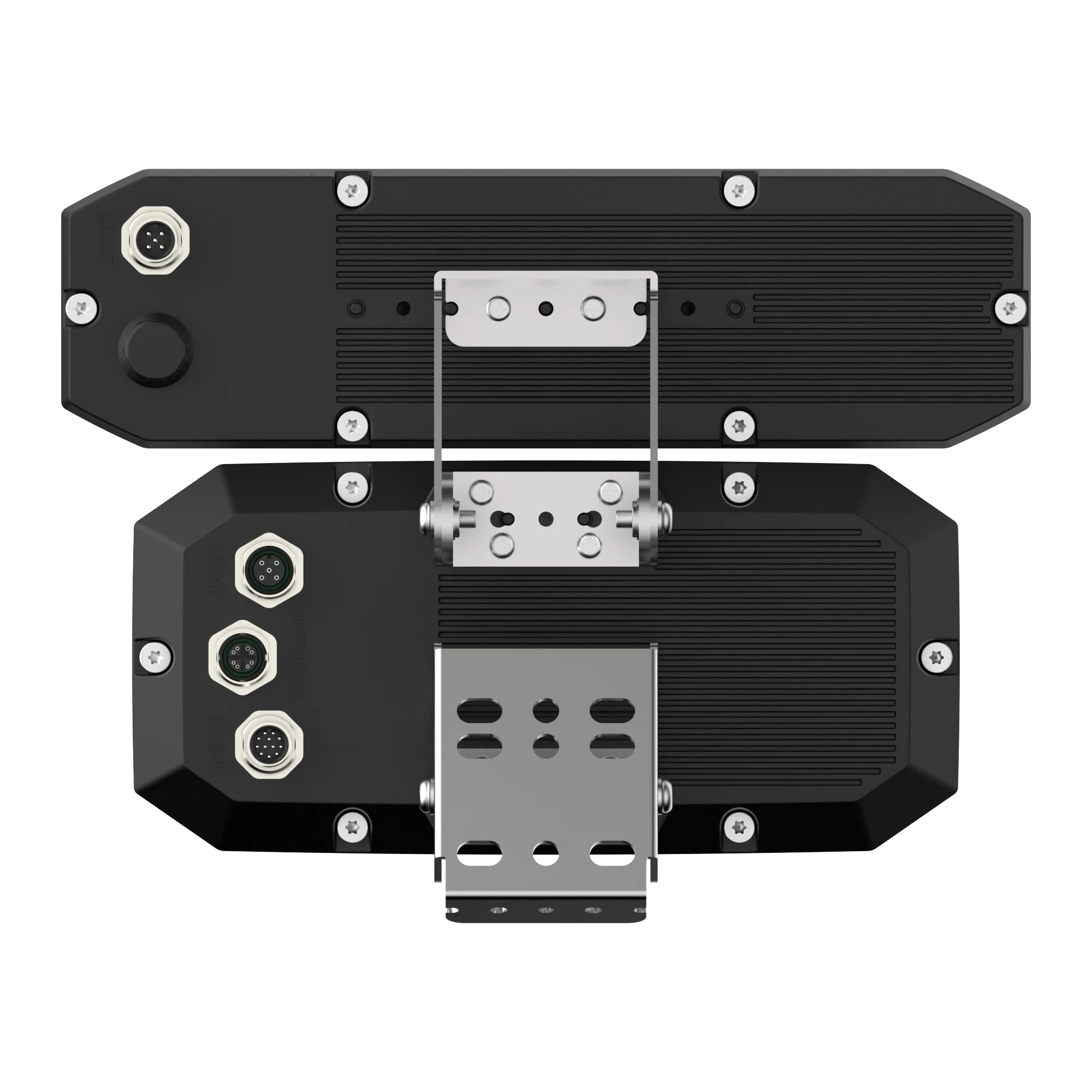

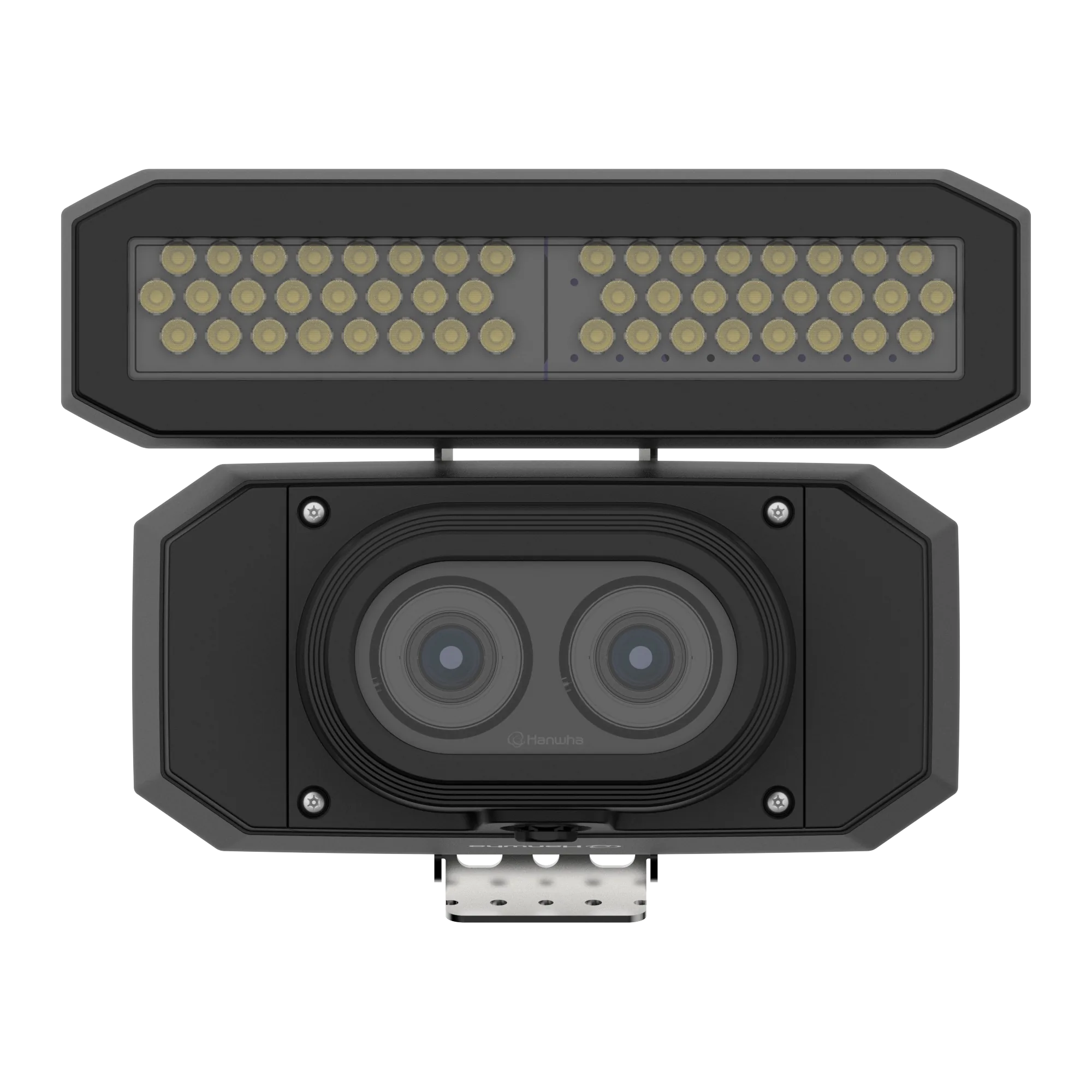

Dual sensor BCR camera with a fixed 35mm focal length (Narrow FoV). Mono and colour sensors sit in one housing, so barcode reading and video capture come from the same device, and codes can be read from multiple orientations. Pixel size is 3.45㎛ and the minimum object distance 0.2m (0.66ft), while focus and iris are set manually on a C mount. The global shutter spans 1/30~1/10,000s (33.3ms~100㎲), complemented by SSNR noise reduction, manual gain and AWC or manual white balance. Illumination comes from 48EA white LEDs at 5700K via an M12 5pin connector. Supported symbologies include the 1D codes Code128, CODE39, CODE93, Codabar, ITF, UPC and EAN plus QRcode, DataMatrix, Maxicode and PDF417; networking uses an M12 8pin connector (10/100/1000BASE-T) with H.265/H.264 and MJPEG, unicast for up to 6 users and multicast support.
- Fixed 35mm focal length, C mount
- Mono and colour sensor in one device
- Global shutter 1/30~1/10,000s
- 48EA white LEDs, 5700K, M12 5pin
- 1D and 2D codes including QRcode and PDF417
- M12 8pin network connector (10/100/1000BASE-T)
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (2)
- Barcode Type 1D Code
- Code128, CODE39, CODE93, Codabar, ITF(Interleaved 2 of 5), UPC, EAN
- Barcode Type 2D Code
- QRcode, DataMatrix, Maxicode, PDF417
Certifications & Standards (3)
- Certifications & Standards – EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS-2 2.2.9 (shock resistance), IEC 60068-2-6, IEC 60068-2-27
- Certifications & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C
- Environmental & Electrical / Operating Condition – Temperature
- -40°C~+55°C(-40°F~+131°F)
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -40°C~+60°C(-40°F~+140°F)
- Environmental & Electrical – Input Voltage
- 24VDC, M12 12pin connector
- Power Consumption 24VDC
- Max 35.4W, Typical 13.7W * Max: LED On Typical: LED Off
General (2)
- General / Memory – Flash
- 512MB
- General / Memory – RAM
- 4GB
Lens (5)
- Lens – Focal Length (mm)
- 35mm
- Lens – Focus Control
- Manual
- Lens – Lens Type
- Manual
- Lens – Min. Object Distance
- 0.2m (0.66ft)
- Lens – Mount Type
- C mount
Mechanical (5)
- Mechanical – Color
- Black
- Mechanical – Material
- Aluminum
- Mechanical – Product Dimensions
- Camera: 218x104.1x127.1mm LED: 255.8x73.8x49.8mm Total: 255.8x181x127.1mm(with install bracket)
- Mechanical – Product Weight
- Camera: 1897g LED: 996g Total: 3438g(with install bracket)
- Mechanical – RAL Code
- RAL9005
Network (7)
- Network / Application Programming Interface – ONVIF
- M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Unicast
- Up to 6 users
- Network – Ethernet
- M12 8pin connector(10/100/1000BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP(TCP, UDP Unicast), MQTT
- Network – Video Compression
- H.265/H.264: Main/High, MJPEG
Operational (10)
- LED Color
- White(M12 5pin connector)
- LED Color Temperature
- 5700K
- LED Quantity
- 48EA
- Operational / Alarm Interface – In/Out
- Output 1ea
- Operational / Electronic Shutter – Mode
- Global shutter mode
- Operational / Electronic Shutter – Speed Range
- 1/30~1/10,000s (33.3ms~100㎲)
- Operational – Digital Noise Reduction
- SSNR
- Operational – Gain Control
- Manual
- Operational – Video Rotation
- Flip, Mirror
- Operational – White Balance
- AWC, Manual
Security (9)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – Secure Storage
- HTPM(Hanwha Trusted Platform Module)
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (1)
- Video – Pixel Size
- 3.45㎛
