5MP, Door Jamb with 2.45mm Lens (black), for PNM-C20000QB
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- SLA-F2480DA
- EAN / GTIN
- 8801089238825
- Weight
- 0.63 kg
- Dimensions (W×H×D)
- 207 × 117 × 97 mm
Description

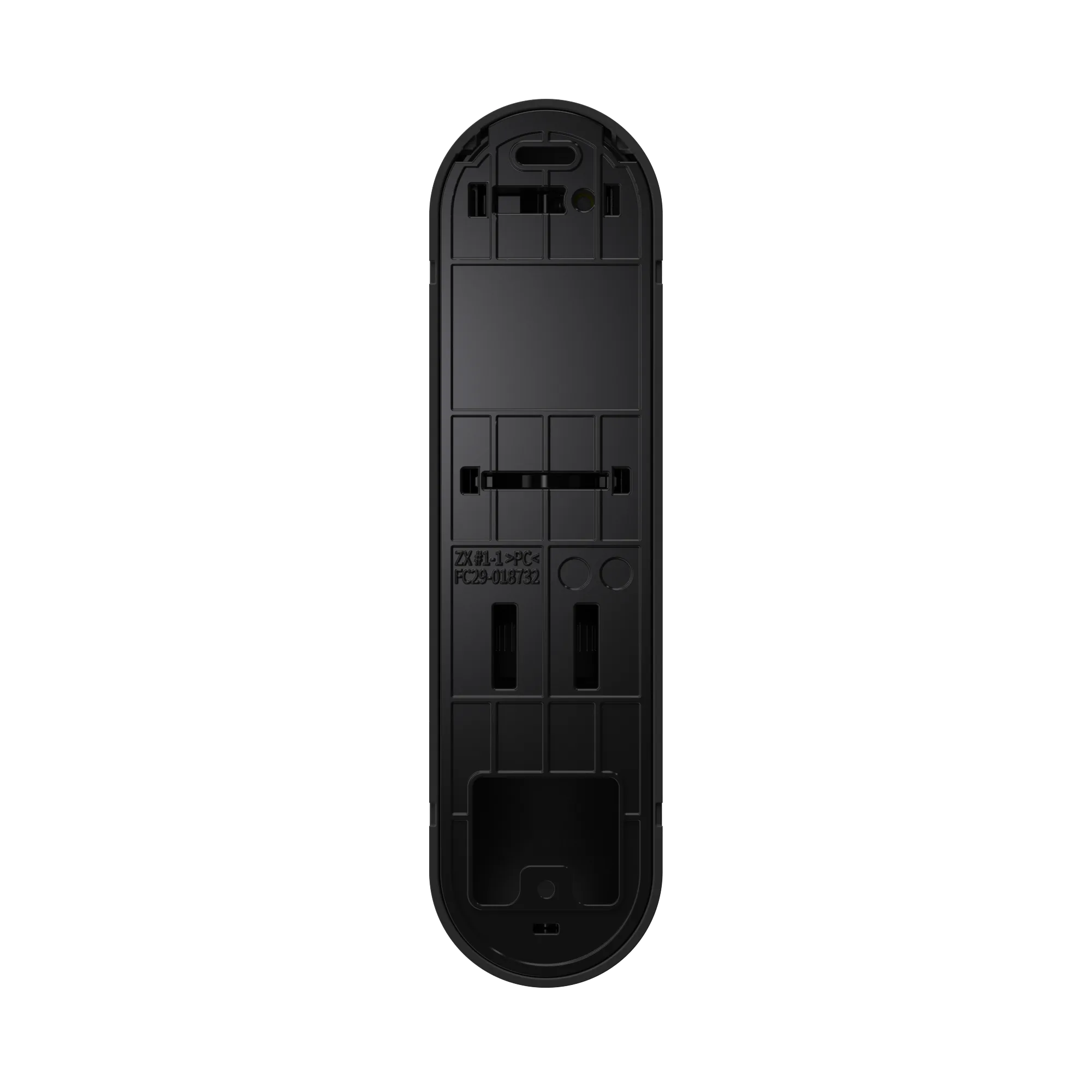

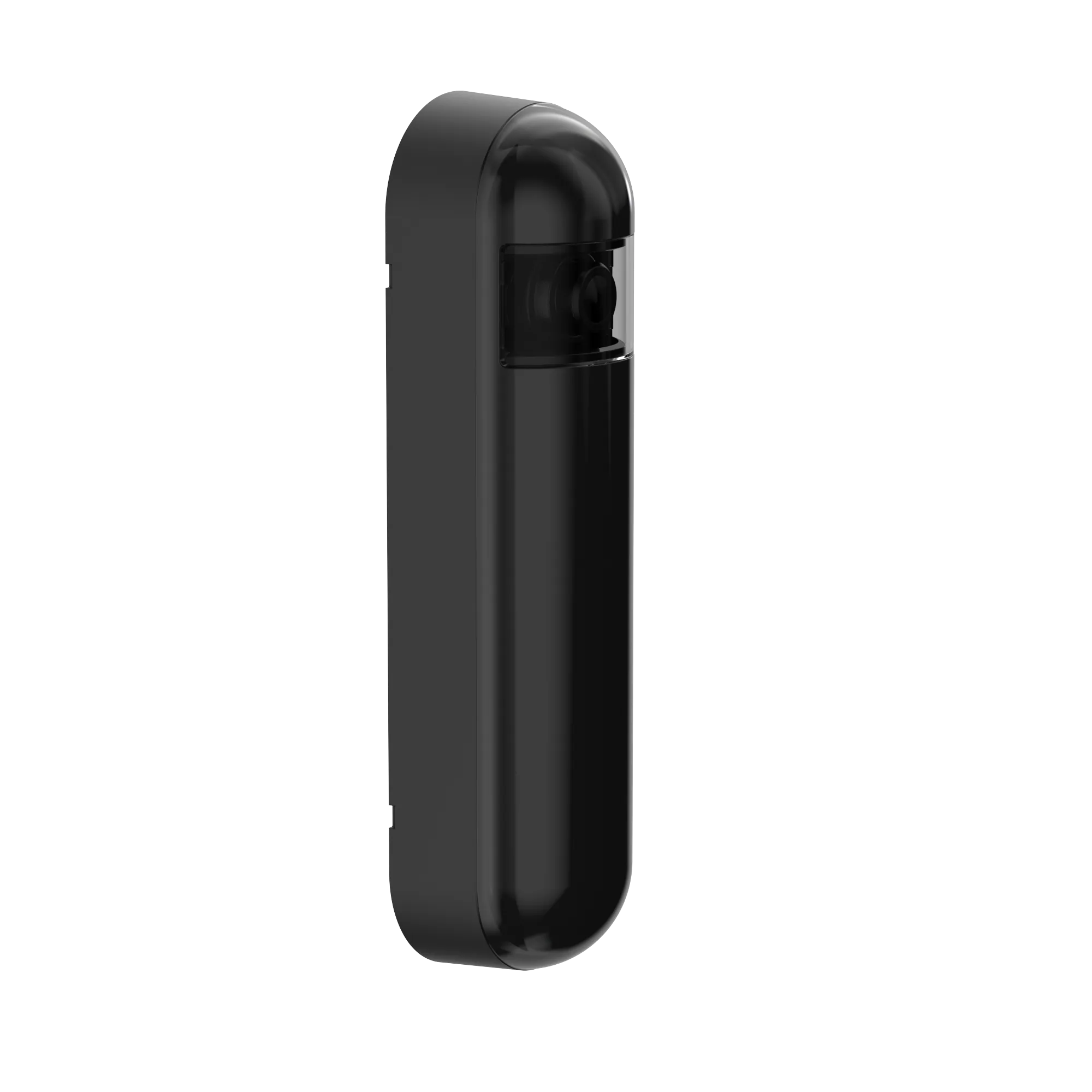

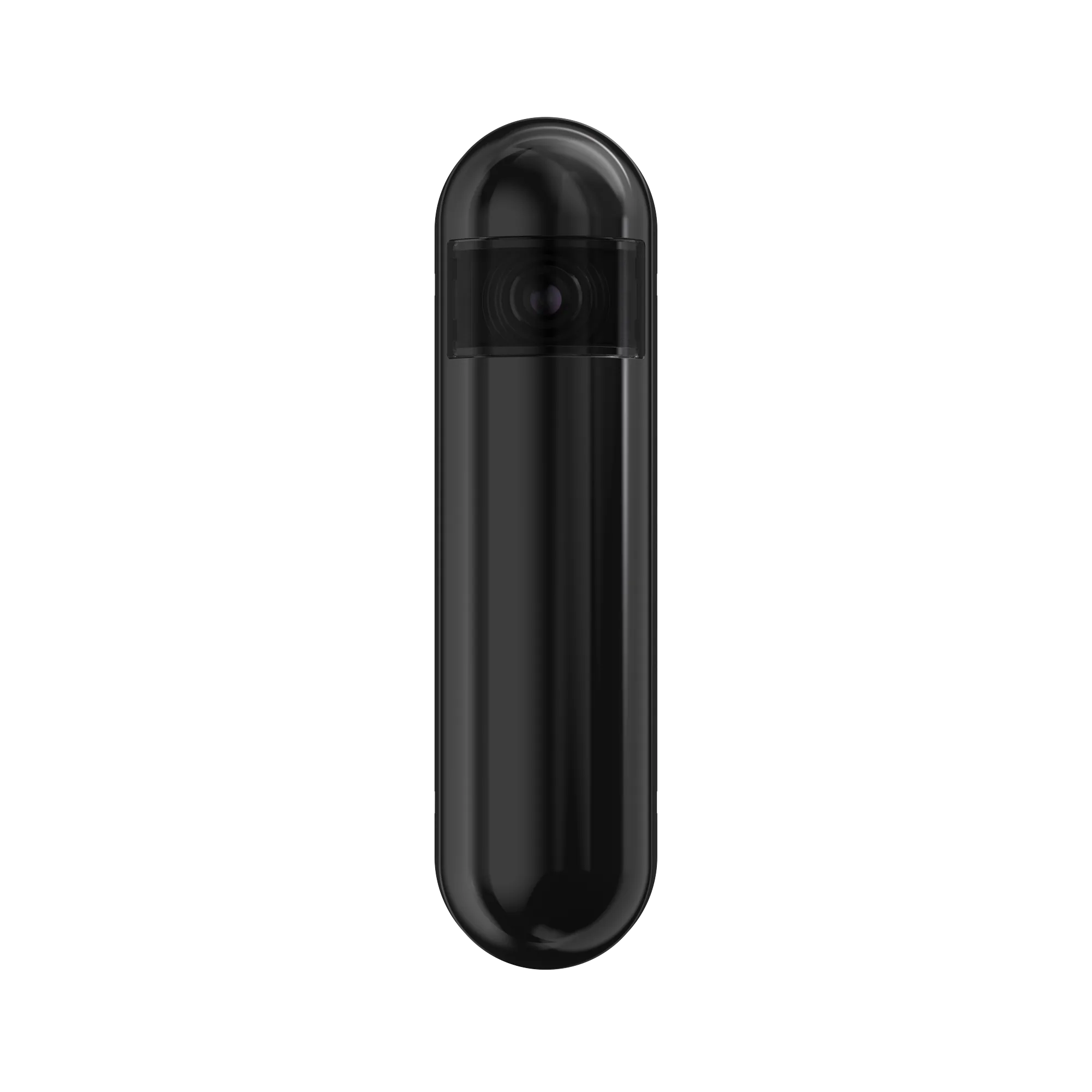

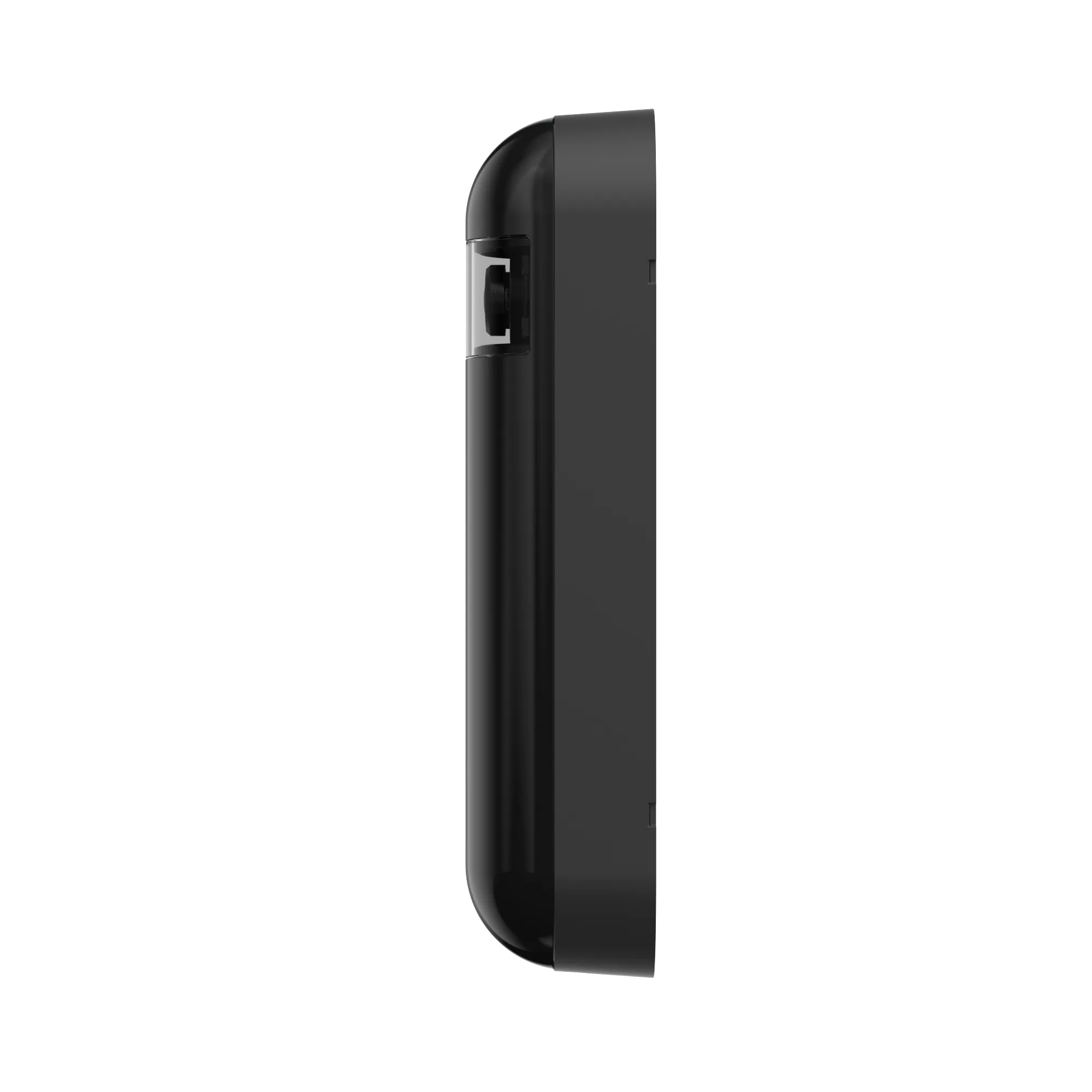

Finished in black, the SLA-F2480DA is a doorjamb lens module with 5-megapixel resolution (2560 x 1440). Imaging is handled by a 1/2.8-inch CMOS sensor behind a fixed 2.45 mm lens with a maximum aperture of F2.0, covering 123° horizontally, 91° vertically and 159° diagonally. Minimum illumination is 0.08 lux in both colour and black-and-white mode. The module links to the main unit over RJ12, an 8 m cable is supplied, and the head pans through ±30°. Lens and plastic housing are included, hidden security screws keep the installation discreet, and operation is specified from -10 °C to +55 °C at 0 to 95 % relative humidity. It is intended for use with the PNM-C20000QB.
- 5 megapixel (2560 x 1440), 1/2.8-inch CMOS
- Fixed 2.45 mm focal length, F2.0
- 123° x 91° x 159° field of view
- ±30° panning range
- 8 m cable, RJ12 connection
- Black plastic housing with hidden security screws
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Certification & Standards (3)
- Certification & Standards EMC
- FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certification & Standards – Safety
- UL 62368-1, CAN/CSA C22.2 NO. 62368-1
- Environment
- IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
Environmental & Electrical (4)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH
- Environmental & Electrical / Operating Condition – Temperature
- -10°C ~ +55°C (+14°F ~ +131°F)
- Environmental & Electrical / Storage Condition – Humidity
- Less than 90% RH
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
Lens (8)
- Lens / Angular Field of View – Diagonal
- 159°
- Lens / Angular Field of View – Horizontal
- 123°
- Lens / Angular Field of View – Vertical
- 91°
- Lens – Focal Length (mm)
- 2.45
- Lens – Focus Control
- Fixed
- Lens – Mount Type
- RJ12 connected with main unit
- Max. Aperture Ratio Tele
- 2.0
- Max. Aperture Ratio Wide
- 2.0
Mechanical (5)
- Mechanical – Color
- Black
- Mechanical – Material
- Plastic
- Mechanical – Product Dimensions
- 48.29(W)x37.0(H)x174.01(D)mm(1.9x1.46x6.85"), Cable: 8m(26.2ft)
- Mechanical – Product Weight
- 124.5g(0.27lb), Cable: 350g(0.77lb)
- Supported products
- SLA-F2480DA
Pan (1)
- Pan / Tilt / Rotate / Pan / Tilt / Rotate Range – Pan
- Flexible panning ±30°
Video (4)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.08
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.08
