5MP AI Compact Explosion-proof Camera
Price after sign-in
Prices and conditions are shown once you sign in with your customer account.
Sign inNot in stock · delivery 3-4 days
Product data
- Manufacturer
- Hanwha Vision
- Article number
- TNO-C8083E
- EAN / GTIN
- 8801089227935
- Weight
- 5.49 kg
- Dimensions (W×H×D)
- 370 × 178 × 210 mm
Description

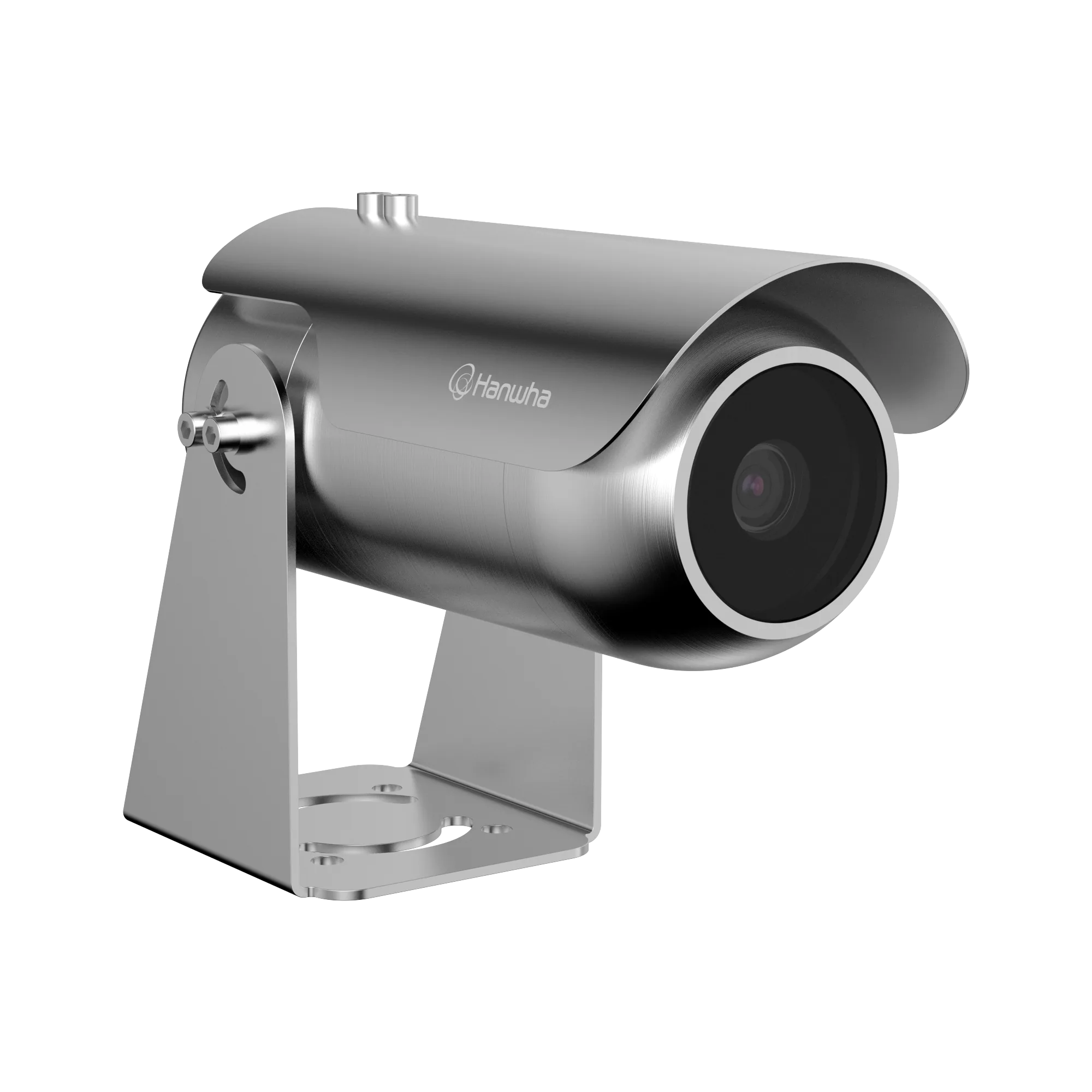

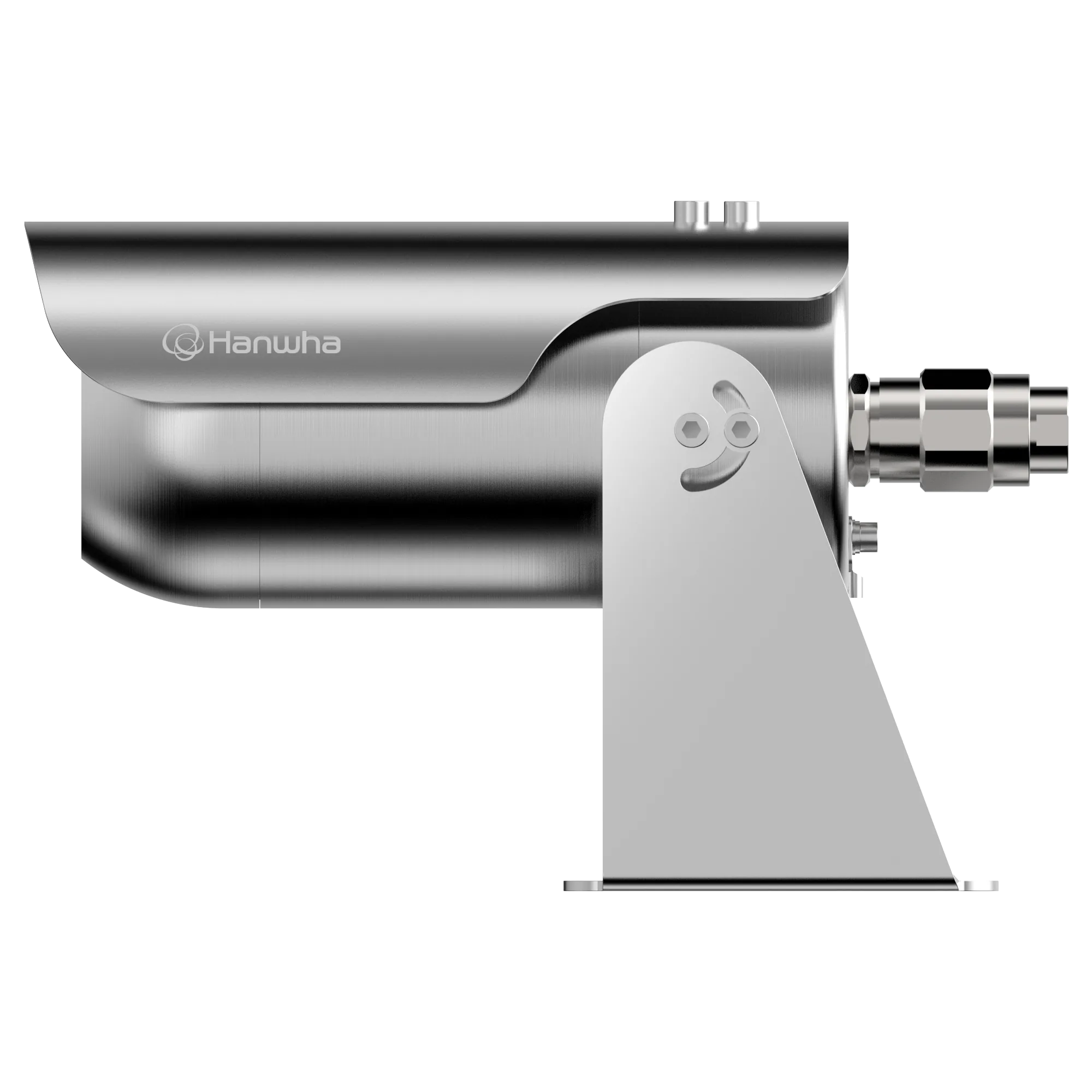

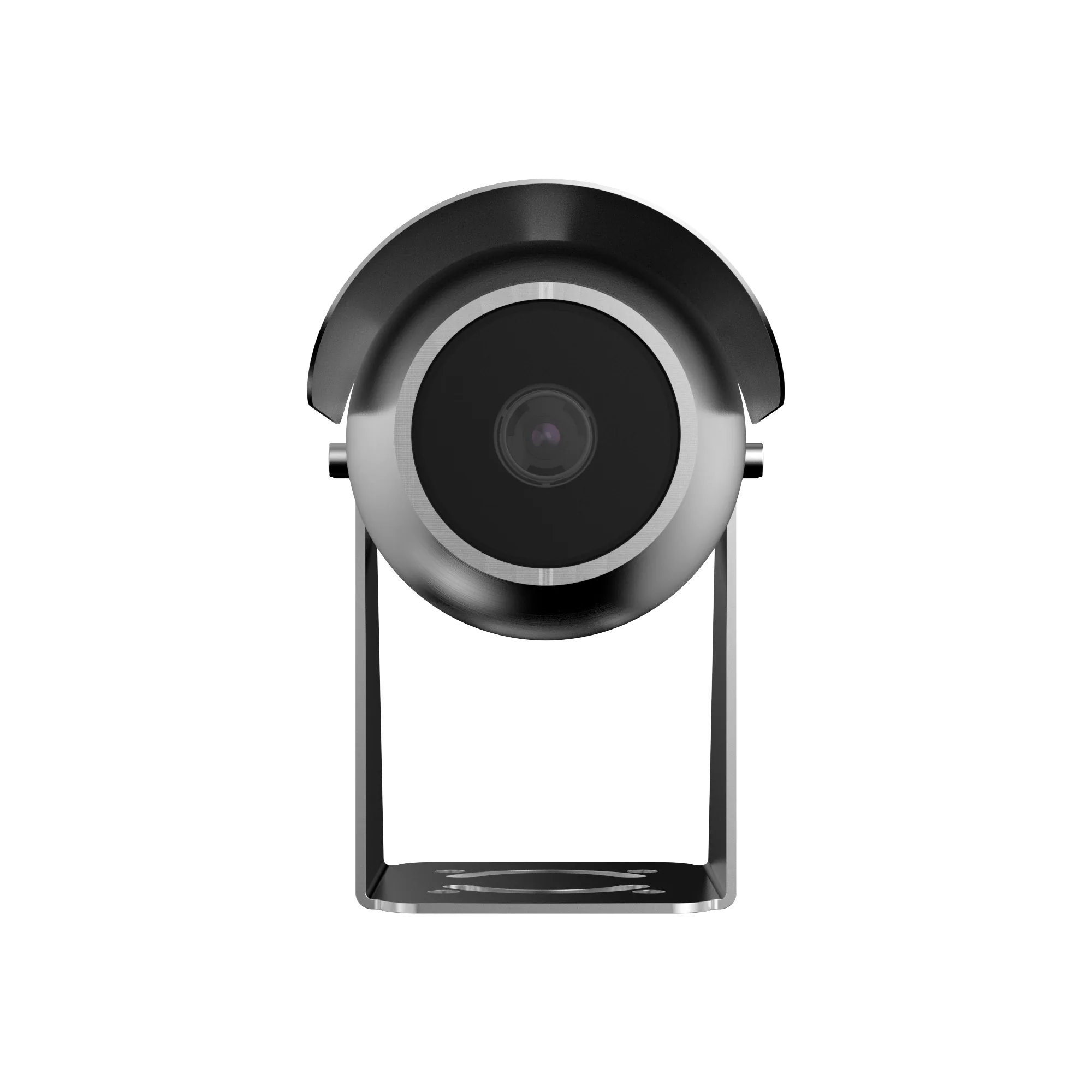

The TNO-C8083E is a compact explosion-proof bullet camera built around a 1/2.8" CMOS imager that resolves up to 2592x1944 and offers a long list of smaller formats down to 320x240. H.265 and H.264 run at 30fps/25fps (60Hz/50Hz) and MJPEG at 30fps, limited to 5fps at 5MP. Its motorised 3.2 to 10.2 mm varifocal lens gives 3.2x optical zoom, opens to F1.6 at wide and F3.1 at tele, covers 95°~29° horizontally, 69°~21° vertically and 126°~36° diagonally, and focuses from 1.2 m using simple focus. Low light is handled at 0.07 lux in colour and 0.007 lux in black and white, supported by auto ICR day and night switching, BLC, WDR and SSDR with 120 dB of dynamic range, plus WiseNR II based on the AI engine and SSNR V. The SUS316L stainless steel housing is rated IP66 and IK10 and certified explosion-proof to IECEx, ATEX, KCs and JPEx, while the LAN cable uses a flame-retardant LSZH sheath. AI object classification cuts false alarms, eight motion detection zones can be configured, and a 1/2" cable gland simplifies installation.
- 1/2.8" CMOS up to 2592x1944
- Motorised 3.2~10.2 mm lens, 3.2x optical zoom
- 120 dB WDR, WiseNR II, SSNR V
- IECEx, ATEX, KCs and JPEx explosion-proof
- IP66/IK10, SUS316L stainless steel
- LAN cable with flame-retardant LSZH sheath
Made by
Hanwha Vision (formerly Hanwha Techwin, the Wisenet brand) is the largest manufacturer in the AI4Vision catalogue: dome, bullet, PTZ, fisheye, multi-sensor and thermal cameras, network recorders, the Wisenet WAVE video management system, encoders and decoders, monitors, IP audio, intercom and access controllers, plus mounts and housings. The P and X series cameras carry AI video analytics on board. As an authorised distributor, AI4Vision carries the Wisenet range with technical data and manufacturer data sheets; trade partners see prices and availability after login.
Notes
For technical specifications and product characteristics, only the details in the manufacturer's current product datasheet are authoritative. Illustrations may differ from the scope of delivery.
Specifications
Analytics (7)
- Analytics / Analytics Events – Based on AI Engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Analytics / Analytics Events – Normal
- Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear)
- Analytics / Attributes – Person
- Upper/Lower clothes color
- Analytics / Attributes – Vehicle
- Type(car, bus, truck, motorcycle, bicycle), Color
- Analytics / Business Intelligence – Based on AI Engine
- People counting, Queue management, Heatmap, Vehicle counting
- Analytics – Classified Object Type
- Person, Vehicle
- Analytics – Thumbnail
- BestShot
Certifications & Standards (2)
- Certifications & Standards – EMC
- CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, KS C 9832 Class A, KS C 9835
- Certifications & Standards – Environment
- IEC 60529 IP66, IEC 62262 IK10, ATEX II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db, IECEx Ex db IIC T6 Gb, Ex tb IIIC T80°C Db, JPEx, KCs, CCC, INMETRO
DORI (EN62676-4 standard) (8)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Tele
- 186.9m(613.28ft)
- DORI (EN62676-4 standard) / Detect (25PPM/ 8PPF) – Wide
- 42.7m(140.20ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Tele
- 18.7m(61.33ft)
- DORI (EN62676-4 standard) / Identify (250PPM/ 76PPF) – Wide
- 4.3m(14.02ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Tele
- 75.4m(245.31ft)
- DORI (EN62676-4 standard) / Observe (63PPM/ 19PPF) – Wide
- 17.2m(56.08ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Tele
- 37.4m(122.66ft)
- DORI (EN62676-4 standard) / Recognize (125PPM/ 38PPF) – Wide
- 8.5m(28.04ft)
Environmental & Electrical (7)
- Environmental & Electrical / Operating Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Operating Condition – Others
- Start up should be done at above -30°C
- Environmental & Electrical / Operating Condition – Temperature
- -30°C~+55°C(-22°F~+131°F)
- Environmental & Electrical / Power Consumption – PoE
- Max. 9.5W, typical 5.30W
- Environmental & Electrical / Storage Condition – Humidity
- 0~95% RH(non-condensing)
- Environmental & Electrical / Storage Condition – Temperature
- -50°C~+60°C(-58°F~+140°F)
- Environmental & Electrical – Input Voltage
- PoE(IEEE802.3af, Class3)
General (2)
- General / Memory – Flash
- 1GB
- General / Memory – RAM
- 2GB
Lens (10)
- Lens / Angular Field of View – Diagonal
- 126°~36°
- Lens / Angular Field of View – Horizontal
- 95°~29°
- Lens / Angular Field of View – Vertical
- 69°~21°
- Lens / Max Aperture Ratio (F number) – Tele
- 3.1
- Lens / Max Aperture Ratio (F number) – Wide
- 1.6
- Lens / Zoom Ratio – Optical
- 3.2x
- Lens – Focal Length (mm)
- 3.2~10.2
- Lens – Focus Control
- Simple focus
- Lens – Lens Type
- DC auto iris(IR corrected)
- Lens – Min. Object Distance
- 1.2m(3.93ft)
Mechanical (4)
- Mechanical – Color
- Silver
- Mechanical – Material
- Stainless(STS316L)
- Mechanical – Product Dimensions
- ø110.5 x 215mm(ø4.35x8.46")
- Mechanical – Product Weight
- 4770g(10.51Ib)
Network (11)
- Network / Application Programming Interface – ONVIF
- S, T, M
- Network / Application Programming Interface – Others
- SUNAPI(HTTP API), Hanwha Vision Open Platform
- Network / Streaming – Multicast
- Support
- Network / Streaming – Multiple Streaming
- Up to 5 profiles
- Network / Streaming – Unicast
- Up to 20 users
- Network – Bitrate Control
- H.265/H.264: CBR or VBR, MJPEG: VBR
- Network – Direct Cloud Connection
- Support
- Network – Ethernet
- RJ-45(10/100BASE-T)
- Network – Protocol
- IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Network – Smart Codec
- Manual, WiseStreamⅢ
- Network – Video Compression
- H.265/H.264: Main/Baseline/High, MJPEG
Operational (19)
- Operational / Electronic Shutter – Mode
- Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Operational / Electronic Shutter – Speed Range
- 1/5~1/25,000sec
- Operational / Motion Detection – Quantity
- 8ea
- Operational / Motion Detection – Shape
- 8point Polygonal zones
- Operational / Privacy Masking – Color / Option
- Gray, Green, Red, Blue, Black, White
- Operational / Privacy Masking – Dynamic Privacy Masking: Color / Option
- Mosaic
- Operational / Privacy Masking – Quantity
- 32ea
- Operational / Privacy Masking – Shape
- 4point Quadrangle zones
- Operational – Alarm Events When Alarm Trigger Occurred
- File upload(image): e-mail/FTP, Notification: e-mail, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
- Operational – Alarm Triggers
- Analytics, Network disconnect, MQTT subscription
- Operational – Backlight Compensation
- BLC, WDR, SSDR
- Operational – Day & Night
- Auto(ICR)
- Operational – Digital Noise Reduction
- WiseNRⅡ(Based on AI engine), SSNRⅤ
- Operational – Digital PTZ
- Support
- Operational – Gain Control
- Low, Middle, High
- Operational – LDC
- Support
- Operational – Video Rotation
- Flip, Mirror, Hallway view(90°/270°)
- Operational – White Balance
- ATW, AWC, Manual, Indoor, Outdoor
- Operational – Wide Dynamic Range (dB)
- 120
Security (8)
- Security – Access Control
- IP-based access control
- Security – Audit
- Access / System / Event Log management
- Security – Data Protect
- Encryption credentials, Encrypt compress for live recording file export
- Security – Device ID
- Device certificate(Hanwha Vision Root CA)
- Security – Network authentication
- IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Security – OS / Firmware Protect
- Encrypted firmware, Secure boot, Signed firmware
- Security – Secure Communication
- HTTPS, WSS(WebSocket Secure), SRTP
- Security – User authentication
- Digest authentication, Prevent brute-force attack
Video (7)
- Video / Imaging Device – Size
- 1/2.8"
- Video / Imaging Device – Type
- CMOS
- Video / Max. Framerate – H.265/H.264
- 30fps/25fps(60Hz/50Hz)
- Video / Max. Framerate – MJPEG
- 30fps(@5MP Max. 5fps)
- Video / Min. Illumination (Lux) – BW(1/30sec, 30IRE)
- 0.007
- Video / Min. Illumination (Lux) – Color(1/30sec, 30IRE)
- 0.07
- Video – Resolution
- 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
